Integrum 3D BA-02 User manual

BA-02
UV HEPA Air Purifier
Owner’s
Manual

Hello!
Thank you for purchasing the BA-02 HEPA UV Air Purifier. We
hope this effective, modern system of cleanliness is just what you
have been looking for. Before using the BA-
02 HEPA UV Air
Purifier, please explore all its features in this manual and on our
website. When using the BA-02 HEPA UV Air Purifier, please
strictly follow the guidelines, proper care, and maintenance. If
you have any questions, just give us a call. We love to hear from
you!

1. Unit and Component.................................................................. 1
2. Disinfection Principle and Product Structure ............................. 2
3. Using Guide............................................................................... 3
4. Precautions ............................................................................ 4-5
5. Operation ............................................................................... 6-7
6. Disinfection and Purification Function....................................... 8
7. Technical Parameters................................................................ 9
8. Cleaning and Maintenance .......................................................10
9. Troubleshooting .......................................................................11
10. After-Sales Service .................................................................12
11. After-Sales Warranty Card ......................................................13
Content

1 | Version Aug2020
1. Unit and Component
BA-02 HEPA Air Purifier Unit
High Efficiency UV Resistant
Composite Filter
Power Cord
Manual

2 | Version Aug2020
2. Disinfection Principle and Product Structure
Disinfection Principle
This product adopts the form of circulating wind to drive the polluted air into
the ultraviolet air purifier. The polluted air then goes through the primary filter,
the high efficiency HEPA filter, the UV resistant layer, the high intensity UV
sterilization, and lastly anion purification. This process will result in the
disinfection of polluted air and into clean air. Since the ultraviolet lamp is sealed
within the disinfection chamber, the air will become disinfected after passing
through the whole chamber. This makes it so that the product does not have any
ultraviolet light leakage. The concentration of ozone from the UV is < 0.1 mg/m3,
which is in line with the national standard of 0.15mg/m3. Major components of
this product include the primary filter, high efficiency HEPA filter, UV resistant
layer, high intensity UV sterilization layer, and anion purification. Along with this,
a combination of the motor, wind wheel, control module, and air duct accessory
are necessary for the products operation.

3 | Version Aug2020
3. Using Guide

4 | Version Aug2020
4. Precautions
Forbidden Disassembly
Do not disassemble and reform by
non-professionals as to avoid
damage and injury.
Do not turn on the UV lamp after
removing the filters and anti-UV
layer.
Do not use other AC power
supplies (if the power supply
exceeds the standard specs of the
machine, it will result in damage
to the product and/or other
damage).
Insert the plug completely into the
power socket before starting the
machine. If not, this may cause
an electric shock, overheating,
and even a fire accident. DO NOT
use damaged plug or a loose
power socket.
Do not put any foreign matter into
inlet or outlet to avoid electric
shock and injury.
Remove power cord before
cleaning the machine. Doing so
will help prevent electric shock
and injury.
Do not touch the power plug with
wet hands, or else this may cause
an electric shock.
Keep the machine dry, or else it
may cause a short circuit or an
electric shock.

5 | Version Aug2020
Precautions Continued
Notice
Please turn off the power if any of the following situations
occur:
•Malfunction of any switch
•Power supply short circuits
•Abnormal heating of wires or plugs
•Any burnt smell, abnormal sound, or shocks
•Any other abnormal behavior or malfunction
Remark: If the power cord is damaged, it must be replaced by a professional from the
manufacturer, its maintenance department, or similar department to avoid danger.
Do not use this machine in
damp environments such as
bathrooms. Doing so increases
the chances of electric leakage,
electric shock, fire, etc.
Do not use insecticide sprays
while the machine is running.
Let the indoor air circulate
adequately before using the
insecticide, otherwise this can
make the machine interior
accumulate medicament
composition which is averse to
human health.
Do not wipe the machine with
alcohol or organic solutions,
otherwise this may cause
damage to the machine, an
electric shock, or a fire
accident.
Do not place machine close to
any combustible materials or
ignition sources.
Do not use this machine under
high lampblack environments
such as the kitchen. Doing so
will result in damage to the
product. This machine cannot
be used as a ventilation fan.
If this unit operates with an
electric heater, the room needs
to have ventilation. This
machine CANNOT remove
carbon monoxide. Not having
proper ventilation may result in
a carbon monoxide poisoning
accident.
Hold the plug when removing
the power plug and do not pull
the wires. In doing so, this will
help prevent a short circuit,
damage to the wires, electric
shocks, and fire accidents.
Please close any doors or
windows for faster purification
of the room air.

6 | Version Aug2020

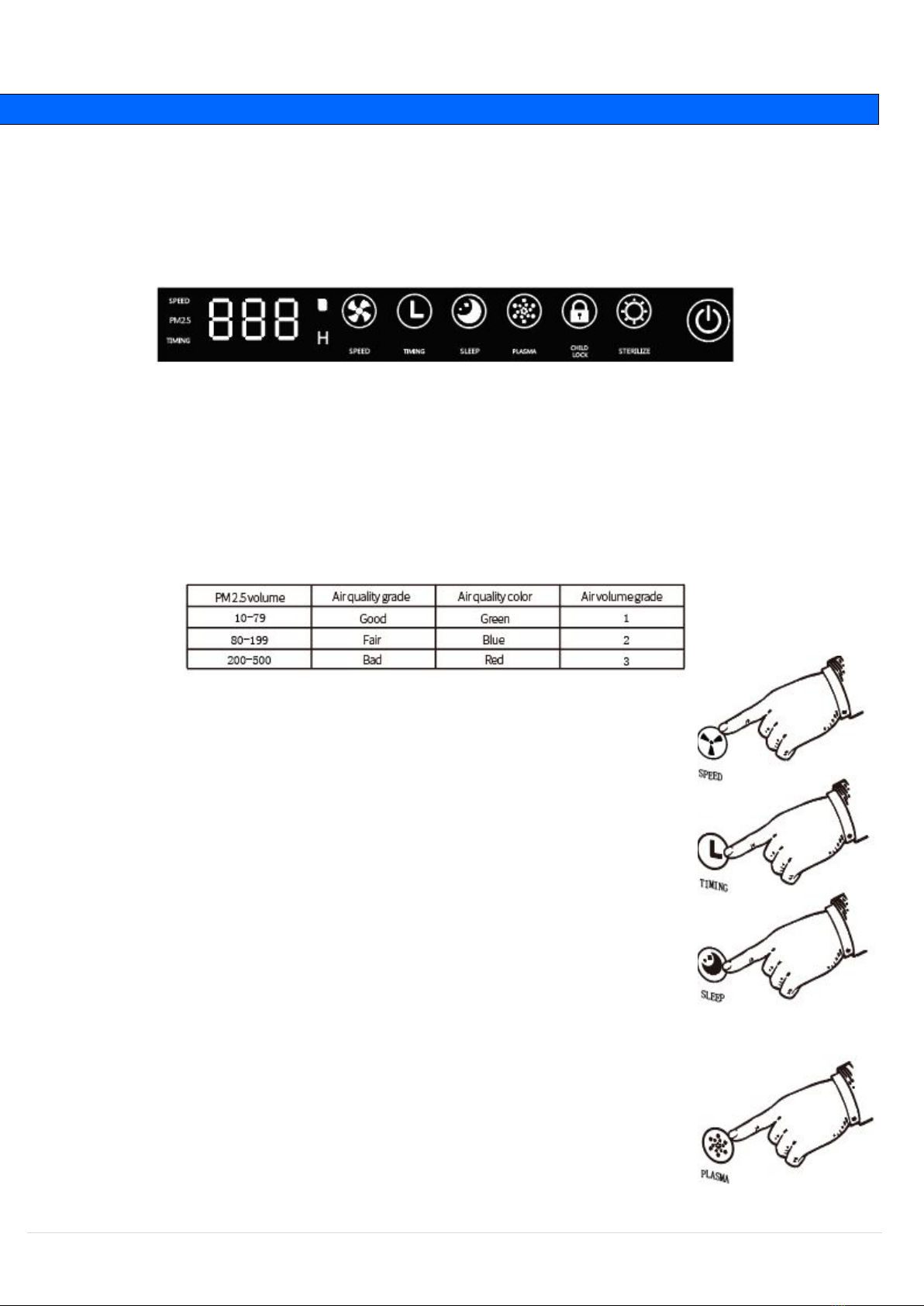

5. Operation
Turn On
Push the touch button to turn on the machine.
After Starting up the machine, it will enter automatic mode immediately and will turn on
the UV lamp.
The icon is always bright after booting up. When the corresponding function is enabled, the
text indicator light will be on, the digital area will be displayed with “- - -“ before 10s, and
then the PM 2.5 value will be displayed.
Automatic Disinfection
Boot default automatic mode: the air volume is adjusted with PM 2.5, and the sterilization
function of the UV lamp is turned on by default.
The spec relationship corresponds as follows:
Wind Speed Adjustment
Touch the “wind speed” key on the button screen. Here you can
manually adjust the disinfection air volume. Adjust the 0-3 gear and
automatic mode circulation air volume, increasing the sterilization
speed.
Timer Function
Push “timer” key to set the air purifier working time from 1-12 hours
in increments of 1 hour. When the timer function is turned on, the
indicator light is bright
Sleep Mode
1. Push “sleep” key to enter sleep mode. The air quality indicator
light will go off and the sleep indicator light is on only after 5
seconds.
2. Sleep mode is forced to work at level 1; Any key can
deactivate the sleep mode and return the machine to the pre-
sleep state.
Plasma
Push “plasma” key to enter the plasma function

7 | Version Aug2020

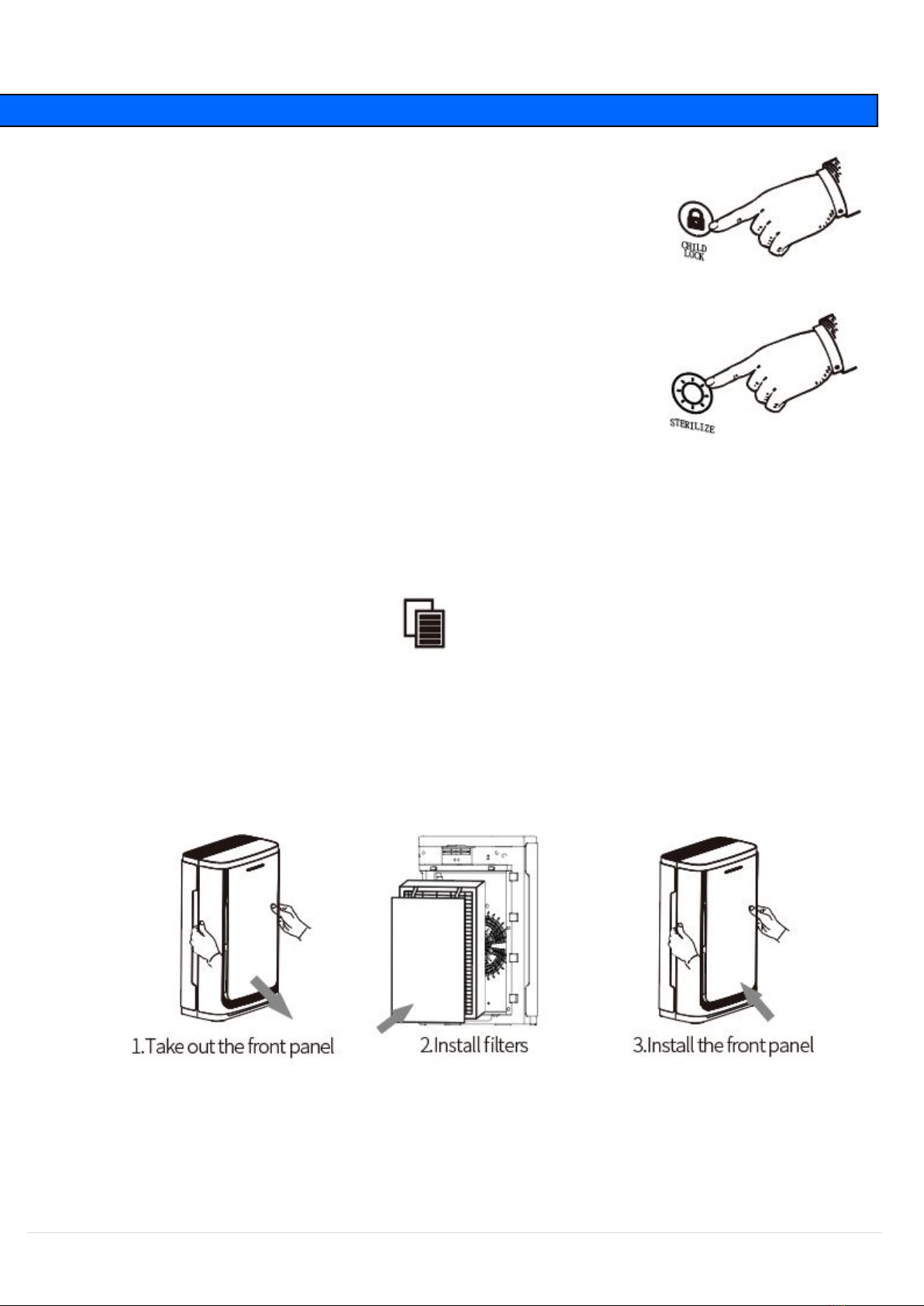

Operation Continued
Child Lock Function
1. Push “child lock” key to enter the child lock function.
A long press for 3 seconds can unlock.
2. Long press “child lock” key for 3 seconds to check
out the cumulative working time of filters. The
working time will indicate on PM 2.5 digital area, the
filter indicator light will be on, and will show four-
digital running display.
Sterilization Function
Push “disinfection” key. This will turn the UV lamp on or
off and will turn the UV sterilization function on or off.
Filter Replacement
Filter Replacement Reminder
The cumulative working time of filter is expected to reach 2000 hours. The filter
replacement indicator is bright.
Long press “child lock” key for 3 seconds to check out the cumulative working time
of the filters. You can also clear the time for the new filter.
Replacing Filter Steps
The filter indicator light will turn off after the filter is replaced.

8 | Version Aug2020
6. Disinfection and Purification Function
Physical Filtration of Bacteria and Dust
•The dust and bacteria in the air are filtered by physical filtration while the air
is sterilized by combining with a high intensity ultraviolet ray. At the same
time, the influence of dust on the UV lamp radiation intensity is effectively
prevented by the filter. The UV lamp and filter can be easily replaced and
loaded.
High Intensity Ultraviolet Sterilization
•The high intensity ultraviolet lamp tube is sealed in the disinfection chamber,
combined with the filter layer and the anti-ultraviolet layer to form the
sterilization of the high intensity ultraviolet radiation zone. Any bacteria and
viruses remaining in the filter layer and light blocking layer will be killed to
prevent secondary pollution. The bacteria in the indoor air will be killed under
the circulation of the wind wheel and wind duct.
Plasma Clean Air
•The plasma generator produces both positive and negative ions at the same
time. Since the number of negative ions is greater than the number of positive
ions, then the surplus of negative ions is still floating in the air can achieve
smoke elimination, dust removal, odor elimination, and improve air quality. All
of this helps promote human health.
Easy to Use
•When the product us started, it is automatically switched on. After the
disinfection machine is started, the ultraviolet lamp tube is opened
synchronously, and the gear is in the automatic gear, which automatically
adjusts the wind speed gear according to the air quality.

9 | Version Aug2020
7. Technical Parameters
Type
Detailed Parameters
Product Name
BA-02 HEPA UV Air Purifier
Rated Voltage
110V
Rated Frequency
60Hz
Rated Input Power
90W
UV Lamp Power
24W
Ultraviolet Wavelength
253.7nm
App Area
538 ft.
2
Disinfection Method
UV + Filters (Primary + HEPA)
Material
High Quality ABS
Product Size
15.3X9.05X24.6 in.
Carton Size
17.3X11.6X27.4 in.
Net Weight
17.6 lbs.
Gross Weight
20.8 lbs.
Power Cord Length
5.9 ft.
Sensor Type
Dust sensor
Power Levels
P0-P3 (4 Levels)
Noise P0-P1 43dB, P2-60dB, P3-71dB
(unit very quiet running at P0-P1)
Unit Coverage Area
538 ft.
2

10 | Version Aug2020
8. Cleaning and Maintenance
Main Machine: please wipe the surface of the machine regularly with a damp cloth
and a small amount of detergent water. Clean the air inlet and outlet with a brush.
UV Lamp: the radiation intensity height of the UV lamp will affect the air disinfection
effect. The UV lamp should be cleaned every month with a cotton ball with alcohol
at least once. This is to ensure that the radiation intensity height of the UV lamp is
not affected by dust.
Sensor: Regularly clean the sensor lens and surface with a wet cotton swab, and
then clean the remaining water stains on the sensor with a dry cotton swab.
Filters: there is a built-in program which will remind the user when a filter needs to
be replaced. Each filter can be used for about 6-8 months. If the filter is used in an
area with a high amount of pollution, the filter may need to be replaced earlier than
suggested. Filters can be obtained from designated dealers.
Filter Care: the UV air purifier needs to have its filter maintained regularly for the
best performance.
Primary Cotton Filter about 3 months Only using vacuum cleaner
High Efficiency HEPA Filter about 3 months Only using vacuum cleaner

11 | Version Aug2020
9. Troubleshooting
Please confirm the faults before sending for maintenance. Below are cases with a list
of things the user should check if there is an issue.
Abnormal Situation
Inspection Items
The machine cannot run
The display panel does not work.
1. Check if the power cord is connected
to the socket or not.
2. Check if the power cord is connected
to the device or not.
3. Check if the front panel is covered well
or not.
When running automatically, the air
quality indicator always shows red or
the PM 2.5 value is always on the high
data.
1. The sensor may be affected by water
vapor, cooking oil, sprays, etc. Please
move the machine to another clean
environment and try testing again.
2. Remove the cover of the sensor and
wipe the sensor with a clean soft cloth.
There is indoor air pollution, but the
purifier does not respond.
The location of the machine may be
unreasonable, making it difficult for the
machine to inhale air pollutants. Change
the position of the machine or select the
manual operation mode and adjust the
wind speed to 3 gears.
Particles are hardly removed, and the
noise is too loud.
Check whether the HEPA filter has failed
or not.
Clean the HEPA filter and primary filter
with a vacuum cleaner.
If it is not improved, replace the new
HEPA filter.
The UV Light leaks when the sterilizing
gear is turned on.
If no filter layer or light blocking layer are
placed, a closed cavity cannot form,
which will result in ultraviolet light
leakage.
The filter layer and light blocking layer
should both be placed.

12 | Version Aug2020
10. After-Sales Service
11.
One-Year Warranty and Terms
This device comes with a one-year warranty.
From the date of purchase the warranty period is one year and the warranty period
is free of charge. The following situations are not covered:
A. The machine is damaged due to human factors.
B. Damage caused by disassembling and repairing the machine without
authorization by the company.
C. Normal loss and wear during operation.
D. Filters
E. Damage caused by improper installation and use according to the operational
manual.
Matters Needing Attention
To protect your rights and interests, please pay attention to the following
information:
1. When purchasing the machine, fill out your warranty card completely and as
correctly as you can. Afterwards, get the stamp or seal of the seller.
2. Please properly store the warranty card that has your filled-out information
and seal from the seller.
3. An effective warranty card is the basic guarantee for you to enjoy the rights
and interests of the warranty (the effective warranty card must be
comprehensive, true, and free of alteration).
4. The product should not be used by persons (including children) who are
physically or mentally incapable, or who are lacking in experience or
knowledge, unless they are under the supervision of other safety personnel or
provided with instructions for the proper use of the product.

13 | Version Aug2020
11. After-Sales Warranty Card
BA-02 UV Air Purifier Warranty Card
Model
Warranty Period
DD-MM-YY
Buyer
Name
Phone
Address
Seller
Name
Phone
Address
After-Sales
Service
Description
1. Warranty Treaty
a. From the date of purchase, the warranty period is one
year, and the warranty period is free of charge.
b. The complimentary purchase is not covered by the
warranty.
c. Vouchers: purchase records and purchase vouchers
issued by the company and invoices are all
acceptable.
2. Spare Parts
Parts are provided free of charge during the warranty
period. After the warranty period, accessories will be
charged at the market price. Filters are classified as
consumables unless the filter is damaged. Otherwise,
they are not within the scope of warranty parts.

14 | Version Aug2020
To ensure that you can fully understand and correctly install and use this product,
please read the instructions carefully.
It is recommended that you store the manual properly for reference when needed.
Note: Due to product updates and replacements, if there is any difference in this
manual, refer to the actual product.
Company Name: Integrum 3D
Address: 1071 N. Batavia Street Orange, CA 92867
