INTRODUCTION
INTRODUCTION TO INTELLIAN i9P
FEATURES OF INTELLIAN i9P
BASIC SYSTEM CONFIGURATION OF INTELLIAN i9P
INSTALLATION THE ANTENNA
SYSTEM COMPONENTS
TOOLS REQUIRED FOR INSTALLATION
PLANNING THE INSTALLATION
INSTALLING THE ACU
ACU DIMENSIONS
CONNECTING THE SYSTEM TO A GPS
AUTO LNB SKEW ANGLE ADJUSTMENT
OPERATION INSTRUCTION
INTRODUCTION
OPERATING THE ACU
ACU SOFT KEYS
NORMAL MODE
SETUP MODE
OPERATION USING PC CONTROLLER PROGRAM
INTRODUCTION
PROGRAM INITIALING AND SERIAL PORT SETUP
MAIN MENU
CONTROLLER MENUS
PREPARATION FOR TRANSPORTATION
WARRANTY
APPENDIX : TECHNICAL SPECIFICATION
4
4
4
5
6
6
9
10
15
15
18
19
20
20
20
20
21
24
45
45
46
47
49
58
59
60
Table of Contents

4
Intellian Satellite TV Antenna Systems
Introduction
Features of Intellian i9P
Enjoy satellite broadcasts at sea
Intellian i9P is the most modern antenna system that enables you to
receive a high quality broadcasting signal at sea, where the atmospheric
and environmental condition can be challenging.
Fully automatic control system
Fully automatic control system allows you to simply turn the power
switch on, and have crystal clear, high quality satellite television in motion
or at anchor.
Fast and efcient search for the satellite
The WRS (Wide Range Search) algorithm allows for the antenna system
to search the satellite within the shortest amount of time and to detect
the satellite signal under any position and with any directional movement
of the ship.
Outstanding reliability
The Intellian i9P is a highly reliable system through the implementation of
a modularized design, and the usage of proven and tested components.
Built-in GPS
The Intellian i9P has an embedded GPS, which allows for the upload of
GPS data automatically for an even faster and stable system.
Built-in automatic skew angle control system
The automatic skew control system allows Intellian i9P to maintain the
optimal skew angle at all times and ensure the maximum level of satellite
signal level.
Introduction to Intellian i9P
Intellian i9P is a digital satellite antenna system designed specically
for all types of vessels (Anchored or transit) to automatically identify,
track and capture satellite signals from the Digital Video Broadcasting
(DVB: the international standard for digital TV transmissions) compatible
satellites.
Specically, Intellian i9P has Wide Range Search (WRS) algorithm, which
minimizes the search time during initialization, and Dynamic Beam
Tilting (DBT) technology, which dynamically shapes the antenna beam
to utilize stabilization. While tracking the target satellite, DBT technology
uses a high-performance, constantly adjusting sub-reector which
allows the antenna to remain relatively still, eliminating the constant
whine of stepper motors while staying locked on to the satellites.
The i9P has a built-in GPS system which enhances the speed of satellite
signals acquisitions. In addition, the i9P provides the embedded auto
skew angle control system to maintain the optimal signal strength
and increase the quality of satellite receptions in weak satellite single
coverage area.

5
Figure 01 : Basic System Conguration
Basic System Conguration
For your satellite TV system to work properly, the system will have to be
connected with all of the provided components properly, as shown in
the gure below (see the “Installation” section of this manual). Separate
purchase of a satellite receiver and a TV is required.
Note: Dish Network and Bell TV users please refer to the Intellian Dish
Network MIM Installation and User Manuals.
ACU
NMEAANTENNA
ANT RF1 RECEIVER
FUSEDC 9 - 30 V PC INTERFACE
FG - +
+ -
IRD 2 (Not supplied)
(Optional)
(Optional)
(Optional)
IRD 3 (Not supplied)
IRD 4 (Not supplied)
9-30V DC Power NMEA GPS PC Cable
Satellite Receiver (IRD)
TV (Not supplied)

6
Intellian Satellite TV Antenna Systems
Figure 02 : Antenna Unit
System Components
The Intellian i9P consists of two major units, antenna assembly unit and
antenna control unit.
Antenna Unit
The antenna of Intellian i9P is manufactured with the following compo-
nents for the optimum search and reception of the satellite signal.
• Mechanical Unit – manipulates the antenna to receive the optimal
satellite signal regardless of the movement of the vessel.
• Control Unit – controls mechanical operation of the antenna.
• RF Unit – transmits the optimum satellite signal to the receiver.
• Radome – protects the antenna from the severe marine environ-
ment.
Installation

7
Figure 03 : Antenna Control Unit (ACU)
Antenna Control Unit (ACU)
Antenna Control Unit (ACU) provides the power to the antenna and con-
trols the various settings of the antenna. Additionally, Vacuum Fluores-
cent Display (VFD) allows for you to operate the ACU in the dark.
The functions of ACU are as follows:
• Provide power for the antenna unit
• Monitor the antenna status
• Change the target satellite
• Set up the user environment
• Set the current GPS information
• Set satellite information
• Move antenna manually
• Perform self-diagnosis of the antenna
• Set up the interface with a PC
Front
Rear
NMEA
ANT RF1 RECEIVER
FUSEDC 9 - 30 V PC INTERFACE
FG - +
+ -

8
Intellian Satellite TV Antenna Systems
Item
Qty
Size
Self-Tapping Screw
5
(M4 X 16L)
Machine Screw
5
(M3 X 8L)
Hex.Bolt
5
Flat Washer
5
Spring Washer
5
Hex. Nut
5
Item
Qty
Antenna
ACU
Installation Kit
Contains the items required for securing the antenna unit and ACU to the vessel.
Other Components
Figure 05 : List of the Supplied Parts
Figure 04 : Installation Bolt Kit
No Components Size Qty
1 ACU Bracket - 2
2RG6
(Antenna - ACU RF Cable) 30m 1
3 RG6 (ACU - IRD Cable) 3m 1
4 Power Cable 10m 1
5 PC Serial Cable 1.8m 1
6 NMEA Connector AK950-2 1
7 Power Connector AK950-3 1
8
Hex Bolt M12x80L 5
Self-Tapping Screw
ø4x16L 5
ø3x8L 5
Flat Washer M12 5
Spring Washer M12 5
Nut M12 5
9 Install CD - 1
10 User Manual - 1
11 Mounting Template - 1
12 Quick Installation Guide - 1

9
Tools Required for Installation
Figure 06 : Required Tools for Installation
13 mm Spanner
11 mm Spanner
Phillips Head
Screwdriver
Flat Head
Screwdriver (Min. 5mm)
19 mm Spanner
5 mm Allen/Hex key

10
Intellian Satellite TV Antenna Systems
Planning the Installation
Selection of Antenna Installation Site
Install the antenna in accordance with the following procedures to
insure maximum performance.
The antenna should be installed in a place where there is all round clear
view of the horizon. Please be sure there are no obstacles within 15°
above the antenna. Any obstacles can prevent the antenna from tracking
the satellite signal (Refer to the drawing on the right).
Do not install the antenna near the radar especially on the same plane.
Its energy levels may overload the antenna front-end circuits. It is
recommended to position the antenna at least 4 feet (1.2m) above or
below the level of the radar and minimum of 15 feet (4.6m) away from
the high power short wave radars.
The mounting platform should be rigid and not subjected to excessive
vibration. The movement of the antenna can be minimized by installing
at the center of the vessel. For optimal performance of the antenna, it
is not recommended to install at any corner of the vessel, where the
movement of the vessel is the greatest. Install the bottom of the antenna
parallel to the surface of the sea and x tightly to the structure of the
vessel.

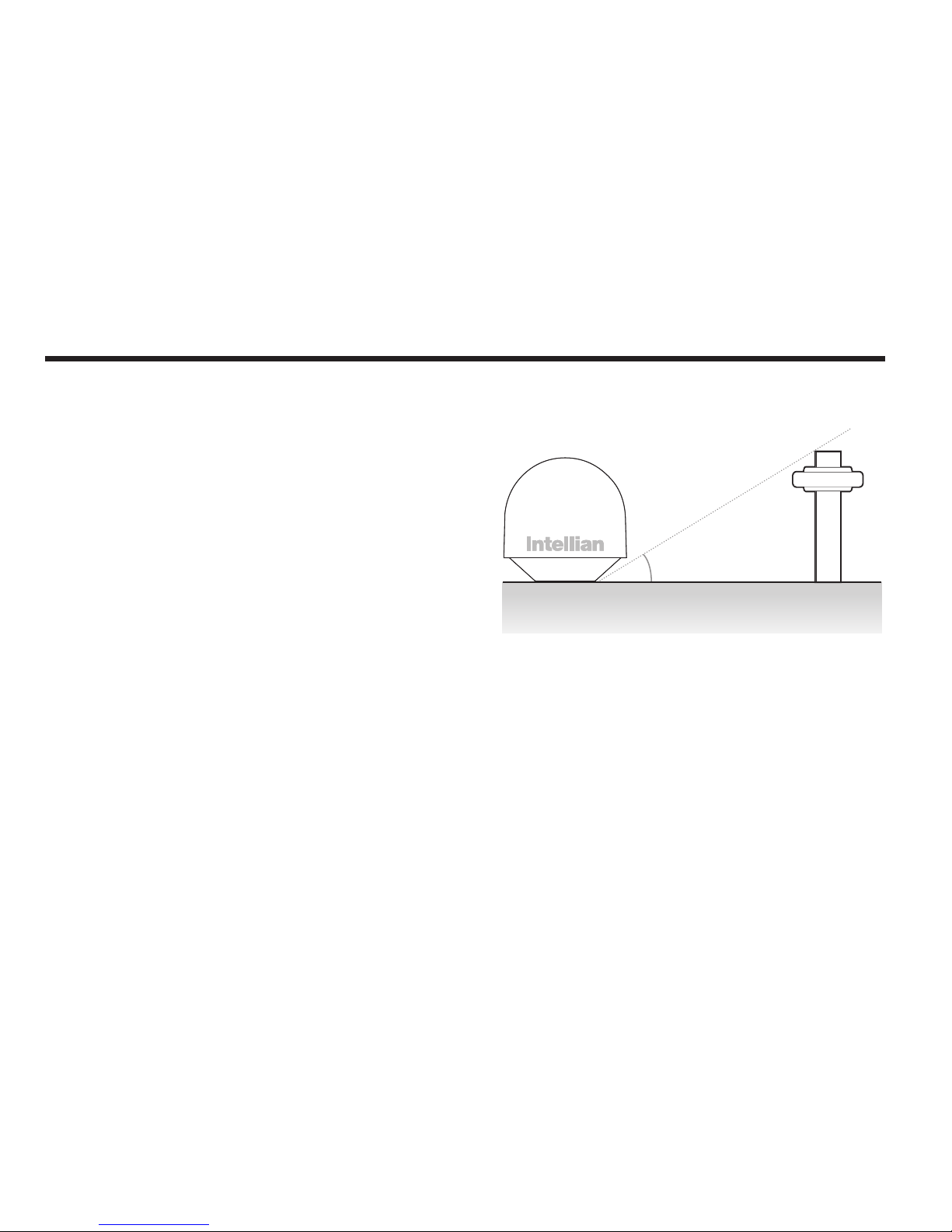

Figure 07 : Elevation Limit of Obstacles
15°
Antenna Unit Obstacle

11
Extending the Cables
The cables that have been supplied with your Intellian system should be
of adequate length to complete the installation on most boats.
Power Cable
This cable supplied at a length of 10m.
Note: Exceeding the indicated cable lengths will result in reduced
performance of your system.
Cables
Before installing the system cables, consider the following points.
•Allcablesneedtobewellclampedandprotectedfromphysical
damage and exposure to heat and humidity.
•Cableswithseverebendsarenotallowed.
•Whereacablepassesthroughanexposedbulkheadordeckhead,
a watertight grommet or swan neck tube should be used.
Power Requirements
You need to follow the power requirements to avoid damage the system.
Intellian i9P has been designed to work on a boat’s power supply rated
at 12V / 24 V DC (acceptable range: 9~30 V DC).
If your IRD(s) and television(s) require a 110V/240V AC power supply,
you will need to install a suitable DC to AC converter to operate the
unit(s) from your boat’s DC power supply.
RF Cable
This cable supplied at a length of 30m. If a longer length is required you should
replace this cabel with an extended RF cable.

12
Intellian Satellite TV Antenna Systems
Installation and Mounting of Antenna
The method of installation and mounting of the antenna may vary due
to vessel design but the following procedures are applicable in most
situations, and will result in a secure and effective installation.
Conrmation of Size Prior to Installation
• Conrm the height and diameter of the bottom surface of
the antenna before installing.
• The space must be sufcient for installing the antenna unit
considering the height and diameter of the antenna.
• The height and the diameter of the bottom surface of the antenna are
as shown in the following drawing. If possible, install the antenna
using a power tower.
Note: Before installing the antenna open the radome and remove the
shipping constraints from the antenna interior. Reinstall the radome
before operating the system. The system will not perform properly if the
radome is open.

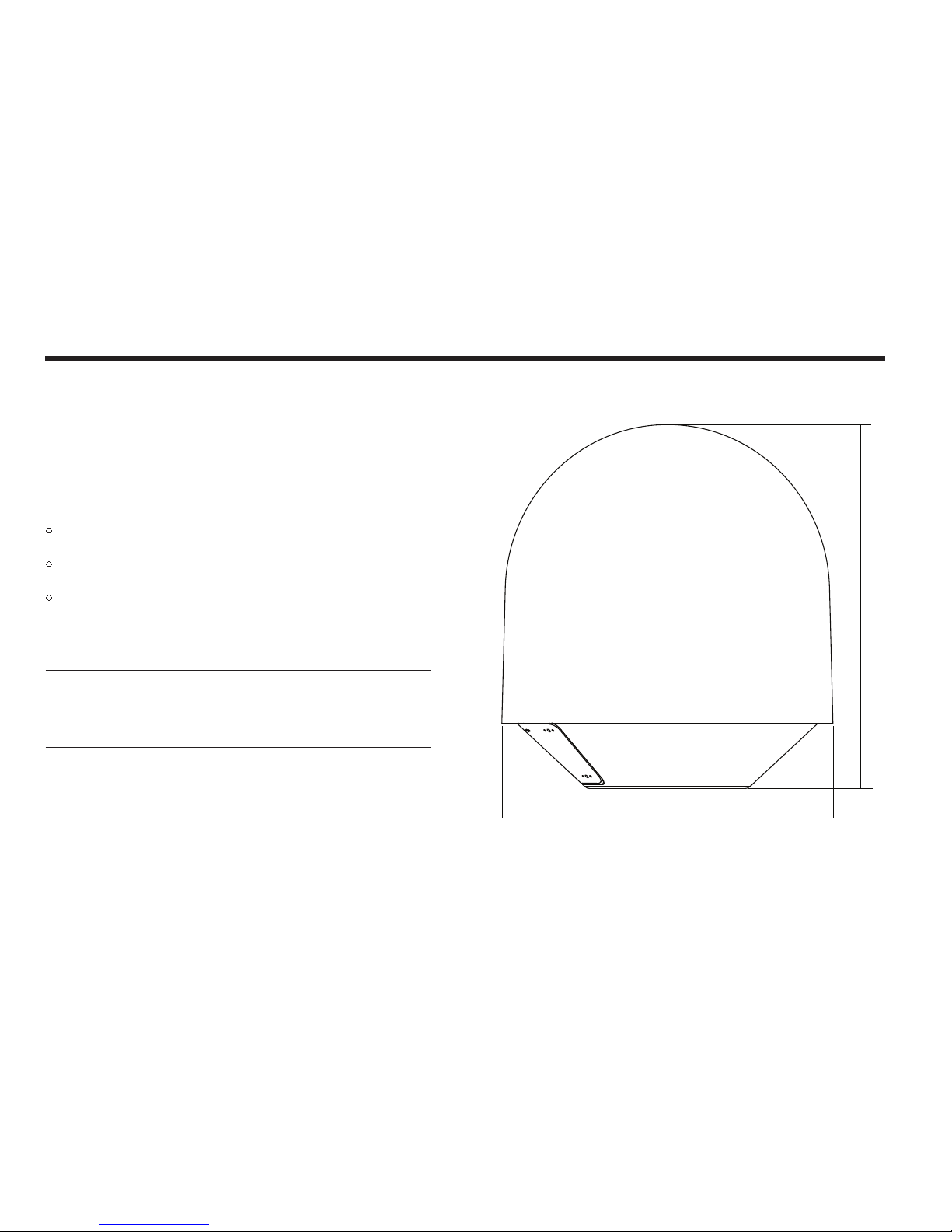

Figure 08 : Radome Dimension of i9P
121 cm (47.5”)
113 cm (44.6”)

13
Mark of the Antenna Mounting Position
Referring to the mounting template, mark where antenna will be
mounted onboard (it must be a at surface) or on a separate power
tower.
Note: If a power tower is not suitable to mount the antenna, separate
cable shock and waterproong measures must be taken to protect the
RF connector from being exposed to the sea water and external shocks.
An exposed cable may cause electric shock and cause serious damage
to the equipment.
Figure 09 : Mounting Hole Position of i9P
24.75 cm (9.74")
24.75 cm (9.74")

14
Intellian Satellite TV Antenna Systems
Connection of the Cable
Connect the RF cable through the cable glands under the radome
bottom.

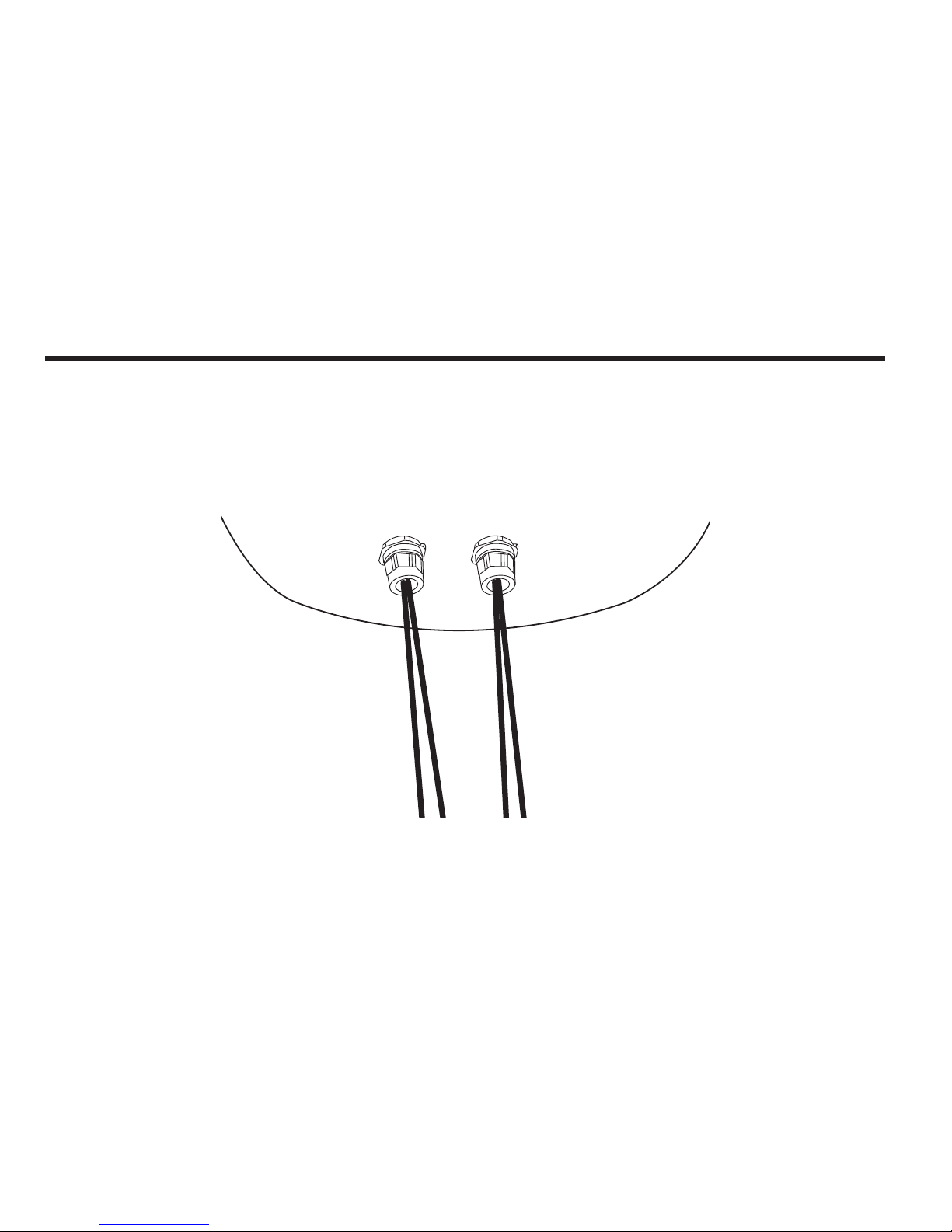

Figure 10 : Cable Glands on Radome Bottom

15
Mounting the Antenna
Attach the antenna by using the hex head bolts (M12X80L), M12 spring
washers, and M12 at washers supplied.
Figure 11 : Mounting the Antenna
M12 Hex. Bolt
Deck
Antenna Unit
M12 Flat Washer
M12 Spring Washer
M12 Hex Nut
M12 Flat Washer
19 mm Spanner

16
Intellian Satellite TV Antenna Systems
Installing the ACU
• The ACU should be installed using the two supplied Table Mounting
Brackets which allow for a top or bottom mounting conguration.
• Using the self tapping screws supplied, attach the mounting
brackets to the sides of the ACU.
• Place the ACU in the location where it is going to be installed.
• Using a pencil to mark the 4 hole positions (2 each side), and use
the appropriate drill bit to drill them.
• Connect the cables to the rear of the ACU.
Figure 13 : Installation of ACU
Selection of ACU Installation Site
The ACU should be installed below deck, in a location that is:
• Dry, cool, and ventilated.
• Easy accessible from your main TV viewing area.
Installing the ACU
5.4 cm (2.1”)
5.5 cm (2.2”)
22.8 cm (9”)
17.8 cm (7”)
21.7 cm (8.5”)
18.5 cm (7.3”)
Figure 12 : Dimension of ACU for i9P
ACU Dimensions

17
Figure 14 : Basic Conguration
Connecting the System Cables
After installation and xation of the antenna, connect the ACU to the
antenna. Refer to the drawing on the right to connect cables.
• Connect the RF cable (30m) from the RF1 connector on the
antenna power switch box to the RF1 connector on the ACU
• Connect the RF cable (3m) from the receiver connector on the ACU
to the RF connector on the IRD.
• Connect the power cable (10m) from DC power connector on the
rear of ACU to a power source at 12 VDC/ 24 VDC.
• Press the POWER ON switch in front of the ACU to start the
operation of the antenna system automatically.
ACU
NMEAANTENNA
ANT RF1 RECEIVER
FUSEDC 9 - 30 V PC INTERFACE
FG - +
+ -
IRD 2 (Not supplied)
(Optional)
(Optional)
(Optional)
IRD 3 (Not supplied)
IRD 4 (Not supplied)
9-30V DC Power NMEA GPS PC Cable
Satellite Receiver (IRD)
TV (Not supplied)

18
Intellian Satellite TV Antenna Systems
Figure 15 : GPS Connection
Your satellite TV system has a built-in GPS. If the internal GPS doesn’t
operate properly, you can directly connect your boat’s NMEA 0183 GPS
to the system through the ACU’s external GPS connector. To do this you
will need a suitable cable to connect your GPS system and the green
2-way ACU GPS connector supplied with your Intellian i9P Satellite TV
System.
Connecting the system to a GPS
1. Strip back the insulation of each conductor and connect each
terminal of the 2-way connector.
2. Tighten the locking screws.
3. Connect the +ve (positive) terminal of the ACU GPS connector to the
NMEA OUT wire of the boat’s GPS system.
4. Connect the –ve (negative) terminal of the ACU GPS connector to the
ground wire of the boat’s GPS system.
5. Ret the ACU GPS connector to the rear of the ACU.
NMEA
ANT RF1 RECEIVER
FUSEDC 9 - 30 V PC INTERFACE
FG - +
+ -
GROUND (-)NMEA OUT (+)

19
Figure 16 : Auto LNB Skew Angle Control System
Intellian i9P has an embedded auto skew angle control system.
Therefore, manual adjustment of the skew angle is not required. The
skew angle is continuously adjusted automatically through calculations
of the optimum angle by using the information of a targeted satellite
and the GPS position. With location information as ship’s longitudinal
and latitudinal position change from movement the skew angle will be
adjusted accordingly. As the ship changes position, the skew angle will
be continuously adjusted. The skew angle of the LNB is shown on the
ACU and in the GUI program.
Auto LNB Skew Angle Adjustment
Skew sensor
Skew motor
LNB

20
Intellian Satellite TV Antenna Systems
ACU Soft Keys
Press to select
On-screen option
BACK ENTER
POWER
Figure 17 : ACU Soft Keys
Operating the ACU
Introduction
This section of the handbook describes how to setup your Satellite TV
System after installing the ACU. It includes the following functions:
• System startup
• Changing the default satellite
• Monitoring the antenna status
• Setting sleep mode
• Entering setup mode
• Setting the satellite pair
• Editing satellite information
• Setting the antenna parameter
• Setting GPS
• Setting the DiSEqC method
• Display versions
• Display power status
• Setting antenna go position
• Setting antenna move step
• Setting remote control
• Setting the factory default parameters
• Performing diagnostic tests
Note: Many of the listed functions will only be required only after initial
installation of your system. Refer to the Quick Installation Guide before
operating the system.
Operation Instruction
