Intellian t110W User manual

Marine Satellite Television Antenna System
t110W/t130W
Installation and Operation Manual

Serial number of the product
This serial number will be required for the all troubleshooting or service inquiries.
© 2016 Intellian Technologies Inc. All rights reserved.
Intellian and the Intellian logo are trademarks of Intellian Technologies, Inc.,
registered in the U.S. and other countries. t110W, t130W and w-Series are
trademarks of Intellian Technologies, Inc. Intellian may have patents, patent
applications, trademarks, copyrights, or other intellectual property rights covering
subject matter in this document. Except as expressly provided in any written
license agreement from Intellian, the furnishing of this document does not give
you any license to these patents, trademarks, copyrights, or other intellectual
property. All other logos, trademarks, and registered trademarks are the property
of their respective owners. Information in this document is subject to change
without notice. Every effort has been made to ensure that the information in this
manual is accurate. Intellian is not responsible for printing or clerical errors.
Doc. No. 2016TW-UM0203-V2_4

INDEX

5
INDEX
INTRODUCTION 9
Intellian t110W/t130W Introduction 10
Intellian t110W/t130W Features 11
Basic System Conguration 12
INSTALLING THE ANTENNA 13
System Package 14
Planning the Installation 19
Antenna Installation 23
INSTALLING THE ACU 31
Mounting the ACU 32
Connecting the System's Cables 34
PC to ACU Communication Setup 38
Wi-Fi Connection 40
OPERATING THE ACU 43
Introduction 44
Normal Mode 46
Setup Mode 50
Intallation Settings 51
Antenna Settings 54
Satellite Settings 65
System Settings 74
Aptus®79
Introduction to Aptus®80
Software Installation 81
PC to ACU Communication Setup 82
Toolbar Menus 85
System Property Status Dashboard 88
Work View Tabs 90
APTUS WEB 107
Introduction 108
Main Page 109
Antenna Settings 113
Firmware & Conguration 119
Administration 125
t110W TECHNICAL SPECIFICATION 135
t130W TECHNICAL SPECIFICATION 136
WARRANTY 137

t110W/t130W – Marine Satellite Television System
6
CERTIFICATIONS

7

t110W/t130W – Marine Satellite Television System
8

9
INTRODUCTION
Intellian t110W/t130W Introduction
Intellian t110W/t130W Features
Basic System Conguration
INTRODUCTION

t110W/t130W – Marine Satellite Television System
10
Intellian t110W/t130W Introduction
The Intellian t110W/t130W is the world’s rst and only marine satellite TV antenna
capable of operating in all global markets without the need of changing the LNB unit
inside of the antenna's dome each time the vessel crosses into a different satellite
service region.
The t110W/t130W is designed completely in house; it features a 3-axis stabilized
platform with an Intellian exclusive multi-band and multi-polarized WorldViewTM Low
Noise Block-down convertor (LNB) module that offers recreational and commercial
boaters to achieve a new level of satellite TV convenience, as well as unparalleled
access to the greatest number of channels at sea.
The t110W/t130W features Intellian’s patented WRS (Wide Range Search) algorithm
for fast signal acquisition and pioneering DBT (Dynamic Beam Tilting) signal locking
technology. Designed to excel in all sea states and weather conditions, the t110W/
t130W is tested to industry-leading standards for vibration and resonance frequency,
as well as extreme shock.

11
INTRODUCTION
Intellian t110W/t130W Features
Global Satellite Services Comptibility
Intellian t110W/t130W provides the ultimate convenience to connect you up to
thousands of Free TV, pay TV, Standard Denition, and high Denition programming
all over the world with one LNB module which incorporates multi (8) LO frequencies.
Hands-Free WorldViewTM LNB Module
The Interllian WorldView LNB module is built on the highest stability of ±25 KHz and
capable of receiving multiband and multi-polariztion satellite TV service around the
globe. Therefore, users don't need to manually change the LNB inside the antenna
dome each time the vessel crosses into a different satellite service region.
DVB-S2 Digital TV Reception
Some of the HD TV services have moved to DVB-S2 transmission formats and there
will be more in the future. Thanks to Intellian's groundbreaking DVB-S2 digital TV
technology, now boaters are able to enjoy their favorite Sat TV entertainment at sea,
just like home.
Wide Elevation Range
The wide elevation range enables the t110W/t130W to have seamless signal
reception while the vessel is traveling near the Equator or Polar Regions.
Global Satellite Library
The t110W/t130W includes the pre-programmed global satellite library which allows
boaters to select the desired satellite while travelling from region to region. Once
the satellite is selected the Worldview LNB module will automatically switch to the
corresponding local frequency to receive the signal.
Dedicated Management Ethernet Port
The Management Ethernet Port on the front of the ACU enables direct and simple
network connection between a PC and the ACU. The management Port supports
DHCP network connection by default, allowing automatic IP congurations and
quick access to Intellian's remote management solution, the Aptus Web software.
Wireless Connectivity and Intellian App
The built-in Wi-Fi enables the ACU to be wirelessly connected and can be turned
on or off. Any kind of wireless devices such as PCs, laptops and smartphones can
be used to connect to the ACU and monitor, control and change the settings of the
system wirelessly. An Intellian App is available for download to access to the ACU
via Wi-Fi and operate the antenna from iPhone, iPad or other network devices.
iPhone and iPad are registered trademarks of Apple Inc.
Intellian Network Devices
Intellian Aptus Web enables connection to the t110W/t130W to monitor the real time
status of the connected system. This function provides users with direct connection
to sibling devices allowing an integrated control solution for linking multiple devices.

t110W/t130W – Marine Satellite Television System
12
Satellite Receiver (Not supplied)
Satellite Receiver (Not supplied)
Satellite Receiver (Not supplied)
Satellite Receiver (Not supplied)
110/220V AC
Ship’s Gyrocompass
(Not supplied)

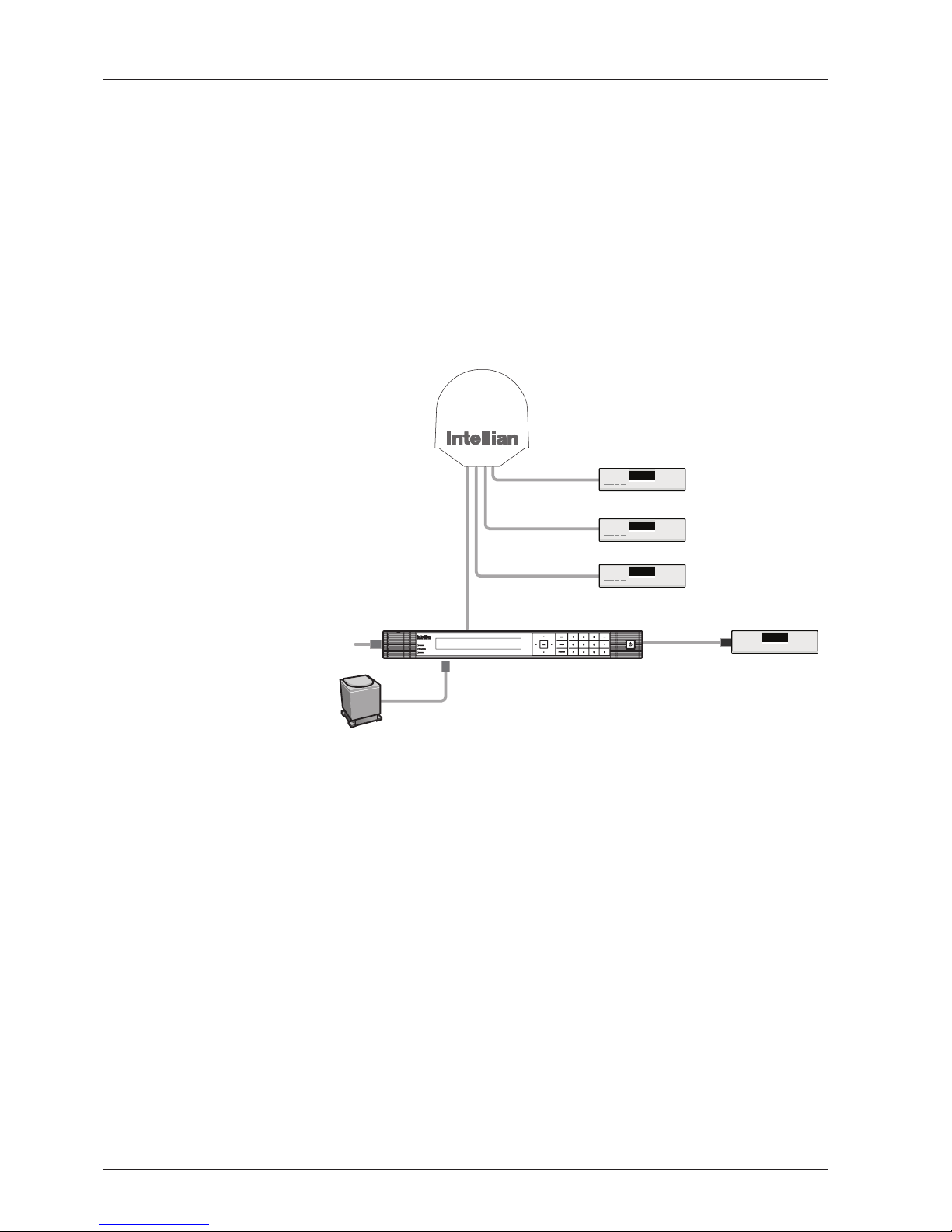

Basic System Conguration
For your satellite TV system to work properly, the system will have to be connected
with all of the provided components properly, as shown in the gure below (see the
“Installation” section of this manual). Separate purchase of a satellite receiver and
a TV is required.

13
INTRODUCTION
INSTALLING THE ANTENNA
System Package
Antenna Unit
ACU (Antenna Control Unit)
Installation Kit
Planning the Installation
Selection of Antenna Installation Site
System Cables
Power Requirement
Tools Required for Installation
Antenna Installation
Unpacking the Wooden Crate
Remove Antenna Shipping Restraints
Antenna Dimensions
Antenna Mounting Templates
Preparing Antenna Supporting Pole
Mounting the Radome
Installing the System Cables
RF Cable Connections

t110W/t130W – Marine Satellite Television System
14
System Package
The Intellian t110W/t130W consists of two major units, an antenna
assembly unit and the antenna control unit.

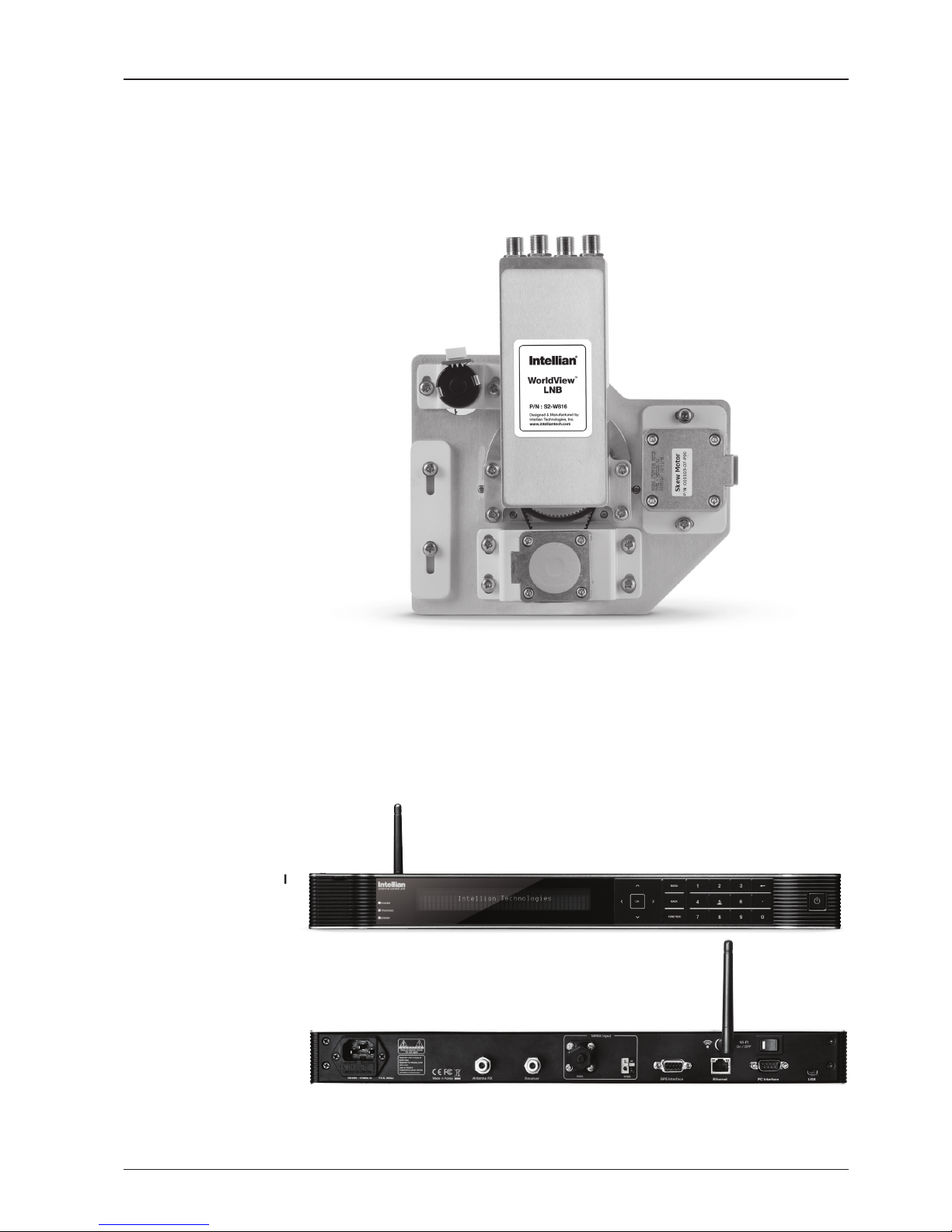

Antenna Unit
The antenna unit includes an antenna pedestal inside a radome assem-
bly unit. The pedestal consists of the satellite antenna main dish and
sub-reector module with a WorldViewTM LNB module mounted on a
stabilized pedestal. The radome protects the antenna pedestal assem-
bly unit from the severe marine environment.

15
INSTALLING THE ANTENNA
Antenna Control Unit (ACU)
The Antenna Control Unit (ACU) provides power to the antenna and controls
various settings of the antenna. Additionally, VFD (Vacuum Fluorescent Display)
allows for you to operate the ACU in the dark.
Front panel
Rear panel

t110W/t130W – Marine Satellite Television System
16
The functions of the ACU are as follows :
• System startup
• Change of target satellite
• Monitoring current status
• Setting antenna manual search
• Setting antenna set skew
• Setting antenna search parameter
• Setting antenna set parameters
• Executing antenna diagnosis
• Setting the satellite pair
• Edit satellite information
• Setting the region
• Finding transponders
• Setting the GPS and Gyrocompass
• System backup & restore
• Copy log and rmware upgrade through USB
• Supports Wi-Fi ACU operation
• Built-in web-based remote control management
• Front panel Management Ethernet port
• Installation settings
Installation Kit
Contains the items required for mounting the antenna unit and ACU to your
vessel.
Antenna Q’ty Description Size Remark
5Hex. Bolt M12 x 80L
Antenna-Deck
5Flat Washer M12
5Spring Washer M12
10 Hex. Nut M12

17
INSTALLING THE ANTENNA
Item Image Q’ty Description Size Remark
1
2
ACU
Bracket
Rack - ACU-19inch Rack
2 Table - ACU-Table
2 1 RG6 Cable
(Optional) 30m ACU to ANT
3
1 RG6 Cable 15m
ACU to Receiver
1 RG6 Cable 3m
4 1 AC Power Cord
(CEE7/7) 1.5m ACU Power
5 1 PC Serial Cable 1.8m ACU to PC

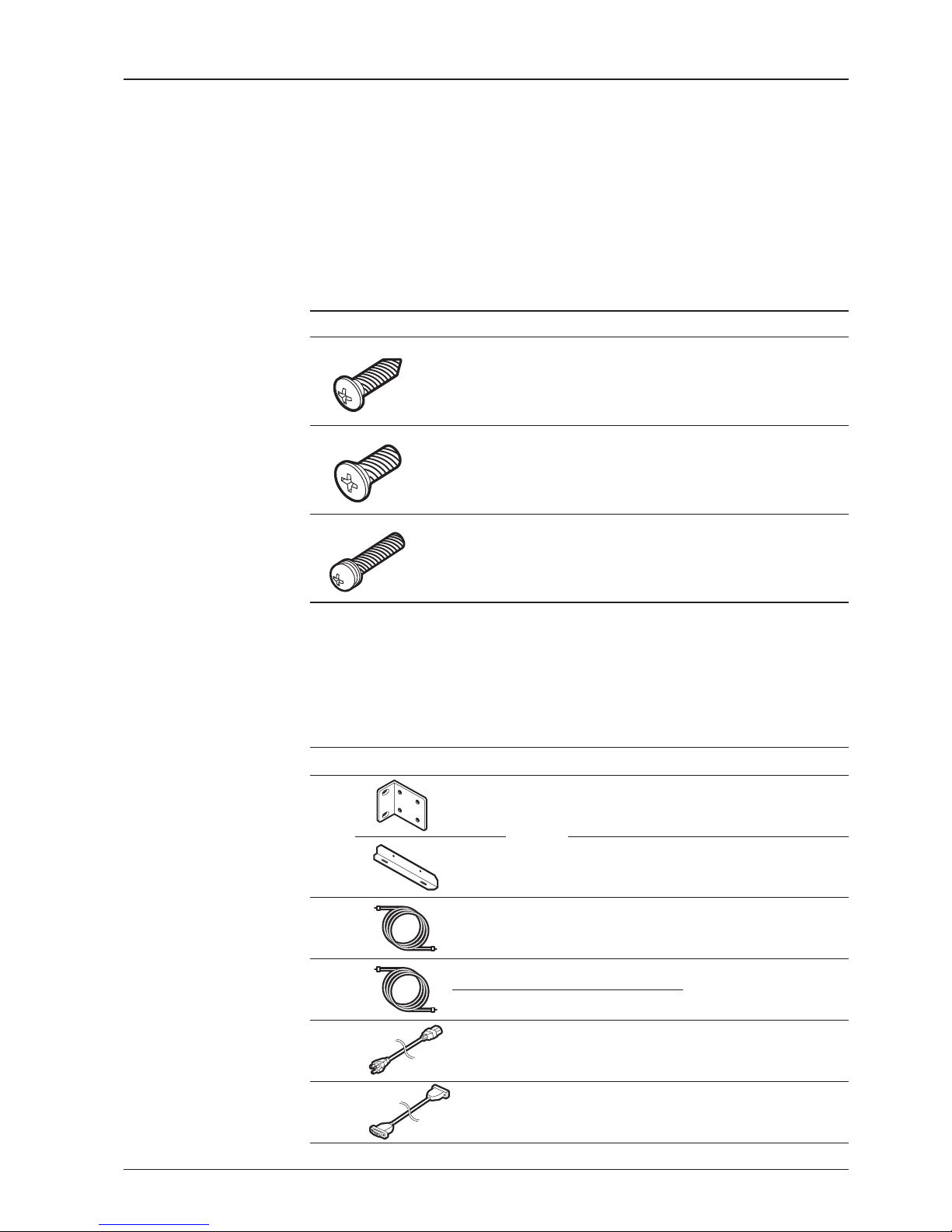

Installation Kit
Contains the items required for securing the antenna unit and ACU to your
vessel.
ACU Q’ty Description Size Remark
5Self-Tapping
Screw 4 x 16 Table Mount Bracket
10 Flat Head Screw M4 x 12L Rack Mount
Bracket ACU
5Sems Bolt M3 x 12L Table Mount
Bracket ACU
Other Components

t110W/t130W – Marine Satellite Television System
18
Item Image Q’ty Description Size Remark
6 1 USB Cable
(A-A) 1.8m ACU to PC
7 2 Rubber Gland RG6 Antenna Cables
8 5 Hex Socket
Head Cap M6 x 40L Radome (Top-Bottom)
9 5 Spring Washer M6 Radome
(Top-Bottom)
10 5 Flat Washer M6 Radome
(Top-Bottom)
11 1 WiFi Antenna 110mm -
12 1 User Manual - -
13 1 Mounting
Template - -
14 1 USB Flash Drive - -

19
INSTALLING THE ANTENNA
Planning the Installation
Selection of Antenna Installation Site
Install the antenna in accordance with the following procedures to ensure maximum
performance of the antenna. The ideal antenna site should have a clear view of
the horizon or satellite all around it. Please be sure there are no obstacles within
15º above the center of the antenna. Any obstacles can prevent the antenna from
transmitting and receiving the satellite signal.
Do not install the antenna near by the radar especially on the same plane as the
microwave radar transmissions as these will overload the antenna front-end circuits.
It is recommended to position the antenna at least 4 feet (1.2m) above or below the
level of the radar and minimum of 15 feet (4.6m) away from any high power short
wave radars.
The mounting platform should be robust enough and not subject to excessive
vibration. The movement of the antenna can be minimized by installing at the center
of the vessel. For optimal performance of the antenna, it is not recommended to
install on any corner of the vessel, where the movement of the vessel is the greatest.
Install the bottom of the antenna parallel to the surface of the sea and x tightly to
the structure of the vessel.
15°
Antenna Unit Obstacle

t110W/t130W – Marine Satellite Television System
20
System Cables
Before installing the system cables, you need to take the following points into
consideration.
• All cables need to be well clamped and protected from physical damage
and exposure to heat and humidity.
• A cable with an acute bend is should be avoid.
• Wherever a cable passes through an exposed bulkhead or deck head,
a watertight gland or swan neck tube should be used.
RF Cables (Customer Supplied)
Due to signal losses across the length of the RF coax on L-Band, Intellian recommends
the following 75 ohm coax cable types for standard system installations. For cables
that run longer than 100 meters, please consult Intellian Technologies.
Run Length Coaxial Cable Type
Up to 35 meters RG-6 or LMR-300-75
Up to 60 meters RG-11 or LMR-400-75
Up to 100 meters LMR-600-75
Power Requirements
Intellian t110W/t130W has been designed to work on a vessel’s power supply rated
at 110-220 V AC.
Type Multi-conductor, Shielded
Number of wires 2 conductors for NMEA 0183,
5 conductors for NMEA 2000
Gyrocompass / GPS Interface Cable (Customer supplied)
