Intelligent Home DVR Door Entry System Combo User manual

DVR Door Entry System Combo
USER MANUAL

INDEX
Chapter 1: Installation Guide
Chapter 2.1: Panel operation
Chapter 2.2: Wiring Interface
Chapter 2.3: Remote Controller
Chapter 3: Basic Operation
Chapter 4: Parameter Setting
Chapter 4: Parameter Setting cont. - Video Management Part 1
Chapter 4: Parameter Setting cont. - Video Management Part 2
Chapter 4: Parameter Setting cont. - ALARM SETUP
Chapter 4: Parameter Setting cont. - Hard drive setup
Chapter 4: Parameter Setting cont. - Miscellaneous setup
Chapter 4: Parameter Setting cont. - Network setup
Chapter 4: Parameter Setting cont – TFT Setup
Chapter 4: Parameter Setting cont. - web access
Chapter 5: Login window
Warranty

DVR with video door phone -Chapter 1: Installation Guide
Caution: Please make sure to disconnect the power supply before installation!
1.1 What is included?
While opening the box, please check:
Each component is intact without scratches and broken.
All accessories listed bellow are included:
•1 x Monitor
•1 x Outdoor camera
•1 x remote controller
•1 x power adaptor
•1 x Monitor stand
•1 x Mounting bracket
•1 x User manual
•1 x 15 meter outdoor camera cable (4 pins)
•4 x BNC connection cable (6 pins)
•1 x Alarm extension cable (5 pins)
•1x Screws bag
1.2 Preparation before installation
1. Fix the mounting bracket on the wall or table before installation.
2. Please ensure for safe operation of the device with required ventilation and keep from humid
environment.
3. Make sure there is enough space for all connection cables. Cable bending radius should not be less than 5
times of the cable diameter.
1.3 Hard disk installation
1. Hard disk specification: 2.5 Inch SATA hard disk (maximum 500G).

2. How to install:
Caution: The system will automatically format the hard disk before you start recording.

DVR with video door phone -Chapter 2.1: Panel operation
2.1 Panel operation
Chart 1: Front panel keys instruction
No. Type Icon Details
1 Indicator
light
Power indicator, blue light when in working mode.
2 Display
keys
Channel 1/ Number key 1: full screen display real time monitor of
channel 1.
Channel 2/ Number key 2: full screen display real time monitor of
channel 2.
Channel 3/ Number Key 3: full screen display real time monitor of
channel 3.
Channel 4/ Number Key 4: full screen display real time monitor of
channel 4.
Quad monitor: display four channels at same time.
3 Function
keys
Enter/exit key: enter/exit main menu, save settings when exit
Audio channel select: switchover audio of a channel to be played on
monitor.

Record key.: press to start recording of preset camera(s)
Stop key: stop recording/playback operation.
Play: press to play record.
4 Control
keys
Up key
Down key
Left/backward key: in playback mode, press to backward
Right/forward key: in playback mode, press to forward
Confirm key
5 Monitor/talk
key
Monitor outside or talk to visitors.
6 Unlock key
Open the door for visitors.
7 IR Receiver
window Direct to the IR receiver when you use remote controller.
8 Microphone
When door phone is in use, talk to visitors through the microphone.

DVR with video door phone -Chapter 2.2: Wiring Interface
Chart 2: Wiring interface instruction
1 Power supply DC 12V/14V
2 Outdoor station 2 interface Connect to outdoor station 2, 4 pin S-Terminal.
3 Outdoor station 1
interface Connect to outdoor station 1, 4 pin S-Terminal.
4 Network interface Connect to the internet.
5 Camera 1 interface Connect to Camera 1, 6-pin S-Terminal.
6 Camera 2 interface Connect to Camera 2, 6-pin S-Terminal.
7 Camera 3 interface Connect to Camera 3, 6-pin S-Terminal.
8 Camera 4 interface Connect to Camera 4, 6-pin S-Terminal.
9 Sensor interface Connect to external sensor and alarm devices, 5-pin S-Terminal.

DVR with video door bell-Chapter 2.3: Remote Controller
Chart 3: Remote controller function key instruction
No.
Name
Icon
Operation
1 Menu key
Enter/exit menu
2 Direction/confirm
keys
Up
Down
Backward
Forward
Confirm
3 Audio channel
select key
Switchover audio of a channel
4 Display keys
Channle 1/number key 1
Channel 2/number key 2
Channel 3/number key 3

Channel 4/number key 4
Quad monitor
5 REC key Record
6 Stop key Stop
7 Monitor display
off key
Turn off monitor display
8 Monitor/talk key Monitor / talk
9 Unlock key Unlock
10 Play key Play

DVR with video intercom - Chapter 3: Basic Operation

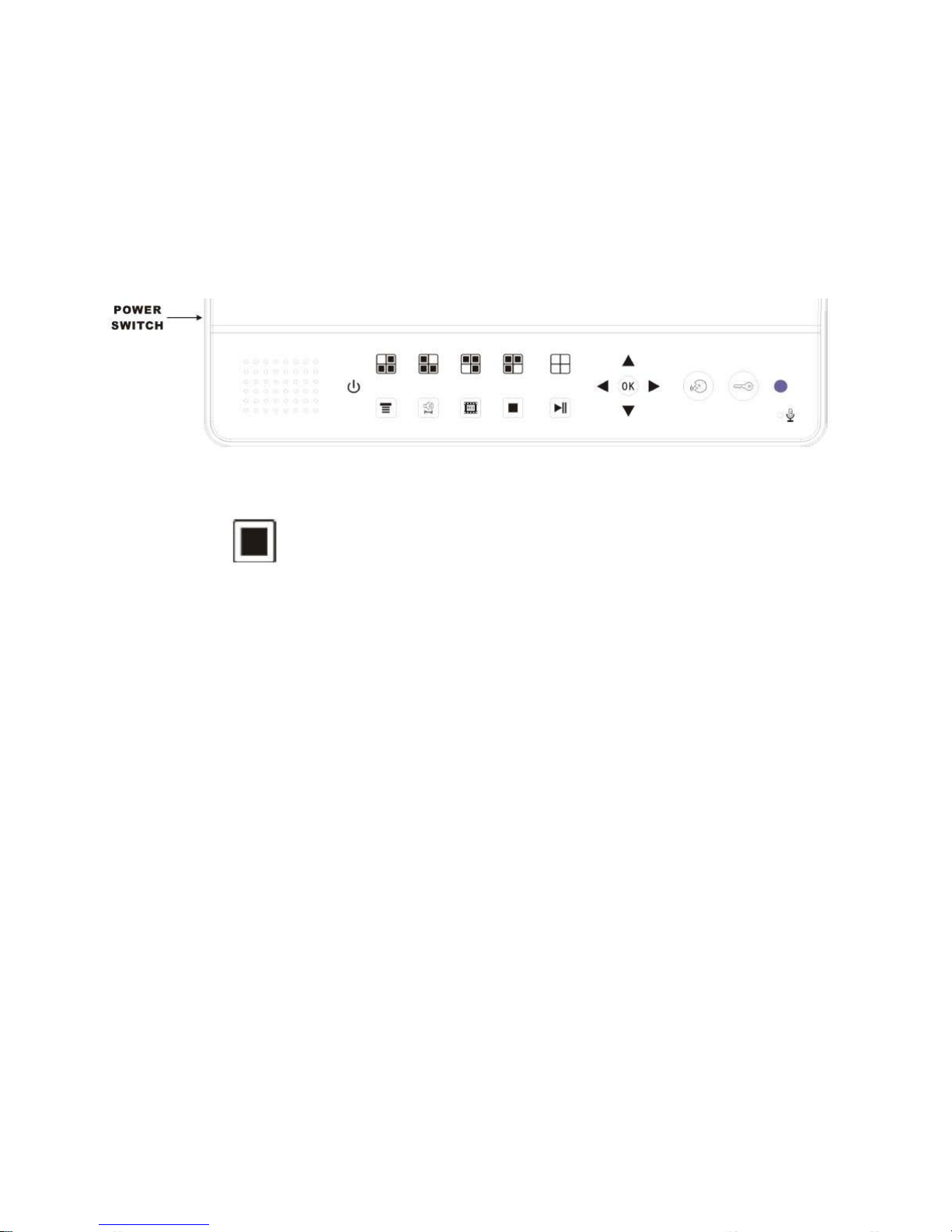

3.1 How to switch on/off
(1). Switch on
Push the power switch on the left side of the indoor unit, the monitor will start.
Note: The monitor shows quad monitoring at starup as default mode. If the time is within schedule recording
time, the system will automatically start the schedule recording function, and then the system will continue
to work properly.
(2). Switch off
Press the stop key to turn the system in stop recording mode, and then push the power switch on
the left side of the indoor unit. The system stops running.
(3). Power failure recovery
If the DVR is in recording mode and the system power is cut or shut off, after regaining of power supply, the
DVR will automatically save the video before the power loss and automatically return to the working mode
before power loss, and then continue working.

DVR with door entry system - Chapter 4: Parameter Setting

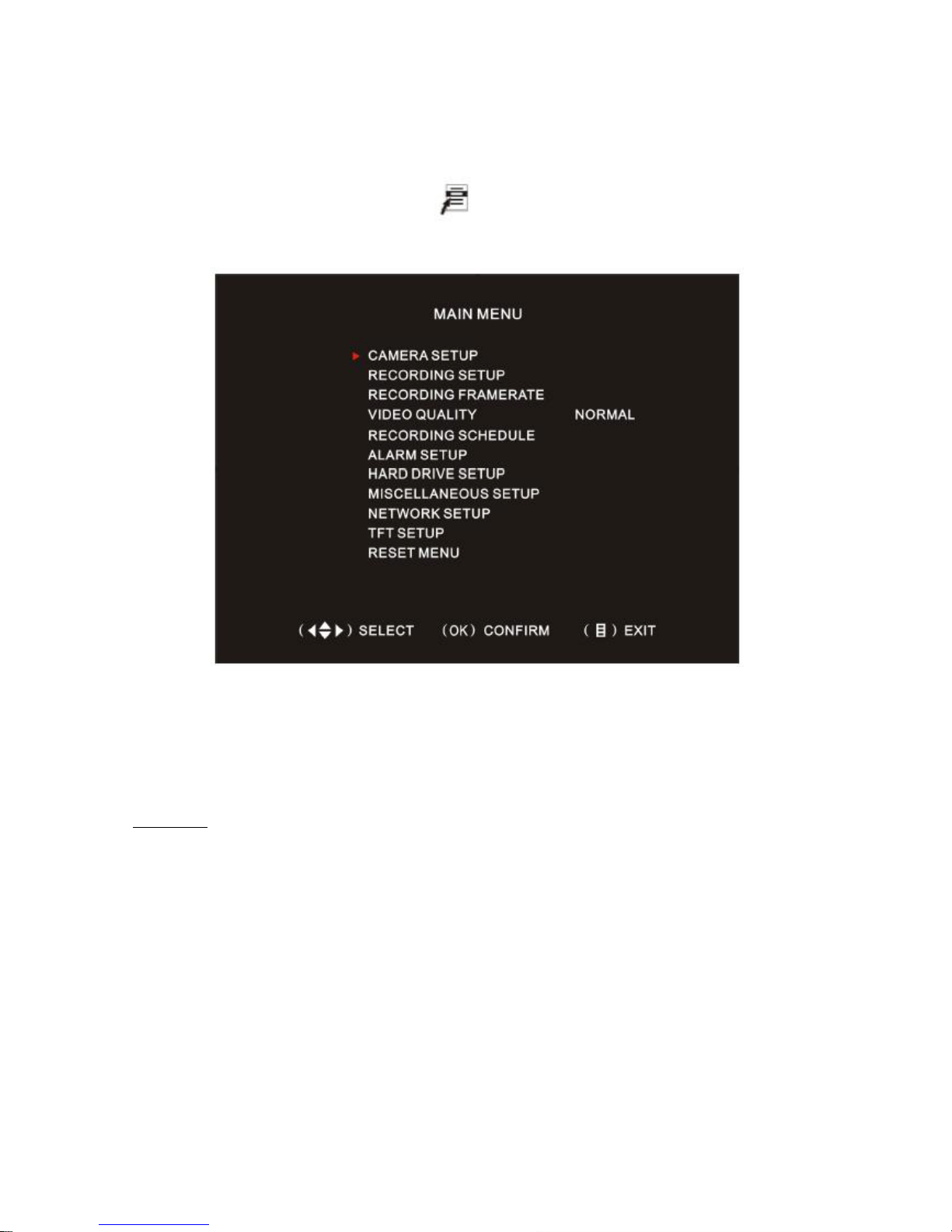

4.1 Main menu instruction
Under the stop recording mode, push the button either on the monitor or the remote controller, then
shows the following screen:
The following is the introduction on sub-menu functions.
4.2 Video Management
4.2.1 CAMERA SET UP
Each channel can be set separately on or off. If set to off, the corresponding screen goes black, the screen
does not display image of the channel. The corresponding video ercording function is closed. When re-open
the channel, you need to enter the camera setup to turn on the same channel before recording, as shown in
bellow picture:

Method: push the button 、、or , to put to the channel to be set, and
then, push to set the channel "ON" or "OFF".

DVR8 - Chapter 4: Parameter Setting cont. - Video Management Part 1

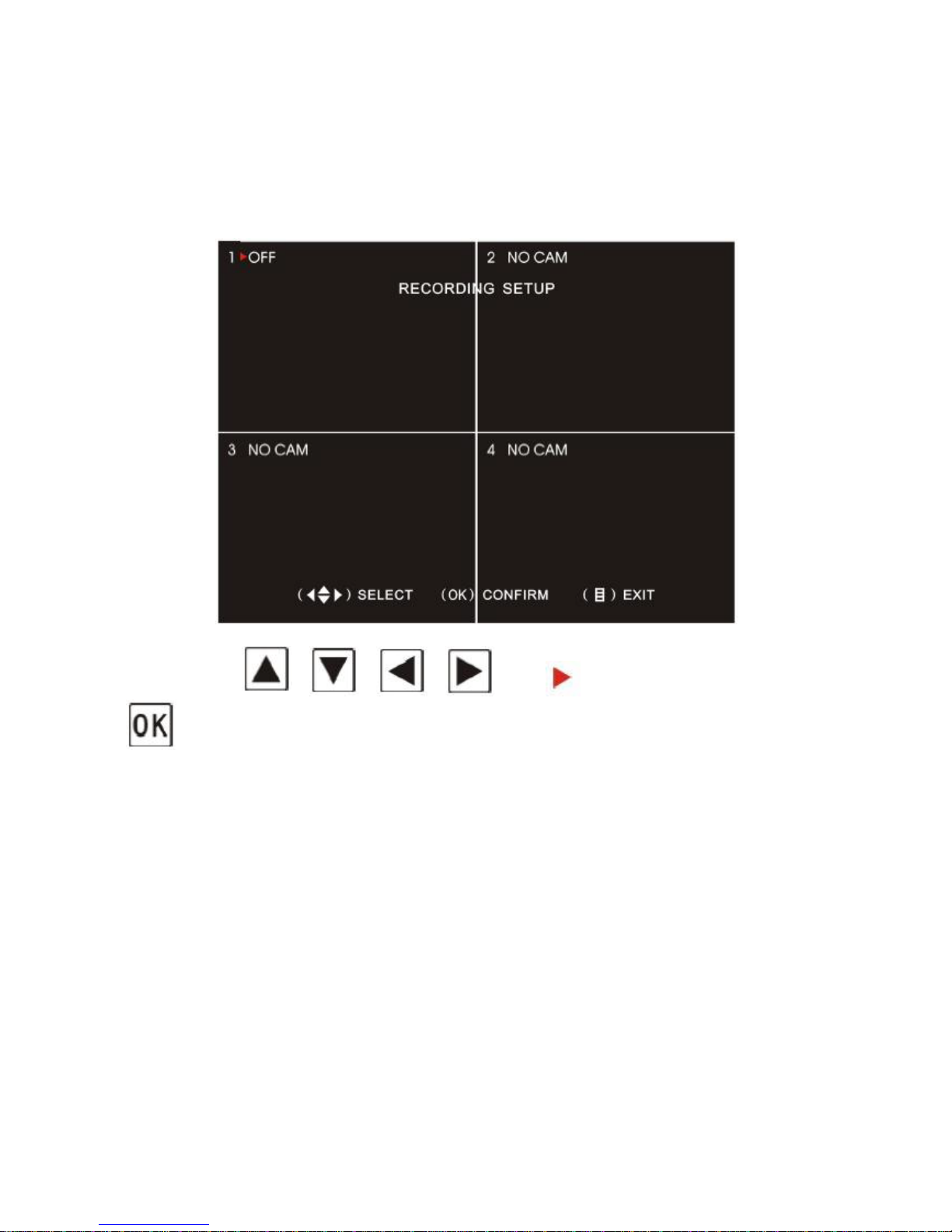

4.2.2 RECORDING SETUP
Each channel can be set separately to record video or not, if it is set to "OFF", thescreen will continue to
show channel pictures, but not for recording.
Method: push the button 、 、 or , to put to the channel to be set, and then,
push to set the channel "ON" or "OFF". There are three options: "OPEN","OFF", " CAM".
4.2.3 RECORDING FRAMETRATE
Frame rate of each channel can be separately set 1,2,3,4,5,6,7,8,9,12,16,25 FPS / sec. For PAL system, the total frame rate is 50
FPS; for NTSC system, 60 PFS. In the case of PAL system, the average per channel is 12PFS. If a particular channel’s frame rate
is set to more than 12PFS, the additional frame rate needs to be borrowed from other channels.

Method: push the button 、 、 or , to put to the channel to be set, and then,
push to set the channel.

DVR8 - Chapter 4: Parameter Setting cont. - Video Management Part 2
4.2.4 VIDEO QUALITY
The setting of video recording quality has 3 selections: "HIGH", "NORMAL" and "LOW".The higher
grades, the better video recording quality, also with the bigger capacity of video file occuping the hard disk
space.

Method: push the button 、、or , to put to the time period, and then,
push to set the recording mode during this period.
Method: push the button 、、or , to put to the channel to be set, and
then, push to set the required video quality.
4.2.5 RECORDING SCHEDULE
The "RECORDING SCHEDULE" has 3 options: "NO RECORDING", "RECORDING" and "ALARM
RECORDING". It can be set to each hour in 24 hours.
NO RECORDING: Set to this mode will not record;
RECORDING: Set to this mode will record normally;
ALARM RECORDING: This mode for motion detection recording and alarm recording.

DVR8 - Chapter 4: Parameter Setting cont. - ALARM SETUP
4.3 ALARM SETUP
This setting is for the circumstances when system detects triggering events during operation, and the
reactions to thiese events.
RECORDING TIME ON ALARM: when a triggering event encountered, the system will automatically
record the corresponding channel. The recording time has six options: 5, 10, 15, 20, 25, 30, the system will
stop recording if during the channel recording time no triggering event occurs again.
ALARM DURATION: when there is an alarm signal, select one of the following options (OFF, ON) 5, 10,
15, 20, 25, 30. Selecting OFF will not alarm; selecting ON, the buzzer will keep alarming until manually
shut off ( press any key to stop);
VIDEO LOSS SETUP: During the monitoring process, if the video cable connection is not good, the indoor
unit will alarm with sound. There are "ON" and "OFF" optional.
H/W SENSOR SETUP: when there is an external alarm sensor, if the sensor is triggered, the system will
record via the corresponding camera. The indoor unit will alarm with sound (if connect to externall alarm
device, the system can also drive the alarm). The system can connect to two ways of alarm sensor inputs.

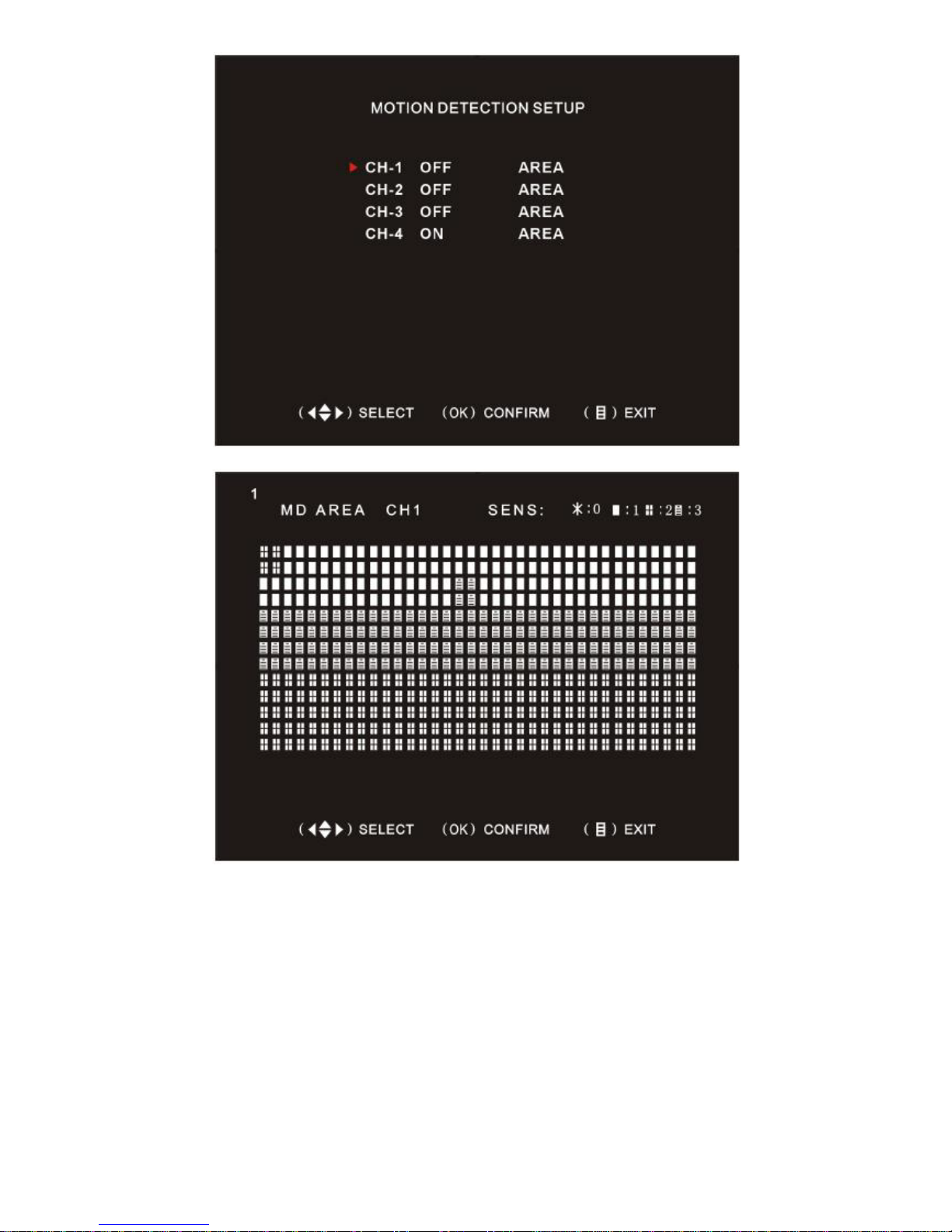

MOTION DETECTION SETUP: each channel has "ON" and "OFF" optional. Four sensitivity levels can be
selected on each area. The sensitivity increases with the number rising. The level of sensivity can be
adjusted by pressing .

DVR8 - Chapter 4: Parameter Setting cont. - Hard drive setup
4.4 Hard drive setup
This menu includes: overwriting, hard disk information and formatting settings.
OVERWRITE ENABLED: When set to 【YES】, if disk storage is full, it will automatically overwriter.
ST9408221AS: The current information of hard disk.
MASTER HDD SIZE: The capacity of current hard disk.
MASTER HDD USED: the occupation of hard disk space, displayed in percentage.
MASTER HDD FORMAT: Format the current hard disk; the system default password is 111111 (press
6 times)
