Intelligent EcoForce User manual

EcoForce
user manual

2Intelligent Facility Solutions
Control:
Designed with SCM control.The machine will close itself when be used
exceed 50s
Feature
Specification
Power supply
Sensing distance
Warm air temp.
Motor speed
Heating power
Overall unit power
Overall dimension
Appearance
220V~50Hz
12+3cm
25000r.p.m
700W
1250W
210mmX182mmX270mm(LxWxH)
chroming painting
40℃+10℃
Dry hands quickly:
Dry hands in 8s-12s if with warm air
Heat switch:
User can choose cold or hotair by the heat switch .
Anion generator:
There is anion generator inside, makes air more fresh and healthy.
Perfume holder:
Put a perfume piece on the holder, you will enjoy the sweet air around as
soon as starting the machine.
Appearance:
Aluminum alloy,strong and beautiful.
Air speed 80m/s
Motor power 550W
1
Problem
Troubleshooting
Contact the local dealer
Reason Solution
Contact local dealer
No working
No power Check the power
Too short sensing distance Adjust the distance
Sensor device is damaged
No warm air
Heat switch is off Switch on
Heating wire got problem Contact the local dealer
Connect it well
The cable of sensor board
is loose with the power wire
Motor doesn t
work Motor is damaged
1)This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible
for their safety. Children should be supervised to ensure that they do
not play with the appliance.
2)If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a
hazard.
Notice:
6

EcoForce 3
Control:
Designed with SCM control.The machine will close itself when be used
exceed 50s
Feature
Specification
Power supply
Sensing distance
Warm air temp.
Motor speed
Heating power
Overall unit power
Overall dimension
Appearance
220V~50Hz
12+3cm
25000r.p.m
700W
1250W
210mmX182mmX270mm(LxWxH)
chroming painting
40℃+10℃
Dry hands quickly:
Dry hands in 8s-12s if with warm air
Heat switch:
User can choose cold or hotair by the heat switch .
Anion generator:
There is anion generator inside, makes air more fresh and healthy.
Perfume holder:
Put a perfume piece on the holder, you will enjoy the sweet air around as
soon as starting the machine.
Appearance:
Aluminum alloy,strong and beautiful.
Air speed 80m/s
Motor power 550W
1
Problem
Troubleshooting
Contact the local dealer
Reason Solution
Contact local dealer
No working
No power Check the power
Too short sensing distance Adjust the distance
Sensor device is damaged
No warm air
Heat switch is off Switch on
Heating wire got problem Contact the local dealer
Connect it well
The cable of sensor board
is loose with the power wire
Motor doesn t
work Motor is damaged
1)This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible
for their safety. Children should be supervised to ensure that they do
not play with the appliance.
2)If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a
hazard.
Notice:
6

4Intelligent Facility Solutions

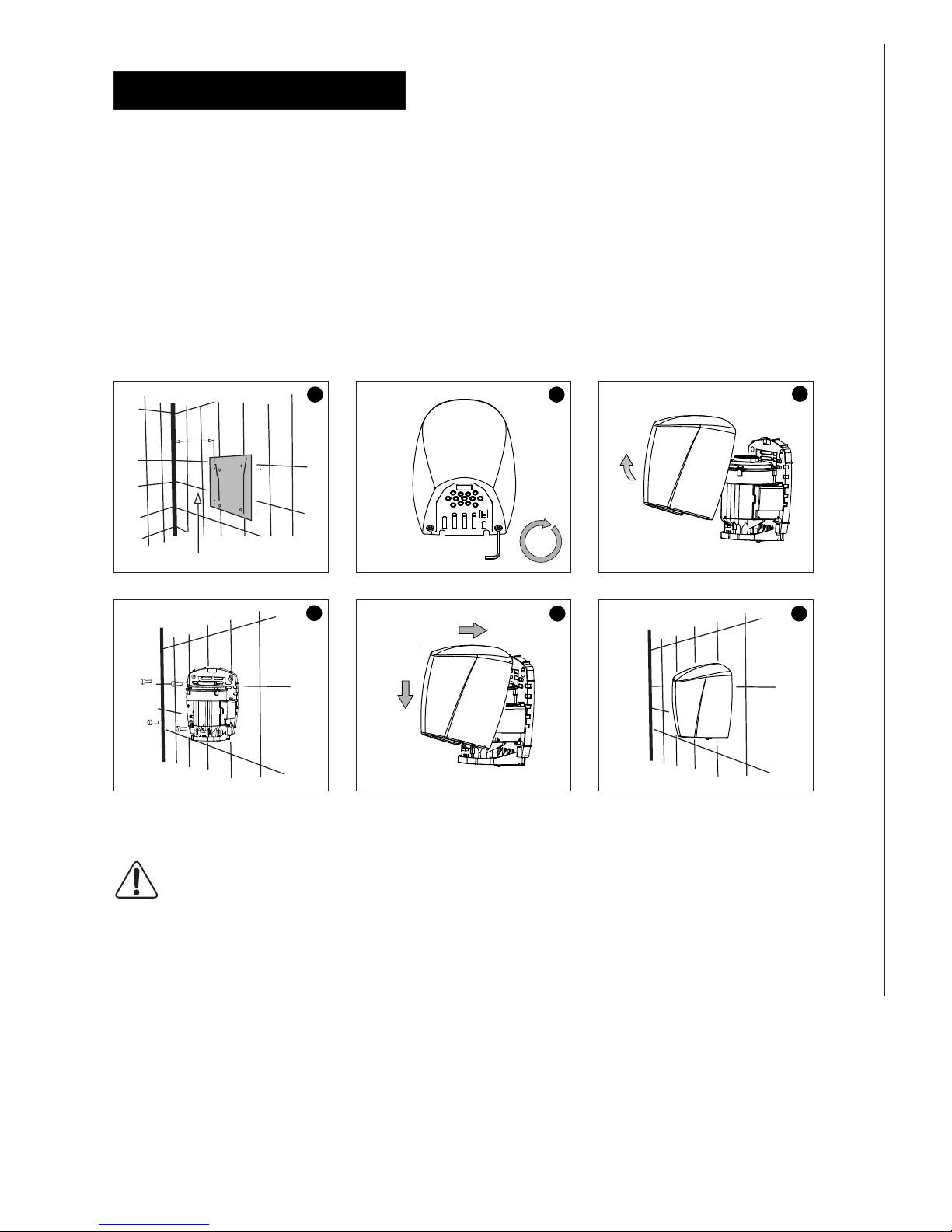

1.Please wet the assembling paper and put it on the right place on the wall.
2.Drive 4 holes on the wall according to the assembling paper. Put the
plastic screw in the holes.
3.Loose the screw and take out the cover.
4.Aim the hole of seat at the plastic screw in the wall and lock it on the wall
with metal screws.
5.Assembling the cover and lock it tightly with the seat.
Installation instruction
it must be more than 1.1m from bottom of the hand dryer to floor when
install it.
4
3
＞13cm
125-135cm
12
6
5
1
2
Notice:
4
1.Please read the user's manual and install instruction before install it.
2.Please check the wall if it is flat or not and make it clean.
3.Please give the manual to the users after install it.
4. .
5.
6.
Don't put object in the sensor area
Don't put reflection objects such as stainless steel or photoelectric
sensor under the sensor window of hand dryer to avoid mistake signal.
Please assemble it in sunless place.
Notice before installing
To make the product be used for a long time, please be careful as
following:

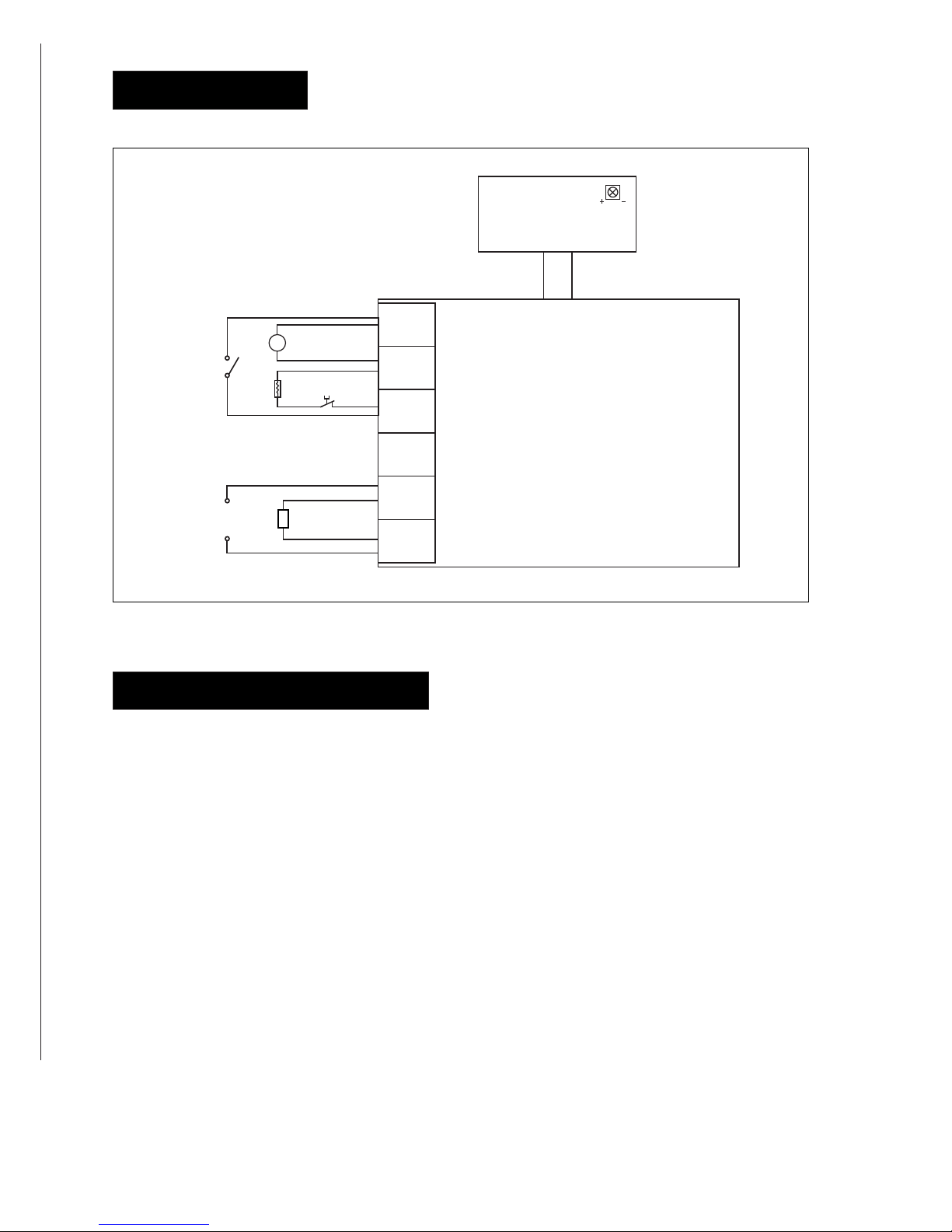

L
N
SW
MN
ML
220V~
M
W1
Motor
Heat switch
Anions
generator
Heater BKR
sensor board
Power board
flat cable
Wire drawing
3

EcoForce 5
1.Please wet the assembling paper and put it on the right place on the wall.
2.Drive 4 holes on the wall according to the assembling paper. Put the
plastic screw in the holes.
3.Loose the screw and take out the cover.
4.Aim the hole of seat at the plastic screw in the wall and lock it on the wall
with metal screws.
5.Assembling the cover and lock it tightly with the seat.
Installation instruction
it must be more than 1.1m from bottom of the hand dryer to floor when
install it.
4
3
＞13cm
125-135cm
12
6
5
1
2
Notice:
4
1.Please read the user's manual and install instruction before install it.
2.Please check the wall if it is flat or not and make it clean.
3.Please give the manual to the users after install it.
4. .
5.
6.
Don't put object in the sensor area
Don't put reflection objects such as stainless steel or photoelectric
sensor under the sensor window of hand dryer to avoid mistake signal.
Please assemble it in sunless place.
Notice before installing
To make the product be used for a long time, please be careful as
following:
L
N
SW
MN
ML
220V~
M
W1
Motor
Heat switch
Anions
generator
Heater BKR
sensor board
Power board
flat cable
Wire drawing
3

6Intelligent Facility Solutions
Put your hand under the machine, it will work automatically, and stop
automatically when remove hand.When the induce time exceed 50s,then
hand dryer will stop automatically. If you need, Please induce it again.
Usage instruction
Put your hand under
the sensor area of hand
dryer, it will be started
automatically.
When remove hand from
the sensor area of hand
dryer, it will be stopped
automatically
Adjustment of sensing distance
Disassembling the cover, and
adjust the W1, turn clockwise
to increase the distance, and
counter clockwise to reduce
the distance.
W1
Sensor board
Lens
User can adjust warm or cool air
according to the request . When
turn on the heat switch, it will be
warm air .When close the heat
switch, i t w ill b e co o l air.
Temperature control
Heat switch
5
1
2
34
Break down
1
2
3
5
6
8
9
10
11
12
13
14
16
7
15
4
Air outlet
Inner hexagon
screw
Sensor
Cover for air
tunnel
Cover of bottom
motor
Motor
Cover of upper
motor
Filter pad
Filter cover
Anion generator
Control box
Seat
17
5
6
7
8
9
10
1 1
1 2
1 3
1 4
1 6
1 7
1 5
Heating wire
2
Lens
Shell
Heat switch
Heat device

EcoForce 7
Put your hand under the machine, it will work automatically, and stop
automatically when remove hand.When the induce time exceed 50s,then
hand dryer will stop automatically. If you need, Please induce it again.
Usage instruction
Put your hand under
the sensor area of hand
dryer, it will be started
automatically.
When remove hand from
the sensor area of hand
dryer, it will be stopped
automatically
Adjustment of sensing distance
Disassembling the cover, and
adjust the W1, turn clockwise
to increase the distance, and
counter clockwise to reduce
the distance.
W1
Sensor board
Lens
User can adjust warm or cool air
according to the request . When
turn on the heat switch, it will be
warm air .When close the heat
switch, i t w ill b e co o l air.
Temperature control
Heat switch
5
1
2
34
Break down
1
2
3
5
6
8
9
10
11
12
13
14
16
7
15
4
Air outlet
Inner hexagon
screw
Sensor
Cover for air
tunnel
Cover of bottom
motor
Motor
Cover of upper
motor
Filter pad
Filter cover
Anion generator
Control box
Seat
17
5
6
7
8
9
10
1 1
1 2
1 3
1 4
1 6
1 7
1 5
Heating wire
2
Lens
Shell
Heat switch
Heat device

8Intelligent Facility Solutions

EcoForce 9
Intelligent Facility Solutions Ltd
Electric Works
3 Concourse Way
Sheffield
S1 2BJ
T: [phone]
email: [e-mail]
www.intelligenthanddryers.com
