Inter-m MX-1646 User manual

Operation Manual
Professional Audio Mixer
MX-1646

PROFESSIONAL AUDIO MIXER
Contents
Contents
Welcome
Warning.........................................................................................................................................1
Unpacking......................................................................................................................................2
Installation
Environment....................................................................................................................................2
Important Safety Instructions.............................................................................................................2
Introduction .....................................................................................................................................3
Features............................................................................................................................................3
Front Panel
Input Channel .................................................................................................................................4
Master Section ................................................................................................................................6
Rear Panel .......................................................................................................................................8

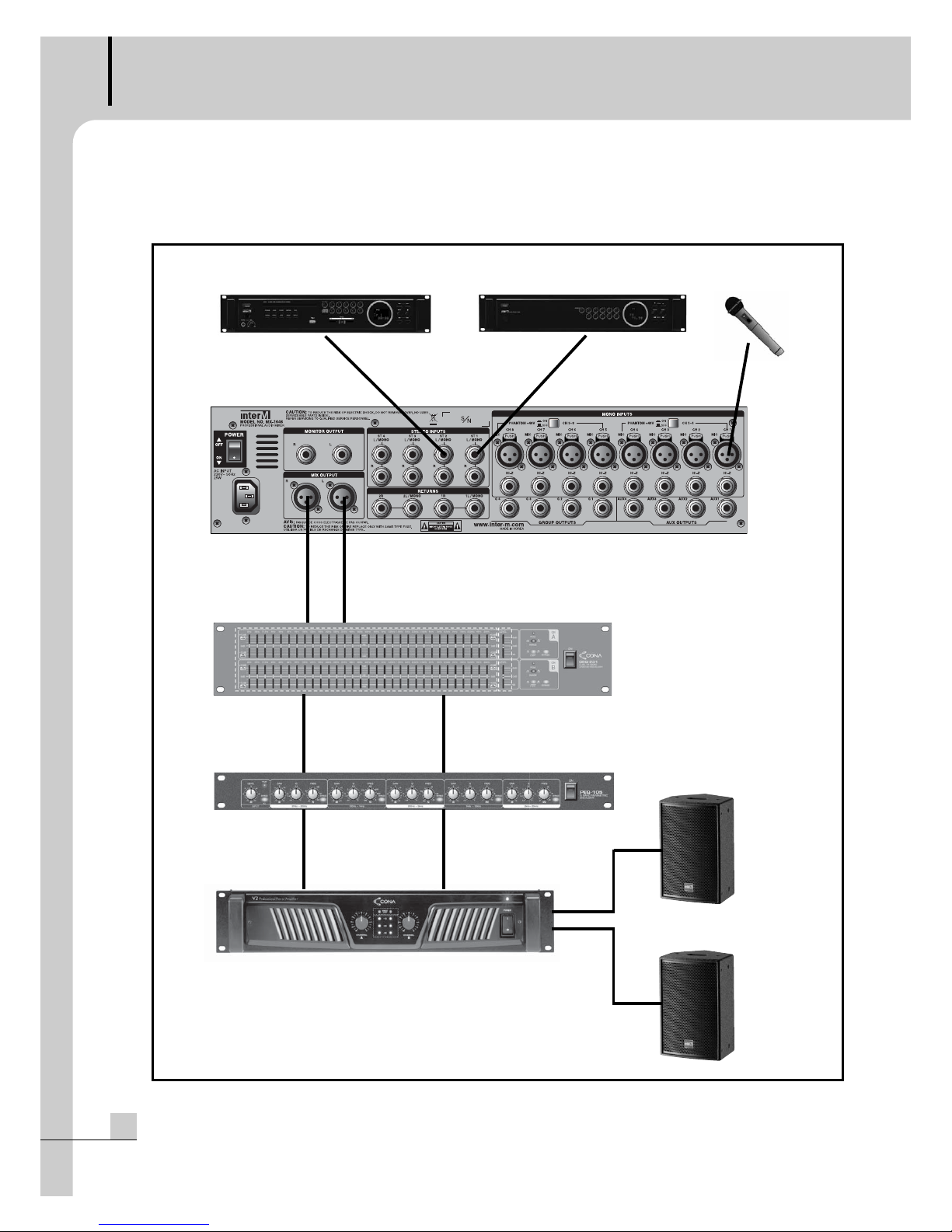

Applications ..................................................................................................................................10
Block Diagram ..............................................................................................................................11
Specifications ................................................................................................................................12
Dimensions ....................................................................................................................................13
Service
Procedures....................................................................................................................................14
Schematic.....................................................................................................................................14
Parts List .......................................................................................................................................14
Variations and Options ...............................................................................................................14
Warranty .......................................................................................................................................14

1
MX-1646
PROFESSIONAL AUDIO MIXER
Welcome
Welcome
A personal welcome to you from the management and employees of Inter-M
All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value,
and we are delighted you have purchased one of our products.
We sincerely trust this product will provide years of satisfactory service, but if anything is not to your complete
satisfaction, we will endeavor to make things right.
Welcome to Inter-M, and thank you for becoming part of our worldwide extended family!
* It can be heated up if you use this product in closed box or unventilated place.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
*Do not install this equipment in a confined space such as a book case or similar unit.
*The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such vases, shall be placed on the apparatus.
*Worded: “WARNING FOR YOUR PROTECTION PLEASE READ THE FOLLOWING-WATER AND MOISTURE: Unit should not be used
near water(e.g. near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should be taken
so than objects do not fall and liquids are not spilled into the enclosure through openings.”
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
This symbol is intended to alert the user to the
presence of important operation and maintenance
(servicing) instructions in the literature accompanying
the appliance.
Caution: To prevent electric shock do not use this (polarized) plug with
an extension cord, receptacle or other outlet unless the blades
can be fully inserted to prevent blade exposure.
Attentions: Pour prévenir les chocs électriques ne pas utiliser cette
fiche polarisée avec un prolongateur, une prise de courant
on une autre sortie de courant, sauf si les lames peuvent
étre insérées à fond sans en laisser aucune partie à
découvert.

2MX-1646
PROFESSIONAL AUDIO MIXER
Unpacking
Please take a few minutes to read this manual to familiarize yourself with important information regarding
product features, and operation.
As with most electronic devices, ORIGINAL PACKAGING (OR EQUAL) IS REQUIRED in the unlikely
event that the product needs to be returned for servicing.
Installation
Installation
Environment
Never place this product in an environment which could alter its performance or reduce its service life. Such
environments usually include high levels of heat, dust, moisture, and vibration.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
S3125A

3
MX-1646
PROFESSIONAL AUDIO MIXER
Features
Features
- CHANNEL INPUT
8 Mono inputs, 4 Stereo inputs
- CHANNEL EQUALIZER
Mono input ch : 3band, Stereo input ch : 2band
- 4CH AUX OUTPUT
- 4CH GROUP OUTPUT
- 2CH STEREO RETURNS
- +48V PHANTOM POWER
Introduction
Introduction
Thank you for choosing the MX-1646 professional audio mixer. Your MX-1646 benefits from over 27 years
of Inter-M’s professional audio design and manufacturing experience. This operation manual should quickly
acquaint you with the mixer’s features and controls, while offering some suggestions for its use in various
applications.
Although we believe the information in this guide to be reliable, we do not assume responsibility for
inaccuracies. We also reserve the right to make changes in the interest of further product development.

4MX-1646
PROFESSIONAL AUDIO MIXER
Front Panel
Front Panel

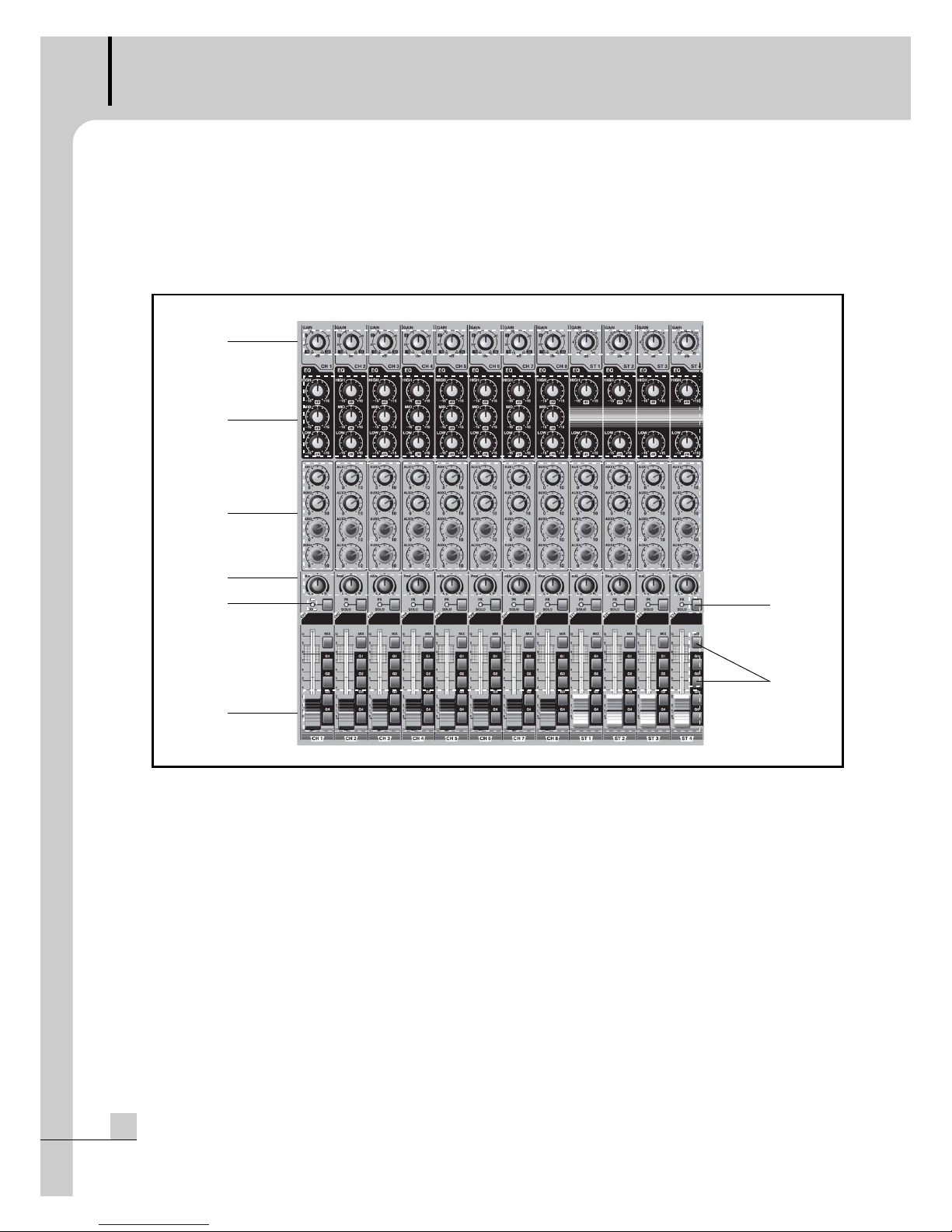

Input Channel
1. GAIN
The input signal’s gain is continuously variable from +16dB to +60dB(STEREO CH : -10dB~+20dB). The
actual value of the gain required will depend upon the source and should ideally be set such that peaks in
level on the input should not cause the input amplifier to overload.
You need to watch level indicator placed near FADER, flashing “PEAK” lamp is too high.
2. EQUALIZER
The equalizer section provided on each input channel consists of HIGH, MID, and LOW controls at the
following frequencies with the maximum range of ±15dB.
(Mono input ch : 3band(HIGH/MID/LOW), Stereo input ch : 2band(HIGH/LOW))
1) HIGH : 10kHz, ±15dB Shelf type.
2) MID : 1.2kHz, ±15dB peaking type.
3) LOW : 100Hz, ±15dB Shelf type.
1
2
3
4
5
7
6
8

5
MX-1646
PROFESSIONAL AUDIO MIXER
3. AUXILIARY
Your MX-1646 has 4 auxiliary outputs. These are commonly used for effects, stage monitors and any
additional sends, e.g. camera sound.
Auxiliaries are fed post fader, meaning that the channel’s fader level will affect the level sent to the auxiliary.
These are grouped to allow maximum flexibility.
4. PAN/BAL
Controls the signal’s position in the stereo image. This affects both main MIX outputs as well as any groups to
which the channel is routed. Panning left sends the signal to odd numbered groups only, and panning right
sends it to even numbered groups only.
If, for example, you are panning from hard left to center, you will notice a 3dB drop in the left channel as you
do so. This “panning law” ensures that signals sound equally loud at all pan positions.
5. PEAK/SOLO LED
Displays the channel’s signal peak level and solo function.
The “RED” lamp warns of signal levels approaching the upper headroom limit within about 3dB. We
recommend that you reduce the input gain to avoid unpleasant distortion!
The “GREEN” lamp starts blinking when the solo switch is ON.
6. SOLO SWITCH
Routes the signal to the solo bus for isolated auditioning and detailed metering.
7. CHANNEL FADER
A professional 60mm fader gives you smoth, high-resolution control over the channel level.
8. BUS ASSIGNMENT SWITCHES
Connects the channel signal to each MIX and GROUP buses.
- MIX SWITCH
- GROUP SWITCHES (G1, G2, G3, G4)

6MX-1646
PROFESSIONAL AUDIO MIXER
Front Panel
Front Panel

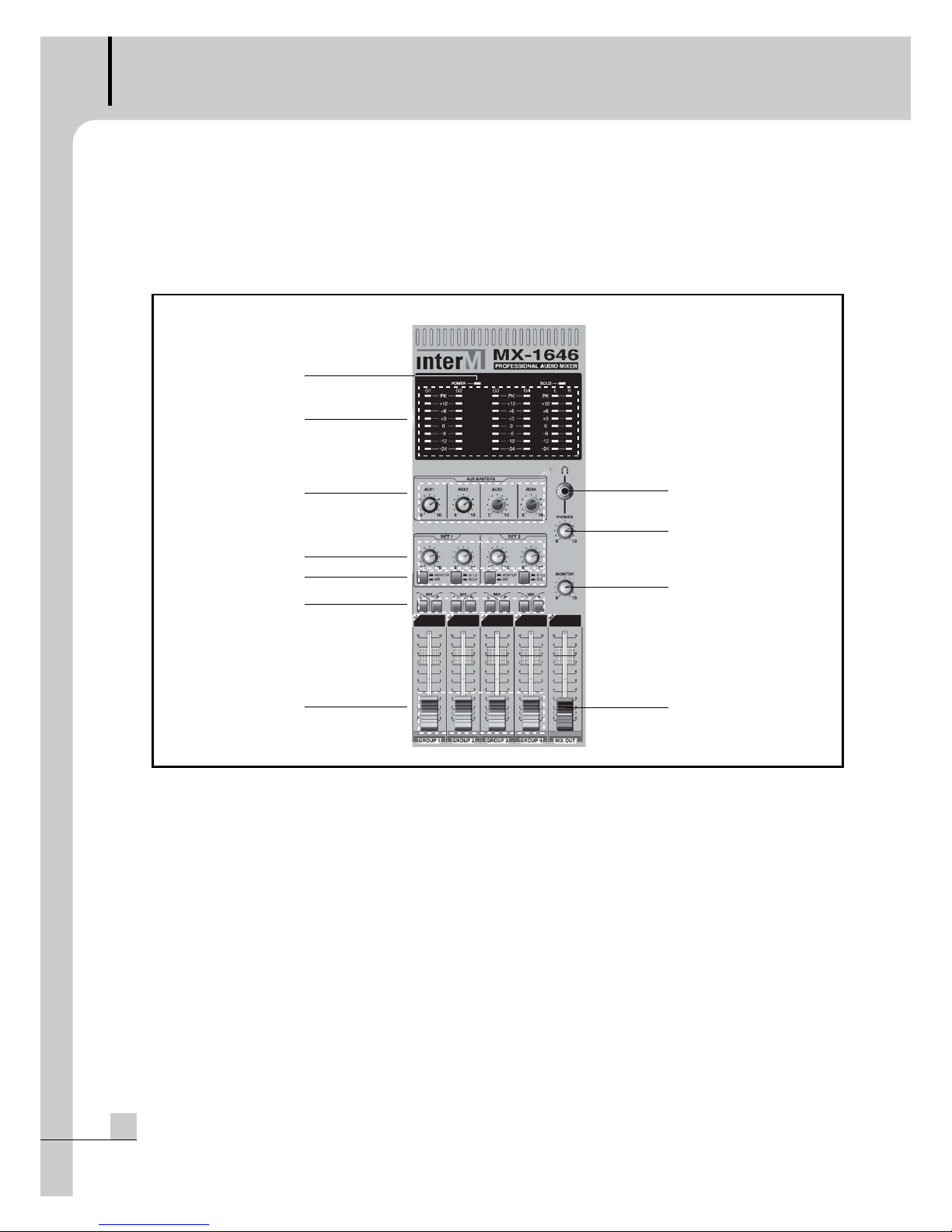

Master Section
1. POWER INDICATOR
The POWER INDICATOR LED lights when the power is ON.
2. OUTPUT LEVEL METER
8-segment peak response meter shows the level of GROUP output and MIX/SOLO output. LED METER’s “0” is
0dB.
3. AUX MASTERS
Auxiliary signal sent from each channels is controlled its output level by this potentiometer.
4. RETURN
Two stereo return inputs are available for the connection of stereo devices, such as reverb processors, which
do not need extensive processing, or access to the full range of auxiliaries.
2
11
10
9
8
3
4
5
6
7
1

7
MX-1646
PROFESSIONAL AUDIO MIXER
5. BUS ASSIGNMENT SWITCHES
Connects the RETURN signal to MONITOR or MIX, G1/2 or G3/4.
6. MIX L/R SWITCHES
Groups can be routed to the MIX L and R output.
7. GROUP OUTPUT FADER
A professional 60mm fader gives you smooth, high resolution control over the group level.
8. MIX OUTPUT FADER
A 60mm stereo fader gives you smooth, high resolution control over the MIX level.
9. MONITOR LEVEL
Controls monitor output level.
10. PHONES LEVEL
Gives independent control over headphone volume.
11. HEADPHONE JACK SOCKET
TRS jack socket for headphone plug. Tip is left, and ring is for right signal. You can use the headphones over
35Ωimpedance.
NOTE: Use only stereo phones!
When a mono connector is plugged into the stereo connector, it connects boths sides of the headphone
amplifier to a signal load.
(1/4”Phone 3 Section Connector) (1/4”Phone 2 Section Connector)
(O) (X)

8MX-1646
PROFESSIONAL AUDIO MIXER
Rear Panel
Rear Panel
1. POWER SWITCH
The power switch is used to turn ON/OFF the AC main power.
NOTE: Please make sure the amplifier's main volume is at the minimum position before switching
power on or off to avoid loud pops through the sound system loudspeakers.
2. MONITOR OUTPUT
These are unbalanced phone jacks used to connect monitor speakers.
Nominal output level is 0dBu, and approximately input impedance is about 2kΩ.
3. STEREO LINE INPUTS
This TRS balanced stereo inputs are designed for attaching line level devices up to +10dBu.
When you connect unbalanced signal to this input, make sure to link "Ring" and "sleeve" of your jack plug.
4. 48V PHANTOM POWER
This switch provides +48V phantom power to XLR input.
NOTE: DO NOT use unbalanced sources with the phantom power switched on. The voltage on pins 2&3 of
the XLR connector may cauce serious damage. Please minimize the fader before pressing this switch to
avoid speaker's damage.
12 3 4 5
678910

9
MX-1646
PROFESSIONAL AUDIO MIXER
5. MONO INPUTS
MIC INPUT
- Microphone inputs are on Female XLR. The impedance of this input is approximately 2.2kΩ.
Hi-Z INPUT
- Use this input when connecting sources such as instruments, keyboards or playback devices. This input signal
is summed with the XLR input, but you needn’t worry about phantom power; that will only be supplied from
the XLR. Available input level is about 26dB higher than the XLR input, and impedance of this input is
approximately 50kΩ. If using an unbalanced source, please make sure to link Sleeve and Ring together to
avoid unwanted noise.
.
6. AUX OUTPUTS
The Auxiliary outputs are on TRS jack socket. The nominal level is 0dBu.
7. GROUP OUTPUTS
1/4" TRS socket for inserting external devices. The tip is wired to a ground compensated send, unbalanced
return is via the ring and sleeve. Nominal I/O level is 0dBu.
The "OUTPUT" TRS socket is impedance-unbalanced group signal output.
8. RETURNS INPUTS
L/MONO, R
- A pair of 1/4" TRS jack sockets allow balanced input. Nominal input level is 0dBu, and approximately input
impedance is about 10kΩ.
9. MIX OUTPUT
Male XLR connectors for balanced MIX signal outputs. The nominal output level is 0dBu.
10. AC INLET
Please make sure enclosed power cable matches your AC outlet type.

10 MX-1646
PROFESSIONAL AUDIO MIXER
Applications
Applications
CD-611(CD PLAYER)
IN IN IN
IN
OUT
OUT
OUT
OUT
IN
GEQ-231
MX-1646
PEQ-105
V2 Series AMP
SQ-8(SPEAKER)
SQ-8(SPEAKER)
TU-610(STEREO TUNER) MIC
OUT
IN

PROFESSIONAL AUDIO MIXER
11
MX-1646
Block Diagram
Block Diagram

12 MX-1646
PROFESSIONAL AUDIO MIXER
Specifications
Specifications...............................................................*0dBu=0.775V
MX-1646
INPUT
MIC INPUT XLR3 type female Electrically Balanced
Input Impedance >2.2kΩ
Nominal level -60dBu to -16dBu
Hi-Z INPUT TRS Jack socket Electrically Balanced
Input Impedance >50kΩ
Nominal level -34dBu to +10dBu
STEREO INPUT TRS Jack socket Electrically Balanced
Input Impedance >10kΩ
Nominal level -20dBu to +10dBu
RETURN INPUT TRS Jack socket Electrically Balanced
Input Impedance 10kΩ
Nominal level 0dBu(+20dBu max)
OUTPUT
MIX OUTPUT XLR3 type male Electrically Balanced
Minimum load >600Ω
Nominal level 0dBu (+20dBu max)
GROUP OUTPUT TRS Jack socket Unbalanced
Minimum load >2kΩ
Nominal level 0dBu (+20dBu max)
AUX OUTPUT TRS Jack socket Unbalanced
Minimum load >2kΩ
Nominal level 0dBu (+20dBu max)
MONITOR OUTPUT TRS Jack socket Unbalanced
Minimum load >2kΩ
Nominal level 0dBu (+20dBu max)
PHONES OUTPUT TRS Jack socket Unbalanced
Minimum load >35Ω
Nominal level 100mW / 600Ω
PHANTOM POWER XLR 3 type female
Output Voltage DC +48V
TYPICAL PERFORMANCES
Frequency Response ±1dB (20Hz to 20kHz, MIC to Mix O/P +60dB input gain)
NOISE (MIC EIN) < -125dBu (MIC to Mix +60dB input gain with 150 ohms termination A-weight)
Distortion < 0.1% (1kHz MIC to MIX with +16dB input gain at +20dBu output)
Channel Equalizer High 10kHz, ±15dB Shelf
(Mono) Mid 1.2kHz, ±15dB Peak
Low 100Hz, ±15dB Shelf
Channel Equalizer High 10kHz, ±15dB Shelf
(Stereo) Low 100Hz, ±15dB Shelf
Operating Temperature Range -10℃~+35℃
Humidity 0~90% @35℃
Power Source AC 100V to 240V, 50Hz / 60Hz
Power Consumption 25W
Dimensions 482(W)x105(H)x310(D)mm / 18.98(W)x4.14(H)x12.21(D)in
Weight 5.78kg/12.74lb
* Specifications and design subject to change without notice.

13
MX-1646
PROFESSIONAL AUDIO MIXER
Dimension
Dimensions

14 MX-1646
PROFESSIONAL AUDIO MIXER
Service
Service
Procedures
Take steps to insure the problem is not related to operator error or other products within the systems. Information
provided in the troubleshooting portion of this maual may help with this process. Once it is certain that the
problem is related to the product contact your warranty provider as described in the warranty section of this
manual.
Schematic
A Schematic is available by contacting your warranty provider.
Parts List
A Parts List is available by contacting your warranty provider.
Variations and Options
Variations and Options
Variations
Products supplied through legitimate source are compatible with local AC power requirements.
Options
No Optinal items are available for this product.
Warranty
Warranty
Warranty terms and conditions vary by country and may not be the same for all products. Terms and conditions
of warranty for a given product may be determined first by locating the appropriate country which the product
was purchased in, then by locating the product type.
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized
Inter-M Distributor for your specific country or region.

NOTE

MADE IN KOREA
July 2010 126728
Inter-M, Ltd. (Korea) began operations in 1983.
Since then, Inter-M has grown to become one of the largest manufacturers
of professional audio and commercial sound electronics equipment in the world.
Inter-M has gained worldwide recognition for its own branded products,
as well as private label manufacturing of electronics sold under other names (OEM).
The company is no longer just a Korean company, but rather a global company
that is truly international in scope, with factories and offices in Korea and China,
and sales and marketing operations located in Japan, Europe, and the U.S.A.
With more than 850 employees around the globe,
Inter-M is well-poised for further growth and expansion.
Inter-M Americas, Inc.
13875 Artesia Blvd. Cerritos, CA 90703 USA
TEL : [phone], FAX : [phone]
Home Page : http://www.inter-m.net, E-mail : [email protected]
Inter-M Corporation
Seoul OFFICE:653-5 BANGHAK-DONG, DOBONG-KU, SEOUL, KOREA
TEL : [phone]~8, FAX : [phone]
Home Page : http://www.inter-m.com, E-mail : [email protected]
