USER GUIDE FOR IR3898 EVALUATION BOARD
3.3Vout
DESCRIPTION
The IR3898 is a synchronous buck
converter, providing a compact, high
performance and flexible solution in a small
4mm X 5 mm Power QFN package.
Key features offered by the IR3898 include
internal Digital Soft Start/Soft Stop, precision
0.5Vreference voltage, Power Good,
thermal protection, programmable switching
frequency, Enable input, input under-voltage
lockout for proper start-up, enhanced line/
load regulation with feed forward, external
frequency synchronization with smooth
clocking, internal LDO and pre-bias start-
up.
Pulse by pulse current limit and output over-
current protection function is implemented by
sensing the voltage developed across the on-
resistance of the synchronous rectifier
MOSFET for optimum cost and performance
and the current limit is thermally compensated.
This user guide contains the schematic and bill
of materials for the IR3898 evaluation board.
The guide describes operation and use of the
evaluation board itself. Detailed application
information for IR3898 is available in the
IR3898 data sheet.
BOARD FEATURES
•Vin = +12V (+ 13.2V Max)
•Vout = +3.3V @ 0-6A
•Fs= 1MHz
•L = 1.0uH
•Cin = 3x10uF (ceramic 1206) + 1X330uF (electrolytic)
•Cout = 3x22uF (ceramic 0805)
SupIRBuckTM

IRDC3898-P3V3
8/15/2013
Confidential
This evaluation board is a preliminary version meant for the engineering evaluation of the IR3898.
Based on the results of the continuing evaluation, this board can evolve and change without notice
2
A well regulated +12V input supply should be connected to VIN+ and VIN-. A maximum of 6A load should be
connected to VOUT+ and VOUT-. The inputs and output connections of the board are listed in Table I.
IR3898 has only one input supply and internal LDO generates Vcc from Vin. If operation with external Vcc
is required, then R15 can be removed and external Vcc can be applied between Vcc+ and Vcc- pins. Vin pin
and Vcc/LDOout pins should be shorted together for external Vcc operation.
The output can track voltage at the Vp pin. For this purpose, Vref pin is to be connected to ground (use zero
ohm resistor for R21). The value of R14 and R28 can be selected to provide the desired tracking ratio
between output voltage and the tracking input.
CONNECTIONS and OPERATING INSTRUCTIONS
LAYOUT
The PCB is a 4-layer board (2.23”x2”) using FR4 material. All layers use 2 Oz. copper. The PCB
thickness is 0.062”. The IR3898 and other major power components are mounted on the top side of the
board.
Power supply decoupling capacitors, the bootstrap capacitor and feedback components are located
close to IR3898. The feedback resistors are connected to the output at the point of regulation and are
located close to the SupIRBuck IC. To improve efficiency, the circuit board is designed to minimize the
length of the on-board power ground current path.
Table I. Connections
Connection Signal Name
VIN+ Vin (+12V)
VIN- Ground of Vin
Vout+ Vout(+3.3V)
Vout- Ground for Vout
Vcc+ Vcc/ LDO_out Pin
Vcc- Ground for Vcc input
Enable Enable
P_Good Power Good Signal
AGnd Analog ground

IRDC3898-P3V3
8/15/2013
Confidential
This evaluation board is a preliminary version meant for the engineering evaluation of the IR3898.
Based on the results of the continuing evaluation, this board can evolve and change without notice
3
Connection Diagram Vin Gnd Gnd Vout
Enable
VDDQ
Vref
Sync
S-Ctrl
AGnd
PGood Vsns Vcc+ Vcc-
Top View
Bottom View

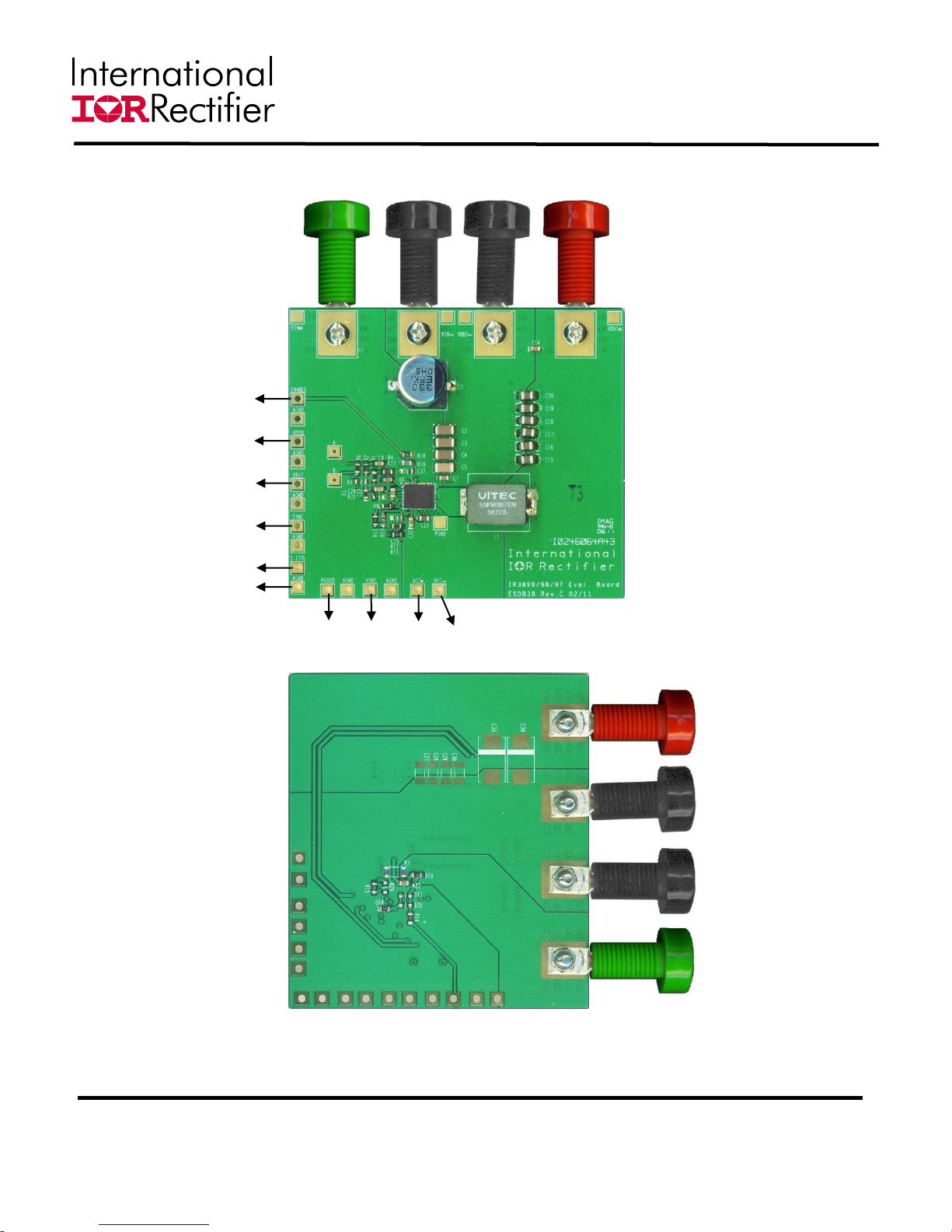

Fig. 1: Connection Diagram of IR3899/98/97 Evaluation Boards

IRDC3898-P3V3
8/15/2013
Confidential
This evaluation board is a preliminary version meant for the engineering evaluation of the IR3898.
Based on the results of the continuing evaluation, this board can evolve and change without notice
4

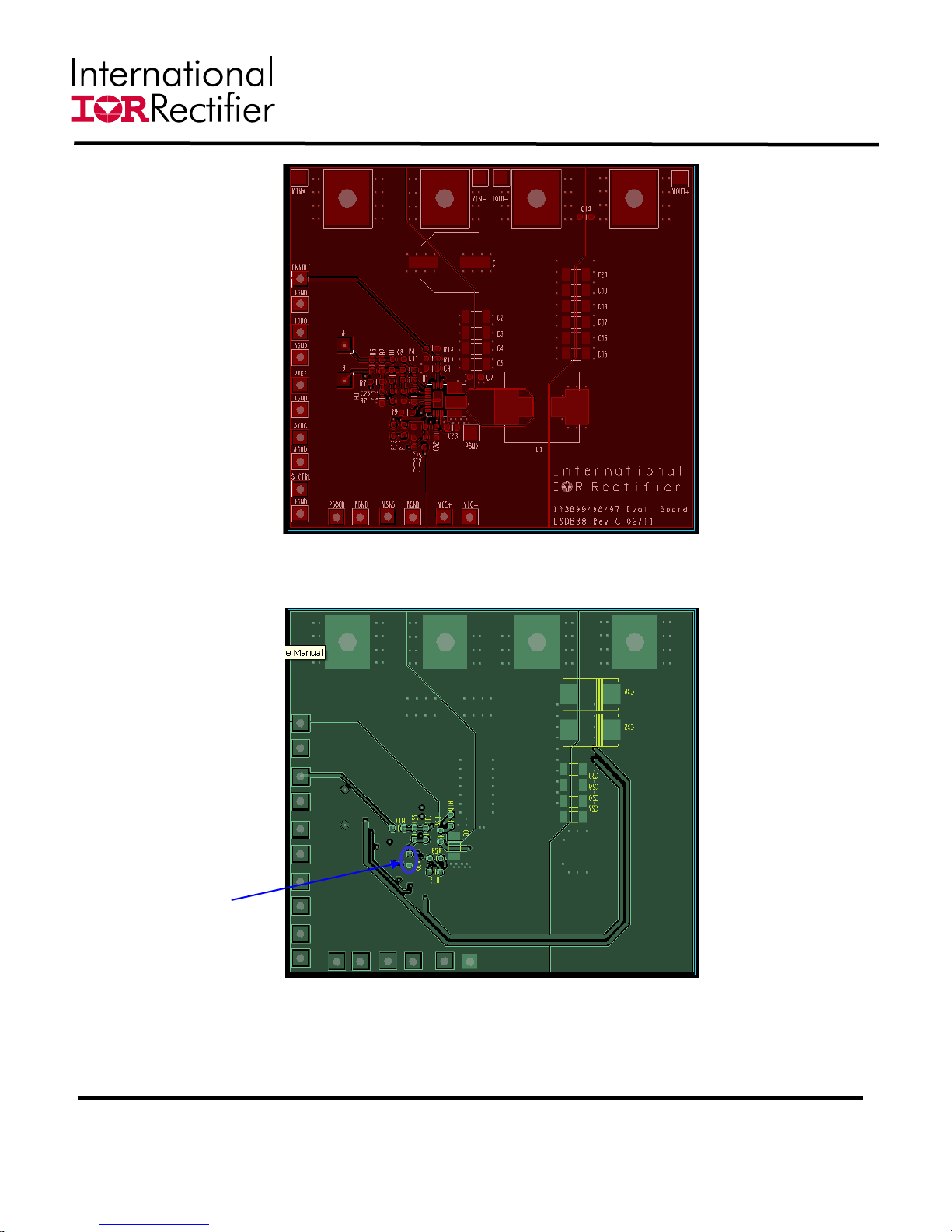

Fig. 2: Board Layout-Top Layer
Fig. 3: Board Layout-Bottom Layer
Single point connection
betweenAGnd and PGnd

IRDC3898-P3V3
8/15/2013
Confidential
This evaluation board is a preliminary version meant for the engineering evaluation of the IR3898.
Based on the results of the continuing evaluation, this board can evolve and change without notice
5

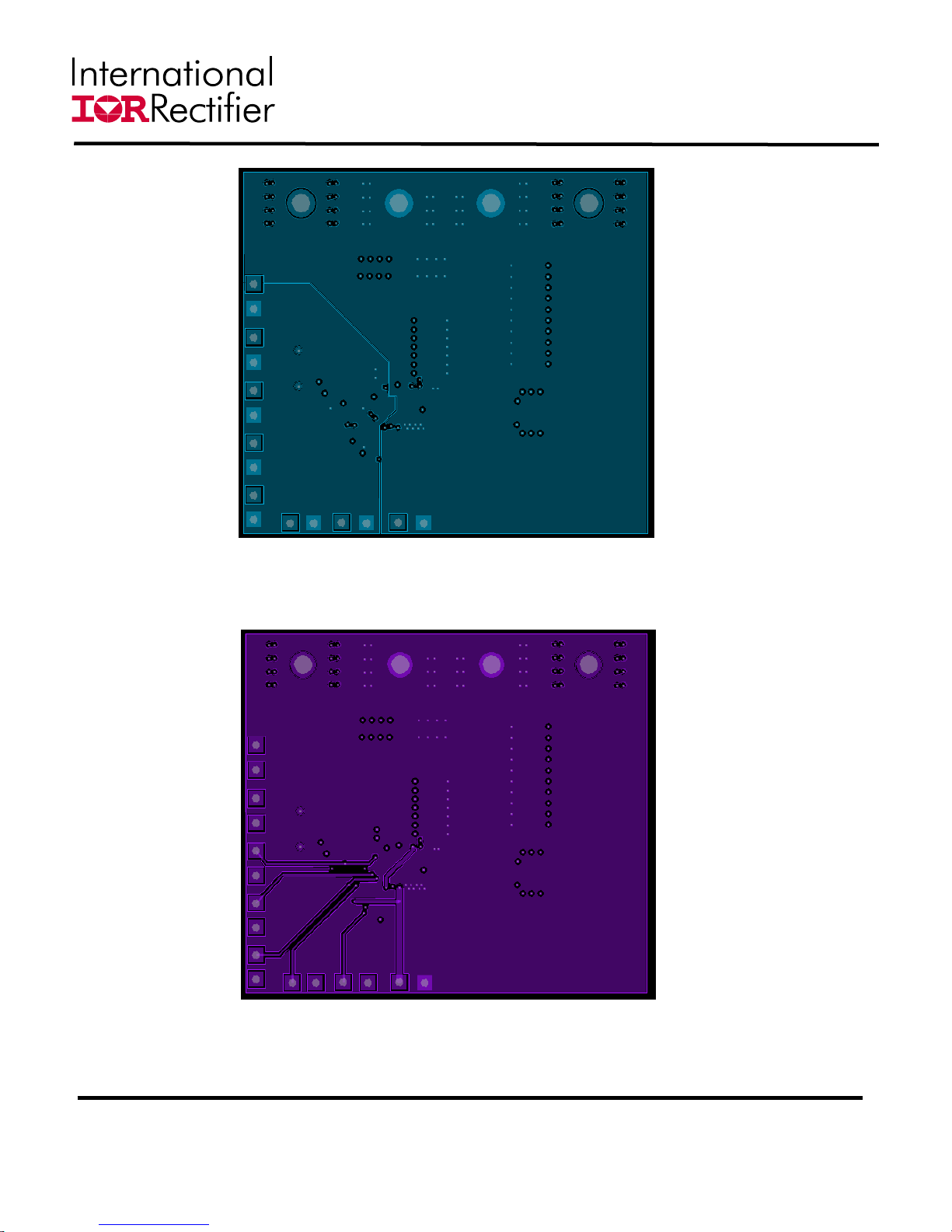

Fig. 5: Board Layout-Mid Layer 2
Fig. 4: Board Layout-Mid Layer 1

IRDC3898-P3V3
8/15/2013
Confidential
This evaluation board is a preliminary version meant for the engineering evaluation of the IR3898.
Based on the results of the continuing evaluation, this board can evolve and change without notice
6
Fig. 6: Schematic of the IR3898 evaluation board

IRDC3898-P3V3
8/15/2013
Confidential
This evaluation board is a preliminary version meant for the engineering evaluation of the IR3898.
Based on the results of the continuing evaluation, this board can evolve and change without notice
7
Bill of Materials
Item Qty Part Reference Value Description Manufacturer Part Number
1 1 C1 330uF
SMDElectrolytic F size 25V 20%
Panasonic EEV-FK1E331P
2 3 C3 C4 C5 10uF 1206, 16V, X5R, 20% TDK C3216X5R1C106M
3 4 C7 C12 C14 C24 0.1uF
0603, 25V, X7R, 10% Murata GRM188R71E104KA01B
4 1 C8 2200pF 0603,50V,X7R Murata GRM188R71H222KA01B
5 1 C11 130pF
0603, 50V, NP0, 5% Murata GRM1885C1H131JA01D
6 3
C15 C16 C17 22uF 0805, 6.3V, X5R, 20% TDK C2012X5R0J226M
7 1 C23 2.2uF
0603, 16V, X5R, 20% TDK C1608X5R1C225M
8 1 C26 5.6nF
0603, 25V, X7R, 10% Murata GRM188R71E562KA01J
9 1 C32 1.0uF
0603, 25V, X5R, 10% Murata GRM188R61E105KA12D
10 1L1 1.0uH SMD 7.1x6.5x5mm,4.7mΩ TDK SPM6550T-1R0
11 1R1 2.49K Thick Film, 0603,1/10W,1% Panasonic ERJ-3EKF2491V
12 2 R2 R11 4.42K Thick Film, 0603,1/10W,1% Panasonic ERJ-3EKF4421V
13 2 R3 R12 787 Thick Film, 0603,1/10W,1% Panasonic ERJ-3EKF7870V
14 1R4 75 Thick Film, 0603,1/10W,1% Panasonic ERJ-3EKF75R0V
15 1 R6 20 Thick Film, 0603,1/10W,1% Panasonic ERJ-3EKF20R0V
16 1 R9 23.2K Thick Film, 0603,1/10W,1% Panasonic ERJ-3EKF2322V
17 5 R10 R13 R14 R15 R50 0 Thick Film, 0603,1/10W Panasonic ERJ-3GEY0R00V
18 2 R17 R18 49.9K Thick Film, 0603,1/10W,1% Panasonic ERJ-3EKF4992V
19 1 R19 9.09K Thick Film, 0603,1/10W,1% Panasonic ERJ-3EKF9091V
20 1U1 IR3898 PQFN4x5mm IR IR3898MPBF
BOM IRDC3898 Vin-12V Vout-3.3V/6.0A Freq-1MHz

IRDC3898-P3V3
8/15/2013
Confidential
This evaluation board is a preliminary version meant for the engineering evaluation of the IR3898.
Based on the results of the continuing evaluation, this board can evolve and change without notice
8

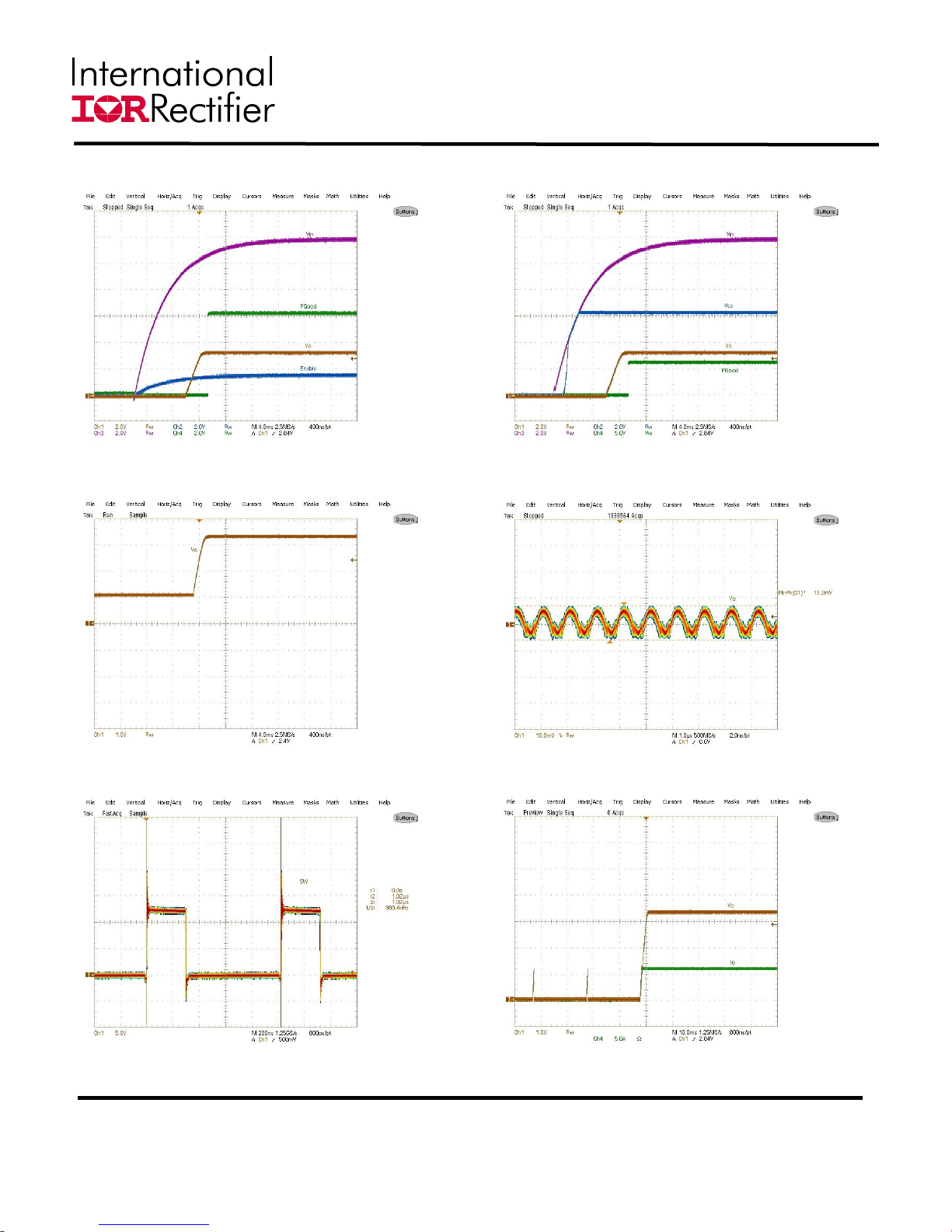

TYPICAL OPERATING WAVEFORMS
Vin=12.0V, Vo=3.3V, Io=0-6A, Room Temperature, no airflow
Fig. 10: Output Voltage Ripple, 6A load
Ch1: Vo
Fig. 11: Inductor node at 6A load
Ch1:LX
Fig. 12: Short circuit (Hiccup) Recovery
Ch1:Vo , Ch4:Io

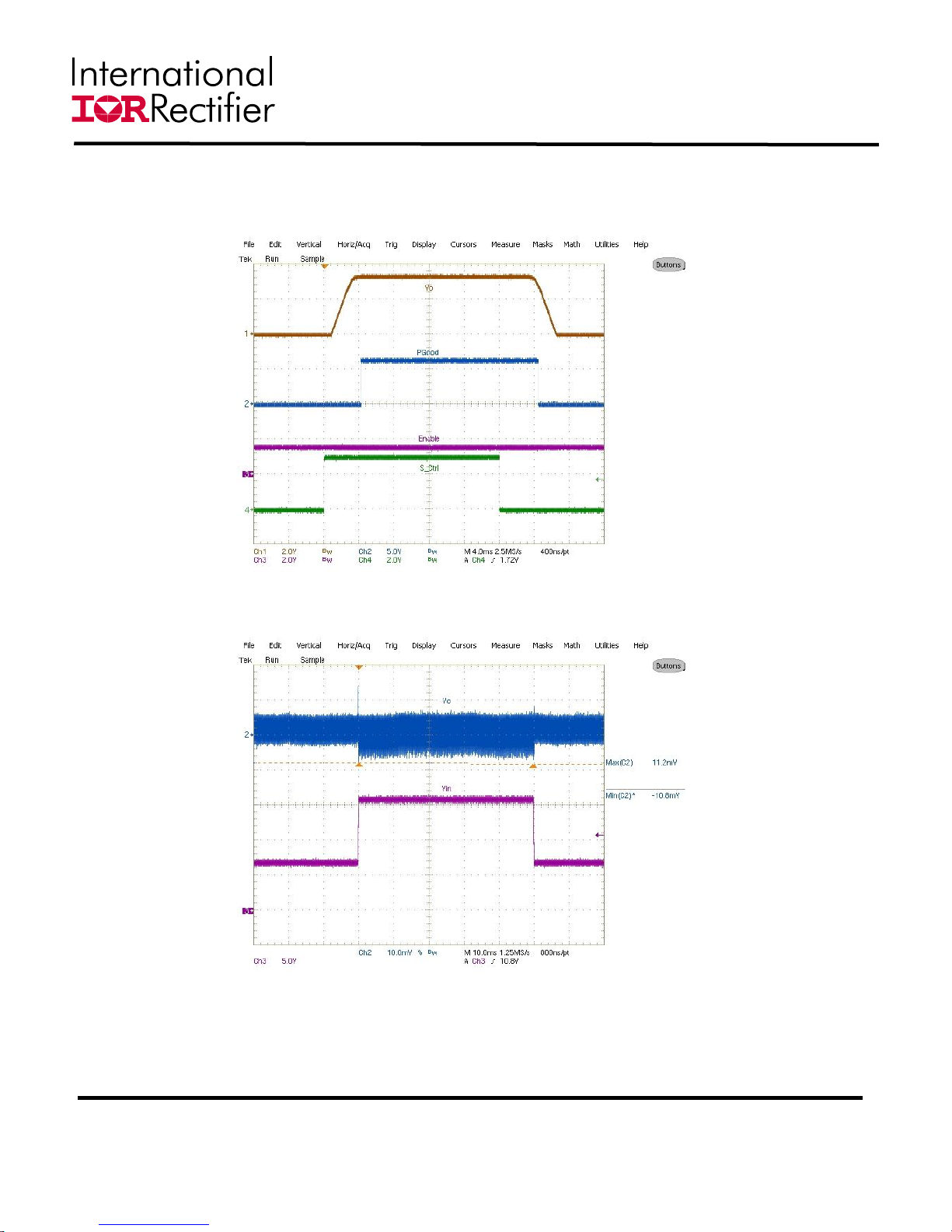

Fig. 8: Start up at 6A Load,
Ch1:Vo, Ch2:Vcc, Ch3:Vin, Ch4:PGood
Fig. 7: Start up at 6A Load
Ch1:Vo, Ch2:Enable, Ch3:Vin, Ch4:PGood
Fig. 9: Start up with 1.0V Pre Bias , 0A
Load, Ch1:Vo

IRDC3898-P3V3
8/15/2013
Confidential
This evaluation board is a preliminary version meant for the engineering evaluation of the IR3898.
Based on the results of the continuing evaluation, this board can evolve and change without notice
9
TYPICAL OPERATING WAVEFORMS
Vin=12.0V, Vo=3.3V, Io=0-6A, Room Temperature, no air flow

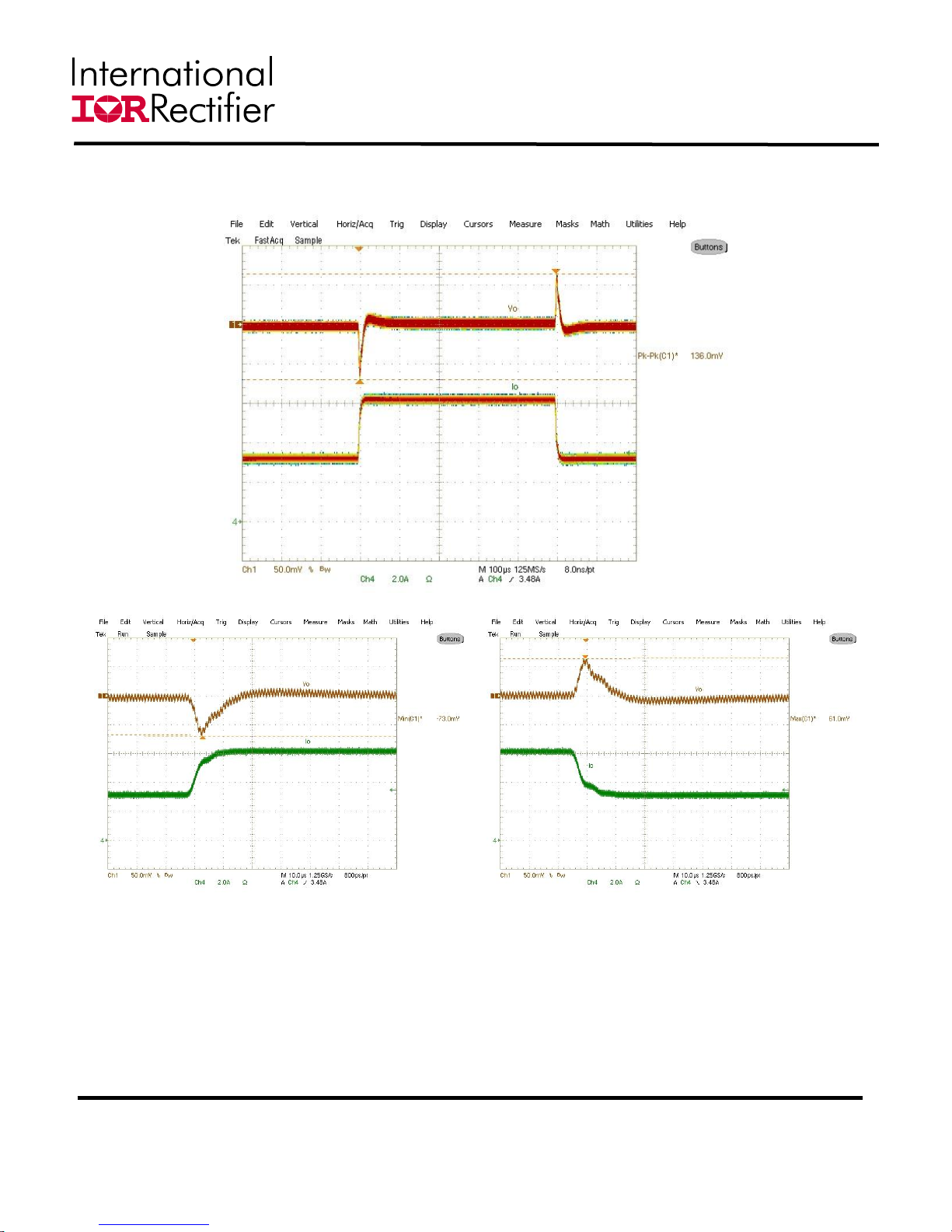

Fig. 13: Transient Response, 3A to 6A step
Ch1:Vo Ch4-Io

IRDC3898-P3V3
8/15/2013
Confidential
This evaluation board is a preliminary version meant for the engineering evaluation of the IR3898.
Based on the results of the continuing evaluation, this board can evolve and change without notice
10
TYPICAL OPERATING WAVEFORMS
Vin=12.0V, Vo=3.3V, Io=0-6A, Room Temperature
Fig. 14: Bode Plot at 6A load shows a bandwidth of 156.1KHz and phase margin of 49.1 degrees

IRDC3898-P3V3
8/15/2013
Confidential
This evaluation board is a preliminary version meant for the engineering evaluation of the IR3898.
Based on the results of the continuing evaluation, this board can evolve and change without notice
11
TYPICAL OPERATING WAVEFORMS
Vin=12.0V, Vo=3.3V, Io=0-6A, Room Temperature, no air flow
Fig. 16: Feed Forward for Vin change from 7 to 16V and back to 7V
Ch2-VoCh3-Vin
Fig. 15: Soft start and soft stop using S_Ctrl pin

IRDC3898-P3V3
8/15/2013
Confidential
This evaluation board is a preliminary version meant for the engineering evaluation of the IR3898.
Based on the results of the continuing evaluation, this board can evolve and change without notice
12
Fig. 18: Power loss versus load current
Fig. 17: Efficiency versus load current
TYPICAL OPERATING WAVEFORMS
Vin=12.0V, Vo=3.3V, Io=0-6A, Room Temperature, no air flow
85
86
87
88
89
90
91
92
93
94
95
0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0
Efficiency (%)
Load Current (A)
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0
Power Dissipation (W)
Load Current (A)

IRDC3898-P3V3
8/15/2013
Confidential
This evaluation board is a preliminary version meant for the engineering evaluation of the IR3898.
Based on the results of the continuing evaluation, this board can evolve and change without notice
13
THERMAL IMAGES
Vin=12.0V, Vo=3.3V, Io=0-6A, Room Temperature, No Air flow

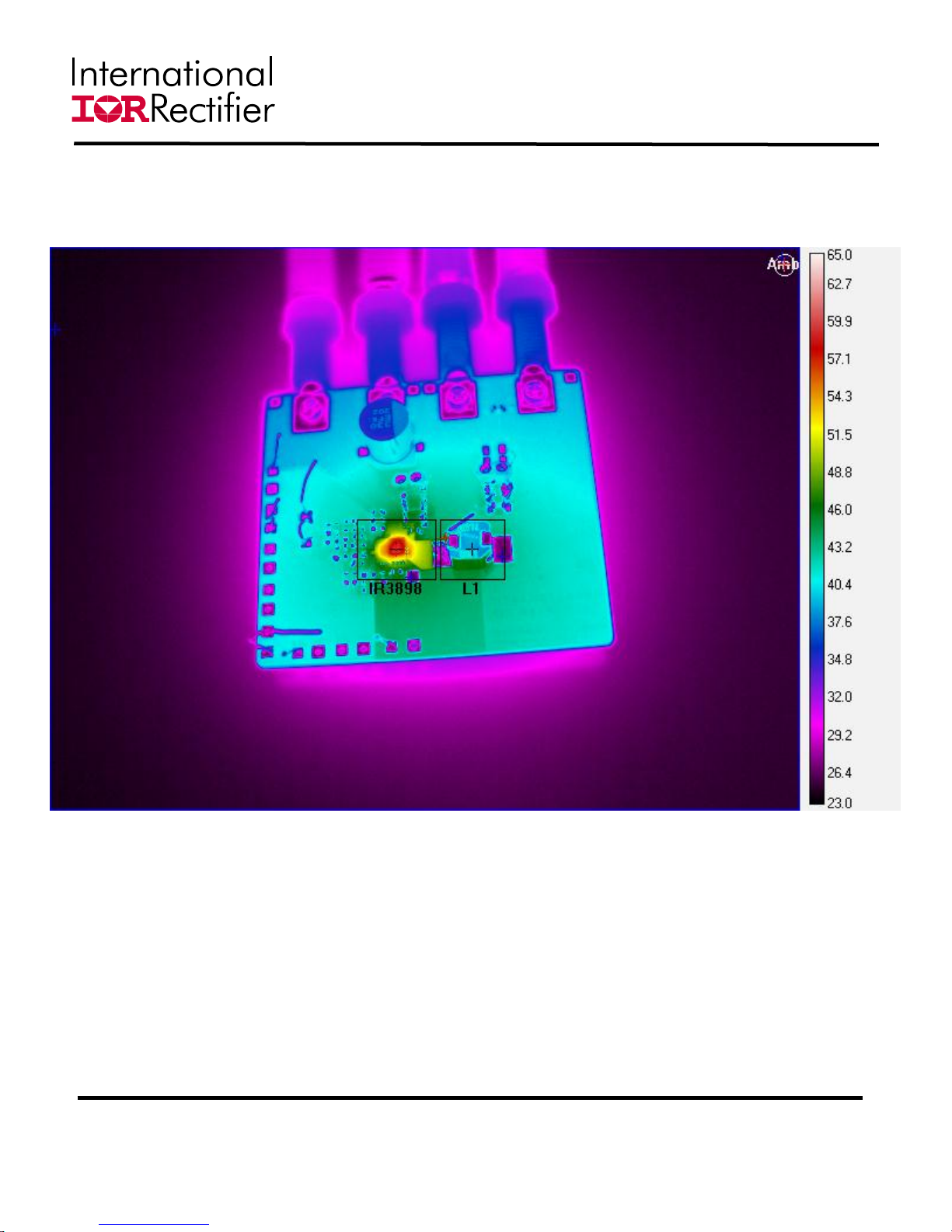

Fig. 19: Thermal Image of the board at 6A load
Test point 1 is IR3898: 60.020C
Test point 2 is inductor: 47.490C

IRDC3898-P3V3
8/15/2013
Confidential
This evaluation board is a preliminary version meant for the engineering evaluation of the IR3898.
Based on the results of the continuing evaluation, this board can evolve and change without notice
14
PCB METAL AND COMPONENT PLACEMENT
Evaluations have shown that the best overall performance is achieved using the substrate/PCB layout
as shown in following figures. PQFN devices should be placed to an accuracy of 0.050mm on both X
and Y axes. Self-centering behavior is highly dependent on solders and processes, and experiments
should be run to confirm the limits of self-centering on specific processes. For further information, please
refer to “SupIRBuck™ Multi-Chip Module (MCM) Power Quad Flat No-Lead (PQFN) Board Mounting
Application Note.” (AN1132)

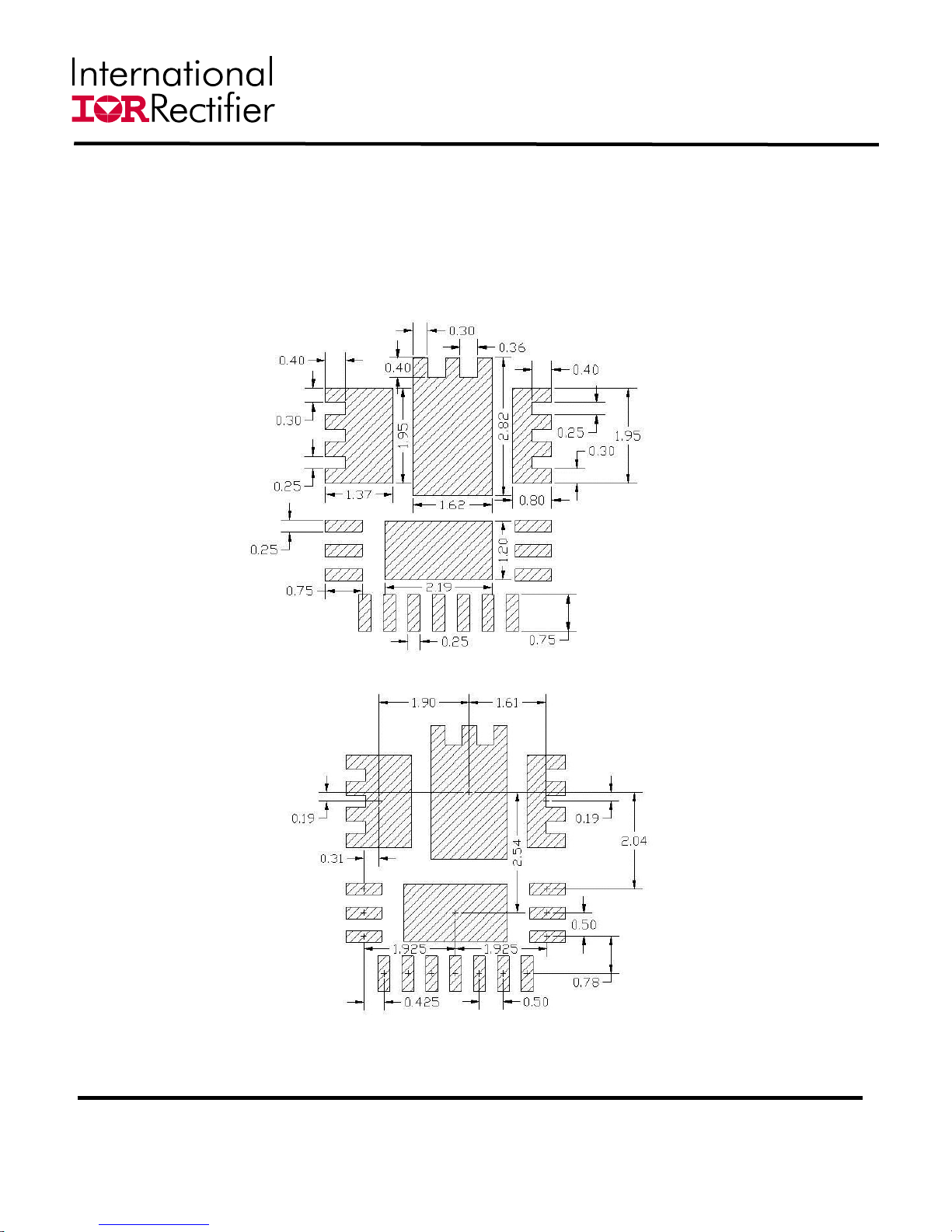

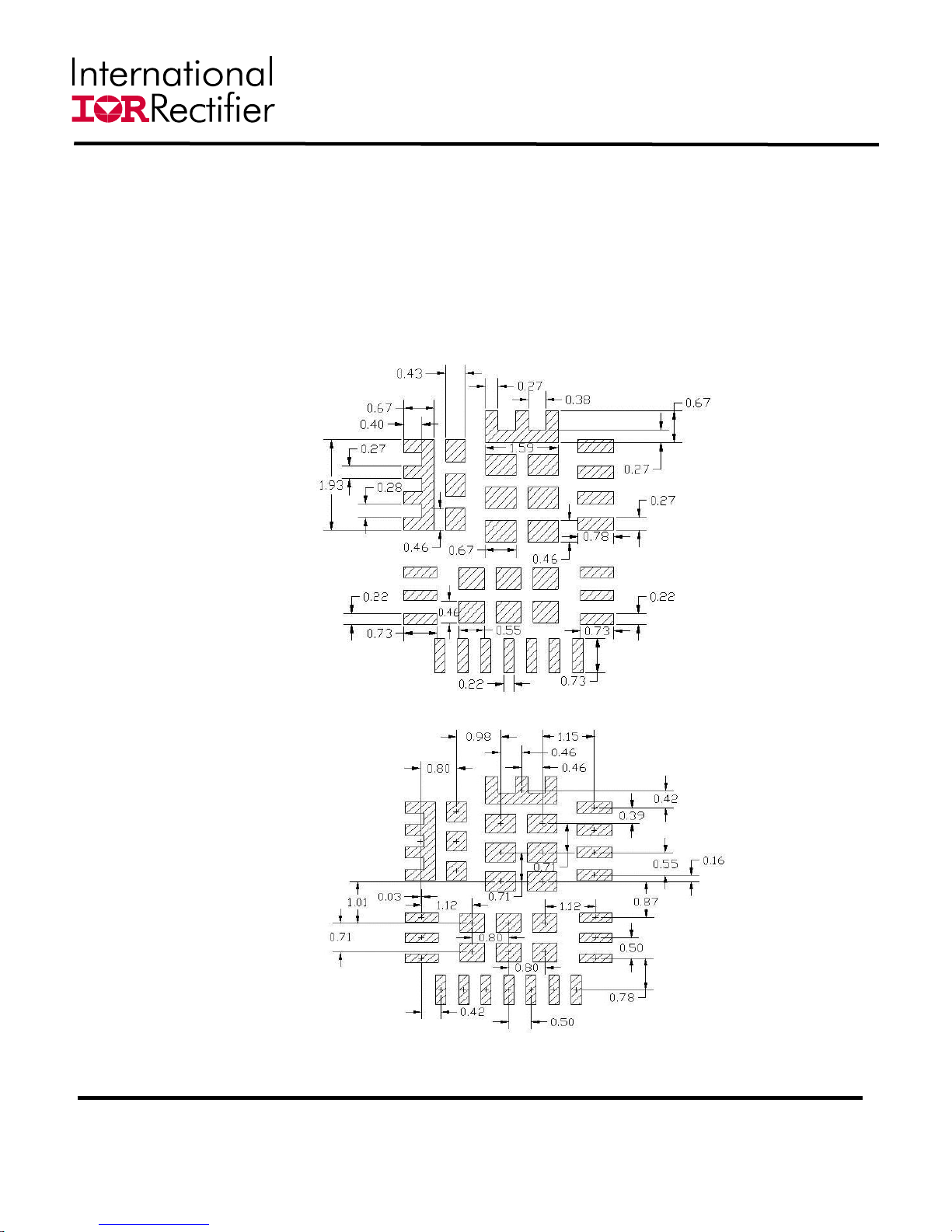

Figure 20: PCB Metal Pad Spacing (all dimensions in mm)

IRDC3898-P3V3
8/15/2013
Confidential
This evaluation board is a preliminary version meant for the engineering evaluation of the IR3898.
Based on the results of the continuing evaluation, this board can evolve and change without notice
15
SOLDER RESIST
IR recommends that the larger Power or Land Area pads are Solder Mask Defined (SMD.)
This allows the underlying Copper traces to be as large as possible, which helps in terms of current
carrying capability and device cooling capability. When using SMD pads, the underlying copper
traces should be at least 0.05mm larger (on each edge) than the Solder Mask window,
in order to accommodate any layer to layer misalignment. (i.e. 0.1mm in X & Y.)
However, for the smaller Signal type leads around the edge of the device, IR recommends that
these are Non Solder Mask Defined or Copper Defined. When using NSMD pads,
the Solder Resist Window should be larger than the Copper Pad by at least 0.025mm on
each edge, (i.e. 0.05mm in X&Y,) in order to accommodate any layer to
layer misalignment. Ensure that the solder resist in-between the smaller signal lead areas are at
least 0.15mm wide, due to the high x/y aspect ratio of the solder mask strip.
Figure 21: Solder resist

IRDC3898-P3V3
8/15/2013
Confidential
This evaluation board is a preliminary version meant for the engineering evaluation of the IR3898.
Based on the results of the continuing evaluation, this board can evolve and change without notice
16
STENCIL DESIGN
Figure 22: Stencil Pad Spacing (all dimensions in mm)
Stencils for PQFN can be used with thicknesses of 0.100-0.250mm (0.004-0.010"). Stencils thinner than
0.100mm are unsuitable because they deposit insufficient solder paste to make good solder joints with the
ground pad; high reductions sometimes create similar problems. Stencils in the range of 0.125mm-0.200mm
(0.005-0.008"), with suitable reductions, give the best results. Evaluations have shown that the best overall
performance is achieved using the stencil design shown in following figure. This design is for
a stencil thickness of 0.127mm (0.005").The reduction should be adjusted for stencils of other thicknesses.

IRDC3898-P3V3
8/15/2013
Confidential
This evaluation board is a preliminary version meant for the engineering evaluation of the IR3898.
Based on the results of the continuing evaluation, this board can evolve and change without notice
17
IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: [phone]
TAC Fax: [phone]
This product has been designed and qualified for the Consumer market
Visit us at www.irf.com for sales contact information
Data and specifications subject to change without notice.04/11
PACKAGE INFORMATION
Figure 23: Package Dimensions
