InterVac F User manual

RECORD THIS INFORMATION FOR
FUTURE REFERENCES
THE BUILT-IN VACUUM SYSTEM
MODEL NUMBER _______________________
DATE OF PURCHASE ___________________
PLACE OF PURCHASE__________________
Manual # W502 rev.: 8-6-14
InterVac Design Corp., Palm City, FL 34990
Phone [phone] • USA & Canada toll free 888-499-1925
www. .com •
2939 SW 42nd Avenue
intervacdesign e-mail: [email protected]
66XF
INSTALLATION and OPERATING MANUAL
TYPE: 120 VOLT Model: F in-wall mounted
Model: H surface mounted
Model: RM (F) remote vacuum, in-wall mounted
Model: RM (H) remote vacuum, surface mounted
Model: RMD remote vacuum, double sided
Models F & H Models RM Model RMD
IF YOU SHOULD HAVE ANY QUESTIONS OR EXPERIENCES A PROBLEM WITH YOUR INTERVAC
PRODUCT, DO NOT RETURN THIS PRODUCT TO THE STORE OR DEALER
PLEASE CALL US DIRECT 1-888-499-1925
WARNING:
This manual must be read and understood before installation, adjustment, service or maintenance is performed.
This unit should be installed by a qualified technician. Modification of this product can be extremely hazardous
and could result in personal injury or property damage.
Owner read carefully.
Instructions must stay with unit.

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical vacuum cleaner, basic precautions should always be followed including the following:
Read all instructions carefully before using this vacuum cleaner.
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR INJURY:
1. Unplug from electrical outlet when not in use and before
servicing.
2. Do not use on wet surfaces.
3. Never operate this vacuum cleaner without a dust bag and filters
in place.
4. Close attention is necessary when used by or near children.Do
not allow unit to be used as a toy.
5. Use only for intended use as described in this manual. Use only
the manufacturer's recommended attachments and dust bag.
6. Do not use with damaged cord or plug. If appliance is not working
as it should, has been dropped, damaged, left outdoors, or fell into
water, return the vacuum cleaner to InterVac or an authorized
service dealer for examination and repair.
7. Do not put any object into openings. Do not use with any openings
blocked; keep free of dust, lint, hair and any other material that
may reduce air flow. If the secondary filter becomes dirty,
rinse in warm water or replace with a new filter. Filter should be
completely dry before using.
8. Never drop or insert any object into any opening.
9. Turn off all controls before unplugging.
10. Do not pull or carry by cord, do not use cord as a handle, do not
close a door on the cord, or pull cord around sharp edges or
corners. Do not run over cord. Keep cord away from
heated surfaces.
11. Do not unplug by pulling on cord. To unplug, grasp the plug, not
the cord.
12. Keep hair, loose clothing, fingers, and all parts of body away
from any openings and all moving parts.
13. Do not pick up anything that is burning or smoking, such as
cigarettes, matches, or hot ashes.
14. Use extra caution when cleaning on stairs.
15. Do not handle plug or appliance with wet hands.
16. Do not pick up flammable or combustible liquids such as
gasoline, or use in areas where they may be present.
17. Do not place objects against the vacuum cleaner. Keep area
clear.
18. Do not step on the hose or pull the hose forcibly.
19. Do not pick up large objects such as waste paper or cloth,
which may clog the hose.
20. Do not install this vacuum cleaner in an area exposed to high
temperatures.
21. Install this vacuum cleaner in a dry place.
22. Do not attempt to service the vacuum cleaner. Unit is sealed
and cannot be opened without damage to the unit. For service,
call your local authorized service dealer, or InterVac Design's
Customer Care Center.
SAVE THESE INSTRUCTIONS
2
LI ITED WARRANTY M
Inter c e gn Corp. w ll repa r he po er u it ith n w o re ult arts, ree of c arge f r ix (6) years n Nort Am ric rom Va D si i i t w n w e r bipf h osih e af
the ate f rigin l purchase n the eve t of a def ct in m teri ls or wo kmanship. War nty mi h va rom country to co ntry. d o o a i ne a a r ra gtry fu
N ca h re und . Eclu ed are te fo lowi g t ms that q ire normal rep ac me t:
o s fsxd h l n i e re u l e n
D sp sable du bags, i ters, va ucle ner too s and vacuum hoses.
io st f l cu m a l
This warranty s xten ed onl to te origi al purchaser. pu cha e ece pt or other proo of ate of ri inal purchase will be
i e d y h n Ars r ifdo g
re ured be ore warranty performance is rend re . q ife d
You must etur yo r wrranty ard r reg ser n our webs te i or er to be co ered un er these pr visi ns r n u a c o it o i n d v d o o .
This warrant on y covers ailures ue to defects in mat ri ls r wrkmanship wh ch ccu s durin n rmal use and do s not
y l f d eaoo iorg o e
co er da age wh ch ors in ship en or f ilures whi h are caused by produ ts nt supp ied by I terVac Design or filures
v m i ccu mta c c o l n ,a
w ic re ul from accide t, misuse, abu e, n glect, mi andling, mis ppli tio , alt rati n, m dification, or co mercial use
hh s t n s e sh a ca n e o o m
su h as hotel office restaurant or en al use f the product r srvic by a yo e the tha an uth rized ervice nte , or
c, , r t o ,oee n n o r naos ce r
d ma e th t is a tri uta le t ac s of od.
a g a t b b o t G
There are n e re ed a n i s e ep as li ted abo e.
o xp ss w rra t exc t sv
: LIMIT AEXCLUSIONS
S ND
INTERVAC DE GN SHALL NOT B L A E OR INCI EN AL O ONSE UENTIAL DAMAGES RES LTING RO
SI E I BL F D T R CQU F M
THE U OF HI PRODU T, OR AR SIN OUT O Y BR ACH OF THI WRR NTY ALL EXPR SSED AND
SE TSCIGF AN E S A A . E
IMPL ED AR AN IES, I C UDI G TE WA RA TI F MERCHANTABILITY ND ITNES FOR A RTICULAR I WRT N L N H R N ES OA F S PA
PU POSE,
ARE LI ITED TO THE APP I ABLE WARRANT PER OD SET FO TH
ABOVE.
R M L C Y I R
So e at s do ot llow te exclusion or li itation f inciden al or consequ nti l da ag s or l mi ation o how long an
m st en a h m o te a m e i t s n
im lied a n y lasts, so the ab ve xcl si ns or li itations m y not pply to u. Th s w rra t gi s yo sp ci i le al rig ts
p wrra t o e u o m a a yo i an y ve u e fcgh
tha vary f m tat to state. f a p ob em with this prod ct develo s during or after he aan y pe od, yo m y nta your
t ro s e I rl up t w rr t ri u aco ct
d aler o ur rvi ce tr. If h pr blem is no han led to your satisf ctio , t en wri e to te Custo r Se vice e tr a the e r o se ce n e t e o t d a n h th me rC n et
co pa y a dr ss.
mn d e
Polarization Instructions for models with 120volt cord only.
These appliances have a polarized plug (one blade is wider than the other). This plug will fit in a
polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not
fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

MODEL: H surface mounted with power cord attached

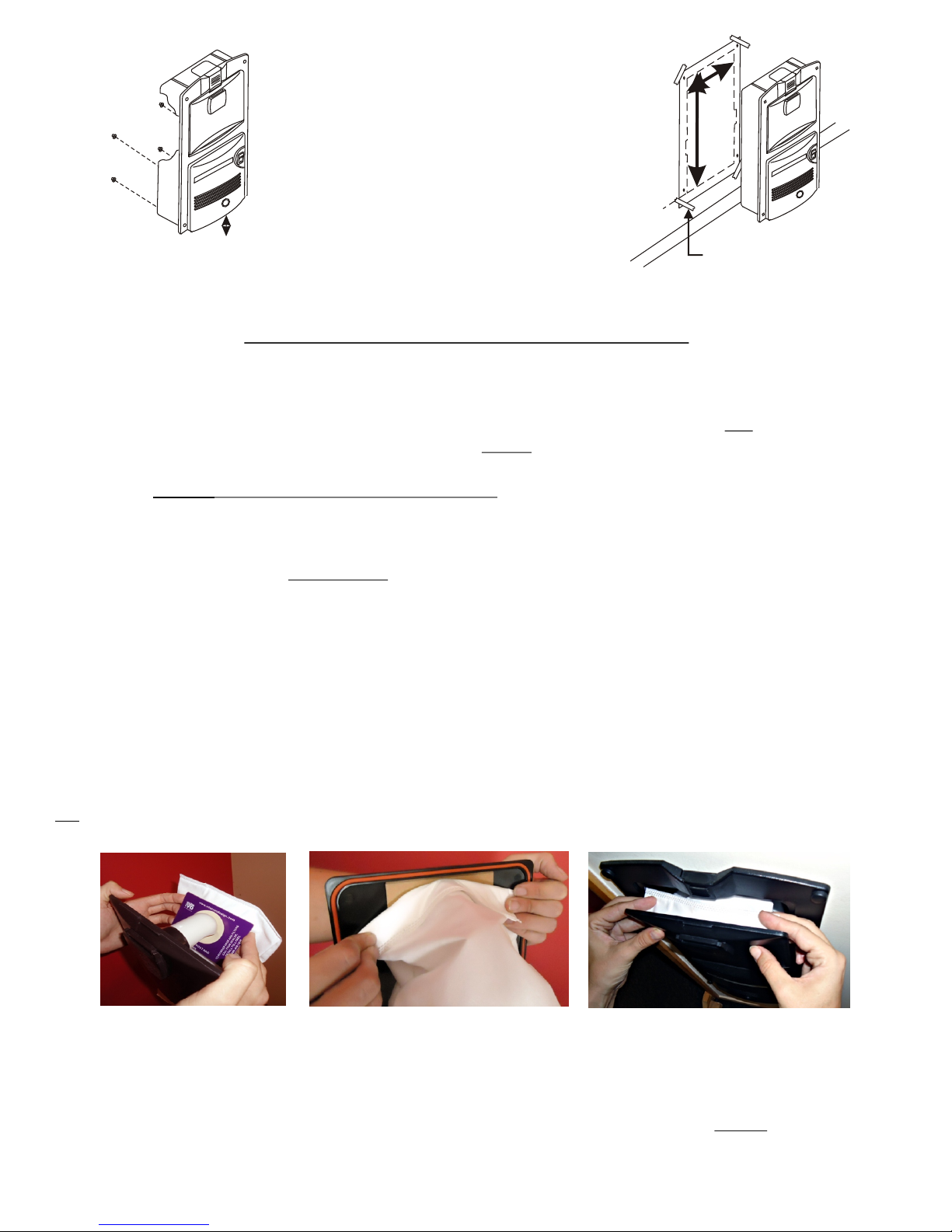

External to Wood Surfaces: (see Fig.: A)
Step 1. To cover with the vacuum hose as much area as possible, choose a wall or surface that is centrally located
and has an electrical outlet close by.
Step 2. Cut paper template from instruction manual, page 12. Tape the template to the wall or a surface at a comfortable
operating height or a minimum of 2 to 3 inches above the floor. Mark the 4 centers accurately.
Carefully remove template from the wall and place it into the operating manual for future references .
Step 3. Attach the enclosed #8 screws to the wall as marked on the template. Keep the screw heads 1/8” from the wall.
Step 4. Slide the key holes on the back of the vacuum cleaner over the 4 screw heads and secure by pushing down.
If vacuum cleaner is loose re-tighten screws.
TIP: If vacuum cleaner is mounted on its back or side , it may slide off the screw heads when you pull on the vacuum hose.
To prevent this, fasten a small wood block against the top of the unit.
Step 5. Check to be sure dust bag and motor filter (under dust bag) are in place. The corners of the filter have to be
tucked under the ribs so that the filter lays flat!
3
Specification: 120 Volt, 10 Amp 50/60Hz, Weight 8 lb
Parts List:
Depending on model 2 dry-wall anchors, 1 red push pin
Paper templates: #W602 or #W600 4 screws and caps
3 wire connectors with F,RMF, RMD-F units only 2 high filtration bags #Y08 or #Y09
1 wood strip ( for in-wall units only)
CAUTION: To avoid possible electrical shock, be sure t at electric ty is tur ed off at the main
h in
switch or circuit bre ker.
All wiring must be in accord nc with the US National Ele tric
a a e c
Code or Canadian Electric Codes.
ARNING: e c c nn c ns h l eaey q l ed l ct i ia
W El ctri al o e tio s ou d b m d b aua ifi e e r c n.
GROUNDING INSTRUCTIONS for
Models F + RM(F) + RMD when PERMANENTLY WIRED
This appliance must be connected to a grounded metal, permanent wiring system; or an equipment-grounding
conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead
on the appliance.
WARNING: Disconnect all electrical power to the wall area before installing!
Do not drill near studs where electrical cable may be secured to studs adjacent to receptacles.
Note: The four mounting holes in the outer corners of the flange of the Vacuum Cleaner must be drilled from
the back of the unit with a 3/16” drill bit when the unit is to be recessed into a wall.
To reach with the vacuum hose as far as possible, choose a wall or surface that is centrally located and has an
electrical outlet or switch from a 15 amp circuit breaker. Make sure the wall is hollow and there are no pipes or
other obstructions in the section you choose.
CAUTION: DO NOT PICK UP LIQUIDS, LIT CIGARETTES, HOT ASHES,
RAZOR BLADES, NEEDLES, PINS OR OTHER SHARP OBJECTS!
INSTALLATION

4
MODEL F recessed installation
Paper Template # W602
WARNING: Disconnect all electrical power to the wall area before installing!
Do not drill near studs where electrical cable may be secured to studs adjacent to receptacles.
Note: The four mounting holes in the outer corners of the flange of the Vacuum Cleaner must be drilled
from the back of the unit with a 3/16” drill bit when the unit is to be recessed into a wall.
To reach with the vacuum hose as far as possible, choose a wall or surface that is centrally located and has an
electrical outlet or switch from a 15 amp circuit breaker. Make sure the wall is hollow and there are no pipes or
other obstructions in the section you choose.
Recessed Installation into ½ inch thick Drywall: (see Fig.: B)
We recommend that vacuum cleaner be mounted against one side of a 2X4 wall stud.
TIP: Drywall installation: with a 3” dia. hole saw, cut a hole first and check for obstructions! It is easier to
re-plaster the 3” dry-wall slug than a large cut-out if you do encounter an obstruction.
Step 1 The vacuum cleaner should be mounted to the side of a 2X4 wall stud . Make sure no electrical switches or outlets
are on the installation side when mounted to a 2X4.
Step 2. Tape the template against the wall at a comfortable operating height (or a minimum of 2 to 3 inches off the floor)
to the edge of the 2X4 (use the vertical cut-out line from the template and align with the edge of the 2X4)
Step 3. Refer to the paper template #W602 for the cut-out.
Step 4. Install 14 or 16 gage AWG, 300V minimum Romex cable (use wires rated for at least 95C) from the electrical power
supply and pull the power cable through the wall cut-out.
Step 5. a) Open the 2 3/4" x 1 3/8" side cover and pull the 3 inside wires through the opening.
b) Insert your 120 volt power supply cable through the Romex clamp and out of the side opening.
d) With 3 wire nuts connect black to black ,white to white and green to bare ground conductor wires.
e) Tighten the Romex clamp and replace the side cover.
Step 6. Slide the unit, bottom first, into the opening and secure with the four screws and screw caps.
use 2 screws for the 2X4 and 2 screws for the 2 anchors. Do not over-tighten.
Step 7. Check to be sure dust bag and motor filter (under dust bag) are in place. The corners of the filter have to be
tucked under the ribs so that the filter lays flat!
Recessed into Wood Surface Installation: (see Fig.: B)
Same procedure as above, but do not use the drywall anchors. Pre-drill the 4 outer holes 3/16 dia. and secure
vacuum cleaner with the 4 screws and caps.....
External to Drywall (½ thick) Surfaces: (see Fig.: A)
Step 1. To cover with the vacuum hose as much area as possible, choose a wall or surface that is centrally located
and has an electrical outlet close by.

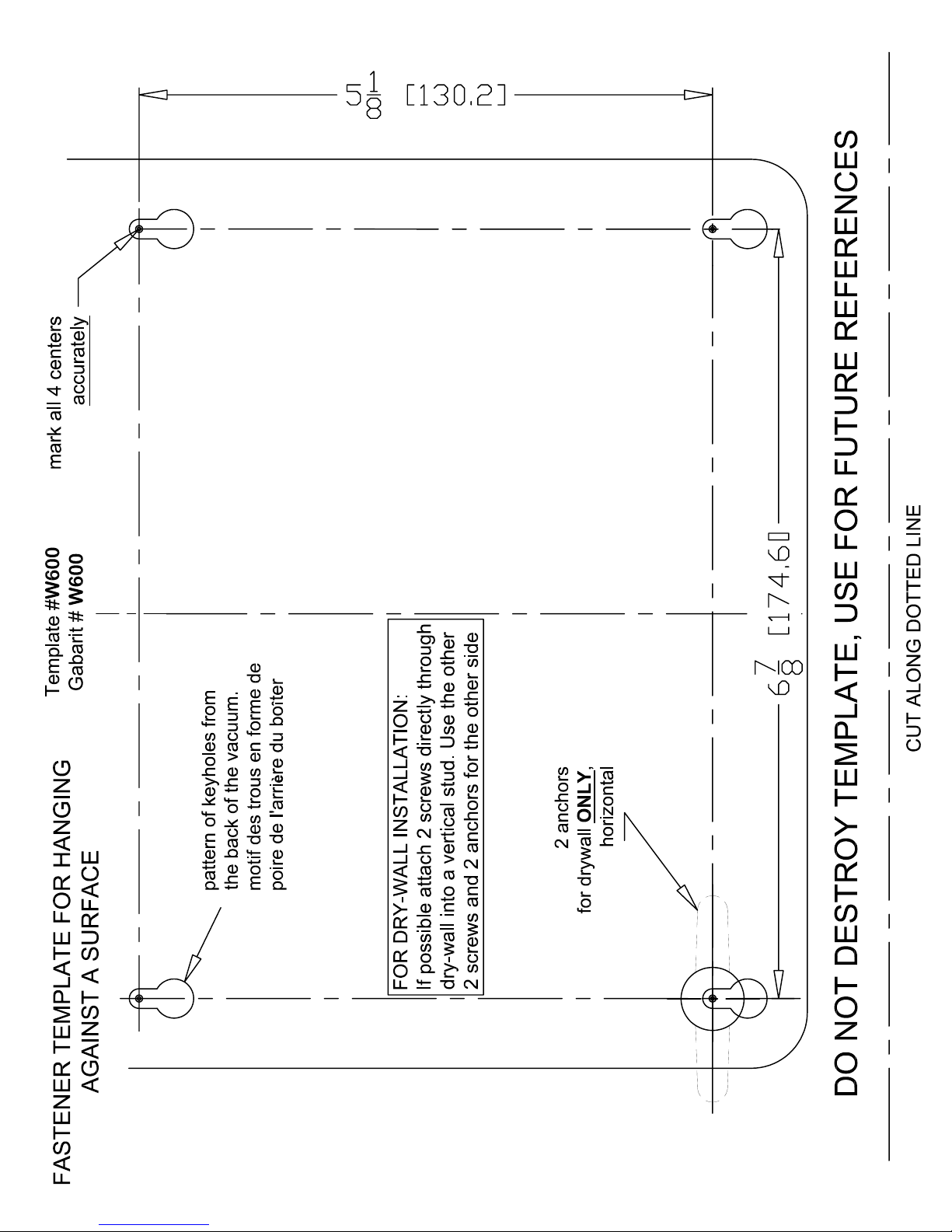

Step 2. Tape the paper template #W600 on page 12 to a wall at a comfortable operating height or a minimum of 2-3 inch
above the floor. 2 of the 4 mounting screws should be in the center of a wall stud behind the dry wall for strength.
Step 3. With an awl or similar object mark the center of the 4 key holes accurately. Carefully remove template from the
wall and place it into the operating manual for future references .
Step 4. With a 3/32 drill bit, pre-drill all 4 holes.
Step 5. Now use a 5/16 drill bit to enlarge the 2 holes which are not going into the wall-stud.
Step 6. Squeeze the two arms of the anchor together and insert through the hole. Very lightly hammer the anchor
flush with the dry-wall surface.
Step 7. Insert the red key-pin and push hard to open the anchor behind the dry-wall, remove red key. Do not hammer key.
Step 8. Attach the four screws (#8) through the 2 anchors and into the wall-stud. Keep the screw heads 1/8” from the
wall surface.
Step 9. Slide the key holes on the back of the vacuum cleaner over the 4 screw heads and push down.
If the vacuum cleaner is loose on the screws re-tighten screw heads a little more.
TIP: If vacuum cleaner is mounted on its back or side, it may slide off the screws heads when you pull on the vacuum hose.
To prevent this, fasten a small wood block against the top of the unit.
Step10. Check to be sure dust bag and motor filter (under dust bag) are in place. The corners of the filter have to be
tucked under the ribs so that the filter lays flat !

HOW TO OPERATE MODELS: F + H
NOTE: THE LOWER PART OF THE VACUUM CLEANER WILL BE QUITE WARM WHEN IN USE.
IF THE VACUUM STOPS RUNNING:
Most likely the vacuum hose is clogged and the motor shuts off. Push the switch into OFF position
and let the motor cool down. Restart the vacuum without the vacuum hose attached for 6 to 8 minutes
and keep the small cover on the door open. If vacuum keeps running the hose or the tools are clogged.
PLEASE SEE TROUBLE SHOOTING GUIDE page 9.
A. Connecting and disconnecting the hose.
1. Lift the inlet valve cover on the front of the door.
2. Insert hose cuff with a twist and push to secure.
3. To remove, turn hose in either direction while pulling hose towards you.
B. On / Off Switch
1. To start the vacuum cleaner, push the switch to the “I” position.
2. To stop the vacuum cleaner, push the switch to the “O” position.
C: How to change the dust bag, DO NOT REUSE DUST BAG
Replacement bag: Part # Y08 high filtration 5 layer fiber bag.
1. Open the door on the vacuum cleaner by pushing the latch upward and remove both door and dust bag.
2. Carry door and dust bag to the trash container. Remove full bag and discard.
3. Place a new dust bag all the way over the scoop on the door.
4. When closing door, tuck in the top edge of the bag, so the door is properly sealed and the latch
clicks into place.
TIP: If you break off the vacuum hose inlet cover on the door; simply reattach it by lining up one of the small dimples
located on the inside of the inlet cover and than press hard on the other side to click into position.
C: To change motor filter, Replacement Part # Y21 (see Fig.: E)
1. Remove door and dust bag.
2. Reach into the cavity towards the bottom of the vacuum cleaner and remove the motor filter.
3. Replace the filter with a new or cleaned filter and tuck in the corners so that the filter lays flat on the grid,
4. If necessary, clean the dirty filter by vacuuming or washing in mild soap by hand.
Do not clean in washing machine. Let filter dry completely and reuse as needed.
5
push the cardboard collar of
the bag tight against the door push the top edge of the bag inside
the vacuum when closing the door
Attach collar of dust bag
over scoop
Paper Template:
# W602 for flush
mounting
Tape template to wall
Fig.: B
Paper Template:
# W600 see page 12
for surface mounting
Minimum height 2” from floor
Fig.: A

Model RM(F) flush mounted installation
Paper Template #W606 or W604
Recessed Mounted into Wood Surface (see Fig.: B)
NOTE: Installation should to be accessible from the back to install pipe fittings and wiring connection.
Step 1. Attach paper template to wall or surface about 2” inches or higher above the floor, so that the exhausting
air is not restricted.
Step 2. Read instructions on paper template.
Step 3. At the lower right side of the unit, remove the 2-3/4 x 1-3/8 access cover plate on the vacuum cleaner.
You will find black, white and green wires for the 110-volt power connection.
Step 4. 2 yellow wire pigtails for the 24 volt control circuit protruding out of the bottom of the vacuum.
Do not pull wires back into housing. Use butt connector for wiring to the inlet valve.
Step 5. Install the remote vacuum valve(s) first and than the 2” dia. flex-hose.
Fasten the flanged fitting to the top of the vacuum by using the provided four #6 screws.
Attach the pipe fittings and flex-hose to the remote inlet valve.
Step 6. From the remote vacuum valve install two 18 gage, UL approved (AVLV2) rated minimum 300volt,
95 C, wires (24 volt line) along the flex-hose to the bottom of the housing to the 2 yellow pigtails.
Secure the wires with “ty-wraps” to the flex-hose. Connect wires with butt connectors outside the housing.
Step 7. Install 14 gage AWG 300V minimum Romex cable (use wires rated for at least 95C.) from your 120volt
electric power supply and pull the cable through the Romex clamp into the vacuum cleaner.
connect black to black, white to white and green to bare ground conductor wires.
Tighten Romex clamp and replace the side cover.
Step 8. Place the vacuum cleaner with bottom first in the cut-out and secure with the 4 screws and caps provided.
Step 9. Please, check that dust bag and motor filter (under dust bag) are installed. Motor filter should lay flat on
all 4 corners under the ribs!
Test unit for proper operation by inserting the end of the vacuum hose into the remote valve.
IMPORTANT: If installed during new construction, do not use to clean up building debris.
For household use only. Nails and sharp objects can damage your InterVac.
6
Model: RM(H) with electric cord attached
Paper Template #W600 or #W607
Surface Mounted to Wood or other Stable Surfaces ( see Fig.: A)
Step 1. To reach with the vacuum hose as far as possible, find a central location for the inlet valve and a mounting
position for the vacuum as close as possible to the inlet valve. An electrical receptacle has to be near by.
Step 2. Tape the paper template for the vacuum to the wall a minimum 2” above the floor, so that the exhausting
air is not restricted. Mark the 4 screw positions with a pointed tool accurately and remove the template for
future references
Step 3. Attach the enclosed #8 screws to the wall as marked on the template. Keep the screw heads1/8” from the wall.
Step 4. Carefully remove template from the wall and place it into the operating manual for future references .
Step 5. Slide the key holes on the back of the vacuum cleaner over the 4 screw heads and push down. If vacuum
cleaner is loose re-tighten screws.
TIP: If vacuum cleaner is mounted on its back or side it may slide of the screw heads when you
pull on the vacuum hose. To prevent this, fasten a small block against the top of the unit.
Step 6. Attach the flanged pipe fitting on top of the vacuum with the 4 screws provided.
Step 7. Install the remote vacuum valve (see page 10). Then route the flex-hose from the valve to the vacuum.
Step 8. From the remote vacuum valve install two 18 gage, UL approved (AVLV2) rated minimum
300volt, 95 C, wires (24 volt line) along the flex-hose to the bottom of the vacuum to the 2 yellow pigtails.
Secure the wires with “ty-wraps” to the flex-hose. Connect yellow wires with butt connectors outside the housing.
Step 9. Plug the electric cord into the receptacle.
Step 10. Test unit for proper operation by inserting the end of the vacuum hose into the remote valve.
Please, check that dust bag and motor filter (under dust bag) are installed. Motor filter should lay flat on
all 4 corners under the ribs!
IMPORTANT: If installed during new construction, do not use to clean up building debris.
For household use only. Nails and sharp objects can damage your InterVac.

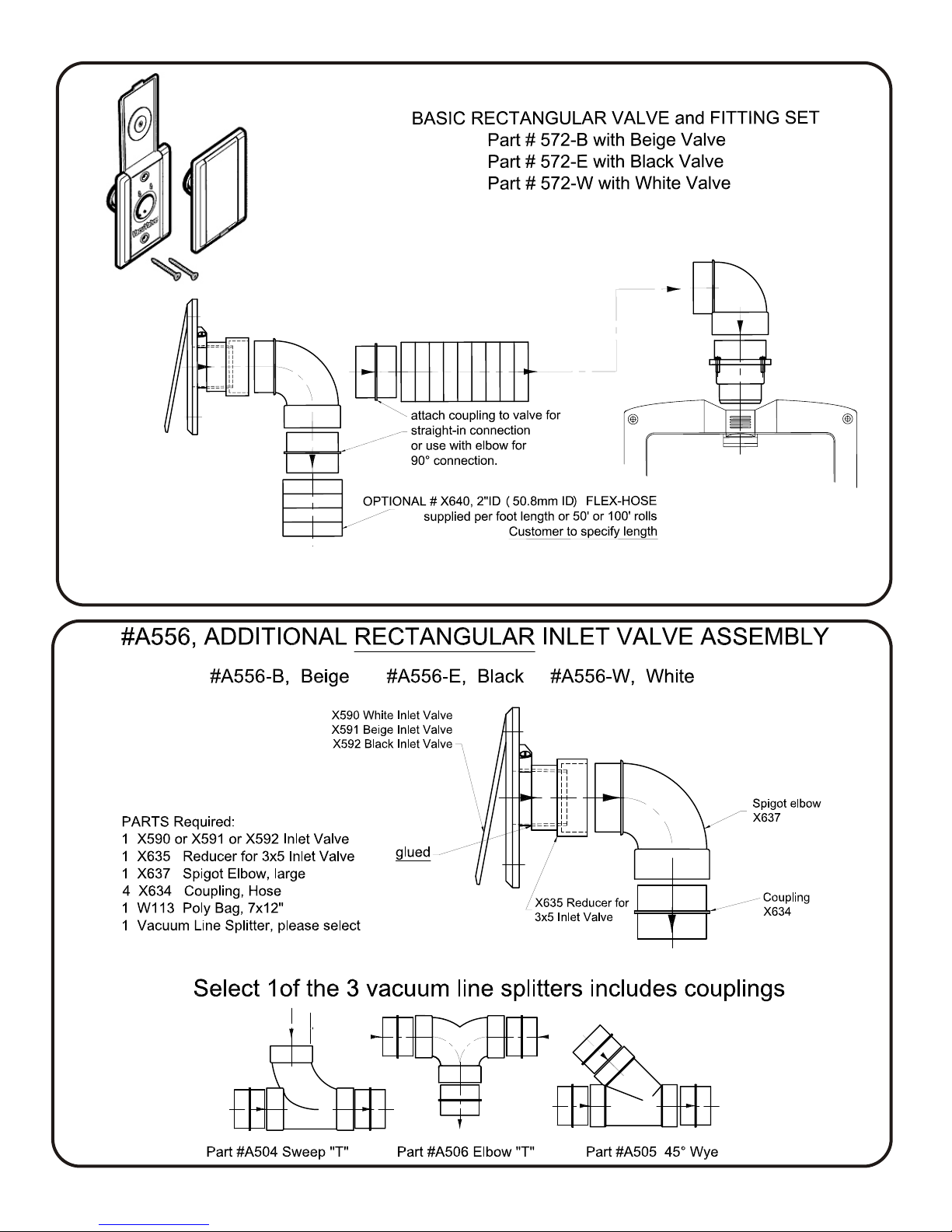

FOR THE VARIOUS PIPE FITTING INSTALLATION please visit our web-site

HOW TO OPERATE YOUR MODEL RM
NOTE: THE LOWER PART OF THE VACUUM CLEANER CAN BE QUITE WARM.
IF THE VACUUM STOPS RUNNING:
Disconnect the vacuum hose from the unit and let the vacuum cool.
The thermal protector on the motor will reset itself after the motor is cooled.
The most likely cause will be a full bag or clogged vacuum hose or tools.
PLEASE SEE TROUBLE SHOOTING GUIDE. Page 9
A. Connecting and disconnecting the hose.
1. Lift inlet valve cover on the remote mounted valve.
2. Insert the vacuum hose cuff with a twist and push in. The vacuum cleaner will start automatically.
3. To remove, turn hose in either direction while pulling hose towards you.
The vacuum cleaner will stop running.

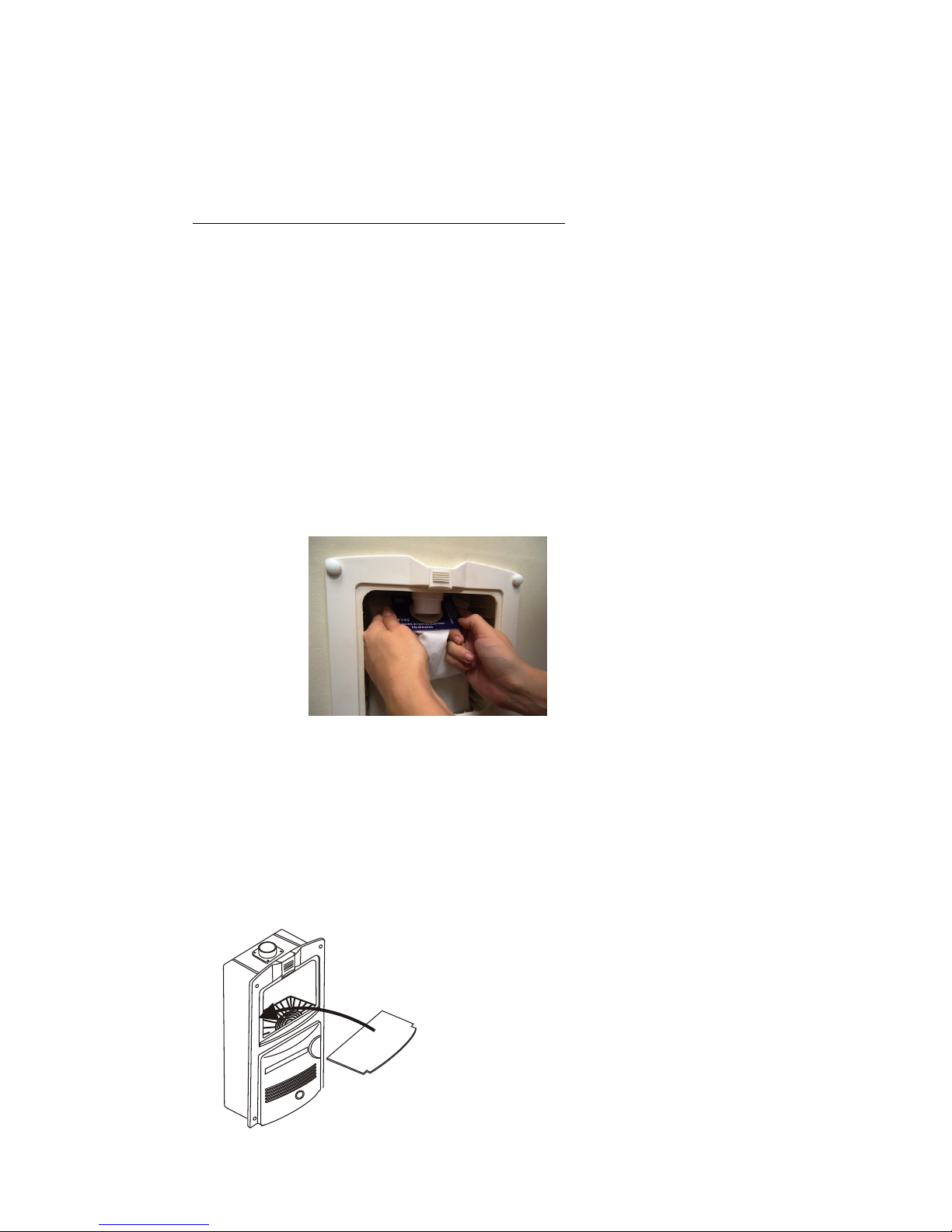

B. How to change the dust bag, Replacement Part # Y08 DO NOT REUSE DUST BAGS
1. Open the door on the vacuum cleaner by pushing the latch upward and remove door completely.
2. Remove full bag and discard.
3. Locate the pipe inside the vacuum chamber. Holding the new bags cardboard collar at approximately
a 45 degree angle and pushing the cardboard part of the bag against upper back corner of the vacuum cleaner
chamber behind the pipe. Lift the front of the collar over the pipe as far as possible.
4. When closing door, tuck-in the left and right corners of the bag, so the door is properly sealed and the
latch clicks into place.
NEVER OPERATE THE VACUUM CLEANER WITHOUT THE DUST BAG OR THE MOTOR FILTER.
C: To change motor filter, Replacement Part # Y21 (see Fig.: E)
1. Remove door and dust bag.
2. Reach into the cavity towards the bottom of the vacuum cleaner and remove the motor filter.
3. Replace the filter with a new filter and tuck-in the corners so that the filter lays centered and flat on the
grid, with the straight side towards the back.
4. If you need to; clean the dirty filter by vacuuming or washing in mild soap by hand.
Do not clean in washing machine.
Let filter dry completely.
E: Replacing Motor Filter
Part #Y21 for all models.
Tuck-in the corners and sides under the ribs
7

MODEL RMD with Electric Cord or Permanent Installation
Please note: the installation for the model RMD is the same as for the models RM
You can insert the vacuum hose in the door on the front panel as well as
in the remote mounted vacuum valve.
When inserting the vacuum hose into the front panel you have to use the
switch to start and stop the vacuum.
Insert vacuum hose first before turning the switch to ON.
NOTE: do not run vacuum without hose attached!
HOW TO OPERATE YOUR MODEL RMD
NOTE: THE LOWER PART OF THE VACUUM CLEANER CAN BE QUITE WARM.
IF THE VACUUM STOPS RUNNING:
Disconnect the vacuum hose from the unit and let the vacuum cool.
The thermal protector on the motor will reset itself after the motor is cooled.
The most likely cause will be a full bag or clogged vacuum hose.
PLEASE SEE TROUBLE SHOOTING GUIDE. Page 9
A. Connecting and disconnecting the vacuum hose.
1. Lift inlet cover on the remote valve. Insert the hose cuff with a twist and push, vacuum will start automatically.
2. Lift the flap on the door insert the hose and turn the switch on the front panel to ON.
3. To remove, flip switch to OFF then twist and remove hose in either direction while pulling hose towards you.

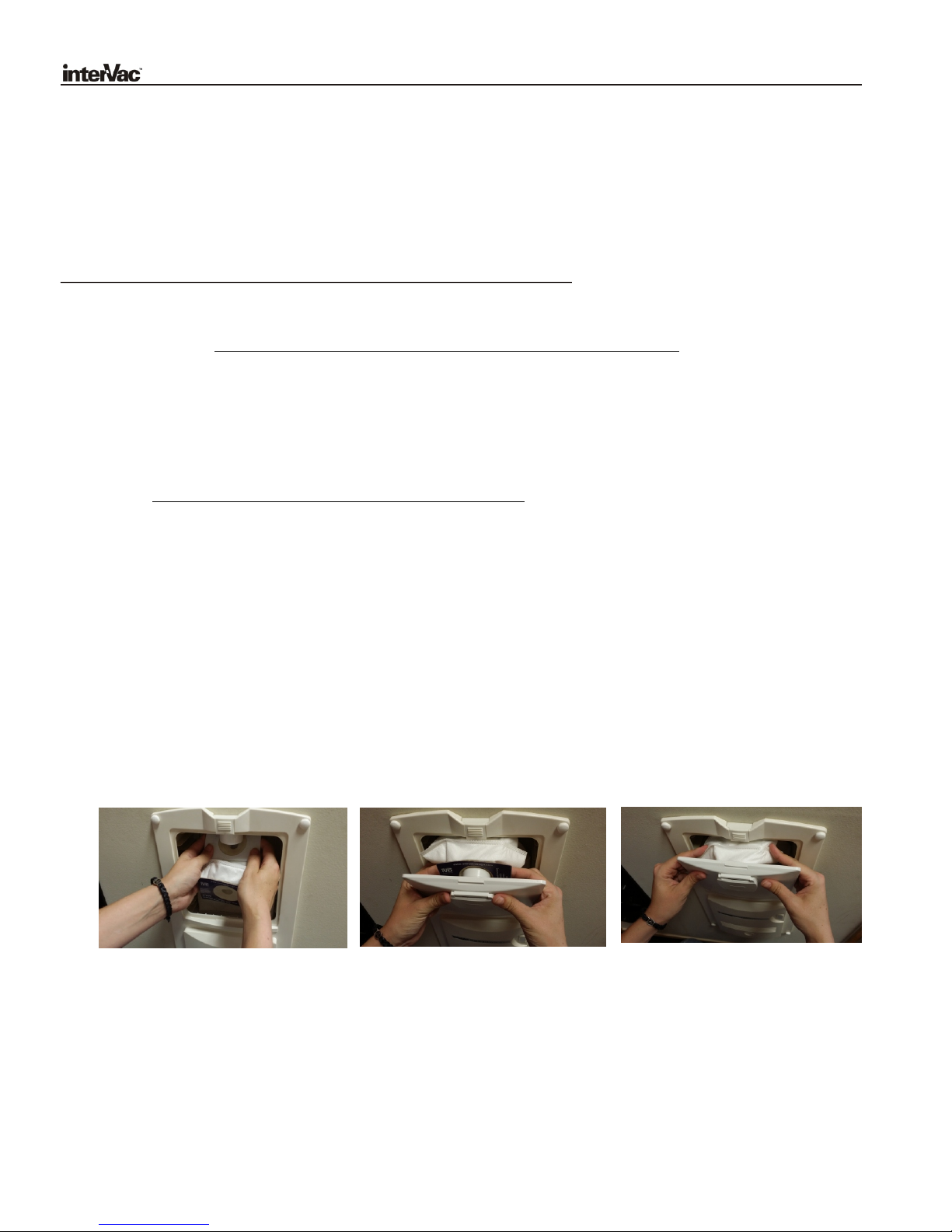

B. How to change the double collar dust bag, Replacement Part # Y09 DO NOT REUSE DUST BAG
1. Open the door on the vacuum cleaner by pushing the little latch upward and remove door completely.
2. The dust bag has 2 cardboard collars, a collar with arrows and a printed collar.
3. Locate the pipe inside the vacuum chamber. Holding the arrow cardboard collar at approximately
a 45 degree angle, push the cardboard part of the bag against upper back corner of the vacuum cleaner
chamber behind the pipe. Lift the front of the collar over the pipe as far as possible. Than attach the printed
collar to the pipe at the door. Slide the bottom of the bag into the vacuum chamber and secure the door.
4. When closing door, tuck-in the left and right corners of the bag, so the door is properly sealed and the
latch clicks into place.
NEVER OPERATE THE VACUUM CLEANER WITHOUT THE DUST BAG OR THE MOTOR FILTER.
Attach to inside pipe Attach to pipe on the door Tuck in the corners before closing
C: To change motor filter, Replacement Part # Y21 (see Fig.: E)
1. Remove door and dust bag.
2. Reach into the cavity towards the bottom of the vacuum cleaner and remove the motor filter.
3. Replace the filter with a new filter and tuck-in the corners so that the filter lays centered and flat on the
grid, with the straight side towards the back.
4. If you need to; clean the dirty filter by vacuuming or washing in mild soap by hand.
Do not clean in washing machine.
Let filter dry completely and reuse as needed.
8

D: Replacing Exhaust Filter,
Part #Y41: IF SUPPLIED,
Pinch exhaust filter in the middle and pull out.
To replace, pinch in the middle and slide in
one side first. ( washable by hand)
E. Replacing motor filter,
all Models, Part # Y21
tuck-in the corners and sides
carefully under the ribs
Fig.: E
9
TROUBLE SHOOTING:
TIP : If you use our very convenient stretch hose, but require more suction power, we recommend you try
a traditional central vacuum hose.
IF MOTOR SUDDENLY STOPS:
1. The most common cause is a clogged hose. Disconnect vacuum hose from cleaner, hold one end
high up in the air and drop a quarter or similar object into the hose. If the quarter gets
stuck the hose is clogged. Try to unclog the hose with a long stick or see below “cleaning the hose”.
2. The bag is overfilled or fine dust has clogged the bag. Replace with new bag.
DO NOT EMPTY AND REUSE
3. The vacuum cleaning tools are clogged.
4. Vacuuming large amounts of dust other than household dirt, such as dry-wall or fine wood dust can
block the bags pores fast, even if the bag is fairly new.
5. The motor filter is dirty and should be cleaned or replaced.
6. If vacuum unit is installed in a air tight compartment the exhausting air cannot escape, the motor can
overheat and shut off until it cooled down and is restarted.
7. The exhaust filter should be checked and replaced or cleaned.
IF YOU LOOSE SUCTION:
1. The door is not properly closed, the dust bag is clamped behind the door and door frame.
2. For RM and RMD units only: the gray 2” hose connecting the vacuum to the valve(s) might have fallen
off the connecting fittings.
3. If you have trouble finding the problem, please call us direct, we are here to help.
CLEANING THE STRETCH HOSE:
The stretch hose, besides all its’ conveniences, has a tendency to get clogged, especially if you have pets.
a) lift the hose up on both ends and dispense some liquid detergent into both ends.
b) with a garden hose, holding both ends still up, fill ¾ with water.
c) shake hose up and down, let detergent loosen the dirt.
d) stretch the hose as far as you can ( 2 people required ) and wash the dirt out with the full pressure of the
garden hose. Repeat if necessary.
e) Hang hose up , let hose drain and dry completely, it might take 24 hours.

THE RECTANGULAR VALVE DOES NOT REQUIRE A BACKING PLATE. IT IS FASTER TO
INSTALL ESPECIALLY FOR WOOD OR OTHER STABLE SURFACES.
Valve Size:
3-1/2 x 5-1/4
10

11

12
