InterVac RMF-220 User manual

RECORD THIS INFORMATION FOR
FUTURE REFERENCES
INSTALLATION AND OPERATING MANUAL
TYPE: VAC-220 MODEL: RMF-220
MODEL: RMH-220
flush mounted
surface mounted
Important: Instructions must stay with Unit. Owner read carefully.
WARNING:
This manual must be read and understood before installation, adjustment, service or
maintenance is performed. This unit must be installed by a qualified technician.
Modification of this product can be extremely hazardous and could result in
personal injury or property damage.
MODEL NUMBER _______________________
DATE OF PURCHASE ___________________
PLACE OF PURCHASE__________________
1
Manual # RM CE-e
Rev.: 9/09/11
Part # W511
AS/NZS: CS8830N
RoHS
THE BUILT-IN VACUUM SYSTEM
InterVac Design Corp., Palm City, FL 34990,USA
Phone [phone]
www.intervacdesign.com • e-mail: sales@intervacdesign. com

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical vacuum cleaner, basic precautions should always be followed including the following:
Read all instructions carefully before using this vacuum cleaner.
WARNING: TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Do not leave appliance when plugged in. Unplug
from outlet when not in use and before servicing.
Do not use outdoors or on wet surfaces.
Never operate this vacuum cleaner without a
paper bag and filters in place.
Close attention is necessary when used by or
near children. Do not allow unit to be used as a toy.
Use only for intended use as described in this
manual. Use only the manufacturer's
recommended attachments and paper bag.
Do not use with damaged cord or plug.
If appliance is not working as it should, has
been dropped, damaged, left outdoors, or
dropped into water, return the vacuum cleaner
to InterVac or an authorized service dealer for
examination and repair.
Do not put any object into openings. Do not use
with any openings blocked; keep free of dust,
lint, hair and any other material that may reduce
air flow. When the secondary filter becomes
dirty, rinse in warm water or replace with a new
filter. Filters shall be completely dry before using.
Never drop or insert any object into any opening.
Turn off all controls before unplugging.
Do not pull or carry by cord, do not use cord as
a handle, do not close a door on cord, or pull
cord around sharp edges or corners. Do not
run appliance over cord. Keep cord away from
heated surfaces.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
Do not unplug by pulling on cord. To unplug,
grasp the plug, not the cord.
Keep hair, loose clothing, fingers, and all parts of
body away from any openings and all moving
parts.
Do not pick up anything that is burning or smoking,
such as cigarettes, matches, or hot ashes. Do not
use without dust bag and / or filters in place.
Use extra caution when cleaning on stairs.
Do not handle plug or appliance with wet hands.
Do not pick up flammable or combustible liquids
such as gasoline, or use in areas where they may
be present.
Do not place objects against the vacuum cleaner.
Keep area clear.
Do not step on the hose or pull the hose forcibly.
Do not pick up large objects such as waste paper
or cloth, which may clog the hose.
Do not install this vacuum cleaner in an area
exposed to high temperatures.
Install this vacuum cleaner in a dry place.
Do not attempt to service the vacuum cleaner. Unit
is sealed and can not be opened without damage
to the unit. For service, call your local authorized
service dealer, or InterVac Design's Customer
Care Center.
SAVE THESE INSTRUCTIONS
2
WARNING:
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experiences and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.

LIMITED WARRANTY
LIMITS AND EXCLUSIONS
InterVac Design Corp. will repair the power unit with new or rebuilt parts, free of charge for three (3) years from the date of
original purchase in the event of a defect in materials or workmanship. No cash refunds. Excluded are the following items that
require normal replacement:
This warranty is extended only to the original purchaser. A purchase receipt or other proof of date of original purchase will be
required before warranty performance is rendered.
.
This warranty only covers failures due to defects in materials or workmanship which occur during normal use and does not
cover damage which occurs in shipment or failures which are caused by products not supplied by InterVac Design, or failures
which result from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, modification, or commercial use
such as hotel, office, restaurant or rental use of the product, or service by anyone other than an authorized service center, or
damage that is attributable to acts of God.
There are no expressed warranties except as listed above.
INTERVAC DESIGN SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM
THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESSED AND
IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE,ARE LIMITED TO THEAPPLICABLE WARRANTY PERIOD SET FORTHABOVE.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an
implied warranty last, so the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights
that vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your
dealer or our service center. If the problem is not handled to you satisfaction, than write to the Customer Service Center at the
company address.
Disposable dust bag, filters, vacuum cleaner tools and vacuum hoses.
You must return your warranty card in order to be covered under these provisions
:
InterVac Model: RM-220/240 volt
INSTALLATION
CAUTION: To avoid possible electrical shock, be sure that electricity is turned off at the main switch or circuit breaker. All
wiring must be in accordance with the National Electric Code.
Note: Electrical connections should only be made by a qualified electrician.
SERVICING OF DOUBLE-INSULATED APPLIANCES
A double-insulated appliance is marked with one or more of the following: The words DOUBLE INSULATION or DOUBLE
INSULATED or the double insulation symbol (square within a square).
In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is
provided on a double-insulated appliance, nor should a means for grounding be added to the appliance. Servicing a
double-insulated appliance requires extreme care and knowledge of the system, and should be done only by qualified
service personnel. Replacement parts for a double-insulated appliance must be identical to the parts they replace.
To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit
in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a
qualified electrician to install the proper outlet. Do not change the plug in any way.
3
RETURN POLICY
We will not accept shipments without a Return Authorization number. Please call InterVac Design or
your dealer for your RA number. Carefully pack and send the unit prepaid, adequately insured and,
preferably in the original carton. Enclose a letter describing the nature of the problem or complaint
and InterVac Design will repair or replace your unit.
However our policy is, no cash refunds after the 30 days trial period.

Parts List:
Paper Template W601
InterVac Model #RMH220 or RMF220 4 screws with screw caps
Paper template: 2 vacuum bags, Part
CE Terminal block various pipe fittings
1 wood strip for RMF model
With the InterVac model RM220 you have 2 mounting options:
1 : Recessed mounted in a wall.
2 : Surface mounted against a wall.
Look for a electrical outlet or a 5.5 amp circuit breaker for your power supply line.
:
Attach the paper template to wall or surface a minimum of 100mm above the floor, so that the
exhausting air is not restricted.
Read instructions on paper template.
Place the vacuum cleaner in the cut-out, lower end first, and secure with the four painted
screws.
Install the remote vacuum valve(s). Please note that the standard inlet valve fits a max. 5/8
thick wall. Extensions are available.
the flex-hose the shortest way to the inlet valve.
From the remote vacuum valve route two wires .75mm CE approved (H05V2 rated) minimum 300V,
60 C, (24-volt line) along the flex-hose to the bottom of the vacuum cleaner housings and connect it to
the two Secure the wires with “ty-wraps” or electric tape to the flex-hose.
nstall 1.5mm H05V2, 300V , 220/240 volt power supply cable (use wires rated for at least 95 C.)
though the 20mm hole. Connect to the terminal block inside housing. Wrap strain relief around
power cable and with a pair of plier insert into the housing hole.
If an electric cord is supplied, plug into a receptacle.
#W600 or W601 # Y08
NOTE: The
WARNING
Step 1.
Step 2.
Step 3.
Step 4.
Step 7.
.
Step 8.
NOTE: A means of disconnecting the wires must be incorporated in accordance with local wiring
rules and regulations.
st
nd
MODEL RMF220, to be hard wired, FLUSH MOUNTED into a WOOD SURFACE
four mounting holes in the outer corners of the flange of the RMF220 have to be opened up from the
back with a 5mm” drill bit.
Disconnect all electrical power to the wall area before drilling and cutting! Do not drill near studs
where electrical cable may be secured to studs adjacent to receptacles.
yellow wires
The requires 100mm depth, measured from the front of the wall.
To reach with the vacuum hose as far as possible, install the (s) in a central location.
The vacuum unit should be mounted as close as possible to the remote valve(s). The shorter the
distance the better the airflow.
Make sure there are no obstruction behind the wall before you start cutting.
Now install the flanged fitting to the vacuum cleaner from the back of the wall with the four #6 X 12mm
screws.
Attach the 50mm flex-hose . Route
Replace the access cover .
vacuum cleaner power unit
remote valve
The ground conductor of the is not used and should be cut and insulated.
Step 5.
Step 6.
I
power supply cable
4

MODEL RMH220, with electric cord, Surface Mounted Installation
Paper Template W600
Step 1.
Step 2.
Step 3.
NOTE
Step 4.
Step 5.
Step 6.
Step 7.
.
Step 8.
remote valveTo reach with the vacuum hose as far as possible, install the (s) in a central location.
The vacuum unit should be mounted as close as possible to the remote valve(s). The shorter the
distance the better the airflow.
Look for a electrical outlet or a 5.5 amp circuit breaker for your power supply line if you hard wire.
the unit,
the screws re-tight
NOTE: I
Tape the paper template to the wall or surface at a minimum of 100mm away from any obstruction
which might block the exhausting air.
Attach the four screws (#8) through the paper template into the wall. Keep the screw heads
about 1/8 from the wall surface.
Attach vacuum cleaner to the four screw heads into the four keyholes in the back of then slide
unit down into locked position. If vacuum cleaner is loose on en screw heads.
:
Attach the flanged fitting to the top of the housing with the four #6 X 12mm screws .
Route the 50mm flex-hose the shortest way to the inlet valve.
Install the remote vacuum valve(s) in a central location.
Attach the flex-hose to the ends of the fittings, either with hose clamps or with PVC glue.
From the remote vacuum valve install two wires, .75mm rated H05V2, 300V, 60 C, cable (24-volt line)
along the flex-hose to the bottom of the housing, and connect to the two Secure the wires
with “ty-wraps” or electric tape to the pipe system.
If an electric cord is not supplied, install a 1.5mm H05V2, 220/240volt power cable (use wires rated for
at least 95 C) through the 20mm hole in the bottom of the housing and connect to the terminal block
inside the unit. Wrap the strain relief around the power cable and with a pair of pliers insert into the
hole.
f unit is to be installed in a small closet or tight area, adequate ventilation should be installed for the exhausting
air. Keep pipes or flex-hose as short as necessary, using as few elbows as possible. Every radius in the piping
system is a restriction and deteriorates the power of the unit.
If the Vacuum unit is mounted on it’s back or in an angle it may slide off the screws heads. To prevent this, attach a
small block with a screw against the top as a stop.
yellow wires
The green ground conductor of the is not used and should be cut and insulated.power supply cable

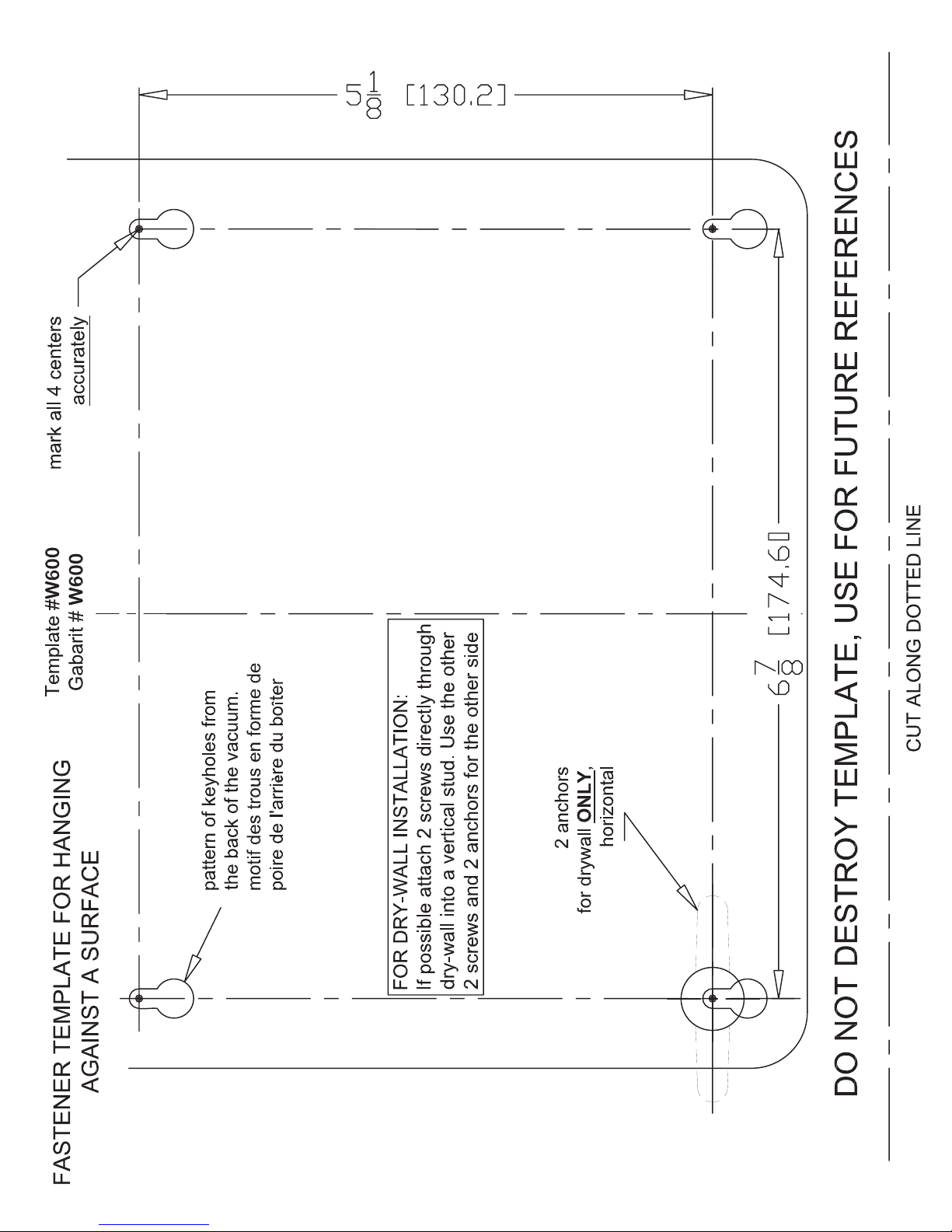

Paper Template:
# W600
Paper Template:
#W601 recessed mounted
Tape template to wall
5
about 6” from floor
Model RMH-220 Model RMF-220

HOW TO OPERATE YOUR VACUUM CLEANER
InterVac Design Corp. Palm City, Florida, 34990 USA
e-mail: sales@intervacdesign. com • Website: www.intervacdesign.com
FOR MODELS RM REMOTE VALVE UNITS
NOTE: THE LOWER PART OF THE VACUUM CLEANER CAN BE QUITE WARM.
IF THE VACUUM STOPS RUNNING:
THE THERMAL PROTECTOR ON THE MOTOR WILL RESET
AUTOMATICALLY AFTER ABOUT 1-1/2 HOUR.
A. Connecting and disconnecting the hose
B. How to change the dust bag, Replacement Part # Y08
NEVER OPERATE THE VACUUM CLEANER WITHOUT THE DUST BAG
AND THE MOTOR FILTER
C: To change motor filter, Replacement Part # Y21 (see Fig.: E)
.
.
PLEASE SEE TROUBLE SHOOTING GUIDE.
START AND STOP.
1. Lift inlet valve cover on the wall.
2. Insert hose cuff with a slight twist. The vacuum cleaner will start automatically.
3. To remove, turn hose in either direction while pulling hose towards you.
The vacuum cleaner will stop running.
1. Open the door on the vacuum cleaner by pushing the latch upward and remove door completely.
2. Remove full bag and discard.
3. Locate the pipe inside the vacuum chamber. Holding the new bags cardboard collar at approximately
a 45 degree angle, insert the cardboard part of the bag against upper back corner of the vacuum cleaner
chamber behind the pipe. Lift the front of the collar over the pipe as far as possible.
4. When closing door, tuck-in the left and right corners of the bag, so the door is properly sealed and the
latch clicks into place.
1. Remove door and dust bag.
2. Reach into the cavity towards the bottom of the vacuum cleaner and remove the motor filter.
3. Replace the filter with a new filter and tuck-in the corners so that the filter lays centered
4. If you need to; clean the dirty filter by vacuuming or washing in mild soap by hand. The filter
might separate, replace both pieces. .
Let filter dry completely and reuse as needed.
and flat
Do not clean in washing machine
6

D: Replacing Exhaust Filter, Part #Y41:
E: Replacing Motor Filter
Part # Y21
TROUBLE SHOOTING:
NOTE: IF MOTOR SUDDENLY STOPS:
TIP:
CLEANING THE STRETCH HOSE:
Pinch exhaust filter in the middle and pull out.
To replace, pinch in the middle and slide in
one side first. tuck in the corners and sides
carefully under the ribs
If you use our very convenient stretch hose, but require more suction power, we recommend you try
our crush-proof central vacuum hose.
common cause is a clogged hose. See cleaning instructions.
The bag is overfilled or fine dust has clogged the bag.
The vacuum cleaning tools are clogged.
Vacuuming large amounts of dust other than household dirt, such as dry-wall or fine wood dust can block the
bags
pores fast,
The motor filter is dirty and should be cleaned or replaced.
Vacuum unit is installed in a tight compartment and air cannot exhaust, the motor will overheat and shut off until
cooled down.
The exhaust filter should be checked and washed.
The stretch hose, besides all its' conveniences, has a tendency to get clogged, especially if you have pets.
lift the hose up on both ends and dispense some liquid detergent into both ends.
with a garden hose, holding both ends still up, fill ¾ with water.
shake hose up and down, let detergent loosen the dirt.
stretch the hose as far as you can ( 2 people required ) and wash the dirt out with the full pressure of the
garden hose. Repeat if necessary.
Hang hose up on one end. Let hose drain and dry
TIP :
Disconnect vacuum hose from cleaner, hold one end high up in the air and drop a quarter into the hose.
If the quarter gets stuck the hose is clogged. Try to unclog the hose with a long stick.
2.
3.
4.
even if the bag is new.
5.
6.
7.
a)
b)
c)
d)
e)
1. The most
completely, it may take 24 hours.
CAUTION:
DO NOT PICK UP LIQUIDS, LIT CIGARETTES, HOT ASHES,
RAZOR BLADES, NEEDLES, PINS OR OTHER SHARP OBJECTS!
THIS SIDE UPTHIS SIDE UP
7

8
40’ Stretch Hose As’bly with
Cuff.plain PART# A002
2 Part Upholstery
Tool PART # X300
Dust Brush
PART # X250
Floor/Rug Tool
PART # X403
40’ Stretch Hose As’bly with
Cuff.Banded PART# A002B
Mesh Storage Bag
PART # X501
Complete Tool Kit
(Includes all item on the right)
for Models RMPART # 705B
Telescoping Wand, PART # X154
ACCESSORIES
INTERVAC reserves the right to make improvements and modifications without notice.
OPTIONAL VACUUM TOOLS
30 Foot Traditional
Central Vacuum Hose
for Models H, F, CM
for Models RM
for Homes
PART #A006
PART # A006B Special Inlet Valve
"VAC-PAN"
PART # 505 Black
Crevice Tool
PART # X200
REPACEMENT DUST BAGS:
PART # Y08-5 (5 pack) HEPA Type 5 layer fiber filtration
bags with exhaust filter for all InterVac Models
NOTE: All Power Units come with 2 Dust Bags
Air Turbo Nozzle
PART # X452

9

10
