IntesisBox IBOX-MBS-KNX-100 User manual

IntesisBox® Modbus Server
KNX TP-1 (EIB)
User's Manual
Issue date: 03/2016
r18 eng

IntesisBox®Modbus Server –KNX
User’s Manual r18 eng
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox®is a registered trademark of Intesis Software SLU
URL
Email
tel
http://www.intesisbox.com
[e-mail]
[phone]
2 / 31
© Intesis Software S.L. 2016 All Rights Reserved.
Information in this document is subject to change without notice. The software described in
this document is furnished under a license agreement or nondisclosure agreement. The
software may be used only in accordance with the terms of those agreements. No part of
this publication may be reproduced, stored in a retrieval system or transmitted in any form
or any means electronic or mechanical, including photocopying and recording for any
purpose other than the purchaser’s personal use without the written permission of Intesis
Software S.L.
Intesis Software S.L.U.
Milà i Fontanals, 1 bis
08700 Igualada
Spain
TRADEMARKS
All trademarks and trade names used in this document are acknowledged to be the copyright of their respective holders.

IntesisBox®Modbus Server –KNX
User’s Manual r18 eng
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox®is a registered trademark of Intesis Software SLU
URL
Email
tel
http://www.intesisbox.com
[e-mail]
[phone]
3 / 31
Gateway for integration of KNX TP-1 (EIB) systems into Modbus
(RTU and TCP) control systems (i.e. SCADA, BMS, PLC…).
Different models available for this gateway, with the following Order Codes:
oIBOX-MBS-KNX-100. Model supporting up to 100 points.
oIBOX-MBS-KNX-A. Model supporting up to 500 points.
oIBOX-MBS-KNX-B. Model supporting up to 3000 points.

IntesisBox®Modbus Server –KNX
User’s Manual r18 eng
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox®is a registered trademark of Intesis Software SLU
URL
Email
tel
http://www.intesisbox.com
[e-mail]
[phone]
4 / 31
INDEX
1. Description ...................................................................................................... 5
1.1 Introduction ................................................................................................. 5
1.2 Functionality................................................................................................. 6
1.3 Capacity of IntesisBox®.................................................................................. 8
2. Interfaces........................................................................................................ 9
2.1 Modbus ........................................................................................................ 9
2.1.1 Description............................................................................................. 9
2.1.2 Functions supported ................................................................................ 9
2.1.3 Modbus RTU ........................................................................................... 9
2.1.4 Modbus TCP ......................................................................................... 10
2.1.5 Address Map......................................................................................... 10
2.1.6 Points definition .................................................................................... 10
2.2 KNX TP-1 (EIB) ........................................................................................... 10
3. Quick Setup................................................................................................... 12
4. Connections................................................................................................... 13
4.1 Power device .............................................................................................. 13
4.2 Connect to KNX........................................................................................... 14
4.3 Connect to Modbus ...................................................................................... 14
4.3.1 Connect to Modbus RTU ......................................................................... 14
4.3.2 Connect to Modbus TCP ......................................................................... 14
4.4 Connect to PC (LinkBoxMB) .......................................................................... 15
5. LinkBoxMB. Configuration & monitoring tool for IntesisBox®Modbus Server series . 16
5.1 Project configuration.................................................................................... 16
5.1.1 Connection configuration........................................................................ 17
5.1.2 Signals list ........................................................................................... 21
5.1.3 Saving the configuration ........................................................................ 27
6. IntesisBox®and ETS ....................................................................................... 28
6.1 Integration of IntesisBox®in ETS .................................................................. 28
7. Mechanical & Electrical characteristics. .............................................................. 29
8. Dimensions.................................................................................................... 31

IntesisBox®Modbus Server –KNX
User’s Manual r18 eng
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox®is a registered trademark of Intesis Software SLU
URL
Email
tel
http://www.intesisbox.com
[e-mail]
[phone]
5 / 31
1. Description
1.1 Introduction
IntesisBox®Modbus Server - KNX is a communication gateway for KNX TP-1 (EIB) systems
to Modbus slave (RTU and TCP).
This gateway allows to integrate KNX equipment inside a supervision/control/automation
system through PLC, SCADA, and in general through any device or system with Modbus
master (TCP or RTU) interface.
The aim of this integration is to make accessible KNX system signals and resources from a
Modbus master device or system, as if it was a part of the own Modbus system and vice-
versa. For this, IntesisBox Modbus Server - KNX acts as a Modbus slave device in its
Modbus interface, allowing a Modbus master device to read and write its internal points.
And from the KNX system point of view, the gateway simulates a KNX device and acts as if
it was one more device into the KNX system.

IntesisBox®Modbus Server –KNX
User’s Manual r18 eng
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox®is a registered trademark of Intesis Software SLU
URL
Email
tel
http://www.intesisbox.com
[e-mail]
[phone]
6 / 31
1.2 Functionality
Every one of the defined signals into the IntesisBox® is associated to a Modbus address,
with this, all the system is seen as a single Modbus slave unit from the Modbus system point
of view.
From the KNX system point of view, every signal in IntesisBox®has an associated group
address (the sending group address) and also it can have one or more listening addresses.

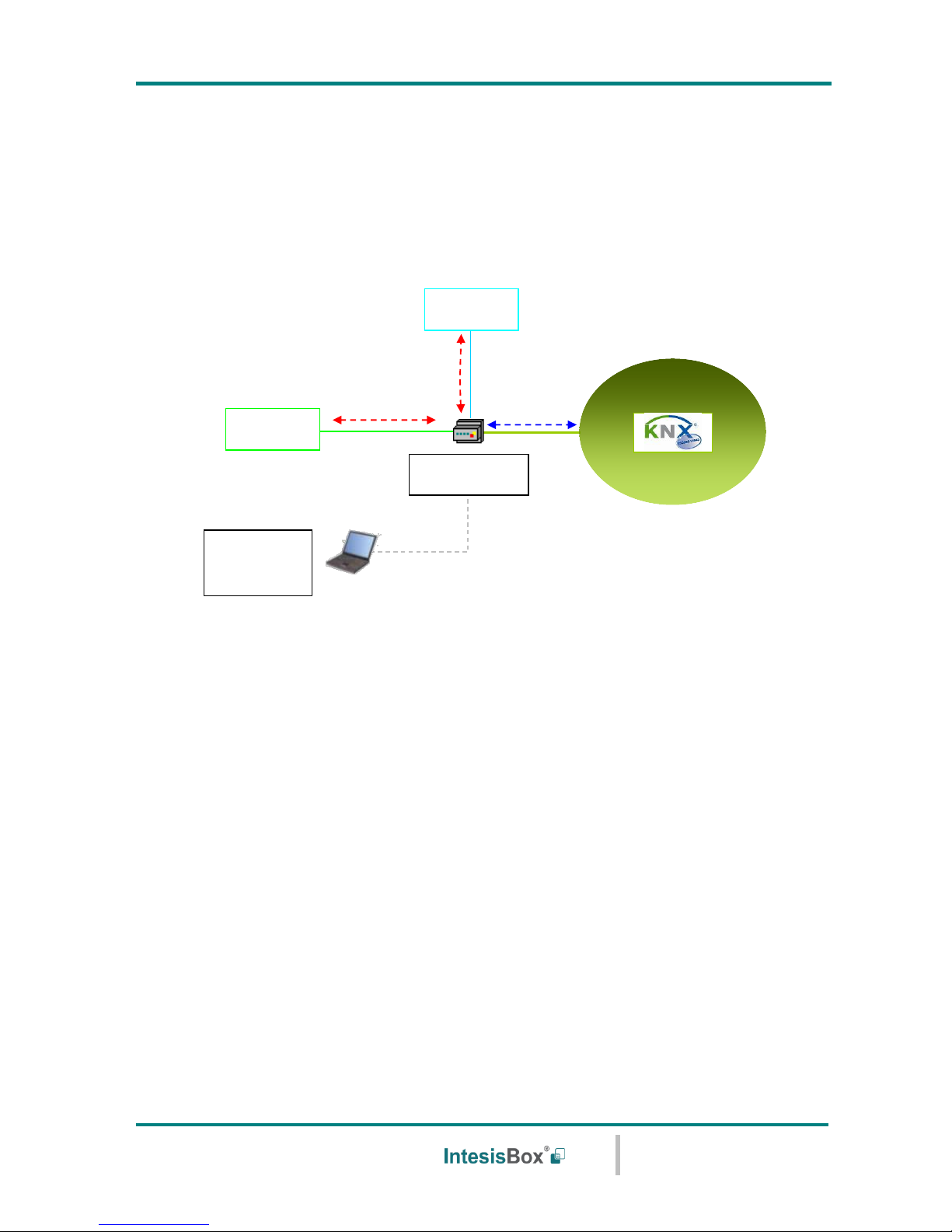

Integration of KNX and Modbus using IntesisBox Modbus Server - KNX gateway
The integration operation is as follow:
From the KNX system point of view, in the start-up process of the gateway and also after a
detection of a KNX bus reset, the gateway polls the KNX signals configured to be updated in
this situation and maintain the received values in memory to be served to the Modbus
system when requested. Also listen for any KNX telegram related to the internal points
configured in it and acts accordingly to the configuration of the related point.
From the Modbus system point of view, after the start up process, the gateway listen for
any read or write request, and serves any read request or performs any writing request of
its internal points received from Modbus system. The values received from Modbus become
available to be read by the KNX system and vice-versa.
If a signal has been configured as of type “T” Transmit (in the KNX part), any new value for
the signal coming from the Modbus system is notified to the KNX system with the
corresponding telegram.
When, from the KNX system, a signal is changed (written from any other KNX device for
example), the new value is updated in the gateway's memory, ready to be served to
Modbus when requested.
IntesisBox
Modbus Server
LinkBoxMB
configuration
software
Only needed for configuration
Master
Modbus RTU
EIA232/EIA485
Ethernet
Modbus
RTU
Master
Modbus TCP
Modbus
TCP
EIB Bus
KNX

IntesisBox®Modbus Server –KNX
User’s Manual r18 eng
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox®is a registered trademark of Intesis Software SLU
URL
Email
tel
http://www.intesisbox.com
[e-mail]
[phone]
7 / 31
Also the following functionality is supported by the gateway:
For every point, in the KNX part, one main group address (the sending group address) and
different listening group addresses can be defined. With this, from KNX, every point can be
addressed not only using its main group address but also using the other defined listening
addresses for the point.
Any change in a gateway's point with the feature “T” activated (in the KNX part), will force
the transmission of this point value with the corresponding telegram to the KNX system.
When the gateway starts up, or after an KNX bus reset, all the points with the feature “U”
or "U2" activated (in the KNX part) will be forced to be read in the KNX system to update its
values in the gateway’s internal memory.
Any point with the feature “W” activated (in the KNX part), can be written in any moment
from the KNX system.
Any point with the feature “R” activated (in the KNX part), can be read in any moment from
the KNX system.
All the mentioned features (W,R,T,U) related to the KNX part are configurable per every
point in the gateway, with only a few necessary restrictions (see below in this document).
KNX-EIB EIS (data types) supported are: switching (1 bit), dimming (4 bit), float (16 bit),
scaling (8 bit), drive control (1 bit), priority (2 bit), float IEEE (32 bit), counter (8 bit),
counter (16 bit), counter (32 bit), ASCII char (8 bit).

IntesisBox®Modbus Server –KNX
User’s Manual r18 eng
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox®is a registered trademark of Intesis Software SLU
URL
Email
tel
http://www.intesisbox.com
[e-mail]
[phone]
8 / 31
1.3 Capacity of IntesisBox®
Element
100
Version
A
Version
B
Version
Notes
KNX communication
objects
100
500
3000
Maximum number of different KNX
communication objects that can be defined.
KNX (EIB) listening
group addresses
1000
1000
1000
Maximum number of different KNX group
addresses that can be defined as listening
group addresses, one or more of these
listening group addresses can be assigned
to each point. With this, more than one KNX
group address can actuate on the same
IntesisBox's point.
Modbus TCP
simultaneous
connections
4
4
4
Maximum number of simultaneous Modbus
TCP connections.
There are three different versions of IntesisBox®Modbus Server - KNX with different capacity each of
them:
100 version with capacity of 100 KNX communication objects*. Ref. IBOX-MBS-KNX-100.
A version with capacity of 500 KNX communication objects *. Ref. IBOX-MBS-KNX-A.
B version with capacity of 3000 KNX communication objects *. Ref. IBOX-MBS-KNX-B.
* If 32bit Modbus registers are used, the maximum number of KNX communication objects allowed by the
LinkBoxMB license is reduced by half. In this case, the maximum number is 50, 250, and 1500
communication objects for the IBOX-MBS-KNX-100, the IBOX-MBS-KNX-A and the IBOX-MBS-KNX-B
respectively.
IntesisBox model
Maximum Number of Communication Objects
16 bit Modbus registers
32 bit Modbus registers
IBOX-MBS-KNX-100
100
50
IBOX-MBS-KNX-A
500
250
IBOX-MBS-KNX-B
3000
1500

IntesisBox®Modbus Server –KNX
User’s Manual r18 eng
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox®is a registered trademark of Intesis Software SLU
URL
Email
tel
http://www.intesisbox.com
[e-mail]
[phone]
9 / 31
2. Interfaces
2.1 Modbus
2.1.1 Description
IntesisBox®acts as a slave device in its Modbus interface, this interface can be the Ethernet
port (if using Modbus TCP), or the EIA232 port or the EIA485 port (if using Modbus RTU).
To access the points and resources of the IntesisBox®from a Modbus master device, you
must specify as the Modbus register addresses, those configured inside IntesisBox®
corresponding to KNX signals. See details below in this document.
The IntesisBox®is able to have Modbus RTU mode active, Modbus TCP mode active, or both
modes active at the same time.
2.1.2 Functions supported
This part is common for Modbus TCP & RTU.
Modbus functions 01 and 02 (coils and digital input registers) can be used to read Modbus
registers.
Modbus functions 03 and 04 (read holding registers and read input registers) can be used to
read Modbus registers.
Modbus functions 05 and 15 (Single digital Holding Registers and Write Multiple Holding
Registers) can be used to write Modbus registers.
Modbus functions 06 and 16 (Single Multiple Holding Registers and Write Multiple Holding
Registers) can be used to write Modbus registers.
If poll records are used to read or write more than one register, it is necessary that the
range of addresses requested contains valid addresses; if not the corresponding Modbus
error code will be returned.
All the registers are of 2 bytes, even if they are associated to signals of type bit in the
external system, and its content is expressed in MSB..LSB.
Modbus error codes are fully supported; they will be sent whenever a non-valid Modbus
action or address is required.
2.1.3 Modbus RTU
Baud rate can be selected from 1200, 2400, 4800, 9600, 19200, 38400 and 56700.
Data Bits:8
Parity can be selected from: none, even, odd.
Stop Bits:1.
Modbus slave number can be configured. Physical connection (EIA232 or EIA485) can also
be selected.

IntesisBox®Modbus Server –KNX
User’s Manual r18 eng
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox®is a registered trademark of Intesis Software SLU
URL
Email
tel
http://www.intesisbox.com
[e-mail]
[phone]
10 /
31
Only the lines RX, TX and GND of the EIA232 connector are used (TX/RX+ and TX/RX- for
EIA485).
2.1.4 Modbus TCP
The TCP port to use can be configured (by default 502 is used).
The IP address, subnet mask and default router address to use by IntesisBox®can be also
configured.
2.1.5 Address Map
The Modbus address map is fully configurable; any point in the IntesisBox®can be freely
configured with the desired Modbus register address.
2.1.6 Points definition
Every point defined in the gateway has the Modbus Format, Point and R/W features
associated to it that can be configured. These features are explained in section 5.1.2 Signals
list.
2.2 KNX TP-1 (EIB)
IntesisBox Modbus Server - KNX supports the KNX TP-1 physical layer, as defined in the
KNX standard. It behaves as one more device of the KNX system, with the same
configuration and functional characteristics as other KNX devices.
KNX TP-1 (EIB) bus provides a 30V DC current, which can even directly power certain low-
consumption KNX devices. IntesisBox does not drain any significant current from the KNX
bus - it has a separate own power supply. Another important electrical aspect is that the
KNX TP-1 (EIB) port of IntesisBox is optically isolated (~2500Vrms AC) from all its other
ports (EIA232, EIA485, Ethernet) and power supply.
At logical level, all KNX devices feature an interface of communication objects, by which
their functionality is abstracted. As a basic example, a KNX interface of an AC indoor unit
would typically consist of an interface of datapoints such as “On/Off”, “Setpoint
temperature”, “Operating mode”, etc.
Associations between communication objects from different KNX devices are actually done
by means of so-called group addresses.
KNX telegrams within a working KNX installation are always addressed to a certain KNX
group address. Typically, whenever a communication object on a KNX device changes its
value, the new value is updated to the bus, by sending a “write” telegram addressed to its
associated group address. The rest of KNX devices in the installation that have a
communication object associated to this group address will act accordingly on reception of
the new value.
Other operations are possible. KNX devices can also decide to read the current value of the
communication objects, by sending a “read” telegram to a certain group address (previously
known to be associated to the targeted comm. object). This operation is performed by many

IntesisBox®Modbus Server –KNX
User’s Manual r18 eng
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox®is a registered trademark of Intesis Software SLU
URL
Email
tel
http://www.intesisbox.com
[e-mail]
[phone]
11 /
31
devices on bus start-up or recovery –in this way, the device gets the latest value of the
group addresses it has associated right from its start-up.
Each datapoint defined in IntesisBox KNX configuration needs to have at least a single KNX
group address associated with it. This group address will be used either for sending updates
to KNX of the datapoint value (that have been generated on the other Modbus TCP & RTU
interface of the IntesisBox), or receiving updates from KNX of the datapoint value (that will
be propagated to the Modbus TCP & RTU side in this case)
From the point of view of KNX functionality, each datapoint of IntesisBox can hold following
group address associations:
A single KNX group address with which update/write telegrams will be sent,
whenever the datapoint changes (as a result of a change coming from the other
interface of IntesisBox, Modbus TCP & RTU in this case).
One or more KNX group addresses from which this datapoint of IntesisBox will be
updated/written from the KNX installation (resulting in a change to the other side of
IntesisBox, Modbus TCP & RTU in this case).
A single KNX group address from which IntesisBox will read the object value on KNX
bus recovery / IntesisBox start-up.
Behavior of IntesisBox’ datapoints with regard to their associated group addresses is
defined by means of flags (R, W, T, U and U2), explained in section 5.1.2.
Additional to the binding aspect commented above, it is also important to notice that each
KNX communication object has a defined EIS type. The EIS type of a communication object
defines the bit length and coding of the data it represents. Communication objects
associated by means of a group address need to match the same EIS type, in order to
communicate consistently.
So, at configuration time it is required that for each datapoint configured on IntesisBox an
EIS type is defined. Datapoints on IntesisBox Modbus support the following EIS-types:
EIS1 - Switching (1bit raw)
EIS2 - Dimming (4bit raw)
EIS5 –Value (16bit –floating type)
EIS6 –Scaling (8bit –scaled 0%-100% in values 0-255)
EIS7 –Drive Control (1bit raw)
EIS8 –Priority (2bit raw)
EIS9 –IEEE 754 float (32bit –floating type)
EIS10 –16bit Counter (16bit raw)
EIS11 –32bit Counter (32bit raw)
EIS13 –ASCII char (8bit raw)
EIS14 –8bit Counter (8bit raw)
ETS3 or ETS4 software tools are not used to configure IntesisBox. Though, it’s typical that
the choice of which KNX group addresses to use is restricted or defined by an ETS-based
project. If that’s the case, the KNX installer/integrator needs to provide the set of group
addresses prior to doing the configuration of datapoints in LinkBoxMB.
Also, a dummy ETS application is provided by Intesis Software (section 6), which can be
imported into ETS. This application is nor downloadable into IntesisBox Modbus neither
usable for IntesisBox configuration. Rather, it poses as a means of having a device in the
ETS project representing the IntesisBox Modbus and its own datapoints/communication
objects, and to which group addresses are associated.

IntesisBox®Modbus Server –KNX
User’s Manual r18 eng
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox®is a registered trademark of Intesis Software SLU
URL
Email
tel
http://www.intesisbox.com
[e-mail]
[phone]
12 /
31
3. Quick Setup
1. Install LinkBoxMB. Details in section 5.
2. Install IntesisBox in the desired installation site (DIN rail mounting inside a metallic
industrial cabinet connected to ground is recommended).
3. Power up and connect the communication cables. Details in section 4.
4. Open LinkBoxMB, open a project or create a new one. Details in section 5.
5. Connect to the IntesisBox (details in section 4).
6. (optional) Configure the IntesisBox. Details in section 5.1
7. Check if there is communication in both Modbus and KNX buses (section 5).
8. The IntesisBox is ready to be used in your system.

IntesisBox®Modbus Server –KNX
User’s Manual r18 eng
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox®is a registered trademark of Intesis Software SLU
URL
Email
tel
http://www.intesisbox.com
[e-mail]
[phone]
13 /
31
4. Connections
Figure 4.1 Device connection diagram
4.1 Power device
The first step to perform is to power up the device. To do so a power supply working with
any of the voltage range allowed is needed (check section 6). Once connected the ON led
(Figure 4.1) will turn on.
WARNING! In order to avoid earth loops that can damage the gateway and/or any other
equipment connected to it, we strongly recommend:
The use of DC power supplies, floating or with the negative terminal connected to
earth. Never use a DC power supply with the positive terminal connected
to earth.
The use of AC power supplies only if they are floating and not powering any other
device.
Console wire 1.8 m long.
DB9 Female - DB9 Male
standard. It is supplied.
LinkBoxMB
Only needed for
configuration
Power
See technical
characteristics
Modbus TCP
master
KNX TP-1
(Bus EIB)
PC Console
- +
Ethernet
Modbus TCP
+ -
IntesisBox®
www.intesis.com
Ethernet
RJ45
EIA232
EIA485
-+
Modbus RTU
KNX TP-1
Modbus RTU
master EIA485
CMN 24Vac
9 - 30Vdc
Max.125 mA
24Vac
Max.127mA
50-60Hz
Modbus RTU
master EIA232

IntesisBox®Modbus Server –KNX
User’s Manual r18 eng
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox®is a registered trademark of Intesis Software SLU
URL
Email
tel
http://www.intesisbox.com
[e-mail]
[phone]
14 /
31
4.2 Connect to KNX
Connect + and –terminals of the KNX bus to the IntesisBox KNX connector (Figure 4.1).
The polarity is important. Once connected correctly the KNX Tx led (Figure 4.1) will start
blinking. If that doesn’t happen check that the cable is connected properly.
How to check if there is communication with the KNX bus is explained in the LinkBoxMB
Manual (section 5).
4.3 Connect to Modbus
4.3.1 Connect to Modbus RTU
Connect the communication cable coming from the Modbus RTU network to the port marked
as Modbus RTU of IntesisBox (Figure 4.1). Two methods to connect to the Modbus network
can be used:
The RS485 port if the network is RS485 2-wire. Connect the + and the –to the
respective port in the master device (polarity matters)
The RS232 port if the connection is point to point to one single master.
IntesisBox
Modbus RTU Connection
Master RTU
DB9 F
EIA232 (Crossed)
DB9 F
RX
2
2
RX
TX
3
3
TX
GND
5
5
GND

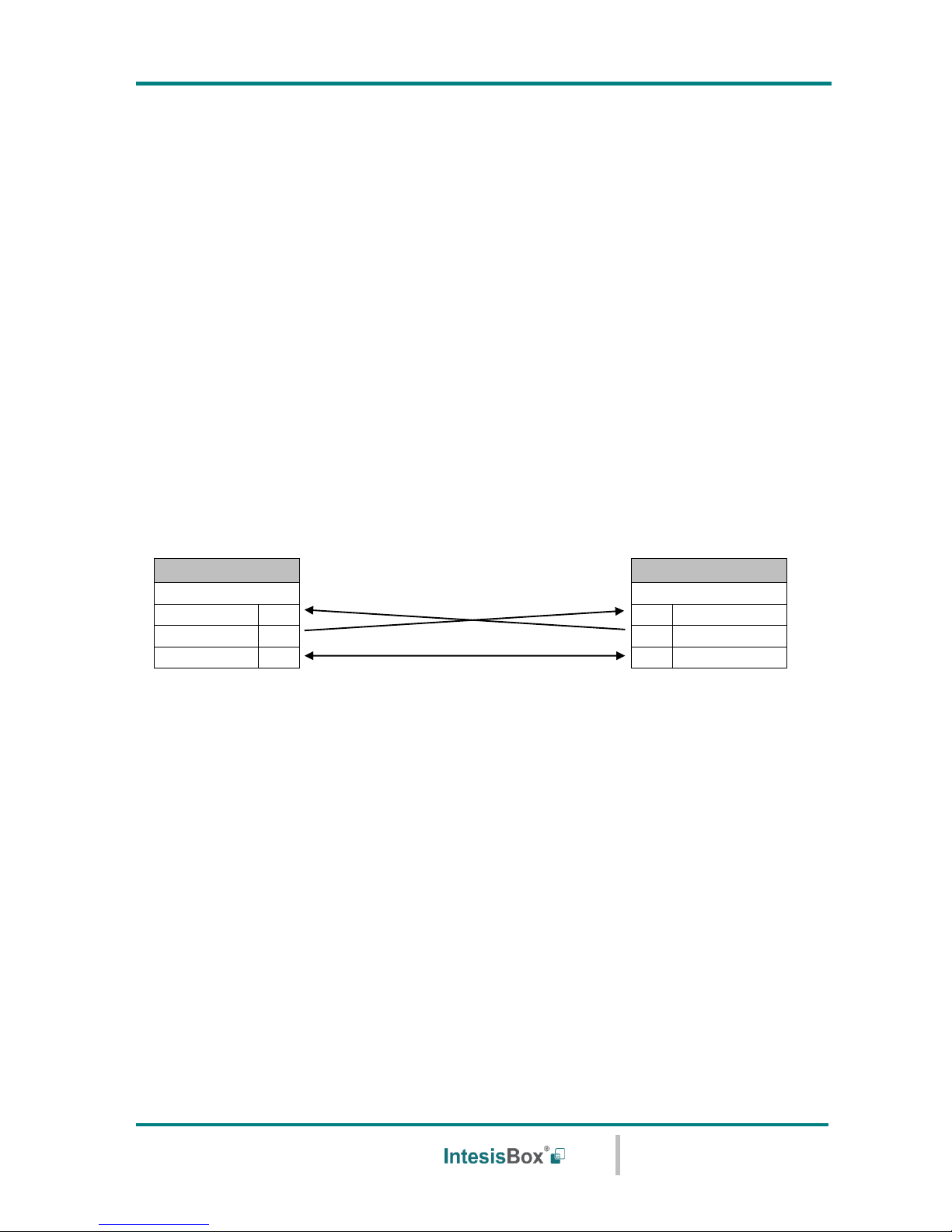

Table 4.1 Modbus RS232 cable pinout
How to check if there is communication with the Modbus bus is explained in the LinkBoxMB
Manual (section 5).
4.3.2 Connect to Modbus TCP
Connect the communication cable coming from the network hub or switch to the ETH port
(Figure 4.1) of IntesisBox. The cable to be used depends on where the IntesisBox is being
connected:
Connecting directly to a Modbus TCP master device: crossover Ethernet UTP/FTP
CAT5 cable
Connecting to a hub or switch of the LAN of the building: a straight Ethernet UTP/FTP
CAT5 cable
In case there is no communication with the IntesisBox, check that the Modbus TCP devices
they are operative and reachable from the network connection used by IntesisBox. Check
the IntesisBox Ethernet interface sending Pings to its IP address using a PC connected to
the same Ethernet network.

IntesisBox®Modbus Server –KNX
User’s Manual r18 eng
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox®is a registered trademark of Intesis Software SLU
URL
Email
tel
http://www.intesisbox.com
[e-mail]
[phone]
15 /
31
4.4 Connect to PC (LinkBoxMB)
This action allows the user to have access to configuration and monitoring of the device
(more information can be found in the LinkBoxMB User Manual [section5].Two methods to
connect to the PC can be used:
Ethernet: Using the ETH port (Figure 4.1) of IntesisBox. How to check connectivity is
explained in section 4.3.
Serial cable: To connect the device to the PC the serial cable supplied should be
plugged to the PC console port (Figure 4.1).
The cable is a RS-232 straight cable and its pinout is at explained in Table 4.2.
IntesisBox
PC
DB9 M
RS-232 (Straight)
DB9 F
TX
2
2
RX
RX
3
3
TX
GND
5
5
GND
Table 4.2 Configuration serial cable pinout

IntesisBox®Modbus Server –KNX
User’s Manual r18 eng
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox®is a registered trademark of Intesis Software SLU
URL
Email
tel
http://www.intesisbox.com
[e-mail]
[phone]
16 /
31
5. LinkBoxMB. Configuration & monitoring tool for IntesisBox®
Modbus Server series
How to install and use the LinkBoxMB is explained in its Manual. It can be found in the
installation folder (if the Software is already installed) or it can be downloaded from the link
that can be found in the installation sheet supplied with the IntesisBox®.
In this section only the specific project configuration for IntesisBox®Modbus Server - KNX is
going to be explained.
The External Protocol in this IntesisBox®is KNX.
5.1 Project configuration
To configure the integration connection parameters, and the points list, click on Config in
the Button Bar (Figure 4.1). The KNX Configuration window will be opened. For integrations
with a large number of points an alternative CSV based configuration method is explained in
in the LinkBoxMB Manual.
Figure 4.1 Menu and Button Bar in LinkBoxMB

IntesisBox®Modbus Server –KNX
User’s Manual r18 eng
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox®is a registered trademark of Intesis Software SLU
URL
Email
tel
http://www.intesisbox.com
[e-mail]
[phone]
17 /
31
5.1.1 Connection configuration
Two subsets of information are configured using this window, the Modbus TCP & RTU
parameters of the IntesisBox®, and the parameters of the KNX interface.
Figure 4.2 Configuration: Connection Tab
Modbus interface configuration parameters:
Figure 4.3 Modbus TCP & RTU interface Configuration
1
2
3
4
.
5
.
6
.
7
.
8
.
9
.
10

IntesisBox®Modbus Server –KNX
User’s Manual r18 eng
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox®is a registered trademark of Intesis Software SLU
URL
Email
tel
http://www.intesisbox.com
[e-mail]
[phone]
18 /
31
1. Select the type of Modbus communication to use: TCP, RTU or TCP+RTU.
If Modbus TCP is selected, then:
2. IP IntesisBox: Enter the IP address for the IntesisBox, by default
192.168.100.246. If a wrong configuration is send or if there is any problem when
downloading the configuration, the default IP will be automatically set to allow
communication.
3. Net Mask: Enter the IP Net Mask for the gateway (supplied by the network
administrator).
4. Gateway: Enter the Default Gateway address (router address) in case the gateway
(IntesisBox) is in a different sub network than other Modbus devices (supplied by the
network administrator). Leave blank if there is no need of router address..
5. Port: Enter the TCP port to use, by default 502.
6. Timeout Keep Alive: Enter a value in seconds between 0 and 65535 (the default
value is 30s). This parameter defines the inactivity time of the incoming TCP
connection, after which the IntesisBox®will begin the process of TCP Keep-Alive
checking. In case of detecting that the device that has established a TCP connection
with the IntesisBox®is unresponsive, the connection with this device (TCP socket)
will be closed. This allows freeing up unused connections (IntesisBox®allows up to 4
simultaneous Modbus-TCP connections). In any case, the minimum required time
from detecting inactivity in a TCP connection and closing it, in practice will never
lower than 1 minute.
If Modbus RTU is selected, then:
7. Connection: Select the connection used (EIA232 or EIA485).
8. Baud Rate: Select the baud rate.
9. Parity: Select the parity.
10.Slave: Enter the Modbus slave number for IntesisBox®.

IntesisBox®Modbus Server –KNX
User’s Manual r18 eng
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox®is a registered trademark of Intesis Software SLU
URL
Email
tel
http://www.intesisbox.com
[e-mail]
[phone]
19 /
31
KNX interface configuration parameters:
Figure 4.4 KNX interface Configuration
1. Physical Address: Enter the KNX physical address for the gateway.
2. Force update: Check this if you want the gateway to update the signals configured
as “U” or “U2” after a KNX bus reset. Details about configuring signals as “U” and
“U2” in section 4.1.2.
3. Delay: Delay (in seconds), after gateway start-up or bus reset detection, to start the
update process.
Gateway configuration parameters:
Figure 4.5 Gateway configuration
1. Byte order 32 bits: Select the byte order of 32 bits Modbus registers, it can be one
of these three possibilities:
ob3b2b1b0 (H…L).
ob0b1b2b3 (L…H).
ob1b0b3b2.
1
2
3
2
3
4
5
1

IntesisBox®Modbus Server –KNX
User’s Manual r18 eng
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox®is a registered trademark of Intesis Software SLU
URL
Email
tel
http://www.intesisbox.com
[e-mail]
[phone]
20 /
31
2. Version: Select the IntesisBox®model used.
There are three models of IntesisBox®supporting different number of points. You
can identify the model of IntesisBox®by the order code printed in the front label:
oIBOX-MBS-KNX-100. Model supporting up to 100 points.
oIBOX-MBS-KNX-A. Model supporting up to 500 points.
oIBOX-MBS-KNX-B. Model supporting up to 3000 points.
You can identify also the model of your IntesisBox through the identification given by
it in response to an INFO? command, it is something like this:
IntesisBox_MODBUS_SVR_KNX-100…-> this is the model with up to 100 internal points
IntesisBox_MODBUS_SVR_KNX-A…-> this is the model with up to 500 internal points
IntesisBox_MODBUS_SVR_KNX-B…-> this is the model with up to 3000 internal points
3. Write to EIB…:Select this option if you want a KNX telegram to be sent every time
that a Modbus write is performed on its corresponding register, or only when the
register value changes from its previous value.
4. Enable Coil / Discrete input access to Modbus registers: Enable access to 16
bits registers with Modbus function codes 01, 02, 05 and 15.
When this checkbox is enabled a new column for the bit selection will appear in the
signals list. For more information check section 5.1.2
It will be checked whether registers are different to 0 (zero). Only available from
V.41.1.xx firmware versions and onwards.
5. Firmware Version of the gateway: Select the current firmware version of the
gateway.
You can identify also the firmware of your IntesisBox through the identification given
by it in response to an INFO? command, it is something like this:
>IntesisBox_MODBUS_SRV_KNX-100_V.41.x.xx_SN12345P111
Select V.41.0.xx, V.41.1.xx or V.41.2.xx corresponding to the IBOX firmware
version.
If version V.41.1.xx is selected, new functions available from firmware V41.1.xx and
onwards will automatically be enabled.
Coil / Discrete Input access to Modbus registers.
16 bits digitals: each bit will be counted as 1 point.
Signals Bit column for assigning the 16 bits digitals.
If version V.41.2.xx is selected, new functions available from firmware V41.2.xx and
onwards will automatically be enabled.
Includes KNX extended addresses (16 to 31)
