Intex Auto Cleaner User manual

(198IO) AUTO CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/29/2016
198A
English
IMPORTANT
SAFETY RULES
Read, understand, and follow
all instructions carefully before
installing and using this product.
Auto Cleaner
Don’t forget to try these other fine Intex products:
pools, pool accessories, inflatable pools and in-home
toys, airbeds and boats available at fine retailers or
visit our website.
Due to a policy of continuous product improvement,
Intex reserves the right to change specifications and
appearance, which may result in updates to the
instruction manual without notice.
198-*A*-R0-1706
OWNER’S MANUAL
For illustrative purposes only.
©2016 Intex Marketing Ltd. - Intex Development Co. Ltd. - Intex Trading Ltd.
- Intex Recreation Corp.
All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle
Rechte vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/Gedruckt in China.
®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous
licence de/Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in
einigen Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Trading Ltd., Intex Development Co.
Ltd., G.P.O Box 28829, Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed
in the European Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der
Europäischen Union durch/Intex Trading B.V., Venneveld 9, 4705 RR Roosendaal – The Netherlands
www.intexcorp.com

(198IO) AUTO CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/29/2016
SAVE THESE INSTRUCTIONS
English 198A
Page 2
Warnings....................................................................... 3
Parts Reference............................................................ 4
Set Up Instructions ..................................................... 5-8
Debris Net Cleaning..................................................... 9
Troubleshooting Guide................................................ 10
Long Term Storage....................................................... 11
General Aquatic Safety................................................. 11
TABLE OF CONTENTS

(198IO) AUTO CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/29/2016
SAVE THESE INSTRUCTIONS
English 198A
Page 3
IMPORTANT SAFETY RULES
Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product.
WARNING
•TO REDUCE THE RISK OF INJURY, DO NOT PERMIT CHILDREN
TO USE THIS PRODUCT.
•DO NOT OPERATE THE FILTER PUMP WHILE THE POOL IS
OCCUPIED OR IN USE.
• REMOVE THE PRODUCT FROM THE POOL WHILE THE POOL IS
OCCUPIED OR IN USE.
• TURN OFF OR UNPLUG THE FILTER PUMP BEFORE ADJUSTING,
CLEANING OR SERVICING.
• REMOVE THE PRODUCT FROM THE POOL BEFORE PLACING A
POOL COVER OVER THE POOL.
• STORE THE PRODUCT AND ACCESSORIES IN A DRY AND SAFE
PLACE INDOORS.
• FOR POOL AND FILTER PUMP PROBLEMS REFER TO THEIR
RESPECTIVE OWNER'S MANUAL FOR ADVICE.
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN PROPERTY
DAMAGE, SERIOUS INJURY OR DEATH.
This Filter-Pump system is intended to be used only for the
purposes described in the manual! Failure to follow all product,
package and package insert safety and installation instructions
could result in electric shock, entanglement, other serious injury
or death.

(198IO) AUTO CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/29/2016
SAVE THESE INSTRUCTIONS
English 198A
Page 4

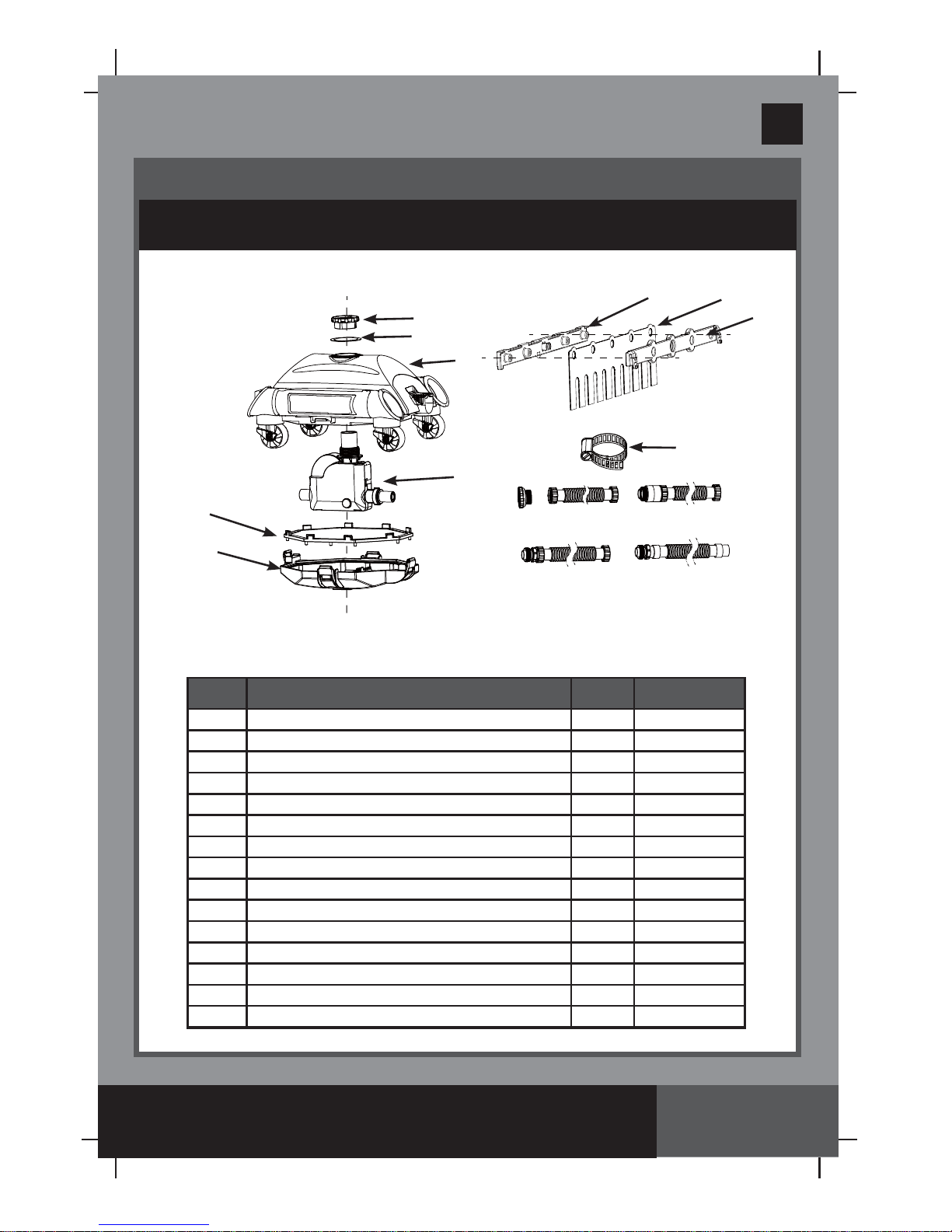

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the
contents and become familiar with all the parts.
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to
scale.
REF.
NO. DESCRIPTION QTY. SPARE PARTS NO.
1 CLEANER TOP 1 11749
2 COLLAR NUT 1 11569
3 GEAR MODULE 1 11566
4 DEBRIS NET 1 11751
5 CLEANER BASE 1 11750
6 HOSE CLAMP 1 10272
7 HOSE ADAPTOR 1 11239
8HOSE A 1 10850
9HOSE B 3 10851
10 HOSE C 3 10852
11 HOSE D 1 10957
12 BRUSH SUPPORT A (WITH 2 EXTRA) 4 11493
13 BRUSH (WITH 10 EXTRA) 12 11567
14 BRUSH SUPPORT B (WITH 2 EXTRA) 4 11494
15 EXHAUST RING PLATE 1 11752
6
1
2
3
4
5
78 9
10 11
12 14
13
15

(198IO) AUTO CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/29/2016
SAVE THESE INSTRUCTIONS
English 198A
Page 5
Please read, understand, and follow all instructions carefully before
installing and using this product.
General
• The Auto Cleaner must be connected to a filter pump with a flow
rate between 1600 - 3500 gallons/hour (6056 - 13248 liters/hour).
• The cleaning performance depends on the filter pump flow rate,
the higher the flow rate the better the performance.
• First assemble your filter pump and then set up the auto cleaner.
• If using a sand filter, ensure the sand media is clean by
backwashing it first. Run the filter pump for 10-15 minutes before
connecting the auto cleaner to the water return connector.
• The auto cleaner will not be operated if the filter pump is not
operating.
SETUP INSTRUCTIONS
IMPORTANT PREPARATION INFORMATION

(198IO) AUTO CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/29/2016
SAVE THESE INSTRUCTIONS
English 198A
Page 6
SETUP INSTRUCTIONS (continued)

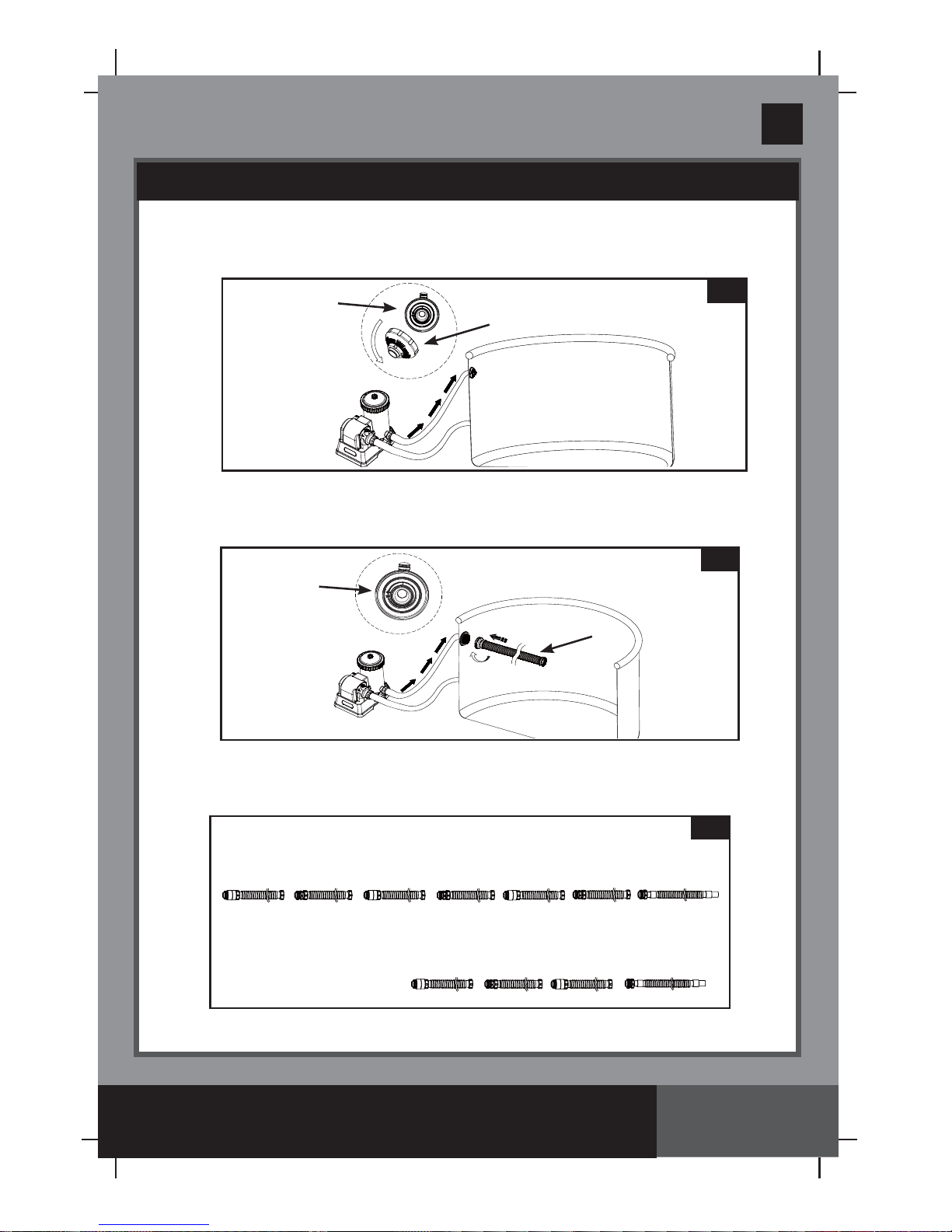

1. Turn off the filter pump. From inside of the pool, unscrew the nozzle
from the water return connector. See Fig. 1.
3. Connect the rest of the hoses together outside the pool, in the
order of hose description (See Fig. 3), B-C-B-C-B-C-D or B-C-B-D.
2. Screw the end of hose A (8) with adaptor to the threaded strainer
connector, from inside of the pool. See Fig. 2.
3
For Round pool size above 18’ or Rectangular pool size 12’ and above
For Round pool size 18’ and below or Rectangular pool size below 12’
(B) (C) (B) (C) (B) (D)
(D)
(B) (C) (B)
(C)
2
Threaded
Strainer
Connector
8
1
Threaded
Strainer
Connector nozzle

(198IO) AUTO CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/29/2016
SAVE THESE INSTRUCTIONS
English 198A
Page 7
SETUP INSTRUCTIONS (continued)
5. With hose clamp (6), fasten
the end of hose D (11) to the
top connection of cleaner.
A small coin can be used to
tighten the hose clamp.
See Fig. 5.
6. Place auto cleaner into the
water. Fill up the hose assembly
with water by submerging the
hose into the water to remove
all of the entrapped air from the
hose.
7. Hold the auto cleaner upside
down below the water surface to
jet out the water. See Fig. 6.
This will evacuate all the air in
the hose and auto cleaner, so
the cleaner will sink to the
bottom and keep the pool clean.
4. Brush assembly. See Fig. 4.
NOTE: Remove the brushes from underneath the device when
vacuuming large debris or leaves on the pool floor.
5
6
11
4
12 14
13
6

(198IO) AUTO CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/29/2016
SAVE THESE INSTRUCTIONS
English 198A
Page 8

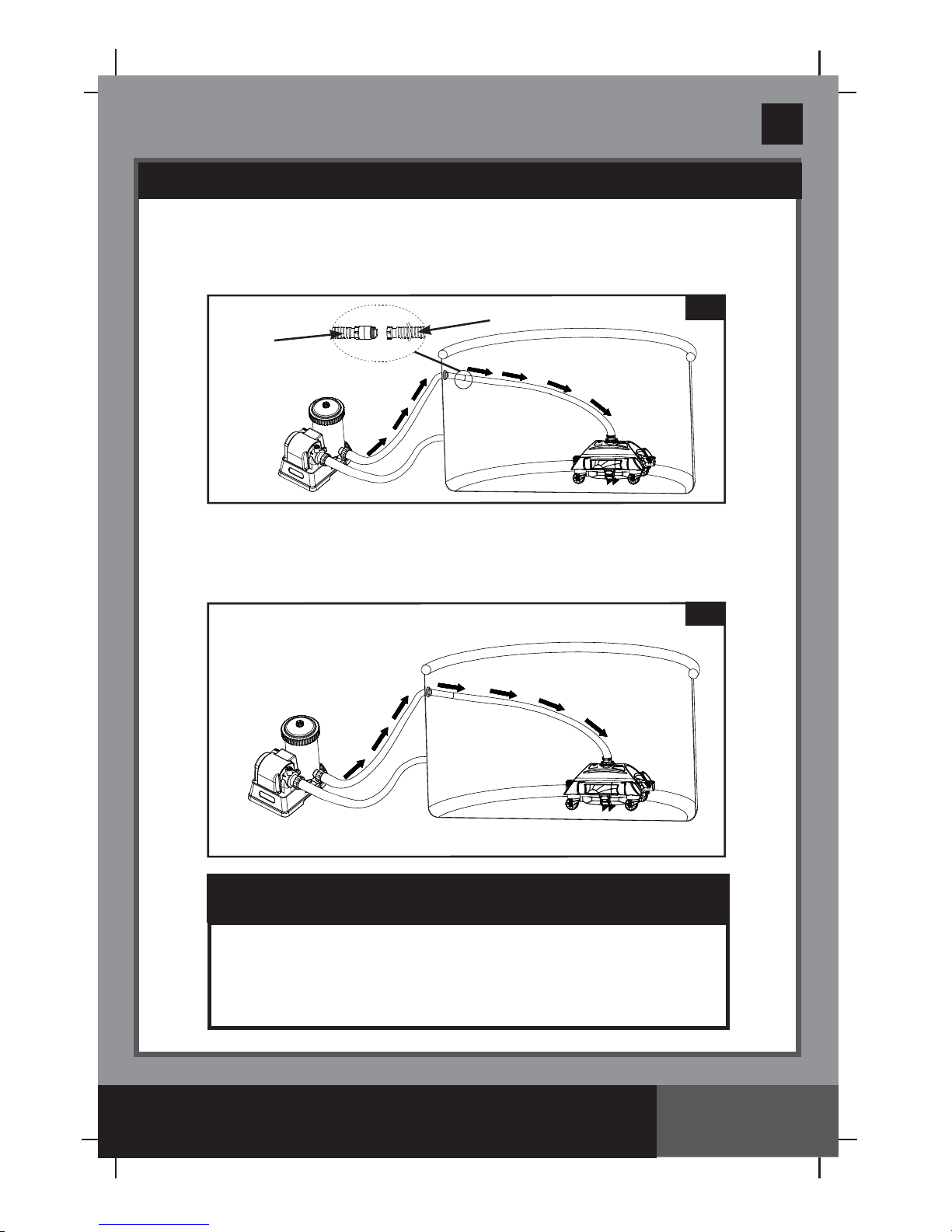

8. Connect hose B (9) from the hose assembly to the hose A (8)
which was already installed in step 2. See Fig. 7. The auto cleaner
is now ready to use.
9. Turn on the filter pump, and make sure water is flowing through the
auto cleaner. The auto cleaner is now moving and vacuuming the
pool floor. See Fig. 8.
987
SETUP INSTRUCTIONS (continued)
8
If the auto cleaner starts to stir the debris, sediments on the
pool floor, you will require to clean or replace the filter
cartridge more frequently as the fine sediments are retained
by the cartridge.
IMPORTANT NOTE

(198IO) AUTO CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/29/2016
SAVE THESE INSTRUCTIONS
English 198A
Page 9
DEBRIS NET CLEANING
1. Make sure the filter pump is turned
off, and disconnect the power cord
from the electrical outlet.
2. Lift the auto cleaner’s hose slowly
then hold the auto cleaner up with
both hands. See Fig. 9.
CAUTION: Do not pull the hose
directly which could damage the
auto cleaner hose connection fitting.
3. Grasp the cleaner base with two
hands, lift the auto cleaner up slowly
with an angle (either head or tail up).
See Fig.10. After the water has been
fully released from the auto cleaner,
carry the auto cleaner out of the
pool and put it on the ground.
4. Unlock the four buckles located on
the four sides. See Fig. 11.
5. Remove the debris net (4) from the
cleaner base
(5). If debris is on the
debris net and cleaner base, use
garden hose to flush the debris off.
See Fig. 12.
6. Reassemble auto cleaner reversing
steps 1, 2, 3, 4 and 5.
10
11
9
(1) (2)
12
4
5

(198IO) AUTO CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/29/2016
SAVE THESE INSTRUCTIONS
English 198A
Page 10
TROUBLESHOOTING GUIDE
AUTO CLEANER
DOESN’T MOVE
MOVEMENT IS
VERY SLOW
LIFTS OFF FROM
THE POOL FLOOR
CAN NOT PICK UP
THE LEAVES ON
POOL FLOOR
TROUBLE SOLUTION
• Ensure the filter pump is operating. Lift the auto cleaner
out of the water and check if water is flowing out from
either end of the device.
• Tighten each hose section securely, and connect the
hose to the water return connector, see “Setup”
section. If you are not sure which return connector is,
try connecting the auto cleaner to each pool outlet until
water is flowing out of either end of the device.
• Lift the auto cleaner out of the wrinkled area, and make
sure the pool floor is as smooth as possible.
• Contact Intex Service Center.
• Check and clean the debris net.
• Clean or replace the filter pump cartridge.
• If using a sand filter, ensure the sand media is clean
by backwashing it. See sand filter owner’s manual.
• If you are still not satisfied with the speed, a higher flow
rate filter pump is recommended.
• Release the air from the auto cleaner by following the
“Setup” instructions.
• Pool water too dirty. Ensure the pool water chemistry
is balanced. If the pool water is green, brown or black,
adjust the chlorine and pH level. See pool owner’s
manual.
• Check if the pump flow rate is within the specified
range, if the flow rate is more than 3500 gal/h, change
pump with lower flow rate.
• Remove the brushes from the underside and put the
Auto Cleaner back into the pool, see “Setup” section.
• Clean all the debris from the Auto Cleaner after
operating for 2-3 hours continuously.
If you continue to experience difficulty, please contact our Consumer Service
Department for assistance. See separate “Authorized Service Centers” sheet.
IMPORTANT

(198IO) AUTO CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/29/2016
SAVE THESE INSTRUCTIONS
English 198A
Page 11
LONG TERM STORAGE
1. Make sure the filter pump is turned off, and disconnect the power
cord from the electrical outlet.
2. Using the Set Up instructions in reverse, disassemble the auto
cleaner.
3. Clean and air dry all the accessories and parts thoroughly.
4. Keep the hoses straight during storage.
5. Remove the brushes and keep them flat and straight during
storage.
6. The original packaging can be used for storage. Store in a dry, cool
storage location.
GENERAL AQUATIC SAFETY
Water recreation is both fun and therapeutic. However, it involves
inherent risks of injury and death. To reduce your risk of injury, read
and follow all product, package and package insert warnings and
instructions. Remember, however, that product warnings,
instructions and safety guidelines cover some common risks of
water recreation, but do not cover all risks and or dangers.
For additional safeguards, also familiarize yourself with the following
general guidelines as well as guidelines provided by nationally
recognized Safety Organizations:
• Demand constant supervision. A competent adult should be appointed
as a “lifeguard” or water watcher, especially when children are in and
around the pool.
• Learn to swim.
• Take the time to learn CPR and first aid.
• Instruct anyone who is supervising pool users about potential pool
hazards and about the use of protective devices such as locked doors,
barriers, etc.
• Instruct all pool users, including children what to do in case of an
emergency.
• Always use common sense and good judgement when enjoying any
water activity.
• Supervise, supervise, supervise.
