Intex ZX100 User manual

(77IO) ZX100 AUTOMATIC POOL CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/22/2022
77
A
English
IMPORTANT
SAFETY RULES
Read, understand, and follow
all instructions carefully before
installing and using this product.
Keep for future reference.
ZX100 Automatic
Pool Cleaner
Don’t forget to try these other fine Intex products:
pools, pool accessories, inflatable pools and in-home
toys, airbeds and boats available at fine retailers or
visit our website.
Due to a policy of continuous product improvement,
Intex reserves the right to change specifications and
appearance, which may result in updates to the
instruction manual without notice.
OWNER’S MANUAL
For illustrative purposes only.
©2022 Intex Marketing Ltd. - Intex Development Co. Ltd. - Intex Recreation
Corp. All rights reserved/Tous droits réservés/Todos los derechos reservados/
Alle Rechte vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/
Gedruckt in China.
®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous
licence de/Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in
einigen Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Development Co. Ltd., Hong Kong &
Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans
l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V.,
Ettenseweg 46, 4706 PB Roosendaal – The Netherlands • Distributed in the UK by Unitex Service (UK) Limited,
21 Holborn Viaduct, London EC1A 2DY, UK.
www.intexcorp.com 077-*A*-R0-2306

(77IO) ZX100 AUTOMATIC POOL CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/22/2022
77
A
SAVE THESE INSTRUCTIONS
Page 2
Warnings................................................................................. 3
Parts Reference...................................................................... 4
Set Up Instructions................................................................ 5-10
Debris Net Cleaning............................................................... 11-12
Troubleshooting Guide.......................................................... 13-14
Long Term Storage................................................................ 15
General Aquatic Safety.......................................................... 15
Limited Warranty.................................................................... 16
TABLE OF CONTENTS

(77IO) ZX100 AUTOMATIC POOL CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/22/2022
77
A
SAVE THESE INSTRUCTIONS
Page 3
WARNING
•TO REDUCE THE RISK OF INJURY, DO NOT PERMIT CHILDREN TO
USE THIS PRODUCT.
•REMOVE THE PRODUCT FROM THE POOL WHILE THE POOL IS
OCCUPIED OR IN USE.
• TURN OFF OR UNPLUG THE FILTER PUMP BEFORE ADJUSTING,
CLEANING OR SERVICING.
•REMOVE THE PRODUCT FROM THE POOL BEFORE PLACING A
POOL COVER OVER THE POOL.
•STORE THE PRODUCT AND ACCESSORIES IN A DRY AND SAFE
PLACE INDOORS.
• FOR POOL AND FILTER PUMP PROBLEMS REFER TO THEIR
RESPECTIVE OWNER'S MANUAL FOR ADVICE.
•
THIS DEVICE IS INTENDED TO BE USED ONLY FOR THE PURPOSES
DESCRIBED IN THE MANUAL.
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN PROPERTY
DAMAGE, SERIOUS INJURY OR DEATH.
IMPORTANT SAFETY RULES
Read, Understand and Follow All Instructions Carefully
Before Installing and Using this Product.

(77IO) ZX100 AUTOMATIC POOL CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/22/2022
77
A
SAVE THESE INSTRUCTIONS
Page 4
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
REF. NO. DESCRIPTION QTY. SPARE PARTS NO.
1CLEANER TOP 1 13200
2 GEAR MODULE 1 13201
3 DEBRIS NET 1 13202
4 CLEANER BASE 1 13203
5 CAP SEAL O-RING 3 12861
6 MICRO-SCREEN 1 12860
7 PRESSURE RELEASE VALVE 1 13199
8 SWIVEL JOINT 1 13226
9HOSE COLLAR NUT 2 12863
10 HOSE 1 12862G
11 HOSE ELBOW 1 13227
12 BRUSH SUPPORT 2 13136
13
BRUSH (WITH 2 EXTRA) 4 13135
14 INLET CONNECTOR ADAPTOR 1 12486
PARTS REFERENCE
Before assembling your product, please take a few minutes to check the
contents and become familiar with all the parts.
1
5
2
3
4
12
13
89
6 5
7 11 9
10
5
14

(77IO) ZX100 AUTOMATIC POOL CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/22/2022
77
A
SAVE THESE INSTRUCTIONS
Page 5
Please read, understand, and follow all instructions carefully before installing and
using this product.
General
The auto cleaner is designed to clean the pool as follow:
• The brushes from the auto cleaner remove the fine dirt from the floor.
• The fine sediments and debris on the floor are agitated by the auto cleaner
movement. This allows the filtration system to filter out the fine sediments
suspended in the water, while the auto cleaner pick up the heavy debris
on the floor.
• The movement of the auto cleaner around the pool prevents the water from
stagnating. Thus helping circulate the pool water through the filtration system.
IMPORTANT PREPARATION INFORMATION
SETUP INSTRUCTIONS
Dirt in the pool
• The Auto Cleaner operates from the pressure side of the pool water return
connector (water flowing from the filter pump to the pool). If the Auto Cleaner
is attached to the pool “outlet” (water flowing from the pool to the filter pump)
connector, it will not work.
• The Auto Cleaner will not work if there is an Intex Saltwater System or Ozone
Generator connected to the same water circulation line as the Auto Cleaner.
Disconnect these sanitation devices from the water circulation line before
installing the Auto Cleaner. Once the Auto Cleaner has finished cleaning the
pool, disconnect, remove the Auto Cleaner from the pool, reinstall and resume
the sanitation device operation.

(77IO) ZX100 AUTOMATIC POOL CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/22/2022
77
A
SAVE THESE INSTRUCTIONS
Page 6
• The Auto Cleaner must be connected to an Intex filter pump with a system
flow rate between 1600 - 3500 gallons/hour (6056 - 13248 liters/hour). Not
suitable for non-Intex filter pumps.
• For Intex®above ground frame pools.
• Up to 26 ft (7.92 m) round shape. Up to 18 ft (5.49 m) for Easy Set Pools.
• Up to 32 ft x 16 ft (9.75 m x 4.88 m) rectangular/oval shape. Not suitable
for non-Intex pools.
• First assemble your filter pump and then set up the auto cleaner.
• If using a sand filter, ensure the sand media is clean by backwashing it first.
Run the sand filter pump for 10-15 minutes before connecting the auto cleaner
to the water return connector. If sand enters the auto cleaner, it may cause
damage to the gear module.
• The auto cleaner will not work if the filter pump is not operating.
• Operating pool water temperature requirement: 25~45 °C (77~113 °F).
Exceeding this range will reduce the performance and life expectancy of the
Auto Cleaner.
Before setup, make sure that:
• The filter pump is turned off, and disconnect the power cord from the electrical
outlet.
• The pool is free from objects that will hinder the auto cleaner free movements
by removing the ladder, surface skimmer, water sprayer (if applicable), floats
or any other objects from the pool.
• The pool wall or floor are free from algae. Algae will block the flow of water
into the cleaner and hinder the auto cleaner movement. See your local pool
supply specialist for algae treatment solutions.

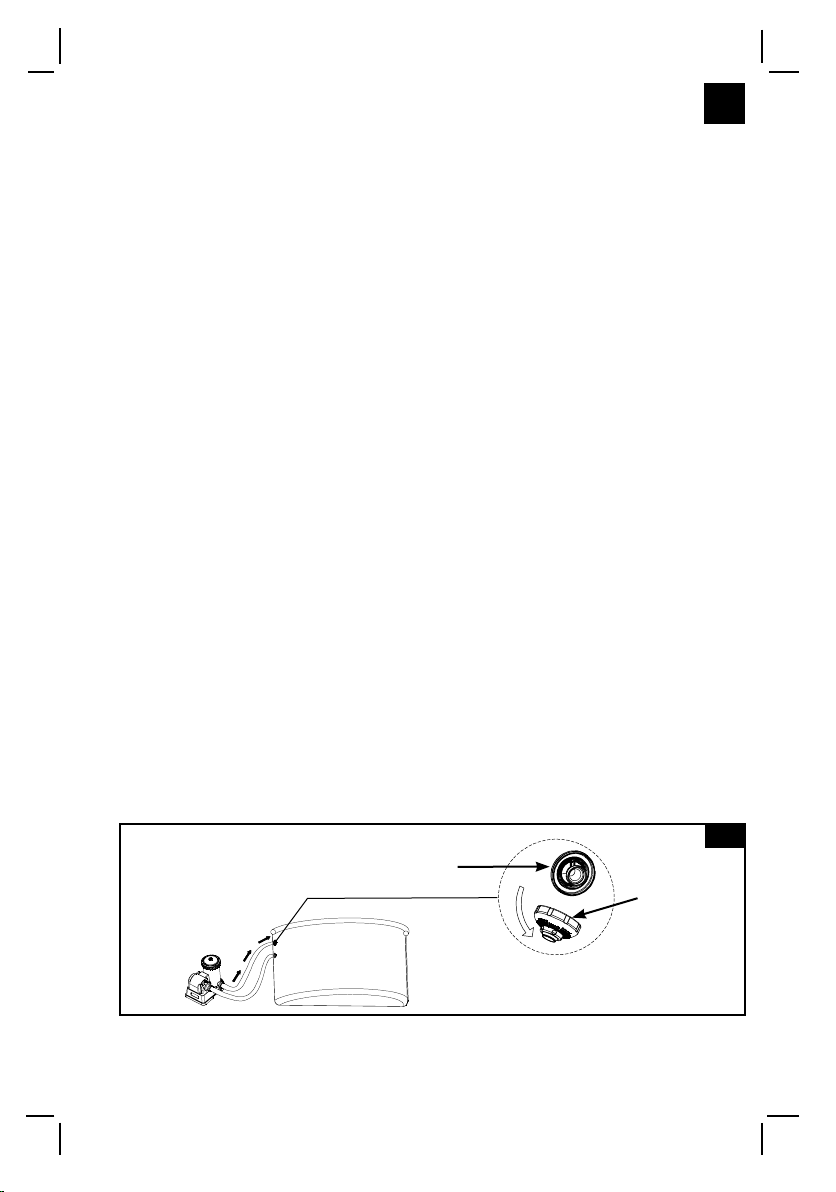

1. From inside of the pool, unscrew the nozzle from the water return connector.
See Fig. 1.
NOTE: The device operates from the pressure side of the pool water return
connector (water flowing back from the filter pump to the pool).
SETUP INSTRUCTIONS (continued)
1
Threaded
Strainer
Connector
Nozzle

(77IO) ZX100 AUTOMATIC POOL CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/22/2022
77
A
SAVE THESE INSTRUCTIONS
Page 7
SETUP INSTRUCTIONS (continued)

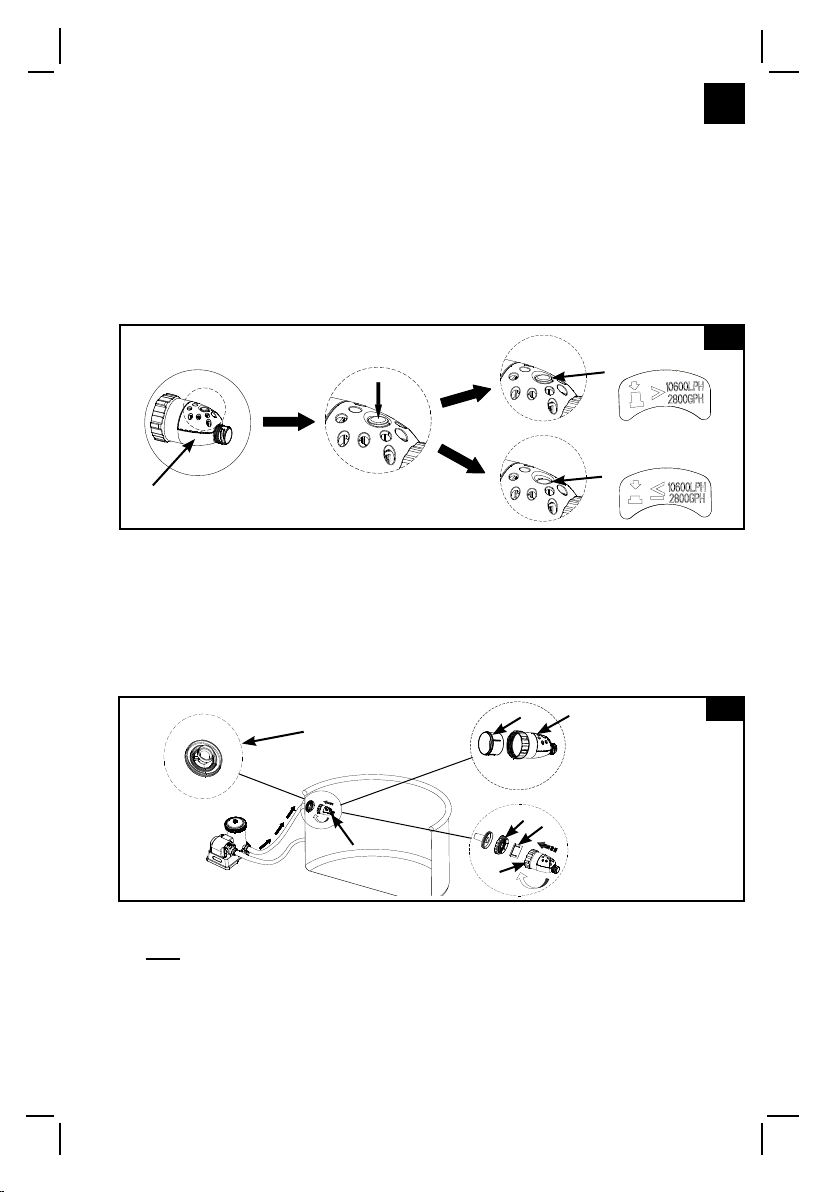

2. Check your filtration system pump flow rate and adjust the pressure release
valve (7) button as follow:
• For pump flow rate between 2100-2800 gph (7950-10600 L/h): press
button for “DOWN” position.
• For pump flow rate greater than 2800 gph (10600 L/h) but not exceeding
3500 gph (13248 L/h): button shall be in the “UP” position. If the button
is already in the “DOWN” position, press button once to return it to the
“UP” position. See Fig. 2.
3. Make sure the micro-screen (6) is inside the pressure release valve (7), then
screw the pressure release valve set to the threaded strainer connector, from
inside of the pool. See Fig. 3.
NOTE: For Intex small pools with 1-1/4” (32mm) inlet strainer connector
fitting, screw the inlet connector adaptor (14) to the inlet strainer connector
first, then screw the pressure release valve set to the adaptor (14).

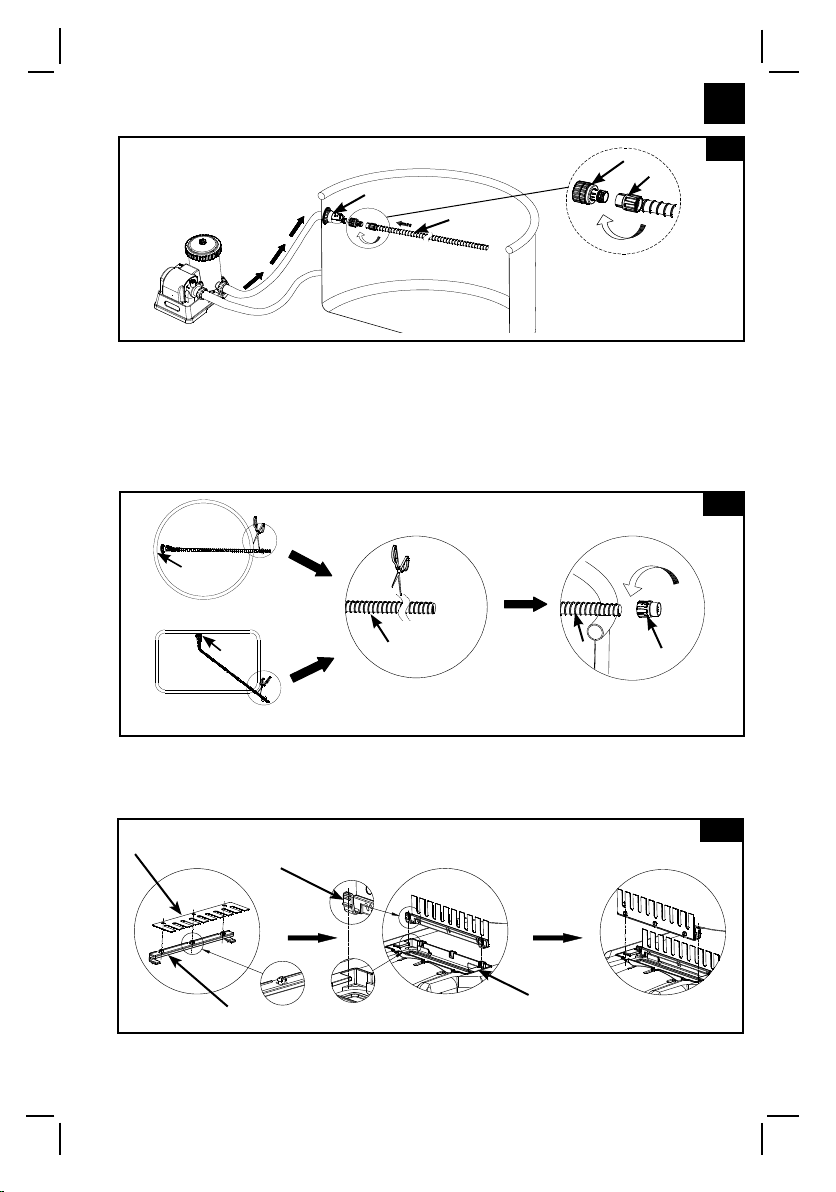

4. Push in and screw one end of hose with the collar nut (9) to the swivel joint
(8) first, then screw the swivel joint (8) to the pressure release valve (7).
See Fig. 4.
3
Threaded
Strainer
Connector
7
6
7
7
14
For 1-1/2” (38 mm)
connector fitting
For 1-1/4” (32 mm)
connector fitting
6
2
Button “DOWN”
Button “UP”
Press button
7

(77IO) ZX100 AUTOMATIC POOL CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/22/2022
77
A
SAVE THESE INSTRUCTIONS
Page 8
SETUP INSTRUCTIONS (continued)
5. Extend the hose (10) to the furthest opposite side of the pool wall or to the
furthest corner of the pool so that it overhangs the wall, and then cut the
excess hose with a scissor. See Fig. 5.
Note:
Unscrew (clockwise direction) the hose collar nut (9) from the other end
of the hose (10) before cutting the excess hose. Screw (counter-clockwise
direction) the hose collar nut (9) back onto the main hose (10) after cutting.
6. Brush assembly. See Fig. 6.
NOTE: Remove the brushes from underneath the device when vacuuming
large debris or leaves on the pool floor.
6
13
12 3
Press
5
Rectangular
pool/Oval pool
Circular pool
Pool inlet
Pool inlet 10 10 9
9
4
8
10
7

(77IO) ZX100 AUTOMATIC POOL CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/22/2022
77
A
SAVE THESE INSTRUCTIONS
Page 9
SETUP INSTRUCTIONS (continued)

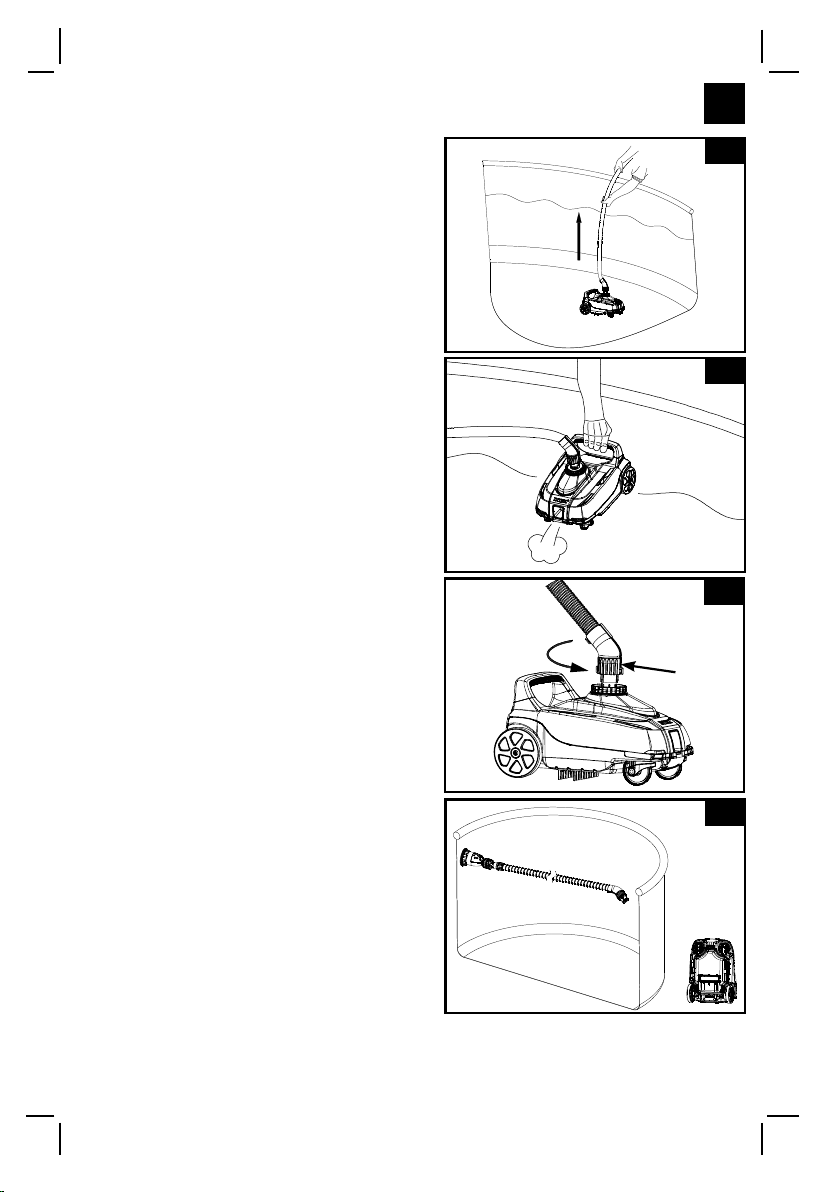

8. Open the hose elbow (11) in half, bend the hose (10) at an angle next to the
collar nut (9) attached to the auto cleaner, wrap the hose elbow over the hose
and collar nut, and close the hose elbow. Make sure the hose elbow is securely
locked. See Fig. 8.
7. From outside of the pool, connect the other end of hose with the hose collar
nut (9) to the auto pool cleaner water inlet. Vertically insert the hose collar nut
(9) into the water inlet, while pushing down the hose collar nut, turn the hose
collar nut clockwise to tighten the hose. To remove the hose, while pushing
down the hose collar nut, turn the collar nut counter-clockwise. See Fig. 7.
7
Press Clockwise direction Screw
9. Hold the cleaner vertically. Slowly lower
the device into the water to evacuate the
air inside the cleaner and the cleaner will
gradually sink to the bottom of the pool
floor. Stretch out the hose by slowly
pulling the auto cleaner across the pool
to the opposite side. Make sure the hose
is stretched out in order to prevent any
entanglement. See Fig. 9.
9
8
9
10
11
11
10
9

(77IO) ZX100 AUTOMATIC POOL CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/22/2022
77
A
SAVE THESE INSTRUCTIONS
Page 10
SETUP INSTRUCTIONS (continued)
10.
Turn on the filter pump and make sure water is flowing through the micro-screen
(6) and the pressure release valve (7). The auto cleaner is now moving and
vacuuming the pool floor and pool wall. See Fig. 10.
Note: The cartridge filter pump or sand filter pump will clean the pool water.
It’s essential to clean or replace the filter cartridge or backwash sand media
frequently to keep the water clean.
If the Auto Cleaner is paired up with a sand filter pump, the system flow will
diminish and the pressure will rise as indicated by the sand filter pump
pressure gauge reading (from green to yellow zone), this is normal. Disconnect
the Auto Cleaner from the pool and check if the sand filter pressure gauge
reading will drop back to the green zone. Refer to the sand filter pump manual
for more details.
10
67
If the auto cleaner starts to stir the debris, sediments on the pool floor,
you will require to clean or replace the filter cartridge more frequently as
the fine sediments are retained by the cartridge. In the case of a sand
filter pump, backwash the sand media more frequently. Also clean the
debris net (3) frequently.
IMPORTANT NOTE

(77IO) ZX100 AUTOMATIC POOL CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/22/2022
77
A
SAVE THESE INSTRUCTIONS
Page 11
1. Make sure the filter pump is turned
off, and disconnect the power cord
from the electrical outlet.
2. Lift the auto cleaner’s hose slowly
then hold the auto cleaner up with
one hand. See Fig. 11-12.
CAUTION: Do not pull the hose
directly which could damage the
auto cleaner hose connection fitting.
3. Once all the water has been released
from the auto cleaner, hold the rim
with one hand and turn the hose
collar nut (9) counter-clockwise to
remove the hose from the auto
cleaner. See Fig. 13.
4. Remove the auto cleaner from the
pool and place it on the ground.
See Fig. 14.
11
DEBRIS NET CLEANING
12
14
13
9

(77IO) ZX100 AUTOMATIC POOL CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/22/2022
77
A
SAVE THESE INSTRUCTIONS
Page 12
DEBRIS NET CLEANING (continued)
5. Push the left and right levers to the unlock position. See Fig. 15.
6. Remove the debris net (3) from the cleaner base (4). If debris is on the debris
net and cleaner base, use a garden hose to flush the debris off. See Fig. 16.
7. Reassemble auto cleaner debris net and base by reversing previous steps.
16
44
3
15
Lever
Lever

(77IO) ZX100 AUTOMATIC POOL CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/22/2022
77
A
SAVE THESE INSTRUCTIONS
Page 13
TROUBLESHOOTING GUIDE
AUTO CLEANER
DOESN’T MOVE
MOVEMENT IS
VERY SLOW
CLEANER FLOATS
FROM THE BOTTOM
OF THE POOL
CAN NOT PICK UP
THE LEAVES ON
POOL FLOOR
TROUBLE SOLUTION
• Ensure the filter pump is operating. Lift the auto cleaner
out of the water and check if water is flowing out from
the exhaust port located on the front or rear of the device.
The flow of water shall alternate between the front and
rear exhaust ports, and this cycle is about 30-100 seconds.
• If there is no water flowing out from either the front or
rear ports, check that the auto cleaner hose is correctly
attached to the pool “water return connector” (water
returning from pump to the pool), see “Setup” section.
• Make sure the pool floor is flat and level, any wrinkles,
folds, bulges, pits, will hinder the free movement of the
auto cleaner.
• Check and clean the debris net and micro-screen.
• Clean or replace the filter pump cartridge.
• If using a sand filter, ensure the sand media is clean by
backwashing it. See sand filter owner’s manual.
• The auto pool cleaner running speed is directly related
to the filtration system flow rate. Change the filtration
system to a higher pump flow rate.
• Evacuate all the air in the hose and auto cleaner, see
“Setup” section.
• Pool water too dirty. Ensure the pool water chemistry
is balanced. If the pool water is green, brown or black,
adjust the chlorine and pH level. See pool owner’s manual.
• Check if the pump flow rate is within the specified range
1600-3500 gph (6056-13248 L/h). Check if the pressure
release valve “button” is in the correct setting according
to the filtration system pump flow rate, see “Setup” section.
• If the size of the leaves at the bottom of the pool is
larger than the size of the suction outlet, use a skimmer
net before using the auto cleaner.
• If the size of the leaves at the bottom of the pool is
smaller than the size of the suction outlet, remove the
brush set (12 & 13) of the cleaner for better effect. See
“Setup” for details.
• If there are too many leaves at the bottom of the pool,
empty the dirt from the cleaner base more frequently.

(77IO) ZX100 AUTOMATIC POOL CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/22/2022
77
A
SAVE THESE INSTRUCTIONS
Page 14
If you continue to experience difficulty, please contact our Consumer Service
Department for assistance. See separate “Authorized Service Centers” sheet.
IMPORTANT
TROUBLESHOOTING GUIDE (continued)
HOSE IS TANGLED
SEDIMENTS ARE
STIRRED UP FROM
THE POOL FLOOR
DEBRIS NET IS
CLOGGED AND
AUTO CLEANER IS
SHUT OFF
TROUBLE SOLUTION
• A dirty filter screen will reduce the force of the auto
cleaner and therefore unable to pull the hose. Check
and clean the debris net (3), micro-screen (6) and the
filter cartridge more frequently.
• Make sure the pool water temperature is within the
recommended range: 25-45 ºC (77~113 ºF).
• Make sure the hose elbow is closed and securely locked
over the hose and collar nut.
• If the hose is coiled in a circle, it will not affect the auto
cleaner movement around the pool. This is normal.
• If the hose is tangled or twisted, this will prevent the auto
cleaner reaching the farthest end of the pool. Stretch out
the hose by slowly pulling the auto cleaner across the pool
to the opposite side. Make sure the hose is stretched out
before operating the auto cleaner.
• Alternatively disconnect the hose from the pool and the
auto cleaner, stretch out the hose on a flat surface and let it
warm up under the sun (10-24 hours) before using it.
• When not in use, clean the hose inside and outside with a
garden hose, air dry thoroughly, coil the hose loosely and
store indoors in a dry and cool place.
• As the auto cleaner move around, fine sediments on the
pool floor will be stirred up causing the water to be cloudy.
This is normal. It helps the filter pump to clean the pool water.
• Run the filtration system and the auto cleaner longer. The
filtration system will filter out the fine sediments suspended
in the water, while the auto cleaner will pick up the heavy
debris on the floor. Check and clean the filtration media and
the debris net more frequently.
• Present of algae in the pool. Treat the pool water with
algaecide and wait for the algae to shed before using the
auto cleaner. See your local pool supply specialist for algae
treatment solutions. Check and clean the debris net more
frequently.
• Too much algae or dust in the water, clean the debris net,
filter cartridge or backwash the sand media more frequently
during the initial stage until a noticeable water clarity is
observed.
• Maintain proper pool water chemistry, see pool owner’s
manual or check with your local pool supply specialist for
more details.

(77IO) ZX100 AUTOMATIC POOL CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/22/2022
77
A
SAVE THESE INSTRUCTIONS
Page 15
1. Make sure the filter pump is turned off, and disconnect the power cord from
the electrical outlet.
2. Using the Set Up instructions in reverse, disassemble the auto cleaner.
3. Clean and air dry all the accessories and parts thoroughly.
4. Loosely roll up and avoid twisting the hose during storage. Do not put heavy
objects on top of the hose.
5. Remove the brushes (13) and keep them flat and straight during storage.
6. The original packaging can be used for storage. Store in a dry, cool storage
location.
Water recreation is both fun and therapeutic. However, it involves inherent
risks of injury and death. To reduce your risk of injury, read and follow all
product, package and package insert warnings and instructions. Remember,
however, that product warnings, instructions and safety guidelines cover
some common risks of water recreation, but do not cover all risks and or
dangers.
For additional safeguards, also familiarize yourself with the following
general guidelines as well as guidelines provided by nationally recognized
Safety Organizations:
• Demand constant supervision. A competent adult should be appointed as a
“lifeguard” or water watcher, especially when children are in and around the
pool.
• Learn to swim.
• Take the time to learn CPR and first aid.
• Instruct anyone who is supervising pool users about potential pool hazards and
about the use of protective devices such as locked doors, barriers, etc.
• Instruct all pool users, including children what to do in case of an emergency.
• Always use common sense and good judgement when enjoying any water
activity.
• Supervise, supervise, supervise.
LONG TERM STORAGE
GENERAL AQUATIC SAFETY

(77IO) ZX100 AUTOMATIC POOL CLEANER ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 06/22/2022
77
A
SAVE THESE INSTRUCTIONS
Page 16
Limited Warranty
Your ZX100 Automatic Pool Cleaner has been manufactured using the highest quality materials
and workmanship. All Intex products have been inspected and found free of defects prior to
leaving the factory. This Limited Warranty applies to the ZX100 Automatic Pool Cleaner only.
This limited warranty is in addition to, and not a substitute for, your legal rights and remedies.
To the extent that this warranty is inconsistent with any of your legal rights, they take priority.
For example, consumer laws across the European Union provide statutory warranty rights in
addition to the coverage you receive from this limited warranty: for information on EU-wide
consumer laws, please visit the European Consumer Center website at http: //ec.europa.eu/
consumers/ecc/contact_en/htm.
The provisions of this Limited Warranty apply only to the original purchaser and are not
transferable. This Limited Warranty is valid for the period noted below from the date of
the initial retail purchase. Keep your original sales receipt with this document, as proof of
purchase will be required and must accompany warranty claims or the Limited Warranty will
be invalid.
ZX100 Automatic Pool Cleaner Warranty – 1 Year
Hose Warranty – 180 Days
If you find a manufacturing defect in the ZX100 Automatic Pool Cleaner during the warranty
period, please contact the appropriate Intex Service Center listed in the separate “Authorized
Service Centers” sheet. If the item is returned as directed by the Intex Service Center, the
Service Center will inspect the item and determine the validity of the claim. If the item is
covered by the provisions of the warranty, the item will be repaired or replaced, with the same
or comparable item (at Intex’s choice) at no charge to you.
Other than this warranty, and other legal rights in your country, no further warranties are
implied. To the extent possibly in your country, in no event shall Intex be liable to you or
any third party for direct or consequential damages arising out of the use of your ZX100
Automatic Pool Cleaner, or Intex or its agents’ and employees’ actions (including the
manufacture of the product). If your country does not allow the exclusion or limitation of
incidental or consequential damages, this limitation or exclusion does not apply to you.
You should note that this limited warranty does not apply in the following circumstances:
• If the ZX100 Automatic Pool Cleaner is subject to negligence, abnormal use or application,
accident, improper operation, improper voltage or current contrary to operating instructions,
improper maintenance or storage;
• If the ZX100 Automatic Pool Cleaner is subject to damage by circumstances beyond
Intex’s control, including but not limited to, ordinary wear and tear and damage caused by
exposure to fire, flood, freezing, rain, or other external environmental forces;
• To parts and components not sold by Intex; and/or.
• To unauthorized alterations, repairs or disassembly to the ZX100 Automatic Pool Cleaner
by anyone other than Intex Service Center personnel.
Injury or damage to any property or person is not covered by this warranty.
Read the owner’s manual carefully and follow all instructions regarding proper operation and
maintenance of your ZX100 Automatic Pool Cleaner. Always inspect your product prior to
use. This limited warranty will be void if use instructions are not followed.
