READ AND FOLLOW ALL INSTRUCTIONS BEFORE USING THIS PRODUCT
INTEX® OWNER’S MANUAL
ZR200 Rechargeable Pool Vacuum
Model CL2508P MAX. WATER TEMPERATURE 35 °C
• Assembly and disassembly by adults only.
• This is not a toy. Do not allow children to play with this product.
• Do not use if unit is damaged in any way. Replace damaged components promptly.
• This vacuum creates suction. Keep hair, loose clothing, fingers, and any body parts
away from openings and moving parts.
• Use only accessories and replacement parts specified in this manual.
• Never leave this product plugged into the main outlet for long term storage.
• Never leave this product in the water when it is OFF or has run out of battery power.
• Do not use this product for pool opening (start of the season). This product is design
for routine general maintenance of your pool or spa. Do not use for cleaning of longer
accumulated heavy dirt such as at the start of the pool season.
• This product is designed for underwater use: must be submerged to operate properly.
Do not use this product as an all-purpose vacuum cleaner.
• Do not use this product without the filter bag and/or vacuum body cover.
• Do not vacuum sharp objects, as this may damage the filter bag.
• Do not vacuum toxic substances, flammable or combustible liquids such as gasoline, or
operate in the presence of explosive or flammable fumes.
• Never insert or drop objects into any opening on the device. Keep all openings free of
leaves, debris, or anything that may reduce the water flow.
• Always turn off and unplug the device before cleaning, servicing, changing the filter bag
or any routine maintenance.
• Do not charge the product with a damaged plug charger.
• Charge the product indoors in a clean and dry place. Do not expose to rain or extreme
temperature and do not handle with wet hands during charging. Never charge the
product while operating it.
• This product contains sealed nickel metal-hydride (Ni-MH) rechargeable batteries.
Do not dispose of product in regular trash, municipal waste stream or by fire as the
built-in rechargeable battery may leak or explode. Always dispose of the batteries in
accordance with your local law and regulations.
• This product is intended to be used only for the purposes described in the manual.
FOLLOW THESE RULES AND ALL INSTRUCTIONS TO AVOID PROPERTY DAMAGE
OR OTHER INJURY.
WARNING
128-*PO-R0-2309
English
©2022 Intex Marketing Ltd. - Intex Development Co. Ltd. - Intex Recreation Corp. All rights reserved/Tous droits réservés/Todos los derechos
reservados/Alle Rechte vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/Gedruckt in China.
®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous licence de/Marcas registradas
utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in einigen Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/
à/a/an Intex Development Co. Ltd., Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European
Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V.,
Ettenseweg 46, 4706 PB Roosendaal – The Netherlands • Distributed in the UK by Unitex Service (UK) Limited, 21 Holborn Viaduct, London
EC1A 2DY, UK.
www.intexcorp.com

(128PO) ZR200 RECHARGEABLE POOL VACUUM ENGLISH SIZE: 4.875” X 7.25” 08/25/2022
128
PO
SAVE THESE INSTRUCTIONS
Page 2
Charging the Battery:
1. Plug the charger into the main electrical outlet and the other end into the vacuum body
(1) charging receptacle. See fig 1. The indicator light will turn on.
2. During charging, the battery indicator light will flash and light up according to the
remaining charge in the battery. Four lights indicate full charge; three lights indicate
good charge; 2 lights indicate low charge and one light flashing indicates that the battery
must be recharged. See fig 2.
Note: For the first time use or after a long term storage, the device must be charged for
6 hours before using it.

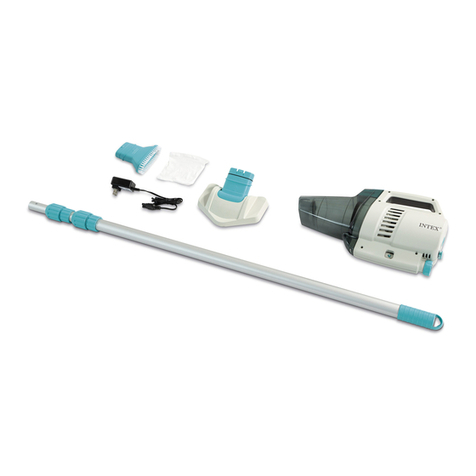

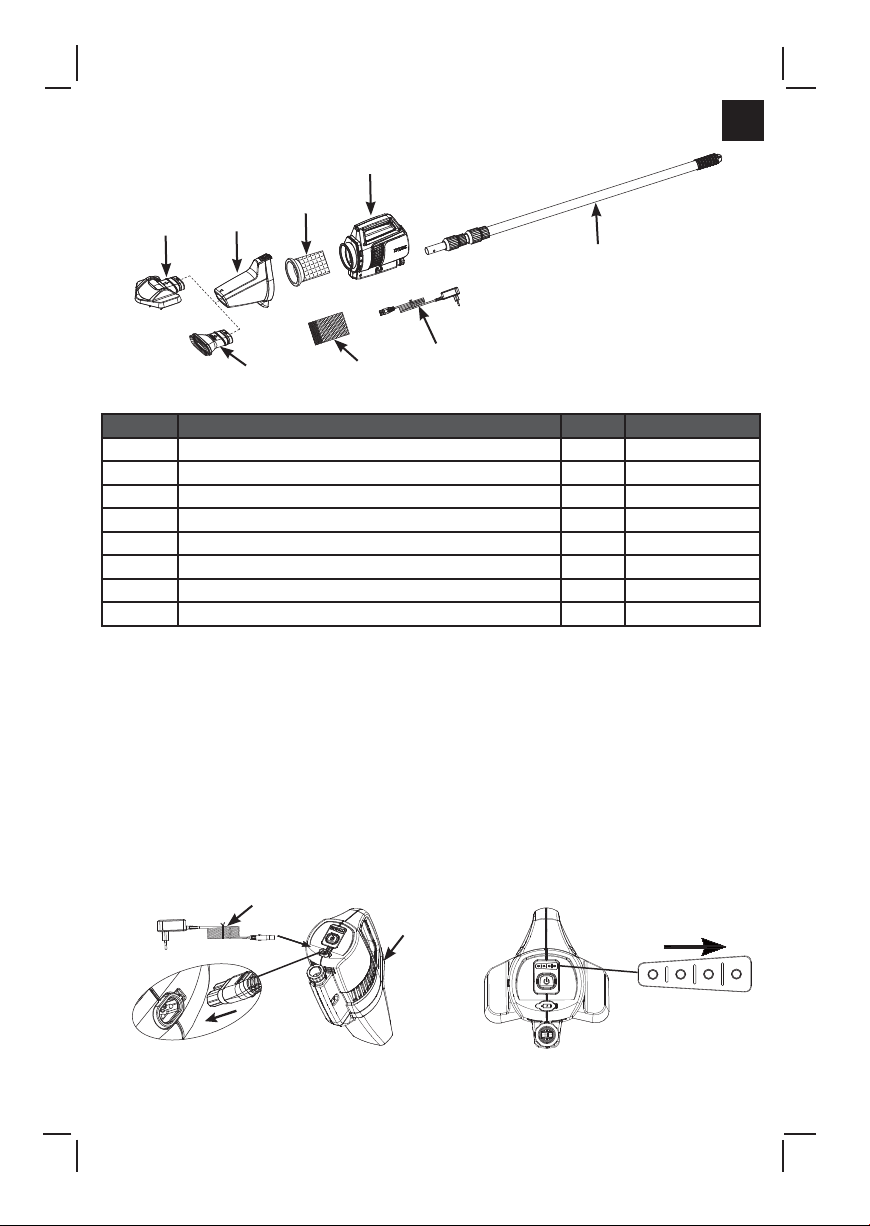

PARTS LIST
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
REF. NO. DESCRIPTION QTY. SPARE PART NO.
1 VACUUM BODY WITH NON-REPLACEABLE BATTERY 1 13269E
2 FILTER BAG WITH GASKET 1 13268
3 VACUUM BODY COVER 1 13275
4 LARGE VACUUM BRUSH HEAD 1 13271
5 VACUUM NOZZLE 1 13272
6 MICRO-FILTER BAG 1 13253
7 CHARGER 1 13273
8 TELESCOPING ALUMINUM POLE 1 13270
General:
• A full charge takes about 5-6 hours: provides about 100 minutes of operation.
• Make sure the charging receptacle on the product is dry before any recharging.
1
8
Fig 1 Fig 2
2
8
1
5
3
4
7
6

(128PO) ZR200 RECHARGEABLE POOL VACUUM ENGLISH SIZE: 4.875” X 7.25” 08/25/2022
128
PO
SAVE THESE INSTRUCTIONS
Page 3

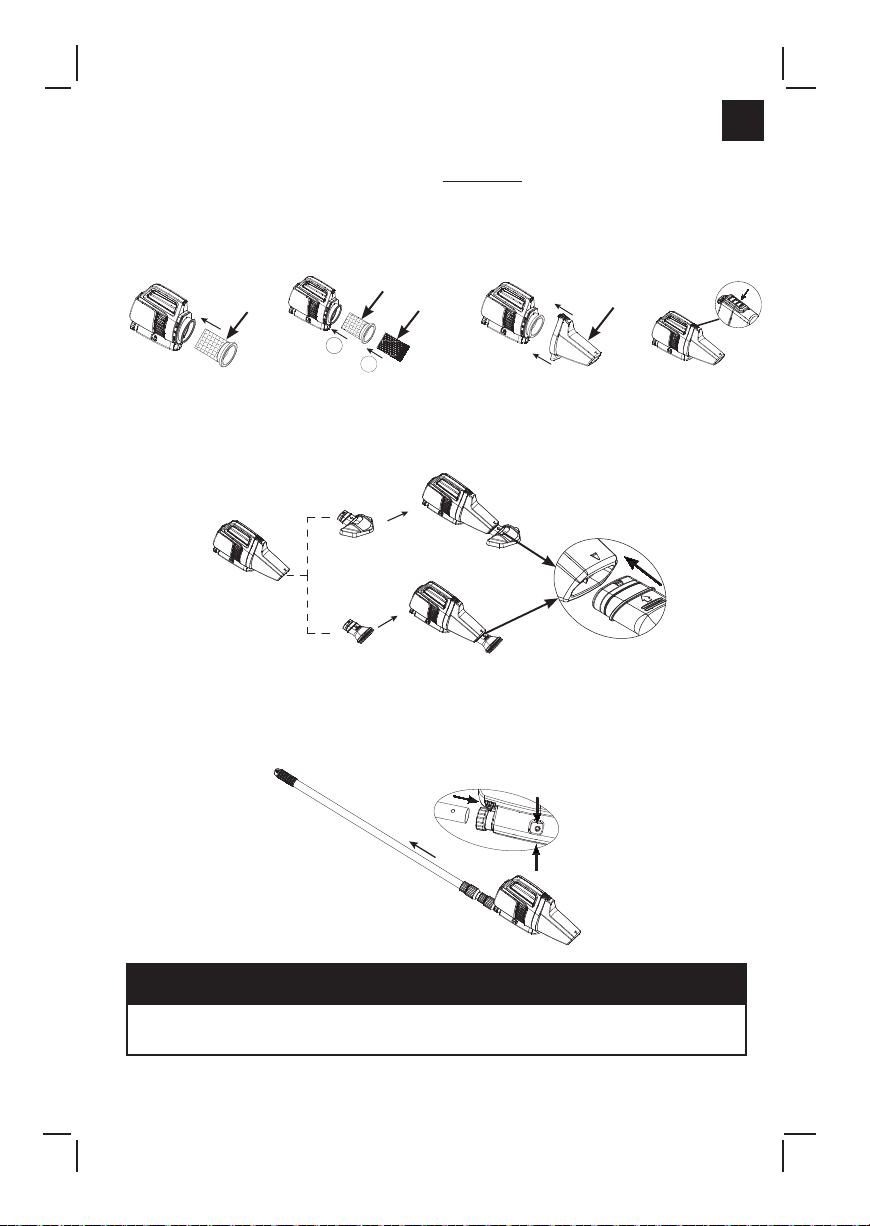

Installation:
1. Insert the filter bag with gasket (2) into the vacuum body (1). See fig 3.1.
For vacuuming fine-small particles: insert the micro-filter bag (6) into the filter bag with
gasket (2), making sure the micro-filter bag “wraps over” the filter bag gasket (2). Then
place the entire filter bag with the micro-filter bag into the vacuum body. See fig 3.2.
2. Install the vacuum body cover (3) onto the vacuum body (1). See fig 3.3.
Note: When removing the vacuum body cover (3), press the spring button to release the
vacuum body cover. See fig 3.4.
3. Attach the desired cleaning head accessory to the vacuum body cover. See fig 4.
Note: Make sure the arrow on the vacuum body cover (3) matches the arrow on the
vacuum brush head (4) or vacuum nozzle (5).
4. Attach the aluminum pole (8) by squeezing the spring buttons and inserting into handle
of the vacuum body (1). Check the buttons “pop” into the holes. Adjust the length of the
shaft by unlocking, extending and locking each section accordingly. See fig 5.
Fig 5
Fig 3.1
2
1
2
Fig 3.2
2
6
Fig 3.3
3
Fig 3.4
Fig 4
The vacuum body will not operate unless it is submerged in water. Water flow
from sides of the vacuum body indicates the product is working.
IMPORTANT

(128PO) ZR200 RECHARGEABLE POOL VACUUM ENGLISH SIZE: 4.875” X 7.25” 08/25/2022
128
PO
SAVE THESE INSTRUCTIONS
Page 4
2. Carefully “sweep” the surface of the spa or pool to remove debris.
3. Check and empty the filter bag/micro-filter bag regularly during and after each use.
4. Reverse the above installation steps to remove and empty the filter bag/micro-filter bag.
Note: Rinse vacuum body, cover and filter bags with a garden hose before reassembling.
Maintenance and long term storage:
1. Turn off the vacuum before cleaning, servicing and maintenance. Regularly check all
components for sign of damage. Discard and replace damaged components immediately.
2. Using the installation instructions in reverse, disassemble the vacuum. Clean all the
components with water, and make sure all components are thoroughly dry before storage.
3. Store the product and accessories in a dry, temperature controlled, between 0º – 40ºC
(32º – 104ºF), storage location.
4. The original packing can be used for storage.
Operation:
1. Make sure the charging receptacle is securely covered with the rubber flap first.
See fig 6. Press the power button first, the battery indicator light will turn on. Then place
the vacuum in the water. See fig 6.1.
As the device is used, the battery indicator light will decrease showing the status of the
battery. When battery indicator is flashing one light, you must recharge the device
immediately. If not done so, the light will flash for a few minutes, the vacuum motor will
stop and the indicator light will turn off. See fig 6.2. Press the power button to view the
battery charge status.
Note: Always turn off the power button when the device is not in use or during long term
storage in order to prevent damage to the battery.
TROUBLE SOLUTION
VACUUM DOESN’T
WORK
• Charge the product then turn on the unit. Ensure the power button is on.
• Keep the vacuum body under the water.
LOW SUCTION
• Choose the suitable bag for filtering and install the filter bag(s) correctly.
• Check and empty the filter bag(s) regularly during and after each use.
• Check for any sand or deposits in the vacuum.
• Check if the battery power is too low. If it is too low, recharge it.
• Contact Intex Service Center.
CHARGING FAILED
• Plug the charger into the main electrical outlet first, then connect the cable
into the vacuum body charging receptacle.
• Ensure the charger cable is securely inserted into the charging receptacle,
the indicator light should be on.
DOESN'T CLEAN
THE POOL
• Check if the battery power is too low. If it is too low, recharge it.
• Use the correct vacuum head: use the large vacuum brush head for
flat open surfaces, and the vacuum nozzle head for corners, steps and
uneven surfaces.
• Use the correct filter bag, see “Installation” section.
• Ensure the vacuum head or nozzle is close to the surface of the wall or
floor, and reduce the sweeping movement and speed during vacuuming.
• The bristles of the vacuum brush head are worn out, replace a new brush
head.
• For heavy stains on the pool wall, it’s recommended emptying the pool
and scrub the wall with mild detergent.
Fig 6.2
Fig 6 Fig 6.1

(128PO) ZR200 RECHARGEABLE POOL VACUUM ENGLISH SIZE: 4.875” X 7.25” 08/25/2022
128
PO
SAVE THESE INSTRUCTIONS
Page 5
Limited Warranty
Your ZR200 Rechargeable Pool Vacuum has been manufactured using the highest quality
materials and workmanship. All Intex products have been inspected and found free of defects
prior to leaving the factory. This Limited Warranty applies only to the ZR200 Rechargeable
Pool Vacuum.
The provisions of this Limited Warranty apply only to the original purchaser and is not
transferable. This Limited Warranty is valid for a period of one (1) year from the date of the
initial retail purchase. Keep your original sales receipt with this manual, as proof of purchase
will be required and must accompany warranty claims or the Limited Warranty is invalid.
If a manufacturing defect is found within this one (1) year period, please contact the
appropriate Intex Service Center listed in the separate “Authorized Service Centers” sheet.
The Service Center will determine the validity of the claim. If the Service Center directs
you to return the product, please carefully package the product and send with shipping and
insurance prepaid to the Service Center. Upon receipt of the returned product, the Intex
Service Center will inspect the item and determine the validity of the claim. If the provisions
of this warranty cover the item, the item will be repaired or replaced at no charge.
Any and all disputes regarding the provisions of this Limited Warranty shall be brought
before an informal dispute settlement board and unless and until the provisions of these
paragraphs are carried forth, no civil action may be instituted. The methods and procedures
of this settlement board shall be subject to the rules and regulations set forth by the Federal
Trade Commission (F.T.C.). IMPLIED WARRANTIES ARE LIMITED TO THE TERMS OF
THIS WARRANTY AND IN NO EVENT SHALL INTEX, THEIR AUTHORIZED AGENTS OR
EMPLOYEES BE LIABLE TO THE BUYER OR ANY OTHER PARTY FOR DIRECT OR
CONSEQUENTIAL DAMAGES OR LIABILITIES. Some states, or jurisdictions do not allow
the exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
This Limited Warranty does not apply if the ZR200 Rechargeable Pool Vacuum is subject to
negligence, abnormal use or operation, accident, improper operation, improper voltage or
current contrary to operating instructions, or to damage by circumstances beyond Intex’s
control, including but not limited to, ordinary wear and tear and damage caused by exposure
to fire, flood, freezing, rain, or other external environmental forces. This Limited Warranty
applies only to those parts and components sold by Intex. The Limited Warranty does not
cover unauthorized alterations, repairs or disassembly by anyone other than Intex Service
Center personnel.
DO NOT GO BACK TO THE PLACE OF PURCHASE FOR RETURN OR REPLACEMENT.
IF YOU ARE MISSING PARTS OR NEED ASSISTANCE, PLEASE CALL US (FOR U.S.
AND CANADIAN RESIDENTS): 1-310-549-8235 OR VISIT OUR WEBSITE:
WWW.INTEXCORP.COM.
Proof of Purchase must accompany all returns or the warranty claim will be invalid.
