InvenSense ISZ-1215EVB User manual

Single-Axis MEMS Gyro Evaluation Board
ISZ-1215EVB
InvenSense, Inc., 1197 Borregas, Ave. Sunnyvale, CA 94089, USA 1EB-ISZ-1215-00-02
Tel: [phone] Fax: [phone] ©2009 InvenSense, Inc. All rights reserved.
Website: http//www.invensense.com
GENERAL DESCRIPTION
The ISZ-1215EVB provides a simple means of evaluating the ISZ-
1215 Z-axis angular rate gyroscope. The gyro contains all
required conditioning electronics in a single chip measuring 4 x 5
x 1.2mm. The ISZ-1215 incorporates a Z-axis low-pass filter and
an EEPROM for on-chip factory calibration of the sensor. Factory
trimmed gyro scale factor eliminates the need for external active
components and end-user calibration. A built-in Proportional-To-
Absolute-Temperature (PTAT) sensor provides temperature
compensation information. The product is lead-free and Green
Compliant.
APPLICATIONS
GPS Navigation Devices
Robotics
Electronic Toys
Platform Stabilization
PIN DEFINITIONS
FEATURES
Fully-tested board for easy evaluation of single-axis
(Z) gyro
Fully integrated Z-axis gyros on a single chip
67°/s full scale range
15mV/°/s sensitivity
Integrated amplifiers and low-pass filter
Auto Zero function for bias calibration
On-chip temperature sensor
High vibration rejection over a wide frequency range
High cross-axis isolation by proprietary MEMS design
3V single supply operation
Hermetically sealed for temp and humidity resistance
10,000 gshock tolerant
RoHS and Green Compliant
ELECTRICAL SPECIFICATIONS
Pin Signal Purpose
1 NC No Connection
2 HPS Auto Zero Input
3 OUTZ Output of the Z-Axis Gyro
4 PTAT Temperature Sensor Output
5 VREF Voltage Reference Output
6 GND Ground
7 GND Ground
8 +VOUT VDD for Gyro
9 GND Ground
10 +VIN Input Supply Pin for LDO
Parameter Specifications Unit
Full-Scale Range ±67 °/sec
Sensitivity 15 mV/°/sec
Cross Axis Sensitivity ± 1 %
Non-linearity < 1 % of FSR
Gyro Supply Voltage 3.0 ±0.3 V
Gyro Supply Current 4.5 mA
Operating Temperature -20 to +85 °C
On time 50 ms
Shock Tolerance 10,000 g
Component Distributors, Inc.
1-800-777-7334
www.cdiweb.com
[e-mail]

ISZ-1215EVB
InvenSense, Inc., 1197 Borregas Ave., Sunnyvale, CA 94089, USA 2EB-ISZ-1215-00-02
Tel: [phone] Fax: [phone] ©2009 InvenSense, Inc. All rights reserved.
Website: http//www.invensense.com
Purpose
This document provides the specification for the ISZ-1215 Single-Axis Gyroscope Evaluation Board configured
per the table below.
Evaluation Board Configuration
Sensitivity Internal LPF External LPF
15 mV/deg/sec 140Hz 2kHz
Functional Block Diagram
ZAGC 15
AZ
24
Z4.5OUT
14
ISZ-1215
Memory
Trim
Demodulator
Oscillator
Output Gain
Z-Rate
Sensor
20
VDD
Coriolis
Sense
Charge Pump
Regulator
CPOUT
12
16
Z4.5IN
Z-OUT
Gain
Low-Pass
Filter +
Auto Zero
Optional
External
Filters
Component Distributors, Inc.
1-800-777-7334
www.cdiweb.com
[e-mail]

ISZ-1215EVB
InvenSense, Inc., 1197 Borregas Ave., Sunnyvale, CA 94089, USA 3EB-ISZ-1215-00-02
Tel: [phone] Fax: [phone] ©2009 InvenSense, Inc. All rights reserved.
Website: http//www.invensense.com
ISZ-1215 Evaluation Board Configuration
Schematic
The schematic below specifies the components on the ISZ-1215 Evaluation Board.
C8
0.1uF/0402
C10
0.1uF/25V 0603
C7
0.22uF/0402
5V
3V
R7
750/0402
R1
JUMPER/0402
AZ (Marked as “HPS”)
VREF
U1
TC1016-3.0VLTTR
Vin 5 Vout
4
En 1 NC
2
GND 3C3
4.7uF/0603
Mates with AMP # 103976-9
PTAT
R3
2.2 ohm/0603
OUTZ
J2
CON10
1
2
3
4
5
6
7
8
9
10
CUSTOMER I/O
+VI N
+VOUT
C2
0.1uF/0402
C1
2.2uF/0402
GY1
ISZ-1215, 28-Lead QFN (4mm x 5mm x 1.2mm)
GND
2
VDD
9
CPOUT 12
Y-RATE OUT 14
ZHP2
16 ZAGC 15
ZHP1
20
VDD
19
VREF 22
AZ 24
PTATS 23
JMP1
1
3
2
4
R13
JUMPER/0402
R16
JUMPER/0402
C5
JUMPER/0603
R10
JUMPER/0402
Bill of Materials
Reference Part
C1 2.2µF/6.3V/Y5R/0402
C2, C8 0.1µF/10V/X5R/0402
C3 4.7µF/6.3V/X5R/0603
C5 JUMPER/0603
C7 0.22µF/6.3V/X5R/0402
C10 0.1µF/25V/X5R/0603
GY1 ISZ-1215, 28-Lead QFN (4mm x 5mm x 1.2mm)
JMP1 CON4A/0.050" X 0.1"
J2 Header 1x10, 0.1”, 90D (Mates with AMP # 103976-9)
R3 2.2Ω/5%/0603
R7 750Ω/1%/0402
U1 Voltage Regulator 3.0V SC70 (Lead Free)
R1, R10, R16 JUMPER/0402
Component Distributors, Inc.
1-800-777-7334
www.cdiweb.com
[e-mail]

ISZ-1215EVB
InvenSense, Inc., 1197 Borregas Ave., Sunnyvale, CA 94089, USA 4EB-ISZ-1215-00-02
Tel: [phone] Fax: [phone] ©2009 InvenSense, Inc. All rights reserved.
Website: http//www.invensense.com
Special Instructions
Electrostatic Discharge Sensitivity
The ISZ-1215 gyro can be permanently damaged by an electrostatic discharge. ESD precautions for
handling and storage are recommended.
Jumper Connector
The ISZ-1215 evaluation board is equipped with a jumper connector to control the voltage supplied to
the gyro. When the jumper is located in the “up” or standard position as shown in the picture above, the
5 Volts being supplied to the gyro is regulated to 3 Volts using an on-board regulator. When the jumper
is located in the “down” position, the on-board regulator is bypassed and the gyro is being directly
supplied with the voltage on Pins 9 and 19 of the IC.

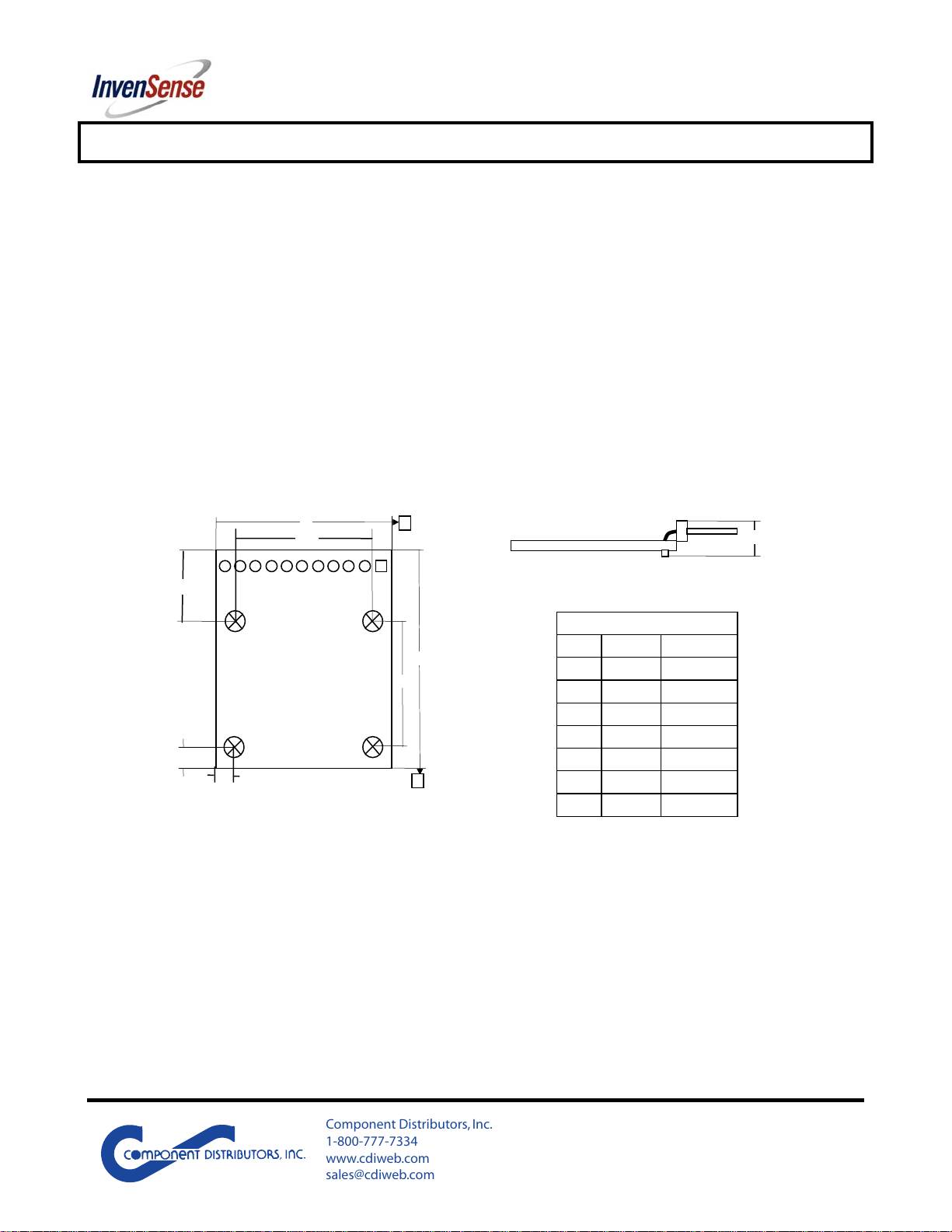

Dimensional Drawing
This information furnished by InvenSense is believed to be accurate and reliable. However, no responsibility is assumed by InvenSense for its use, or for any infringements of patents or
other rights of third parties that may result from its use. Specifications are subject to change without notice. InvenSense reserves the right to make changes to this product, including its
circuits and software, in order to improve its design and/or performance, without prior notice. InvenSense makes no warranties, neither expressed nor implied, regarding the information
and specifications contained in this document. InvenSense assumes no responsibility for any claims or damages arising from information contained in this document, or from the use of
products and services detailed therein. This includes, but is not limited to, claims or damages based on the infringement of patents, copyrights, mask work and/or other intellectual property
rights.
Certain intellectual property owned by InvenSense and described in this document is patent protected. No license is granted by implication or otherwise under any patent or patent rights of
InvenSense. This publication supersedes and replaces all information previously supplied. Trademarks that are registered trademarks are the property of their respective companies.
InvenSense sensors should not be used or sold in the development, storage, production or utilization of any conventional or mass-destructive weapons or any other weapons or life
threatening applications, as well as in any other life critical applications such as medical equipment, transportation, aerospace and nuclear instruments, undersea equipment, power plant
equipment, disaster prevention and crime prevention equipment.
©2009 InvenSense, Inc. All rights reserved.
A
B
D
E
E2
D2
L
L1
L2
Dimensions (mm)
A 5.0 ±1.0
D 25.7 ±0.1
E 31.8 ±0.1
L 3.1 ±0.1
L1 3.1 ±0.1
L2 10.2 ±0.1
D2 19.5 ±0.1
E2 18.5 ±0.1
A
SIDE
TOP
