InvenSense MoveaTV User manual

MoveaTV™ PC Evaluation Kit Quick Start Guide
PACKAGE CONTENT
•1 Remote
•1 USB Dongle
•3 AAA Batteries
•1 USB Stick Containing MoveaTV Application Installer
Motion button and left and right click
Double click activates mouse cursor motion while
operating in the air. Single click activates special actions
when being pressed and released
Pairing button
After activating pairing on the dongle, press this button
(one second then release)
Special button
Used for special key sequences
InvenSense Inc.
1745 Technology Drive, San Jose, CA 95110 U.S.A
[phone]
www.invensense.com

PACKAGE CONTENT.......................................................................................................................................................................................... 1
GETTING STARTED................................................................................................................................................................................ 3
ACTIVATE EMBEDDED IN-AIR POINTING MODE.............................................................................................................................................3
ACTIVATE RAW DATA MODE..................................................................................................................................................................... 3
MOVEATV EVALUATION KIT INTERFACE ..............................................................................................................................................................4
HOME SCREEN..................................................................................................................................................................................... 4
SENSOR DATA ..................................................................................................................................................................................... 6
ORIENTATION...................................................................................................................................................................................... 7
TUTORIAL ........................................................................................................................................................................................... 8
ABSOLUTE VS RELATIVE......................................................................................................................................................................... 9
XBMC ............................................................................................................................................................................................ 10
MOVEA BROWSER ............................................................................................................................................................................. 11
ANGRY BIRDS .................................................................................................................................................................................... 12
TRACKMANIA ................................................................................................................................................................................... 13
COOLIRIS.......................................................................................................................................................................................... 14
CUT THE ROPE .................................................................................................................................................................................. 15
YOUTUBE LEANBACK .......................................................................................................................................................................... 16
TUNEIN............................................................................................................................................................................................ 17
TROUBLESHOOT............................................................................................................................................................................................ 18
Page 2of 19

GETTING STARTED
1- Place 3 AAA batteries in the back of the remote
2- Insert USB dongle into available USB port
3- Pair remote with dongle :
•Regular dongle:
•Press the connect button on the remote,
•once the yellow LED is blinking,
•press the blue button on remote – Dongle and remote are paired once
the yellow light stays on.
•Nano dongle:
•Plug the nano dongle in an available USB port and wait about 5 seconds
for the dongle to be detected by the computer, then press the blue button on your remote.
•The cursor should move on the screen to the right, then left, then right again and finally left,
the remote and dongle are paired.
4- Install MoveaTV Evaluation kit by clicking on the Setup icon on your desktop. Accept all software installation, including
Trackmania.
MoveaTV application should open automatically after installation, if not, double click on the application icon on your
desktop.
Activate Embedded In-Air Pointing Mode
When the embedded in-air pointing is activated, gesture recognition is not available; all the data fusion is processed only on the
remote and does not leverage the host MoveaTV platform.
Double click on the motion button to activate the embedded pointing for in-air control to move the cursor on screen.
When first connecting, the remote will be in pointing mode. Once the MoveaTV application is launched, please switch to raw data
mode.
Activate Raw Data Mode
When entering the raw data mode, sensor signals processing is not embedded on the remote but enabled on the host device
through the MoveaTV application. This application leverages Movea’s SmartMotion Server capabilities enabling raw data analysis,
in-air pointing and advanced gesture recognition. Raw signals will be sent from the remote to the MoveaTV application, this mode is
therefore used for all applications within the MoveaTV application.
1. Launch MoveaTV application by double clicking on the icon
Press the green button + “9” to enable the raw data mode
2. Ensure motion trigger is locked on by double clicking the Motion button if necessary
3. To try gesture recognition, open the Tutorial within press the motion button, make the intended gesture, and release the
button
Press button to pair the remote
Page 3of 19

MOVEATV EVALUATION KIT INTERFACE
HOME SCREEN
When you start the MoveaTV application, you will get the following home screen. Select an application and then press “START” to
launch it or double click on it.
Note that the “data reception status” at the bottom should display “Receiving” in green to use our demo. This status is green if the
remote is actually sending raw signals to the MoveaTV Platform (e.g. it will be greyed if your remote is in embedded mode).
The “settings” window (available on the top of the screen) allows you to select the device as well as the pointing mode: Relative or
Absolute. These settings will affect every application (if you select the absolute pointing mode here, you’ll keep absolute pointing for
all other application you’ll launch). However, if you close the Evaluation Kit and restart it, the settings will be reset. To make them
permanent, you can edit the configuration file:
C:\Movea\MoveaTV-EvaluationKit\<VERSION>\bin\resources\config.xml
When in Absolute pointing mode, use the Motion trigger on the remote to put the cursor back to the center of the screen.
The MoveaTV Platform Home Screen
GESTURE
Action
UP
Select item above
DOWN
Select item below
LEFT
Select item on the left
RIGHT
Select item on the right
CHECK
Start the selected app
BACK
CLOSE
SHAKE
ROLL LEFT
Mute / Unmute
ROLL RIGHT
Mute / Unmute
Page 4of 19

ROTATIONS
Action
YAW
Select item on left/right
PITCH
Select item above/below
ROLL
Set volume level
Page 5of 19

SENSOR DATA
This application shows raw signals sent by your remote from 3 axis accelerometers, 3 axis gyroscopes and 3 axis magnetometer (if
available) forwarded by the Smart Motion Server.
Position and move the remote to see the graphs representing the sensors data evolve as your act
Screenshot of the Sensor Data demo
GESTURE
Action
UP
DOWN
LEFT
RIGHT
CHECK
BACK
CLOSE
Close app and go back to Homescreen
SHAKE
ROLL LEFT
Mute / Unmute
ROLL RIGHT
Mute / Unmute
ROTATIONS
Action
YAW
PITCH
ROLL
Set volume level
Page 6of 19

ORIENTATION
In this demo, a 3D cube will move accordingly to the remote movement.
Screenshot of the Orientation demo
GESTURE
Action
UP
DOWN
LEFT
RIGHT
CHECK
BACK
CLOSE
Close app and go back to Homescreen
SHAKE
ROLL LEFT
Mute / Unmute
ROLL RIGHT
Mute / Unmute
ROTATIONS
Action
YAW
PITCH
ROLL
Set volume level
Page 7of 19

TUTORIAL
The tutorial is an application where all gestures available are displayed. In the “Freestyle” mode, the gesture you perform will be
highlighted whereas in the “Chrono” mode, you will be asked to perform specific gesture/rotations.
To play with gestures: press and hold the motion button, flick your wrist to the right and release the button at the end of your
gesture.
To test the user intent anticipation, press and hold the motion button and move slowly into a direction: up/down, left/light, roll
left/right as you slowly move your hand, the levels should move accordingly to your movement in terms of speed and amplitude.
Screenshot of the Tutorial demo
Page 8of 19

ABSOLUTE VS RELATIVE
This application will display traces of both absolute (in orange) and relative (in yellow) pointing.
Screenshot of Absolute vs Relative Demo
GESTURE
Action
UP
DOWN
LEFT
Switch display mode (BOTH, only RELATIVE, only ABSOLUTE)
RIGHT
Switch display mode (BOTH, only RELATIVE, only ABSOLUTE)
CHECK
BACK
CLOSE
Close app and go back to Homescreen
SHAKE
Hide / Show traces
ROLL LEFT
Mute / Unmute
ROLL RIGHT
Mute / Unmute
ROTATIONS
Action
YAW
PITCH
ROLL
Set volume level
Page 9of 19

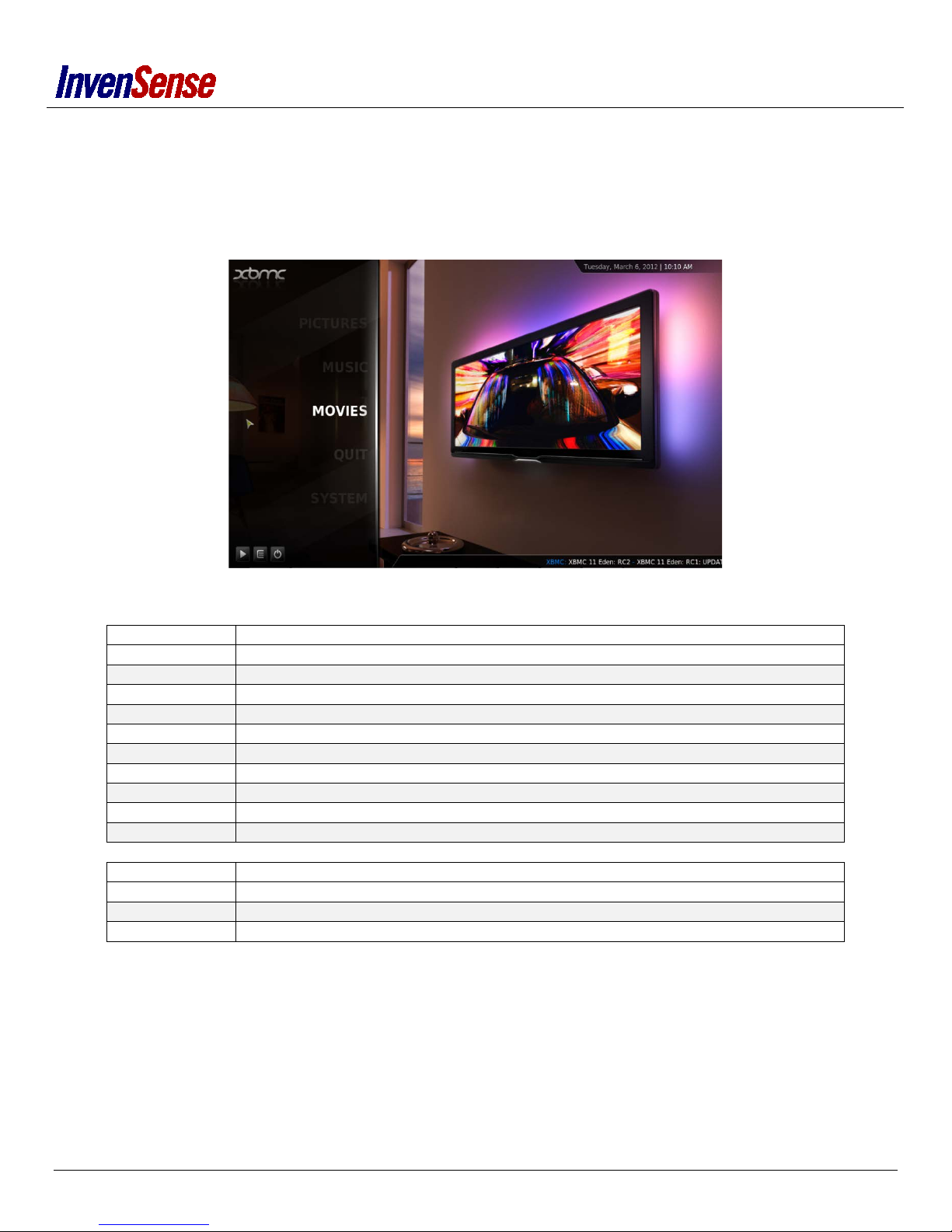

XBMC
XBMC is a media player and entertainment hub for digital media, allowing you to navigate through movies, music and pictures with
gesture based commands.
On this demo, the cursor is disabled and the navigation is gesture based only.
Screenshot of XBMC Demo
GESTURE
Action
UP
Go up
DOWN
Go down
LEFT
Go left
RIGHT
Go right
CHECK
Select item
BACK
Go back
CLOSE
Stop music / movie / slideshow
SHAKE
Pause / Play
ROLL LEFT
Mute / Unmute
ROLL RIGHT
Mute / Unmute
ROTATIONS
Action
YAW
Browse item horizontally
PITCH
Browse item vertically
ROLL
Set volume level
Page 10 of 19

MOVEA BROWSER
The Movea Browser demo is a custom web browser where you can easily access to various website such as newspaper, social
website or video sharing.
Screenshot of Movea Browser
GESTURE
Action
UP
Page up
DOWN
Page down
LEFT
Previous page
RIGHT
Next page
CHECK
Select (in search fields for example)
BACK
Go to homepage
CLOSE
Close app and go back to Homescreen
SHAKE
Toggle soft keyboard
ROLL LEFT
Zoom out
ROLL RIGHT
Zoom in
ROTATIONS
Action
YAW
Scroll horizontally
PITCH
Scroll vertically
ROLL
Set volume level
Page 11 of 19

ANGRY BIRDS
Play Angry Birds driven by the remote control.
To pull the rubber band holding the bird and adjust angle, press and hold the click button, release when in position to throw the
bird.
Screenshot of Movea Browser
GESTURE
Action
UP
DOWN
LEFT
Go left
RIGHT
Go right
CHECK
BACK
Go back
CLOSE
Close app and go back to Homescreen
SHAKE
ROLL LEFT
Mute / Unmute
ROLL RIGHT
Mute / Unmute
ROTATIONS
Action
YAW
PITCH
Control camera view
ROLL
Set volume level
Page 12 of 19

TRACKMANIA
TrackMania Nations Forever is the free version of TrackMania where you can play on the Stadium environment.
When you start the game, in order to navigate through the menu, the cursor is enabled. When asked to connect, choose “continue
offline” to skip the registering process. Once the game is started, you can switch to Joystick mode with a SHAKE gesture. Another
SHAKE will bring bake the cursor and disable the joystick.
In joystick mode, hold your remote as a wheel with colored buttons on your right hand and button on the top.
Use “0” on your remote to accelerate, “FAV” to brake, “VOD” to pause the game and “TV” to reset your car position.
How to use the remote in joystick mode
Screenshot of TrackMania
GESTURE
Action
UP
Up item
DOWN
Down item
LEFT
Left item
RIGHT
Right item
CHECK
Select
BACK
Go back
CLOSE
Close app and go back to Homescreen
SHAKE
Switch between Pointing and Joystick mode
ROLL LEFT
Mute / Unmute
ROLL RIGHT
Mute / Unmute
ROTATIONS
Action
YAW
PITCH
ROLL
Set volume level
Page 13 of 19

COOLIRIS
Cooliris is a Google Chrome plugin that provides interactive full-screen slideshows. You will be able to navigate the interface with the
gestures.
At the first start, you’ll have to select a directory with some pictures. You can use a personal directory or the media files include with
this Evaluation Kit (should be in C:\Movea\MoveaTV-EvaluationKit\<VERSION>\3rdParties\media\pictures).
Warning: This demo is based on a portable version of Google Chrome included with the Evaluation Kit software. We recommend
closing all Google Chrome instance before running this demo. If you don’t, when closing the demo, we won’t have the information
that the demo is stopped and you’ll have to “manually” stop it by pressing “Press to stop” on the homescreen.
Screenshot of Cooliris plugin for Google Chrome
GESTURE
Action
UP
Select picture above
DOWN
Select picture below
LEFT
Select picture on the left
RIGHT
Select picture on the right
CHECK
Display current picture in fullscreen
BACK
Go back
CLOSE
Close app and go back to Homescreen
SHAKE
Hide / Show interface
ROLL LEFT
Zoom out (in the wall only)
ROLL RIGHT
Zoom in (in the wall only)
ROTATIONS
Action
YAW
Browse the wall
PITCH
Zoom (in the wall only)
ROLL
Set volume level
Page 14 of 19

CUT THE ROPE
Play Cut the Rope! A mysterious package has arrived, and the little monster inside has only one request... CANDY!
If the game is not displayed when the page open up, refresh it by doing a SHAKE gesture.
Warning: This demo is based on a portable version of Google Chrome included with the Evaluation Kit software. We recommend
closing all Google Chrome instance before running this demo. If you don’t, when closing the demo, we won’t have the information
that the demo is stopped and you’ll have to “manually” stop it by pressing “Press to stop” on the homescreen.
Screenshot of Cut the Rope
GESTURE
Action
UP
DOWN
LEFT
RIGHT
CHECK
BACK
CLOSE
Close app and go back to Homescreen
SHAKE
Refresh page
ROLL LEFT
Mute / Unmute
ROLL RIGHT
Mute / Unmute
ROTATIONS
Action
YAW
PITCH
ROLL
Set volume level
Page 15 of 19

YOUTUBE LEANBACK
YouTube Leanback is a new way to watch YouTube videos on Google TV or any big screen. With simple controls and full screen
viewing, Leanback makes watching videos on YouTube as effortless as watching TV.
Warning: This demo is based on a portable version of Google Chrome included with the Evaluation Kit software. We recommend
closing all Google Chrome instance before running this demo. If you don’t, when closing the demo, we won’t have the information
that the demo is stopped and you’ll have to “manually” stop it by pressing “Press to stop” on the homescreen.
Screenshot of Youtube Leanback
GESTURE
Action
UP
Go up
DOWN
Go down
LEFT
Go left
RIGHT
Go right
CHECK
Select
BACK
Go back
CLOSE
Close app and go back to Homescreen
SHAKE
Play / Pause
ROLL LEFT
Mute / Unmute
ROLL RIGHT
Mute / Unmute
ROTATIONS
Action
YAW
Select item on left/right
PITCH
Select item above/below
ROLL
Set volume level
Page 16 of 19

TUNEIN
Listen to online radio; find streaming music radio and streaming talk radio with TuneIn.
Warning: This demo is based on a portable version of Google Chrome included with the Evaluation Kit software. We recommend
closing all Google Chrome instance before running this demo. If you don’t, when closing the demo, we won’t have the information
that the demo is stopped and you’ll have to “manually” stop it by pressing “Press to stop” on the homescreen.
Screenshot of TuneIn
GESTURE
Action
UP
Go up
DOWN
Go down
LEFT
Go left
RIGHT
Go right
CHECK
Select
BACK
Go back
CLOSE
Close app and go back to Homescreen
SHAKE
ROLL LEFT
Mute / Unmute
ROLL RIGHT
Mute / Unmute
ROTATIONS
Action
YAW
Select item on left/right
PITCH
Select item above/below
ROLL
Set volume level
Page 17 of 19

TROUBLESHOOT
-Remote doesn’t send any signal – we do not see anything happening when pressing the trigger and gesture button
1- Check battery level or change batteries
2- Re – pair dongle and remote with step 2
3- Press volume buttons to see if it raises the volume, if yes, then press the sequence key to go into the desired
mode. If not, recheck step 1 and 2.
-Stuck keys: press volume button to see if it raises the volume
-Calibration: remote are precalibrated, but it can happen in pointing mode, that the gyro drift, put on the table key down
until you see the pointing stop moving – then to secure the current calibration press green button then 1.
-If it is the first time that you use your remote, it is possible to observe a drift on your gyro. If so, just put the remote on a
table key down and wait until you see the pointing stop moving.
-If the MoveaTV platform doesn’t stop correctly, it can happen that some programs don’t shut down correctly. If it is the
case, you will observe some error when you start the MoveaTV platform. To fix those errors, you can manually terminate all
the instance of the sms, MoveLab2, GoogleChrome, XBMC, sma or smselector that could appear on the task manager.
Page 18 of 19

This information furnished by InvenSense is believed to be accurate and reliable. However, no responsibility is assumed by
InvenSense for its use, or for any infringements of patents or other rights of third parties that may result from its use. Specifications
are subject to change without notice. InvenSense reserves the right to make changes to this product, including its circuits and
software, in order to improve its design and/or performance, without prior notice. InvenSense makes no warranties, neither
expressed nor implied, regarding the information and specifications contained in this document. InvenSense assumes no
responsibility for any claims or damages arising from information contained in this document, or from the use of products and
services detailed therein. This includes, but is not limited to, claims or damages based on the infringement of patents, copyrights,
mask work and/or other intellectual property rights.
Certain intellectual property owned by InvenSense and described in this document is patent protected. No license is granted by
implication or otherwise under any patent or patent rights of InvenSense. This publication supersedes and replaces all information
previously supplied. Trademarks that are registered trademarks are the property of their respective companies. InvenSense sensors
should not be used or sold in the development, storage, production or utilization of any conventional or mass-destructive weapons
or for any other weapons or life threatening applications, as well as in any other life critical applications such as medical equipment,
transportation, aerospace and nuclear instruments, undersea equipment, power plant equipment, disaster prevention and crime
prevention equipment.
©2014 InvenSense, Inc. All rights reserved. InvenSense, MotionTracking, MotionProcessing, MotionProcessor, MotionFusion,
MotionApps, DMP, and the InvenSense logo are trademarks of InvenSense, Inc. Other company and product names may be
trademarks of the respective companies with which they are associated.
©2014 InvenSense, Inc. All rights reserved.
Page 19 of 19
