INVENTOR RG57 User manual

1
ENGLISH | ΕΛΛΗΝΙΚΑ | ROMANA | DEUTSCH
• USER’S MANUAL
• ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ
• MANUAL UTILIZATORULUI
• BENUTZERHANDBUCH
HOTEL MENU
AIR CONDITIONING SYSTEMS

CONTENTS
Handling the remote controller ......................................................................................... 4
Remote controller specication......................................................................................... 4
Features of remote controller buttons ............................................................................. 5
How to set up the funcitons ............................................................................................... 6
All the pictures in the manual are for explanatory purposes only. The actual
shape of the unit you purchased may be slightly dierent, but the operations and
functions are the same.
The company may not be held responsible for any misprinted information.
The design and the specications of the product for reasons, such as product
improvement, are subject to change without any prior notice.
Please consult with the manufacturer at [phone] or with the Sales agency
for further details. Any future updates to the manual will be uploaded to the service
website, and it is advised to always check for the latest version.
Scan here to download the latest version of this manual.
www.inventorairconditioner.com/media-library

4

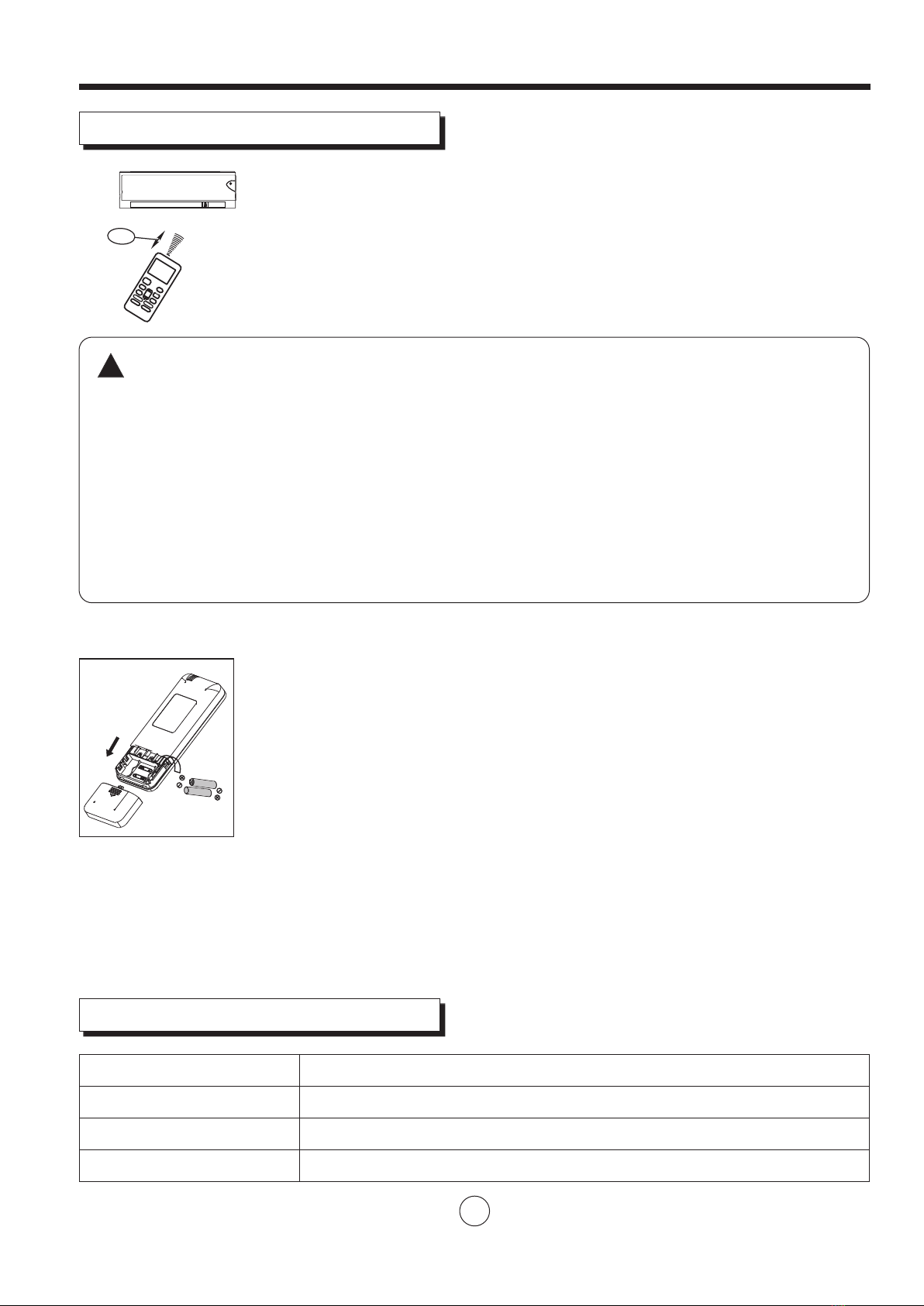

Handling the remote controller
Remote controller specication
Model RG57 / RG66 / RG10
Rated Voltage 3.0V (Dry batteries R03/LR03X2)
Signal Receiving Range 8m
Environment -5°C~60°C
!CAUTIONS
• The air conditioner will not operate if curtains, doors or other materials block the
signals from the remote controller to the indoor unit.
• Prevent any liquid from falling into the remote controller. Do not expose the remote
controller to direct sunlight or heat.
• If the infrared signal receiver on the indoor unit is exposed to direct sunlight, the air
conditioner may not function properly. Use curtains to prevent the sunlight from
falling on the receiver.
• If other electrical appliances react to the remote controller, either move these
appliances or consult your local dealer.
Location of the remote controller
 Keep the remote controller where its signals can reach the
receiver of the indoor unit (a distance of 8m is allowed).
8m
POWER
OF F
MODIF Y
ADJUST
CONFI RM
Replacing batteries
The remote controller uses two alkaline dry batteries (R03/LR03X2)
(1) Slide the cover of the battery compartment o according to the
arrow direction, then replace the old batteries with new ones.
(2) Insert the new batteries, making sure that the(+) and (-) of battery
are installed correctly.
(3) Reattach the cover by sliding it back into position.
NOTE:
• Do not mix old and new batteries or batteries of dierent types.
• Do not leave the batteries in the remote controller if they are not
going to be used for 2 or 3 months. Do not dispose batteries as
unsorted municipal waste.
• Collection of such waste separately for special treatment is
necessary.

5
Features of Remote Controller buttons
NOTE:
After installing the batteries and during the
rst 30 seconds period, press and hold the
remote controller’s corresponding buttons*
for 5 seconds to enter the Hotel Menu
settings. The LCD window will display F1.
*
for RG57 controller: MODE, FAN and TIMER
ON
* for RG66 controller: MODE and FAN
* for RG10 controller: POWER and SWING
IMPORTANT:
The remote controller is only enabled
within10 minutes after the indoor unit is
powered on, and the indoor unit must be
switched o.
POWER OFF button: Press this button to turn o the unit
MODE button: Used to modify the selected function. Press this button to
enter the parameter setting interface, and the parameter to be modied will
be kept ashing. Using TEMP ”
q
” & ”
p
” button to modify the parameter or
choosing the other parameter in conjuction with FAN & TIMER OFF button.
TEMP ”
q
” & ”
p
”button: Used to choose functions or adjust parameters.
On parameter unadjustable interface, press the ”
q
” & ”
p
” button to select
the specied function in a range of F1 ~ F9 and E1~E9. Then pressing the
MODE button to enter the parameter modifying
interface, the relevant parameter ashes, pressing ”
q
” & ”
p
” button to
adjust the paramter.
TIMER ON / FAN button: Press this button to conrm the setting parameter
and transmit the singal to the machine.
FAN & TIMER OFF button: On parameter setting interface, pressing FAN &
TIMER OFF button to select parameter to be modied.
ON/OFF
MODE
TEMP
TIMER OFF
FA
FAN
N
TIMER ON
MODE
FAN
TEMP
SLEEP
TURBO LED
ON/OFF
SHORT
CUT
TIMER
ON
TIMER
OFF
RG57 RG66 RG10
Vane
F1 F1 F1

6
TIMER ON
FAN
TEMP
TEMP
ADJUST
MODE
MODE
TIMER ON
-
---
--........
....
....
FAN
How to set up the functions
NOTE:
The indoor unit will beep for 2 seconds indicating the function being set up successfully.
›Auto-start function
1. Press ”
q
” & ”
p
”
button to choose “F1”.
3. Press TIMER ON or FAN button, and the Auto-start function on/o setting has nished.
›Heating temperature compensation
1. Press ”
q
” & ”
p
” button to choose “F2”.
2. Press MODE button. Then press ”
q
” & ”
p
” button to choose the parameter. The
parameters can be adjusted within a range of -6ºC~6ºC.
3. Press TIMER ON or FAN button.
2. Press MODE button. Then press
”
q
” & ”
p
” button to choose “ On” or “O”

7
TEMP
MODE
TIMER OFF
FAN
TEMP
TEMP
TIMER ON
FAN
›Anti-cold air function
Intelligent anti-cold air function setting:
NOTE:
The parameter of intelligent anti-cold air is changed with the room temperature. After
the room temperature raised, the temperature of anti-cold air would raise too, which can
make you feel more comfortable. After the room temperature decreased, the anti-cold air
temperature would decrease too, which can improve the fan speed and bring fast heating
operation.
1. Press ”
q
” & ”
p
” button to choose “F3” .
General Anti-cold air function setting:
NOTE:
The parameter of general anti-cold air is xed regardless of room temperature.
1. Press ”
q
” & ”
p
” button to choose F3.
2. Press MODE button. Press FAN button to to choose parameter. Then press ”
q
” & ”
p
”
button to select “1” .
3. Press TIMER OFF button to adjust the parameter. The parameter keeps ashing. Then
press ”
q
” & ”
p
” button to adjust the parameter in the range of 17ºC~21ºC.
4. Press TIMER ON or FAN button to conrm.
Flashing
Flashing
TEMP

8
TEMP
TEMP
MODE
TIMER ON
FAN
TEMP
TEMP
MODE
TIMER OFF
FAN
TIMER ON
FAN
›Speed control of indoor fan motor after the set temperature reached
1. Press ”
q
” & ”
p
” button to choose “F4” .
2. Press MODE button. Then press ”
q
” & ”
p
” button to select “1”, “2”, “3” or “4”.
Indicates stopping fan motor
Indicates operating at lowest fan speed
Indicates operating at setting fan speed
Indicates cycle on-o function
3. Press TIMER ON or FAN button.
2. Press MODE button. Press FAN button to to choose parameter . Then press ”
q
” & ”
p
”
button to select 2 .
3. Press TIMER OFF button to adjust the parameter. The parameter keeps ashing. Then
press ”
q
” & ”
p
” button to adjust the parameter in the range of 8ºC~28ºC.
4. Press TIMER ON or FAN button to conrm.
Flashing
Flashing

9
TEMP
TEMP
MODE
TEMP
TEMP
MODE
TIMER ON
FAN
›Louver angle memory function
1. Press ”
q
” & ”
p
” button to choose “F5” .
2. Press MODE button. Then press ”
q
” & ”
p
” button to select “1”, “2” or “3”.
Indicates cancelling memory function.
Indicates the louver angle memory function is enabled under switching o or
power failure.
Indicates the louver angle memory function is enabled under switching o,
disabled under power failure.
3. Press TIMER ON or FAN button to conrm.
3. Press TIMER ON or FAN button to conrm.
›Heating only or Cooling & Heating setting
1. Press ”
q
” & ”
p
” button to choose “F6” .
2. Press MODE button. Then press ”
q
” & ”
p
” button to select “HH” or “CH”.
(HH: Heating only, CH: Cooling & Heating)

10
TEMP
TEMP

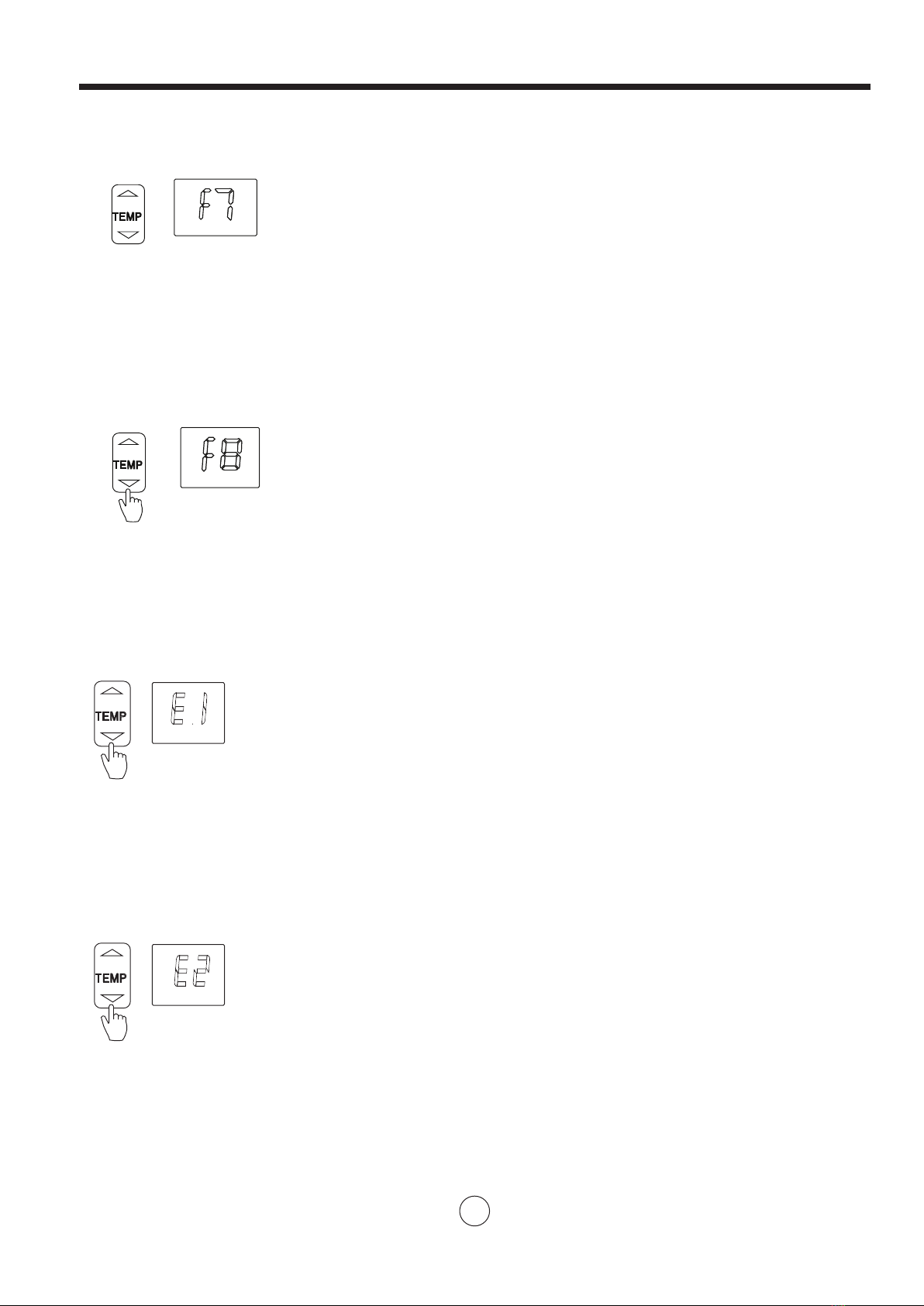

›Cooling temperature compensation
1. Press ”
q
” & ”
p
” button to choose “F7” .
›Cooling temperature compensation
1. Press ”
q
” & ”
p
” button to choose “F8” .
2. Press MODE button. Then press ”
q
” & ”
p
” button to choose the parameter in a range
of -2ºC~2ºC.
3. Press TIMER ON or FAN button to conrm.
2. Press MODE button. Then press ”
q
” & ”
p
” button to choose “on” or “o”.
3. Press TIMER ON or FAN button to conrm.
›Filter Replacement Reminder
1. Press ”
q
” & ”
p
” button to choose “E1” .
2. Press MODE button. Then press ”
q
” & ”
p
” button to choose “on” or “o”.
3. Press TIMER ON or FAN button to conrm.
›Lowest temperature setting
1. Press ”
q
” & ”
p
” button to choose “E2” .
2. Press MODE button. Then press ”
q
” & ”
p
” button to set the temperature in a range of
17ºC to 24ºC.
3. Press TIMER ON or FAN button to conrm.
TEMP
TEMP
