INVENTOR GLXW10D7215 User manual

1
FRONT LOAD
MODELS:
GLXW10D7215
WASHER DRYER MACHINE
• USER’S MANUAL
• ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ
ENGLISH | ΕΛΛΗΝΙΚΑ

3
CONTENTS
SAFETY INSTRUCTIONS
■Safety Instructions .................................................................. 4
INSTALLATION
■Product Description................................................................ 9
■Installation ............................................................................. 10
OPERATIONS
■Quick Start . ............................................................................ 13
■Before Each Washing ...........................................................14
■Detergent Dispenser ............................................................15
■Control Panel . ....................................................................... 18
■Programmes. ......................................................................... 19
■Option..................................................................................... 21
■Other Functions ....................................................................22
MAINTENANCES
■Cleaning And Care ................................................................ 25
■Trouble Shooting...................................................................28
■Technical Specications ....................................................... 29
■Product Fiches ....................................................................... 30
■Activate your Warranty......................................................... 35

4
Electric shock!

5
Electric shock!

6
Do not wash or dry articles that have been cleaned in, washed
in, soaked in, or dabbed with combustible or explosive
substances (such as wax, oil, paint, gasoline, degreasers, dry-
cleaning solvents, kerosene, etc.) This may result in fire or
explosion.
Before hand thoroughly rinse items of washing by hand.
It is not intended for build in usage.

7
Do not wash or dry articles that have been cleaned in, washed
in, soaked in, or dabbed with combustible or explosive
substances (such as wax, oil, paint, gasoline, degreasers, dry-
cleaning solvents, kerosene, etc.) This may result in fire or
explosion.
Before hand thoroughly rinse items of washing by hand.
It is not intended for build in usage.
Your product is only for home use and is only designed for the
textiles suitable for machine washing.
Do not climb up and sit on top cover of the machine.
Do not lean against machine door.
Cautions during Handling Machine:
1.Transport bolts shall be reinstalled to the machine by a
specialized person.
2.The accumulated water shall be drained out of the machine.
3.Handle the machinecarefully.Neverholdeachprotruded part
on the machine while lifting.Machine door can not be used
as the handle during the conveyance.
4.This appliance is heavy.Transport with care.
Please do not close the door with excessive force. If it is found
difficult to close the door, please check if the clothes are put in
or distributed well.
It is forbidden to wash carpets.
Prior to the initial wash, please operate this unit for one
full cycle, empty.
Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc. shall not be used as detergents.
Please only select the detergents suitable for machine washing,
especially for drum.

8
Make sure that all pockets are emptied. Sharp and rigid items
such as coins, brooches, nails, screws or stones etc. may cause
serious damages to this machine.
Please check whether the water inside the drum has been
drained before opening its door. Please do not open the door if
there is any water visible.
Be careful of burning when the product drains hot washing
water.
Never refill the water by hand during washing.
After the program is completed, please wait for two minutes to
open the door.
Remove all objects from pockets such as lighters and matches
before use the appliance.
Do not dry unwashed items in the appliance.
Items that have been soiled with substances such as cooking
oil, acetone, alcohol, petrol, kerosene, spot removers,
turpentine, wax, and wax removers should be washed in hot
water, with extra amount of detergent before being dried in
the appliance.
Items containing foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes of
pillows fitted with foam rubber pads should not be dried in the
machine.
Fabric softeners or similar products should be used as
recommended in their instructions.
Thismarkingindicatesthatthisproductshouldnotbedisposedwithother
householdwastesthroughouttheEU.Topreventpossibleharmtotheenvironment
orhumanhealthfromuncontrolledwastedisposal,recycleitresponsiblytopromote
thesustainablereuseofmaterialresources.Toreturnyouruseddevice,pleaseuse
thecollectionsystemsorcontacttheretailerwheretheproductwaspurchased
Theyreturnandcantakethisproductforenvironmentalsaferecycling
Acoustic sponge

9
Make sure that all pockets are emptied. Sharp and rigid items
such as coins, brooches, nails, screws or stones etc. may cause
serious damages to this machine.
Please check whether the water inside the drum has been
drained before opening its door. Please do not open the door if
there is any water visible.
Be careful of burning when the product drains hot washing
water.
Never refill the water by hand during washing.
After the program is completed, please wait for two minutes to
open the door.
Remove all objects from pockets such as lighters and matches
before use the appliance.
Do not dry unwashed items in the appliance.
Items that have been soiled with substances such as cooking
oil, acetone, alcohol, petrol, kerosene, spot removers,
turpentine, wax, and wax removers should be washed in hot
water, with extra amount of detergent before being dried in
the appliance.
Items containing foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes of
pillows fitted with foam rubber pads should not be dried in the
machine.
Fabric softeners or similar products should be used as
recommended in their instructions.
Thismarkingindicatesthatthisproductshouldnotbedisposedwithother
householdwastesthroughouttheEU.Topreventpossibleharmtotheenvironment
orhumanhealthfromuncontrolledwastedisposal,recycleitresponsiblytopromote
thesustainablereuseofmaterialresources.Toreturnyouruseddevice,pleaseuse
thecollectionsystemsorcontacttheretailerwheretheproductwaspurchased
Theyreturnandcantakethisproductforenvironmentalsaferecycling
Acoustic sponge

10

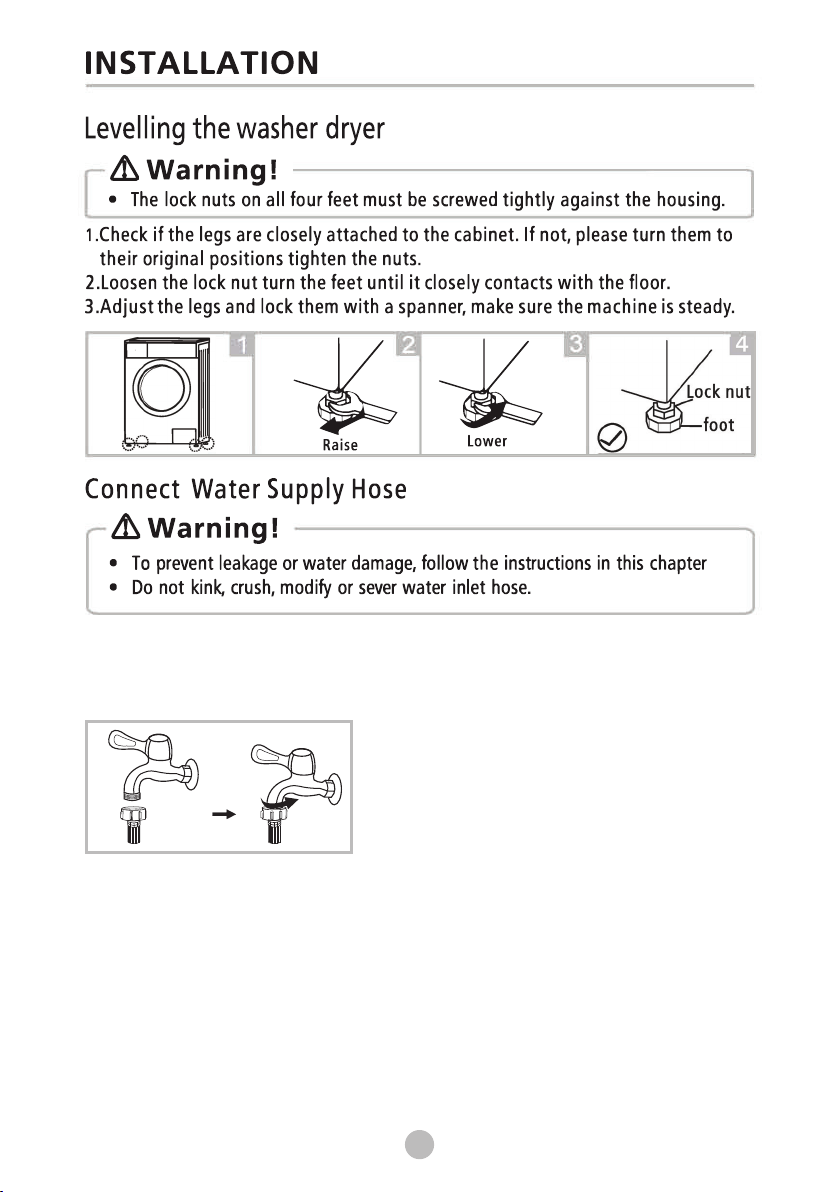

Stability is very important to prevent the product
from possible slight displacement.
Be certain the product is not standing on the
power cord.
5
gas
burning appliances
with the rubber parts.

11
Stability is very important to prevent the product
from possible slight displacement.
Be certain the product is not standing on the
power cord.
5
gas
burning appliances
with the rubber parts.
Connect the inlet pipe as indicated
Tap with threads and inlet hose

12
• Please make sure to assemble the acoustic sponges, which can effectively
reduce the noise caused by the machine while working,in order to provide
you with a more peaceful and quiet living environment.
Note!
Acoustic Sponge
2x
2x
1. Get the machine laid on the floor,
using some soft material like foam
or clothes between the machine
and floor for a protection;
2. Stick the 2x longer sponges to t
he
longer bottom edges of machine,
and the 2x shorter sponges to the
shorter bottom edges.
The word "END" will appear on the display
Before usage, be certain this unit is installed properly.
Prior to the initial wash, please operate this unit for one full cycle, empty.
1 2 3 4

13
The word "END" will appear on the display
Before usage, be certain this unit is installed properly.
Prior to the initial wash, please operate this unit for one full cycle, empty.
1 2 3 4
It is recommended to calibrate the washer dryer, to ensure the best performance. The
appliance is able to detect the amount of laundry loaded. This function is optimizing
the product performance by minimizing energy and water consumption, saving you
money and time. For this reason it is recommended to calibrate the appliance before
use.
1. Remove all accessories from the drum and close the door;
2. Insert the mains plug to the socket;
3. Switch on the washer dryer and press and simultaneously for 10 seconds
until ‘’t19’’ appears on the display;
4. Press the button to start the appliance and wait until ‘’****”” appears on the display.

14
• The working condition of the washer should be 5-40°C. If used under 0°C, the inlet valve
and draining system may be damaged. If the machine is placed under condition of 0°C or
less, then it should be transferred to normal ambient temperature to ensure the water supply
hose and drain hose are not frozen before use.
• Please check the labels and the explanation of using detergent before wash. Use non-
foaming or less-foaming detergent suitable for machine washing properly.
• Washing a single garment can cause a load imbalance and may result on a warning
beep from the washing machine. It is advised to add one or more extra clothes to
ensure a smooth drainage.
• Do not wash any clothes that have come in contact with kerosene, gasoline, alcohol
or other flammable substances.
• Do not wash,spin,or dry water-proof seats,mats,or clothing.

15
• The working condition of the washer should be 5-40°C. If used under 0°C, the inlet valve
and draining system may be damaged. If the machine is placed under condition of 0°C or
less, then it should be transferred to normal ambient temperature to ensure the water supply
hose and drain hose are not frozen before use.
• Please check the labels and the explanation of using detergent before wash. Use non-
foaming or less-foaming detergent suitable for machine washing properly.
• Washing a single garment can cause a load imbalance and may result on a warning
beep from the washing machine. It is advised to add one or more extra clothes to
ensure a smooth drainage.
• Do not wash any clothes that have come in contact with kerosene, gasoline, alcohol
or other flammable substances.
• Do not wash,spin,or dry water-proof seats,mats,or clothing.
10
16
Detergent Dispenser
Caution!
•Detergent only need to be added in "compartment I“after selecting
pre-wash function.
•Do not put laundry beads into the detergent dispenser.
OPERATION
Pre wash
Main wash
Softener
I I
I
Release button to
pulloutthedispenser
Means must Means optional
Model: Galaxy GLXW10D7215 Washer 10kg/ Dryer 7kg

16
/90
Qucik 15’/1h WD

18

19

20
Programmes
OPERATION
•
actual use conditions.
• The valves given for programmes other than the ECO 40-60 programme and the
Wash and Dry cycle are indicative only.

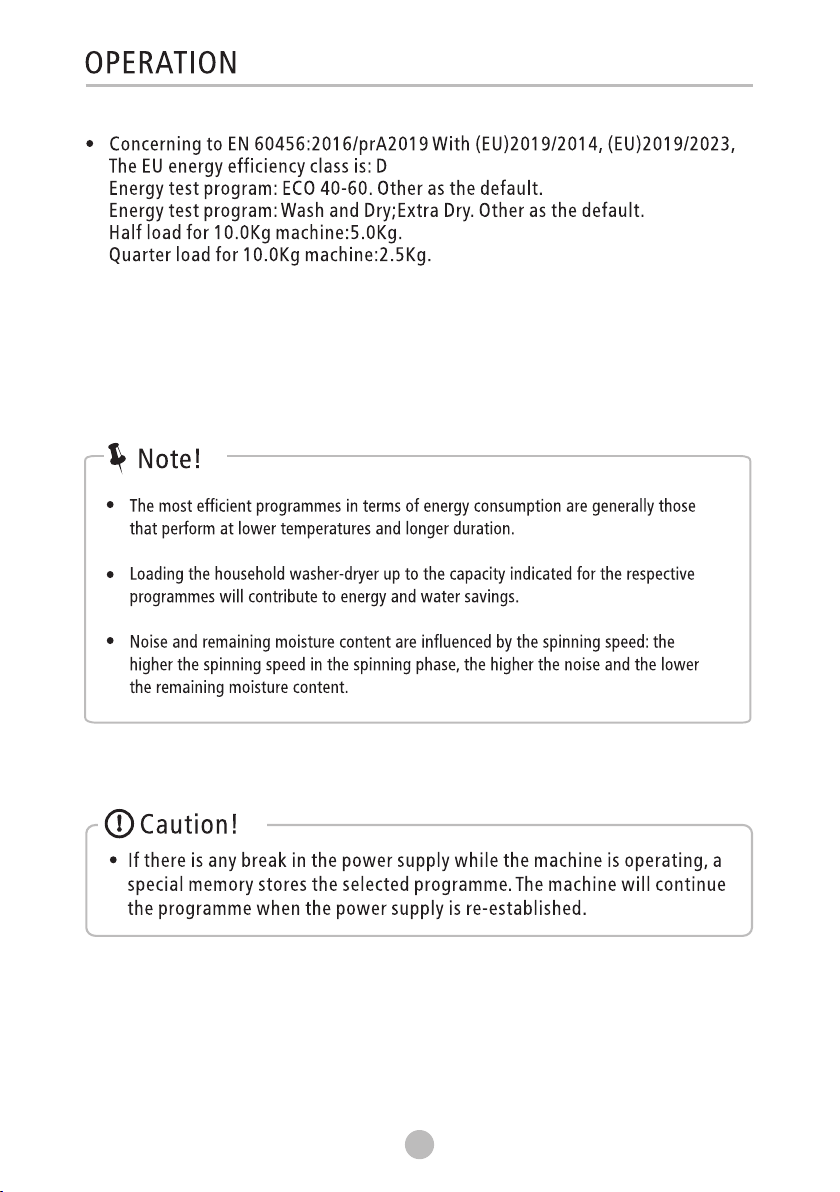

• Concerning to EN 60456:2016+A11:2020 With(EU) 2019/2014, (EU) 2019/2023,
(EU) 2021/340, (EU) 2021/341,
The EU energy efficiency class is: D
Energy test program: ECO 40-60. Other as the default.
Energy test program: Wash and Dry;Extra Dry. Other as the default.
Half load for 10.0kg machine:5.0kg.
Quarter load for 10.0kg machine:2.5kg.
The above data is for reference only, and the data may change due to different
22
GLXW10D7215
Mix 60℃
Cotton 60℃
20℃
60
2:
01
1:20
1:30
1.708
1.528
1.474
0.862
0.549
0.260
4.250
2.186
44
71
71
71
71
67.5
54.0
41.5
108.0
87.0
60
39
30
29
24
