Invicta RT-40 User manual

OPERATORS MANUAL
HEAVY DUTY TABLESAW
by
INVICTA
Model
RT-40
INVICTA USA English Version
[phone] - East
[phone] - West

1
Table Sa
w
Mod. RT-40
General Instructions
Thank you for purchasing this quality machine from INVICTA.
As with all equipment, safety is to be the priority. The operator should understand the safety features as well as
apply good safety habits in transportation, adjustment, maintenance and operation of the machine. Practice and
teach others the safe operating procedures of this machine and help to prevent the possibility of accidents.
Safety Rules
1. For your own safety, read carefully the Instruction Manual before attempting to operate the machine.
2. If you are not thoroughly familiar and comfortable with the adjustment and operation of the machine, ask for
instruction from your supervisor or a fully qualified person. You may also contact Invicta USA.
3. Before the initial operation of the machine, remove all packaging, shipping grease and fully assemble the
machine. Pay special attention to the assembly of safety components.
4. Wear proper apparel while operating the machine. Never wear loose fitting clothing, gloves or ties. Always
remove rings or other jewelry before operating the machine. It is strongly suggested the operator wear
shoes with non-slip soles and also wear a protective hair net to prevent hair entanglement in moving parts.
5. Always wear personal safety equipment. Follow the safety regulations of your country and your company.
6. Have a certified person make all wiring connections to power source and properly ground the machine.
7. Always disconnect the machine from the power source and use lockout procedures before servicing,
changing cutting tools and during cleaning of the machine.
8. Before starting the machine, have the work area clean and free of debris. Cluttered areas are invitations for
accidents to occur.
9. Keep the safety guard(s) of the machine in place and in proper working condition. Never operate
machinery without safety equipment in place. Report any damage to your supervisor.
10. Keep children and visitors a safe distance from the working area.
11. Never leave the machine running while unattended. Turn off the power source during breaks. The machine
should come to a complete stop before walking away.
12. Do not operate the machine under the influence of drugs or alcohol. Consult your physician when taking
medications.
13. Do not force the machine beyond its limitations. It will produce a nicer and safer job at the rate it was
designed to operate.
Additional Safety Rules for the Operation of Table Saws
1) Avoid Kickbacks. “Kickback” can occur when the workpiece is forced back by the saw blade during improper
operation. When “Kickback” occurs injury can result. Some causes of Kickback are:
A- Dull blades or an improperly adjusted fence in relation to the blade.
B- Knots, Nails or Imperfections in the workpiece.
C- Heavier cutting than the machine was designed for.
D- Failure to use a pusher block when cutting thin or narrow workpieces.
2) Never start the work-piece into the blade before allowing it to reach full operation speed.
3) Use the correct tooth style and rake for the material you plan to cut.
4) Keep the Blade sharp and free of rust and pitch
5) Use good safety habits when using dado blades.
6) Support and control the workpiece properly all times during the operation.
7) Never reverse the direction of the workpiece after beginning operation. Kickback can occur.
8) Definitions of ripping, crosscutting and dadoing of the workpiece:
A- Ripping operations: Cutting the material in the same direct as the flow of the grain.
B- Crosscutting operations: Cutting the material across the grain. This may produce heavy splintering.
C- Dado operations: Cutting a flat-wide bottom grove in the material.

2
Table Sa
w
Mod. RT-40
Loading and Unloading

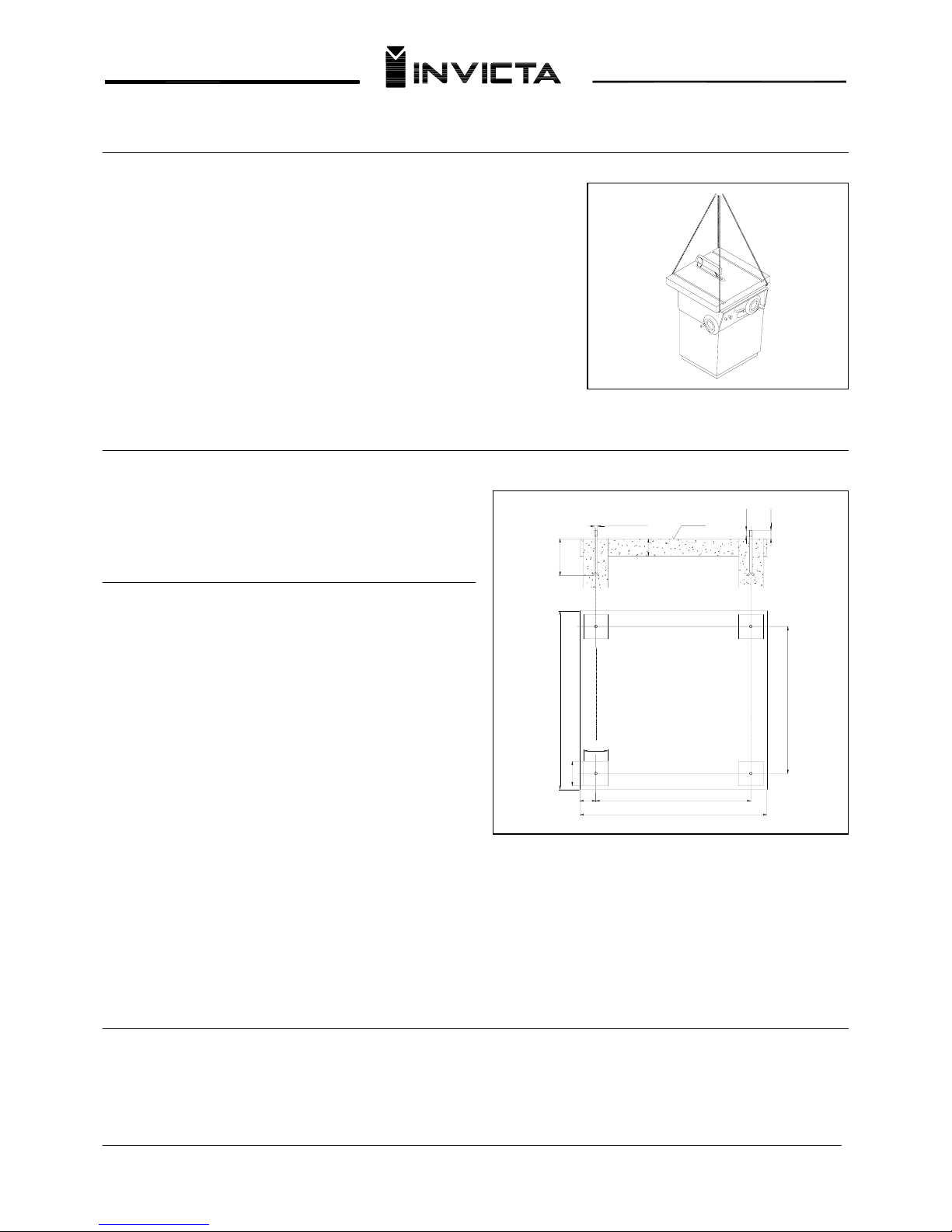

Fig.01
Never load or unload the machine by any component that could be
damaged. Transporting the machine by the directions in Fig.01 is the
recommended procedure.
After placement has been completed, remove all the protective grease
or varnish from the machined surfaces using kerosene or a similar
solvent.
Installing the machine
On a solid surface, level the machine (Fig.02) then add all
attachments such as the blade guard and fences.
Connecting Electricity
Each machine is provided with a reference plate that
indicates the requirements for electrical service needed
for the machine to operate property. Before you call a
certified electrician to make the wiring connections, be
sure that the voltage and cycle (phase) stated on this
reference plate are the same as provided in your building.
(Electrician) Remove the electrical box cover and connect
the electrical supply wires to the proper terminals. Rapidly
turn on and off the machine and then visibly check the
rotation direction of the saw blade. It should rotate so as
the top of the exposed blade travels toward the operator’s
position while sawing. See page 7
For changing blade direction for three-phase machines:
invert two wires of the power source without changing the internal connections of the machine. Should further
information be needed please contact Invicta USA.
IMPORTANT:
If your machine is equipped with a star-triangle switch (Y∆), first turn it to the start position and when the motor
reaches its maximum speed turn it immediately to the triangle position. Never operate the machine with the swich
in the start position or damage may occur.
Lubrication
730
600±2
100
760
630±2 65
100
LEVEL
M12 x 1,75
150
70
35
25
Fig.02
Your machine requires periodic lubrication as follows: Points “A” (pgs 07 and 08) should be cleaned with kerosene
and lubricated with common grease as required. The saw shaft bearings do not required lubrication as they are
sealed for life.

3
Table Sa
w
Mod. RT-40
Controls
1. ELECTRIC SWITCH (pag. 07)
2. SAW TILT ADJUSTMENT HANDWHEEL (pag. 07)
This handwheel is used to adjust the tilt angle of the saw from 0º to 45º. To adjust this feature, loosen lock knob nº
4 then turn the handwheel nº 2 until the desired angle is obtained, relock. The angle is read on scale nº 5
3. SAW BLADE HEIGHT ADJUSTING HANDWHEEL (pag. 07)
This handwheel is used to adjust the amount of blade that protrudes through the top of the material. Before moving
the handwheel, loosen lock knob nº 6, then relock after the adjustment is completed.
Rip Fence Alignment
The relationship between the rip fence and the blade assembly has been aligned from the factory. Should the fence
require adjustment due to shipment, please follow the procedure below.
First loosen or tighten nuts nº 11 as needed until the desired parallel relationship is obtained between the saw
blade and the rip fence. Never adjust the rip fence so that the distance between the blade and fence on the output
end is less than on the input end. This slightly greater distance at the output side of the blade will decrease the
possibility of pinching or binding of the material.
Rip Fence Width Adjustment
Proceed as follows: First loosen lock lever nº 7 and turn knob nº 8 until the desired adjustment is obtained. Relock
by lever nº 7. The width of the cut is read on scale nº 9. To obtain the longitudinal adjustment of the guide it is
necessary to loosen the two knobs nº 10, retightening after adjustment.
Scale Pointer Adjustment (page 07)
The scale pointer may need occasional adjustment due to variations in saw blade kerfs. When adjustment is
necessary, proceed as follows: First, disconnect power supply then slide the rip fence gently against the saw blade.
Loosen knob nº 13 and adjust the pointer to zero on scale nº 9 to zero. Complete the adjustment by locking nº 13.
Adjustment of the tilt limit stops (page 07)
These stops are designed to give the blade an exact locator for 0º and 45º. These stops have been adjusted at the
factory. If later adjustment is necessary: place a precision square against the blade and adjust to 0º, loosen nut nº
14, and adjust acrew nº 15 until the blade stops at the correct position. Tighten nut nº 14. Follow the same
procedure for the 45º adjustment.
Vertical Saw Blade Adjustment (page 07)
Stops nº 16 limits the maximum and minimum height travel of the blade. These stops have been adjusted at the
factory. If future adjustment is necessary, loosen nuts nº 17 and adjust screw nº16 to increase or decrease the
blade travel. Once positioned, tighten nº 14 nuts. Do Not use a blade that is larger than specified.

4
Table Sa
w
Mod. RT-40
Saw Guard Adjustment (page 07)
Saw guard/blade slitter adjustment is by handle nº 18. The saw guide/blade slitter support is adjusted by nuts nº19,
and should be readjusted according to the saw blade diameter each time the blade is changed.
Belt Tension Adjustment (page 08)
To adjust belt tension or change belts, loosen screw nº 20 and adjust as necessary. Tighten screws.
Procedure for Changing the Saw Blade (page 08)
Remove the saw guard by loosening the lock handle nº 18. Remove the table blade insert (item nº 21) and depress
the blade locking pin (item nº22). Loosen nut nº 23 with the special wrench supplied with the machine. Change to
the desired blade. Keep all collars clean and free from burrs. Reassemble all components. (Note spindle has LH
thread.)
Table Insert Adjustment (page 07)
The table insert is adjusted at the factory for perfect flush alignment with the top of the table. Should future
adjustment be needed, make adjustments by screws nº 24.
Miter Fence (page 08)
The miter gauge is designed to control the angle of the wood material as it is sawn. The angle is adjusted as
follows: Loosen locking handle nº 25 and turn the guide to the desired angle and retighten the locking handle. The
cutting angle can be read on scale nº 26.

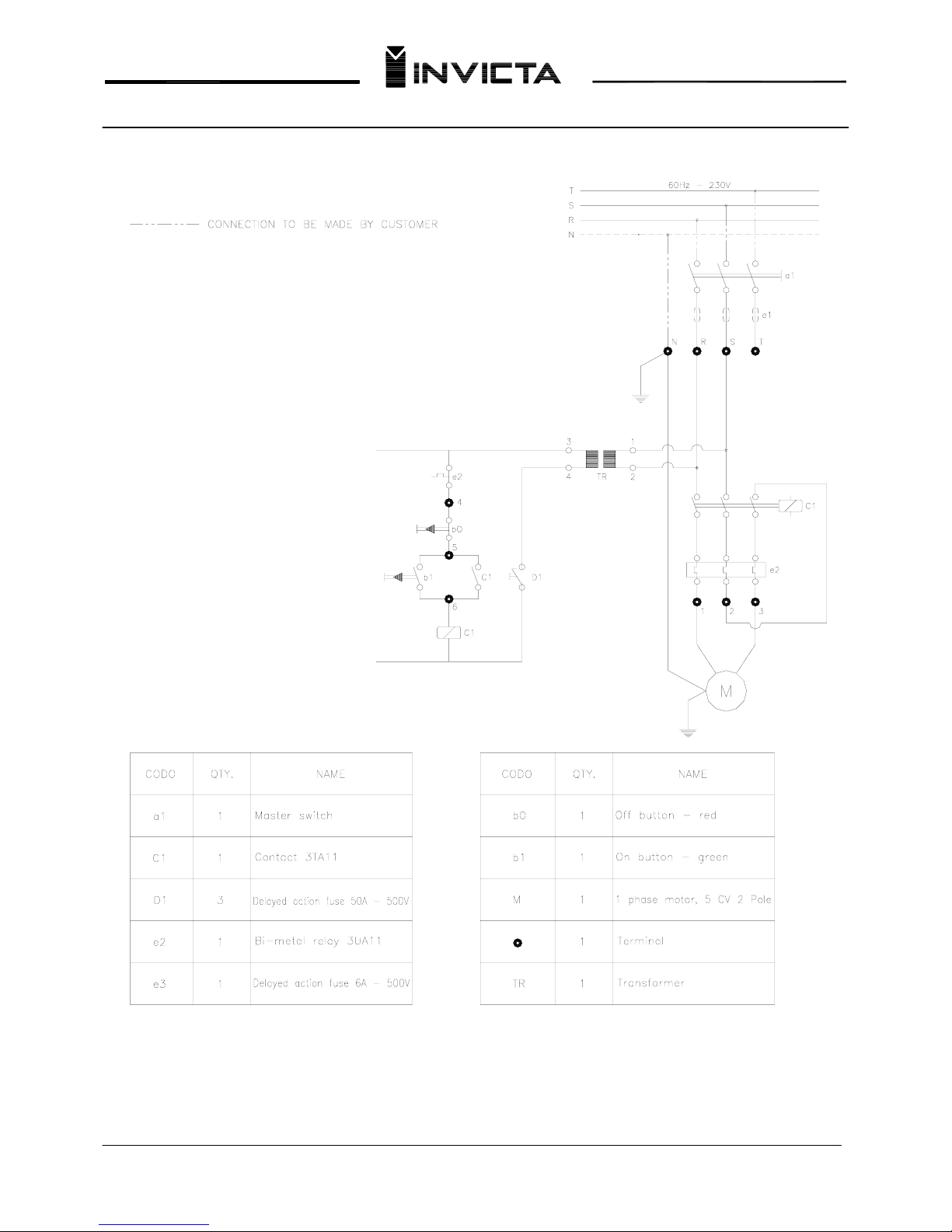

Electrical Protection equipment (page 09)
The machine can be optionally supplied with electrical overload protection. This equipment disconnects the motor
automatically when there is an electrical overload that could damage it. When the motor is disconnected, it is
necessary to reset the therrmal relay by pressing the reset button (point nº 02). Continue by pressing the start

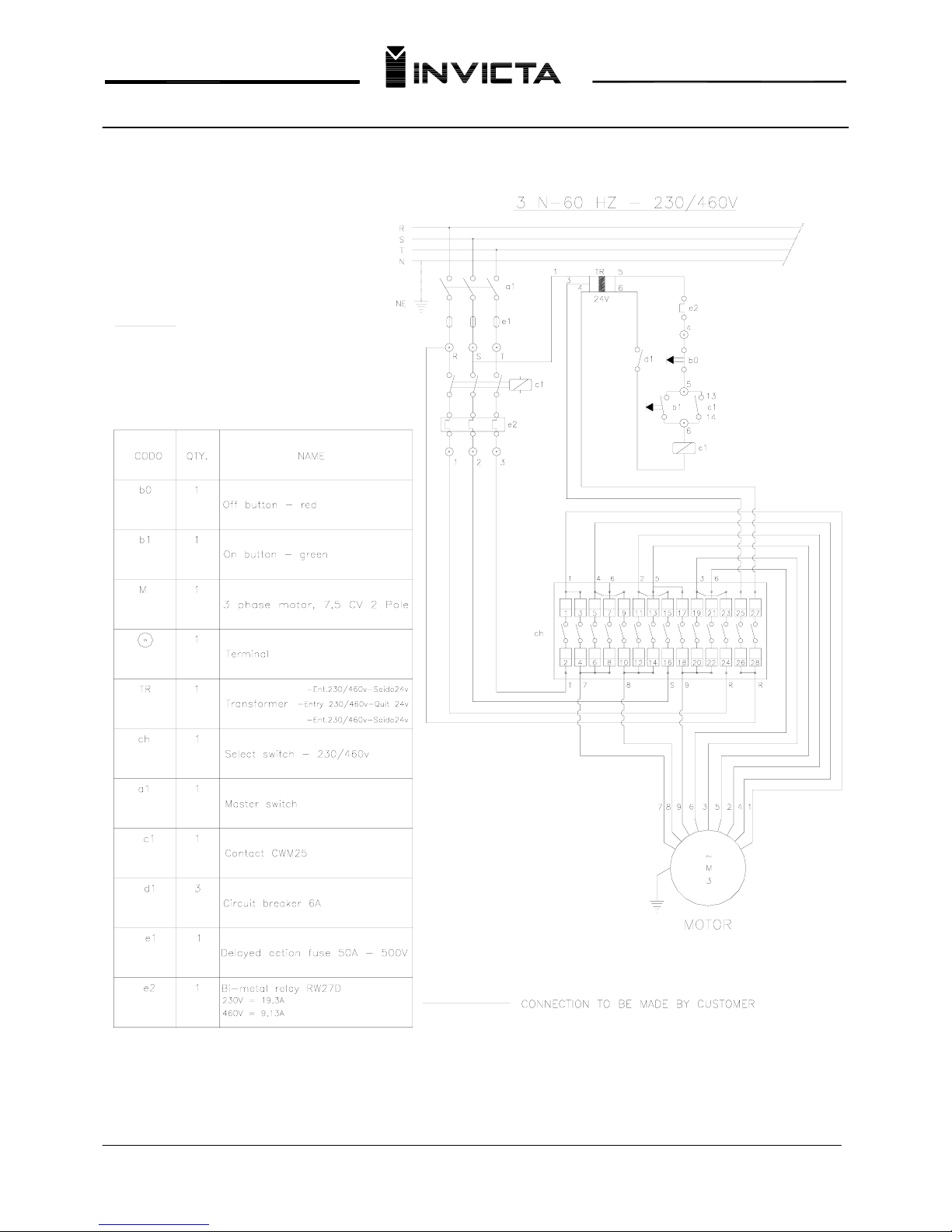

button. On pages 9 thru 12 are electrical diagrams for special motorization.

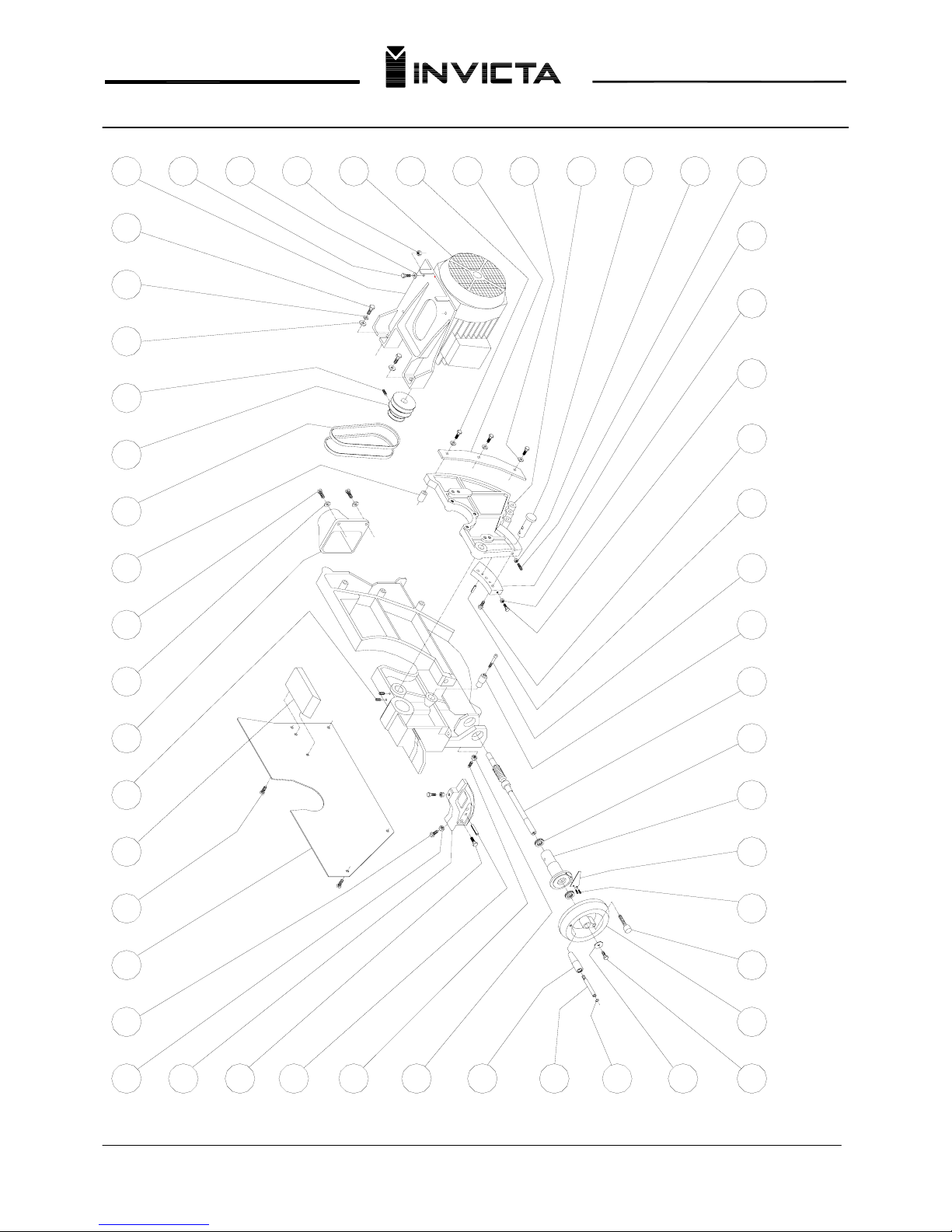

Machine Identification and Replacement Parts
Every INVICTA machine has a serial number which enables the manufacturer to identify the exact type and date of

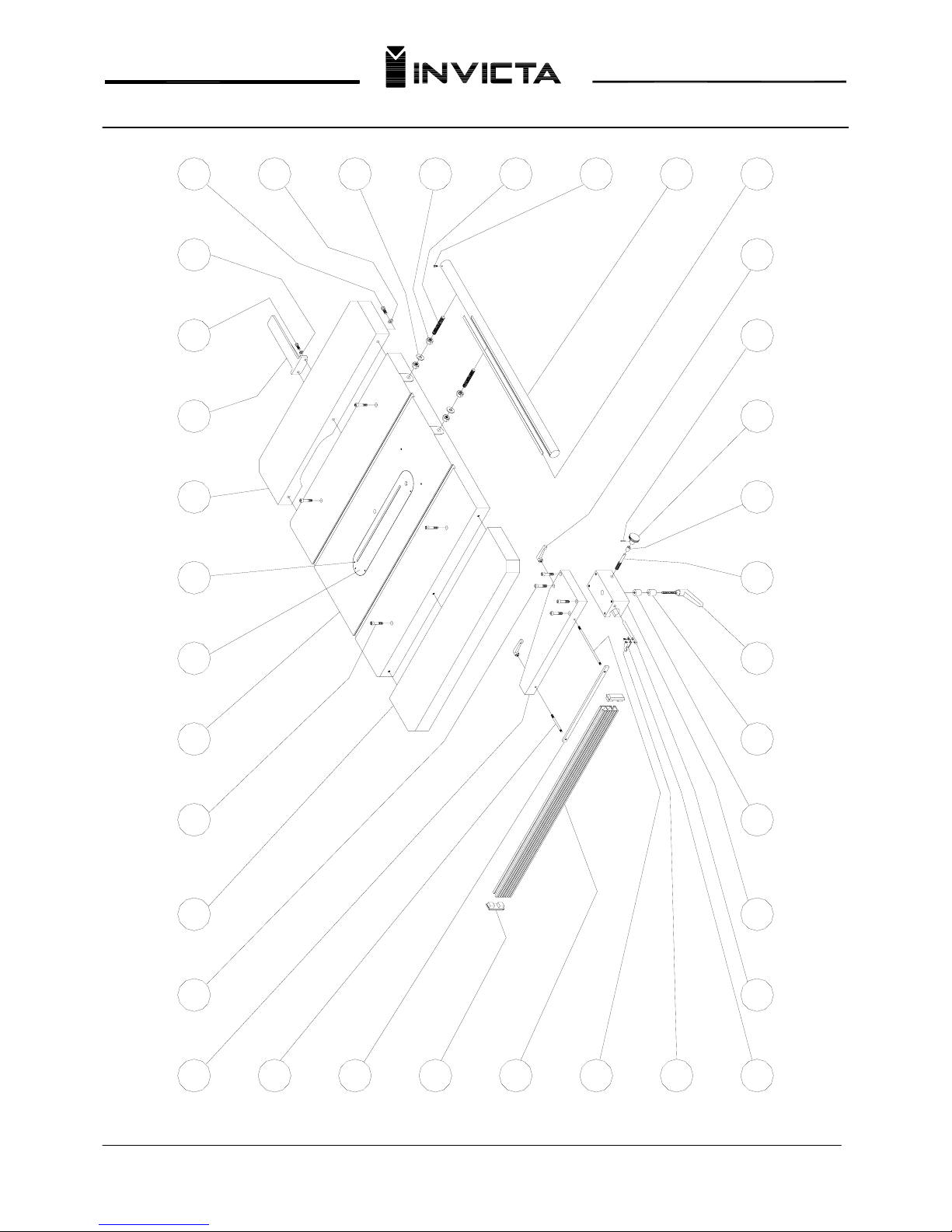

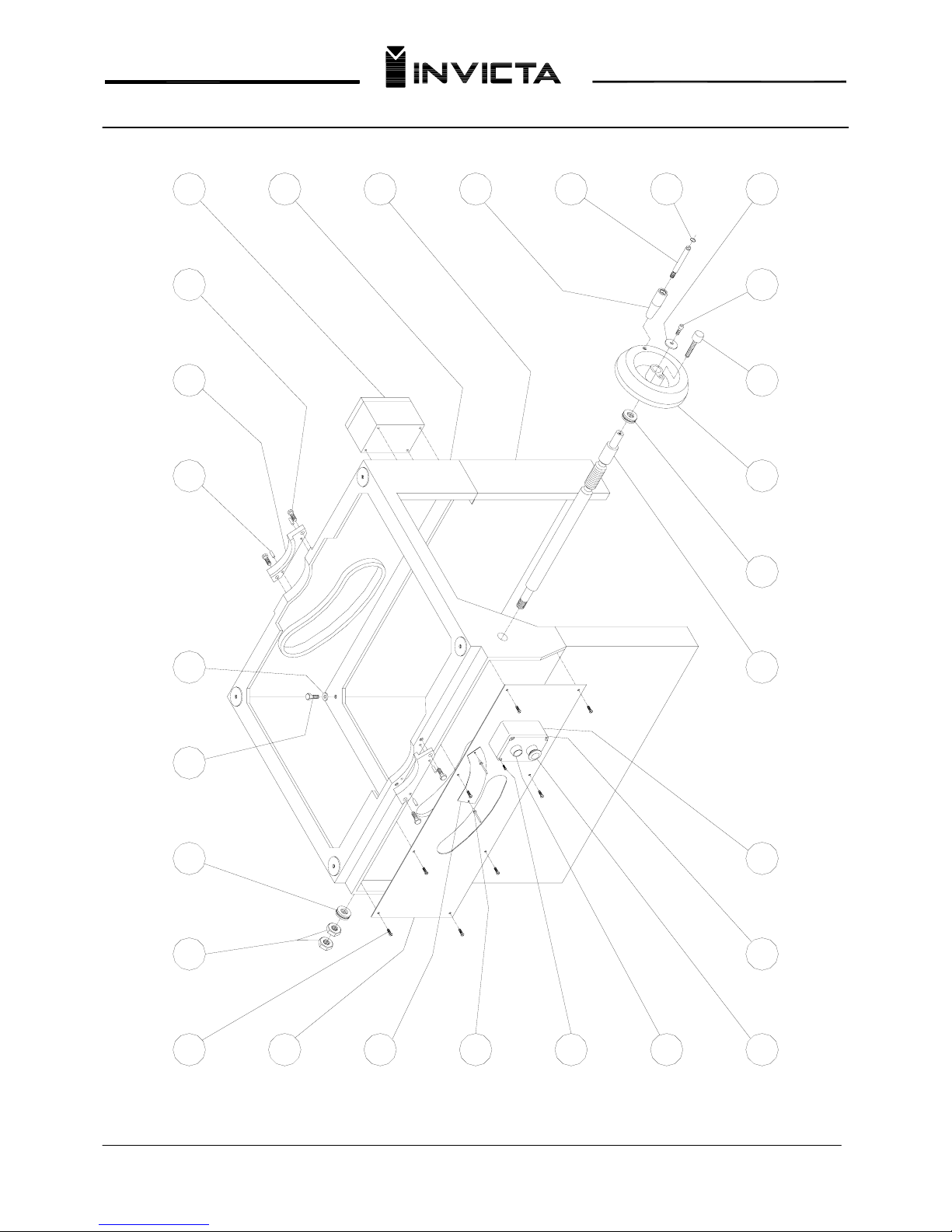

its manufacture. At the end of this manual you will find a list of parts which compose your machine with their names
and numbers. Use only genuine INVICTA parts and on your order always mention the serial number, part number
and quantity desired.

5
Table Sa
w
Mod. RT-40
Technical Data
Standard saw blade diameter……………………………….………………………………… mm 350 (14”)
Maximum saw blade diameter………………………………………………………………… mm 400 (16”)
Shaft diameter…………………………………………………………………………………… mm 30
Maximum cut (350 mm diameter saw)………………………………………………………... mm 115 (4-1/2”)
Maximum cut (400 mm diameter saw)…………………………..…………………………… mm 140 (5-1/2”)
Maximum height of cut at 45º (350 mm diameter saw)…………………………………….. mm 80 (3-1/8”)
Maximum height of cut at 45º (400 mm diameter saw)……….……………………………… mm 105 (4-1/8”)
Motor 3 / phase…………………………………....……………………………………………… HP 7,5
Shaft speed………………………………………………………………………………………. RPM 3000
Maximum dado capacity………………………………………………………………………... mm 40 (1-9/16”)
Maximum rip capacity……………………………………………………………………………. mm 850 (33-7/16”)
Distance from front of the table to center of the saw blade saw…………………………… mm 580 (22-13-16”)
Distance from front of table to the edge of a Ø 350 mm saw at maximum height………… mm 435 (17-1/8”)
Height from floor to table top………………………………………………………………….. mm 850 (33-7/16”)
Table dimensions……………………………………………………………………………….. mm
inch
1000 x 1000
39-3/8” x 39 –
3/8”
Table dimensions including 2 extensions…………………………………………………… mm 1500 x 1100
59” x 43-5/16”
Saw tilt to the right………………………………………………………………………………. º 45º
Approx. net weight with motor…………………………………………………………………. kg 543 (1195 Lbs)
Accessories
1 Special wrench
1 Instruction Manual

6
Table Sa
w
Mod. RT-40
Instructions for replacing the Sawdust Guard
Your machine is equipped with a wooden guard (ballast) that helps to prevent sawdust from being blown up
through the table insert. This is a very important feature when dust collection is absent or very poor. Due to normal
wear it becomes necessary to change this guard, proceed as follows: Raise the saw blade to its maximum height,
remove the table insert. Replace the wooden guard with a new one of the same dimensions. Next, mount the new
piece of wood in the guard, and reassemble table insert. Turn the saw on and slowly lower it to its minimum height,
executing the cut in the wood. (Always lockout the power supply when doing blade maintenance)
A

7
Table Sa
w
Mod. RT-40
Controls (Adjustment Features #1)
19 24 1718 16 15 14 11 12 09
13
08 07
10
03 06
0502
04 01

8
Table Sa
w
Mod. RT-40

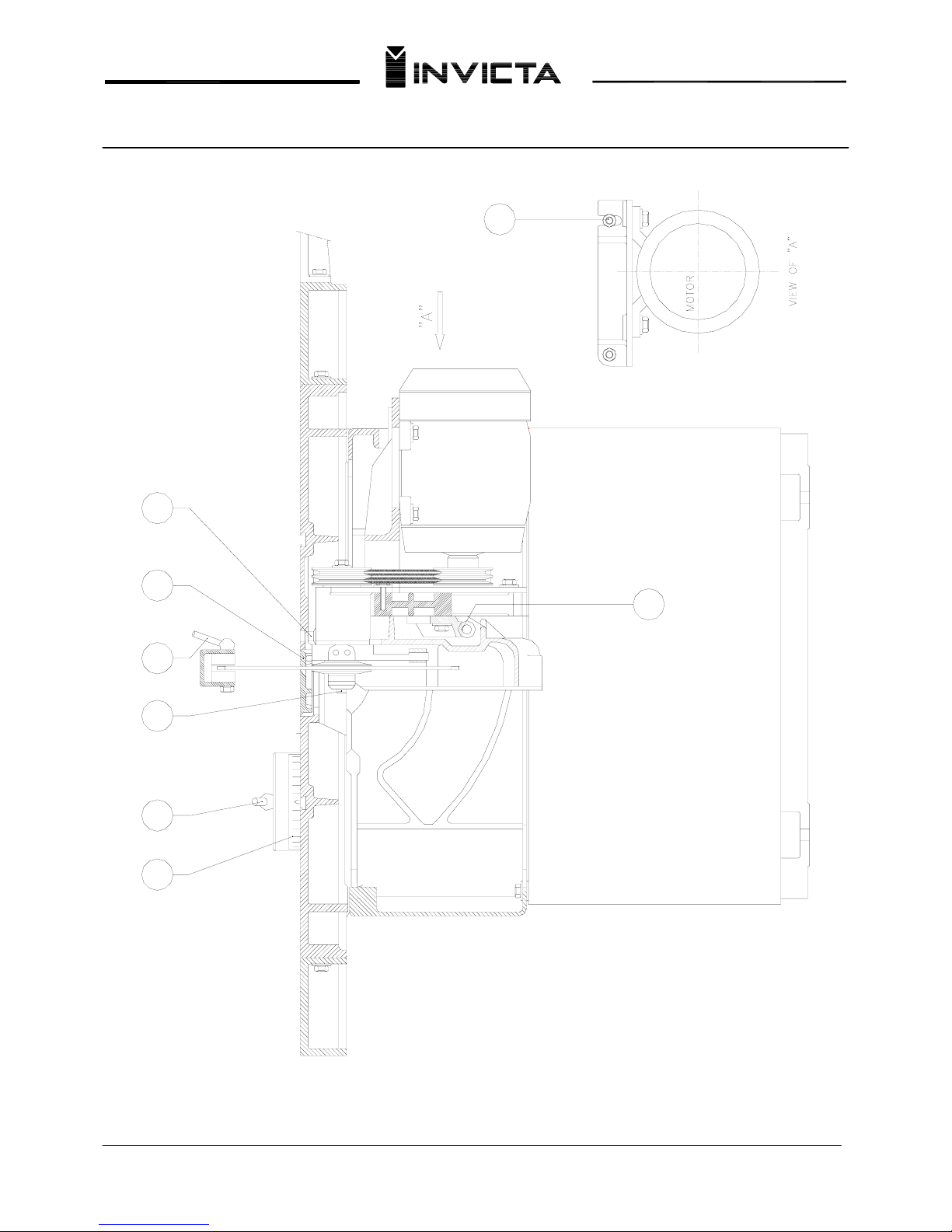

Controls (Adjustment Features #2)
26 25 23 18 2221
A
20

9
Table Sa
w
Mod. RT-40

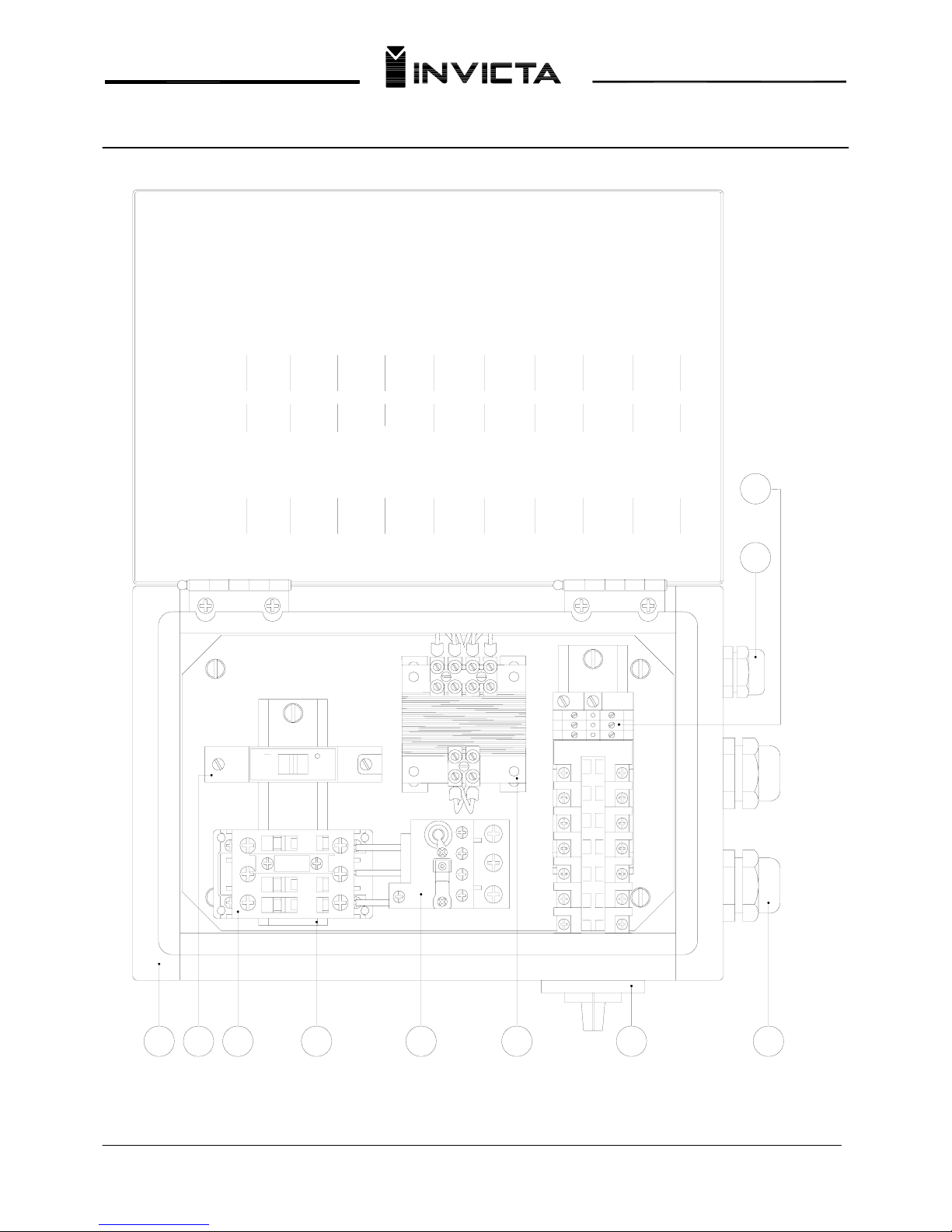

ELECTRICAL BOX
71
02 01 03 04
A1
1 L1
A1
1- 2-
2 T1
05 06
A2
96 NC
PART. N°
11-28-00230 11-34-00120 11-07-00690 11-31-00070
8NAE-K205-0
11-20-00090
3 L2
A2
5 L3
3NO
4NO
3-
4 T2
4-
6 T3 A2
95 NC97 NO98 NO
5
6
2
1
ITEM
3
4
1 3
2
4
5
6Single phase transformer
NAME Electrical box Disjuntor C6A 5SX1-1
Contactor CWM25
1
QTY.
1 1
Track
Overload relay RW27D
1
2
1
07
12
56
08
11-03-00150 11-03-00090 11-02-00490
910
13 14
17 18
21 22
25 26
879
8
9
09
Press cable PG13.5 Press cable PG21
Borne terminal
2
1 1
10
10
11-04-00750 Switch electrical

10
Table Sa
w
Mod. RT-40
Three – Phase Motor With overload Protection – 7,5HP – 230 / 460V

11
Table Sa
w
Mod. RT-40
Single – Phase Motor with Overload Protection

12
Table Sa
w
Mod. RT-40
Select Switch – 230 / 460 V
IMPORTANT
SELECT THE VOLTAGE (230/460V) OF YOUR
INTERNAL ELECTRIC NETWORK.
THE VOLTAGE SELECTION KEY IS LOCATED ON
THE ELECTRICAL BOX.
FOR YOU SAFETY THE VOLTAGE SELECTION
KEY IS ON NEUTRAL POSITION.

13
Table Sa
w
Mod. RT-40
Replacement Parts (Blade Guard)
26 25
19
01 02 03 04
10
07 08 09 11 12 1413 15 16 17
05 06
24 23 22 21 20
18
3536 34 33 32 2831 30 29 27

14
Table Sa
w
Mod. RT-40
Replacement Parts (Miter Fence)
37
38
39
40
41
42
43
44 45 46 47 48 49
50
51
52
53
54
55
5657585960
Items 42-60
A
ssembly Part Numbe
r
82SB-K039-0

15
Table Sa
w
Mod. RT-40
Replacement Parts (Saw Arbor)
62 61 85 83 63
79
82 8081
78
68 69 70
76 77
71 72 73 7574
73

16
Table Sa
w
Mod. RT-40
Replacement Parts (Saw Cabinet)
86 87 88 89 90 91 92 93 94 95 96 97 98 99
105 106107108109110111112113
104 103 102 101 100

17
Table Sa
w
Mod. RT-40
Replacement Parts (Saw Trunion and Motor)
125
165
119 124 122 123 120 121 117 118 114 115 116
127126 128 129 130 131 132 133
163164 162 161 160 159 158 157
134 135 136 137 138 139
142 140 141
143 144
152154
155156 153
145 146 147
151
148 149 150

18
Table Sa
w
Mod. RT-40
Replacement Parts (Saw Table Top and Rip Fence)
197166
167 168
196 195 194 193 192 191
190 189
170 171 172 173 174 175 179 180 181 182
188 187 186 185
183 184178177176
169
198199200201

19
Table Sa
w
Mod. RT-40
Replacement Parts
FIG. Nº CODE QTY. NAME FIG. Nº CODE QTY. NAME
01.......... 06-03-0078-0 02…... Allen cap screw M6-1x12 35……... 06-18-0034-0 02….. Snap ring RS9
02.......... 82SB-K200-0 04…... Hinge pin screws 36……... 82SB-K194-0 02….. Kick back finger
03.......... 82SB-K193-0 01…... Guard bar 37……... 27-01-0038-0 01….. Knurled knob
04.......... 82SB-K191-0 04…... Guard arms 38……... 06-02-0053-0 01….. Allen set screw head M6-1,0x10
05……... 26-03-0010-0 01…... Roll pin Ø8x80mm 39……... 8NVL-K181-0 01….. Repeat stop bar
06……... 82SB-K199-0 02…... Hinge pin 40……... 8NVL-K182-0 01….. Repeat stop shaft
07……... 06-02-0068-0 04…... Allen set screw M5-0,8x8 41……... 85SB-K125-0 01….. Repeat stop knuckle
08……... 82SB-K192-0 02…... Side plates * 42…... 82SB-K108-0 01….. Release lever
09……... 8NAR-K134-0 04…... Flat washer Ø30x12x1,9 * 43…... 07-00-0002-0 01….. Spring
10……... 82SB-K198-0 04…... Bushing * 44…... 89SB-KK97-0 01….. Shoulder bolt
11……... 06-06-0029-0 04…... Flat head screw M6-1x12 * 45…... 26-00-0006-0 01….. Roll pin Ø3x16
12……... 06-04-0121-0 02…... Hex head cap screw M10-1,5x30 * 46…... 82SB-KK93-0 01….. Pivot plate
13……... 06-13-0015-0 02…... Flat washer Ø10 mm * 47…... 82SB-K208-0 01….. Miter guide
14……... 82SB-K202-0 01…... Left spacer 3/16” * 48…... 06-03-0056-0 01….. Allen cap screw M5-0,8x12
15……... 82SB-K203-0 03…... Right inner spacer 1,52mm * 49…… 85SB-KK84-0 01….. Indicator bracket
16……... 82SB-K204-0 04…... Right outer spacer 0,9mm * 50…... 06-05-0053-0 02….. Round head screw M4-0,7X10
17……... 06-03-0081-0 02…... Allen cap screw
M10-1,5x40 * 51…... 89SB-KK92-0 01….. Miter guide
18……... 82SB-K201-0 01…... Guard block * 52…... 06-17-0002-0 02….. Pop ad 440s rivet
19……... 06-02-0055-0 02…... Allen set screw M8-1,25x20 * 53…... 85SB-KK86-0 01….. Graduated scale
20……... 89SB-K131-0 02…... Washer * 54…... 89SB-KK96-0 01….. Stud
21……... 06-03-0054-0 02…... Allen cap screw M6-1x10 * 55…... 06-13-0026-0 01….. Flat washer Ø10mm
22……... 82SB-K196-0 01…... Guard main shaft * 56…... 89SB-K125-0 01….. Lock knob
23……... 06-09-0019-0 02…... Hex nut M6-1,0 * 57…... 89SB-K106-0 01….. Guide pin
24……... 82SB-K188-0 01…... Shaft support * 58…... 89SB-K107-0 01….. Guide bushing
25……... 06-02-0054-0 01…... Allen set screw M8-1,25x10 * 59…... 89SB-K126-0 01….. Lever pin
26……... 06-13-0002-0 02…... Flat washer 1/4” * 60…... 27-00-0004-0 01….. Knurled knob
27……... 06-04-0096-0 02…... Hex head cap screw M6-1,0x25 61……... 82SB-K116-0 01….. Hex head bolt
28……... 06-09-0019-0 04…... Hex nut M6-1,0 62……... 82SB-K114-0 01….. Shaft end cap
29……... 06-13-0002-0 04…... Flat washer 1/4” 63……... 8NFL-KK34-0 01….. Inner saw flange
30……... 82SB-K197-0 01…... Support bracket 64……...
31……... 06-13-0002-0 04…... Flat washer 1/4" 65……...
32……... 06-04-0095-0 04…... Hex head cap screw M6-1,0x20 66……...
33……... 82SB-K185-0 01…... Guard base 67……..
34……... 82SB-K195-0 01…... Pin 68…….. 06-18-0017-0 01….. Snap ring I62
* 82SB-K039-0 Miter gauge assembly
