involight MH VIDEO HD User manual

MH VIDEO HD
User Manual
Thanks for choosing our goods please read this manual carefully before your operating and keep this
manual for future needs
1

Thank you for purchasing GVP4096, every unit has been thoroughly tested
and has been shipped in perfect operating condition. Carefully check the
shipping carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your fixture for any damage
and be sure all accessories necessary to operate the unit has arrived intact.
In the case damage has been found or parts are missing, please contact the
manufacturer or your dealer for further instructions. You now own a
professional lighting unit that offers endless possibilities.
For your own safety and that of others, please read this instruction manual
carefully before installing the unit.
Anyone involved in installing, operating or servicing the Super Beam 60 must:
•Be a qualified, authorized professional
•Strictly follow the instructions in this user manual.
Please take the time to read this manual carefully and thoroughly before
installing and operating the luminaire. You should have a good knowledge of
its operating conditions and all pertinent product information.
After you have become familiar with this manual, we recommend that you
keep a copy for future use. All the information found in this manual
2

is subject to change without notice. We reserve the right to modify and upgrade its
range of products, with no obligation to integrate these changes into products
already sold.
Warning
●To prevent or reduce the risk of electrical shock or fire, do not expose the
unit to rain or moisture.
●Please consider that damages caused by manual modifications to the device
are not subject to warranty.
Installation
The unit should be mounted via its screw holes on the bracket. Always ensure that
the unit is firmly fixed to avoid vibration and slipping while operating. And make
sure that the structure to which you are attaching the unit is secure and is able to
support a weight of 10 times of the unit’s weight. Also always use a safety cable
that can hold 12 times of the weight of the unit when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at a place where
is out of the touch of people and has no one pass by or under it.
3

Specifications and Features:
•DMX Channel: 15CH
•Pixel pitch (mm): 6
•LED Source: 4096pcs SMD5050 RGB LED
•Continuous PAN and TILT rotation
•Dynamic color macro effect with variable speed
•Electronic dimmer from 0 to 100% without color variation
•LCD display for addressing and special functions settings
•Control:DMX 512,Art-net,Auto,Manual
•Electronic supply with active PFC
•Super compact, low weight
•Extremely accurate positioning
•Over temperature protection
•Power Input: AC90~240V,50/60HZ
•Power: Max 200W
•Product Size: 48 x 28 x 62 cm
•Carton Size: 61 x 41 x 75 cm
•Net Weight: 15.5 KG
•Gross Weight: 17KG
4

Product View
Menu Operation
•DMX: When DMX Signal in, the LED will be flash
•ERR: When the Light error, the LED will be flash
•Mic: Sound Control (No use now)
•Menu: Click enter into main menu to choose the function
•Up: Click to choose the up value
•Down: Click to choose the down value
•OK: Click to confirm the data
5

Back Panel
The Connection
Powercon Blue: Use the power cable connect the light
Powercon White: Use powercon cable to supply the power to another light
3pin&5pin XLR connector: Use DMX Controller to connect the light. It can control the XY
movement, built-program.
Ethernet: Use Cat5 connect with computer to play the video and effect through software
DVI Mapper
6

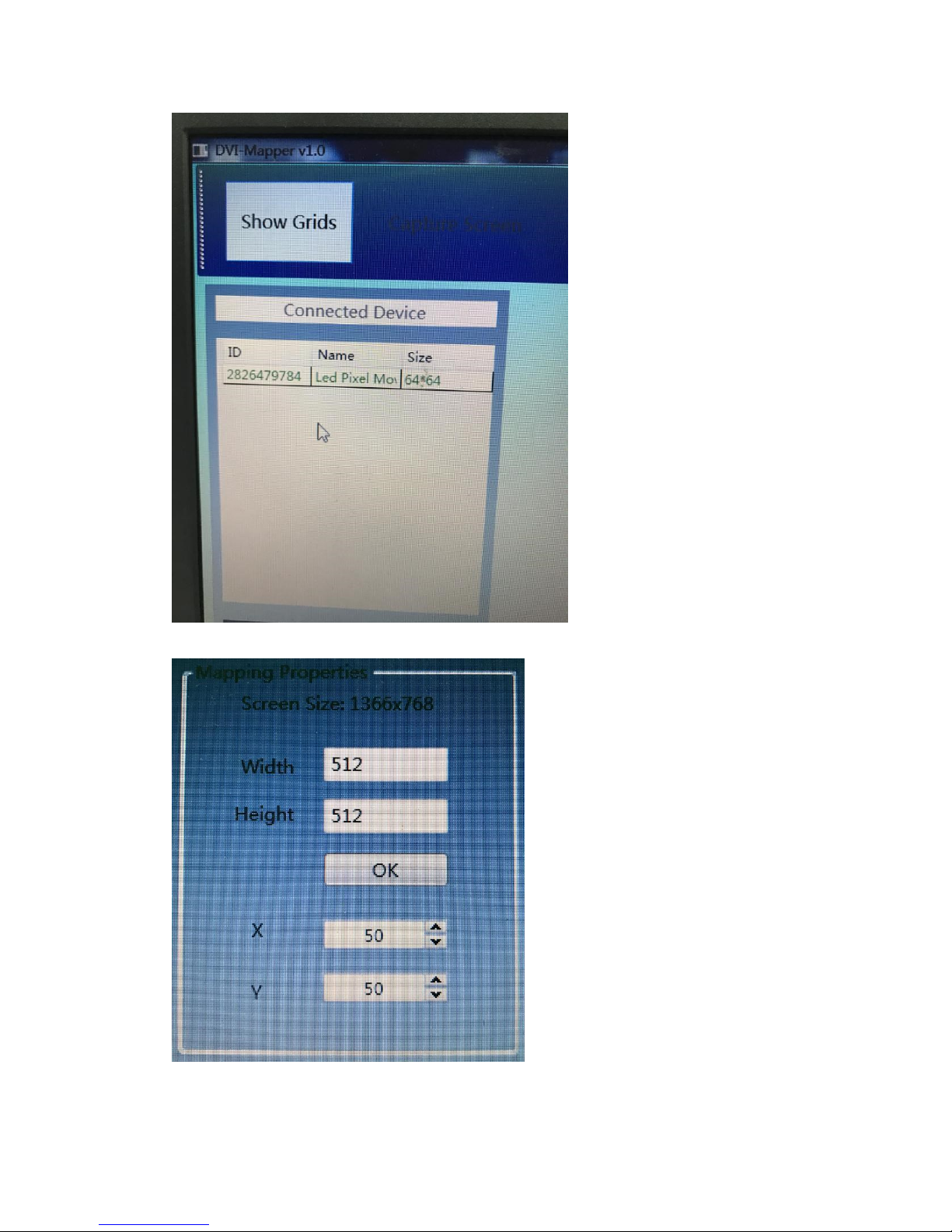

DVI Mapper can auto recognize the device.
Set the video panel size, for example if 10pcs GVP4096, it will be Width: 640, Height: 640
7

Draw the connected device to this window, you can move at any position in this image.
After set well, the computer will show the capture window.
8

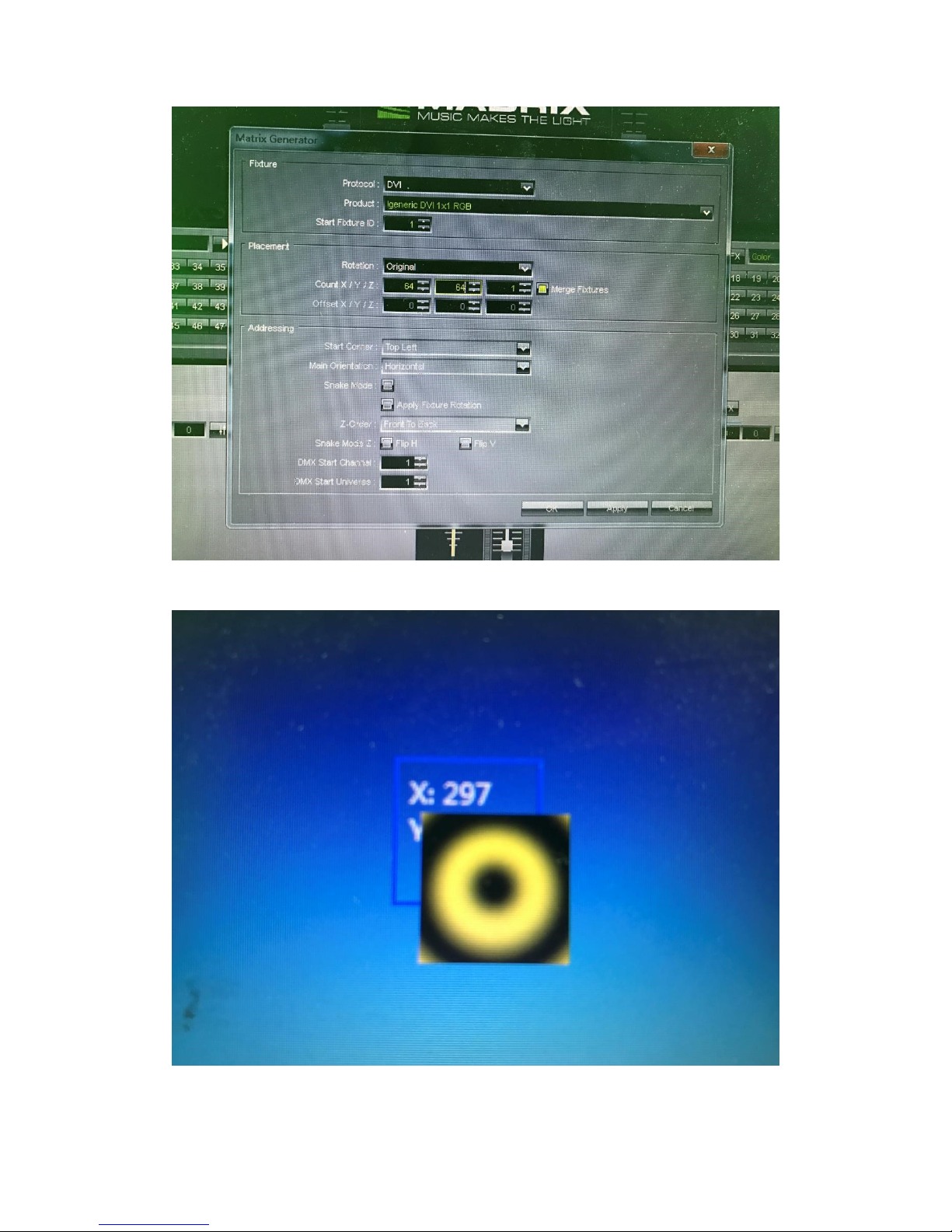

Open the Madrix, set the Matrix Generator, choose the DVI, set the effect.
Then show two windows, one is from the Madrix, one is DVI mapping, Make the two
windows in same position. For example, if not in same position the light will show like this:
9

It can use router to connect the light and computer, then no need set the IP address and
universal.
10

Menu
DMX: Choose the DMX Address
Network: Set the Network address, Net Mask and Universe
WorkMode: Choose the work Mode
Setting: Set the light parameter
Reset: Reset the light
Home: Return to intial interface
DMX Address Set
Push the UP or Down to choose the DMX Address, after push OK to confirm.
11

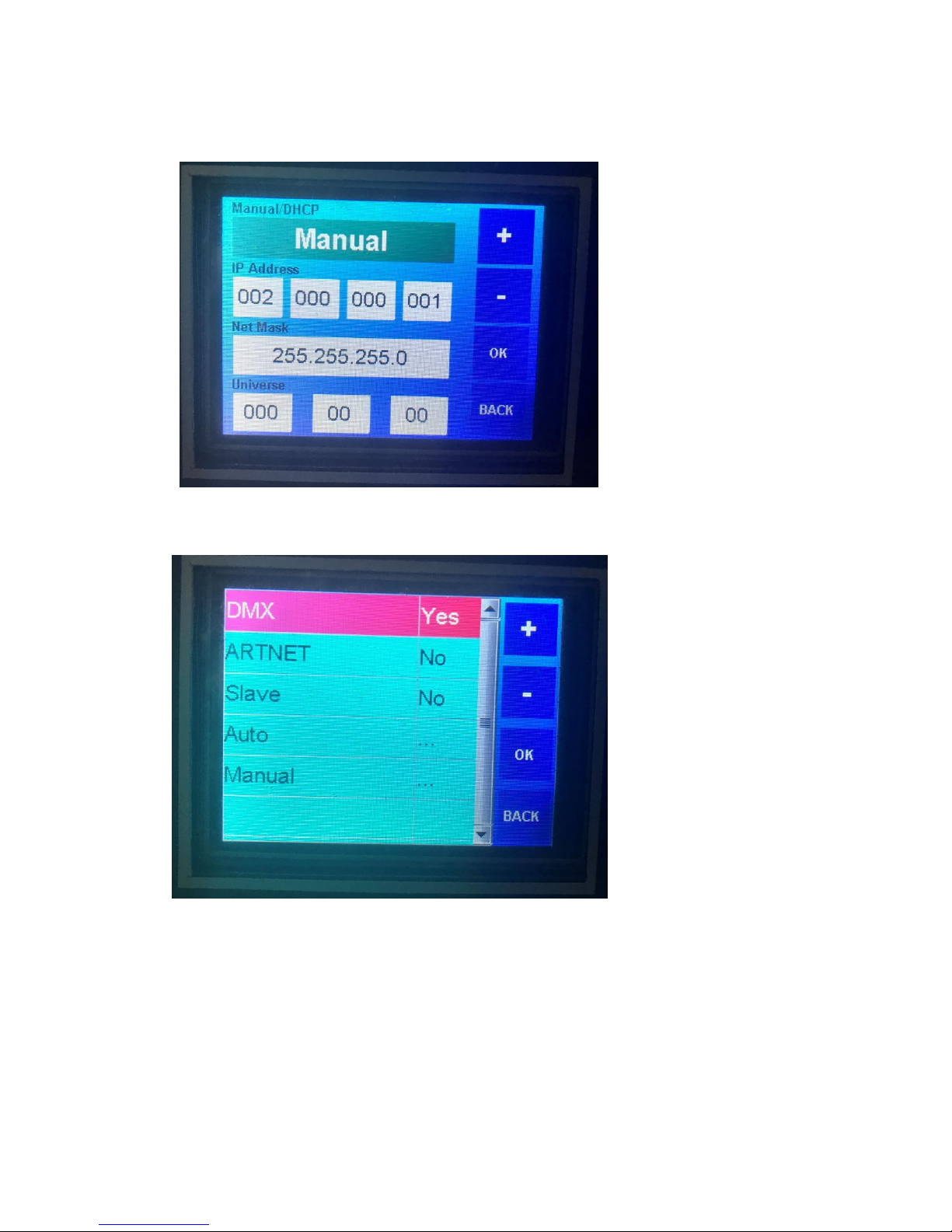

Network Set
Work Mode Set
DMX: DMX Mode
ARTNET: Internet work Mode
Slave: Slave Mode
Auto: Auto Run Mode
Manual: manual set the light value
12

13

14

15

CH1
Dimmer
CH2
Strobe
CH3
Red
CH4
Green
CH5
Blue
CH6
Program 1 –Program 15
CH7
Program 16 –Program 29
Program 30 Auto run program
CH8
Speed of program
CH9
Movement for X-axle
CH10
Adjustment for X-axle
CH11
Movement for Y-axle
CH12
Adjustment for Y-axle
CH13
XY Speed
CH14
Reset
CH15
0~127 DMX Mode
128~255 Network Mode
CH16
Record Program (Invalid)
16

Troubleshooting
Following are a few common problems that may occur during operation.
Here are some suggestions for easy troubleshooting:
1. The unit does not work,no light and the fan does not work
a. check the connection of power and main fuse.
b. Measure the mains voltage on the main connector.
c. Check the power on Led.
2. Not responding to DMX controller
a. DMX LED should be on. If not, check DMX connectors, cables to
see if link properly.
b. If the DMX LED is on and no response to the channel, check the
address settings and DMX polarity.
c. If you have intermittent DMX signal problems, check the pins on
connectors or on PCB of the unit or the previous one.
d. Try to use another DMX controller.
e. Check if the DMX cables run near or run alongside to high voltage
cables that may cause damage or interference to DMX interface
circuit.
3. Some units don’t respond to the easy controller
a. You may have a break in the DMX cabling. Check the LED for the
response of the master/slave mode signal.
b. Wrong DMX address in the unit. Set the proper address.
17

4. One of the channels is not working well
a. The stepper motor might be damaged or the cable connected to the PCB
is broken.
b. The motor’s drive IC on the PCB might be out of condition
5. Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be
carried out periodically to optimize light output. Cleaning frequency depends
on the environment in which the fixture operates: damp, smoky or
particularly dirty surrounding can cause greater accumulation of dirt on the
unit’s optics.
a. Clean with soft cloth using normal glass cleaning fluid.
b. Always dry the parts carefully.
18

Warranty
The GVP4096 fixture is guaranteed against manufacturing defects for the
duration of one (1) year from the date of purchase.
This warranty does not cover the unit for evidence of physical shock or
damage caused by abuse or any use not in accordance with the operating
conditions set forth in the present user manual.
In addition, cosmetic defects caused by the normal wear and tear of the unit
are not covered under the warranty.
Any modification to the fixture will void the warranty. We cannot under any
circumstances be held liable for quality and conformity regarding the
installation of this product, which is the responsibility of the installer. the device
and before use, may be covered by the warranty.
The manufacturer is not responsible for any errors or omissions that may occur
in this document. All information contained in this manual is subject to change
without notice.
