IOGear GBHFK201W6 User manual

User Manual / Manual del Usuario (GBHFK201W6)
Bluetooth
®
Hands Free Car Kit
Kit voiture mains libres Bluetooth
®
Kit manos libres Bluetooth
®
para automóvil

2
Thank you for purchasing this IOGEAR Bluetooth
®
Hands-Free Car Kit.
We hope that you will enjoy using your hands-free device and fi nd it to be a useful solution.
Welcome
©2006 IOGEAR. All Rights Reserved. M0335
IOGEAR, the IOGEAR logo, are trademarks or registered trademarks of IOGEAR, Inc. Microsoft and Windows
are registered trademarks of Microsoft Corporation. IBM is a registered trademark of International Business
Machines, Inc. Macintosh, G3/G4 and iMac are registered trademarks of Apple Computer, Inc. All other brand
and product names are trademarks or registered trademarks of their respective holders. IOGEAR makes no
warranty of any kind with regards to the information presented in this document. All information furnished here
is for informational purposes only and is subject to change without notice. IOGEAR, Inc. assumes no responsi-
bility for any inaccuracies or errors that may appear in this document.

3
Welcome ......................................................................................................................
Table of Contents ............................................................................................................ 1
Package Contents .......................................................................................................... 2
Requirements ........................................................................................................ ...........3
Introduction .......................................................................................................................4
Initial Setup .......................................................................................................................5
Use as Computer Microphone/Speaker ...........................................................................5
Hands-free Speakerphone Setup ....................................................................................5
Using the Hands-free Speakerphone ...............................................................................6
Technical Support ............................................................................................................6
Table of Contents
Features ....................................................................................................................
Warranty ......................................................................................................................
2
3
4
5
6
7
8
9
10
11
12
13

4
This package should contain:
• IOGEAR Bluetooth
®
Hands-free Device
• Compact Lithium Ion Battery
• USB Cable (A to mini-B style)
• Car charging adapter
• User Manual
• Warranty/Registration Card
If any items are damaged or missing, please contact your dealer.
Package Contents Features

5
• Hardware noise cancellation and echo reduction for superior sound quality
• Bluetooth 1.2 Specifi cation resists interference
• Class 2 device can transmit up to 30 feet
• Rechargeable battery allows 8 hours talk time, 150 hours standby time
• Can be used as computer speakers, with automatic mute for incoming calls
• Automatic shutoff after 30 minutes idle – never come back to a dead battery
Package Contents Features

6
Hands-free Bluetooth operation requires:
• A phone with built-in Bluetooth capability
Computer speaker operation requires:
• An available USB port
Requirements Introduction

7
Requirements Introduction

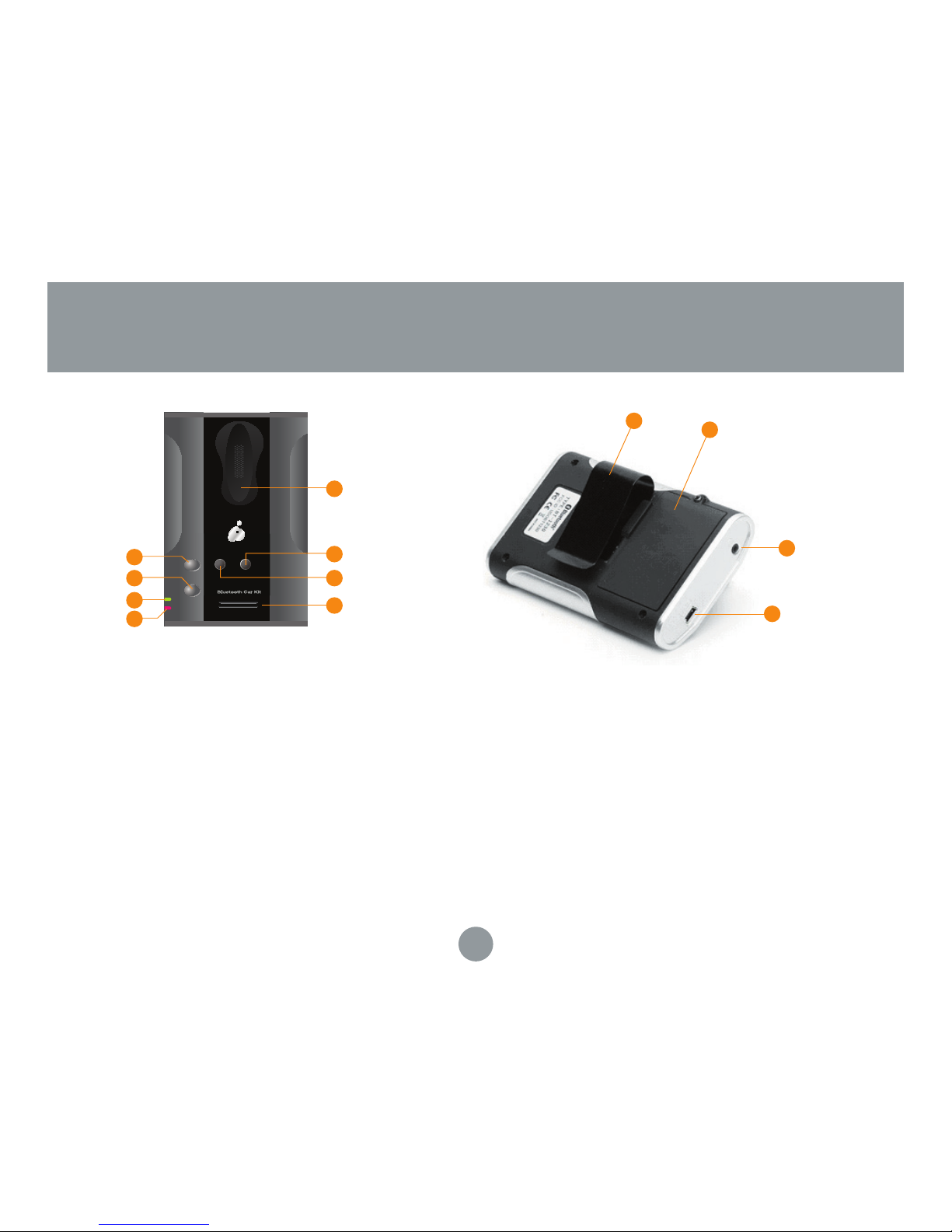

1) Speaker
2) Volume Down button
3) Volume Up button
4) Microphone
5) Start button
6) Power/End button
7) Bluetooth light
8) Charging light
9) Headset jack (2.5mm)
10) USB port
11) Battery compartment
12) Mounting clip
5
6
8
7
2
1
3
4
12
11
9
10

8
Initial Setup Use as Computer Microphone/Speaker
1) Open the battery compartment on the rear of the hands-free device, insert the battery
pack, and secure the cover again using the screw. Do not over-tighten.
2) Using the included USB cable, connect the hands-free device to the car charging
adapter or a computer to fully charge the battery pack. If you are using a computer,
make sure that the computer is turned on.
3) The red light will turn on when charging, and turn off when the battery is fully charged.
4) Make sure you charge the unit at least 6 hours before using it for the fi rst time.

9
Initial Setup Use as Computer Microphone/Speaker
1) While the hands-free device is off (the Bluetooth light should not be blinking), connect
it to an available USB port on your computer using the included cable. It will be identi
fi ed as a “USB Audio Device” and the appropriate drivers will be installed automatically.
2) Volume can be controlled only through software while your IOGEAR Bluetooth
®
Hands-free Device is being used as a sound device for the computer. The volume
control buttons on the hands-free device are disabled.
3) If a phone call begins the Bluetooth connection will temporarily override the computer
audio. When the call ends the USB connection will be restored.

10
Hands-free Speakerphone Setup Using the Hands-free Speakerphone
1) To pair the IOGEAR Bluetooth
®
Hands-free Device with your Bluetooth-capable
phone, fi rst hold down the Power button for fi ve seconds. You will hear the startup
chime and the Bluetooth light will begin to blink slowly.
2) When the hands-free device is on, press and hold the Start button for fi ve seconds.
A different chime will play to indicate that the hands-free device is now discoverable.
While the hands-free device is discoverable the Bluetooth light will blink quickly.
3) Using your phone, search for Bluetooth devices. Select the “BT-1230” device and
enter 1234 when asked for the passkey.
4) On some phones you may need to enable hands-free operation by fi nding the BT-
1230 in the paired device list and making it the active hands-free headset. Consult
your phone’s documentation if you are not sure how to do this.

11
Hands-free Speakerphone Setup Using the Hands-free Speakerphone
Once the hands-free device and your phone are paired, simply turn on the device when
you are nearby – it will automatically detect your phone and wait for a call to begin. Refer
to the following table for dialing and receiving calls using your hands-free device:
Powering on
Press the Power button for 5 seconds
Powering off
Press the Power button for 5 seconds while not on a call
Answer an incoming call
Press the Start button briefl y when the chime plays
Transfer call from hands-free back to phone
Press the Power button for 3 seconds while on a call
End a phone call
Press the Power button briefl y while on a call
Start a call using voice dial
Press the Start button briefl y while not on a call
Redial the last number
Press the Start button for 5 seconds while not on a call
Adjust the speaker volume
Press the Volume Up or Volume Down buttons

12
Technical Support Warranty
If you need technical support, please check out our IOGEAR Tech Info Library (TIL) at
http://www.iogear.com/support for the latest tips, tricks, and troubleshooting. The TIL is
designed to provide you with the latest technical information about our products. Most of
the answers to your questions can be found here, so please try it out before contacting
technical support.
Technical support is available Monday through Friday from 8:00 am to 5:00 pm PST
by calling our toll-free number 866-9-IOGEAR (866-946-4327). International callers
may need to use the number 949-453-8782. Help is also available by e-mailing us at
[e-mail].

13
Technical Support Warranty
IN NO EVENT SHALL THE DIRECT VENDOR’S LIABILITY FOR DIRECT, INDIRECT,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE
USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION EXCEED THE PRICE PAID
FOR THE PRODUCT.
The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the
contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or
fi tness for any particular purpose.
The direct vendor also reserves the right to revise or update the device or documentation without obligation
to notify any individual or entity of such revisions, or updates. For further inquiries please contact your
direct vendor.

14
