Installation
Installation Guide
USB 2.0 DVI KVMP Switch

3

3
Table of Contents
Package Contents 5
Requirements 6
Operating systems 7
Components 8
Hardware Setup 12
Basic Operation 14
- Manual port selection 14
- Hotkey Switching 15
- Port ID numbering 16
- Direct port selection 16
- Auto Scanning 18
Advanced Conguration 20
- Hotkey setting mode 21
- Summary of Hotkey Settings 22
- Comparison of Default and
Alte Manual Port selection settings
24
- Firmware up-grade mode 25
- Keyboard Operating platform 26
The Firmware Upgrade Utility 30
Troubleshooting 34
Specications 35
Limited Warranty 40

4
5
Conventions
This manual uses the following conventions:
Monospaced Indicates text that you should key in.
[ ] Indicates keys you should press. For example, [Enter] means to press the Enter key. If keys
need to be chorded, they appear together in the same bracket with a plus sign between them:
[Ctrl+Alt].
1. Numbered lists represent procedures with sequential steps.
♦Bullet lists provide information, but do not involve sequential steps.
−>Indicates selecting the option (on a menu or dialog box, for example), that comes next. For
example, Start −> Run means to open the
Start menu, and then select Run .
Indicates critical information.

5
1 USB 2.0 DVI KVMP Switch
[GCS1782] 2-Custom KVM Cable Sets (6ft)
[ GCS 1784] 4 custom Cable sets (6ft)
2 7.1 Audio cables (6ft) [GCS1782 only]
1 USB-to-PS/2 Converter
1 Firmware Upgrade Cable
1 Power Adapter
1 User Manual
1 Registration form
Verify All the components are present and that nothing was damaged in shipping. If you encounter a
problem, contact your dealer, or IOGEAR.
Read this manual thoroughly and follow the installation and operation procedures carefully to prevent
any damage to the unit, and/or any of the devices connected to it.
Package Contents

6
7
Requirements
A USB mouse
A USB keyboard
Microphone and speakers (optional)
Monitor with a DVI input
Computers
A DVI-D port
USB Type A port
Audio ports (optional)
Cables
Two (6 ft) DVI-D KVM custom cable sets
are provided with this package, which
incorporates cables for microphones (pink)
and 2.1 channel surround sound speakers
(green)
Two additional 6 ft audio cables are
included for 7.1 sound and are used in
conjunction with the 2.1 audio cables on
the KVM cable

7
Operating Systems
OS Distribution Version
Windows 2000 and higher
Linux RedHat 9.0 and higher; Fedora Core 4 and higher
SuSe 9.0 and higher
Unix AIX 4.3 and higher
FreeBSD 4.2 and higher
Sun Solaris 9 and higher
Novell Netware 6.0 and higher
MAC OS 9.0 and higher
Note: Supports Linux Kernel 2.6 and higher.

8
9

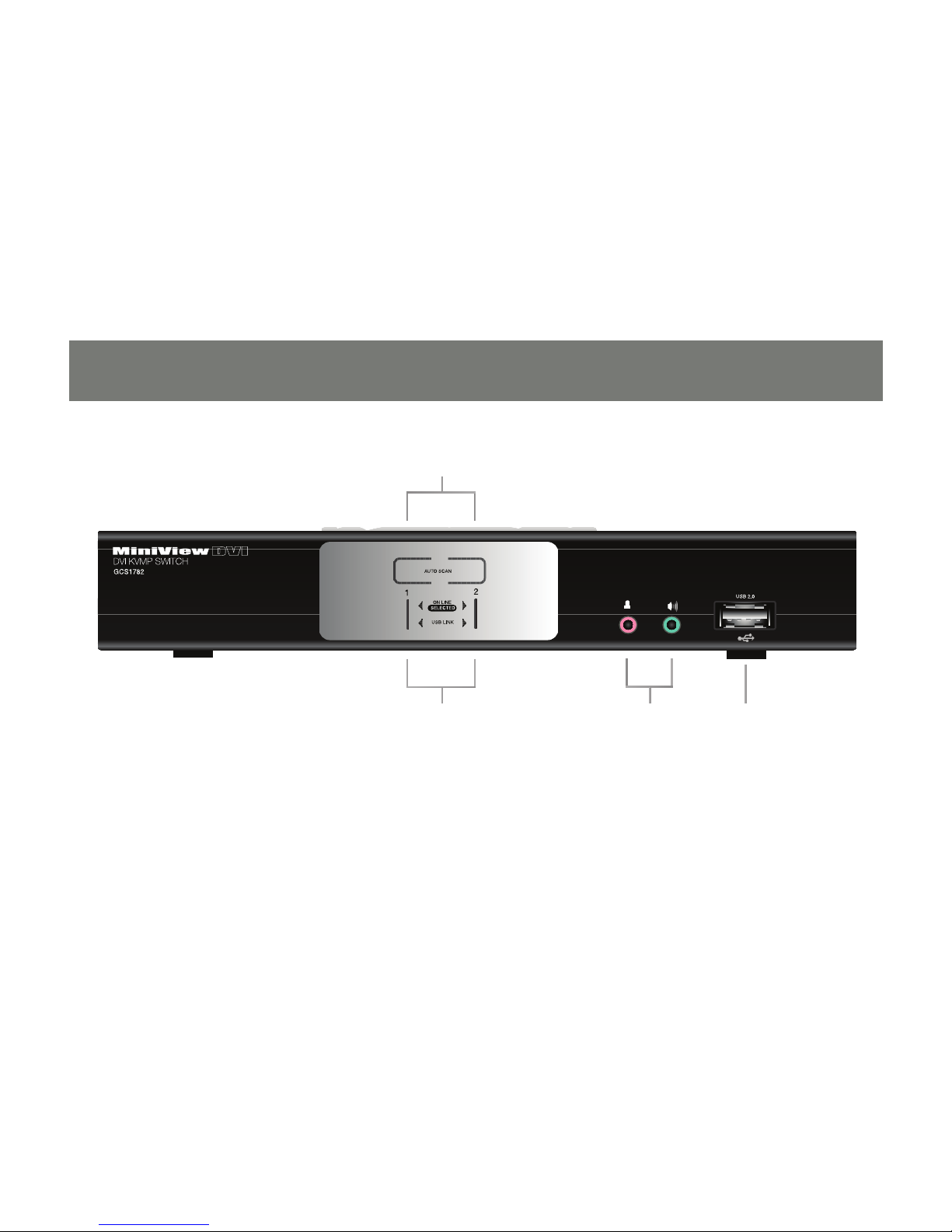

Front View
1
23 4
Components

9
No Component Description
1 Port Selection
Pushbuttons
Press a pushbutton for longer than two seconds to bring the KVM, USB,
and audio focus to the computer attached to its corresponding port.
2 Port LEDs The Port LEDs are located below the Port Selection Pushbuttons. The
upper one (Orange) are the KVM Port LEDs; the lower ones (Green) are
the USB LEDs:
KVM Lights DIM ORANGE to indicate that the computer attached to
the port is (On Line). Changes to BRIGHT ORANGE to indicate that
the computer attached that port has KVM focus (Selected). Flashes to
indicate that the computer attached to its port is in Auto Scan mode.
USB Lights GREEN to indicate that there is a USB connection to the
computer attached to the port. Changes to BRIGHT GREEN to indi-
cate that the computer attached has access to the USB peripherals.
3 Console Ports (Audio) Connections for your microphone and 2.1 speakers
4 USB 2.0 Peripheral Port Connection for a USB peripheral device ( printer, scanner, etc.)

10
11
Rear View
3 4
6
2
5
1

11
No. Component Description
1 Firmware Upgrade Port Connection for the rmware up grade cable
2 USB Console Ports USB1.0 Keyboard and mouse connections*
3 Console Port Section Connections for your monitor, mike, and speakers
4 CPU Port Section Connections for the cables that link the switch to your computers. Each
CPU port is comprised of a microphone jack, speaker jack, USB type B
socket and a DVI connector
5 Power Jack Power adapter connection
6 USB Peripheral Port Connection for USB 2.0 peripherals ( printers, scanners, etc)

12
13
Hardware Setup
Make sure that power to all the devices you will be installing has been turned off. You must
unplug the power cords of any computers that have the Keyboard Power On function.
Cable Connection

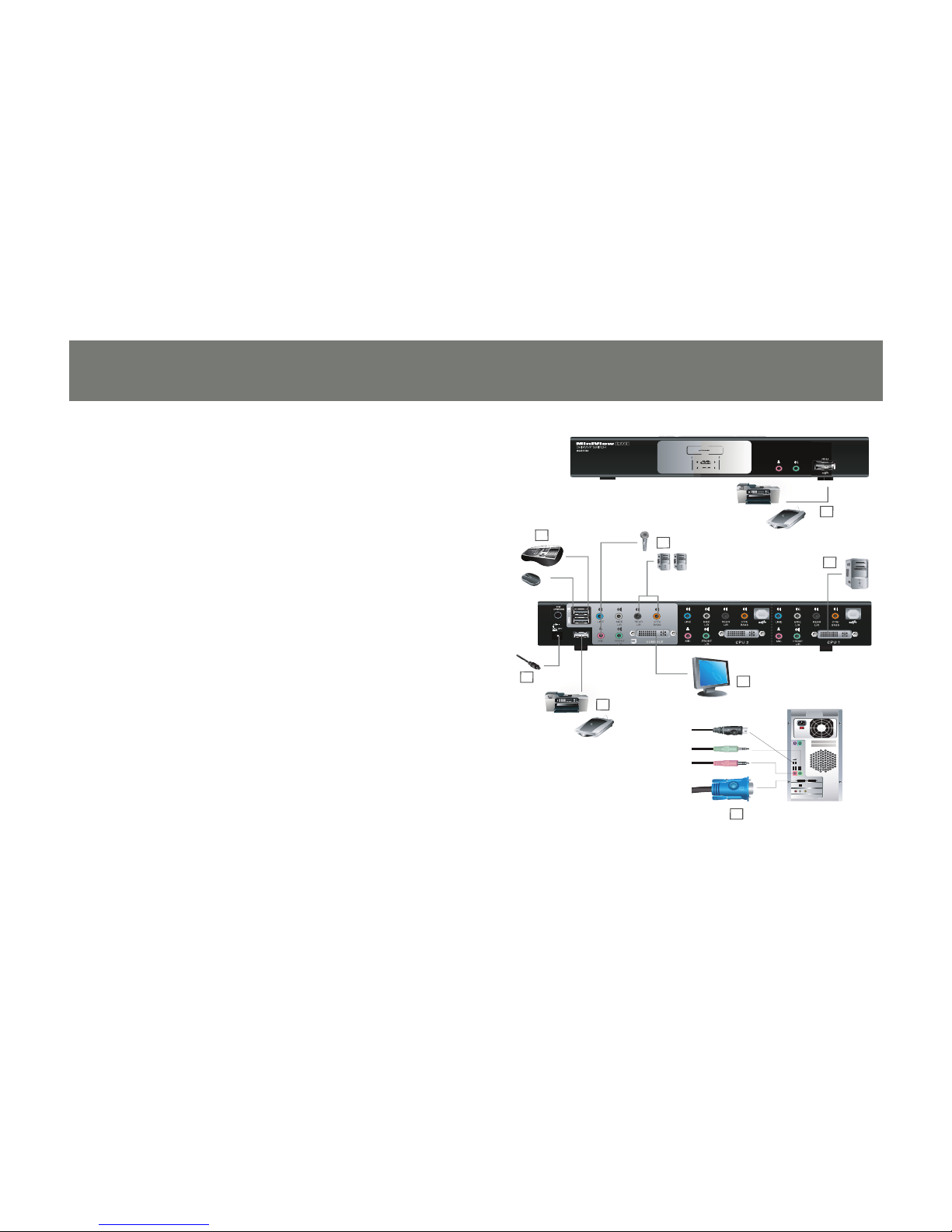

To set up your GCS1782 installation, refer to the installation diagrams on the following pages (the
numbers in the diagrams correspond to the steps, below), and do the following:
1. Connect your USB keyboard and mouse into the USB Console Ports located on the unit’s back
panel.
2. Connect your microphone, speakers, and monitor into the Console ports located on the unit’s rear
panel
Note: The IOGEAR KVM cable set provided 2.1 channel surround sound only. You must use the
included audio cable for 7.1 audio
3. Using the KVM cable set, connect the DVI connector into any available DVI socket in the CPU Port
setion of the switch, then connect the accompanying USB, microphone and speaker connectors
into their corresponding USB, microphone, and speaker sockets.

13
4. At the other end of the cable, connect the
USB, video, microphone, and speaker cables
into their respective ports.
5. Connect your USB peripherals into the type
A sockets (one is located on the front, the
second is located on the rear).
6. Connect the power adapter that came with
your switch into the jack on the switch then
connect the adapter to an AC power source.
7. Verify your connections: ports are correct and
that the Icons match the connection type
8. Power on the computers.
1
2
2
3
5
6
5
4

14
15
Manual Switching
There are two convenient methods to access the computers: Manual – pressing the port selection
pushbuttons located on the unit’s front panel; and Hotkey – entering key combinations from the
keyboard. Hotkey port selection is discussed in the next chapter.
Manual port selection:
Press and release a port selection pushbutton to focus the computer on the corresponding port. The
USB and Audio focus do not change (expect a 2 sec delay).
Press a port selection pushbutton twice to focus the audio on the corresponding port (expect a 2
sec delay).
Press and hold a port selection pushbutton for more than 2 seconds to focus KVM, USB, Audio and
the computer on the corresponding port.
Press and hold port selection pushbuttons 1 and 2 for more than 2 seconds to start Auto Scan
Mode, at 5seconds dwell time (default).
Basic Operation

15
Hotkey switching
All port switching begins by tapping the Scroll Lock key twice. The tables below describe the actions
that each combination performs.
Note:
If the Scroll Lock key conicts with other programs running on the computer, see the section titled
Advanced Switching to switch to the alternate method.
Cycling though the ports
Hotkey Action
[Scroll Lock] [Scroll Lock] [Enter] Increments the KVM, USB, and Audio focus to the next
higher port (GCS1784 - 4 wraps to 1)
[Scroll Lock] [Scroll Lock] [K] [Enter] Increments only KVM to the next port
[Scroll Lock] [Scroll Lock] [U] [Enter] Increments only USB to the next port*
[Scroll Lock] [Scroll Lock] [S] [Enter] Increments only Audio to the next port
* The USB ports are locked together, therefore they cannot be independently switched.

16
17
Port ID Numbering
Each CPU port on the switch is assigned a port number (1 or 2 for the GCS1782 and 1,2,2,4 for the
GCS1784). The port numbers are marked on the rear panel of the switch and each switch LED has
a corresponding number for easy identication.
The Port ID of a computer is derived from the CPU port number it is connected to. For example, a
computer connected to CPU port 2 has a Port ID of 2.
The Port ID is used to specify which computer gets the KVM, USB peripheral, and / or audio focus
with the Hotkey port selection method.
Going Directly to a Port
Note: The nstands for the computer’s Port ID number. Replace the nwith the appropriate Port ID
when entering hotkey combinations

17
Hotkey Result
[Scroll Lock[ScrollLock][n][Enter] Brings the KVM, USB hub, and audio focus to the computer
attached to the specied port.
[Scroll Lock] [Scroll Lock][n] [K] Enter] Brings only the KVM focus to the computer attached to the
specied port.
[Scroll Lock] [Scroll Lock] [n] [U] [Enter] Brings only the USB hub focus to the computer attached
to the specied port.
[Scroll Lock] [Scroll Lock] [n] [S] [Enter] Brings only the audio focus to the computer attached to
the specied port.
[Scroll Lock] [Scroll Lock] [n] [K] [U] [Enter] Brings the KVM and USB hub focus to the computer
attached to the specied port
[Scroll Lock] [Scroll Lock] [n] [K] [S] [Enter] Brings the KVM and audio focus to the computer attached
to the specied port.
[Scroll Lock] [Scroll Lock] [n] [U] [S] [Enter] Brings the USB hub and audio focus to the computer
attached to the specied port.

18
19
Auto Scanning
The GCS1782’s Auto Scan feature automatically cycles the KVM focus through the computer ports
at regular intervals. This allows you to monitor computer activity without having to switch from port
to port manually.
Note:
1. The nstands for the number of seconds that the CS1782 should dwell on a port before
moving on to the next. Replace the nwith a number between 1 and 99 when entering this hotkey
combination.
2. While Auto Scan Mode is in effect, ordinary keyboard and mouse functions are suspended – only
Auto Scan Mode compliant keystrokes and mouse clicks can be input. You must exit Auto Scan
Mode in order to regain normal control of the console (hit the space bar or the Esc key).
3. Although the video focus switches from port to port, the keyboard, mouse, and USB focus do not
switch. They remain on the port when Auto Scanning began.

19
Hotkey Result
[Scroll Lock] [Scroll Lock] [A] Enter] Invokes Auto Scan. The KVM focus cycles from port to port at
5 second intervals (default interval)
[Scroll Lock] [Scroll Lock] [A] [n] Enter] The KVM focus cycles from port to port at nsecond intervals.

20
21
Hotkey Setting Mode
In some instances the default hotkey settings conict with programs running on your computer, and in
some instances the default hotkeys either do not exist on your keyboard (MAC keyboards for instance
do not have a Scroll Lock key), or are inconvenient to use, so The Hotkey Setting Mode allows you to
select alternate congurations for the KVM’s hotkeys.
When HSM is active, the Caps Lock, and Scroll Lock LEDs ash in succession to indicate that HSM is
in effect. They stop ashing and revert to normal status when you exit HSM.
Ordinary keyboard and mouse functions are suspended – only Hotkey compliant keystrokes and
mouse clicks (described in the sections that follow), can be input.
At the conclusion of some hotkey operations, you automatically exit hotkey mode. With some
operations, you must exit manually. To exit HSM manually, press the Esc key, or the Spacebar.
Advanced Conguration
Advanced Conguration
