Ion Technologies S-3000 User manual

OPERATING MANUAL
PERMANENT FILTER IONIC AIR PURIFIER
Model No. S-3000
READ AND SAVE
THESE IMPORTANT

INSTRUCTIONS
When using electrical appliances, basic precautions should always be
followed to reduce the risk of fire, electric shock and injury to persons,
including the following:
1. Read all instructions before using the appliance.
2. To avoid fire or shock hazard, plug the appliance with the adapter directly
into an AC electrical outlet. The adapter inputs a 12V DC power into the
unit.
3. Keep the cord out of heavy traffic areas. To avoid fire hazards, NEVER
put the cord under rugs, near heat registers, radiator, stoves, or heaters.
4. To protect against electrical hazards, DO NOT immerse in water or other
liquids. Do not use near water.
5. Close supervision is necessary when any appliance is used by or near
children, or by disabled persons.
6. Always unplug the air purifier before moving it, opening the grill, changing
filters, cleaning, or whenever the air purifier is not in use. Be sure to pull
by the plug and not the cord.
7. NEVER drop or insert any object into any openings.
8. DO NOT operate any appliance with a damaged cord or plug, if the motor
fan fails to rotate, after the appliance malfunctions, or if it has been
dropped or damaged in any manner.
9. Use appliance only for the intended household use as described in this
manual. Any other use not recommended by the manufacturer may
cause fire, electric shock, or injury to persons.
10. DO NOT use outdoors.
11. NEVER block the air openings, grills/outlets or place on a soft surface
such as a bed or sofa, as this could cause the unit to tip over, blocking
the air intake opening.
12. Keep the unit away from heated surfaces and open flames.
13. DO NOT attempt to repair or adjust any electrical or mechanical
functions in this unit. Doing so will void your warranty. The inside of the
unit contains no user serviceable parts. All servicing should be

performed by qualified personnel only.
14. WARNING: To reduce the risk of fire or electric shock, DO NOT use this
air purifier with any solid-state speed control device.
15. DO NOT place anything on top of unit.
16. The collection rod has many edges and areas that can trap water. The
collection rod should be completely dry before installing it into the unit.

Figure 1
FEATURES
● ELECTROSTATIC COLLECTING
● OZONE FILTER and ACTIVATED CARBON FILTER
● POWERFUL UV LAMP
● NEGATIVE IONIZER
OZONE SAFETY INSTRUCTIONS
The electrostatic/ionic air purifier will produce small amounts of ozone as
a by-product. This unit complies with the requirements of UL 867 for
acceptable levels of ozone (less than 0.05 parts per million by volume of
air circulating through the product).
People with a history respiratory problems or lung disease should consult
a physician before using this product.
CAUTION: Keep electrical appliances out of reach from children or infirm
persons.
Do not let them use appliance without supervision.
GETTING STARTED
1. Select a firm level and flat location. For proper air flow, place the unit at
least 3 feet from any wall or furniture.
2. Ensure that no grills are blocked.
3. Plug the terminal of adapter into the purifier then plug the adapter
directly into an AC outlet.
4. Do not lift the unit by the top cover. Always lift it by the handle on the rear
of the unit.
OPERATING INSTRUCTIONS (See Figure 2)
1. Ensure the collector rod is firmly seated in place and the top cover is
securely latched.
2. Turn the selector switch on the top of unit to LOW or HIGH mode.
3. The power light will illuminate automatically.
4. To switch off, turn the selector switch to OFF position.

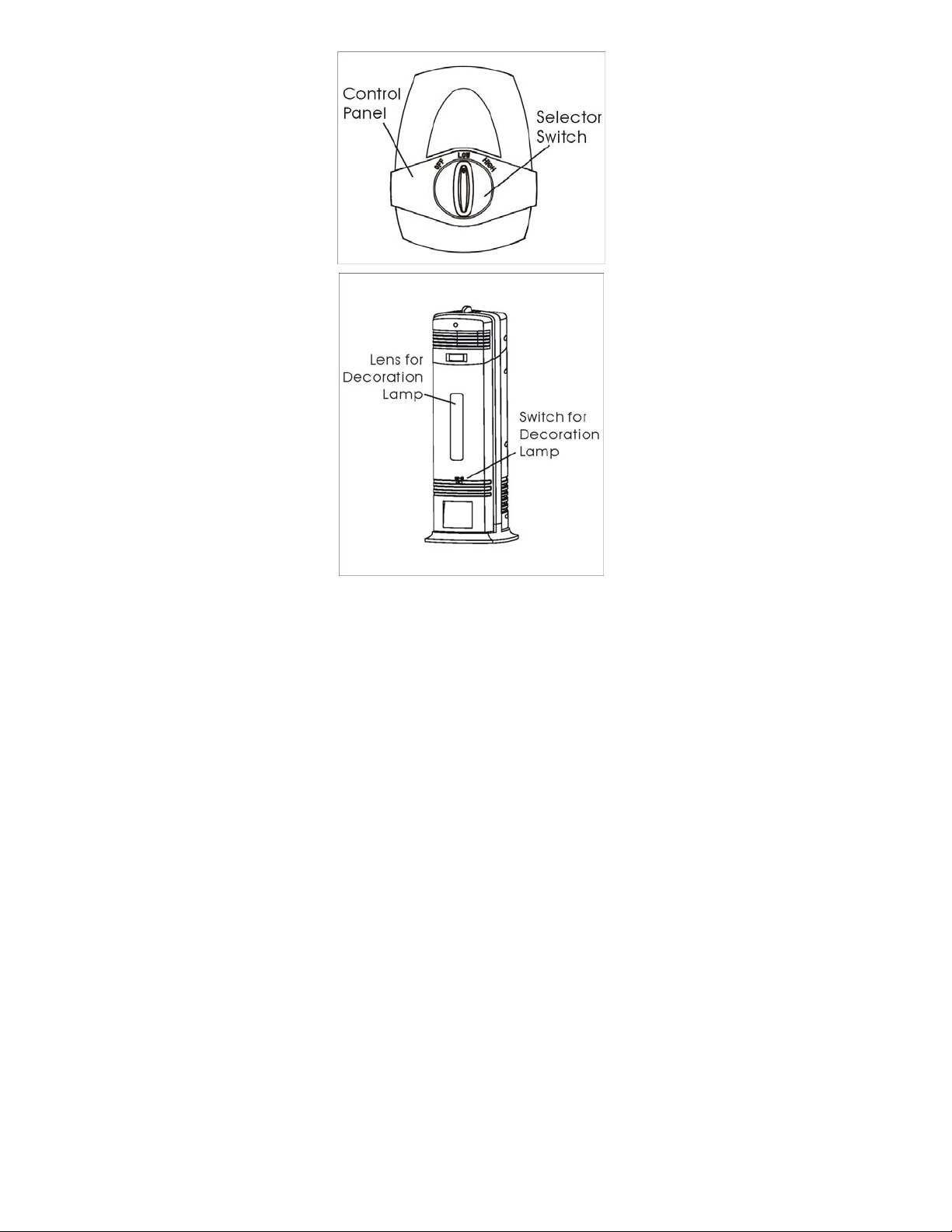

Figure 2 Figure 3
AMBIENT BLUE LIGHTING INSTRUCTIONS (See Figure 3)
This purifier also provides a soothing blue ambient decorative light. Turn
the decoration lamp light switch on to turn on the blue light and turn the
switch off to shut the blue ambient lamp off.

Figure 4
REMOVING/ CLEANING/INSTALLING THE COLLECTOR ROD (See
Figure 4)
● To remove the collector rod:
1. Unplug the unit;
2. Press the release button and flip the top cover backward; (See Figure 4
and follow arrow ①)
3. Grip the collector rod handle and pull it up firmly. (See Figure 4 and
follow arrow ②)
● To clean the collector rod:
-- For common household particles
1. Remove the Collector Rod from the unit as described above;
2. Use a soft, damp cloth to wipe the surface of the Collector Rod;
3. Ensure that the collector rod is completely dry;
4. Insert the collector rod back into the unit;
5. Clean the collector rod every 2-3 weeks, sooner if needed.
-- For tobacco smoke or particles that are not easily removed
1. Remove the collector rod from the unit as described above;

2. Use a sponge with a mild soap and water solution to wipe the collector
rod from top to bottom;
3. Wipe down the collector rod with a damp cloth and ensure that no soap
residue remains on the collector rod and it is completely dry. (Do not
place under running water to rinse.)
4. Insert the collector rod back into the unit.
5. Clean the collector rod every week, sooner if needed.
6. Please see the FAQ section of this manual if no dust is present on your
collector rod.
NOTE: The air purifier may experience some discoloration on the
collector rod over time. This is normal and does not affect the
performance of the product in any way.
● To install the collector rod:
1. Ensure the unit is unplugged and the collector is completely dry;
2. The collector rod can be inserted into the unit only one way;
Align the collector rod with the opening in the unit;
3. Insert the collector rod down until it sits firmly in place;
Ensure the top handle of the collector rod is flush with the surrounding
surface;
4. Flip the top cover forward and securely latch in place.

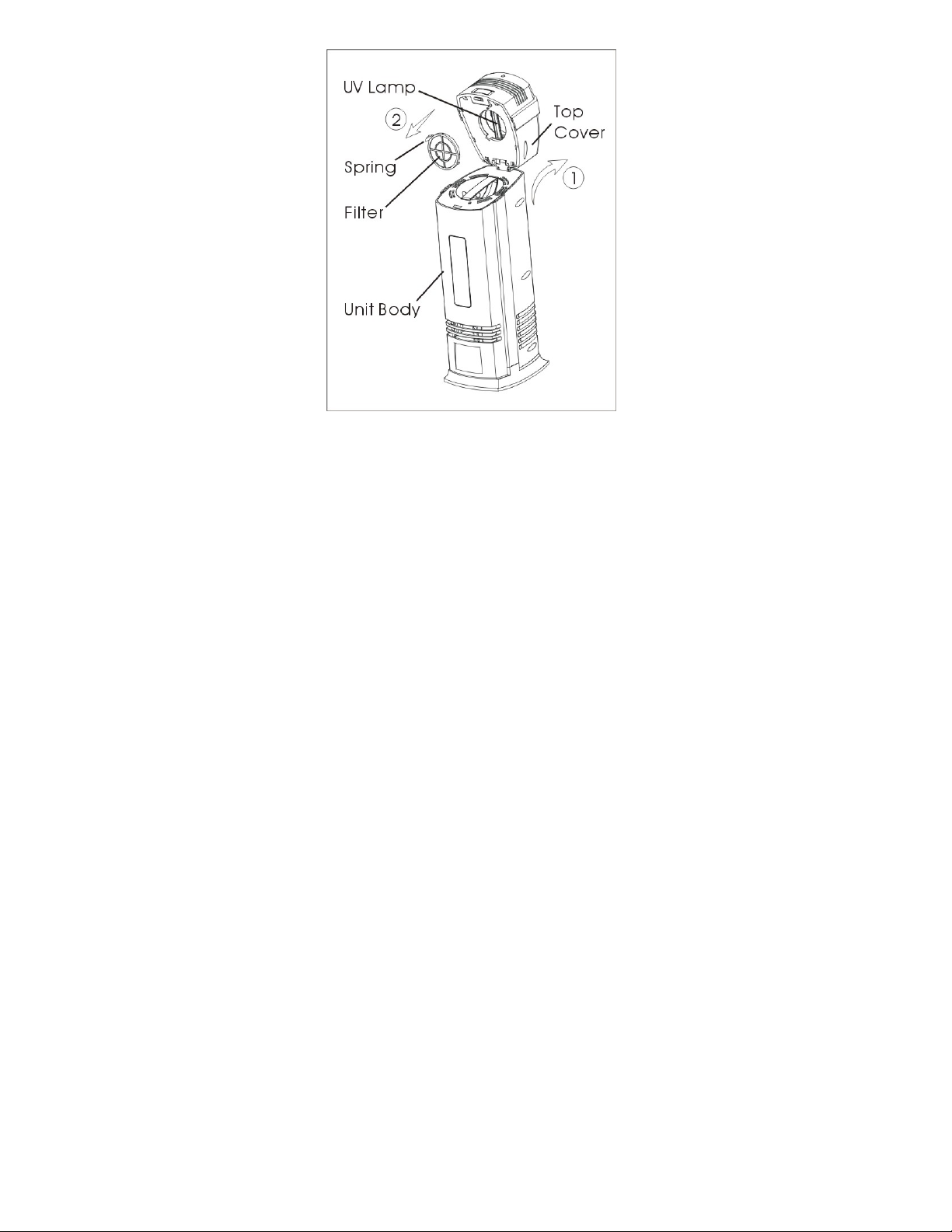

Figure 5
REMOVING/CLEANING/INSTALLING THE CARBON FILTER (See
Figure 5)
● To remove the filter:
1. Unplug the unit;
2. Press the release button and flip the top cover backward; (See Figure 5
and follow arrow ①)
3. Take out the filter from top cover by pressing and gripping the spring on
the filter cover. (See Figure 5 and follow arrow ②)
● To clean the filter:
1. Clean the filter with the vacuum brush attachment of your vacuum
cleaner. This will remove lint and dirt from the filter;
2. Although, the carbon filter is not critical for purification, we recommend
replacing this filter with a new one every 6-12 months of use.
● To install the filter:
1. Ensure the unit is unplugged;
2. Install the filter into the top cover by gripping and pressing the spring on
the filter cover;

3. Ensure the filter is flush with the surrounding surface;
4. Flip the top cover forward and securely latch in place.
CLEANING THE UV LAMP (See Figure 5)
● To find the UV lamp:
1. Unplug the unit;
2. Press the release button and flip the top cover backward; (See Figure 5
and follow arrow ①)
3. Take out the filter from top cover by pressing and gripping the spring on
the filter cover; (See Figure 5 and follow arrow ②)
4. You should see the glass UV lamp; please handle the UV lamp with
extreme care;
● To clean the UV lamp:
Softly wipe the UV lamp with a dry, soft cloth to clean the dirt attached on
the surface of lamp;
CAUTION: The UV lamp is a glass product, please handle and clean it
carefully; Do not use a damp cloth or any liquid solution to clean the UV
lamp.
● To install the unit after cleaning the UV lamp:
1. Ensure the unit is unplugged;
2. Install the filter to the top cover as in the above INSTALLING THE
FILTER;
3. Ensure the filter is flush with the surrounding surface.
4. Flip the top cover forward and securely latch in place.
CLEANING AND MAINTENANCE OF THE UNIT
The air purifier should be cleaned at least once every three weeks. More
frequent cleaning may be required depending upon environmental
conditions.
1. Turn off and unplug the unit;
2. Press the release button and flip the top cover backward;
3. Remove and clean the collector rod as described in CLEANING THE
COLLECTOR ROD;
4. Turn the unit upside-down 2 or 3 times and hold for at least 3 seconds
each time. This allows the cleaning spheres inside the unit to scrape

any accumulated debris off the electronic wires. IT IS NORMAL TO
HEAR THE SOUND OF THE CLEANING SPHERES SCRAPING THE
WIRES.
NOTE: Do not stick any foreign objects or your fingers inside the unit.
5. Use a clean, dry, soft cloth to wipe the external surface of unit.
CAUTION: Do not use gasoline, benzene, thinner, harsh cleaners,
etc., as they will damage the product. NEVER use ALCOHOL OR
SOLVENTS.
TROUBLE SHOOTING TIPS
If the air purifier shuts off unexpectedly, safety features may have been
activated to prevent damage or injury. If this happens:
1. Be sure the air purifier is plugged into a working electrical outlet;
2. Check to be sure the collector rod is firmly seated in place;
3. Check to be sure the top cover is latched firmly in place.
NOTE: IF YOU CONTINUE TO EXPERIENCE A PROBLEM, PLEASE
CONTACT TECH SUPPORT. DO NOT ATTEMPT TO TAKE APART THE
UNIT BY YOURSELF. DOING SO MAY VOID YOUR WARRANTY AND
CAUSE DAMAGE TO THE PRODUCT OR PERSONAL INJURY.
FREQUENTLY ASKED QUESTIONS
● Is the air purifier considered an ozone generator?
- No. Ozone generators produce large amounts of ozone and the EPA
considers these unsafe for household use. The air purifier
electrostatically removes particles from the air and releases only trace
amounts of ozone.
● What does the power setting do?
- The power setting can change the cleaning power voltage of the
electrostatic wires inside the unit. Use low or high settings according to
the need for the air quality in which the unit is placed.

● The air purifier was making a “cracking” sound and now it doesn’t seem
to be cleaning the air any more. Is it broken?
- No. The air purifier needs to be cleaned. When too much dirt
accumulates on both the collector and electrostatic wire, the power to
the collector rod turns-off, but the fan will continue to run. Clean the unit
and it should then operate normally. See CLEANING THE
COLLECTOR ROD and CLEANING AND MAINTENANCE.
● Why is there no dust visible on the collector rods?
- The area that the purifier can treat by pulling in particles from the air is
limited due to the unit size. However, the area that it can affect with its
ozone is much larger. Please note that for dust removal there are 2
methods that are recommended. Method 1 is to use ion generation to
attach the ions to the dust particles and have them fall to the floor or
surface, which is why you will see more dust on surfaces and around
the unit when using this method. Method 2 is to place the unit directly in
the area where you are experiencing dust if you want the unit to directly
collect as much dust as possible in the area because the only way to
pull in airborne dust is for the unit to directly operate in the area.
Unfortunately, the only way to collect dust on the collector rods in larger
areas without moving the unit is similar to how central air conditioning
works, which requires large outdoor fans and return air systems. The
fan would have to be large and powerful enough to accomplish this,
which just isn't possible to accomplish in a portable air purifier without
moving the unit. This is why many units offer Method 1 of ion generation
to pull the dust out of the air and attach it to the floor or surfaces, so that
the dust is not airborne and being breathed in for the dust that cannot
be pulled into the unit by the purifier fan. The neutralized dust that
attaches to surfaces should then be periodically removed via routine
home cleaning.
ELECTRICAL SPECIFICATIONS
DC12V, 500mA
