ION Job Rocker Max User manual

Confidential ION Audio Service Manual
ION Audio
Job Rocker
[iPA30]
Service Manual
v1.0
2014.04.09
The information in this document contains privileged and confidential information. It is intended
only for the use of those authorized by ION Audio. If you are not the authorized, intended
recipient, you are hereby notified that any review, dissemination, distribution or duplication of
this document is strictly prohibited. If you are not authorized, please contact ION Audio and
destroy all copies of this document. You may contact ION Audio at [e-mail].
© Copyright ION Audio
ATTENTION!
This document contains sensitive proprietary
information.
All recipients must have a current non-disclosure
agreement on file with ION Audio.
Do not make illegal copies of this document.

Confidential ION Audio Service Manual
Preface
This document is intended to assist the service technician in the operation, maintenance and
repair of the ION Audio device. Together with the User Reference Manual, this document
provides a complete description of the functionality and serviceability of the Device. Any
comments or suggestions you may have pertaining to the document are welcome and
encouraged.
Read This!
In addition to any purchase price that ION Audio may charge as consideration for ION Audio
selling or otherwise transferring this service manual ("Manual") to you, if you are not a service
and repair facility ("Service Center") authorized by ION Audio in writing to be an authorized
Service Center, ION Audio sells or transfers the Manual to you on the following terms and
conditions:
Only Service Centers authorized by ION Audio in writing are authorized to perform service and
repairs covered by an ION Audio warranty (if any), and transfer of the Manual to you does not
authorize you to be an authorized Service Center. Therefore, if you perform, or if the Manual
is used to perform, any service or repairs on any ION Audio product or part thereof, any
and all warranties of ION Audio as to that product and any service contract with ION Audio
for that product shall be voided and shall no longer apply for such product, even if your
services or repairs were done in accordance with the Manual.
All service or repairs done by you or with reference to the Manual shall be solely your
responsibility, and ION Audio shall have no liability for any such repairs or service work. All such
service or repairs are performed at the sole risk of the person performing the service or
repairs. You agree that all such work will be performed in a competent, professional and safe
manner at all times and to indemnify and fully hold ION Audio and its successors and assigns
harmless in the event of any failure to so perform.
Your purchase of the Manual shall be for your own ultimate use and shall not be for purposes of
resale or other transfer.
As the owner of the copyright to the Manual, ION Audio does not give you the right to copy the
Manual, and you agree not to copy the Manual without the written authorization of ION Audio.
ION Audio has no obligation to provide to you any correction of, or supplement to, the Manual,
or any new or superseding version thereof.
ION Audio shall have the right to refuse to sell or otherwise transfer repair parts or materials to
you in its sole discretion. You shall not use, sell or otherwise transfer spare or replacement parts
supplied by ION Audio to you (i) to repair or be used in products manufactured for or by third
parties or (ii) to any third parties for any purpose.
You shall not make any warranties or guarantees with respect to the products of ION Audio or
the use thereof on behalf of ION Audio or in your own name.
The foregoing describes the entire understanding related to sale or transfer of the Manual to you,
and no other terms shall apply unless in a writing signed by an authorized representative of ION
Audio.
All Trademarks are property of their respective companies.

Confidential ION Audio Service Manual
Warnings
TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE
THIS PRODUCT TO WATER OR MOISTURE.
The arrowhead symbol on a lightning flash inside a triangle is
intended to alert the user to the presence of uninsulated
"dangerous voltage" within the enclosed product which may be of
sufficient magnitude to constitute a risk of electric shock to
persons.
The exclamation point inside a triangle is intended to alert the user
to the presence of important operating, maintenance and servicing
instructions in the literature which accompanies the product.
REPAIR BY ANY PERSON OR ENTITY OTHER THAN AN AUTHORIZED ION
AUDIO SERVICE CENTER WILL VOID THE ION AUDIO WARRANTY.
PROVISION OF THIS MANUAL DOES NOT AUTHORIZE THE RECIPIENT TO
COMPETE WITH ANY ION AUDIO DISTRIBUTOR OR AUTHORIZED REPAIR
SERVICE CENTER IN THE PROVISION OF REPAIR SERVICES OR TO BE OR
MAKE REPAIRS AS AN AUTHORIZED SERVICE CENTER.
ALL REPAIRS DONE BY ANY ENTITY OTHER THAN AN AUTHORIZED ION
AUDIO SERVICE CENTER SHALL BE SOLELY THE RESPONSIBILITY OF
THAT ENTITY, AND ION AUDIO SHALL HAVE NO LIABILITY TO THAT
ENTITY OR TO ANY OTHER PARTY FOR ANY REPAIRS BY THAT ENTITY.
Regarding the Power Supply Fuse
CAUTION: The product under service may employ the use of a
replaceable fuse. Danger of fire or electrocution if fuse is incorrectly
replaced. Replace with only the same type or equivalent type
recommended by the equipment manufacturer.
Regarding the Internal Battery
CAUTION: The product under service may employ the use of a
internal battery. Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used batteries
according to the manufacturer's instruction.

Confidential ION Audio Service Manual
Safety Instructions
Carefully read the applicable items of the operating instructions and these safety suggestions
before using this product. Use extra care to follow the warnings written on the product itself and
in the operating instructions. Keep the operating instructions and safety suggestions for
reference in the future.
1. Power Source. The product should only be connected to a power supply which is
described either in the operating instructions or in markings on the product.
2. Power Cord Protection. AC power supply cords should be placed such that no one is likely
to step on the cords and such that nothing will be placed on or against them.
3. Periods of Non-use. If the product is not used for any significant period of time, the
product's AC power supply cord should be unplugged from the AC outlet.
4. Foreign Objects and Liquids. Take care not to allow liquids to spill or objects to fall into
any openings of the product.
5. Water or Moisture. The product should not be used near any water or in moisture.
6. Heat. Do not place the product near heat sources such as stoves, heat registers, radiators
or other heat producing equipment.
7. Ventilation. When installing the product, make sure that the product has adequate
ventilation. Improperly ventilating the product may cause overheating, which may damage
the product.
8. Mounting. The product should only be used with a rack which the manufacturer
recommends. The combination of the product and rack should be moved carefully. Quick
movements, excessive force or uneven surfaces may overturn the combination which may
damage the product and rack combination.
9. Cleaning. The product should only be cleaned as the manufacturer recommends.
10. Service. The user should only attempt the limited service or upkeep specifically described in
the operating instructions for the user. For any other service required, the product should be
taken to an authorized service center as described in the operating instructions.
11. Damage to the Product. Qualified service personnel should service the unit in certain
situations including without limitation when:
a. Liquid has spilled or objects have fallen into the product,
b. The product is exposed to water or excessive moisture,
c. The AC power supply plug or cord is damaged,
d. The product shows an inappropriate change in performance or does not operate
normally, or
e. The enclosure of the product has been damaged.

Part number Part name Description Unit Q'ty T/P
DR001530
Final assembly IPA30 IPA30 Final assembly PCS 1 7.3333
40010038 Power socket AN-J0138,DB-14-F,3P PCS 1 0.3583
16040789 cable AN-W4350,2P,18#,UL1015,100mm PCS 1 0.1270
16040790 cable AN-W4351,2P,18#,UL1015,100mm PCS 1 0.1270
16040791 cable AN-W4352,2P,18#,UL1015,100mm,black PCS 1 0.1270
40010047 Power socket AN-J0146,DB-F-M PCS 2 0.3387
16010206 cable AN-W14P,2P,22#,UL1007,200mm, brown PCS 1 0.0406
12030031 rocker switch AN-S331,RF-1003,BBG8E2L1T PCS 1 0.2540
50120020 X1Y2 safety capacitor CE series,2200PF,VAC250V,±20%,P=7.5mm PCS 2 0.0644
20460015 fixed button PL-3 PCS 2 0.0847
16050214 Shielded cable AN-W5209,2P,22#,UL1185,100mm PCS 1 0.0813
16040573 cable AN-W4147,2P,18#,UL1015,200mm PCS 1 0.0804
60100016 Antenna IPA23,AM antenna,AM-D8x100mm-85TS-M7 PCS 1 0.1067
70010450 screw Φ2*6mm,,screwhead3.5mm, PCS 6 0.0088
60100017 Antenna rubber antenna,2.4G,2DBi,black,ROHS PCS 1 0.3302
16120137 cable AN-WE137,1P,UL1007,18#,200mm PCS 1 0.0660
30010053 Heat-Shrinkable T bush Φ40*50*0.50mm,UL,black PCS 3 0.1793
30010018 Heat-Shrinkable T bush Φ5*10*0.28mm,UL,black PCS 2 0.0009
30010046 Heat-Shrinkable T bush Φ25*40*0.45mm,UL,black PCS 3 0.0473
30090009 cable 2.5*120mm,black PCS 12 0.0467
20010101 Faceplate
DN-PC1043,ABS,UL94V-0,T=2.5mm, orange
painting,V1.0
PCS 1 1.4418
54010085 Faceplate DN-PC1043,ABS,UL94V-0,T=2.5mm,black,V1.0 PCS 1 0.0169
20640015 front cover DN-EC015,ABS,black, texture,V1.0 PCS 1 0.4725
10160193 Front panel
DN-MC7073,aluminium alloy,T=1.5mm,brushed
aluminium,V1.0
PCS 1 0.5419
56160025 Front panel
DN-MC7073,aluminium alloy,T=1.5mm,
silkscreen black,V1.0
PCS 1 0.0169
20210137 knob
DN-PN2099,ABS,black, black rubber
painting,ROHS,V1.0
PCS 1 0.1710
20090018 Plastic cover
DN-PC0014,(1),silicone,black,UL94V-0,hardness
30°,V1.0
PCS 2 0.3218
20090015 Plastic cover
DN-PC0012,(2),silicone,UL94V-0,black,
hardness30°,V1.0
PCS 1 0.1778
20090017 Plastic cover DN-PC0014,(3),silicone,black, hardness 30°,V1.0 PCS 1 0.0169
20360073 Plastic sheet PVC,T=1.0MM, orange painting,V1.0 PCS 1 0.0271
20670022 Button DN-PC67015, silicone,black,V1.0 PCS 1 0.3387
20110088 Lens IPA16, lens,PMMA,transparent,V1.0 PCS 1 0.0593
20200042 Switch cap
DN-PN1038,ABS,black, texture(MT-11000)black
painting,ROHS,V1.0
PCS 1 0.0762
10520153 iron plate DN-ME0028,SECC,T=1.2mm,,V1.0 PCS 1 0.0982
70090044 gasket Φ10*Φ4*1.0mm,steel PCS 2 0.0072
70090023 gasket Φ7*Φ4.2*1.0mm,steel PCS 2 0.0041
tweeter

20630031 transformer pad 22*27.5*2mm, rubber PCS 2 0.0274
10520174 spacer soft steel,T=1.5mm,V1.0 PCS 1 0.0131
30060324 foam EVA1030,73*43*9.5mm,black,V1.0 PCS 1 0.0642
70010088 screw Φ3*8mm,,screwheadD5.5mm PCS 16 0.0298
70010237 screw M4*16mm,,screw headD9mm PCS 2 0.0131
CR010422
RoHS: PRE ASSY IPA30 PRE ASSY PCS 1 1.5888
17020085
Sub-electrolytic
capacitor
100uF/16V,±20%,-40/+105℃,Φ
5*7mm,P=2mm,black
PCS 2 0.0175
17020063
Sub-electrolytic
capacitor
100uF/16V,±20%,-40/+85℃,Φ
5*7mm,P=2.0mm,black,
PCS 5 0.0549
17010282 electrolytic capacitor
1000uF/16V,±20%,-40/+85℃,Φ
8*16mm,P=3.5mm,black
PCS 1 0.0304
17020032
Sub-electrolytic
capacitor
10uF/50V,±20%,-40/+85℃,Φ
5*7mm,P=2.0mm,black
PCS 8 0.0585
17020071
Sub-electrolytic
capacitor
1uF/50V,±20%,-40/+105℃,Φ
4*5mm,P=2.0mm,black
PCS 1 0.0095
17010406 electrolytic capacitor
470uF/25V,±20%,-40/+85℃,Φ
8*14mm,P=3.5mm,black
PCS 1 0.0210
14040160 IC TL431-A,TO92 PCS 1 0.0281
18040122 LED ANL0122,DIP,SBR03W4C3B7W,Φ3*5mm,blue PCS 1 0.0644
18040122 LED ANL0122,DIP,SBR03W4C3B7W,Φ3*5mm,blue PCS 1 0.0644
15010467
rotational
potentiometer
AN-V1169,R0915N1D2-12F6.5-5-A10K-R90/15KG PCS 1 0.2744
24130002 common mode choke
common mode choke, 400uh, green magnetic
ring,T9*5*3DP-400UH
PCS 1 0.0931
40370005 Male jack AN-JP401,HT-2.5-06P-01A PCS 1 0.0220
40370003 Male jack
AN-JP401,XH2.5-4P,2532-
04,(180degree,P=2.5mm)HT-2.5-04P-01A
PCS 1 0.0113
40370318 Male jack AN-JP482,XH2.54-2A PCS 1 0.0176
12040001 Touch switch AN-S401,TSF6273DJ-250AH PCS 1 0.0257
40040017 3.5 jack AN-J0418,PJK-0358, silver plating PCS 1 0.1372
20260043 LED sleeve LED3B-11 PCS 1 0.0086
30010004 Heat-Shrinkable T bush Φ2*10*0.20mm,UL,black PCS 2 0.0006
10490015 insert sheet JP-13,13*7*0.8mm PCS 1 0.0322
16110058 Shielded cable AN-WD58,4P,22#,UL1185,500mm PCS 1 0.2506
16040124 cable AN-W41B,2P,24#,UL1007,200mm PCS 1 0.0491
CR010423
RoHS: PRE SMT Homni confidence PCS 1 2.4900
26020639 PCB Homni confidence PCS 1 0.5944
50050343 SMT ceramic capacitor Homni confidence PCS 17 0.2591
50050175 SMT ceramic capacitor Homni confidence PCS 2 0.0064
50050074 SMT ceramic capacitor Homni confidence PCS 11 0.0175
50050137 SMT ceramic capacitor Homni confidence PCS 7 0.0130
50050115 SMT ceramic capacitor Homni confidence PCS 1 0.0017
50050046 SMT ceramic capacitor Homni confidence PCS 6 0.0132
50050036 SMT ceramic capacitor Homni confidence PCS 11 0.0123

50050031 SMT ceramic capacitor Homni confidence PCS 2 0.0022
50050047 SMT ceramic capacitor Homni confidence PCS 1 0.0022
11170001 SMT resistor Homni confidence PCS 2 0.0016
11170552 SMT resistor Homni confidence PCS 1 0.0005
11170536 SMT resistor Homni confidence PCS 2 0.0011
11170533 SMT resistor Homni confidence PCS 1 0.0005
11170422 SMT resistor Homni confidence PCS 2 0.0008
11170421 SMT resistor Homni confidence PCS 2 0.0008
11170520 SMT resistor Homni confidence PCS 2 0.0011
11170419 SMT resistor Homni confidence PCS 2 0.0008
11170413 SMT resistor Homni confidence PCS 16 0.0065
11170411 SMT resistor Homni confidence PCS 2 0.0008
11170406 SMT resistor Homni confidence PCS 13 0.0053
11170405 SMT resistor Homni confidence PCS 2 0.0008
11170525 SMT resistor Homni confidence PCS 1 0.0005
11170398 SMT resistor Homni confidence PCS 4 0.0016
11170393 SMT resistor Homni confidence PCS 2 0.0008
11170391 SMT resistor Homni confidence PCS 1 0.0004
11170385 SMT resistor Homni confidence PCS 7 0.0028
11170886 SMT resistor Homni confidence PCS 1 0.0005
11170377 SMT resistor Homni confidence PCS 1 0.0004
11170469 SMT resistor Homni confidence PCS 1 0.0005
11170374 SMT resistor Homni confidence PCS 2 0.0008
11170373 SMT resistor Homni confidence PCS 1 0.0004
11170364 SMT resistor Homni confidence PCS 5 0.0020
11170356 SMT resistor Homni confidence PCS 1 0.0004
11170353 SMT resistor Homni confidence PCS 1 0.0004
11170350 SMT resistor Homni confidence PCS 4 0.0016
11170124 SMT resistor Homni confidence PCS 1 0.0014
24040045 SMT inductor Homni confidence PCS 5 0.0423
24010024 SMT magnetic bead Homni confidence PCS 11 0.1490
24010033 SMT magnetic bead Homni confidence PCS 6 0.0691
14010161 NPN audion Homni confidence PCS 4 0.1425
14010149 NPN audion Homni confidence PCS 1 0.0102
14060012 PFET Homni confidence PCS 1 0.0288
14060014 PFET Homni confidence PCS 1 0.0600
14040923 IC Homni confidence PCS 5 0.1974
14040897 IC Homni confidence PCS 2 0.1092
14040871 IC Homni confidence PCS 1 0.1502
40330016 Connector Homni confidence PCS 1 0.0762
CR010357
RoHS: IPA BLUETOOTH
V3.0
IPA BLUETOOTH V3.0 ASSY PCS 1 3.4645
26060053 PCB Homni confidence PCS 1 0.1016
50050340 SMT ceramic capacitor Homni confidence PCS 5 0.0047
50050350 SMT ceramic capacitor Homni confidence PCS 1 0.0010

50050386 SMT ceramic capacitor Homni confidence PCS 1 0.0012
50050268 SMT ceramic capacitor Homni confidence PCS 2 0.0019
50050334 SMT ceramic capacitor Homni confidence PCS 3 0.0127
50050347 SMT ceramic capacitor Homni confidence PCS 3 0.0102
50050365 SMT ceramic capacitor Homni confidence PCS 1 0.0054
50050323 SMT ceramic capacitor Homni confidence PCS 2 0.0169
50050343 SMT ceramic capacitor Homni confidence PCS 3 0.0457
11171122 SMT resistor Homni confidence PCS 2 0.0024
11171121 SMT resistor Homni confidence PCS 1 0.0005
11171116 SMT resistor Homni confidence PCS 1 0.0005
24040053 SMT inductor Homni confidence PCS 1 0.0046
24040059 SMT inductor Homni confidence PCS 1 0.0777
25020030 SMT crystal resonator Homni confidence PCS 1 0.2879
14040898 IC Homni confidence PCS 1 0.1829
14040899 IC Homni confidence PCS 1 1.8900
14040835 IC Homni confidence PCS 1 0.1238
CR010438
RoHS: AMP ASSY IPA30 AMP ASSY PCS 1 2.0533
17050005
nonpolarity electrolytic
capacitor
1uF/50V,±10%,-40/+85℃,Φ
5*11mm,P=2.0mm,black,
PCS 1 0.0102
17010256 electrolytic capacitor
470uF/25V,±20%,-40/+85℃,Φ
8*14mm,P=3.5mm,black,
PCS 3 0.0768
50030210
metallized polyester
capacitor
225,VDC63,±5%, yellow PCS 2 0.4234
40370098 Male jack AN-JP410,3961-02,(P=3.96mm,180 degree) PCS 1 0.0148
40370001 Male jack AN-JP401,XH2.5-2P,2532-02 PCS 1 0.0061
24050013 colour code inductor AN-I5012,2uH,±10%,LGA0406-2R2K PCS 1 0.0237
24060112 magnetic core inductor AN-I6053,LBP1010-15uH,15uH,3.5A PCS 2 0.2371
24130002 common mode choke
common mode choke, 400uh, green magnetic
ring,T9*5*3DP-400UH
PCS 1 0.0931
24100030 magnet ring T22*14*8-C ,5uH, green PCS 1 0.0779
16010326 cable AN-W19S,5P,22#,UL1007,200mm PCS 1 0.1948
17020032
Sub-electrolytic
capacitor
10uF/50V,±20%,-40/+85℃,Φ
5*7mm,P=2.0mm,black,
PCS 2 0.0146
14040218 IC LM339N,DIP14,ONSEMI-ST PCS 1 0.0638
18040019 LED DIP,Φ3*5,TOL30AHGADAA,3MM,OASISTEK PCS 3 0.0356
18040024 LED DIP,Φ3*5,L03R5A141D1104,3MM PCS 1 0.0152
20260045 LED sleeve LEDS-18 PCS 4 0.1219
16040713 cable AN-W4281,4P,22#,UL1007,L=150mm PCS 1 0.1321
16060086 grounding cable AN-W684,18#,UL1015,230mm PCS 1 0.0813
10520190 copper foil (T=0.03mm)PC (T=0.3mm),V1.0 PCS 1 0.0203
CR010425
RoHS: AMP SMT Homni confidence PCS 1 1.2940
26020638 PCB Homni confidence PCS 1 0.3484
50050053 SMT ceramic capacitor Homni confidence PCS 1 0.0021
50050232 SMT ceramic capacitor Homni confidence PCS 2 0.0075
50050171 SMT ceramic capacitor Homni confidence PCS 2 0.0203

50050075 SMT ceramic capacitor Homni confidence PCS 2 0.0051
50050255 SMT ceramic capacitor Homni confidence PCS 3 0.0203
11170009 SMT resistor Homni confidence PCS 3 0.0024
11170001 SMT resistor Homni confidence PCS 1 0.0008
11170137 SMT resistor Homni confidence PCS 1 0.0010
11170335 SMT resistor Homni confidence PCS 1 0.0010
11170170 SMT resistor Homni confidence PCS 1 0.0010
11170213 SMT resistor Homni confidence PCS 1 0.0010
11170068 SMT resistor Homni confidence PCS 1 0.0008
11170266 SMT resistor Homni confidence PCS 4 0.0041
11170186 SMT resistor Homni confidence PCS 1 0.0010
24040045 SMT inductor Homni confidence PCS 1 0.0085
14040841 IC Homni confidence PCS 1 0.5985
50050077 SMT ceramic capacitor Homni confidence PCS 1 0.0023
11171154 SMT resistor Homni confidence PCS 1 0.0010
11170339 SMT resistor Homni confidence PCS 2 0.0020
11170199 SMT resistor Homni confidence PCS 4 0.0041
11171110 SMT resistor Homni confidence PCS 1 0.0010
11170240 SMT resistor Homni confidence PCS 1 0.0010
CR010426
RoHS: POWER ASSY IPA30 POWER ASSY PCS 1 2.7458
50030016
Metallized polyester
capacitor
104,VDC100,±5%, yellow,7.2(W)*6.5(H)*2.5(T) PCS 1 0.0246
18010039 Common diode AN-D10039,DO-201AD,1N5401 PCS 4 0.0867
40370099 electrolytic capacitor AN-JP410,VH-3A, 3.96mm,3P PCS 1 0.0222
17010119 electrolytic capacitor
100uF/25V,±20%,-40/+85℃,Φ
5*11mm,P=2mm,black,
PCS 2 0.0139
17010100 electrolytic capacitor
1uF/50V,±20%,-40/+105℃,Φ
5*11mm,P=2mm,black,
PCS 1 0.0073
17010287 electrolytic capacitor
1000uF/25V,±20%,-40/+85℃,Φ
10*16mm,P=5mm, black
PCS 1 0.0428
17010079 electrolytic capacitor
4700uF/35V,±20%,-40/+85℃,Φ
18*35,P=7.5mm,black,
PCS 1 0.2853
17010217 electrolytic capacitor
220uF/25V,±20%,-40/+85℃,Φ
6.3*11mm,P=2.5mm,black,
PCS 1 0.0139
17010170 electrolytic capacitor
47uF/25V,±20%,-40/+85℃,Φ
5*11mm,P=2mm,black,
PCS 2 0.0143
17010163 electrolytic capacitor
4.7uF/50V,±20%,-40/+105℃,Φ
5*11mm,P=2mm,black,
PCS 1 0.0077
17010153 electrolytic capacitor
0.47uF/50V,±20%,-40/+85℃,Φ
5*11mm,P=2mm,black,
PCS 1 0.0067
17020010
Sub-electrolytic
capacitor
0.47uF/50V,±20%,-40/+85℃,Φ
4*7mm,P=1.5mm,black,
PCS 1 0.0069
50010063 ceramic capacitor 104,VDC50,±10%,X7R, brown, OD=9mm PCS 1 0.0237
50010041 ceramic capacitor 101,VDC50,±5%,NPO,brown,OD=5mm PCS 1 0.0055

11110349
metal oxide film
resitance
1/4W,3.9KΩ,±5% PCS 1 0.0032
11110241
metal oxide film
resitance
5W,2.4Ω,±5% PCS 1 0.0762
18010117 Common diode DO-201AD,1N5822 PCS 2 0.0948
14020137 PNP audion KTA1266-GR-AT/P,TO-92 PCS 1 0.0124
14010005 NPN audion HMPSA13,TO92 PCS 1 0.0474
14010039 NPN audion KTC3198-GR-AT/P,TO-92 PCS 1 0.0124
14010100 NPN audion KTC1027Y,TO92 PCS 1 0.0559
14010084 NPN audion TIP41C,TO220,ST PCS 1 0.1256
14040213 IC LM317T,TO220,ST PCS 1 0.1350
14040194 IC NJM7809A,TO220,JRC PCS 1 0.1442
30020009 fibre sleeve Φ1*20*0.3mm,white PCS 2 0.0013
40370001 Male jack AN-JP401,XH2.5-2P,2532-02 PCS 3 0.0183
40370004 Male jack AN-JP401,HT-2.5-05P-01A PCS 1 0.0150
40370003 Male jack
AN-JP401,XH2.5-4P,2532-04,(180
degree,P=2.5mm)HT-2.5-04P-01A
PCS 2 0.0225
40370098 Male jack AN-JP410,3961-02, P=3.96mm,180 degree PCS 1 0.0148
10490004 insert sheet E665，P=5.0mm,T250 PCS 2 0.0288
40360350 pin AN-JP413,1P,HT-TJC1-1A PCS 1 0.0132
18040019 LED DIP,Φ3*5,TOL30AHGADAA,3MM,OASISTEK PCS 1 0.0119
16010188 cable AN-W13S,2P,24#,UL1007,250mm PCS 1 0.0398
30010004 Heat-Shrinkable T bush Φ2*10*0.20mm,UL,black PCS 2 0.0006
10010085 pectination heat sink DN-MH1081,aluminium alloy,V1.0 PCS 1 0.4742
20500006 insulation W05-253，￠5.3*1.8MM, fire rating:94V-0 PCS 2 0.0169
70010515 screw AN-C10515,M3*10mm,,screw headD5.5mm PCS 2 0.0132
30050006 mica plate 13*18*0.1mm, transparent PCS 2 0.0125
10280020 L shape bracket DN-MB8024,10*8.0*1.5mm,SECC, zinc plating PCS 2 0.1727
70010032 screw M3*5mm,,screw headD6mm PCS 4 0.0083
11080022 Iron jump cable Φ0.8*7.5mm PCS 4 0.0086
11080027 Iron jump cable Φ0.8*10mm PCS 2 0.0043
11080019 Iron jump cable Φ0.8*5mm PCS 1 0.0022
11080028 Iron jump cable Φ0.8*12.5mm PCS 1 0.0022
11140820 metal film resistor 1/8W,16.9kΩ,±1% PCS 1 0.0029
11140217 metal film resistor 1/8W,10KΩ,±1% PCS 1 0.0029
11140019 metal film resistor 1/8W,100Ω,±1% PCS 1 0.0029
11140022 metal film resistor 1/8W,200Ω,±1% PCS 1 0.0029
11140786 metal film resistor 1/8W,3.48KΩ,±1% PCS 1 0.0029
11130052 carbon resister 1/8W,3KΩ,±5% PCS 1 0.0016
11140226 metal film resistor 1/8W,15KΩ,±1% PCS 1 0.0029
11130102 carbon resister 1/8W,200KΩ,±5% PCS 1 0.0016
11130221 carbon resister 1/4W,3.3KΩ,±5% PCS 1 0.0019
18030025 voltage-regulator diode AN-D30025,DO-35,1/2W,13V,BZX55C13 PCS 1 0.0063
18030084 voltage-regulator diode AN-D30084,DO-35,1/2W,3.3V,BZX55 PCS 1 0.0063
18030089 voltage-regulator diode AN-D30089,DO-35,1/2W,5.1V,BZX55 PCS 1 0.0054

18010017 Common diode AN-D10017,DO-41,1N4004 PCS 1 0.0063
CR010435
RoHS: POWER SMT ASSY Homni confidence PCS 1 0.9146
26010434 PCB Homni confidence PCS 1 0.1587
50050171 SMT ceramic capacitor Homni confidence PCS 1 0.0102
50050273 SMT ceramic capacitor Homni confidence PCS 5 0.0254
11170123 SMT resistor Homni confidence PCS 1 0.0014
11170602 SMT resistor Homni confidence PCS 1 0.0014
11171147 SMT resistor Homni confidence PCS 1 0.0010
11170315 SMT resistor Homni confidence PCS 1 0.0010
11170342 SMT resistor Homni confidence PCS 1 0.0010
11170266 SMT resistor Homni confidence PCS 2 0.0020
11171148 SMT resistor Homni confidence PCS 1 0.0010
11170335 SMT resistor Homni confidence PCS 3 0.0030
11170281 SMT resistor Homni confidence PCS 3 0.0030
11170712 SMT resistor Homni confidence PCS 2 0.0020
18010075 Common diode Homni confidence PCS 1 0.0042
14060010 PFET Homni confidence PCS 1 0.0924
14040872 IC Homni confidence PCS 1 0.2100
14040229 IC Homni confidence PCS 1 0.0638
14040871 IC Homni confidence PCS 1 0.1502
CR010436
RoHS: RADIO ASSY IPA30 RADIO ASSY PCS 1 1.3630
16050204 Shielded cable AN-W5201,6P,24#UL2547/22#UL1185,80mm PCS 1 0.2540
17020089
Sub-electrolytic
capacitor
10UF/16V ±20%,-40/+85℃,Φ
4*7mm,P=2mm,black
PCS 1 0.0077
12010112 slide switch AN-S246,SS-23D13G6,2P3T,ECO PCS 1 0.0610
12040038 Touch switch AN-S437,PTC-0104-5H-300,ECO PCS 8 0.1951
60080010 LCD display IPA16,DFA0055-00 PCS 1 0.5419
11080056 Iron jump cable Φ0.6*22.5mm PCS 1 0.0022
11080017 Iron jump cable Φ0.6*20mm PCS 1 0.0022
11080015 Iron jump cable Φ0.6*17.5mm PCS 1 0.0022
11080074 Iron jump cable Φ0.6*25mm PCS 1 0.0022
11080013 Iron jump cable Φ0.6*15mm PCS 1 0.0022
11080006 Iron jump cable Φ0.6*7.5mm PCS 3 0.0065
11080009 Iron jump cable Φ0.6*10mm PCS 1 0.0022
11080003 Iron jump cable Φ0.6*5mm PCS 1 0.0022
24100030 magnet ring T22*14*8-C ,5uH, green PCS 1 0.0022
25010046 crystal resonator 32.768KHz,DT-38,±20PPM,12.5PF,ROHS,DIP PCS 1 0.0022
16120138 cable AN-WE138,1P,UL1007,18#,160mm PCS 1 0.0022
16120132 cable AN-WE132,UL1007,22#,100mm,black PCS 1 0.0022
CR010439
RoHS: RADIO SMT ASSY Homni confidence PCS 1 1.3667
26010430 PCB Homni confidence PCS 1 0.1075
50050322 SMT ceramic capacitor Homni confidence PCS 3 0.0061
50050083 SMT ceramic capacitor Homni confidence PCS 1 0.0077
50050070 SMT ceramic capacitor Homni confidence PCS 5 0.0049
50050021 SMT ceramic capacitor Homni confidence PCS 2 0.0022

50050045 SMT ceramic capacitor Homni confidence PCS 3 0.0034
50050019 SMT ceramic capacitor Homni confidence PCS 2 0.0022
50050036 SMT ceramic capacitor Homni confidence PCS 2 0.0022
11170362 SMT resistor Homni confidence PCS 2 0.0008
11170877 SMT resistor Homni confidence PCS 1 0.0005
11170360 SMT resistor Homni confidence PCS 2 0.0008
11170809 SMT resistor Homni confidence PCS 1 0.0004
11170807 SMT resistor Homni confidence PCS 10 0.0041
11170989 SMT resistor Homni confidence PCS 1 0.0019
11170366 SMT resistor Homni confidence PCS 1 0.0004
11170781 SMT resistor Homni confidence PCS 1 0.0005
11171151 SMT resistor Homni confidence PCS 1 0.0005
11170385 SMT resistor Homni confidence PCS 1 0.0004
11170391 SMT resistor Homni confidence PCS 2 0.0008
11170462 SMT resistor Homni confidence PCS 1 0.0005
11171150 SMT resistor Homni confidence PCS 1 0.0005
11170817 SMT resistor Homni confidence PCS 1 0.0004
11170376 SMT resistor Homni confidence PCS 1 0.0004
11170359 SMT resistor Homni confidence PCS 1 0.0004
11170400 SMT resistor Homni confidence PCS 1 0.0004
11170416 SMT resistor Homni confidence PCS 2 0.0008
11170350 SMT resistor Homni confidence PCS 6 0.0024
11171149 SMT resistor Homni confidence PCS 1 0.0005
11170123 SMT resistor Homni confidence PCS 2 0.0027
24010016 SMT magnetic bead Homni confidence PCS 1 0.0677
18010075 Common diode Homni confidence PCS 2 0.0084
14040900 IC Homni confidence PCS 1 0.3465
14040901 IC Homni confidence PCS 1 0.5145
GR000434
RoHS组装选件 IPA30 组装选件 PCS 1
13030201 EI变压器
AN-T30198,EI57/35,120VAC/60HZ,26W,胜怡利/
诚卓
PCS 1 2.9637
19020014 玻璃管保险丝
1A/250V,Φ5*20mm,慢熔型,低分断能力,(美,日,
欧)规认证,力特
PCS 1 0.0476
19020012 玻璃管保险丝
750mA/250V,Φ5*20mm,慢熔型,低分断能力,UL
单体认证,BEL
PCS 1 0.0825
ER000419
RoHS packaging ASSY IPA30(UL) packaging ASSY PCS 1 44.6341
17050013
nonpolarity electrolytic
capacitor
4.7uF/50V,±20%,-40/+85℃,Φ6*17mm,purple PCS 1 0.0346
16040739 cable AN-W4305,1P,16#,UL1015,550mm,black PCS 1 0.1981
16140116 multi-core cable 18#,UL1007,10+350+10mm, brown PCS 1 0.0491
16140115 multi-core cable 18#,UL1007,L=350mm,black PCS 1 0.0491
16040574 cable AN-W4148,2P,18#,UL1015,L=350mm PCS 1 0.1224
16140591 multi-core cable 18#,UL1015,L=500mm, blue PCS 1 0.1033
16040610 cable AN-W4182,18#,UL1015,500mm, red PCS 1 0.2591

60190143 FM antenna
IPA30,FM plastic，￠9.5*220mm antenna core
is 150mm long, black
PCS 1 0.5707
30090002 cable 2.5*80mm,black PCS 5 0.0097
21010390 cabinet
MDF,T=9MM,PVC wraper, black painting on front
panel,CARB,V1.0
PCS 1 6.2661
80010012 3/4" tweeter AN-L103,YDG78-4BH,15W/4ohm PCS 1 0.99
80270001 6.5" full range speaker ANLB27001,4Ω,30W,9908Y625LI00 PCS 1 2.18
10410130 grill
DN-ME5091,SPCC,T=0.8mm, orange
painting,V1.0
PCS 1 1.1177
20660015 rail DN-PC6014,(2),ABS,black, texture,V1.0 PCS 4 0.6029
20660006 rail
DN-PC6005,ABS,UL94HB,black,ROHS,
texture,V1.0
PCS 7 0.8891
10360012 corner
DN-ME1006,corner-1,SPCC,T=0.8mm,chrome
plating, salt mist24H and ROHS,V1.0
PCS 8 1.1923
10370021 handle
DN-ME2011,SPCC,T=1.0mm, chrome
plating,ROHS,V1.0
PCS 2 6.3470
16120133 cable AN-WE133,UL1007,22#,200mm, SM-2P PCS 1 0.0688
20090016 Plastic cover
DN-PC0013, plastic cover,ABS,black, texture(MT-
11010),V1.0
PCS 4 0.7384
20420007 sheath silicone,black,T=2.0mm,V1.0 PCS 2 1.7613
20290035 bracket rubber,black,hardness50°,V1.0 PCS 2 1.4226
20460011 fixed button JX-318 PCS 1 0.0203
70010098 screw Φ3*8mm,,screwheadD5.5mm, PCS 11 0.0211
20680006 antenna boot IPA30,(1),ABS,black,V1.0 PCS 1 0.0728
20680007 antenna boot IPA30,(2),ABS, orange painting,V1.0 PCS 1 0.0728
70010236 screw Φ4*16mm,,screwheadD7mm, PCS 4 0.0173
70010151 screw Φ3*15mm,,screwheadD5.5mm, PCS 9 0.0229
70010691 screw M4*26mm,,screw headD8mm PCS 4 0.0263
70010651 screw Φ3*12mm,,screwheadD6mm,,nickelplating, PCS 22 0.0894
70010737 screw Φ3*12mm,screw headD6mm,,nickel plating, PCS 2 0.0051
70010738 screw Φ3*12mm,screw headD6mm, PCS 2 0.0054
70070031 Outer hexagon nut Φ9*M5*8mm,nickel plating PCS 2 0.0263
70070002 Outer hexagon nut Φ8*M4*3mm, PCS 2 0.0052
70010119 screw Φ3*10mm,screw headD7.5mm PCS 4 0.0122
70010655 screw Φ3*10mm,screw headD5.5mm PCS 1 0.0022
70010422 screw Φ2.6*12mm,screw headD4.5mm PCS 2 0.0052
70010595 screw Φ3*12mm,screw headD5.5mm PCS 14 0.0474
70010137 screw Φ3*12mm,screw headD6mm PCS 4 0.0108
70010493 screw AN-C10493,M4*25mm,screw headD9mm PCS 4 0.0345
70010303 screw M5*38mm,screw headD10mm PCS 8 0.1242
30060095 foam 10*1000*1mm,EVA1030, black PCS 2 0.0576
30060257 foam 5*1000*1.0mm,EVA1030, black PCS 5 0.3336
30060079 foam 50*150*5mm,black PCS 1 0.0186
30060116 foam 4.5*2360*4.2mm,EVAE1030,black PCS 1 0.0569
60190082 battery AN-E1904,RT1250,12V,5AH,90(L)*70(W)*101(H) PCS 1 6.4694

16150041 3.5 jack cable
AN-W1540,UL2547,26#,610mm,nickel
plating,black
PCS 1 0.2274
23031089 master carton
IPA30UL,A=A,T=6MM,457mm*383mm*479mm,
V1.0
PCS 1 0.8044
23090431 giftbox
IPA30UL,300grey+B3+A3,T=6MM,444*369*455
mm,V1.0
PCS 1 2.4387
23070029 pearl wool LGA8,500*350*2mm,V1.0 PCS 2 0.1314
23020225 polyfoam IPA30UL,(left),V1.0 PCS 1 0.5927
23020226 polyfoam IPA30UL,(right),V1.0 PCS 1 0.5927
22050003 desiccant 100g, silicone,DMT,SGS PCS 1 0.1135
22150001 Service card ION series,V1.1 PCS 1 0.0644
90041161 label IPA30UL,38*26mm,V1.0 PCS 2 0.0152
90021144 code 39 label IPA30UL,64*13mm,V1.1 PCS 4 0.0406
10520185 Antenna tinplate,265*15mm,T=0.3mm,V1.1 PCS 1 0.1018
22010738 Manual IPA30UL,V1.0 PCS 1 0.0440
23010356 polybag PE,(290+390)*750*0.1mm PCS 1 0.2237
23010295 polybag PE,160*260*0.025mm PCS 1 0.0046
23010020 polybag PE,120*280*0.06mm PCS 1 0.0088
22010705 Manual ION, safety manual,V14.7 PCS 1 0.0762

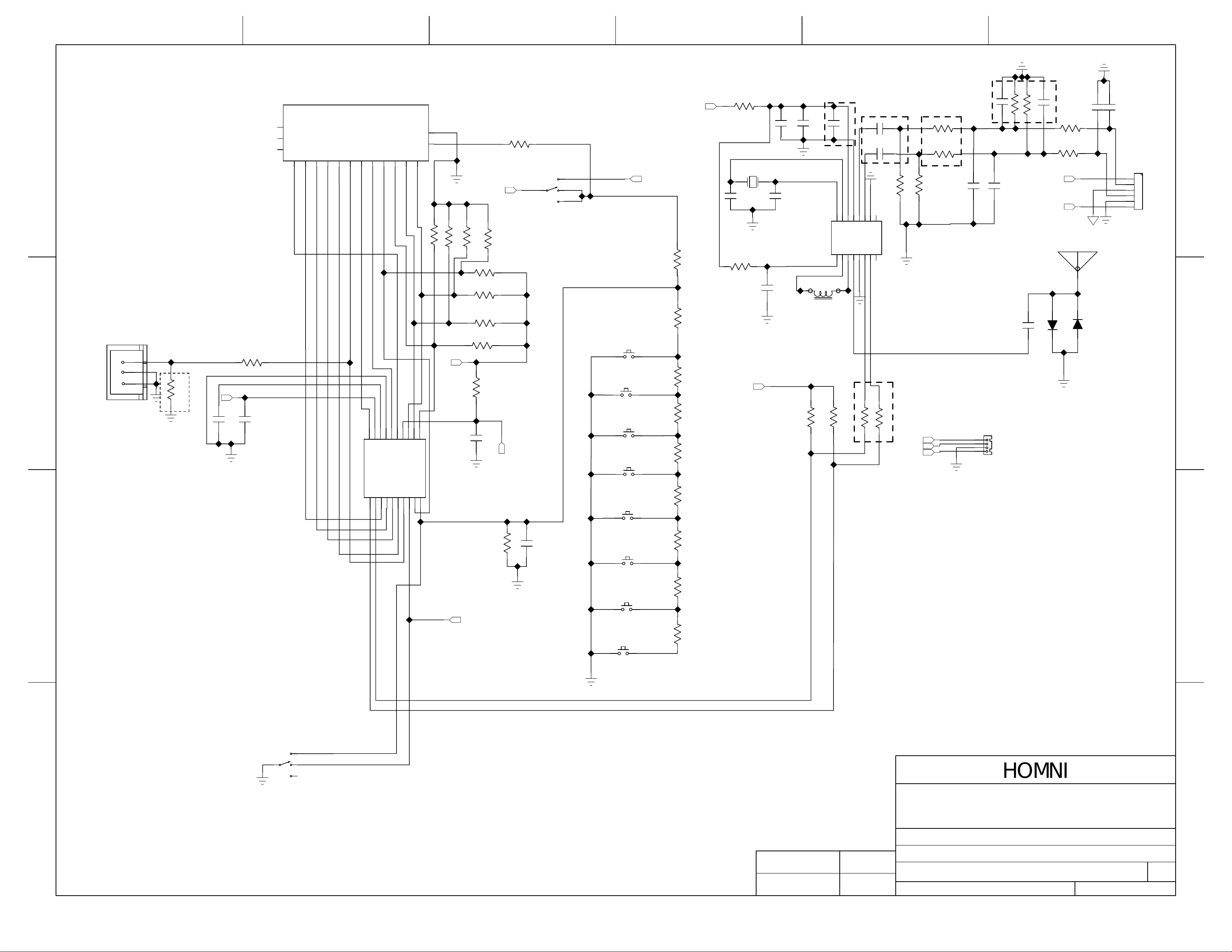

LZY

RIDIO

HOMNI

<File Name>

C

1

1

OF

SHEET:

SIZE:

DATED:

DATED:

DRAWN:

RELEASED:

SCALE:

FILENAME:

PART NUMBER:

TITLE:

COMPANY:

A

B

D

C

A

B

C

D

6

5

4

3

2

1

ASSY NUMBER:

2013-5-20

XO

XI

AM/ANTENNA

LOUT

ROUT

GND

VDD

GND

ST

10KHz/9KHz

AM

FM

OFF

EU:9KHz US:10KHz

1

CH

2

DVSS

3

ROUT

4

L0UT

5

AVSS

6

AVDD

7

XI/RCLK

8

XO

9

ENABLE

10

AMINN

11

AMINP

12

RFINP

13

RFGND

14

SCL

15

SDA

16

VOL

U1

KT9013

FM/ANTENNA1

C132

18P

C2

18P

1

2

X1

32.768KHz

1

2

L1

COM3

COM2

COM1

COM0

SEG7

SEG6

SEG5

SEG4

SEG3

SEG2

SEG1

SEG0

LED+

LED-

GND

GND

GND

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

LCD

RADIO_LCD

R23

100K

R1

47R

C14

104

C81

10U/10V

C3

104

1

2

3

4

5

6

CN2

C9

105

C10

105

R3

51R

R4

51R

D2

1N4148

D1

1N4148

C13

100P

R15

10K

R14

10K

L5

FB

R16

33K

C8

104

SW1

SW2

SW6

SW7

SW4

SW5

SW8

SW9

R61

120R

R7

150

R17

180R

R18

270R

R19

390R

R20

510

R21

1.5K

R24

3.9K

RR9

10K

R10

10K

R12

10K

R11

10K

C7

104

R13

10K

C4

104

C11

1UF

R5

5.6K

1

2

3

J1

1

2

3

4

J2

CON-4P-2.5

1

4

3

2

SW3-A

SW-12P

5

8

7

6

SW3-B

SW-12P

R9

0R/NC

1

PD4

2

PD5

3

PD6

4

NRST

5

OSCIN/PA1

6

OSCOUT/PA2

7

VSS

8

VCAP

9

VDD

10

PA3

11

PB5/SDA

12

PB4/SDL

13

PC3

14

PC4

15

PC5

16

PC6

17

PC7

18

PD1/SWIN

19

PD2

20

PD3

IC1

STM8S103F6

R6

10K

R8

10K

R22

10K

R25

10K

R26

1K

R36

30K

R27

NC

R28

75R

R29

75R

R30

30K

R31

NC

C17

47P

C18

47P

C5

150P

C6

150P

C1

15P

C12

15P

R2

2.2K

R34

2.2K

C15

105

+3.3V

+3.3V

+3.3V

+3.3V

+3.3V

SWIN

NRST

ST

+3.3V

SWIN

NRST

+3.3V

ST

