IONFITNESS IE08 User manual

IE08 Mini Elliptical User Manual
IE08 迷你橢圓機中文說明書
IE08 迷你椭圆机中文说明书
Ve r s i o n 2.00

IE08 Elliptical
Dear Customers,
We want to thank you for having chosen an Elliptical trainer
and wish you a lot of fun and success during training.
Please note and follow the enclosed safety and assembly
instructions carefully.
If you have questions please do not hesitate to contact us.
Table of Content as below:
1.)Safety Instruction
2.)Exploded Drawing
3.)Parts List
4.)Assembly Instruction
5.)Computer Instruction

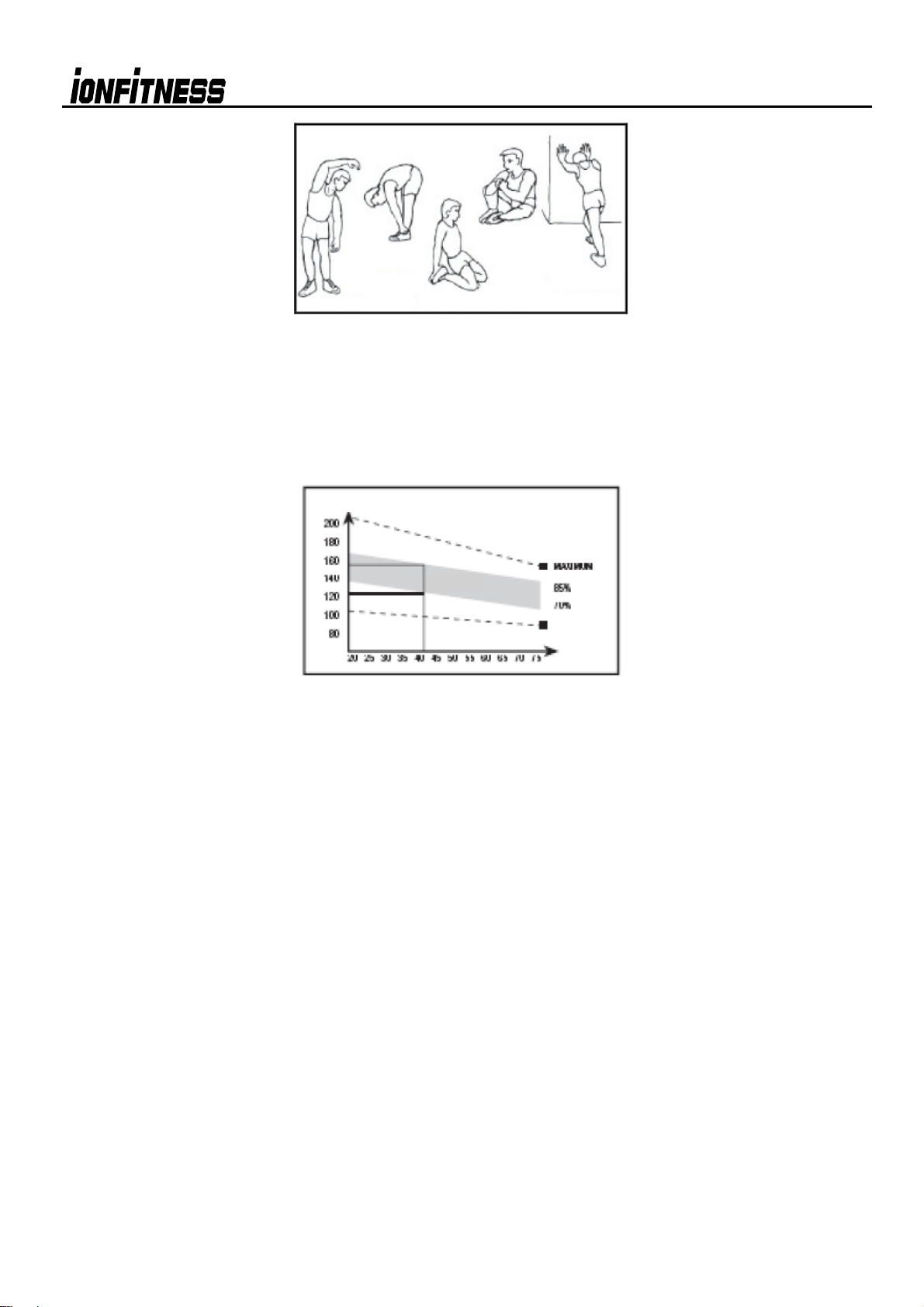

6.)Training Instruction

IE08 Elliptical
SAFETY INSTRUCTION
Before you start training on your home Mini Stepper,
please read the instructions carefully. Be sure to keep
the instructions for information, in case of repair and
for spare part delivery.
This elliptical trainer is made for home use only and tested
up to a maximum body weight of 90 kg.
Follow the steps of the assembly instructions carefully.
For assembly use only suitable tools and asks for assistance
with assembly if necessary.
Check before the first training and every 1-2 months that
all connecting elements are tight fitting and are in the
correct condition. Replace defective components
immediately and/ or keep the equipment out of use until
repair. For repairs, use only original parts.
In case of repair, please ask your dealer for advice.
Avoid the use of aggressive detergents when cleaning the
home exerciser.
Ensure that training starts only after correct assembly and
inspection of the item.
For all adjustable parts be aware of the maximum positions
to which they can be adjusted/tightened to.

IE08 Elliptical
The home exerciser is designed for adults. Please ensure
that children use it only under the supervision of an adult.
Ensure that those present are aware of possible hazards, e.g.
movable parts during training.
Consult your physician before staring with any exercise
program. He or she can advise on the kind of training and
which impact is suitable.
Please follow the advice for correct training as detailed in
training instructions.
The load/work level can be adjusted by turning the
adjustment knob on the handle bar stem.
The safety level of this equipment can be maintained only if
it is check regularly for all assembly procedure mentioned
in the assembly instruction sheet.
Please check regularly for the tightening knobs to notice
any irregular wear
WARNING
！
INCORRECT/EXCESSIVE TRAINING CAN
CAUSE HEALTH INJURIES.

IE08 Elliptical
EXPLODED DRAWING

IE08 Elliptical
PARTS LIST
NO
Decription QTY
1 Computer HH6006 1
2 Computer rack 1
3 Self tapping screw M4*15 5
4 Upper tension cable 1
5 Screw M5*15 2
6 Upper handle bar post 1
7 Nylon bushing 2
8 Base plate 1
9 Curved washer 8*19*1.5 8
10 Allen bolt M8*15 8
11 Plastic cover ￠41*19 1
12 Knob M8*35 1
13 Block A 38 1
14 Block B 38 1
15 Tabletting 1
16 End cap 2
17 C-sharp clip φ13 6

IE08 Elliptical
18 End cap 2
19 Handle grip 2
20 Handlebar 1
21 Lower handle bar post 1
22 Upper computer cable 1
23 Lower tension cable 1
24 Lower computer cable 1
25 Main frame 1
26 Carriage bolt M8*45 4
27R Pedal R 1
27L Pedal L 1
28 Allen bolt M8*40 2
29 PU pully 2
30 Pedal support bar 2
31 Square plug 2
32 Nylon nut M8 9
33 Allen bolt M8*20 2
34 Spring washer φ8 4
35 Washer 8*24*2 2
36 Nylon bushing Φ16Φ28 4
37 Crank cover 2

IE08 Elliptical
38 Screw 2
39 Crank 1SET
40 Drill screw M5*15 5
41R Chain cover R 1
41L Chain cover L 1
42 Drill screw M5*20 2
43 Hex nut 3
44 Chain adjust set 2
45 Belt 1
46 Flywheel 1
47 C-sharp clip φ10 2
48 Bearing 2
49 C-sharp clip φ26 1
50 Round metal & belt wheel weldig 1
51 Wave washer10*15*0.5 1
52 Washer 17*22*2 1
53 Bearing 2
54R Stabilizer cap R 1
54L Stabilizer cap L 1
55 Pull Rope 2
56 Rear stabilizer 1

IE08 Elliptical
57 Cap nut 2
58 Washer 8*19*1.5 2
59 Carriage bolt M8*40 2
60 Friction plate welding 1
61 Spring Φ1.5*43MNM 1
62 Woolen felt 17*50*10MM 1
63 Washer 17*22*1 1
64 C-sharp clipφ17 1
65 Self-tapping screw M4.5*25 6
66 Axis Φ10*90MM 8
67 Power bushing 11.5*18*15 4
68 Foot casing welding 2
69 Allen bolt M8*50 2
70 Axis Φ10*90MM 1
71 Nut 1
72 EVA 2
73 Hexagon bolt M8*15 4
74 EVA 4
75 Self-tapping screw M4.5*15 4
76 Connect welding 1
77 Allen Key Wrench 1

IE08 Elliptical
78 Combination wrench 1
ASSEMBLY INSTRUCTION
Assemble step
1. Assemble handle bar post
1. Put upper tension cable (4) and Upper computer cable though lower handle bar post (21),and
keep the cables not slide into the handle bar post .As it is require for future installation.Then fit upper
handle bar post (6)& lower handle bar post (21) with 4XAllen bolt (10) and 4x Curved washer (9) tight
tightly
2.Turn the tension on the maximum section .then connect Upper tension cable (4) to Lower
tension cable (23),And then connect Upper computer cable (22) to lower computer cable (24),Then
Attached the handle bar post into main frame (25),and fasten with 4x Curved washer (9)
