WaveBook User's Manual
High-Speed Portable Data Acquisition Systems
•WaveBook/512
•WaveBook/512H
the smart approach to instrumentation ™
IOtech, Inc.
25971 Cannon Road
Cleveland, OH 44146-1833
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.iotech.com
WaveBook User's Manual
WaveBook/512 and WaveBook/512H
High-Speed Portable Data Acquisition Systems
p/n 481-0901 Rev. 5.0
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

WaveBook User’s Manual 481-0901
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

WaveBook/512 and WaveBook/512H 03-08-02 WaveBook User’s Manual iii
Warranty Information
Your IOtech warranty is as stated on the product warranty card. You may contact IOtech by phone,
fax machine, or e-mail in regard to warranty-related issues.
Phone: [phone], fax: [phone], e-mail: [e-mail]
Limitation of Liability
IOtech, Inc. cannot be held liable for any damages resulting from the use or misuse of this product.
Copyright, Trademark, and Licensing Notice
All IOtech documentation, software, and hardware are copyright with all rights reserved. No part of this product may be
copied, reproduced or transmitted by any mechanical, photographic, electronic, or other method without IOtech’s prior
written consent. IOtech product names are trademarked; other product names, as applicable, are trademarks of their
respective holders. All supplied IOtech software (including miscellaneous support files, drivers, and sample programs)
may only be used on one installation. You may make archival backup copies.
FCC Statement
IOtech devices emit radio frequency energy in levels compliant with Federal Communications Commission rules (Part 15)
for Class A devices. If necessary, refer to the FCC booklet How To Identify and Resolve Radio-TV Interference Problems
(stock # 004-000-00345-4) which is available from the U.S. Government Printing Office, Washington, D.C. 20402.
CE Notice Many IOtech products carry the CE marker indicating they comply with the safety and emissions standards of the
European Community. As applicable, we ship these products with a Declaration of Conformity stating which
specifications and operating conditions apply.
Warnings, Cautions, Notes, and Tips
Refer all service to qualified personnel. This caution symbol warns of possible personal injury or equipment damage
under noted conditions. Follow all safety standards of professional practice and the recommendations in this manual.
Using this equipment in ways other than described in this manual can present serious safety hazards or cause equipment
damage.
This warning symbol is used in this manual or on the equipment to warn of possible injury or death from electrical
shock under noted conditions.
This ESD caution symbol urges proper handling of equipment or components sensitive to damage from electrostatic
discharge. Proper handling guidelines include the use of grounded anti-static mats and wrist straps, ESD-protective
bags and cartons, and related procedures.
This symbol indicates the message is important, but is not of a Warning or Caution category. These notes can be of
great benefit to the user, and should be read.
In this manual, the book symbol always precedes the words “Reference Note.”This type of note identifies the location
of additional information that may prove helpful. References may be made to other chapters or other documentation.
Tips provide advice that may save time during a procedure, or help to clarify an issue. Tips may include additional
reference.
Specifications and Calibration
Specifications are subject to change without notice. Significant changes will be addressed in an addendum or revision to
the manual. As applicable, IOtech calibrates its hardware to published specifications. Periodic hardware calibration is
not covered under the warranty and must be performed by qualified personnel as specified in this manual. Improper
calibration procedures may void the warranty.
Quality Notice
IOtech has maintained ISO 9001 certification since 1996. Prior to shipment, we thoroughly test our products and
review our documentation to assure the highest quality in all aspects. In a spirit of continuous improvement, IOtech
welcomes your suggestions.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

iv WaveBook User’s Manual 03-08-02 WaveBook/512 and WaveBook/512H
&$87,21
Using this equipment in ways other than described in this manual can cause
personal injury or equipment damage. Before setting up and using your
equipment, you should read all documentation that covers your system.
Pay special attention to Warnings and Cautions.
Note:During software installation, Adobe®PDF versions of user manuals will automatically
install onto your hard drive as a part of product support. The default location is in the
Programs directory, which can be accessed from the Windows Desktop. Refer to the
PDF documentation for details regarding both hardware and software.
A copy of the Adobe Acrobat Reader®is included on your CD. The Reader provides
a means of reading and printing the PDF documents. Note that hardcopy versions of the
manuals can be ordered from the factory.
PDF
481-0901
WaveBook User’s Manual, for WaveBook/512 and WaveBook/512H
After an introduction to WaveBooks and optional WBK cards and modules, this
manual goes on to explain how to make signal and power connections and how to
install software and product support. The document includes an operational reference
and a chapter on troubleshooting and customer support. The following PDFs are
companion documents.
PDF
WaveView and WaveCal
Discusses how to install and use the WaveView data acquisition program and
the WaveCal calibration application.
PDF
Post Acquisition Data Analysis User’s Guide
Contains at least one user’s guide that pertains to a post acquisition-data analysis
program. PostView, DIAdem, and eZ-View are examples of post data analysis
programs.
PDF
489-0902
WBK Option Cards and Modules User’s Manual
The WBK Option Cards and Modules Manual discusses each of the WBK products
available at the time of print.
PDF
1008-0901
Programmer’s Manual
The programmer’s manual pertains to developing custom programs using Applications
Program Interface (API) commands.
Note that the install CD-ROM includes WaveBook program examples.
Your order was carefully inspected prior to shipment. When you receive your order, carefully unpack
all items from the shipping carton and check for physical signs of damage that may have occurred
during shipment. Promptly report any damage to the shipping agent and your sales representative.
Retain all shipping materials in case the unit needs returned to the factory.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

WaveBook/512 and WaveBook/512H 03-08-02 WaveBook User’s Manual v
About WaveBook Documentation
Aside from the WaveBook User’s Manual that is shipped with the product, the documentation listed on the
preceding page is also important. The later is not shipped as hardcopy, unless purchased. However, during
software installation, Adobe®PDF versions of the documentation are automatically installed onto your hard
drive. The default location is in the Programs directory, accessible through the Windows Desktop.
Unless you have hardcopy equivalents, you should refer to the PDF version documents for details regarding
both hardware and software.
The WaveBook User’s Manual for WaveBook/512 and WaveBook/512H consists of the following chapters.
The chapters contain references to the other documents as applicable. If you use the PDF version of this
and the other documents, you can take advantage of the built in links to related material.
Chapter 1 – An Introduction to WaveBook and Optional WBKs
Chapter 2 – System Setup and Power Options
Chapter 3 – WaveBook Operation Reference
Chapter 4 – Software
Chapter 5 – Troubleshooting and Customer Support
Appendix A – Dimensional Drawings
Glossary
&$87,21
Using this equipment in ways other than described in this manual can cause personal injury or
equipment damage. Pay special attention to all cautions and warnings.
Reference Notes:
➣Information (not available at the time of publication), will be made available in ReadMe files,
or in supplemental documentation.
➣For programming-related information refer to the separate Programmer’s Manual,
p/n 1008-0901. (See PDF Note, below).

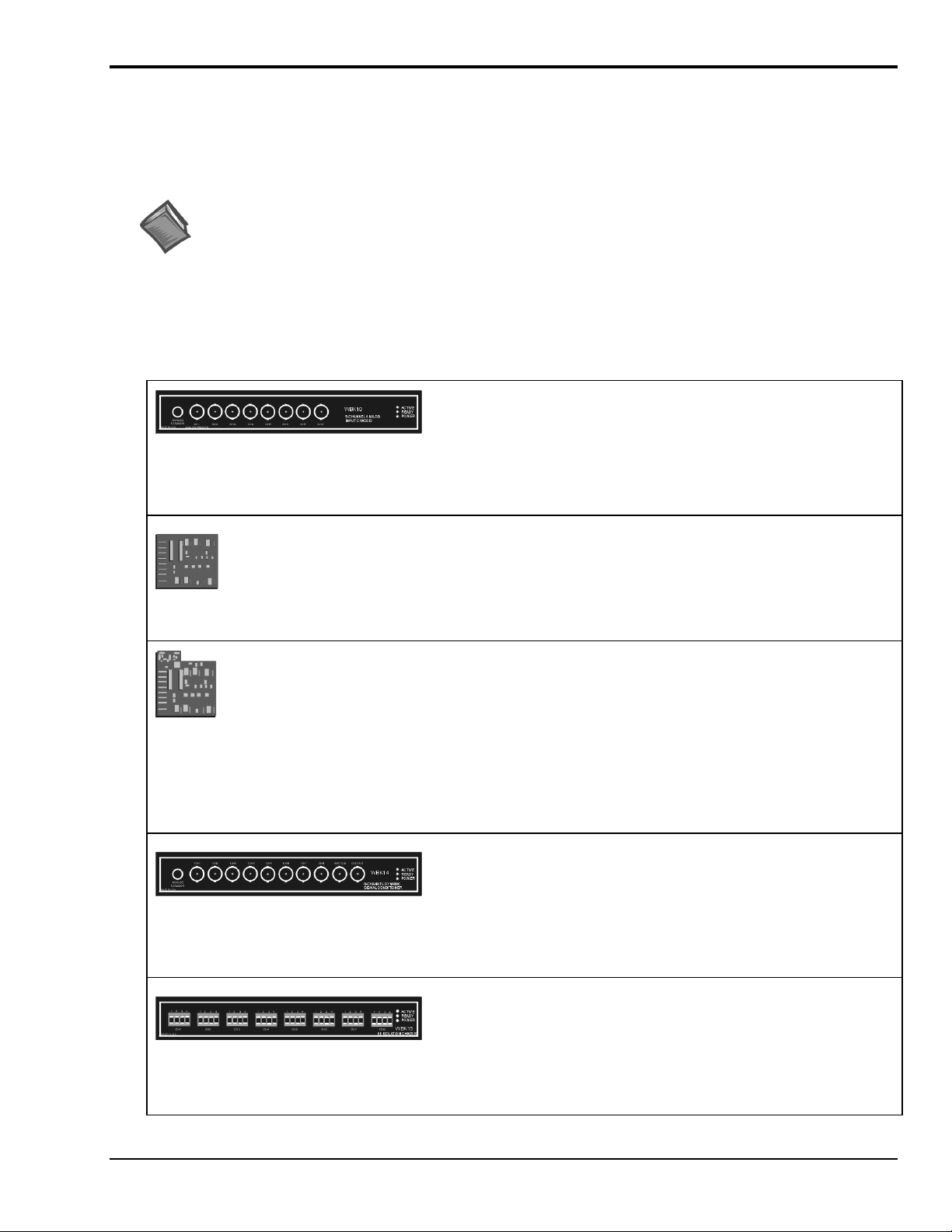

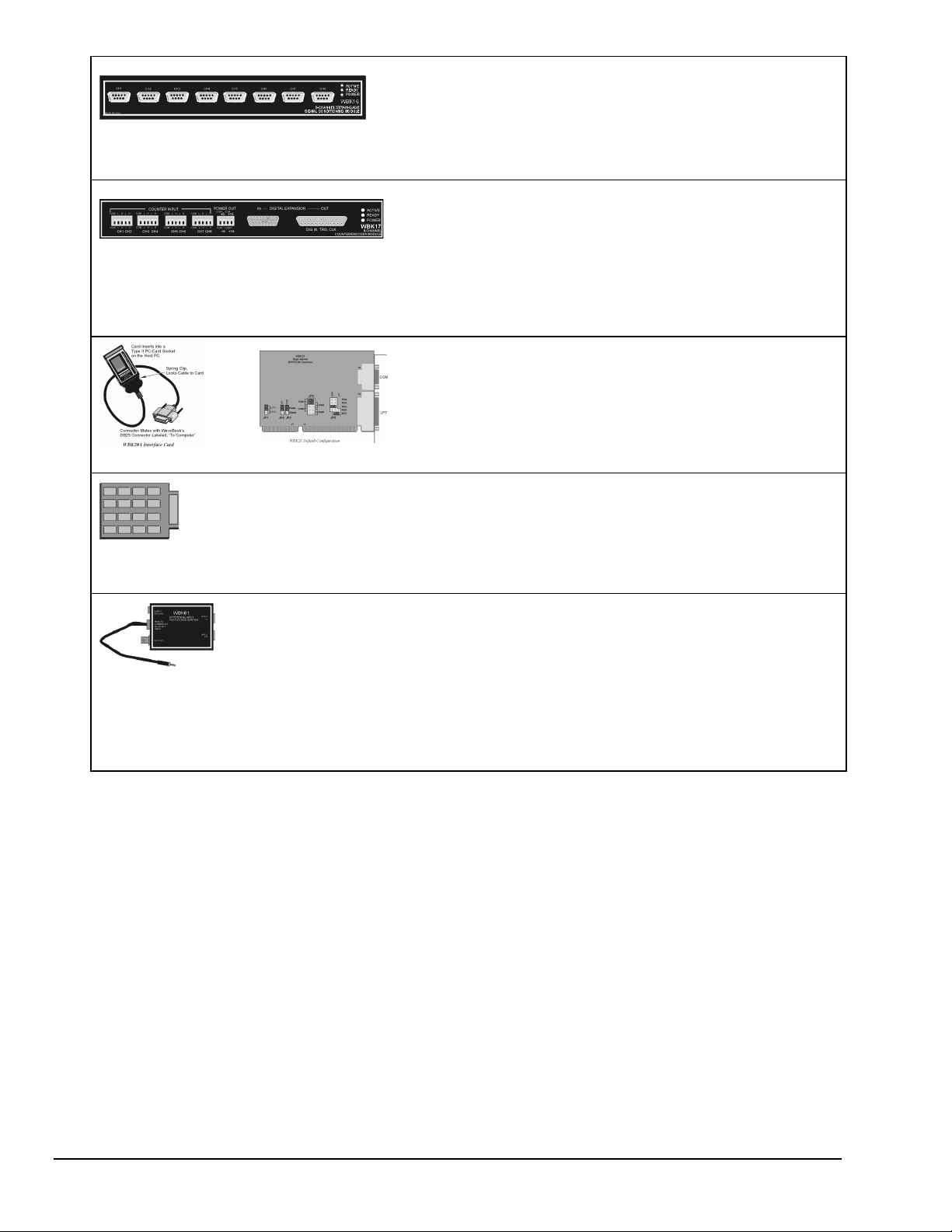

➣WBK Options are covered in the companion document, WBK Option Cards and Modules,
p/n 489-0902. The document provides details on the following:
WBK10, WBK10H, and WBK10A Expansion Modules
WBK11 and WBK11A Simultaneous Sample and Hold Cards
WBK12, WBK12A, WBK13, and WBK13A Programmable Filter Cards
WBK14 Dynamic Signal Conditioning Module
WBK15 8-Slot 5B Signal Conditioning Module
WBK16 Strain Gage Module
WBK17 Counter-Input Module with Quadrature Encoder Support
WBK20A –PCMCIA/EPP Interface Card
WBKK21 - ISA/EPP Interface Plug-in Board
WBK30 WaveBook Memory Option
WBK61, WBK62 High Voltage Adapters
PDF Note:A copy of the Adobe Acrobat Reader®is included on your CD. The Reader provides
a means of reading and printing the PDF documents. Note that hardcopy versions of the
manualscan be ordered from the factory.
Reference Note:
For informationon WaveBook/512A, WaveBook/516, or WaveBook/516A, refer todocument
p/n489-0901.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

vi WaveBook User’s Manual 03-08-02 WaveBook/512 and WaveBook/512H
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

WaveBook/512 and WaveBook/512H 03-08-02 WaveBook User’s Manual vii
Table of Contents
Chapter 1 – An Introduction to WaveBook and Optional WBKs
What Are WaveBooks? …… 1-1
What’s the Difference Between WaveBook/512 and WaveBook/512H?…… 1-2
What are WBKs?…… 1-3

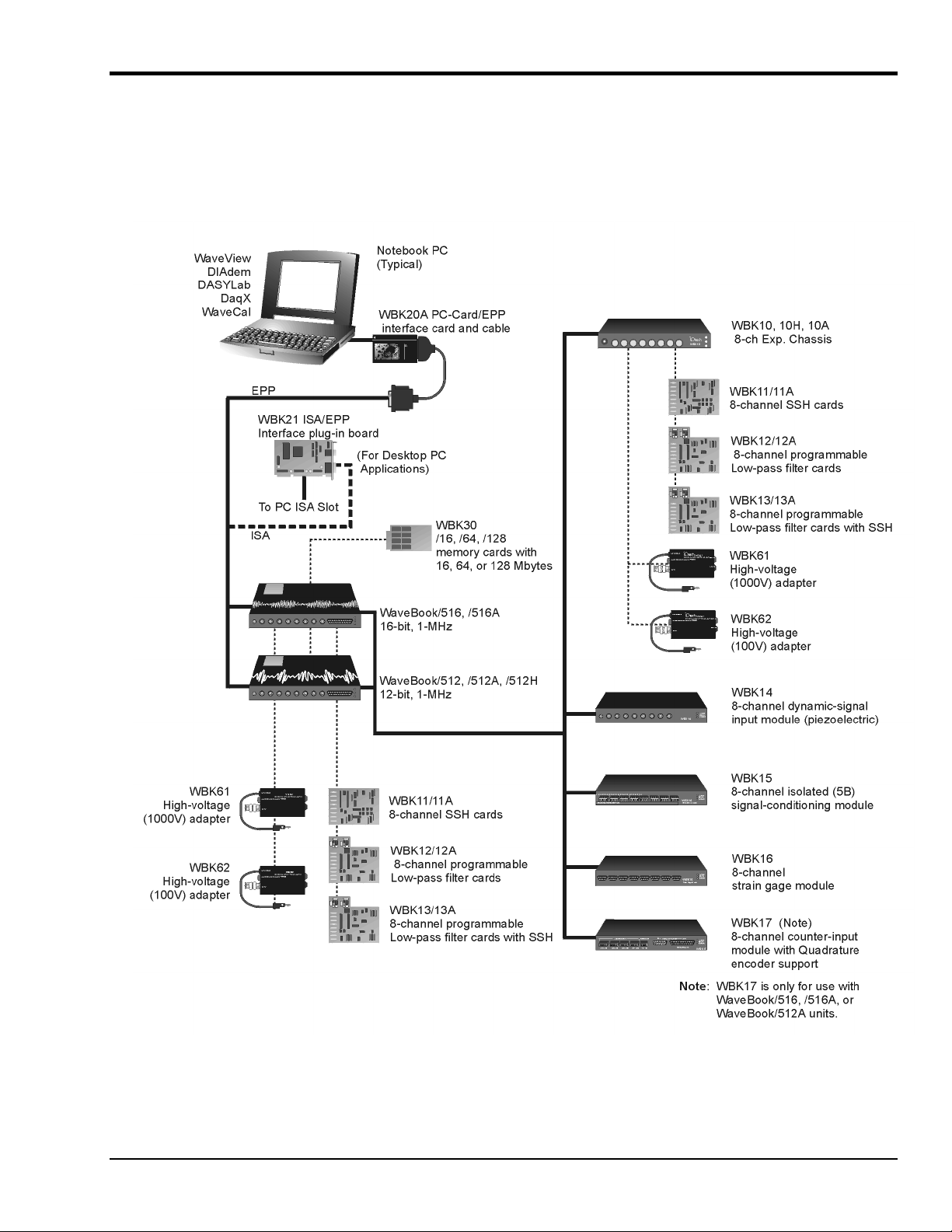

How Do WaveBooks and WBKs Interrelate? …… 1-5
How Are WaveBook Systems Powered?…… 1-6
Specifications …… 1-6
Chapter 2 – System Setup and Power Options
Connecting a WaveBook to a PC …… 2-1
PC Requirements…… 2-1
Connecting the Communication Cable…… 2-2
System Enhancement and Expansion …… 2-3
Adding WBK Option Cards …… 2-3
Adding WBK Modules…… 2-4
Module Options……2-4
Connectors and Cables ……2-5
Example of a WaveBook System Daisy-Chain …… 2-7
How Channel Numbers are Determined ……2-7
Stacking Modules …… 2-8
Connecting the System to Power ……2-9
Calculating the System Power Requirement…… 2-9
System Examples …… 2-11
Power Supplies …… 2-13
Installing Software and Product Support ……2-21
Using the Daq Configuration Applet to Check Connections…… 2-21
Chapter 3 – WaveBook Operation Reference
Basic Operation …… 3-2
WBK Option Cards and Modules …… 3-4
Analog-Signal & Ground Connections…… 3-7
Digital I/O Connections…… 3-8
Triggers …… 3-9
Digital Trigger and Single-Channel Trigger ……3-9
Multi-Channel Trigger …… 3-10
Trigger Latency and Jitter …… 3-13
Programmable Features …… 3-14
Selecting a Channel’s Range …… 3-15
Selecting a Channels Units …… 3-15
mx + b, an Example …… 3-16
Chapter 4 – Software
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

viii WaveBook User’s Manual 03-08-02 WaveBook/512 and WaveBook/512H
Chapter 5 –Troubleshooting and Customer Support
Electrostatic Discharge (ESD), Handling Notice…… 5-1
Product Care …… 5-1
ReadMe Files and the Install CD-ROM ……5-2
Driver Support……5-2
Connection Problems……5-2
Frequently Asked Questions …… 5-7
Customer Support …… 5-11
Appendix A – Dimensional Drawings
Glossary
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

WaveBook/512 and WaveBook/512H 03-06-02 An Introduction to WaveBooks and WBKs 1-1
An Introduction to WaveBooks and WBKs 1
What Are WaveBooks? …… 1-1
What’s the Difference Between WaveBook/512 and WaveBook/512H ?…… 1-2
What Are WBKs?…… 1-3
How Do WaveBooks and WBKs Interrelate? …… 1-5
How Are WaveBook Systems Powered?…… 1-6
Specifications …… 1-6
What Are WaveBooks?
WaveBooks are high-speed portable data acquisition devices that can be used in a variety of applications,
such as testing engine strain, multi-channel acoustics, mechanical integrity, and vibration/shock/strain.
Features of WaveBook/512 and WaveBook/512H include:
•Power Options: Power can be supplied from an AC-to-DC adapter, battery, DBK30A rechargeable
battery module, DBK34 or DBK34A uninterruptible power supply modules.
•Easy Connection to Notebook or Desktop PCs.
•Analog Input Channels: BNC connectors keep input signals isolated from the chassis and commons.
•High-Speed Digital Inputs: 8 high-speed digital inputs (16 for WaveBook/516).
•Digital Signal Processing (DSP): Allows you to define a channel scan-sequence and associated gains
across all channels. Also provides for real-time digital calibration on a per-sample basis.
•Programmable Scan Sequencing: A 128-location scan sequencer allows you to program the analog
channel scan sequence, the associated unipolar/bipolar A/D range, and the input amplifier gain.
WaveBook performs 1 MHz scanning and gain switching over both its built-in and expansion channels.
•Single, or Multi-Channel Triggering
•Pre- and Post-Trigger Readings
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

1-2 An Introduction to WaveBooks & WBKs 03-06-02 WaveBook/512 and WaveBook/512H
What’s the Difference Between WaveBook/512 and WaveBook/512H ?
With exception of having different range values, the WaveBook/512 and WaveBook/512H are identical.
Each provides 1 MHz sampling and, with exception of the WBK17 module, supports the WBK options
described shortly.
WaveBook/512 and WaveBook/512H
Analog Input
A/D resolution 12-bit
A/D speed 1 MHz
Sample rate 1 µs/channel
Ranges
WaveBook/512 Unipolar
WaveBook/512 Bipolar
0 to +10V, 0 to +5V, 0 to +2V, 0 to +1V
±5V, ±2.5V, ±1V, ±0.5V
Ranges
WaveBook/512H Unipolar (Note 2)
WaveBook/512H Bipolar
0 to +10V, 0 to +4V, 0 to +2V (Note 2)
±10V, ±5V, ±2V, ±1V
A/D accuracy ±0.025% FS
Data packing Yes
20-kHz low-pass filter optional
Analog input channels 8 DE
Differential amplifiers 1 (shared by all 8 inputs)
PGAs 1 (shared by all 8 inputs)
Maximum capacity 72 Channels
FIFO depth 64K samples
Total Harmonic Distortion
10Hz to 20Khz, Typical1-78dB
Signal to Noise and Distortion
(SINAD)1-66dB
High-Speed Digital Inputs
Digital I/O 8
Timer Input
32-Bit Timer None
Trigger
Single and multi-channel Yes
1 For WaveBook/512 the Total Harmonic Distortion (THD) and SINAD values shown apply to the
–5 to +5 V range. For WaveBook/512H the THD and SINAD values apply to the –10 to +10 V range.
2 Unipolar ranges do not apply to WaveBook/512H when a WBK11, WBK12, or WBK13 series
board is installed.
Note: Specifications subject to change without notice.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

WaveBook/512 and WaveBook/512H 03-06-02 An Introduction to WaveBooks and WBKs 1-3
What Are WBKs?
You can use various modules and option cards to expand your WaveBook system. These WaveBook options are known
as WBKs.
Internally, WaveBook has room for one signal-conditioning card. Externally, you can use one or more expansion
modules.
Reference Note:
The WBK option cards and modules that follow are detailed later in this user’s manual. The information is
provided in a companion document, the WBK Option Cards and Modules User’s Manual, p/n 489-0902.
The WBK document modules are presented in alpha-numerical order and include product specifications.
WBK Options
Each of the following options are detailed in the WBK Option Cards and Modules User’s Manual, p/n 489-0902.
Note that the items represented in the table are not shown to the same scale.
WBK10, WBK10H, and WBK10A
Analog Expansion Modules
8 Channels via BNC Connectors
Each WBK10 series module can be used to provide WaveBook with
8 additional differential-analog-inputs. The modules are equipped
with a programmable gain instrumentation amplifier (PGA) and, like
the WaveBook, each has a built-in expansion bus.
Up to eight WBK10 series modules can be cascaded together for a
system capacity of 72 differential channels. Each module is capable
of supporting a WBK11, WBK12, or WBK13 series option card.
WBK11 and WBK11A
Simultaneous Sample & Hold Card (8 channels)
The WBK11series cards can simultaneously sample 8 channels and
can be installed inside a WaveBook or in a WBK10 series module.
The cards allow for concurrent (<150 ns) capture of multiple input
channels and virtually eliminate channel-to-channel time skewing.
WBK12 and WBK12A
Programmable Low-Pass Filter Card
(8 channels)
WBK13 and WBK13A
Programmable Low-Pass Filter Card with SSH
(8 channels)
WBK12, WBK12A, WBK13, and WBK13A are 8-channel
programmable low-pass filter cards for use with WaveBook data
acquisition systems. These cards install directly into a WaveBook or
WBK10 series module and provide programmable low-pass filtering
over all channels. Multiple WBK12 series and WBK13 series cards
can be installed in one system for up to 72 channels. All of the cards’
low-pass filters and cutoff frequencies are configured via software.
WBK13 and WBK13A cards have the additional capability of
sampling all channels at the same time.
WBK14
Dynamic Signal Conditioning Module
8 Channels via BNC Connectors
The WBK14 is a dynamic analog signal input module. It enables
WaveBooks to interface with piezoelectric transducers that include
accelerometers, microphones, and force/pressure transducers.
Each WBK14 channel has a:
•current source for transducer biasing
•high-pass filter
•programmable gain amplifier
•anti-aliasing low-pass filter
•simultaneous sample-and-hold (SSH) amplifiers
WBK15
8-Slot 5B Signal Conditioning Module
8 channels via 5B Modules
The WBK15 module provides for a diverse range of signals available
through optional 5B modules. Measurement types include: LVDT,
potentiometer, isolated current loop, ±10mV to ±40V inputs, linearized
RTD, thermocouple, frequency-to-voltage, and strain gage.
See latest catalog or contact your sales representative in regard to the
types of 5B Modules available for your application.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

1-4 An Introduction to WaveBooks & WBKs 03-06-02 WaveBook/512 and WaveBook/512H
WBK16
Strain-Gage Module
8 channels via Standard Female DB9
WBK16 is an 8-channel strain-gage signal-conditioning module. Up
to eight WBK16 modules (64 channels) can be accommodated by
the WaveBook and scanned at 1 µs/channel. Almost all bridge
configurations are supported via a bridge-completion network and
software. High-gain differential-amplifier applications are also
supported. Software controls bridge configuration, gain, offset,
excitation voltage, polarity, filtering, and the calibration process.
WBK17
Counter-Input Module with Quadrature Encoder
Support
8 channels via Removable Screw Terminal Blocks
The WBK17 is an 8-channel multi-function counter/encoder module.
Each of the high-speed, 32-bit counter channels can be configured
for counter, period, pulse width, time between edges, or encoder
modes. All channels are capable of measuring analog inputs that are
digitized by a Wavebook/512A, WaveBook/516, or WaveBook/516A.
Note: WBK17 can not be used with WaveBook/512 or
WaveBook/512H.
WBK20A WBK21
WBK20A – PCMCIA/EPP Interface Card
(for linking WaveBook to a Notebook PC)
WBK21 – ISA/EPP Interface Plug-in Board
(For linking WaveBook to a desktop PC)
These devices are shipped with separate documentation and are not
detailed in this manual; they are, however, discussed briefly in the
WBK20A and WBK21 Document Modules.
WBK30
WaveBook Memory Options
WBK30 is a DRAM-based memory board that installs inside a
WaveBook. There are three models of WBK30 available; each
significantly increases the capacity of WaveBook's standard data
buffer of 64 K samples. Capacities are as follows:
WBK30/16—16 MB
WBK30/64—64 MB
WBK30/128—128 MB
WBK61 and WBK62
WBK61: High-Voltage Adapter with 200:1 Voltage
Divider (1 channel)
WBK62: High-Voltage Adapter with 20:1 Voltage
Divider (1 channel)
WBK61 and WBK62 are single-channel high-voltage adapters that
can be used with the WaveBook or WBK10/10H/10A expansion
modules. In addition, WBK61 and WBK62 can be used in conjunction
with WBK11, WBK12, and WBK13 series cards.
WBK61 and WBK62 include safety-style banana-jacks for the high
and low inputs, and 60-inch (152 cm) cables with probe tips and
alligator clips for easy input connection.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

WaveBook/512 and WaveBook/512H 03-06-02 An Introduction to WaveBooks and WBKs 1-5
How Do WaveBooks and WBKs Interrelate?
WaveBooks and WBKs interrelate when they become part of the same data-acquisition system. The
relationship can be broken down into enhancement, expansion, or both. The following illustrates the
relationship of various system components. Detailed information and product specifications are provided in
WBK Option Cards and Modules Manual, p/n 489-0902.
WaveBook System Components
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

1-6 An Introduction to WaveBooks & WBKs 03-06-02 WaveBook/512 and WaveBook/512H
How Are WaveBook Systems Powered?
Input voltage to the WaveBook and to the system modules (WBK10 series, WBK14, WBK15, WBK16,
and WBK17) must be in the range of 10 to 30 VDC and can come from an appropriate AC-to-DC adapter,
or from a battery.
Available AC-to-DC adapters include the TR-40U (supplied), which has an input of 90-264 VAC and a
output rating of 2.2 amps @ 15 VDC.
Battery options include the DBK30A, DBK34A, or other 10 to 30 VDC source such as a car battery. The
DBK30A provides 14 VDC and when fully-charged has a storage capacity of 3.4 A⋅hr; car batteries have
much higher capacities. The basic formula for battery life is:
Runtime (hr) = Battery capacity (A⋅hr) / Current load (A)
System cards (WBK11, WBK12, or WBK13 series) get power from their WaveBook or WBK10/10H/10A
expansion module.
Before connecting your system to power, you need to know the power requirements of your specific system.
A calculation method, that incorporates the use of worktables, is presented in Chapter 2.
Reference Notes:
•Chapter 2, System Setup and Power Options, includes examples of power connections for
different WaveBook system scenarios. In these examples the included TR-40U power
adapters are used.
•Chapter 3, WaveBook Operation Reference, includes discussion of power supplies other
than the TR-40U.
Specifications - WaveBook/512 and WaveBook/512H
General
Power Consumption: 0.9A max @ 15 VDC
Input Power Range: 10 to 30 VDC
Operating Temperature: 0 to 50°C
Storage Temperature: 0 to 70°C
Humidity: 0 to 95% RH, non-condensing
Dimensions: 216 mm wide ×279 mm long ×35 mm high
(8.5" ×11" ×1.375”)
Weight: 1.5 kg (3.3 lb)
Fuse: user-replaceable 4-A Littelfuse # 251004
Analog Inputs
Channels: 8 differential, expandable up to 72 differential
Connector: BNC
Resolution: 12 bit
Maximum Overvoltage: ±30 VDC
Input Current: 50 nA typ, 500 nA max
Input Impedance:
Single-ended: 5 MΩin parallel with 30 pF
Differential: 10 MΩin parallel with 30 pF
Accuracy: ±0.025% FS
Offset: ±1 LSB max
Triggering
Single-Channel Analog Trigger:
Range: -5 to +10 VDC
Latency: 300 ns
Multi-Channel Analog Trigger (up to 72 channels):
Range: Selectable per channel to input range
Latency: 2 µs/channel, plus 4µs (max)
TTL Trigger:
Range: TTL-compatible
Latency: 200 ns
Software Trigger:
Latency: 100 µs typ
Sequencer
Programmable for channel, gain & for unipolar/bipolar range
in random order
Depth: 128 location
Channel to Channel Rate: 1 µs/channel, fixed
Maximum Repeat Rate: 1 MHz
Minimum Repeat Rate: 100 seconds per scan
Expansion Channel Sample Rate: Same as onboard
channels, 1 µs/channel
High-Speed Digital Inputs / General-Purpose Outputs
I/O Lines: 8, WaveBook/512
Connector: DB25 female
Sampling: Sampled with analog data
Input Low Voltage: 0.8 V max
Input High Voltage: 2 V min
Input Low Current: 500 µA
Input High Current: 300 µA
Note: Specifications are subject to change without notice.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

WaveBook/512 and WaveBook/512H 03-06-02 System Setup and Power Options 2-1
System Setup and Power Options 2
Connecting a WaveBook to a PC …… 2-1
PC Requirements…… 2-1
Connecting the Communication Cable…… 2-2
System Enhancement and Expansion …… 2-3
Adding WBK Option Cards …… 2-3
Adding WBK Modules…… 2-4
Module Options……2-4
Connectors and Cables ……2-5
Example of a WaveBook System Daisy-Chain …… 2-7
How Channel Numbers are Determined ……2-7
Stacking Modules …… 2-8
Connecting the System to Power ……2-9
Calculating the System Power Requirement…… 2-9
System Examples …… 2-11
Power Supplies …… 2-13
Installing Software and Product Support ……2-21
Using the Daq Configuration Applet to Check Connections…… 2-21
&$87,21
An incorrect use of power can damage equipment or degrade performance. Prior to
connecting your devices to power, calculate your system’s power requirements.
This chapter pertains to setting up a WaveBook system. Topics include how to: connect a WaveBook to a
PC, add option cards and modules, properly power a system, install software, and check connections with
the Daq Configuration Applet. As stated in the above Caution, you will need to calculate system power
requirements prior to powering the system.
Connecting a WaveBook to a PC
PC Requirements
Notebook PCs are typically used to communicate with WaveBook
acquisition hardware. However, desktop PCs can be used.
Regardless of your PC preference, the following requirements apply:
•16MB Ram (32MB Ram recommended)
•Pentium®90 Processor (or equivalent)
•10 MB of Available Disk Space
•Windows Operating System
(Windows95/98/Me, or WindowsNT/2000)
•Optional, but recommended:
EPP (Enhanced Parallel Port), or
ECP (Extended Capabilities Port)
A
Notebook PC is Typically Used to
C
ommunicate with WaveBook
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

2-2 System Setup and Power Options 03-06-02 WaveBook/512 and WaveBook/512H
Connecting the Communication Cable
WaveBook communicates with a notebook or desktop PC through the computer’s parallel port. Use of an
Enhanced Parallel Port (EPP) or an Extended Capabilities Port (ECP) is recommended.
Two card options are available for use with PCs that do not have Enhanced Parallel Ports. These are:
•WBK20A PCMCIA/EPP interface-card, to be used in conjunction with
a notebook’s PC-Card port.
•WBK21 ISA/EPP interface-card, for use with a desktop PC.
A 2-foot CA-35-2, or a 6-foot CA-35-6 communication cable is used to connect the WaveBook to the host
PC. The connection is made via a 25-pin connector labeled “TO COMPUTER,”and located on
WaveBook’s rear panel. The other end of the cable connects the computer’s PC Parallel Port.
To ensure EPP speeds are properly handled, it is important that WaveBook systems make
use of a 1284-compliant cable. Standard parallel cables will not work properly, primarily
due to a lack of shielding. Note that cables CA-35-2 and CA-35-6 are
1284-compliant. These are 2 and 6 foot cables, respectively.
Connecting the Communication Cable (CA-35-2)
Reference Notes:
➣For detailed information regarding the optional WBK20A PCMCIA/EPP interface-card,
refer to the WBK20A User’s Guide (p/n 274-0901). A copy of the guide is shipped with
the product. A PDF version of the guide can be accessed from our web site, or from a
link in the electronic version of the WBK Option Cards and Modules User’s Guide
(p/n 489-0902).
➣For information regarding the optional WBK21 ISA/EPP interface-card, refer to the
WBK21 installation guide [that is shipped with the card]. The WBK21 option is also
discussed in the WBK Option Cards and Modules User’s Guide (p/n 489-0902).
➣Note that PDF versions of documentation are loaded onto your hard drive, as a part of
product support, during software installation. The default location is the Programs file
directory, which can be accessed from the Windows Desktop.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

WaveBook/512 and WaveBook/512H 03-06-02 System Setup and Power Options 2-3
System Enhancement and Expansion
Adding WBK Option Cards
This section pertains to adding a WBK11, WBK12, or WBK13 Series card to a WaveBook/512 or to a
WBK10, or WBK10H expansion module.
Important Notice Regarding WaveBook/516, WaveBook/512A, WaveBook/516A,
and WBK10A: Cards for these products are installed at the factory per customer order.
Users are not to remove or install cards for these products, as the applicable cards are not
“plug-and-play”for these devices and erroneous signal values could result. If you desire to
remove or add a card to these products, contact your service representative.
WBK11, WBK11A
Simultaneous Sample & Hold Cards (8 channels each)
WBK12, WBK12A, WBK13, and WBK13A
WBK12, WBK12A: Programmable Low-Pass Filter Cards (8 channels each)
WBK13, WBK13A: Programmable Low-Pass Filter Card with SSH (8 channels each)
All WBK11, WBK12,WBK13, and WBK11A, WBK12A, and WBK13A configurations are controlled by
software. There are no hardware settings.
The WBK Card connects to headers J10
and J11 in the base unit. The base unit can
be a WaveBook/512, WaveBook/512H,
WBK10 or WBK10H. The jumpers
located on J10 and J11 provide signal pass-
through when a WBK option card is not
installed. Refer to the following figure and
steps to install an option card into a
WaveBook/512, WBK10, or WBK10H
module.
Note: Although the figure at the right
represents installation of a WBK11 into a
WaveBook/512, the method used to install
other WBK options into a WaveBook,
WBK10, or WBK10H is the same. Installing a WBK Option Card
:$51,1*
Electric shock hazard! Remove the WaveBook, and all devices connected to it, from
power before removing the cover plate. Failure to do so could result in electric shock
and possible death.
1. Remove all power from the unit and any connected devices.
2. For WaveBook/512, WaveBook/512H, WBK10, or WBK10H, remove the screw holding down the
top panel (cover), and slide the panel out towards the back (see following figure).
For other WaveBook models and WBK10A, contact the factory in regard to adding or replacing
option cards.
3. Remove the stand-off screws, then remove old WBK card from J10 and J11.
If no card was present, skip to step 4.
4. Locate the headers J10 & J11 on the main board, and remove the jumpers (if present).
Save the jumpers in the event the SSH board needs to be removed.
5. Align the WBK card headers (P11 & P10) with the host board headers (J11 & J10), respectively.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

2-4 System Setup and Power Options 03-06-02 WaveBook/512 and WaveBook/512H
6. Verify alignment of the board. An easy way is to check that the board’s screw holes are in line with the
standoffs.
7. Carefully push the WBK option card down until the connectors fully mate.
8. Using three screws, secure the WBK card to the standoffs. Do not over-tighten.
9. Slide the top panel onto the unit, and secure it using the top panel screw.
Adding WBK Modules
Module Options
Several WBK module options are currently available for use with WaveBook systems. This section is
concerned with “how the modules are connected and powered.”Functions, specs, and software issues are
discussed elsewhere.
Note that each of the following module options offers 8 channels.
WBK10, WBK10H, & WBK10A
Expansion Modules
WBK14
Dynamic Signal Conditioning Module
WBK15
8-Slot 5B Signal Conditioning Module
WBK16
Strain-Gage Module
WBK17
Counter-Input Module with Quadrature Encoder Support.
WBK17 is only used with WaveBook/516, WaveBook/512A, and
WaveBook/516A.
Modules Currently Available for WaveBook System Expansion
Connection basics are the same, regardless of whether the WaveBook system has one module or eight
modules. Examples of various setups follow shortly.
Power requirements can vary greatly from one WaveBook system to another, and will need to be calculated
on a system by system basis, before power is applied to the system. This chapter includes instructions for
calculating power requirements.
Before discussing how to calculate power, we will look at the use of connectors and the types of cables
used.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

WaveBook/512 and WaveBook/512H 03-06-02 System Setup and Power Options 2-5
Connectors and Cables
To attach a module, connections must be made for power, expansion control, and expansion signals.
The following connectors and cables are used.
•WaveBook POWER IN – connects to a 10 to 30 VDC source.
•WaveBook POWER OUT – can be connected to the first module’s POWER IN.
•WaveBook EXPANSION CONTROL – connects to the first module’s
EXPANSION CONTROL IN.
•WaveBook EXPANSION SIGNAL IN – connects to the first module’s
EXPANSION SIGNAL OUT.
•WBK POWER IN – connects to a 10 to 30 VDC source. When in a power daisy-chain,
POWER IN connects to the previous WaveBook or WBK module’s POWER OUT.
•WBK module POWER OUT – can be connected to the next module’s POWER IN, providing the
5 amp current limit will not be exceeded. It may be necessary to use a supplemental power supply.
Power requirements and discussed in the following pages.
•WBK module EXPANSION CONTROL OUT –connects to the next module’s
EXPANSION CONTROL IN.
•WBK module EXPANSION SIGNAL IN – connects to the next module’s
EXPANSION SIGNAL OUT.
Prior to connecting your devices to power, calculate your system’s power requirements as
discussed in upcoming section of this chapter. Note that three examples of system setups
follow shortly.
Using Shielded BNC Connectors for CE Compliance
Certain Declarations of Conformity identify specific cables and connectors that must be used to
meet CE requirements. CE compliant BNC-equipped cards and modules have BNC connectors
that are insulated from high voltage sources, including electrostatic discharges (ESD). Such
voltages could enter the circuitry through the exposed conductive surface of a connector,
possibly resulting in damage to components.
O-Ring
Dust Cap
Shielded
BNC Connector
Shielded BNC Connector (with O-Ring) and PVC Dust Cap
To meet CE requirements, PVC dust caps (p/n CN-96) must cover all unused BNC connectors.
When dust caps are not in place, special coaxial cables (with insulated end-connectors and
rubber O-rings) must be used. Note that part number 418-0800 includes two cables (with
shielded BNC connectors at each end), and four insulating O-rings.
Properly installed connectors and dust caps ensure the metallic surfaces of the connectors are
not exposed to undesirable electrical charges.
