AXI 02 AT • Introduction 1
Introduction
This section provides an overview of this guide and the features of the Extron AXI 02 AT
Audio Expansion Interface. This section covers the following topics:
• About this Guide
• About the AXI 02 AT
• Features
• Applications Diagrams
About this Guide
This guide contains installation, configuration, and operation information for the Extron
Electronics AXI 02 AT audio expansion interface. In this guide, the terms “AXI device,”
“device,” and “AXI” are all used to refer to the AXI 02 AT interchangeably.
About the AXI 02 AT
The AXI 02 AT audio expansion interface is a Dante-to-analog converter in a 1U high,
eighth-rack width zip-clip enclosure. The AXI 02 AT is a Dante input, analog output interface
with an additional S/PIDF digital output. Analog outputs accept 3.5 mm captive screw
connectors. The RJ-45 PoE port on the front panel of the device provides two Dante
receiver channels and powers the device. Output attenuation and device settings are
configured with Extron DSPConfiguratorSoftware or SIS commands through DataViewer
or other control software. The AXI advertises itself on the Dante network and uses the
Dante Controller software for routing, device naming, channel naming, transmission latency,
sample rate, and IP communication settings.
NOTE: The AXI 02 AT may also be powered with an external power injector.
Features
• Receives two audio channels from a Dante®network — Two channels of high
quality digital audio can be routed from the Dante network and converted to balanced
or unbalanced line level analog audio on a captive screw connector.
• Mirrored two-channel analog and S/PDIF audio outputs — Audio is
provided as two line level analog outputs on captive screw connectors and a mirrored
two-channel S/PDIF output on a coaxial RCA connector.
• Studio grade 24-bit digital-to-analog conversion with selectable
sampling rates up to 96 kHz — Professional converters fully preserve the integrity
of the original audio signal with selectable sampling rates via Dante Controller.
• Power over Ethernet — Allows the AXI 02 AT to receive power and audio over a
single Ethernet cable, eliminating the need for a local power supply.
• 1U, eighth rack width enclosure, ZipClip™ 100 included — Compatible
with Extron Rack Shelves and ZipClip mounting solutions.

AXI 02 AT • Introduction 2
• Software adjustable analog output attenuation — Compensates for
downstream level requirements using SIS commands via USB or DSP Configurator.
• Dante audio networking provides a wide range of expansion
capabilities — Dante-equipped audio products, including the AXI 02 AT, provide
scalability for creating larger audio systems over a local area network using standard
network protocols and hardware.
Applications Diagrams
Audio
Extron
MPA 152 Plus
Stereo Amplier
Extron Extron
Extron
SM 3
Surface
Mount
Speakers
BASSLEVEL TREBLE
MINI POWER AMPLIFIER
MPA 152 Plus
STEREO
DUAL
MONO
Audio
Extron
MPA 152 Plus
Stereo Amplier
Extron Extron
Extron
SM 3
Surface
Mount
Speakers
BASSLEVEL TREBLE
MINI POWER AMPLIFIER
MPA 152 Plus
STEREO
DUAL
MONO
Ethernet
Ethernet
Ethernet
Ethernet
Extron
DMP 128 Plus C AT
Digital Matrix Processor
Audio
Extron
MPA 152 Plus
Stereo Amplier
Extron Extron
Extron
SM 3
Surface
Mount
Speakers
Microphones
Conference Room #1
Extron
AXI 02 AT
Audio Expansion
Interface with
Dante
Extron
AXI 02 AT
Audio Expansion
Interface with
Dante
Extron
AXI 02 AT
Audio Expansion
Interface with
Dante
Conference Room #2 Conference Room #8
Ethernet
Dante
BASSLEVEL TREBLE
MINI POWER AMPLIFIER
MPA 152 Plus
STEREO
DUAL
MONO
DIGITALMATRIX PROCESSOR
CONFIG
CLIP
EXPLAN USB SIGNAL
CLIP
SIGNAL
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 89 10 11 12
ACTIVITY
INPUTS OUTPUTS
DMP 128 Plus
Extron
DMP 128 Plus C AT
Digital Matrix Processor
DIGITALMATRIX PROCESSOR
CONFIG
CLIP
EXPLAN USB SIGNAL
CLIP
SIGNAL
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 89 10 11 12
ACTIVITY
INPUTS OUTPUTS
DMP 128 Plus
AXI 02 AT
CONFIG
R
®
AXI 02 AT
CONFIG
R
®
AXI 02 AT
CONFIG
R
®

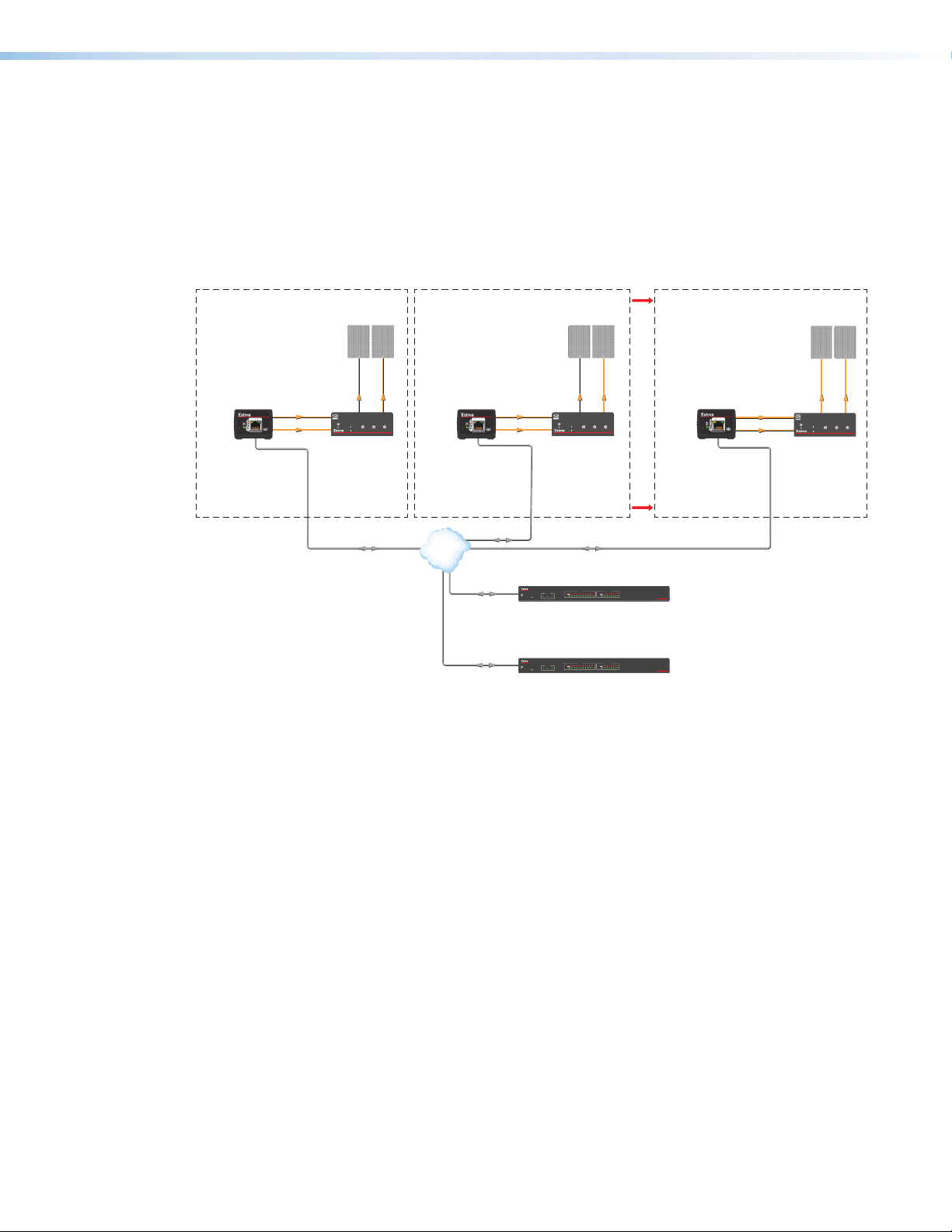

Figure 1. AXI 02 AT Application Diagram
1

AXI 02 AT • Installation and Operation 3
Installation and
Operation
This section describes the AXI 02 AT rear panel connections and front panel controls. The
following topics are covered:
• Mounting
• Rear Panel Connections
• Front Panel Features
• Reset Modes
Mounting
The 1U high, eighth-rack width, 4.42-inch deep AXI 02 AT mounts in the following manners:
• Rack mounting — Attach the device to a standard 19 inch rack shelf. The following
Underwriters Laboratories (UL) guidelines pertain to the installation of the AXI 02 AT in a
rack:
• Reduced air flow — Install the equipment in the rack so that the amount of air
flow required for safe operation of the equipment is not compromised.
• Mechanical loading — Mount the equipment in the racks so that uneven
mechanical loading does not create a hazardous condition.
• Circuit overloading — When connecting the equipment to the supply circuit,
consider the effect that circuit overloading might have on overcurrent protection
and supply wiring. Consider equipment nameplate ratings when addressing this
concern.
• Reliable earthing (grounding) — Maintain reliable grounding of rack-
mounted equipment. Pay particular attention to power supply connections other
than direct connections to the branch circuit (such as the use of power strips).
• Under-furniture mounting — Mount the AXI 02 AT under the surface of a desk,
table, or podium.
• Free-standing — Set the AXI 02 AT on furniture as desired.
NOTE: To mount the AXI 02 AT using an Extron ZipClip 100 mounting kit, see the
instructions provided with the kit.

AXI 02 AT • Installation and Operation 4
Rear Panel Connections
OUTPUTS
12
1/2
S/PDIF
A B
AAnalog Audio Outputs
BS/PDIF Audio Output
Figure 2. AXI 02 AT Rear Panel Connections
AAnalog Audio Outputs — Use a 6-pole or 3-pole, 3.5 mm captive screw connector
to connect two balanced or unbalanced mono line level devices. Balanced or
unbalanced stereo devices can also be connected using a 5-pole or 6-pole captive
screw connector.
Tip
Sleeve
Tip
Sleeve
Tip
Slee
ve
Ring
Tip
Slee
ve
Ring
6-pole Audio OUTPUT Wiring
Balanced Output Unbalanced Outpu
t
NO Ground Here
NO Ground Here
3-pole Audio OUTPUT Wiring
Unbalanced Output
Tip
Sleeve
NO Ground Here
Balanced Output
Tip
Sleev
e
Ring
Figure 3. 6-pole and 3-pole Audio Output Wiring
ATTENTION:
• For unbalanced audio outputs, connect the sleeves to the ground contact.
DO NOT connect the sleeves to the negative (-) contacts.
• Pour l’audio asymétrique, connectez les manchons au contact au sol. NE
PAS connecter les manchons aux contacts négatifs (–).
NOTES:
• Balanced or unbalanced stereo sources can be connected with 6-pole
connectors.
• When using a 5-pole CSR adapter, connect it so the far left plug is inserted
into the far left jack of the 6-pole output.
BS/PDIF Audio Output — Two S/PDIF output channels mirror the analog outputs on a
coaxial RCA connector. Attenuation applied to the analog outputs does not affect the
S/PDIF output.
2
3

AXI 02 AT • Installation and Operation 5
Front Panel Features
AXI 02 AT
CONFIG
R
®
AC BD
APower LED Indicator
BUSB Config Port
CAT (PoE) Port
DReset Button
Figure 4. AXI 02 AT Front Panel Controls
APower LED Indicator — This green LED blinks during boot up and lights steadily
when the AXI 02 AT is fully operational. This LED also blinks amber for 10 seconds
when the device receives a Dante identification signal (see Identifying a Physical
Dante Device on page22).
BUSB Config Port — Connect a computer to this USB Mini-B port for device
configuration and firmware updates.
CAT (PoE) Port — This RJ-45 port is used to connect the AXI 02 AT to a Dante
network. The AT (PoE) port supports digital audio transport (AT), communication with
the Dante network, communication with DSP Configurator for device configuration, and
power over Ethernet (PoE).
ATTENTION:
• Power over Ethernet (PoE) is intended for indoor use only. It is to be
connected only to networks or circuits that are not routed to the outside
plant or building.
• L’alimentation via Ethernet (PoE) est destinée à une utilisation en intérieur
uniquement. Elle doit être connectée seulement à des réseaux ou des
circuits qui ne sont pas routés au réseau ou au bâtiment extérieur.
• If not provided with a power supply, this product is intended to be supplied
by a UL Listed power source marked “Class 2” or “LPS” and rated output 48
or 56 VDC (PoE), minimum 0.35 A.
• Si ce produit n’est pas fourni avec une alimentation, il doit être utilisé avec
une source d’alimentation certifiée UL de classe 2 ou LPS avec une tension
nominale de 48 Vcc ou 56 Vcc (PoE), un de 0,35 A minimum.
DReset Button — Using a stylus or small screwdriver, press and release this button
to reset the unit to different tiers of factory defaults, including Dante settings such as
device name, IP address, channel names, and audio format (see Reset Modes below).
4

AXI 02 AT • Installation and Operation 6
Reset Modes
Press the front panel RESET button (see figure4, Don page5) with a stylus or Extron
Tweeker to restart the Dante module in the AXI and leave all other settings unaffected (see
Command and Response Table for SIS Commands on page30 for the command to
reset output attenuation and preset data).
To cause an absolute system reset of the Dante module back to factory default conditions,
press and hold the front panel reset button for 10 seconds until the AT (PoE) port LEDs
flash. Following this reset, the Dante module will proceed to its normal boot sequence. This
reset will:
• Set the IP configuration to default settings
• Clear all audio channel routing
• Set the Dante device name and channel names to default

AXI 02 AT • DSP Configurator Software 7
DSP Configurator
Software
In addition to front panel hardware controls, the AXI 02 AT can be configured with Extron
DSP Configurator Software and a PC running Microsoft® Windows®7 or newer. This section
describes Extron DSP Configurator Software and covers the following topics:
• Downloading and Installing DSP
Configurator Software
• DSP Configurator Software
Workspace
• Accessing the DSP Configurator Help
File
• Menu Bar
• Analog Outputs
Downloading and Installing DSP Configurator Software
1. From www.extron.com, click the Download tab (see figure5, 1).
On the left sidebar, click the DSP Configurator Software link (2).
1
2
Figure 5. DSP Configurator Software Link on Download Page
On the DSP Configurator Software page, click Download (see figure6, 1).
1
1
1
Figure 6. DSP Configurator Software Download Page
2. From the Download Center page, DSP Configurator Software should begin
downloading automatically. If it does not, select click here in the top-left of the page.
NOTE: An Extron Insider account is required to download DSP Configurator
Software and other software available from the Extron website. Login or account
creation may be required before the Download Center page appears.
3. Select Run at the bottom of the page to run the DSP Configurator Software installer or
select Save to save the install file to run at a later time.
5
6

AXI 02 AT • DSP Configurator Software 8
Accessing the DSP Configurator Help File
DSP Configurator Software comes loaded with a context-sensitive help file that can
be accessed by clicking the help icon ( ) in the top right corner of any dialog box in
DSPConfigurator. Alternatively, click Help > Contents in the menu bar at the top of
the main workspace, or press <F1> on your keyboard. This help file contains detailed
procedures and further instruction on using all DSP Configurator Software features.
DSP Configurator Software Workspace
The DSP Configurator Software workspace for the AXI 02 AT contains a menu bar for
accessing configuration tools and the main audio workspace for audio configuration (see
figure7).
Figure 7. DSP Configurator Software Workspace
Menu Bar
File
1New — Opens a new configuration file. If the current
configuration has not been saved, the Save dialog
box opens and asks to save the current configuration
before the new configuration is opened. Click Yes
to save the current configuration before opening the
new one. Click No to delete the current configuration
before opening the new one. Click Cancel to return
to the current configuration.
2Open — Opens an existing configuration or template
file. When selected, the Browse dialog box opens
to search for saved configuration or template files.
Double-click a configuration or template file to load it.
NOTE: Configuration files have a .EDC file extension and template files have a
.EDCT file extension.
7
1
2
3
4
5
6
7

AXI 02 AT • DSP Configurator Software 9
3Save — Saves the current configuration to a configuration file. If this is the first time the
configuration has been saved, the Save Configuration As... dialog box opens.
Enter a name and choose a save location for the configuration file.
4Save As — Saves the current configuration file under a new name and location or as a
template file. When selected, the Save Configuration As... dialog box opens.
5Export Single Device — Saves the currently selected device configuration in
Device Manager as a configuration file. This can be used to save an individual device
configuration when there are multiple devices in Device Manager (see the Device
Manager topic of the DSP Configurator Help file).
6Recent Files — Lists the five most recently opened configuration files. These files can
be selected and loaded into DSP Configurator Software.
7Exit — Closes DSP Configurator Software. If the current configuration has not
been saved, the Save dialog box opens and prompts the user to save the current
configuration before closing the software. Click Yes to save the file. Click No to exit the
application without saving. Click Cancel to return to the main workspace and keep the
software running.
Edit
1Cut — Removes the configuration of selected elements
in the workspace to be pasted to other elements.
Configuration data is not removed from the elements until it
is pasted to other elements.
2Copy — Copies the configuration of selected elements in
the workspace to be pasted to other elements.
3Paste — Applies the cut or copied configuration of elements to the selected elements
in the workspace.
View
1Meter Bridge — Opens a meter bridge to view
input and output activity. The meter bridge is a
floating window, allowing the user to work in the
DSPConfigurator Software workspace while
simultaneously monitoring input and output activity.
NOTE: The meter bridge is only available in Live mode.
2Re-enable All Dialogs — This option re-enables all dialog boxes that no longer
appear based on user selection (certain dialog boxes that appear are user-defeatable by
selecting a checkbox that reads Do Not Show This Dialog Again).
1
2
3
1
2

AXI 02 AT • DSP Configurator Software 10
Tools
1Presets — Contains a submenu to mark
and clear all elements in the main workspace
as well as an option to save marked
elements to a preset (see Presets on
page11).
2Connect to/Disconnect from Device
— When in Emulate mode, this option
reads Connect to Device and opens
the Connect to Device... dialog box
(see Connecting Live to a Device on
page12). When in Live mode, this reads
Disconnect from Device and returns the
software to Emulate mode.
3Device Manager — Opens the Device Manager dialog box. Click the help icon
( ) in the top right corner of the dialog box to view the Device Manager topic for
more information on using the Device Manager.
4Issue RESET Command — Clears all gain settings, attenuation settings, and presets for
the AXI. This command does not reset general settings such as device name or Dante
network configuration.
5Firmware Loader — Opens the Firmware Loader application if it is installed (see
the Firmware Loader Help file for help updating firmware). Visit www.extron.com to
download Firmware Loader.
6Device Settings — Opens the Device Settings dialog box to edit the device
name and view the network configuration. Click the help icon( ) in the top right corner
of the dialog box to view the Device Settings topic for more information.
7Options — Opens the Options dialog box to configure DSP Configurator Software
appearance and default settings. Click the help icon( ) in the top right corner of the
dialog box to view the Options topic for more information.
8Network Audio Control — Opens Dante Controller by Audinate for routing audio
over a Dante network (see Dante Controller on page15). Dante Controller must be
installed in order for the application to be opened. Visit www.extron.com to download
Dante Controller.
Window
1Cascade — Organizes windows by
cascading them in the same order they were
opened.
2Close All Windows — Closes all open
windows, leaving only the main workspace
visible. When windows are closed, changes
to any of the parameters in the open
windows are saved before the windows are closed.
3List of Open Windows — Below the dividing line in the menu is a list of all open
windows. Select a window from the list to bring it into focus and to the forefront of the
workspace. Windows appear in the order they were opened.
1
2
3
4
5
6
7
8
1
2
3
