IP Camera VANDAL DOME User manual

User Manual
VANDAL DOME IP
CAMERA

2
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
COPYRIGHT
THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY REGISTERED
TO THEIR RESPECTIVE COMPANIES.

3
Content
I. PREFACE ................................................................................................................4
II. PRODUCT SPECIFICATIONS................................................................................4
III. PRODUCT INSTALLATION...................................................................................7
A. MONITOR SETTINGS ...............................................................................................7
B. HARDWARE INSTALLATION.......................................................................................8
C. IPASSIGNMENT ...................................................................................................12
D. INSTALLACTIVEXCONTROL...................................................................................16
IV. LIVE VIDEO.........................................................................................................23
V. CAMERA CONFIGURATION................................................................................26
A. SYSTEM ..............................................................................................................27
B. NETWORK ...........................................................................................................32
C.A/V SETTING .......................................................................................................56
D. EVENT LIST .........................................................................................................63
VI. NETWORK CONFIGURATION ...........................................................................74
VII. FACTORY DEFAULT..........................................................................................76
VIII. UNIVERSAL PASSWORD.................................................................................77
IX. PACKAGE CONTENTS.......................................................................................80
X. MICRO SD CARD COMPATIBILITY..................................................................81
V1.2_20140107

4
I. Preface
This is a 1 / 4” Mega-Pixel CMOS sensor IP camera with a built-in web server. The
user can view real-time video via IE browser. It supports H.264 and M-JPEG video
compression, providing smooth and high video quality. The video can be stored in
a Micro SD card and playback remotely.
With a user friendly interface, it is an easy-to-use IP camera which is designed for
security application.
II. Product Specifications
HD 720P Real Time
3D+2D Digital Noise Reduction
Digital Wide Dynamic Range
Adjustable Shutter Speed
Sense Up Adjustable
Power over Ethernet
H.264/ M-JPEG Compression
Micro SD Card Backup (Optional)
IK10
Support iPhone/Android/Mac
SDK for Software Integration
Free Bundle 36 ch Recording Software
Hardware
CPU
Multimedia SoC
RAM
128MB

5
Flash
16MB
Image sensor
1 / 4” Mega-Pixel CMOS sensor
Sensitivity
Color : 0.2 Lux (AGC ON)
Lens Type
2.8mm @ F1.8
ViewAngle
77.79°(H), 49.55°(V)
Power over Ethernet
Yes
Audio
N/A
Video Output
N/A
I/O
N/A
Power Consumption
DC 12V Max: 1.8W
PoE Max: 2.4W
Operating Temperature
-10°C ~ 50°C
Dimensions
80mm () x 67mm (H)
Weight
340g
Network
Ethernet
10/ 100 Base-T
Network Protocol
IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP,
Access list, IEEE 802.1X, RTSP, TCP/ IP, UDP,
SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP,
3GPP, SAMBA, Bonjour
System
Video Resolution
1280x800@30fps,1280x720@30fps ,
640x480@30fps, 320x240@30fps, 176x144@30fps
Video Adjust
Brightness, Contrast, Hue, Saturation, Sharpness,
AGC, Shutter Time, Sense-Up, D-WDR, Anti Fog,
Lens Distortion Correction, Flip, Mirror, Red Gain
and Blue Gain, De-noise
Triple Streaming
Yes
Image Snapshot
Yes
Full Screen Monitoring
Yes
Privacy Mask
Yes, 3 different areas
Compression Format
H.264/ M-JPEG
Video Bitrates Adjust
CBR, VBR
Motion Detection
Yes, 3 different areas

6
Triggered Action
Mail, FTP, Save to SD card, Samba
Security
Password protection, IP address filtering, HTTPS
encrypted data transmission, 802.1X port-based
authentication for network protection, QoS/DSCP
Firmware Upgrade
HTTP mode, can be upgraded remotely
Simultaneous Connection
Up to 10
Micro SD card management
Recording Trigger
Motion Detection, IP check, Network break down
(wire only),Schedule
Video Format
AVI, JPEG
Video Playback
Yes
Delete Files
Yes
Web browsing requirement
OS
Windows 7, 2000, XP, 2003, Microsoft IE 6.0 or
above, Chrome, Safari, Firefox
Mobile Support
iOS 4.3 or above,Android 1.6 or above.
Hardware Suggested
Intel Dual Core 2.53G,RAM: 1024MB, Graphic card:
128MB
*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION.

7
III. Product Installation
A. Monitor Settings
i. Right-Click on the desktop. Select “ Properties”
ii. Change color quality to highest (32bit).

8
B. Hardware Installation
1. Placing the Camera
Cable from the bottom

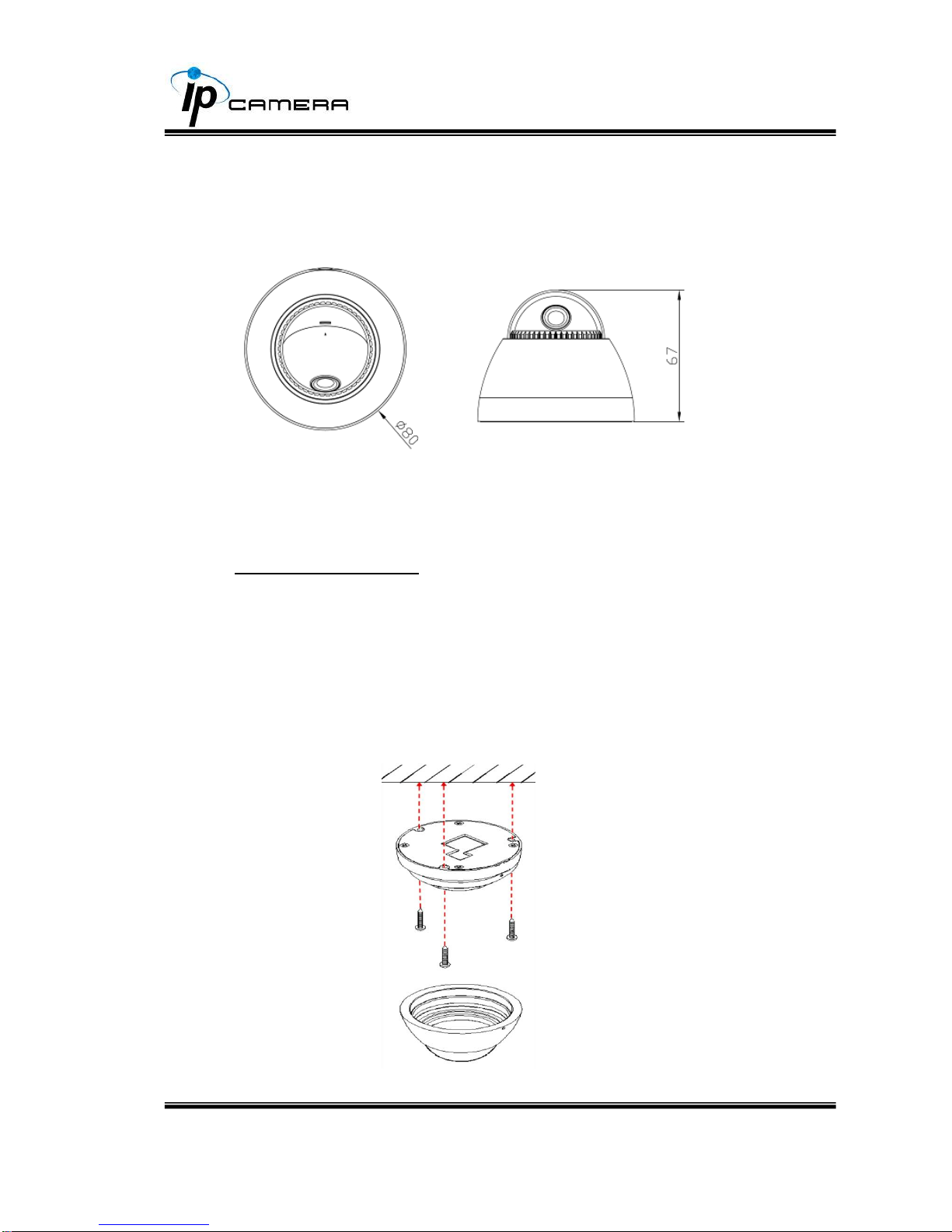

a. Use the three screws to lock the base of camera on the ceiling or the
wall.
b. Put the cover back, and turn it tightly to preserve the IP.

9
Cable side
a. Find a conversion ring and two screws inside the accessories
package.
b. Use the three screws to lock the conversion ring on the ceiling or the
wall.
c. Use the three screws to combine the base of camera with the
conversion ring. The cable must pass through the hole on the side of
conversion ring.
d. Put the cover back, and turn it tightly to get waterproof.

10

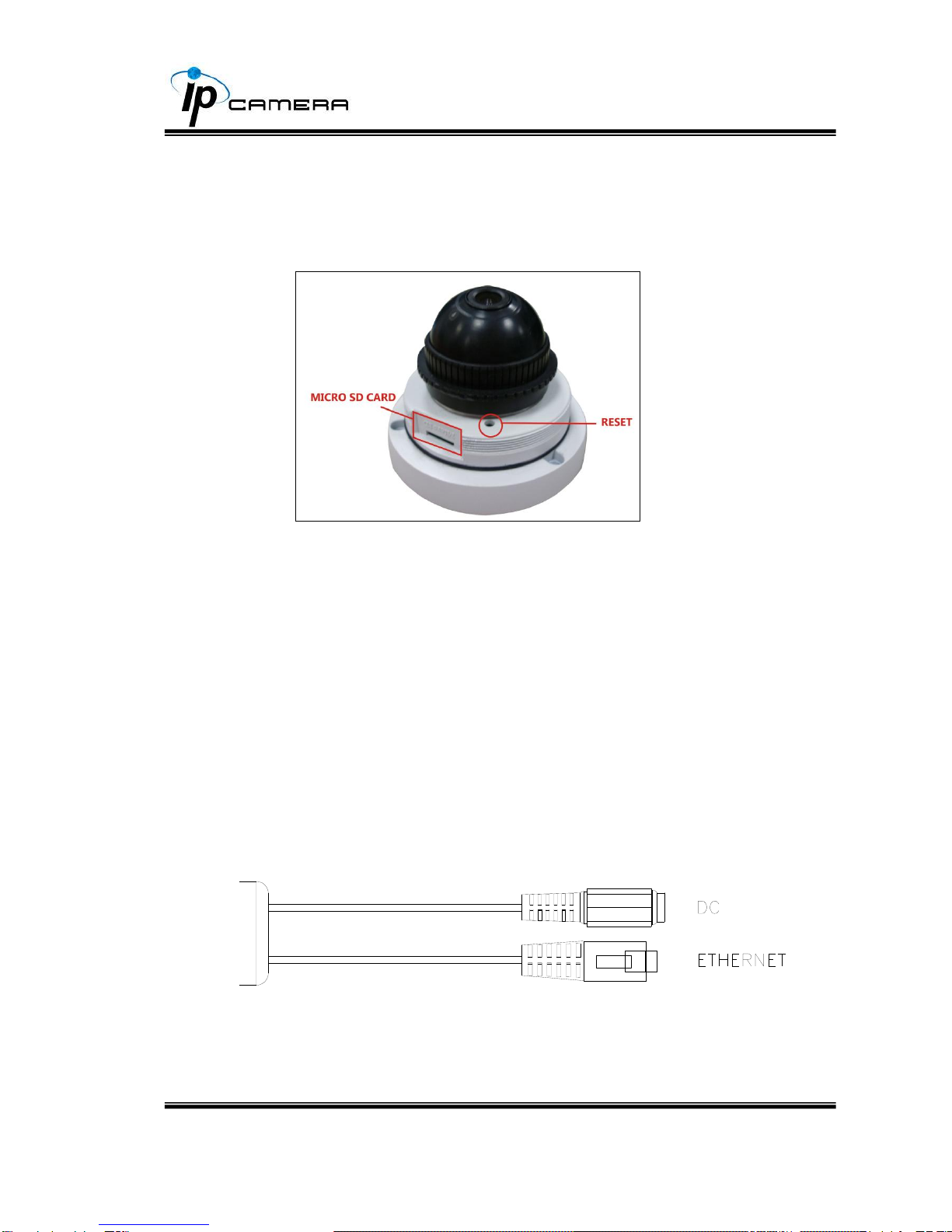

2. When removing the dome cover, you will see the Micro SD card slot
and the reset button.
After opening the front cover, to install the IP Camera and put the cover
back within 10 minutes for avoiding fog in the IP Camera Housing.
3. Connector Instruction
Connect power adaptor first, then connect the IP Camera to PC or
network, and set up the network configurations according to the network
environment.
