IP CLEANING PLANET 22 S ATEX User manual

OPERATION AND MAINTENANCE MANUAL
STATIC DISSIPATIVE / GROUNDED
INDUSTRIAL VACUUM CLEANER SYSTEM
ELECTRICALLY OPERATED
FOR DRY RECOVERY
MODEL: PLANET 22 S ATEX
DUST CLASS “H”
II 3 D
Ex tc IIIC T200oC Dc IP6X
IP Cleaning S.r.l.
via E.Fermi,2
CASTELVERDE (CR) - ITALY
http://www.ipcworldwide.com
READ ALL INSTRUCTIONS BEFORE OPERATING,
CLEANING OR SERVICING
IMPORTANT - SAVE THESE INSTRUCTIONS

Page 2of 22
Table of Contents
1.0 INSPECTION ......................................................................................................3
2.0 APPLICATIONS..................................................................................................3
3.0 IMPORTANT SAFETY PRECAUTIONS.............................................................5
4.0 PRE-USAGE INSTRUCTIONS AND IMPORTANT SAFETY PRECAUTIONS..8
5.0 PRE-CAUTIONS FOR THE RECOVERY OF HAZARDOUS MATERIALS .....10
6.0 GROUNDING INSTRUCTIONS........................................................................11
7.0TESTING FOR GROUND CONTINUITY ..........................................................12
8.0 FILTRATION SYSTEM.....................................................................................13
9.0 OPERATING INSTRUCTIONS FOR DRY RECOVERY...................................14
10.0 CLEANING AND MAINTENANCE .............................................................15
11.0 ASSEMBLING AND REPLACING THE HEPA FILTERS...........................16
12.0 STORAGE...................................................................................................19
13.0 TECHNICAL SPECIFICATIONS.................................................................19
14.0 TROUBLESHOOTING:...............................................................................20
15.0 EU DECLARATION OF CONFORMITY .....................................................21
16.0 ANNEXES...................................................................................................22

Page 3of 22
1.0INSPECTION
Carefully unpack and inspect your IPCLEANING Vacuum Cleaner for shipping damage. Each
vacuum cleaner is tested and thoroughly inspected before being shipped; therefore, any
damage is the responsibility of the delivering carrier, who should be notified.
2.0APPLICATIONS
WARNING: A complete risk assessment has to be conducted by the user for the
recovery of dusts in hazardous areas. The recommendations in this manual
cannot, in any case, supplant the conclusions of a risk assessment.
IPCLEANING PLANET 22 S ATEX is a static dissipative / grounded industrial vacuum cleaner
system, electrically operated for use in potentiallyexplosive atmospheres classified ATEX zone
22 for dust.
PLANET 22 S ATEX vacuum cleaners are certified in conformance with Directive 2014/34/EU
for Group II, Category 3. The vacuum cleaners bear the following marking:
II 3 D
Ex tc IIIC T200oC Dc IP6X
Forthisequipmentan internalcontrolof productionaccordingtoDirective2014/34/EUhas been
performed. The examination and tests results are recorded in a confidential report.
WARNING: THIS VACUUM CLEANER IS NOT DESIGNED TO BE USED IN ZONES
20 OR 21 HAZARDOUS AREAS. DO NOT USE THIS VACUUM
CLEANER IN ZONES 20 OR 21 HAZARDOUS AREAS.
WARNING: This vacuum cleaner is designed for the recovery of dry materials
only. Do not recover liquids.
WARNING: Only tools and accessories provided by the manufacturer shall be
used with this vacuum cleaner. The use of other tools and
accessories may impair safety.

Page 4of 22
2.1. APPLICATIONS IN POTENTIALLY EXPLOSIVE ATMOSPHERES IN PRESENCE
OF FLAMMABLE GASES, VAPORS OR LIQUIDS
WARNING: THIS VACUUM CLEANER IS NOT DESIGNED TO BE USED IN
HAZARDOUS AREAS CONTAINING FLAMMABLE GASES,
VAPORS OR LIQUIDS. DO NOT USE THIS VACUUM CLEANER IN
HAZARDOUS AREAS CONTAINING FLAMMABLE GASES,
VAPORS OR LIQUIDS.
2.2. APPLICATIONS IN POTENTIALLY EXPLOSIVE ATMOSPHERES IN PRESENCE
OF COMBUSTIBLE DUST
PLANET 22 S ATEX series are electrically operated, static dissipative / grounded industrial
vacuum cleaner systems designed and certified for use in ATEX Zone 22 classified areas in
which an explosive atmosphere in the form of a cloud of combustible dust in air is not likely to
occur in normal operation but – if it does occur – will persist for a short period only
Model PLANET 22 S ATEX can be used to recover:
•Combustible flyings
•Combustible carbonaceous dusts (Carbon black, charcoal, coal or coke dusts)
•Flour, grain, wood, plastic and chemicals
•A maximum of 2 kilos (5 pounds) of conductive dusts or metal dusts
WARNING: For the recovery of a more than 2 kilos (5 pounds) of conductive dusts
or metal dusts we recommend the use of an optional “wet mix”
immersion separator to precipitate the dusts into a liquid bath.
WARNING: DO NOT RECOVER ANY HOT EMBERS OR IGNITED DUSTS.

Page 5of 22
3.0IMPORTANT SAFETY PRECAUTIONS

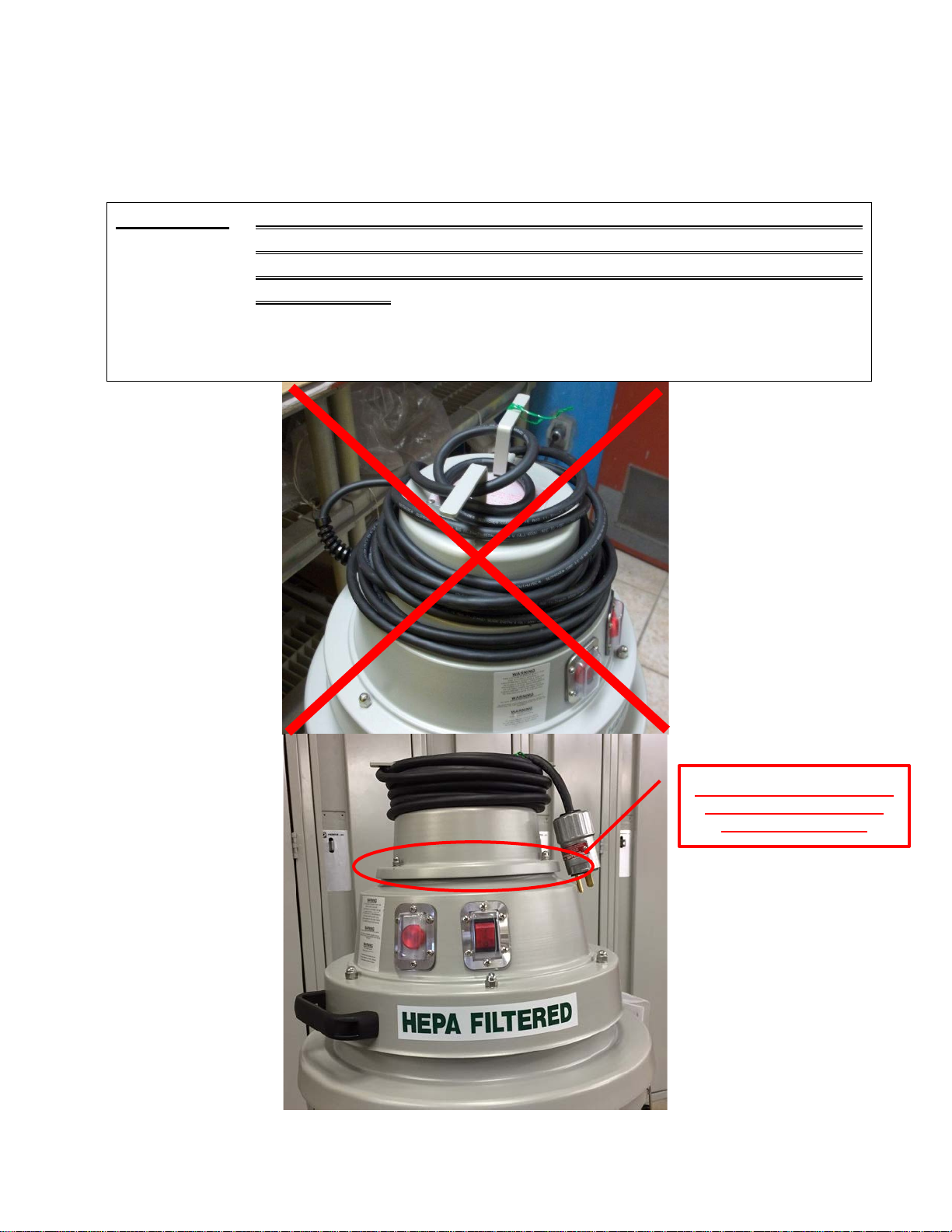

3.1.MOTOR COOLING AIR INTAKE
WARNING: DO NOT WRAP THE ELECTRIC CABLE AROUND THE
MOTOR COOLING AIR INTAKE OR OBSTRUCT THE
MOTOR COOLING AIR INTAKE IN ANY WAY DURING
OPERATION. THIS WOULD PREVENT AIR TO COOL DOWN
THE MOTOR, THE TEMPERATURE OF THE MOTOR
WOULD RISE, AND THIS WOULD STOP THE VACUUM
CLEANER.

Motor cooling air intake must
remain unobstructed at all
time during operation

Page 6of 22
3.2.FILTER BLOCKAGE WARNING LIGHT
A filter blockage warning light is installed on the vacuum cleaner. The light turns on to
indicate a loss of suction. In such case the collection bag may be full, cloth filters (main filter
and safety filter) may need to be washed or HEPA filters may need to be replaced.
WARNING: When the filter blockage warning light turns on, turn the vacuum
cleaner off as soon as possible as filter blockage cause the
temperature inside the vacuum cleaner to rise and can also lead to
motor damage.
For maintenance refer to “Cleaning and maintenance” and to “Assembling and replacing the
HEPA filters” sections.
3.3.LAYERS OF DUST
WARNING: Clean regularly the vacuum cleaner surfaces with a water damped
cloth to avoid dust accumulation which could create a potential source
of ignition.
3.4.TEMPERATURE LIMITATION
In presence of dust clouds
WARNING: The maximum surface temperature of the vacuum cleaner is 200oC. This
equipment shall not be used in presence of a dust cloud which the
minimum ignition temperature is less than 300oC.
In presence of dust layers
WARNING: The maximum surface temperature of the vacuum cleaner is 200oC. This
equipment shall not be used in presence of a dust layer of 5mm which
the minimum ignition temperature is less than 275oC.

Page 7of 22
3.5.BURNING MATERIAL
WARNING: DO NOT PICK-UP ANYTHING THAT IS BURNING OR SMOKING, SUCH
AS HOT ASHES, CIGARETTES, MATCHES OR LIVE EMBERS.
3.6.FLAMMABLE LIQUIDS
WARNING: THIS VACUUM CLEANER IS NOT DESIGNED TO RECOVER
FLAMMABLE LIQUIDS. DO NOT USE THIS VACUUM CLEANER TO
RECOVER FLAMMABLE LIQUIDS.
3.7.CONDUCTIVE AND METAL DUSTS
WARNING: For the recovery of a more than 2 kilos (5 pounds) of conductive dusts or
metal dusts we recommend the use of an optional “wet mix” immersion
separator to precipitate the dusts into a liquid bath.
3.8.SELF-IGNITION OF DUST
WARNING: DO NOT USE THIS VACUUM CLEANER TO RECOVER DUST OR
MIXTURE OF DUSTS THAT CAN SELF-IGNITE.
3.9.MECHANICALLY GENERATED SPARKS
WARNING: To prevent mechanically generated sparks (thermite reaction) avoid
impact of the wand and tools supplied with the vacuum cleaner with
any rusted parts present in the working area.
3.10. IMPORTANT SAFETY PRECAUTIONS IN REGARD TO ELECTROSTATIC
CHARGES GENERATION
When the vacuum cleaner is used as recommended in this manual it has been determined
that no significant or continuous electrostatic charge accumulation, which could act as a
potential ignition source, can occur.
Nevertheless, it is recommended for safe use not to perform any specific action on the
insulating items assembled on the vacuum cleaner, such as a continuous and intense
manual rubbing, which could lead to a significant electrostatic charge accumulation.
The above instructions are to be observed particularly in regard to the plastic wheel
covers.

Page 8of 22
4.0PRE-USAGE INSTRUCTIONS AND IMPORTANT SAFETY PRECAUTIONS
WARNING: This vacuum cleaner must be properly grounded.DO NOT OPERATE
UNIT WITHOUT A PROPER GROUND SOURCE.
WARNING: The vacuum cleaner unit is completely grounded and use special
static-free materials. Use only original replacement parts from the
manufacturer or from one of its authorized distributors.
WARNING: The vacuum cleaner is supplied without an electrical plug. It is the
user’s responsibility to install a suitable plug certified for the
hazardous area classification.
WARNING: The plug should be installed by a qualified electrician only. The plug
must be plugged into an appropriate outlet that is properly installed
and grounded in accordance with all local codes and ordinances.
WARNING: This appliance is for dry use only and is not to be used or stored
outdoors in wet conditions.
WARNING: Before use, operators should be provided with information,
instruction and training for the use of the appliance and the
substances for which it is to be used, including the safe method of
removal and disposal of the material collected
WARNING: For user servicing, the machine shall be dismantled, cleaned and
serviced, as far as is reasonably practicable, without causing risk to
the maintenance staff and others. Suitable precautions include
decontamination before dismantling, provision for local filtered
exhaust ventilation where the machine is dismantled, cleaning of the
maintenance area and suitable personal protection.
WARNING: The manufacturer, or an instructed person, shall perform a technical
inspection at least annually, consisting of, for example, inspection of
filters for damage, air tightness of the machine and proper function
of the control mechanism. In addition, on class H machines, the
machine filtration efficiency should be tested at least annually, or
more frequently as may be specified by national requirements.

Page 9of 22
WARNING: the outside of the machine should be decontaminated by vacuum
cleaning methods and wiped clean or treated with sealant before
being taken out of a hazardous area. All the machine parts shall be
regarded as contaminated when removed from the hazardous area
and appropriate action taken to prevent dust dispersal
WARNING: This appliance is not suitable to pick up dusts or liquids of high
explosion risk, nor mixtures of combustible dust with liquids.
WARNING: Improper use of this vacuum cleaner will result in the voiding of the
warranty.
a. Consult local electric code and authority having jurisdiction before using. Make sure that
the electrical installation is compatible with the voltage stated on the nameplate.
b. Examine the vacuum cleaner’s power cable for damage (cracking or ageing) before
every use. Return to manufacturer for servicing if damaged. Use only the power cable
supplied with the unit or one purchased from the manufacturer.
c. Do not pull vacuum cleaner by the power cable.
d. Turn off the vacuum cleaner and unplugged the power cable before servicing or storing
the vacuum cleaner. Clean and service this vacuum cleaner only in a NON-
HAZARDOUS AREA.
e. This vacuum cleaner is designed for indoor use only.
f. The tank should be clean and dry before using the vacuum cleaner.
g. The appliance shall only be operated when all filters are in position and undamaged.
(See paragraph regarding the filtration system)
h. Connect to a properly grounded outlet only. See Grounding Instructions.
i. Only use the right ATEX extension cord according to risk assessment of the end user.
j. For dusts with an ignition energy less than 1mJ additional restrictions of the labour
authorities may apply.

Page 10 of 22
5.0PRE-CAUTIONS FOR THE RECOVERY OF HAZARDOUS MATERIALS
WARNING: Model PLANET 22 S ATEX (not equipped with a HEPA filter) is not
suitable for the recovery of hazardous materials.
DANGER: If the vacuum cleaner is used to recover toxic or nuisance materials,
the following safety precautions must be taken:
a. The vacuum cleaner must be equipped with a HEPA filter.
b. Service and operation should only be carried out by trained personnel.
c. Appropriate clothing and personal protective equipment should be worn when operating
or servicing the vacuum cleaner.
d. Dispose of collectedmaterials responsibly. Follow applicable government regulations for
the disposal of hazardous materials.
WARNING: This appliance contains dust hazardous to health. Emptying and
maintenance operations, including removal of the dust collection
means, must only be carried out by authorized personnel wearing
suitable personal protection. Do not operate without the full filtration
system fitted.
NOTE: Any health hazard associated with the use of this vacuum cleaner in
conjunction with the recovery of asbestos and other hazardous
substances has not been investigated.

Page 11 of 22
6.0GROUNDING INSTRUCTIONS
This vacuum cleaner must be properly grounded. If it should malfunction or breakdown,
grounding provides a path of least resistance for electric current to reduce the risk of electric
shock.This vacuum cleaneris equipped with a cord having an equipment-grounding conductor.
The vacuum cleaner is supplied without an electrical plug. It is the user’s responsibility to install
a suitable plug certified for the hazardous locations area classification.
The plug should be installed by a qualified electrician only. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and
ordinances. Ensure that the fuse/breaker on the electrical panel is of the correct rating and
exceeds the maximum current rating shown on the technical data sticker of the vacuum unit.
Test the electrical continuity of the vacuum cleaner prior to each use. (See section 6: testing
for ground continuity).
UWARNING:UThis vacuum cleaner for hazardous locations is equipped with
conductive wheels, which allow for the vacuum cleaner to be grounded
with the floor. Do not substitute the conductive wheels and use only
replacement conductive wheels supplied by the manufacturer.
UWARNING:UImproper connection of the equipment-grounding conductor can result
in a risk of electric shock. Check with a qualified electrician or service
person if you are in doubt as to whether an outlet is properly grounded.
If the plug will not fit the outlet, have a proper plug or outlet installed by
a qualified electrician. No adaptor should be used with this vacuum
cleaner
UWARNING:UTo effectively dissipate static electricity and to ensure spark-free
operation, this vacuum cleaner must be grounded during use.
UDANGER:UDo not operate vacuum cleaner if the electrical outlet is not properly
grounded or if the grounding is questionable.

Page 12 of 22
7.0TESTING FOR GROUND CONTINUITY
WARNING: Test the electrical continuity of the vacuum cleaner before each use.
This will ensure that any static electricity that is produced while
vacuuming will be discharged to ground.
WARNING: Use only original replacement parts from the manufacturer or from one
of its authorized distributors.
An ohm-meter is required to perform the following electrical continuity test.
a. Disconnect the power cable from the outlet.
b. Make sure that all the latches on the vacuum cleaner are fastened and that the detachable
recovery tank is properly installed on the vacuum cleaner.
c. Disconnect the suction hose from the vacuum cleaner.
d. Using an ohm-meter, test the electrical continuity of the vacuum cleaner from the ground
pin at the end of the power cable to the suction intake of the vacuum cleaner. A reading of
109ohms or less is satisfactory to ensure proper grounding and static dissipation.
e. Using the ohm-meter test for the electrical continuity of the suction hose from one end to
the other. A reading of 109ohms or less is satisfactoryto ensure propergroundingand static
dissipation.

Page 13 of 22
8.0FILTRATION SYSTEM
Figure 1
1. ABSOLUTE HEPA FILTER FOR MOTOR COOLING AIR INTAKE (Efficiency > of 99.995% on
0.3 micron.)
2. ABSOLUTE HEPA FILTER FOR MOTOR COOLING AIR EXHAUST (Efficiency > of 99.995%
on 0.3 micron.)
3. ABSOLUTE HEPA FILTER FOR WORKING AIR INTAKE (Efficiency > of 99.995% on 0.3
micron.)
4. SAFETY FILTER (STATIC DISSIPATIVE)
5. MAIN CLOTH FILTER (STATIC DISSIPATIVE)
6. COLLECTION BAG (STATIC DISSIPATIVE)
7. POLY LINER RECOVERY BAG (STATIC DISSIPATIVE)
8. ABSOLUTE HEPA FILTER FOR WORKING AIR EXHAUST (Efficiency > of 99.995% on 0.3
micron.)
A. SUCTION INLET
B. WORKING AIR EXHAUST
C. MOTOR COOLING AIR INTAKE
D. MOTOR COOLING AIR EXHAUST
F FILTER BLOCKAGE WARNING LIGHT
M. MOTOR

Page 14 of 22
9.0OPERATING INSTRUCTIONS FOR DRY RECOVERY
WARNING: This vacuum cleaner is designed for the recovery of dry materials
only. Do not recover liquids.
1. Disengage the latches and remove the power head from the recovery tank.
2. Place the poly liner (item # 7 on Fig. 1) at the bottom of the tank
NOTE In order to prevent the poly liner from being vacuumed up during use; press
the bag along the interior walls and bottom of the recovery tank in order to remove any
trapped air.
3. Place the collection bag (item # 6 on Fig. 1) in the recovery tank on the air intake
4. Place the main cloth filter (item # 5 on Fig. 1) on the recovery tank. Make sure thatthe filter's
gasket covers the circumference of the recovery tank lip.
IMPORTANT: Do not use this vacuum cleaner for dry recovery if the cloth filters are
not installed
5. Place the power head on the recovery tank and fasten the latches.
6. Fasten hose to suction intake on side of recovery drum and attach desired tools to hose.
7. To turn on the vacuum cleaner, turn switch to the ON position
8. To shut off unit, turn switch to the OFF position. Disconnect the power cable when not in
use.

Page 15 of 22
10.0 CLEANING AND MAINTENANCE
FILTER BLOCKAGE WARNING LIGHT:
A filter blockage warning light is installed on the vacuum cleaner. The light turns on to indicate
a loss of suction. In such case the collection bag maybe full, cloth filters (main filters and safety
filters) may need to be washed or HEPA filters may need to be replaced.
WARNING: When the filter blockage warning light turns on, turn the vacuum cleaner
off as soon as possible as filter blockage cause the temperature inside
the vacuum cleaner to rise and can also lead to motor damage.
IMPORTANT: We recommend proceeding with the following maintenance after each
use and after a maximum of 8 hours of consecutive use
WARNING: Turn off the vacuum cleaner and disconnect the power cable before
performing any servicing or maintenance of the vacuum cleaner.
a. Dispose of collection bag when full and replace by a new collection bag
b. Empty and clean the recovery tank.
WARNING: Empty the recovery tank when necessary but also after every use (8
hours shift). Do not allow recovered materials to sit for extended periods
of time. An excessive accumulation of recovered materials can create a
dust ignition hazard.
c. It is recommended that the cloth filters be cleaned regularly. Dirty cloth filters will reduce
the airflow through and reduce the performance of the vacuum cleaner. The cloth filters
(main filters and safety filters) can be washed with warm water (no detergents required).
IMPORTANT: After washing the filters, make sure that they are completely dry
before reinstalling them in the vacuum. Do not reinstall the cloth
filters if they are still wet.

Page 16 of 22
d. The cloth filters should be replaced every two or three years depending on use.
e. Inspect the cloth filters regularly. If the cloth filters are torn, replace immediately. A torn
filter will allow dust and other materials to enter the motor and may cause pre-mature
wear of the motor
f. Clean hose to remove any accumulated dust, debris or material recovered.
g. The HEPA filter should be replaced yearly, or every two years, depending on the use.
WARNING: Do not use the HEPA filter after removal out of the appliance.
WARNING: Keep the power supply cable clean and inspect it regularly for cuts
or cracks
WARNING: When carrying out service or repair operations, all contaminated
items which cannot be satisfactorily cleaned, are to be disposed of.
Such items shall be disposed of in impervious bags in accordance
with any current regulation for the disposal of such waste;
WARNING: Clean regularly the vacuum cleaner surfaces with a water damped
cloth to avoid dust accumulation which could create a potential
source of ignition.
11.0 ASSEMBLING AND REPLACING THE HEPA FILTERS
A HEPA filter is designed for filtration of ultra-fine particles. A clogged HEPA filter will reduce
the air flow thereby reducing the vacuum’s performance thus requiring replacement.
The life of the HEPA filters depends greatly on the use of the vacuum cleaner. It is
recommended that the HEPA filters be replaced once a year if the vacuum is used intensively
(daily). The filters can be replaced everytwo years if the vacuum cleaneris used less frequently
(two or three times per week)
WARNING: If the vacuum cleaner is used for the recovery of toxic materials proper
clothing and the use of an appropriate breathing apparatus is
necessary when servicing the HEPA filter housing or any other
contaminated part of the unit.

Page 17 of 22
11.1. REPLACEMENT OF THE HEPA FILTER FOR MOTOR COOLING AIR INTAKE
(ITEM #1 ON FIG. 1 SEE SECTION 8 FOR ILLUSTRATION)
1. Disconnect the power cable from the outlet.
2. Unscrew the three hex nuts securing the top section of the power head to the lid
3. Remove and discard the old HEPA filter
4. Carefully inspect the seal gaskets for wear and breaks. Replace gaskets if defective.
5. Place the new filter on the lid.
6. Securely fasten the top section of the power head to the lid using the three hex nuts.
7. Dispose of the contaminated filter according to government regulations. (If applicable)
11.2. REPLACEMENT OF THE HEPA FILTER FOR MOTOR COOLING AIR EXHAUST
(ITEM #2 ON FIG. 1 SEE SECTION 8 FOR ILLUSTRATION)
1. Disconnect the power cable from the outlet.
2. Unscrew the six hex nuts securing the middle section of the power head to the lid
3. Remove and discard the old HEPA filter.
4. Carefully inspect the seal gasket on the HEPA filter. Replace gasket if defective.
5. Place the new filter on the lid.
6. Securely fasten the middle section of the power head to the lid using the six hex nuts.
7. Dispose of the contaminated filter according to government regulations. (If applicable)

Page 18 of 22
11.3. REPLACEMENT OF THE HEPA FILTER FOR WORKING AIR EXHAUST (ITEM #8
ON FIG. 1 SEE SECTION 8 FOR ILLUSTRATION)
1. Disconnect the power cable from the outlet.
2. Unscrew the six hex nuts securing the lower section of the power head to the lid
3. Remove and discard the old HEPA filter.
4. Carefully inspect the seal gasket on the HEPA filter. Replace gasket if defective. (Part
# 215372G)
5. Place the new filter on the lid. (# 215372)
6. Securely fasten the lower section of the power head to the lid using the six hex nuts.
7. Dispose of the contaminated filter according to government regulations. (If applicable)
11.4. HEPA FILTER FOR WORKING AIR INTAKE (ITEM #3 SEE SECTION 8 FOR
ILLUSTRATION)
1. Disconnect the power cable from the outlet.
2. Disengage the latches and remove the power head from the recovery tank.
3. Remove the safety filter
4. Unscrew the hex nut securing the HEPA filter to the underside of the lid.
5. Discard the old HEPA filter.
6. Carefully inspect the seal gaskets for wear and breaks. Replace gaskets if defective.
7. Insert the new HEPA filter
8. Securely fasten the HEPA filter using the hex nut.
9. Place back the safety filter
10.Dispose of the contaminated filter according to government regulations. (If applicable)

Page 19 of 22
12.0 STORAGE
It is recommended that the inside of the recovery tank be clean and dry when storing the
vacuum cleaner.
13.0 TECHNICAL SPECIFICATIONS
Voltage
240 V
Hertz
50 Hz
Phase
Single
P
m*
1080 W
Power
1.2 kW
Amperage
5 A
Air Flow
194 m
3
/h
Vacuum Pressure
245 hPa / 2504 mm H20
Sound Level
72 dB(A)
Plug Type
Not Included
Suction Inlet
60 mm
Cart Type
4 Wheel Dolly (4W)
Dry Recovery - Disposable Filter Bag
19 liters
Length
43 cm
Width
43 cm
Weight (Vacuum Only)
24 kg.
Height
102 cm
Cord Length
10 m
* Normal operation: conditions under which the machine is operated in normal use, obtained at power input Pm
of the vacuum motor.

Page 20 of 22
14.0 TROUBLESHOOTING:
PROBLEM
PROBABLE CAUSE
SOLUTION
Drop in suction power
Cloth filter(s) may be
excessively dirty or covered
with dust.
Wash or replace the cloth
filter(s)
Recovery tank may be full Empty the recovery tank
Suction hose or vacuum
tools may be blocked
Clear blockage using a
broom handle or other
appropriate device
HEPA filters may be clogged Change HEPA filters
