For unpaved beds and greens
1. Before using the solar panel for the first time, it has to
be charged for about two full days of sunshine, each
lasting 10 hours. The initial charging process should be
made indoors, this guarantees the protection class IP65.
2. Stick ground spike of the luminaires and of the
solar panel L in the ground. A maximum of 4 luminaires
(lix spike solar join, reed solar join, piek mini solar join)
can be connected to the solar panel L via the port.
It is not possible to connect a 2nd solar panel L.
3. Provide the connection between luminaires + junction
(port 2, port 3, port 4) + solar unit, resp. extension
cable aboveground and not underground. The distance
between solar panel L and luminaires should not exceed

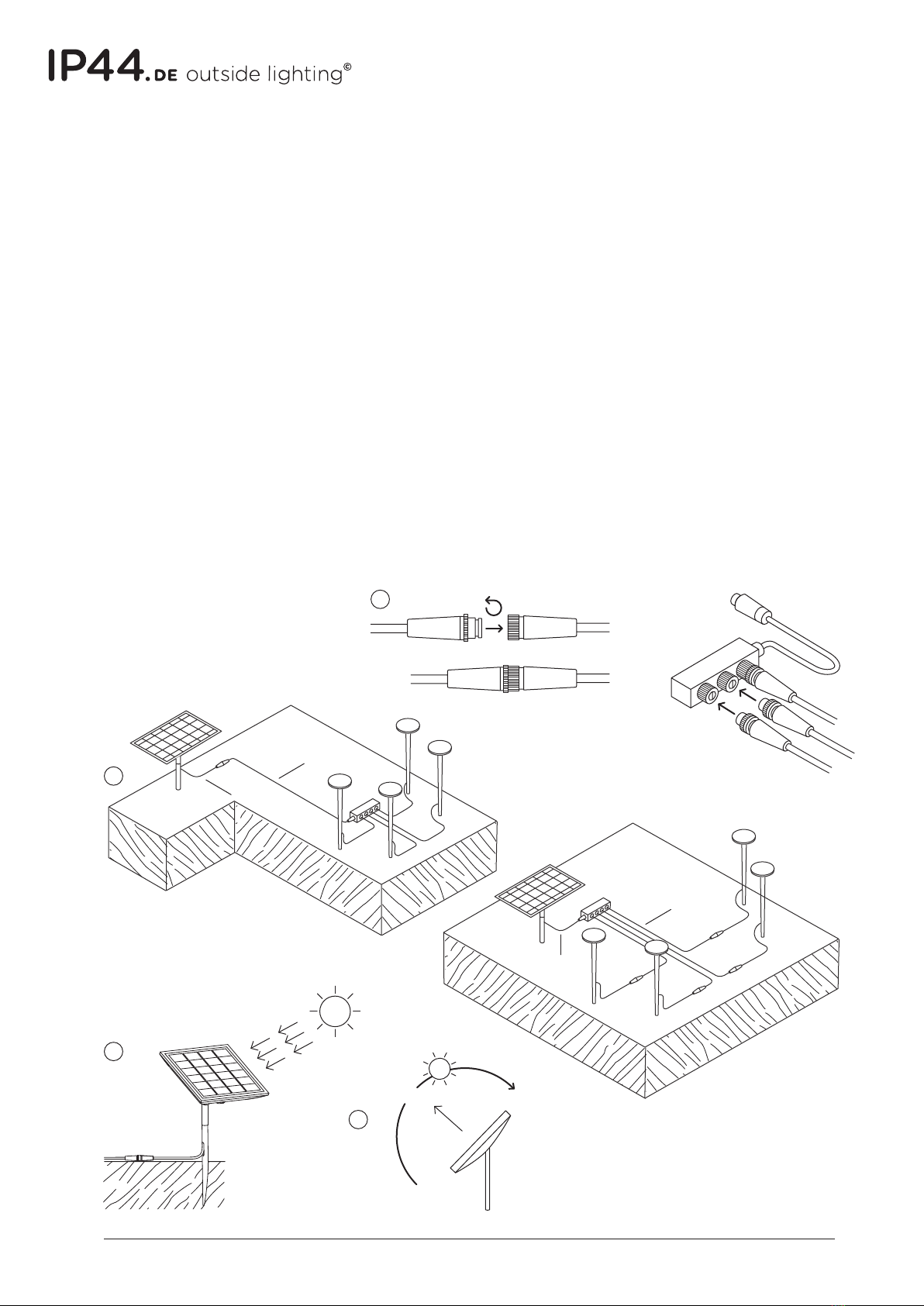

10 metres (picture 1 + 2).
lix spike solar join
instructions for use
1
2
SOUTH
EAST
WEST
4
3
4. Place the solar panel in a position exposed to direct
sunlight (south orientation) and illuminate the solar panel
constantly by direct sunlight (picture 3 + 4).
In autumn/winter months the function may be limited, as
the position of the sun is not as high depending on the
region and potential prolonged shading. Make sure that
the solar panel is free of foliage, leaves, branches, dirt and
deposits to achieve an optimal charging result.
At dusk the luminaires will light up, it will then switch o
automatically after approx. 5 hours of operation. With a
fully charged battery the luminaires can be used approx.
15 hours.

[e-mail] . www.IP44.de 00 04/23
light technology:
LED / 2700K
system performance: 4,4 W/260 lm (1x lix spike solar join) -
1,1 W/65 lm (4x lix spike solar join)
solar panel: lithium-ion battery 4x 2600 mAh
technical information:
supply cable luminaire + solar panel: H05RN8-F 2x0,75 mm2
protection class IP65
safety class 3
Luminaire is suitable for mounting on normal
inflammable fixing surfaces.
conformity mark
maintenance:
This product contains built-in LED lamps and a battery.
These can be replaced by IP44.DE in case of a failure. In
this case, please get in touch with your retailer.
care:
Regularly clean components from dirt and deposits. Do not
use a high pressure cleaner for cleaning. Please note care
instructions at www.IP44.de.
safety:
We point out that the electric connection of light fixtures has
to be done by a certified installer. We assume no accoun-
tability for damages which are a result of non-appropriate
mounting or application of the components. Modifications on
the product will result in loss of warranty.
assembly instruction:
The components may not come into contact with highly
acidic or alkaline soils, or with other aggressive substances,
chemicals or fertilizers.
FAQs:
You will find answers to frequently asked questions about the
product on our website www.IP44.de.
IP65
