IPEX PH485Y12 User manual

Doc No: PH485Y12-UM-001
IPEX
(IP Electronix)
16 January 2022
USER’S MANUAL
PH485Y12
#1 to #2 RS-485/422 ISOLATED HUB (REPEATER, ISOLATOR & AMPLIFIER)

www.ipelectronix.com
IPEX (IP Electronix) PH485Y12: User’s Manual
Page 2 of 13 Doc No.: PH485Y12-UM-001
16 January 2022

www.ipelectronix.com
IPEX (IP Electronix) PH485Y12: User’s Manual
Page 3 of 13 Doc No.: PH485Y12-UM-001
16 January 2022
CONTENTS
1. INTRODUCTION ........................................................................ 4
2. SPECIFICATIONS ....................................................................... 5
1. PACKAGE CHECKLIST................................................................. 6
2. TOP VIEW................................................................................. 7
3. BOTTOM VIEW ......................................................................... 7
4. FRONT VIEW............................................................................. 7
5. BACK VIEW............................................................................... 7
1. PORT SETTINGS ........................................................................ 8
2. RS-485/RS-422 SERIAL PORTS PIN CONFIGURATION.................. 9
3. PH485Y12 CONNECTION DIAGRAM......................................... 10
4. RS-485 CONNECTING METHODS.............................................. 11
5. RS-422 CONNECTING METHODS.............................................. 12
6. GUARANTEE ........................................................................... 13
7. TECHNICAL SUPPORT.............................................................. 13

www.ipelectronix.com
IPEX (IP Electronix) PH485Y12: User’s Manual
Page 4 of 13 Doc No.: PH485Y12-UM-001
16 January 2022
1. INTRODUCTION
IPEX PH485Y12 is a 1 to 2 RS-485/RS-422 HUB that provides #2 RS-485 (Half-Duplex) or RS-422 (Full-
Duplex) ports from one single RS-485/RS-422 port. It works with Baud-Rate from 300bps to
230400bps. Using this device, you can connect a RS-485/RS-422 line, to 2 different devices.
PH485Y12 can also be used as a RS-485/RS-422 Repeater and Amplifier. In addition, due to the fact
that 3kV Optical and Electrical insulations have been used in the design of this device, this means all
the ports are insulated from each other, so using this device in the RS-485/RS-422 line, can be very
effective in eliminating electrically and electromagnetically noises. Also, the length of the RS-
485/RS-422 line increases from 1200m to 2400m (1200m on each side).
Protection against Surge, ESD and EMI is considered in its design, so, PH485Y12 is good for industrial
usage and are useful for Industrial Automation, Telecommunications, SCADA systems, DCS
systems...

www.ipelectronix.com
IPEX (IP Electronix) PH485Y12: User’s Manual
Page 5 of 13 Doc No.: PH485Y12-UM-001
16 January 2022
2. SPECIFICATIONS
RS-485/422 Repeater, Isolator and Amplifier;
Number of Ports: #1 RS-485/422 to #2 RS-485/422 Bi-Directional Repeater;
Serial Standard: Meets or Exceeds the Requirements of RS-485/422 Standards;
RS-485 Signal: Data+, Data-, GND;
RS-422 Signal: TX+, TX-, RX+, RX-, GND;
RS-485/422 Parity: Even, Odd, None, Mark and Space;
Maximum Communication Distance: 2400m (1200m each side);
Loading: RS-485 and RS-422 Side up to 32 Nodes are supported;
Fully Plug & Play;
Wide Range Power Supply: +8V to +48V DC;
Serial Transmission Speed up to 230.4 kbps;
Power (Green) LED Indicator;
Transmit (Blue) and Receive (Yellow) LED Indicator;
Isolation Protection: 3kV Instantaneous, 500V DC Continuous;
Surge Protection: Embedded 1500W Surge Protection;
Magnetic Isolation: 1.5 kV Built-in;
ESD Protection: Exceeds ±15 kV Using Human-Body Model (HBM);
Dimensions: 145mm x 118mm x 27mm (5.70in x 4.65in x 1.06in);
Operating Temperature: -10°C to +70°C (+14°F to +158°F);
1 Year Guarantee and 5 Years Support.

www.ipelectronix.com
IPEX (IP Electronix) PH485Y12: User’s Manual
Page 6 of 13 Doc No.: PH485Y12-UM-001
16 January 2022
1. PACKAGE CHECKLIST
Before installing the PH485Y12, verify that the package contains the following items:
1) #1 PH485Y12 2) #2 Din Rail Brackets with the corresponding screws
3) #1 Document and Driver CD-ROM 4) #2 DB9 Female Connector
5) #1 220V AC to 12V DC Adaptor
NOTE: Notify your sales representative if any of the above items is missing or damaged.

www.ipelectronix.com
IPEX (IP Electronix) PH485Y12: User’s Manual
Page 7 of 13 Doc No.: PH485Y12-UM-001
16 January 2022

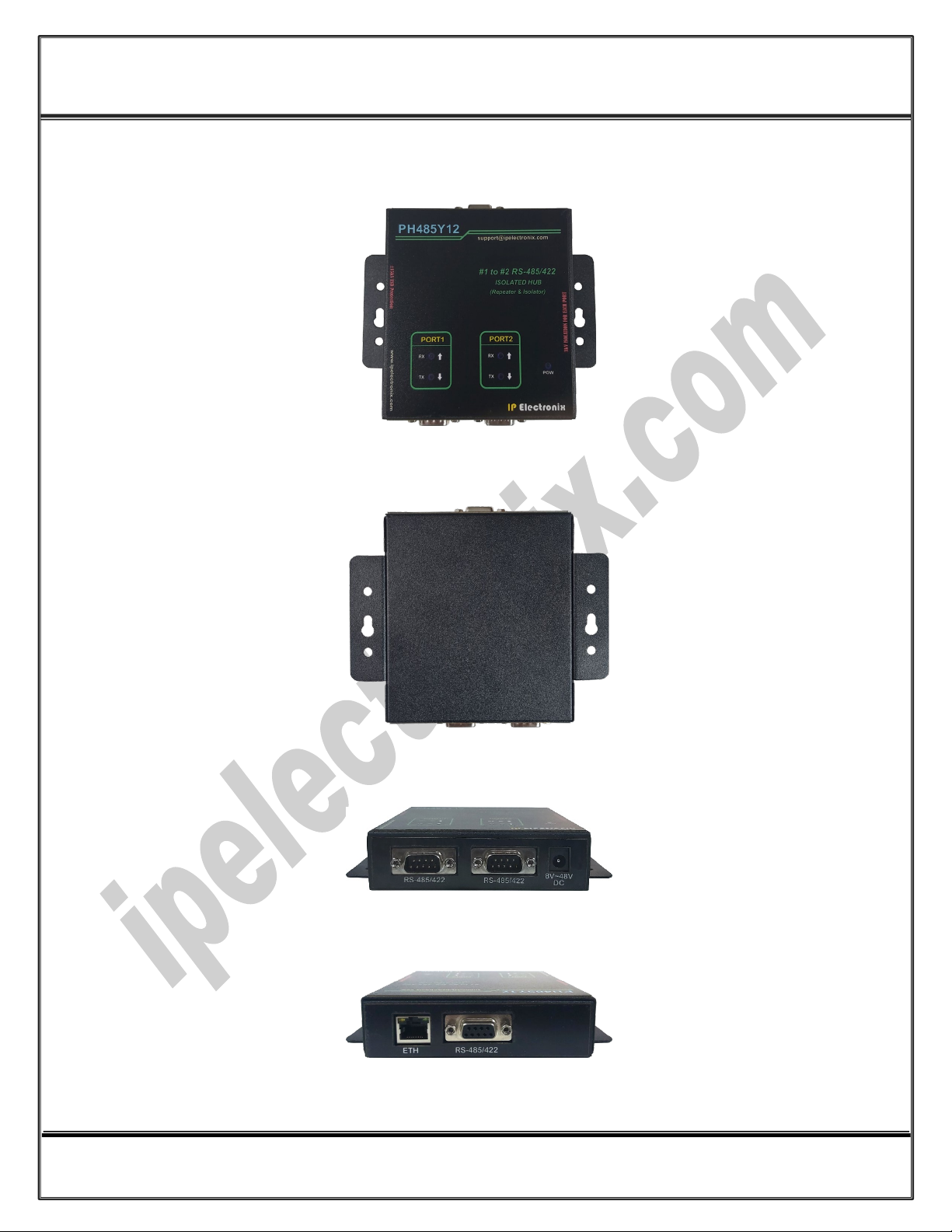

2. TOP VIEW
3. BOTTOM VIEW
4. FRONT VIEW
5. BACK VIEW

www.ipelectronix.com
IPEX (IP Electronix) PH485Y12: User’s Manual
Page 8 of 13 Doc No.: PH485Y12-UM-001
16 January 2022

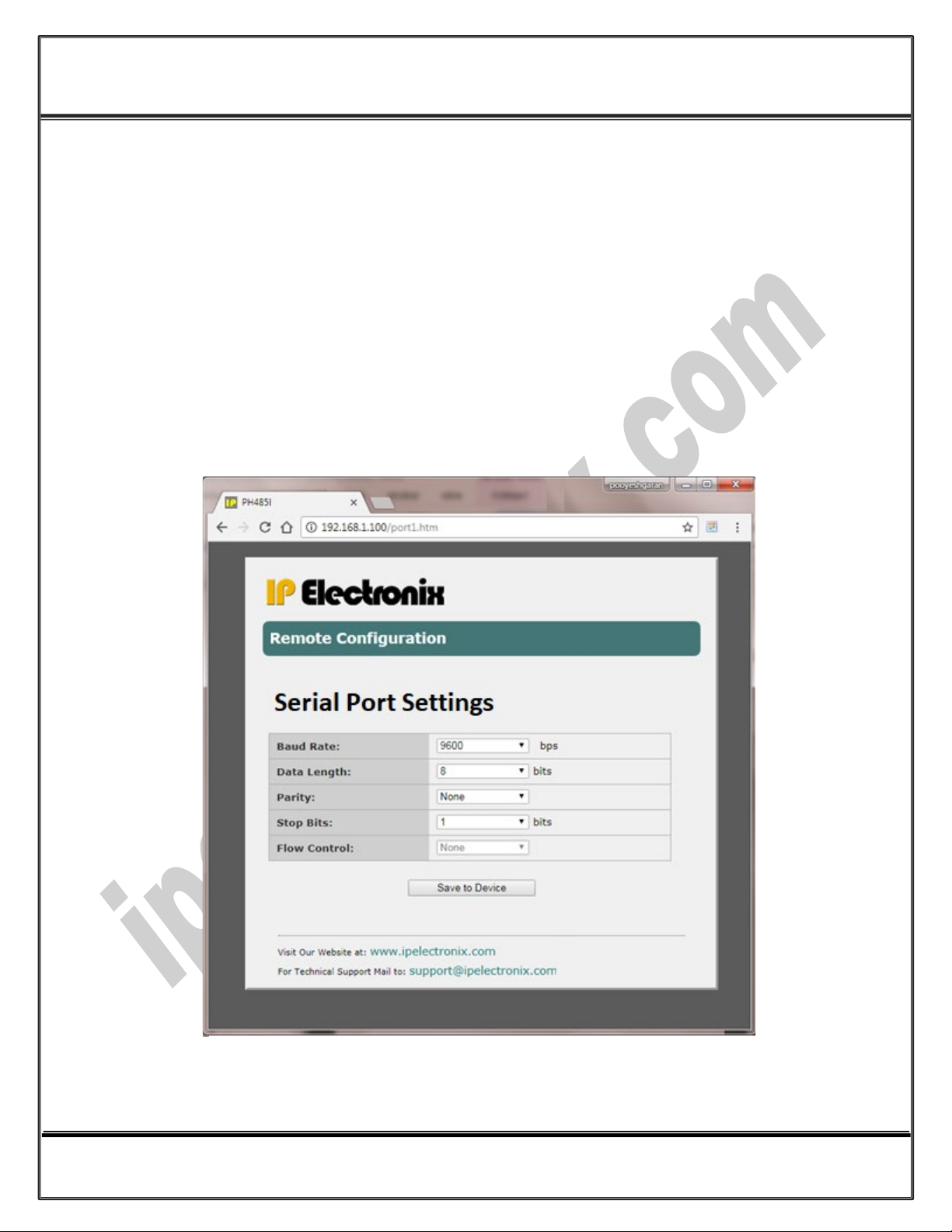

1. PORT SETTINGS
Connect PH485Y12 to your PC or Laptop by means of Ethernet RJ-45 port, the default IP of the device
is 192.168.1.100 and the default subnet mask is 255.255.255.0.
Make sure the PC IP and is in the PH485Y12 IP Range and the PC subnet mask is same as PH485Y12.
Now open a web browser like Google Chrome or Firefox on your PC and type the device IP on the
address bar of the web browser, then you can see the device port settings page as shown below and
you can change the settings to what you want and then press save button to save them and close the
browser.

www.ipelectronix.com
IPEX (IP Electronix) PH485Y12: User’s Manual
Page 9 of 13 Doc No.: PH485Y12-UM-001
16 January 2022
2. RS-485/RS-422 SERIAL PORTS PIN CONFIGURATION

www.ipelectronix.com
IPEX (IP Electronix) PH485Y12: User’s Manual
Page 10 of 13 Doc No.: PH485Y12-UM-001
16 January 2022
3. PH485Y12 CONNECTION DIAGRAM
-PH485Y12 in RS-485 Mode
-PH485Y12 in RS-422 Mode
-
-PH485Y12 in Mixed Mode
It is possible to use PH485Y12 in mixed mode, this means you can use one side in RS-485 mode and
another side in RS-422 mode.

www.ipelectronix.com
IPEX (IP Electronix) PH485Y12: User’s Manual
Page 11 of 13 Doc No.: PH485Y12-UM-001
16 January 2022
4. RS-485 CONNECTING METHODS
-RS-485: Point to Point Connection
-RS-485: Multipoint Network

www.ipelectronix.com
IPEX (IP Electronix) PH485Y12: User’s Manual
Page 12 of 13 Doc No.: PH485Y12-UM-001
16 January 2022

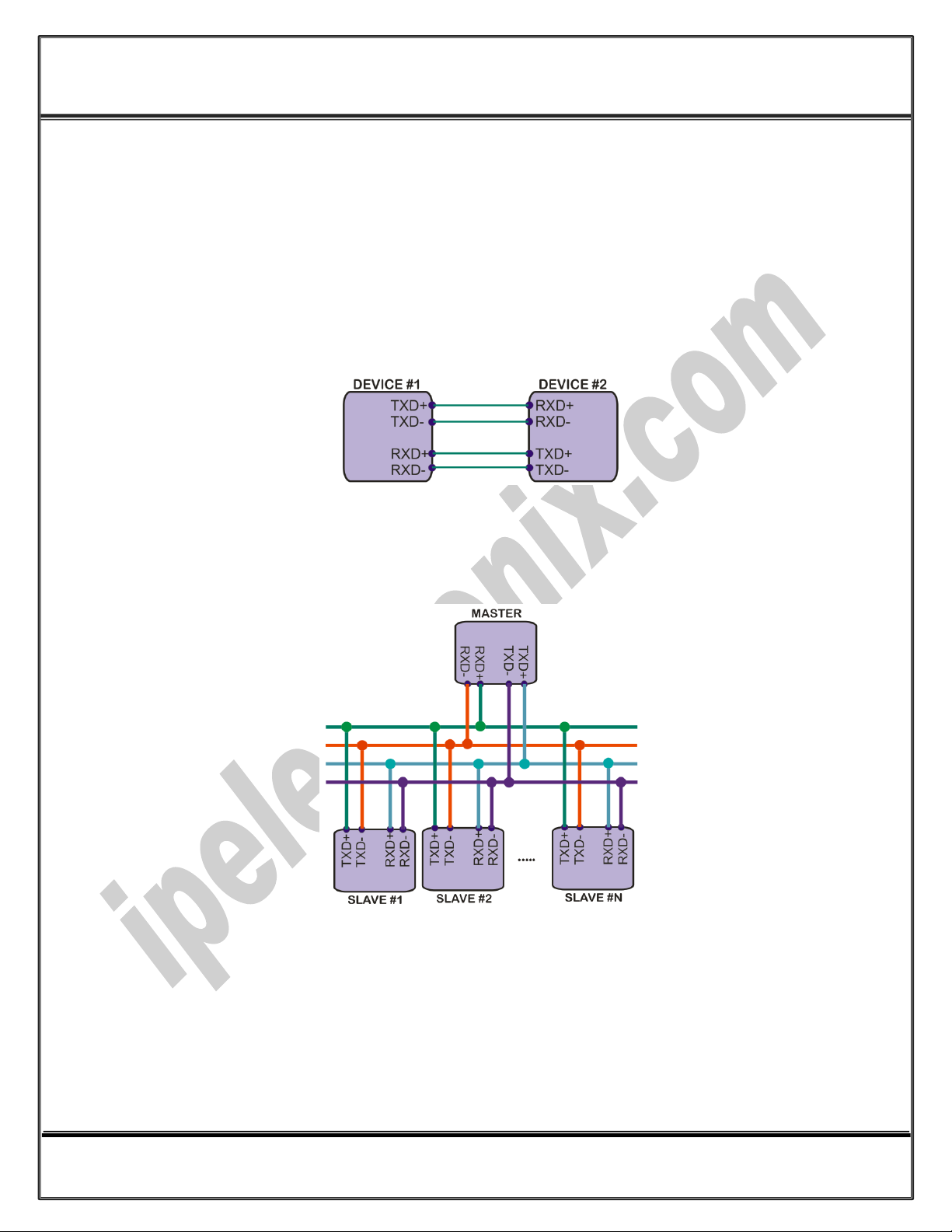

5. RS-422 CONNECTING METHODS
-RS-422: Point to Point
-RS-422: Multi-Drop Network

www.ipelectronix.com
IPEX (IP Electronix) PH485Y12: User’s Manual
Page 13 of 13 Doc No.: PH485Y12-UM-001
16 January 2022
6. GUARANTEE
All products manufactured by IPEXare under warranty regarding defective materials for
a period of one year from the date of delivery to the original purchaser.
7. TECHNICAL SUPPORT
If you have any technical question or need any technical support, please contact us
using this Email address: [e-mail].
