iQMS362-CE 420mm Masonry Saw
Operator’s Manual
Use QR Code to download the iQMS362
Operator’s Manual in your language.
Please read the operator’s manual
carefully and make sure you understand
the instructions before using the machine.
Utilisez le code QR pour télécharger le manuel
d’utilisation de l’iQMS362 dans votre langue.
Utilizzare il codice QR per scaricare il manuale
dell’operatore iQMS362 nella propria lingua
Gebruik de QR-code om de iQMS362
bedieningshandleiding in uw taal te downloaden
Brug QR-kode til at downloade
brugervejledningen til iQMS362 på dit sprog
Verwenden Sie den QR-Code, um das iQMS362-
Benutzerhandbuch in Ihrer Sprache herunterzuladen

iQMS362 CE
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
M-iQMS362-001-0M0217
We declare in sole responsibility that the Masonry Saw (iQ MS362-CE) to
which this declaration applies, complies with these normative documents:
Machinery Directive: 2006/42/EC
and conforms to the following EN standard,
EMC Directive: 2014 /30 / EU
EN 12418:2000+A1:2009
EN ISO 12100:2010
Year of axing CE marking: 2018
Signature:
Name, Surname: Paul Guth
Position/ Title: VP Product Development
Date :10/01/2018
DECLARATION

iQMS362 CE
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
TABLE OF CONTENTS
Key Symbols
Explanation Of Warning Levels
Symbols on the Machine
Safety Rules
Introduction

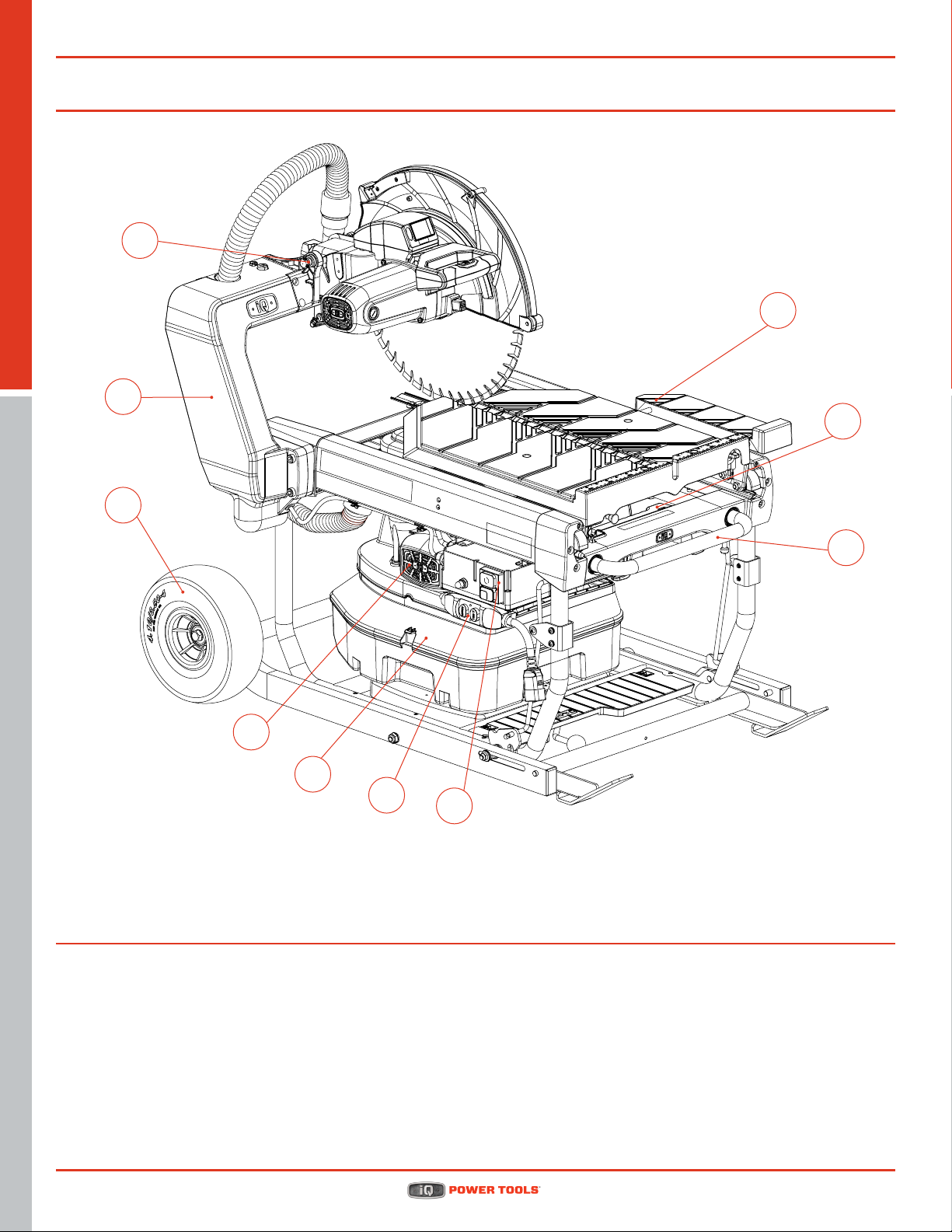

What Is What?
Machine’s Safety Equipment

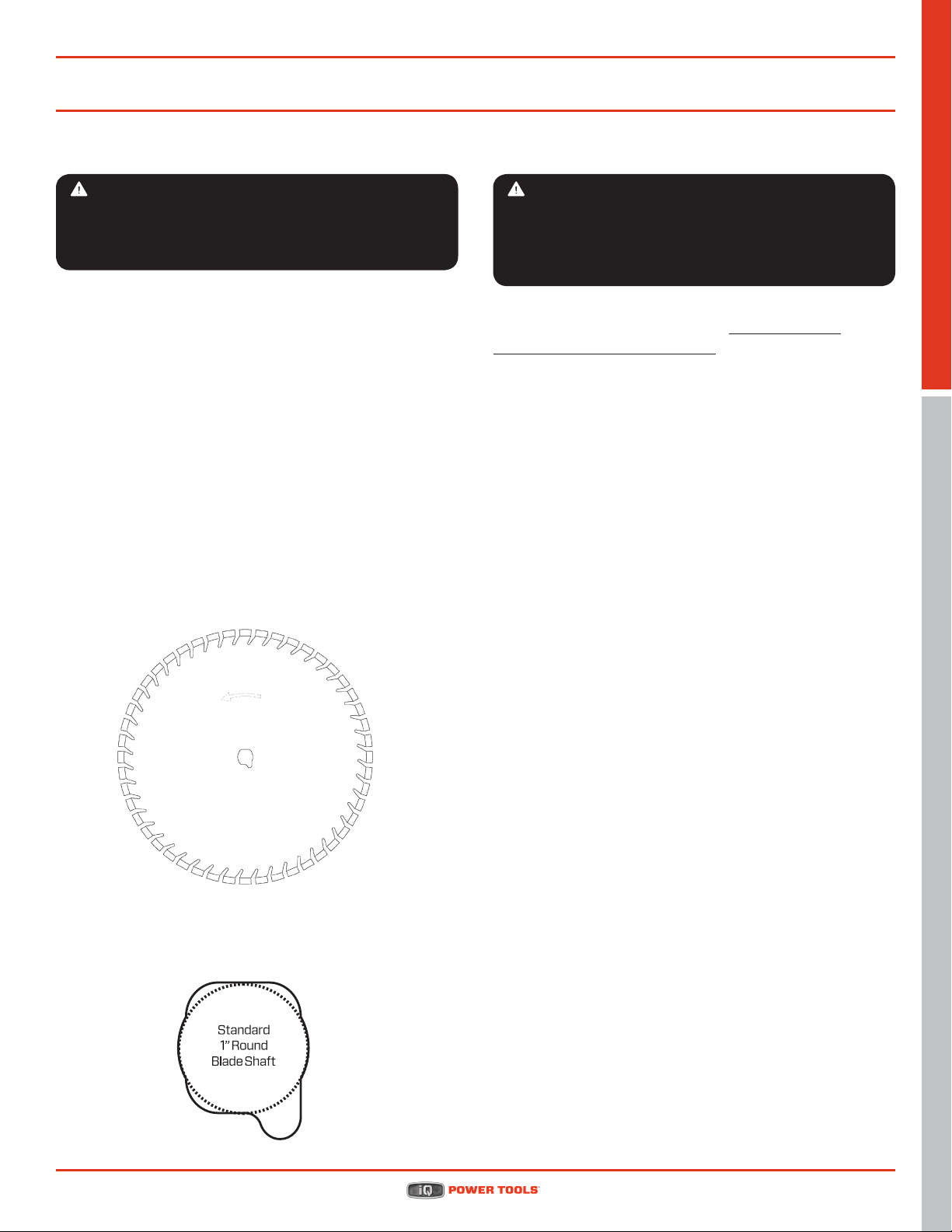

Blades
Assembling

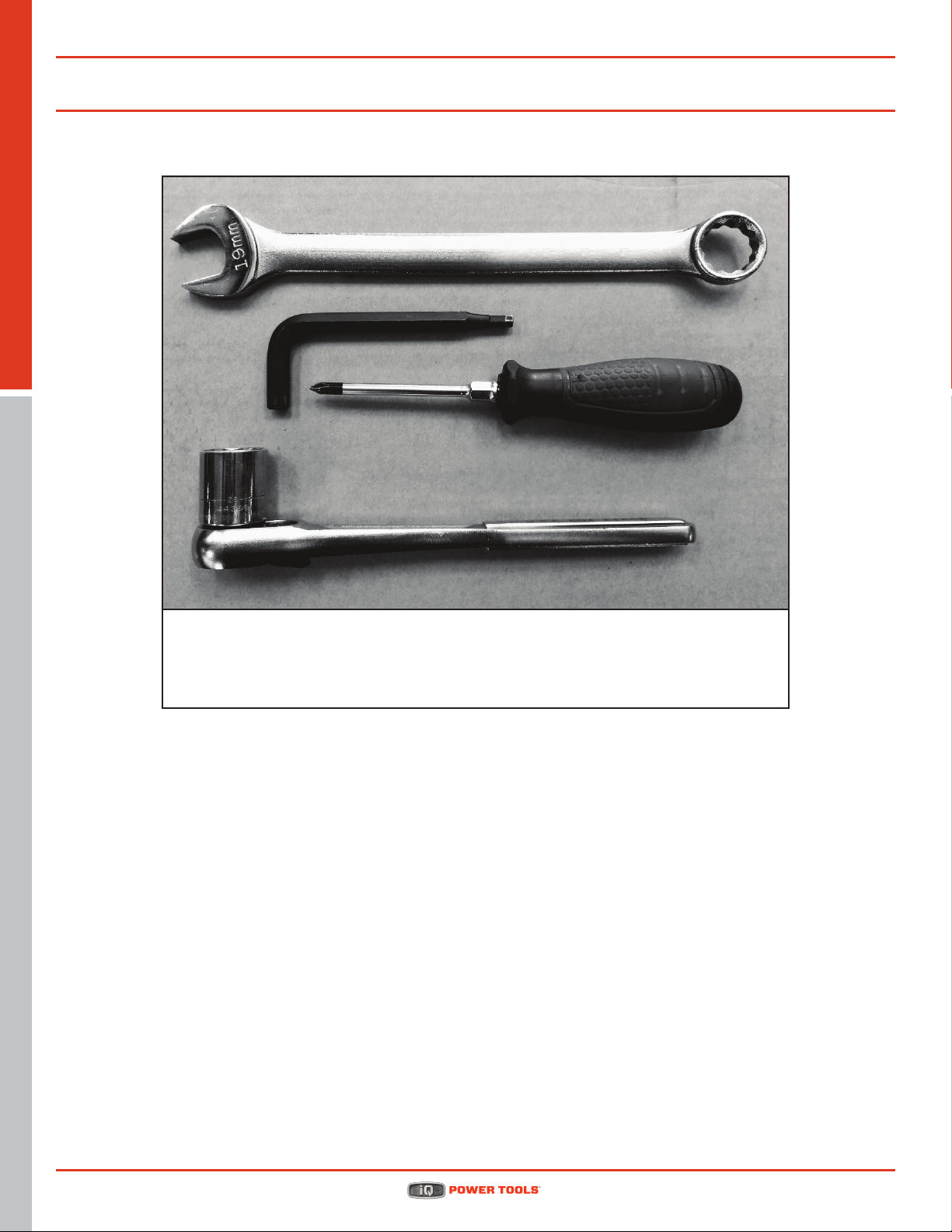

Tools Required
Power Cable Assembly
Power Cable Connection
Mounting The X-Stand
Installing The Wheels
Mounting The Support Arm
Attaching Dust Guard Vacuum Hose
Connecting The Vacuum Motor Power
Installing The Transport Handle
Assembling The Table Extension
Installing The Rolling Table
Blade Installation
Safety
Personal Protective Equipment
Electrical Safety
Personal Safety
Machine Care
Operating
Before You Start
Basic Working Techniques
General Maintenance
Vacuum And Filter Maintenance
Cleaning The Filter and Emptying Dust Tray
Changing The Filter
Replacing The Carbon Brushes
Changing The Louvers
Adjustments
Adjusting The Top Slot
Adjusting The Rolling Table Upper Rollers
Adjusting And Squaring The Rolling Table
X-Stand
Transporting
Storage
Troubleshooting
Technical Data
Wiring Diagram
Warranty Policy
1
1.1
1.1
2
3
4
5
6
7
7.1
7.2
7.2
7.3
7.3
7.4
7.4
7.5
7.5
7.6
7.6
8
9
9.1
9.1
9.2
9.2
10
10.1
10.1
10.1
11
11.1
11.2
11.3
11.4
12
12.1
12.1
12.2
13
14
14.2
15
16
17
18
Topic Section

iQMS362 CE
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
KEY SYMBOLS & SAFETY RULES
Symbols on the machine
WARNING! The machine can be a
dangerous tool if used incorrectly or
carelessly, which can cause serious or
fatal injury to the operator or others.
Please read the operator’s
manual carefully and make sure
you understand the instructions
before using the machine or
performing any maintenance.
Explanation of Warning Levels
The warnings are graded in three levels.
Used if there is a risk of serious injury or death for
the operator or damage to the surroundings if the
instructions in the manual are not followed.
Used if there is a risk of injury to the operator or
damage to the surroundings if the instructions in
the manual are not followed.
Used if there is a risk of damage to materials or the
machine if the instructions in the manual are not followed.
NOTICE
1.1
Always wear hearing protection.
Always wear protective goggles
and/or a visor.
High voltage. Risk of an electric shock.
Turn o machine and unplug before
transportation, maintaining, adjusting
and changing the blade.
Should not be disposed of with general
household waste, but collected
separately for reuse or recycling.
Keep your hands and feet away
from the blade.
248014
CU S
CE certified.
Wear hand protection.

iQMS362 CE
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
Other symbols/decals on the
machine refer to special certification
requirements for certain markets.
before
Do not expose to rain.
Never cut without using the
blade guard.
Risk of injury due to accidental
starting. Do not use in an area
where children may be present.
Unused masonry saw may
cause personal injury - Remove
this masonry saw blade when
using other accessories.
Always use manufacturer’s
approved cutting wheels.
KEY SYMBOLS & SAFETY RULES
1.2
Additional Safety Warnings
every 30 minutes
approx. 150 L.F. of cutting or at the
end of each day before transport.
50 L.M.
This product can expose you to chemicals, including Cobalt, Lead and Silica Dust
which are known to the State of California to cause cancer or birth defects or
otherreproductive harm. For more information, go to www. p65Warnings.ca.gov.
WARNING : P ROP 6 5
Este producto puede exponerlo a productos químicos, incluidos cobalto, plomo
y polvo de sílice, que el estado de California sabe que causan cáncer, defectos de
nacimiento u otros daños irrecuperables. Para obtener más información, vaya a
www. p65Warnings.ca.gov.

iQMS362 CE
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
2.1
SAFETY RULES
Safety Rules
Warning: Read all safety warnings, instructions,
illustrations and specification provided with this
power tool. Failure to follow all instructions listed
below may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future
reference.
1. WORK AREA SAFETY
A) Keep work are clean and well lit. Cluttered or
dark areas invite accidents.
B) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
C) Keep children and bystanders away while
operating a power tool.Distractions can cause you
to lose control.
D) Set up the machine at a flat and stable surface,
free of obstacles and adequately lit .
2. ELECTRICAL SAFETY
A) Power tool plugs must match outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce the risk of electric shock.
B) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
C) Do not expose power tool to rain or wet
conditions. Water entering a power tool will increase
the risk of electric shock.
D) Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges
or moving parts. Damages or entangled cords
increase the risk of electric shock.
E) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
F) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
3. PERSONAL SAFETY
A) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools
may result in serious personal injury.
B) Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
C) Prevent unintentional starting. Ensure the
switch is in the o-position before connecting to
power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your
finger on the switch or energizing power tools that
have the switch on invites accidents.
D) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.

iQMS362 CE
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
E) Do not overreach. Keep proper footing and
balance at all times. This enables better control of
the power tool in unexpected situations.
F) Dress properly. Do not wear loose clothing or
jewellery. Keep hair and clothing away from moving
parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
G) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust
collection can reduce dust-related hazards.
H) Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of a second.
4. POWER TOOL USE AND CARE
A) Do not force the power tool. Use the correct
power tool for your application. The correct power
tool will do a better job and safer at the rate for which
it was designed.
B) Do not use the power tool if the switch does
not turn it on and o. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
C) Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools.
Such preventative safety measure reduces the risk
of starting the power accidentally.
D) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands
of untrained users.
E) Maintain power tools accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may aect the
power tool’s operation. If damaged, have power tool
repaired before use. Many accidents are cause by
poorly maintained power tools.
F) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and easier to clean.
G) Use power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed. Use of the power tool for operations
dierent from those intended could result in a
hazardous situation.
H) Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
I) Any modification which could lead to a change
on the original characteristics of the machine. For
example: rotational speed or maximum diameter of
the cutting-o wheel may be carried out only by the
manufacturer of the machine is still in conformity with
safety regulations.
J) Adjustment, maintenance, lubrication, repair,
cleaning and servicing which shall be carried out
only while the machine is shut down and the prime
mover stopped.
SAFETY RULES

iQMS362 CE
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
3.1
Dear Customer
We at IQ Power Tools want to congratulate you
on selecting the iQMS362 Dust Control Masonry
Saw. We are certain that you will be pleased with
your purchase. iQ Power Tools takes pride in
manufacturing the most innovative tools and
equipment in the industry.
If operated correctly, your iQMS362 should provide
you with years of quality service. This operator’s
manual contains information you need to operate and
maintain your iQMS362 safely and correctly. Please
take a few minutes to familiarize yourself with your
new iQMS362 by reading and reviewing this manual.
If you should have any questions concerning your
iQMS362 please feel free to contact us at
Phone: [phone]
Email: [e-mail]
It is our wish that you will be satisfied with your product
and that it will prove to be a valued tool for a long time.
A purchase of one of our products gives you access
to professional help with repairs and services. If
the retailer who sells your machine is not one of our
authorized dealers, ask him for the address of your
nearest service workshop.
This operator’s manual is a valuable document. Make
sure it is always at hand at the work place. By following
its content (using, service, maintenance etc.) the life
span and the second-hand value of the machine can
be extended. If you ever lend or sell this machine, make
sure that the borrower or buyer gets the operator’s
manual so they will also know how to properly maintain
and use it.
Owner Responsibility
It is the owner’s/employer’s responsibility to ensure
that the operator has sucient knowledge about how
to use the machine safely. Supervisors and operators
must have read and understood the Operator’s Manual.
They must be aware of:
• The machine’s safety instructions.
• The machine’s range of applications and limitations.
• How the machine is to be used and maintained.
Local regulations could restrict the use of this machine.
Find out what regulations are applicable where you
work before you start using the machine.
INTRODUCTION
The Manufacturer’s Reservation
Subsequent to publishing this manual IQ Power Tools
may issue additional information for safe operation of
this product. It is the owner’s obligation to keep up with
the safest methods of operation.
iQ Power Tools has a policy of continuous product
development and therefore reserves the right to
modify the design and appearance of products
without prior notice.
For customer information and assistance,
contact us at our website: www.iQPowerTools.com
Design & Features
Values such as high performance, reliability, innovative
technology, and environmental considerations
distinguish iQ Power Tools’ products. Safe operation of
this product requires the operator to read this manual
carefully. Ask your dealer or iQ Power Tools should you
need more information.
iQMS362
DESIGNED WITH AN INTEGRATED VACUUM SYSTEM,
FILTER SYSTEM AND DUST CONTAINMENT
This innovative patent pending design combines
the features of a professional saw with a
powerful cyclonic vacuum system that cuts
cleanly and eciently with no water and no dust.
COMPACT AND MOBILE DESIGN
With compact size and built-in wheels the
integrated pull out handle makes for easy transport.
LARGE CUT CAPACITY
Enables cutting of 24”x24” (600mm x 600mm)
and 18” (457mm) on diagonal depending on thickness.
FUNCTIONAL ROLLING TABLE WITH EXPANDABLE
TABLE EXTENSION
The rolling table is extra long for better support when
cutting. The table extension can be extended for larger
materials, then collapsed in for easy transport.

iQMS362 CE
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
WHAT IS WHAT?
1 - Dust Tray Lift Lever
2 - Transport Handle Lock
3 - Cutting Guide
4 - Rolling Table Lock Knob
Front-side
5 - Rolling Table
6 - Handle
7 - Blade Guard
8 - Dust Guard
9 - Blade
10 - Filter Spin Knob
11 - Filter Cover
12 - X-Stand
4.1
1
2
3
4
7
6
8
9
11
10
12
5

iQMS362 CE
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
13 - Dust Tray
14 - Vacuum Motor
15 - Wheels
16 - Support Arm
17 - Lock Down Knob
WHAT IS WHAT?
18 - Power Switch
19 - Extension Table
20 - X-Stand Lock Release Trigger
21 - Transport Handle
22. GFI Switch (PRCD)
Backside
4.2
13
14
15
16
17
19
20
21
18
22

iQMS362 CE
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
Top
4.3
WHAT IS WHAT?
Front
23 - Transport Handle
24 - Blade Lock Button
25 - Handle
26 - Power Switch
27 - Extension Table Lock Knob
28 - Table Lock Lever
29 - Cyclones
30 - Top Slot
31 - Blade/Assembly Wrench
Back
25
24
23
27
28
30
29
31
26

iQMS362 CE
Operator’s Manual
888-274-7744
www.iqpowertools.com
English

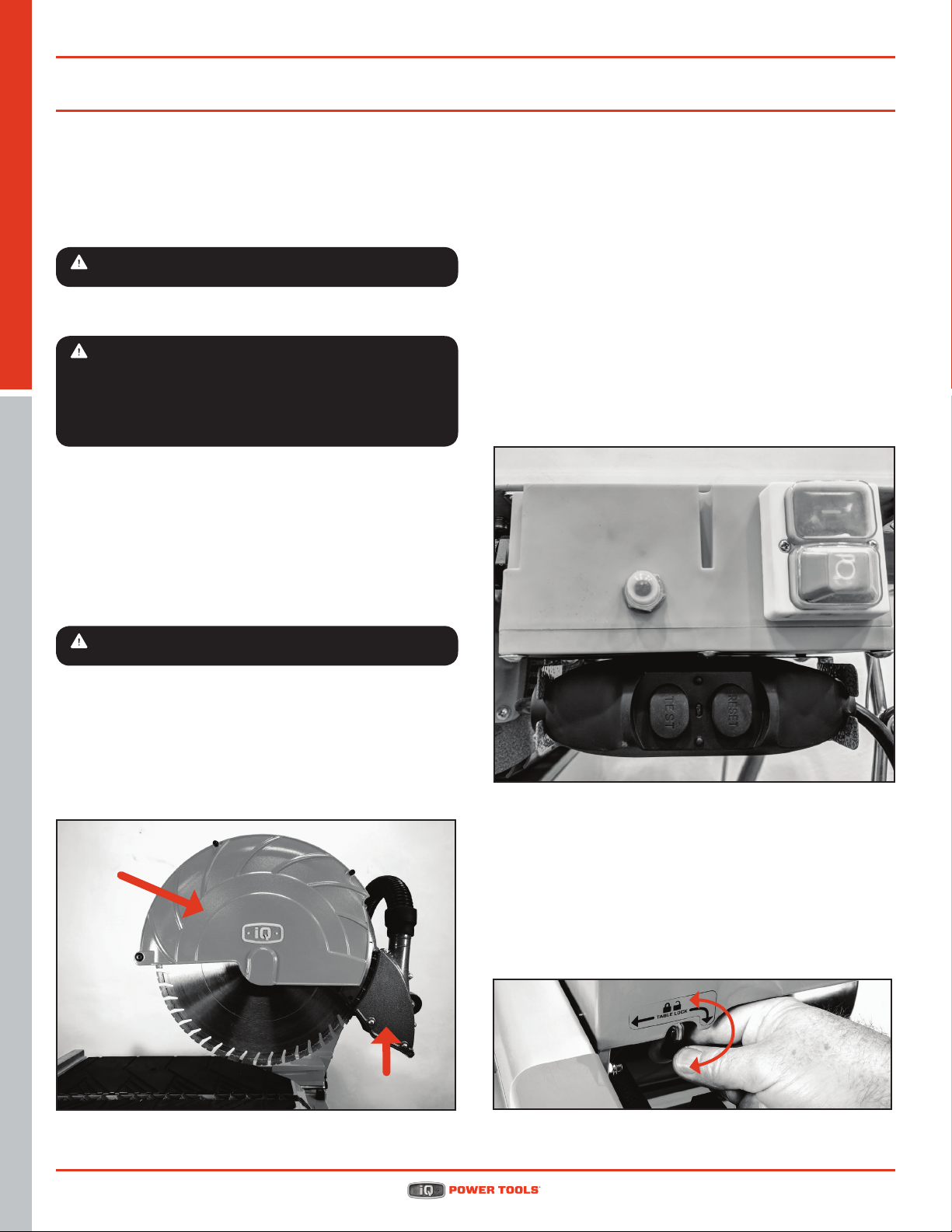

General
This section describes the machine’s safety equipment,
its purpose, and how checks and maintenance should be
carried out to ensure that it operates correctly.
WARNING! NEVER USE A MACHINE THAT HAS
FAULTY SAFETY EQUIPMENT
BLADE GUARD
The blade guard is designed to prevent parts of
the blade or cutting fragments from being thrown
towards the user.
CHECKING THE BLADE GUARD
Check that the guard over the blade is not cracked or
damaged in any other way. Replace when damaged.
DUST GUARD
The dust guard is designed to prevent dust being pulled
up from the backside of the blade. The dust guard should
be inspected periodically for damage. The dust guard
should move freely sliding up and over cutting material.
NEVER USE THE MACHINE
WITHOUT A GUARD NOR WITH A
DEFECTIVE GUARD. ALWAYS CHECK THAT THE GUARD IS
CORRECTLY FITTED BEFORE STARTING THE MACHINE.
IT IS NOT PERMITTED TO EXPOSE THE BLADE MORE THAN
180 DEGREES WITHOUT PROTECTION.
WARNING!
WARNING! SHUT DOWN THE MACHINE AND
DISCONNECT THE POWER PLUG.
MACHINE’S SAFETY EQUIPMENT
MACHINE POWER SWITCH
To start the machine press the green button (A) on the
switch. NOTE: Machine is protected by the GFI switch
reset button (D). This must be pressed each time
machine is connected to power.
To stop the machine, press the red button (B). NOTE:
Machine is protected by a built-in thermal circuit
breaker (C).
Defective switches should be replaced by an authorized
service workshop.
LOCKING KNOB, ROLLING TABLE
The locking knob is used to lock the rolling table in place
when in transit. Be sure to lock rolling table before
transit to avoid injury.
5.1
Blade Guard
Dust Guard
A
B
C
D

iQMS362 CE
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
BLADES
General
The iQMS362™dry cutting masonry saw utilizes
a specially designed diamond blade with a Q-Drive
Arbor hole. The 16.5” (420mm) Q-Drive dry cutting
blade uses a proprietary composition of diamond
concentration and metal type to make a blade that
cuts cool while reducing vibration and movement.
The specially designed blade works in conjunction
with the vacuum flow to keep the blade and the
material cool while cutting.
The iQMS362 16.5” (420mm) dry cutting blades
with Q-Drive Arbor hole can be purchased from your
local iQ Power Tools dealer or directly from iQ Power
Tools by calling 888-274-7744, or through our
website at www.iQpowertools.com
The Q-Drive Arbor hole shape also fits a standard
1” round blade shaft for versatility.
BLADES CAN BREAK AND
CAUSE SERIOUS INJURIES
TO THE USER. DIAMOND BLADES CAN BECOME VERY
HOT WHEN NOT USED PROPERLY. AN OVERHEATED BLADE
MAY CAUSE DEFORMATION OF THE BLADE, RESULTING IN
DAMAGE AND INJURIES.
WARNING!
Blades for Dierent Materials
The iQMS362™dry cutting masonry saw is
supplied with specially designed 16.5” (420mm)
Dry Cutting Combination Blade with Q-Drive Arbor
hole that is engineered to cut masonry, concrete
and stone products.
Blade selection should be made according to the
material being cut. Ask your local dealer for help in
choosing the right product.
NOTE:
Machines are designed for use with rotating diamond
cutting-o wheel with a continuous rim and/or
segmented rim.
Only iQ blades in 420 OD are allowed.
BLADE VIBRATIONS
• The blade can become out of round and
vibrate if too high of a feed pressure is used.
• A lower feed pressure can stop the vibration.
Otherwise replace the blade.
SHARPENING DIAMOND BLADES
• Always use a sharp diamond blade.
• Diamond blades can become dull when
the wrong feeding pressure is used or
when cutting certain materials such as
very hard material. Working with a dull
diamond blade causes overheating, which
can result in the diamond segments
coming loose.
• Sharpen the blade by using a dressing
stone or by cutting in a soft material such
as sandstone or soft brick.
TRANSPORT AND STORAGE
• Remove the blade before transportation
or storage of the machine.
• Store the blade in a dry place.
• Inspect new blades for transport
or storage damage.
NEVER USE A BLADE FOR ANY
OTHER MATERIAL THAN THAT IT
WAS INTENDED FOR. CUTTING PLASTICS WITH A DIAMOND
BLADE CAN CAUSE KICKBACK WHEN THE MATERIAL
MELTS DUE TO THE HEAT PRODUCED WHEN CUTTING AND
STICKING TO THE BLADE. NEVER CUT PLASTIC MATERIALS
WITH A DIAMOND BLADE!
WARNING!
6.1
Q-Drive
Arbor

iQMS362 CE
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
ASSEMBLING
TOOLS REQUIRED FOR ASSEMBLY
7.1
(A) 19mm Wrench
(B) iQ Blade Wrench (Included)
A
B
C
D
(C) Phillip Screwdriver
(D) 19mm Socket Ratchet

iQMS362 CE
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
TYPE F
TYPE G
TYPE I
Assembling your iQMS362™
POWER CABLE SELECTION AND ASSEMBLY
This power tool is supplied with 3 dierent power
cables to select from. Choose the power cable that
meet your requirement.
POWER CABLE CONNECTION
Connect your chosen power cable (A) to the universal
adapter (B).
UNBOXING AND ASSEMBLING
Open the top of the box. Remove top layer of foam with
parts and set aside. Remove main frame assembly and
place on a flat horizontal and stable surface (preferably
a workbench) to prevent the equipment from tipping or
sliding during assembly.
IMPORTANT ASSEMBLY STEP
REMOVE SCREW AND SHIFT HOLE TO
LINE UP WITH V-GROOVE AND INSTALL
(4) FRAME MOUNTING SCREWS (2 ON
EACH SIDE)
ASSEMBLING
7.2
Extension cable size sucient for electrical
power, connection to the mains by a H07-RNF
type cable of the following size: 3 X 2.5mm2
up to 50m for 230V. AB

iQMS362 CE
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
ASSEMBLING
7.3
Insert linkage rod into X-Stand latch/lock slot
on each side.
INSTALLING THE WHEELS
Insert 1/2 inch bolt into wheel, then insert into wheel
mount hole. .
Install 1/2 inch nut onto bolt and tighten.
Assembling your iQMS362™
UNBOXING AND ASSEMBLING
Open the top of the box. Remove top layer of foam with
parts and set aside. Remove main frame assembly and
place on a flat horizontal and stable surface (preferably
a workbench) to prevent the equipment from tipping or
sliding during assembly.
MOUNTING THE X-STAND
Remove screw from frame (A) on each side.
Position frame tube to align with V-Notch. Install (4)
mounting screws, (2) on each side.
Rotate spring hook end to engage linkage rod.

iQMS362 CE
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
ATTACH DUST GUARD VACUUM HOSE
Slip lower vacuum hose onto cyclone inlet.
Slip upper vacuum hose onto dust guard inlet.
MOUNTING THE SUPPORT ARM
Remove the support arm/saw motor head from box
and packaging. Install the support arm onto the left rear
support arm mounting surface by lining up the pins.
Install the (4) Allen screws. Tighten all 4 screws
finger tight.
Securely tighten the (4) Allen screws with supplied
Allen wrench.
ASSEMBLING
7.4

iQMS362 CE
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
Snap the cable retainer closed securing the cable.
Plug the vacuum power cable into the vacuum
power supply receptacle.
CONNECTING THE VACUUM MOTOR POWER
The vacuum power supply cable from the support
arm needs to be routed through the cable retainer.
Secure the On/O box by installing the front retaining
screws first. Do not tighten until all retaining screws
are installed.
Install the rear retaining screws.
Tighten all retaining screws
MOUNT THE ON/OFF SWITCH BOX
Mount the On/O box in the area in front of the vacuum
below the iQMS362 label.
ASSEMBLING
7.5

iQMS362 CE
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
ASSEMBLING
INSTALL TRANSPORT HANDLE
Insert transport handle with holes down into a front
cross frame as shown.
Insert lock screws into handle and tighten.
ASSEMBLING THE TABLE EXTENSION
Remove the table extension from packaging. Insert the
extension shafts into the right side of rolling table.
With a Phillips screwdriver, install screws in each end of
extension shaft to secure.
INSTALLING THE ROLLING TABLE
Put the Remove Table Lock lever in the down position.
This allows the rolling table to be installed or removed.
7.6

iQMS362 CE
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
Holding the table in front of you, on the left side of the
table line is the 1st notch wheel roller with the guide rail.
Push the table along the guide rail until the 2nd and
3rd notch wheel rollers are on the guide rail.
Put the remove table lock lever in the up position.
The remove table lock lever should remain in the up
position for normal operation. The remove table lock
lever should only be put in the down position for table
removal and maintenance.
IF THE REMOVE TABLE LOCK
LEVER IS LEFT IN THE DOWN
POSITION INADVERTENTLY THIS COULD CAUSE DAMAGE
AND/OR INJURY
WARNING!
ASSEMBLING
7.7
