IQ Power tools iQTS244 User manual

iQTS244
10” Tile Saw 10” Tile Saw 10” Tile Saw
Operator’s Manual Please read the operator’s manual carefully and make sure
you understand the instructions before using the machine.
Manuel de l’opérateur Veuillez lire attentivement le manuel d’utilisation et
assurez-vous de bien comprendre les instructions avant
d’utiliser la machine.
Manual del operador Lea atentamente el manual del operador y asegúrese de
entender las instrucciones antes de utilizar la máquina.

M-iQTS244-001-0M0217

iQTS244
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
TABLE OF CONTENTS
Key Symbols & Safety Rules
Explanation Of Warning Levels
Safety Rules
Introduction
Design And Features
iQTS244

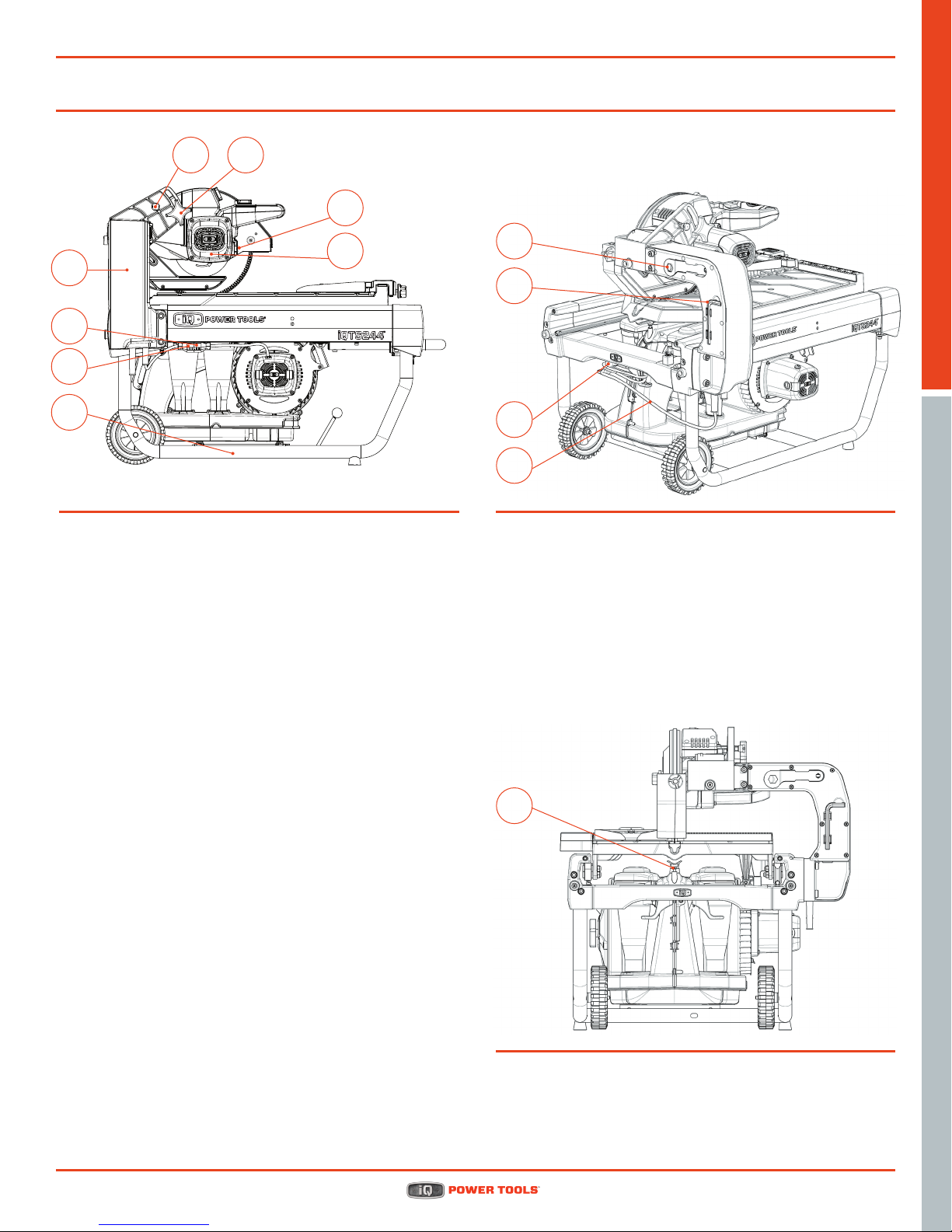

What Is What?
Machine’s Safety Equipment
Blades
Blades For Dierent Materials
Assembling
Mounting The Support Arm
Connecting The Vacuum Motor Power
Assembling The Table Extension
Installing The Rolling Table
Blade Istallation
Dust Guard Installation
Safety
Personal Protective Equipment
General Safety Precautions
Electrical Safety
Work Area Safety
Machine Use And Care
Starting And Stopping
Starting The Machine
Stopping The Machine
Vacuum Only
Laser Switch
Transport And Storage
Operating
Basic Working Techniques
General Maintenance
Daily Maintenance
Vacuum And Filter Maintence
Cleaning The Filter
Changing The Filter
Replacing The Carbon Brushes
Changing The Louvers
Adjustments
Adjusting The Top Slot
Adjusting And Squaring The Rolling Table
Adjusting The Rolling Table Upper Roller
X-Stand
Troubleshooting
Technical Data
Wiring Diagram
Warranty Policy
1
1.1
1.3
2
2.1
2.1
3
4
5
5.1
6
6.1
6.1
6.2
6.2
6.3
6.4
7
7.1
7.1
7.2
7.3
7.3
8
8.1
8.1
8.1
8.1
8.1
9
9.1
9.2
9.2
10
10.1
10.2
10.3
10.4
11
11.1
11.1
11.2
12
13
14
15
16
Topic Section

iQTS244
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
IQ PO WE RT OO LS .COM • 8 88 -2 74 -774 4
PO B ox 744 9 Mo re no V alle y, C A
20 17 • M ad e in Tai wain
248014
CU S
120V~ 60Hz 15A 4000RPM
10” TILE SAW
Q-DRIVE ARBOR
WARNIN G
-CSA

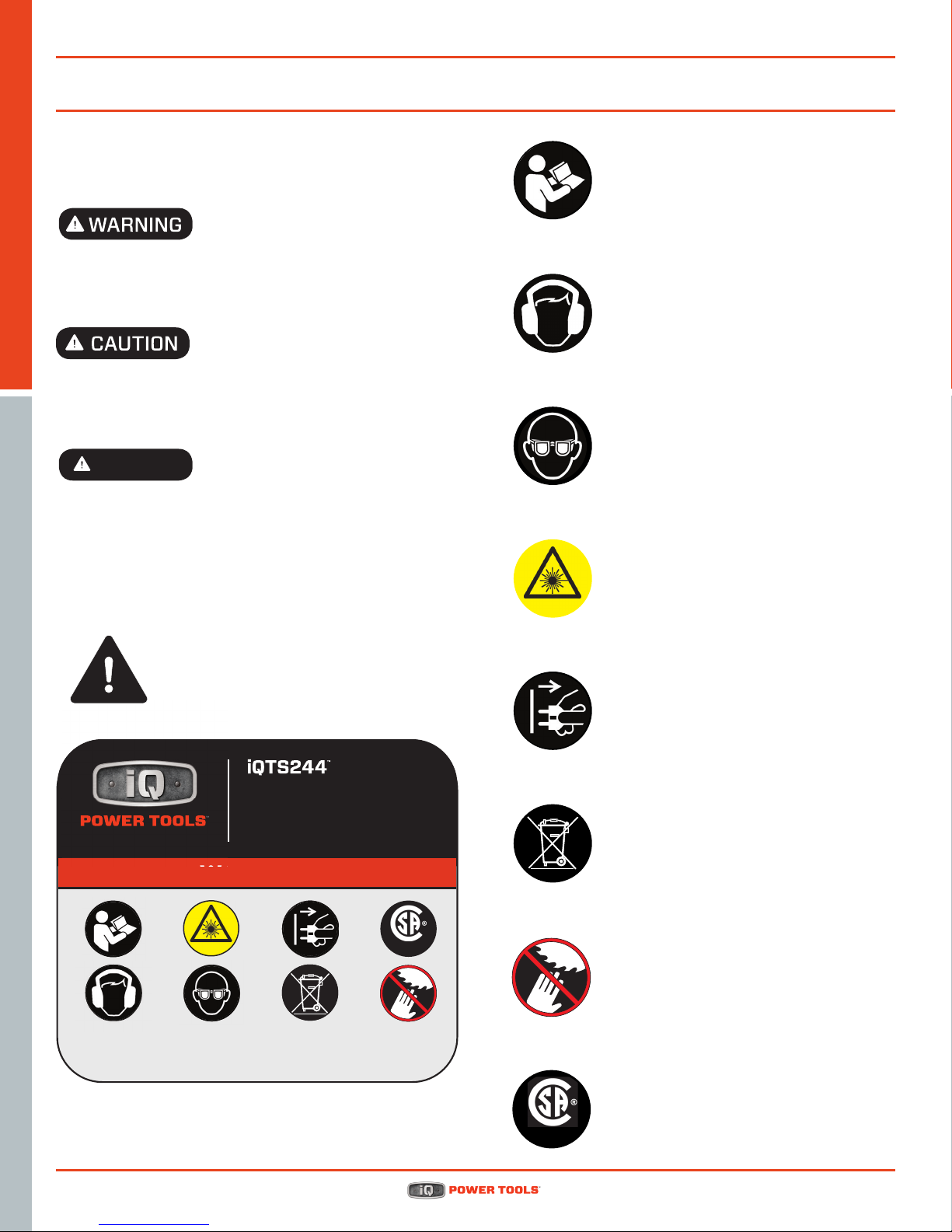

KEY SYMBOLS & SAFETY RULES
Symbols on the machine
WARNING! The machine can be a
dangerous tool if used incorrectly or
carelessly, which can cause serious or
fatal injury to the operator or others.
Please read the operator’s
manual carefully and make sure
you understand the instructions
before using the machine or
performing any maitence.
Explanation of Warning Levels
The warnings are graded in three levels.
Used if there is a risk of serious injury or death for
the operator or damage to the surroundings if the
instructions in the manual are not followed.
Used if there is a risk of injury to the operator or
damage to the surroundings if the instructions in
the manual are not followed.
Used if there is a risk of damage to materials or the
machine if the instructions in the manual are not followed.
NOTICE
1.1
Always wear hearing protection
Always wear protective goggles
or a visor
Laser radiation is emitted
from this aperture.
High voltage. Risk of an electric shock.
Turn o machine and unplug before
transportation.
Should not be disposed of with general
household waste, but collected
separately for reuse or recycling.
Keep your hands and feet away from the
blade.
CSA approved.
248014
CU S

iQTS244
Operator’s Manual
888-274-7744
www.iqpowertools.com
English

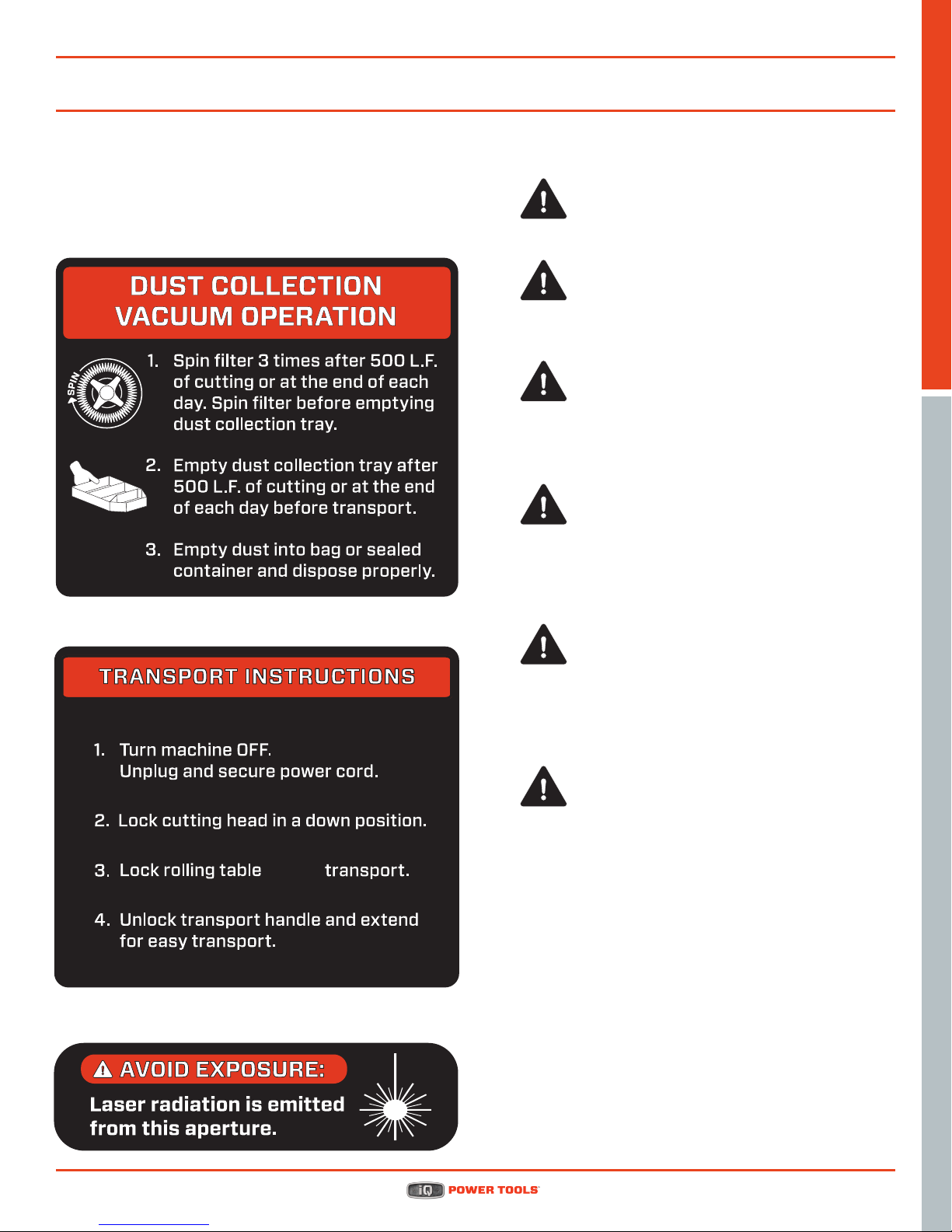

Other symbols/decals on the
machine refer to special certification
requirements for certain markets.
before
Do not expose to rain.
Never cut without using the
blade guard.
Risk of injury due to accidental
starting. Do not use in an area
where children may be present.
Unused tile saw may cause
personal injury - Remove this
tile saw blade when using other
accessories.
Always use manufacturer’s
approved cutting wheels.
Replace damaged cutting
wheel before operating.
Use tool only with smooth
edge cutting wheels free of
openings and grooves.
KEY SYMBOLS & SAFETY RULES
1.2
Additional Safety Warnings

iQTS244
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
Safery Rules
1. KEEP GUARDS IN PLACE and in working order.
2. REMOVE ADJUSTING KEYS AND WRENCHES.
Form habit of checking to see that keys and adjusting
wrenches are removed from tool before turning it on.
3. KEEP WORK AREA CLEAN. Cluttered areas and
benches invite accidents.
4. DON’T USE IN DANGEROUS ENVIRONMENT. Don’t
use power tools in damp or wet locations, or expose
them to rain. Keep work area well lighted.
5. KEEP CHILDREN AWAY. All visitors should be kept
safe distance from work area.
6. MAKE WORKSHOP KID PROOF with padlocks,
master switches, or by removing starter keys.
7. DON’T FORCE TOOL. It will do the job better and
safer at the rate for which it was designed.
8. USE RIGHT TOOL. Don’t force tool or attachment
to do a job for which it was not designed.
9. USE PROPER EXTENSION CORD. Make sure your
extension cord is in good condition. When using an
extension cord, be sure to use one heavy enough
to carry the current your product will draw. An
undersized cord will cause a drop in line voltage
resulting in loss of power and overheating. Table A
shows the correct size to use depending on cord
length and nameplate ampere rating. If in doubt, use
the next heavier gage. The smaller the gage number,
the heavier the cord.
10. WEAR PROPER APPAREL Do not wear loose
clothing, gloves, neckties, rings, bracelets, or other
jewelry which may get caught in moving parts.
Nonslip footwear is recommended. Wear protective
hair covering to contain long hair.
11. ALWAYS USE SAFETY GLASSES. Also use face
or dust mask if cutting operation is dusty. Everyday
eyeglasses only have impact resistant lenses, they
are NOT safety glasses.
SAFETY RULES
12. SECURE WORK. Use clamps or a vise to hold work
when practical. It’s safer than using your hand and it
frees both hands to operate tool.
13. DON’T OVERREACH. Keep proper footing and
balance at all times.
14. MAINTAIN TOOLS WITH CARE. Keep tools
sharp and clean for best and safest performance.
Follow instructions for lubricating and changing
accessories.
15. DISCONNECT TOOLS before servicing; when
changing accessories, such as blades, bits, cutters,
and the like.
16. REDUCE THE RISK OF UNINTENTIONAL
STARTING. Make sure switch is in o position before
plugging in.
17. USE RECOMMENDED ACCESSORIES. Consult the
owner’s manual for recommended accessories. The
use of improper accessories may cause risk of injury
to persons.
18. NEVER STAND ON TOOL Serious injury could
occur if the tool is tipped or if the cutting tool is
unintentionally contacted.
19. CHECK DAMAGED PARTS. Before further use
of the too., a guard or other part that is damaged
should be carefully checked to determine that it will
operate properly and perform its intended function
- check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting, and
any other conditions that may aect its operation.
A guard or other part that is damaged should be
properly repaired or replaced.
20. DIRECTION OF FEED. Feed work into a blade or
cutter against the direction of rotation of the blade
or cutter only.
21. NEVER LEAVE TOOL RUNNING UNATTENDED
TURN POWER OFF. Don’t leave tool until it comes to
a complete stop.
1.3

iQTS244
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
Dear Customer
We at IQ Power Tools™ want to congratulate you on
selecting the iQTS244™ Dust Control Tile Saw. We
are certain that you will be pleased with your purchase.
iQ Power Tools takes pride in manufacturing the most
innovative tools and equipment in the industry.
If operated correctly, your iQTS244™ should provide
you with years of quality service. This operator’s
manual contains information you need to operate and
maintain your iQTS244™ safely and correctly. Please
take a few minutes to familiarize yourself with your
new iQTS244™ by reading and reviewing this manual.
If you should have any questions concerning your
iQTS244™ please feel free to contact us at
Phone: [phone]
Email: [e-mail]
It is our wish that you will be satisfied with your product
and that it will prove to be a valued tool for a long time.
A purchase of one of our products gives you access
to professional help with repairs and services. If
the retailer who sells your machine is not one of our
authorised dealers, ask him for the address of your
nearest service workshop.
This operator’s manual is a valuable document. Make
sure it is always at hand at the work place. By following
its content (using, service, maintenance etc.) the life
span and the second-hand value of the machine can
be extended. If you ever lend or sell this machine, make
sure that the borrower or buyer gets the operator’s
manual, so they will also know how to properly maintain
and use it.
Owner Responsibility
It is the owner’s/employer’s responsibility that the
operator has sucient knowledge about how to use
the machine safely. Supervisors and operators must
have read and understood the Operator’s Manual.
They must be aware of:
• The machine’s safety instructions.
• The machine’s range of applications and limitations.
• How the machine is to be used and maintained.
Local regulations could restrict the use of this machine.
Find out what regulations are applicable where you
work before you start using the machine.
INTRODUCTION
The Manufacturer’s Reservation
Subsequent to publishing this manual IQ Power Tools
may issue additional information for safe operation of
this product. It is the owner’s obligation to keep up with
the safest methods of operation.
iQ Power Tools has a policy of continuous product
development and therefore reserves the right to
modify the design and appearance of products
without prior notice.
For customer information and assistance,
contact us at our website: www.iQPowerTools.com
Design & Features
Values such as high performance, reliability, innovative
technology, and environmental considerations
distinguish iQ Power Tools’ products. Safe operation of
this product requires the operator to read this manual
carefully. Ask your dealer or iQ Power Tools should you
need more information.
iQTS244
DESIGNED WITH AN INTEGRATED VACUUM SYSTEM,
FILTER SYSTEM AND DUST CONTAINMENT
This innovative patent pending design combines
the features of a professional tile saw with a
powerful cyclonic vacuum system that cuts
cleanly and eciently with no water and no dust.
COMPACT AND MOBILE DESIGN
With compact size and built-in wheels the
integrated pullout handle makes for easy transport.
LARGE CUT CAPACITY
Enables cutting of 24”x24” (600mmx600mm)
and 18” tile on diagonal.
FUNCTIONAL ROLLING TABLE WITH EXPANDABLE
TABLE EXTENSION
The rolling table is extra long for better support when
cutting. The table extension can be extended for larger
tiles then collapsed in for easy transport.
2.1

iQTS244
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
WHAT IS WHAT?
1 - Dust Tray Lift Lever
2 - Transport Handle Lock
3 - Transport Handle
4 - Table Remove Lever
5 - Extension Table Lock Knob
6 - Rolling Table Lock Knob
7 - Cutting Guide
8 - Rolling Table
9 - Blade
10 - Blade Guard Knob
11 - Handle
12 - Power Switch
13 - Laser Switch
14 - Vacuum Only Switch
15 - Blade Guard
16 - Dust Guard Retainer Knob
17 - Dust Guard
18 - Extension Table
19 - Cyclones
20 - Filter Spin Knob
21 - Filter Cover
22 - Wheels
23 - Dust Tray
Front
3.1
1
2
3
4
5
6
789
13 14
12
10
11 16
17
18
15
22
21
20
19
23

iQTS244
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
WHAT IS WHAT?
24 - Vacuum Motor
25 - Vacuum Motor Power Supply
26 - Vacuum Motor Power Cord
27 - Support Arm
28 - Lock Down Knob
29 - Depth Adjustment Knob
30 - Blade Shaft Lock Button
31 - Saw Motor
Side
32 - Power Cord
33 - Power Cord Storage
34 - 8mm Allen Wrench
35 - Blade Wrench
Back and Side
36 - Top Slot
Back
3.2
27
26
25
30
2928
31
24
34
35
33
32
36

iQTS244
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
General
This section describes the machine’s safety equipment,
its purpose, and how checks and maintenance should be
carried out to ensure that it operates correctly.
WARNING! NEVER USE A MACHINE THAT HAS
FAULTY SAFETY EQUIPMENT
BLADE GUARD
The blade guard is designed to prevent parts of
the blade or cutting fragments from being thrown
towards the user.
CHECKING THE BLADE GUARD
Check that the guard over the blade is not cracked or
damaged in any other way. Replace when damaged.
NEVER USE THE MACHINE
WITHOUT A GUARD NOR WITH A
DEFECTIVE GUARD. ALWAYS CHECK THAT THE GUARD IS
CORRECTLY FITTED BEFORE STARTING THE MACHINE.
IT IS NOT PERMITTED TO EXPOSE THE BLADE MORE THAN
180 DEGREES WITHOUT PROTECTION.
WARNING!
WARNING! SHUT DOWN THE MACHINE AND
DISCONNECT THE POWER PLUG.
DUST GUARD
The dust guard is designed to prevent dust being pulled
up from the backside of the blade. The dust guard should
be inspected periodically for damage. The dust guard
should move freely sliding up and over cutting material.
MACHINE’S SAFETY EQUIPMENT
SAW POWER SWITCH
The power switch - / O should be used to start and stop
the machine.
CHECKING THE SAW POWER SWITCH
The saw power switch starts the saw motor and
vacuum motor simultaneously.
To start the saw motor press the POWER switch - or
on symbol. To stop the saw motor press the POWER
switch Oor o symbol.
Defective switches should be replaced by an authorized
service workshop.
VACUUM ONLY SWITCH
The vacuum only switch turns the vacuum on but not
the saw motor.
To start the vacuum motor press the VACUUM ONLY
switch - or on symbol. To stop the vacuum motor press
the VACUUM ONLY switch Oor o symbol.
LASER SWITCH
This tile saw is equipped with a laser light guide for
lining up cuts.
To turn on the laser light guide press the LASER switch
-or on symbol. To turn o the laser light guide press the
LASER switch Oor o symbol.
LOCKING KNOB, ROLLING TABLE
The locking knob is used to lock the rolling table in place
when in transit. Be sure to lock rolling table before
transit to avoid injury.
4.1

iQTS244
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
BLADES
General
The iQTS244 dry cutting tile saw utilizes a specially
designed diamond blade with a Q-Drive Arbor hole.
The 10” Q-Drive dry cutting blade uses a proprietary
composition of diamond concentration, metal type,
and flange thickness to make a blade that cuts
cool while reducing vibration and movement. The
specially designed blade works in conjunction with
the vacuum flow to keep the blade and the material
cool while cutting.
The iQTS244 10” Dry Cutting blades with Q-Drive
Arbor hole can be purchased from your local
iQ Power Tools dealer or directly from iQ Power
Tools by calling 888-274-7744 or through our
website at www.iQpowertools.com
The Q-Drive Arbor hole with the included bushing
also fits a standard 5/8 round blade shaft for
versatility.
The Q-Drive Arbor hole shape without bushing also
fits a standard 1” round blade shaft for versatility.
BLADES CAN BREAK AND
CAUSE SERIOUS INJURIES
TO THE USER. DIAMOND BLADES CAN BECOME VERY
HOT WHEN NOT USED PROPERLY. AN OVERHEATED BLADE
MAY CAUSE DEFORMATION OF THE BLADE, RESULTING IN
DAMAGE AND INJURIES.
WARNING!
WITH BUSHING WITHOUT BUSHING
Blades for Dierent Materials
The iQTS244 dry cutting tile saw is supplied with
specially designed 10” Dry Cutting Combination Blade
with Q-Drive Arbor hole that is engineered to cut a
variety of material such as: porcelain, marble, granite,
ceramic, and stone.
A 10” Dry Cutting Hard Material Blade is also available
for the iQTS244 with Q-Drive Arbor hole.
A 10” Dry Cutting Soft Material Blade is also available
for the iQTS244 with Q-Drive Arbor hole.
Blade selection should be made according to the
material being cut ask your local dealer for help in
choosing the right product.
BLADE VIBRATIONS
• The blade can become out of round and
vibrate if a too high feed pressure is used.
• A lower feed pressure can stop the vibration.
Otherwise replace the blade.
SHARPENING DIAMOND BLADES
• Always use a sharp diamond blade.
• Diamond blades can become dull when
the wrong feeding pressure is used or
when cutting certain materials such as
very hard material. Working with a dull
diamond blade causes overheating, which
can result in the diamond segments
coming loose.
• Sharpen the blade by using a dressing
stone or by cutting in a soft material such
as sandstone or soft brick.
TRANSPORT AND STORAGE
• Remove the blade before transportation or
storage of the machine.
• Store the blade in a dry place.
• Inspect new blades for transport or
storage damage.
NEVER USE A BLADE FOR ANY
OTHER MATERIALS THAN THAT IT
WAS INTENDED FOR. CUTTING PLASTICS WITH A DIAMOND
BLADE CAN CAUSE KICKBACK WHEN THE MATERIAL
MELTS DUE TO THE HEAT PRODUCED WHEN CUTTING AND
STICKING TO THE BLADE. NEVER CUT PLASTIC MATERIALS
WITH A DIAMOND BLADE!
WARNING!
5.1

iQTS244
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
ASSEMBLING
UN-BOXING AND ASSEMBLING
Open the top of the box. Remove top layer of foam with
parts and set aside. Remove main frame assembly and
place on a flat horizontal and stable surface (preferably
a workbench) to prevent the equipment from tipping or
sliding during assembly.
MOUNTING THE SUPPORT ARM
Remove the support arm/saw motor head from box
and packaging. Install the support arm onto the left rear
support arm mounting surface by lining up the pins.
Install the (4) Allen screws. Tighten all 4 screws finger tight.
Securely tighten the (4) Allen screws with supplied
Allen wrench.
CONNECTING THE VACUUM MOTOR POWER
The vacuum power supply cable from the support
arm needs to be routed through the cable retainer.
Snap the cable retainer closed securing the cable.
Plug the vacuum power cable into the vacuum power
supply receptacle.
6.1

iQTS244
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
ASSEMBLING THE TABLE EXTENSION
Remove the table extension from packaging. Insert the
extension shafts into the right side of rolling table.
With a Phillips screwdriver, install screws in each end of
extension shaft to secure
INSTALLING THE ROLLING TABLE
Put the remove table lock lever in the down position.
This allows the rolling table to be installed or removed.
Holding the table in front of you, on the left side of the
table line the 1st notch wheel roller with the guide rail.
Push the table along the guide rail until their 2nd and
3rd notch wheel rollers are on the guide rail.
Put the remove table lock lever in the up position.
The remove table lock lever should remain in the up
position for normal operation. The remove table lock
lever should only be put in the down position for table
removal and maintenance
IF THE REMOVE TABLE LOCK
LEVER IS LEFT IN THE DOWN
POSITION INADVERTENTLY THIS COULD CAUSE DAMAGE
AND/OR INJURY
WARNING!
ASSEMBLING
6.2

iQTS244
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
INSTALLING THE BLADE
While pushing down on the cutting head handle
loosen the depth adjustment knob and pull out on the
lock down knob. Allow the cutting head to move to the
full up position
Loosen the blade guard knob.
Open outside blade guard by tilting back exposing blade
shaft nut and flange washer
Remove the blade shaft nut and outside flange washer.
Note the Q-Drive shaped blade shaft. The IQTS244
must be used with the specially designed
10” dry cutting blade with Q-Drive Arbor hole.
(Note: Q-Drive Arbor hole with the included bushing also
fits a standard 5 /
8round blade shaft for versatility. Also,
the Q-Drive Arbor hole shape without bushing also fits a
standard 1 inch round blade shaft for versatility.)
BLADE INSTALLATION
WITH
BUSHING
WITHOUT
BUSHING
6.3

iQTS244
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
Remove blade from packaging, remove bushing if
installed into Q-Drive Arbor hole. Install the blade lining
up the Q-Drive Arbor hole with the Q-Drive blade shaft.
Install the outside blade flange washer and nut. With
supplied blade wrench tighten blade nut turning right or
clockwise while depressing the blade shaft lock button.
Tighten till secure.
Close outside blade guard and secure by tightening
guard knob
INSTALLING THE DUST GUARD
Note: Blade should be installed before installing
dust guard.
While pushing down on the cutting head handle
loosen the depth adjustment knob and pull out on the
lock down knob. Allow the cutting head to move to the
full up position. With the dust guard retainer knob fully
extended line up dust guard track to shoulder screws
and push-up.(Note: blade also needs to line up with a
slot in dust guard)
While holding the dust guard in the up position fully
tighten dust guard retainer knob
Installed dust guard retainer bumper.
DUST GUARD INSTALLATION
6.4

iQTS244
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
General
Do not use the machine unless you are able to call
for help in the event of an accident. Always have a
first aid kit nearby.
PERSONAL PROTECTIVE EQUIPMENT
You must use approved personal protective equipment
whenever you use the machine. Personal protective
equipment cannot eliminate the risk of injury but it will
reduce the degree of injury if an accident does happen.
Ask your dealer for help in choosing the right equipment.
Listen out for warning signals or shouts when you are
wearing hearing protection. Always remove your hearing
protection as soon as the motor stops.
Always wear:
• Hearing protection
• Approved eye protection
If you use a face shield then you must
also wear approved protective goggles.
Approved protective goggles must comply
with standard ANSI Z87.1 in the USA or EN
166 in EU countries. Visors must comply
with standard EN 1731.
• Breathing mask
• Protective gloves.
• Hair covering or devices to contain long hair,
i.e.: Hair Ties For Guys
Generally clothes should be close-fitting without
restricting your freedom of movement. Be careful
as clothing, long hair, and jewellery can get caught
in moving parts.
GENERAL SAFETY PRECAUTIONS
This section describes basic safety directions for using
the machine. This information is never a substitute for
professional skills and experience.
• Please read the operator’s manual carefully
and make sure you understand the instructions
before using the machine. Save all warnings
and instructions for future reference.
• Keep in mind that the operator is responsible
for accidents or hazards occurring to other
people or their property.
• All operators shall be trained in the use
of the machine.
The owner is responsible for ensuring that the operators
receive training.
• The machine must be kept clean. Signs and
stickers must be fully legible.
- Never allow children or other persons not trained in
the use of the machine to use or service it.
- Never allow anyone else to use the machine without
first ensuring that they have read and understood the
contents of the operator’s manual.
- Never use the machine if you are fatigued, while
under the influence of alcohol or drugs, medication
or anything that could aect your vision, alertness,
coordination or judgement.
Do not modify this product or use it if it appears to have
been modified by others.
Never use a machine that is faulty. Carry out the
safety checks, maintenance and service instructions
described in this manual. Some maintenance and
service measures must be carried out by trained and
qualified specialists. See instructions under the heading
Maintenance. Always use genuine accessories. Contact
your dealer for more information.
SAFETY
WARNING!
POWER TOOLS AND CUTTING
MACHINES HAVE THE
POTENTIAL TO CREATE SPARKS. ALWAYS KEEP FIRE
EXTINGUISHERS HANDY.
WARNING!
THE USE OF PRODUCTS SUCH
AS CUTTERS, GRINDERS,
DRILLS, THAT SAND OR FORM MATERIAL CAN GENERATE
DUST AND VAPORS WHICH MAY CONTAIN HAZARDOUS
CHEMICALS. CHECK THE NATURE OF THE MATERIAL
YOU INTEND TO PROCESS AND USE AN APPROPRIATE
BREATHING MASK.
CAUTION!
LONG TERM EXPOSURE
TO NOISE CAN RESULT IN
PERMANENT HEARING IMPAIRMENT. SO ALWAYS USE
APPROVED HEARING PROTECTION.
WARNING!
THERE IS ALWAYS A RISK
OF CRUSH INJURIES WHEN
WORKING WITH PRODUCTS CONTAINING MOVING PARTS.
WEAR PROTECTIVE GLOVES TO AVOID BODY INJURIES.
WARNING!
THE MACHINE CAN BE A
DANGEROUS TOOL IF USED
INCORRECTLY OR CARELESSLY, WHICH CAN CAUSE
SERIOUS OR FATAL INJURY TO THE OPERATOR OR OTHERS.
WARNING!
UNAUTHORIZED MODIFICATIONS
AND/ OR ACCESSORIES MAY LEAD
TO SERIOUS INJURY OR DEATH TO THE USER OR OTHERS.
7.1

iQTS244
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
ALWAYS THINK ABOUT YOUR WORK ENVIRONMENT
AND USE COMMON SENSE.
It is not possible to cover every conceivable situation
you can face. Always exercise care and use your
common sense. If you get into a situation where you
feel unsafe, stop and seek expert advice. Contact your
dealer, service agent or an experienced user. Do not
attempt any task or operation that makes you feel
unsure whether or not it is safe.
ELECTRICAL SAFETY
WARNING! There is always a risk of shocks from
electrically powered machines. Avoid unfavourable
weather conditions and body contact with lightning
conductors and metal objects. Always follow the
instructions in the Operator’s manual to avoid damage.
• Never connect the machine to a outlet if plug
or cord is damaged.
• Check that the mains voltage corresponds
with that stated on the rating plate on
the machine.
• Inspection and/or maintenance should be
carried out with the motor switched o and
the plug disconnected.
• Always shut down the machine before
disconnecting the power plug.
• Never drag the machine by means of the cord
and never pull out the plug by pulling the cord.
Hold the plug to disconnect the power cord.
• Never use the machine if any cable or plug
is damaged, but hand it in to an authorized
service workshop for repair.
• Never use the machine if any cable or plug
is damaged, but hand it in to an authorized
service workshop for repair.
• Prevent unintentional starting of the motor.
Ensure the power switch is in the OFF-
position before connecting the machine to
a power source.
WARNING!
WHEN CLEANING THE MACHINE
MAKE SURE TO AVOID WATER
ENTERING THE ELECTRICAL SYSTEM AND THE MOTOR
UNIT. WATER CAN CAUSE DAMAGE TO THE MACHINE OR
SHORT CIRCUIT.
Do not modify the plug. If it will not fit the outlet have a
proper outlet installed by a qualified electrician. Make
sure local regulations and ordinances are followed.
EXTENSION CORDS AND CABLES
The marking on the extension cable must be the
same or higher than the value stated on the machine’s
rating plate.
• When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use
of a cord suitable for outdoor use reduces the
risk of electric shock.
• Keep the connection to the extension cord dry
and o the ground.
• Keep cable away from heat, oil, sharp edges or
moving parts. Damaged or entangled cable
increase the risk of electric shock.
• Check that the cord and extension cord are
intact and in good condition. Never use the
machine if any cable or plug is damaged. Take it
into an authorized service workshop for repair.
• To avoid overheating do not use the extension
cord while it is rolled up.
• When using an extension cable, use only
certified extension cables with sucient reach.
RECOMMENDED CABLE DIMENSIONS
WARNING!
IMPROPER CONNECTION CAN
RESULT IN THE RISK OF ELECTRIC
SHOCK. CONTACT A QUALIFIED ELECTRICIAN IF IN DOUBT AS
TO WHETHER THE APPLIANCE IS PROPERLY GROUNDED.
NOTICE!
GOOD MOTOR PERFORMANCE
DEPENDS ON PROPER VOLTAGE.
EXTENSION CABLES THAT ARE TOO LONG AND/OR WHICH
HAVE A GAGE THAT IS TOO SMALL, REDUCE POWER TO
THE MOTOR UNDER LOAD, RESULTING IN REDUCED OUTPUT
OR MALFUNCTIONS.
25FT 50FT 100FT 150FT
AWG AWG AWG AWG
12 10 NOT
RECOMMENDED
NOT
RECOMMENDED
VOLTS 120vVOLTS 120vVOLTS 120vVOLTS 120v
SAFETY
7.2

iQTS244
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
WORK AREA SAFETY
• Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
• People and animals can distract you causing
you to lose control of the machine. For this
reason, always remain concentrated and
focused on the task.
• Do not use the machine in bad weather, such
as dense fog, heavy rain, strong wind, intense
cold, etc.
• Never start to work with the machine
before the working area is clear and you
have a stable work surface.
PERSONAL SAFETY
Never use the machine if you are fatigued, while under
the influence of alcohol or drugs, medication or anything
that could aect your vision, alertness, coordination
or judgement.
• Check that no tools or other objects have been
left lying on the machine.
• Never allow anyone else to use the machine
without proper training.
• Always shut o the machine during longer
work breaks.
• Never work alone, always ensure there is
another person close at hand.
• Learn how to use the machine and its controls
safely and learn to how to stop quickly.
Also learn to recognize the safety decals.
• Keep handles dry, clean and free from
oil and grease.
• Do not overreach. Keep proper footing and
balance at all times.
• Never stand on the machine.
SAFETY

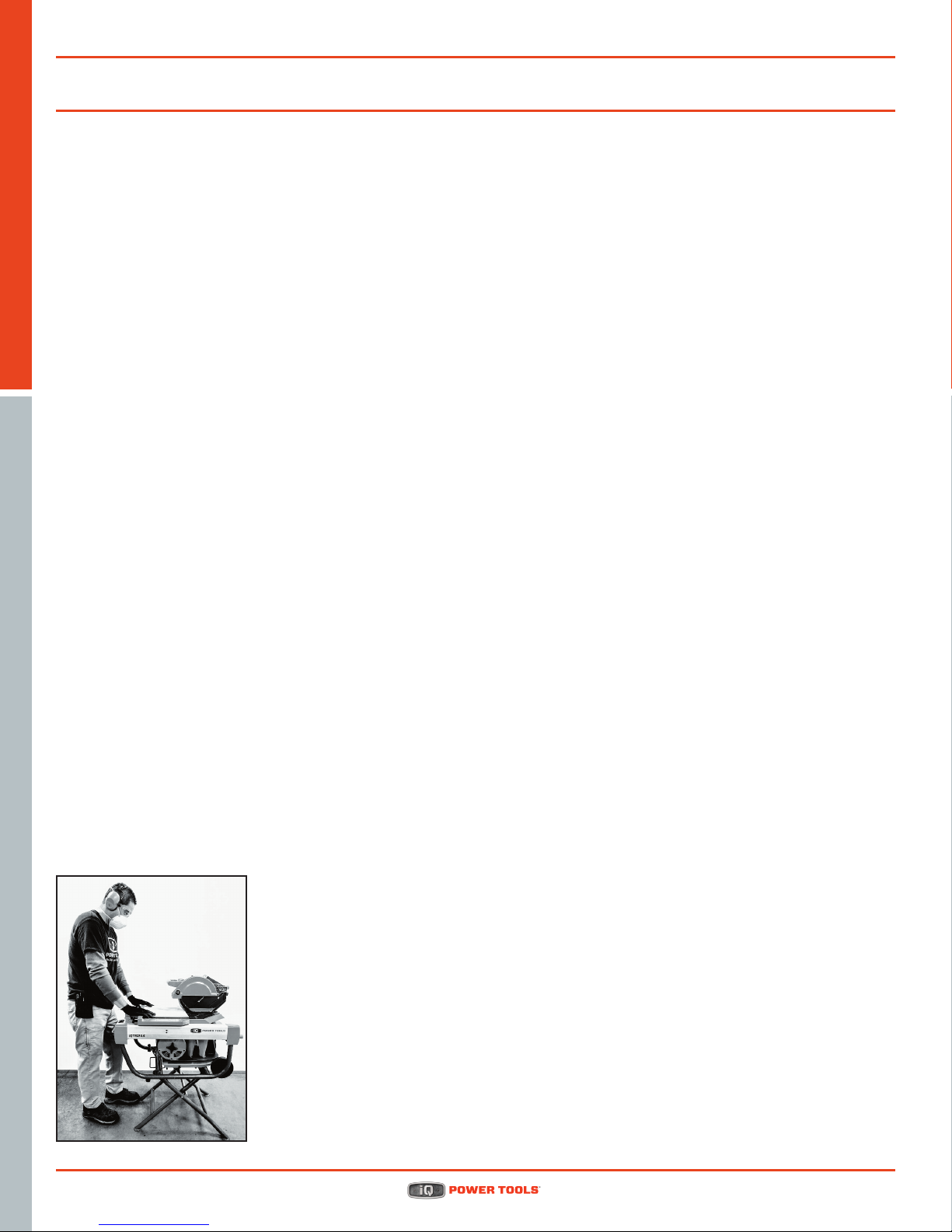

Stand upright. Keep
distance between your
face and the cutting blade.
Place both hands on the
work piece as far away
from the cutting blade as
possible. If plunge function
is used, place one hand on
the cutting handle.
MACHINE USE AND CARE
• This machine is designed and intended for
cutting tile and stone. All other use is improper.
• Experience is very important when running
the machine. A skilled worker is highly
recommended.
• The machine is intended for use in industrial
applications by experienced operators.
• Check that the machine is assembled correctly
and do not show any signs of damage.
• Always perform daily maintenance before
starting the machine. See instructions in the
section “Maintenance”.
• Do not overload the machine. Overloading
can damage the machine.
• The blade shall be intended for the
material to be cut.
• If you are uncertain of what blade to use
contact your local service dealer.
• Keep tools sharp and clean in order
to enable safer work.
• Keep all parts in good working order and ensure
that all fixtures are properly tightened. Replace
all worn or damaged decals.
• Never leave the machine unsupervised with
the motor running.
• Feed the work piece against the rotation of
the blade only!
• Observe care when lifting. You are handling
heavy parts, which imply the risk of pinch
injuries or other injuries.
7.3

iQTS244
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
STARTING AND STOPPING
Before starting
Wear personal protective equipment. See instructions
under the heading ”Personal protective equipment”.
Make sure no unauthorised persons are in the working
area, otherwise there is a risk of serious personal injury.
Prevent unintentional starting of the motor. Ensure the
power switch is in the OFF- position before connecting
the machine to a power source.
Check that the machine is assembled correctly and do
not show any signs of damage. See instructions in the
section “Assembling and adjustments”.
• Perform daily maintenance. See instructions
in the section “Maintenance”.
STARTING MACHINE
The saw power switch starts the saw motor and vacuum
motor simultaneously. To start the saw motor press
the POWER switch -or on symbol. Defective switches
should be replaced by an authorized service workshop.
STOPPING MACHINE
To stop the saw motor press the POWER switch O
or o symbol.
VACUUM ONLY SWITCH
The vacuum only switch turns the vacuum on but
not the saw motor. To start the vacuum motor press
the VACUUM ONLY switch -or on symbol. To stop
the vacuum motor press the VACUUM ONLY switch O
or o symbol.
LASER SWITCH
This tile saw is equipped with a laser light guide for lining
up cuts. To turn on the laser light guide press the LASER
switch -or on symbol. To turn o the laser light guide
press the LASER switch Oor o symbol.
WARNING!
PLEASE READ THE OPERATOR’S
MANUAL CAREFULLY AND MAKE
SURE YOU UNDERSTAND THE INSTRUCTIONS BEFORE
USING THE MACHINE
WARNING!
MAKE SURE CUTTING BLADE
COMES TO A COMPLETE
STOP BEFORE PERFORMING ANY MAINTENANCE OR
TRANSPORTING.
Transport and storage
GENERAL
Stop the motor and disconnect the power cable before
lifting or moving the machine.
• Secure the equipment during transportation
in order to avoid transport damage and
accidents.
• Ensure that the rolling table is locked
and that the extension table is locked in
its inner position.
• Store the equipment in a lockable area
so that it is out of reach of children and
unauthorized persons.
• For transport and storage of Blades, see
the section “Blades”.
• Lift the machine at the short ends.
TRANSPORTING
WARNING!
BE SURE TO LOCK
THE ROLLING TABLE
AND CUTTING HEAD
BEFORE MOVING OR
TRANSPORTING TO AVOID
EQUIPMENT DAMAGE OR
PERSONAL INJURY.
Raise the transport handle
by pulling transport handle
lock pin (A) then pulling up
n transport handle (B).
Machine can now be tipped
forward onto the wheels for
easy transport.
TRANSPORT INSTRUCTIONS
Make sure the table lock is secure before transporting saw. Failure to lock
table may cause the table to slide o the saw and cause serious injury.
1. Turn machine OFF. Unplug and secure power cord.
2. Lock cutting head in a down position.
3. Lock rolling table to avoid injury during transport.
4. Unlock transport handle and extend for easy transport.
8.1
A
B

iQTS244
Operator’s Manual
888-274-7744
www.iqpowertools.com
English
Basic working techniques

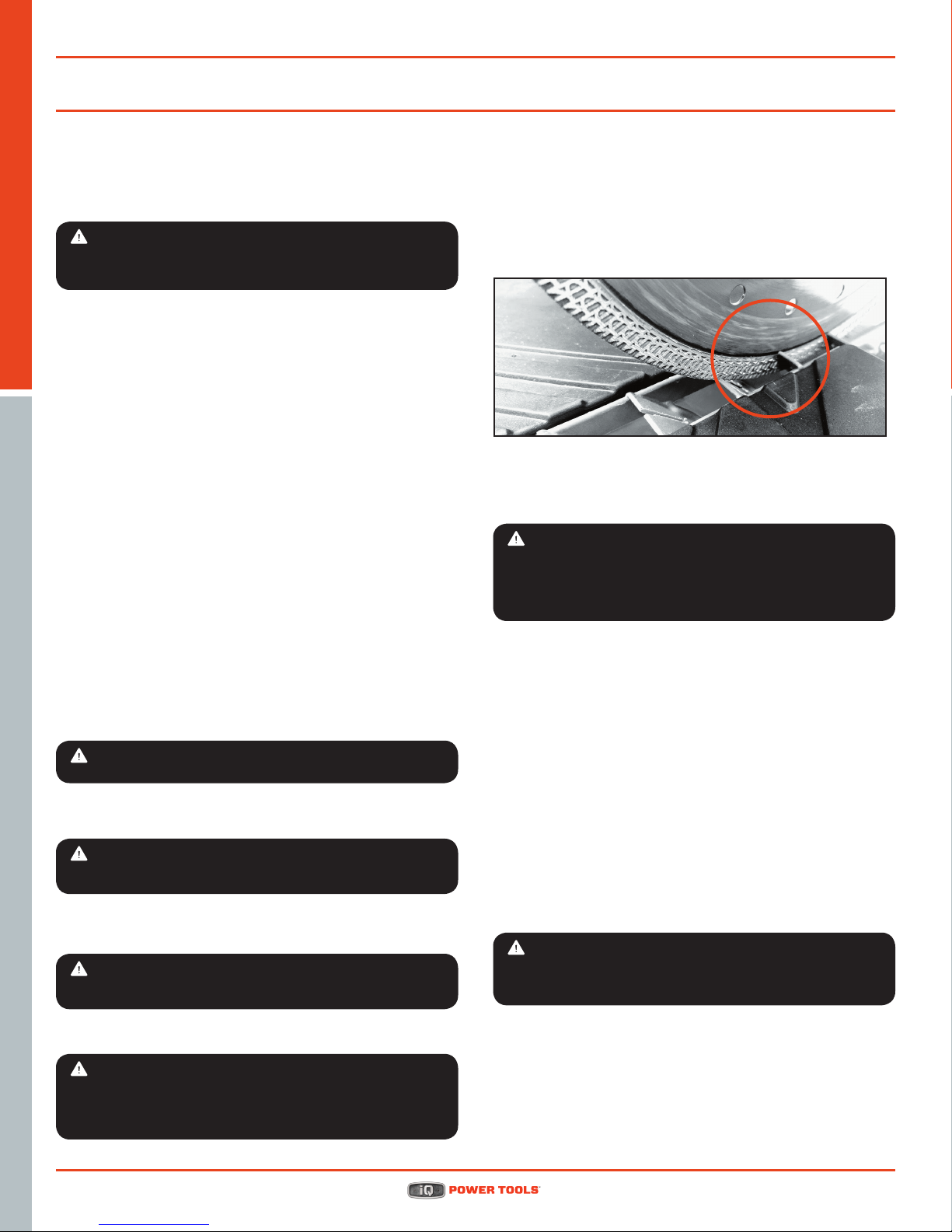

MAKING THE FIRST CUT
While making the first cut you will notice the blade is
cutting into the plastic louvers. This is normal and part
of their design.
TYPICAL CUTTING OPERATION
The cutting head should be left in the lock down position
for typical tile cutting.
If the depth adjustment knob is used to set the depth of
the cutting blade above the table surface dust collection
will be limited.
MITER OR BEVEL CUTTING (optional accessory)*
Attached the miter cutting guide to the rolling table for
miter or bevel cutting.
PLUNGE CUTTING
The cutting arm is spring loaded and adjustable up and down.
•Loosen the lock knob for the depth
adjustment. With the handle on the cutting
arm the cutting blade can adjusts up and down
and create a plunge cut in the work piece.
CUTTING LARGER FORMAT TILES
For cutting tiles or pieces in excess of 24 inches an
attachable table with integrated rip cutting fence* is
available. This accessory allows 48 inches length of cut.
WARNING!
INITIAL DUST COLLECTION
WILL BE LIMITED UNTIL THE
BLADE CUTS THROUGH THE TILE ENABLING DUST
CAPTURE DOWN INTO THE VACUUM SYSTEM.
OPERATING
WARNING!
OPERATING THE MACHINE
IN SITUATIONS WHERE DUST
COLLECTION IS LIMITED FOR PROLONGED PERIODS CAN
CREATE DUSTY AND POTENTIALLY HAZARDOUS WORK
ENVIRONMENT FOR THE OPERATOR AND OTHER PERSONS
IN THE VICINITY.
*Accessories can be purchased from your local iQ Power Tools dealer.
Call 888-274-7744 or visit www.iqpowertools.com to find a dealer near you.
Maintenance
GENERAL
To prevent accidental starting, the steps described
in this chapter must be performed with the motor o
and the power cable removed from the socket, if not
otherwise stated.
Wear personal protective equipment. See instructions
under the heading “Personal protective equipment”.
The life span of the machine can be reduced and the risk
of accidents can increase if machine maintenance is not
carried out correctly and if service and/or repairs are not
carried out professionally. If you need further information
please contact your nearest servicing dealer.
DAILY MAINTENANCE
• Check that the machine’s safety equipment is
undamaged. See instructions in the section
“Machine’s safety equipment”.
• Clean the outside of the machine. Do not
use a high pressure washer to clean the saw.
• Open the blade guard. Clean both the inside
and outside, and close the blade guard.
WARNING!
PLEASE READ THE OPERATOR’S
MANUAL CAREFULLY AND MAKE
SURE YOU UNDERSTAND THE INSTRUCTIONS BEFORE
USING THE MACHINE
NOTICE!
KEEP THE ROLLING TABLE
SURFACE FREE OF TILE CHIPS
AND LARGE DEBRIS.
WARNING!
NEVER CLEAN MOTOR AND
ELECTRIC PARTS WITH WATER.
NOTICE!
KEEP THE DUST COLLECTION
LOUVERS AND TOP SLOT FREE OF
TILE CHIPS AND LARGE DEBRIS.
CAUTION
FAILURE TO KEEP THE DUST
COLLECTION LOUVERS AND
TOP SLOT FREE OF TILE CHIPS AND LARGE DEBRIS COULD
RESULT IN THE ROLLING TABLE JAMMING AGAINST THE
TOP SLOT AND CAUSING DAMAGE TO THE MACHINE.
9.1
