IQBoard Expert Series User manual

User Manual V7.0
(Windows Version)
Multi-Touch
Interactive Whiteboard

MULTI-TOUCH IWB User Manual v7.0
Page 2
Note
For your own safety, please read this User Manual carefully before use. Follow all
the installation instructions carefully and keep this User Manual properly for future
reference.
Note
Safety Information
Product Information
Wall Mount Installation
Connection Setup
Installation of
Software
V7Software
Multi-Touch IWB

MULTI-TOUCH IWB User Manual v7.0
Page 3
Safety Information
Meaning of Signal Words
1. Safety Information (Continue….)
•
•
•
•
•
•
•
•
•
•
•
Follow all the installation instructions carefully.
This product is designed and intended for indoor use only.
Do not expose this product to water or moisture in order to avoid re and electric
shock. Do not operate this product in a damp environment.
Always place this product on stable and level surface.
Use only the designated wall mount or mobile stand hardware.
Always use this product at the indicated supply voltage only. Failure to do so
may result in re, electric shock, or product damage.
Use only the included power cord, power plug or power adaptor. Use of other
types of power cord, power plug, or adaptor may result in re or electric shock.
Always insert the power plug or power adaptor fully into the power outlet.
Otherwise, it may result in overheat, electric shock or re.
If the power plug does not t into the power outlet, contact a licensed electrician
to replace the obsolete outlet.
When unplugging the power plug or power adaptor, hold it by the plug. Do not
pull on the power cord as it may damage to the power cord and may cause re
or electric shock.
Do not bend or twist, or place any heavy object on the power cord.
Indicates a potential hazard that could result in
serious injury or death and/or property damage.
Indicates hazards that could result in minor or
moderate injury and/or property damage.
WARNING
WARNING
CAUTION
Note
Safety Information
Product Information
Wall Mount Installation
Connection Setup
Installation of
Software
V7Software
Multi-Touch IWB

MULTI-TOUCH IWB User Manual v7.0
Page 4
Safety Information
1. Safety Information (Continue….)
•
•
•
•
•
•
•
•
•
•
•
•
•
Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
Do not open or alter the casing of this product. Electric shock or injury may
result.
Do not attempt to repair, modify, or disassemble this product. If any part of this
product is damaged or frayed, contact an authorized service representative.
Never handle this product with wet hands as it may result in electric shock.
If the product emits smoke, excessive heat, abnormal smell or unusual noise,
turn off the product and unplug the power plug immediately. Contact an
authorized service representative.
Do not insert any metallic objects into this product or into a contact.
Unplug the power plug or power adaptor before cleaning. Always use a dry, soft
cloth for cleaning.
Carefully locate any parts and/or accessories of this product to avoid potential
tripping hazards.
Do not operate this product at high temperature and/or high humidity
environment. Application ambient conditions: Temperature: 10°C to 40°C;
Humidity: 10% to 80%; Non-condensing.
This product must be disposed in accordance with the relevant federal, state,
and local laws and regulations.
Never allow children to operate this product without proper adult supervision.
Do not install this product except by qualied service personnel.
Do not place this product near any heat sources above 100°C.
WARNING
Note
Safety Information
Product Information
Wall Mount Installation
Connection Setup
Installation of
Software
V7Software
Multi-Touch IWB

MULTI-TOUCH IWB User Manual v7.0
Page 5
Safety Information
1. Safety Information (Continue….)
•
•
•
•
•
•
•
•
•
•
•
•
•
Do not expose this product to excessive dust or vibrations, or high humidity,
extreme cold or heat (such as in direct sunlight, near a heater, or near an air-
conditioning vent).
Do not install this product where it would be exposed to direct sunlight or strong
lighting.
Do not place a heavy object on this product to avoid product damage.
Do not pour or spray any liquid onto this product or its components. Accidental
spillage of liquid into this product may cause serious damage. If this occurs,
immediately turn off this product and unplug the power plug from the power
outlet. Contact an authorized service representative for service.
Unplug this product when unused for a long period of time. Take out all the
batteries from any components of this product to avoid leaking. Do not use
leaked batteries.
Unplug the power cord before moving this product.
Always lock the casters when using a mobile stand. Do not unlock the casters
unless moving this product.
If this product falls down, immediately turn off the product and unplug the power
cord. Otherwise, it may cause re or electric shock.
Keep the writing surface clean. Do not use an overly dirty eraser.
Turn off the product before cleaning.
Use commercially available whiteboard cleaner for hard-to-erase stains.
Use only the designated markers and erasers. Use of accessories other than
those authorized (such as oil-based markers) may damage the screen or result
in hard-to-erase markings.
For the use of wireless USB receiver, connect only to a computer that is
compliant with the indicated USB interface.
CAUTION
Note
Safety Information
Product Information
Wall Mount Installation
Connection Setup
Installation of
Software
V7Software
Multi-Touch IWB

Description
Multi-Touch Interactive Whiteboard
USB Cable (6 meters)
Pen Tray
Plastic Stylus
Wall Mount Kit
Installation CD-ROM
Eraser
Hotkey strip
USB Wireless Receiver Sound Bar System Mobile Stand
Projector Mount Electrical Mobile Stand
+ Projector Mount
Document Camera
Voting System (including ARS Receiver)
Active Pen Tray
Note: Please contact your local distributor for more details.
Quantity
1
1
1
2
1
1
1
1
Item
1
2
3
4
5
6
7
8
MULTI-TOUCH IWB User Manual v7.0
Page 6
Product Information
Packaging Checklist
Multi-Touch IWB
Optional Accessories
Note
Safety Information
Product Information
Wall Mount Installation
Connection Setup
Installation of
Software
V7Software
Multi-Touch IWB

MULTI-TOUCH IWB User Manual v7.0
Page 7
Wall Mount Installation
Type 1
Step 1
Step 2
Step 3
Step 4
Step 5
Attach suspender (6) by screwing to board, see gure 1.
Measure the position of top hangers for hanging (3), see gure 1.
Install wall plugs (1) and hangers 40mm (3), see gure 1.
Use double side tape to attach the speaker´s HUB in center of the
pentray.
Attach speakers to the frame from back of the board, see gure 2.
Note: For wall installation of Multi-Touch Boards with Multi Touch Speakers use
40mm wall mount supplied with Multi-Touch speakers.
DC-12V PEN TRAY IWB USB OUTPUT
RL
SPEAKER
USB-PC
POWER
L
R
HDMI (T
o Whiteboard)
USB (To Pen Tray)
DC12V (Input)
USB (To PC)
VOLUME + / -
Double-Side Tape
DC-12VPEN TRAYIWBUSB OUTPUT
RL
SPEAKER
USB-PC
POWER
4*12mm
x 2
3*25mm
x 2
Interactive Whiteboard
(Back)
HDMI
Connector
Note
Safety Information
Product Information
Wall Mount Installation
Connection Setup
Installation of
Software
V7Software
Multi-Touch IWB

MULTI-TOUCH IWB User Manual v7.0
Page 8
Wall Mount Installation
Type 1
Step 6
Step 7
Step 8
Step 9
Step 10
Step 11

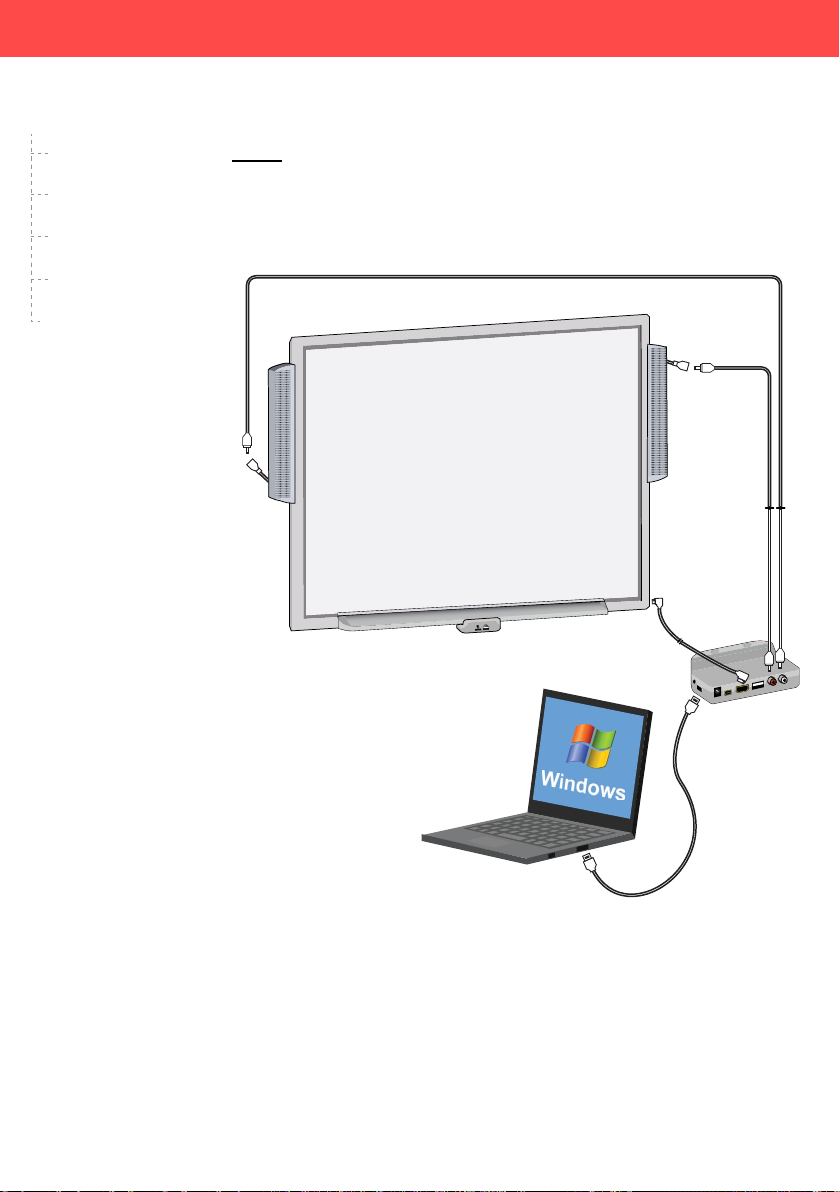

Lead / hide cables behind the board using tape.
Install pentray with HUB on the board.
Connect HDMI - HDMI and L and R Audio cables, see gure 3.
Measure and install wall plugs (1), screws (2) ans square (4), see gure1.
Hang board on the wall.
Connect board to the PC with micro USB - USB cable, see gure 3.
DC-12V PEN TRAY IWB USB OUTPUT
RL
SPEAKER
USB-PC
POWER
USB CABLE
(6m)
HDMI CABLE
(1.2m)
Land Audio
Cables
Interactive Whiteboard
(Front)
Note
Safety Information
Product Information
Wall Mount Installation
Connection Setup
Installation of
Software
V7Software
Multi-Touch IWB

MULTI-TOUCH IWB User Manual v7.0
Page 9
Wall Mount Installation
Type 2
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Determine the desired wall mount location.
Ensure the wall mount Part A is level.
Mark the mounting holes on the wall.
Screw the wall mount into the wall surface.
Make sure it is securely mounted and stays level.
Install the Parts B on the board.
Hang the board on Part A.
Install the Parts C&D. Mark the screw hole rst, then, install the
Parts directly. Make sure the Parts C&D holding the board rmly.
Note
Safety Information
Product Information
Wall Mount Installation
Connection Setup
Installation of
Software
V7Software
Multi-Touch IWB

MULTI-TOUCH IWB User Manual v7.0
Page 10
•
•
•
•
•
•
•
•
•
Follow all installation instructions carefully.
At least two qualied service technicians are required to install this product.
Ensure to handle with care during the installation, avoiding serious injury and/
or product damage.
BEFORE the installation, please make sure both wall material and wall strength
are suitable. Otherwise, the board might fall which may cause injury and/or
product damage. Please consult your dealer for details.
Use only the designated wall mount and mounting screws.
Make sure the wall mount is rmly and securely anchored to a solid structure.
Make sure the board is fastened rmly and securely to the wall mount before
using it.
Do not install this product in location where it may be exposed directly to
sunlight, near heating equipment, or near air-conditioning vents.
Do not install this product in strong sunlight or strong lighting location.
Do not install this product in location where the temperature may change
suddenly.
WARNING
CAUTION
Note
Safety Information
Product Information
Wall Mount Installation
Connection Setup
Installation of
Software
V7Software
Multi-Touch IWB

MULTI-TOUCH IWB User Manual v7.0
Page 11
Multi-touch Board Connection Setup
Windows OS Setup
Wireless Model Connection Diagram
Connect the Multi-Touch Board to a PC / laptop using the USB cable provided.
Connect the PC / laptop to a projector using a VGA cable.
Connect the Power Adaptor to the Multi-Touch Board using the USB cable
provided. Plug the Power Adaptor to a power outlet.
Connect the Wireless Receiver to a PC / laptop.
Connect the PC / laptop to a projector using a VGA cable.
•
•
•
•
•
•
Note
Safety Information
Product Information
Wall Mount Installation
Connection Setup
Installation of
Software
V7Software
Multi-Touch IWB

MULTI-TOUCH IWB User Manual v7.0
Page 12
Multi-touch Board Software Installation
Windows OS Setup
1.
2.
3.
4.
To run the Installation Program, double-click the le “Multi-touch board Setup”.
Click “Next” to continue.
Choose destination location and click
“Next” to continue.
Click “Finish” to complete the software
installation.
V7Software
Software Installation
Calibration Driver
Wireless Settings
MS Ofce Ink Tools
Installation of
Software
Multi-Touch IWB

MULTI-TOUCH IWB User Manual v7.0
Page 13
Calibration Driver
Calibration
Steps
Settings
Device Information
User can check the device information in
“Settings” menu.
Select Language
1.
2.
Auto Run
1.
2.
Save User Prole
Step 1 Step 2
Click the Multi-Touch IWB driver icon
( ).
Select “Calibration” on Conguration
Main Menu.
Press the center of the red target using a
nger/stylus pen.
Press the next red target.
Calibration is completed when all red targets have been detected.
1.
2.
3.
4.
5.
Select the language from the drop-down menu.
Click “OK”.
Click on the “Checkbox” to enable/disable auto run.
Click “OK”.
After calibration is completed, click
“Yes” to save the calibration setting.
1. 2. Input a user prole name.
3. Click “OK”.
Remark:
Make sure to calibrate the Multi-Touch IWB for the rst time installation.
V7Software
Software Installation
Calibration Driver
Wireless Settings
MS Ofce Ink Tools
Installation of
Software
Multi-Touch IWB

Scan
1. Click “Scan” to search the IWB available.
Pair
1. Select the IWB Name.
2. Click “Pair” to make pairing for the Receiver and the Board.
Assign IWB Name
1. It is recommended to rename the Sensor unit after pairing.
Select Channel
1. 30 wireless channels are available for selection.
2. Change the channel when the signal is weak.
Unpair
1. Click “Unpair” to release the channel.
Lock
1. Click “Unpair”.
2. Re-do pairing if the Sensor unit or Wireless receiver has been changed.
MULTI-TOUCH IWB User Manual v7.0
Wireless Settings (for Wireless version only)
Page 14
Remarks:
IWB = Interactive White Board
If there are other wireless products running, please switch to different
channel to test for the best channel
If there are more than 1 boards running in wireless mode, make sure you
pair the right board.
•
•
•
V7Software
Software Installation
Calibration Driver
Wireless Settings
MS Ofce Ink Tools
Installation of
Software
Multi-Touch IWB

MULTI-TOUCH IWB User Manual v7.0
MS Ofce Ink Tools
Microsoft Ofce Ink tools will appear when Multi-touch IWB is connected.
(Only for Vista &Windows-7, 8)
Please follow these steps to use ink tools to draw in MS Ofce.
(Ofce 07 is shown below as an example).
1.
2.
3.
Open Microsoft Ofce e.g. Excel, click on Review to nd the icon of “Start
Inking”. ( No icon will be shown if whiteboard is disconnected)
You can select different pen tools, colors and pen width.
Under Microsoft ofce Annotations tools, users can use the annotations directly
on the top of PowerPoint, Word and Excel. Just Plug-n Play.
Page 15
V7Software
Software Installation
Calibration Driver
Wireless Settings
MS Ofce Ink Tools
Installation of
Software
Multi-Touch IWB

MULTI-TOUCH IWB User Manual v7.0
Page 16
Basic Controls
While using nger to operate the whiteboard,
please be caution on the following points:
1.
2.
3.
The nger should be about 90° to the whiteboard surface.
Avoid other ngers and thumb touching the whiteboard.
Make sure it has about 4-5 cm apart from the surface.
Avoid the clothing and hair touching the surface.
Other part of hand should remain
5 cm away from the board.
Whiteboard Surface
Gesture
Click &
Select Object
Move Object
with Selection
Right Click
Selection
Zoom In
Erase
The way to perform
Tap on the whiteboard
Drag with 1 nger after selecting it
Tap and hold
Drag a desire area
with 2 ngers on 1 point
1 Finger on each hand
moving away each other
Flatten the hand and move
Hold for 2 seconds
Basic Control
Functions in File
Functions in Edit
Functions in View
Functions of
Navigation Bar
Inserting Material
into the Software
Function in the
Software
Managing the Files
Installation of
Software
V7Software
Multi-Touch IWB

MULTI-TOUCH IWB User Manual v7.0
Page 17
Basic Controls
Gesture
Rotate Object
Scrolling
Zoom Out
The way to perform
1 Finger on each hand
Rotating clockwise/ anti-clockwise
Multi-ngers
Moving to a desire direction
1 Finger on each hand
moving toward each other
Basic Control
Functions in File
Functions in Edit
Functions in View
Functions of
Navigation Bar
Inserting Material
into the Software
Function in the
Software
Managing the Files
Installation of
Software
V7Software
Multi-Touch IWB

Functions in the Software
MULTI-TOUCH IWB User Manual v7.0
Page 18
There are different functions in the V7.
By clicking on the different tab, you could switch to different functions and toolbar.
Basic Control
Functions in File
Functions in Edit
Functions in View
Functions of
Navigation Bar
Inserting Material
into the Software
Function in the
Software
Managing the Files
Installation of
Software
V7Software
Multi-Touch IWB

MULTI-TOUCH IWB User Manual v7.0
Page 19
Functions in File
Functions FunctionsIcon Icon
Open
Import document
Print
Save
Send email
Pointer
Delete selected object
Screen record
Insert Flash
Insert image
Copy
Select toolbar setting prole
Setup hotkey
Exit
New document
Export document
Print preview
Save as
Save as template
Background transparent
Screen capture
Curtain
Insert Video
Insert Web browser
Paste
Setup language
Option
Basic Control
Functions in File
Functions in Edit
Functions in View
Functions of
Navigation Bar
Inserting Material
into the Software
Function in the
Software
Managing the Files
Installation of
Software
V7Software
Multi-Touch IWB

MULTI-TOUCH IWB User Manual v7.0
Page 20
Functions in Edit
Functions FunctionsIcon Icon
Pointer
Marker
Highlighter
Handwriting marker
2 Color pen
Cut
Delete Selected object
Redo
Insert Text
Insert Cuboids
Insert Sphere
Insert Prism
Insert Semi Ellipse
Insert Obtuse Triangle
Insert Acute Triangle
Insert Trapezoid
Math Formula
Select Color
Magic Pen
Crayon
4 Color Pen
Middle Eraser
Object Eraser
Undo
Soft Keyboard
Insert Table
Insert Cylinder
Insert Cone
Insert Rectangle
Insert Circle
Insert Octagon
Insert Parallelogram
Insert Diamond
Math Graph Tool
x+y=z
Basic Control
Functions in File
Functions in Edit
Functions in View
Functions of
Navigation Bar
Inserting Material
into the Software
Function in the
Software
Managing the Files
Installation of
Software
V7Software
Multi-Touch IWB
