IGS-900 Tuner to IP Gateway
Datasheet and operation Manual
V 1.6

IGS-900 16 DVB Tuner to IP-Out
Author: Ralf Riedel subject to technical changes might happen w/o further notice
August 29, 2022
Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2022-05RR.docx
Page 2
Table of Content
TABLE OF CONTENT........................................................................................................... 2
INTRODUCTION: ............................................................................................................... 3
FEATURES ......................................................................................................................... 3
SPECIFICATIONS (DVB-T/T2/C UPON REQUEST).................................................................. 4
SAFETY AND OTHER RECOMMENDATIONS:........................................................................ 5
IMPORTANT NOTES!.......................................................................................................... 5
QUICK-START INSTALLATION:............................................................................................. 8

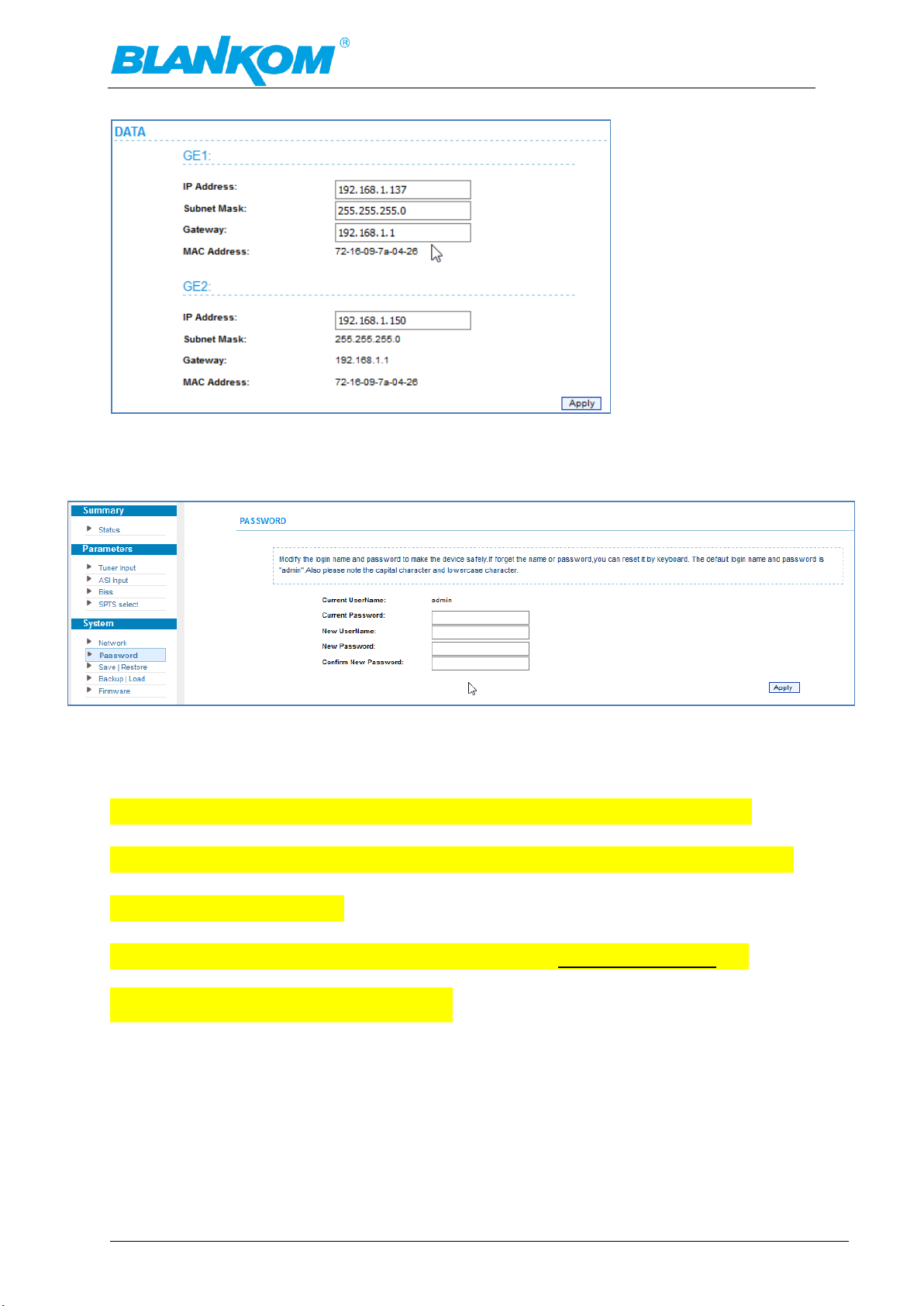

NETWORK SETUP:............................................................................................................16
CHANGING USER-ACCOUNT: ............................................................................................17

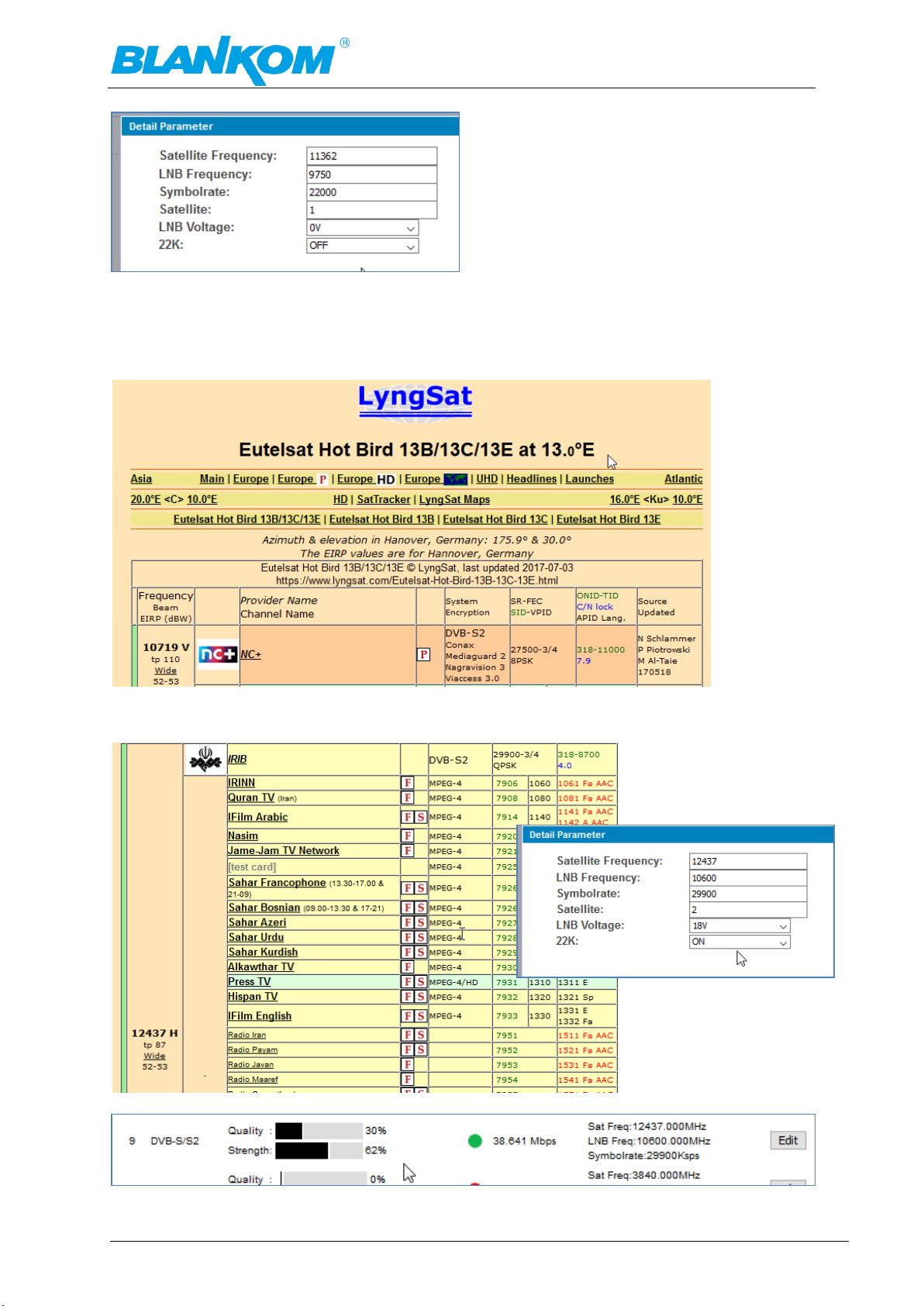

DVB-C / T TUNING............................................................................................................17
TUNER-SETUP: .................................................................................................................18
ASI-INPUT(S):...................................................................................................................24

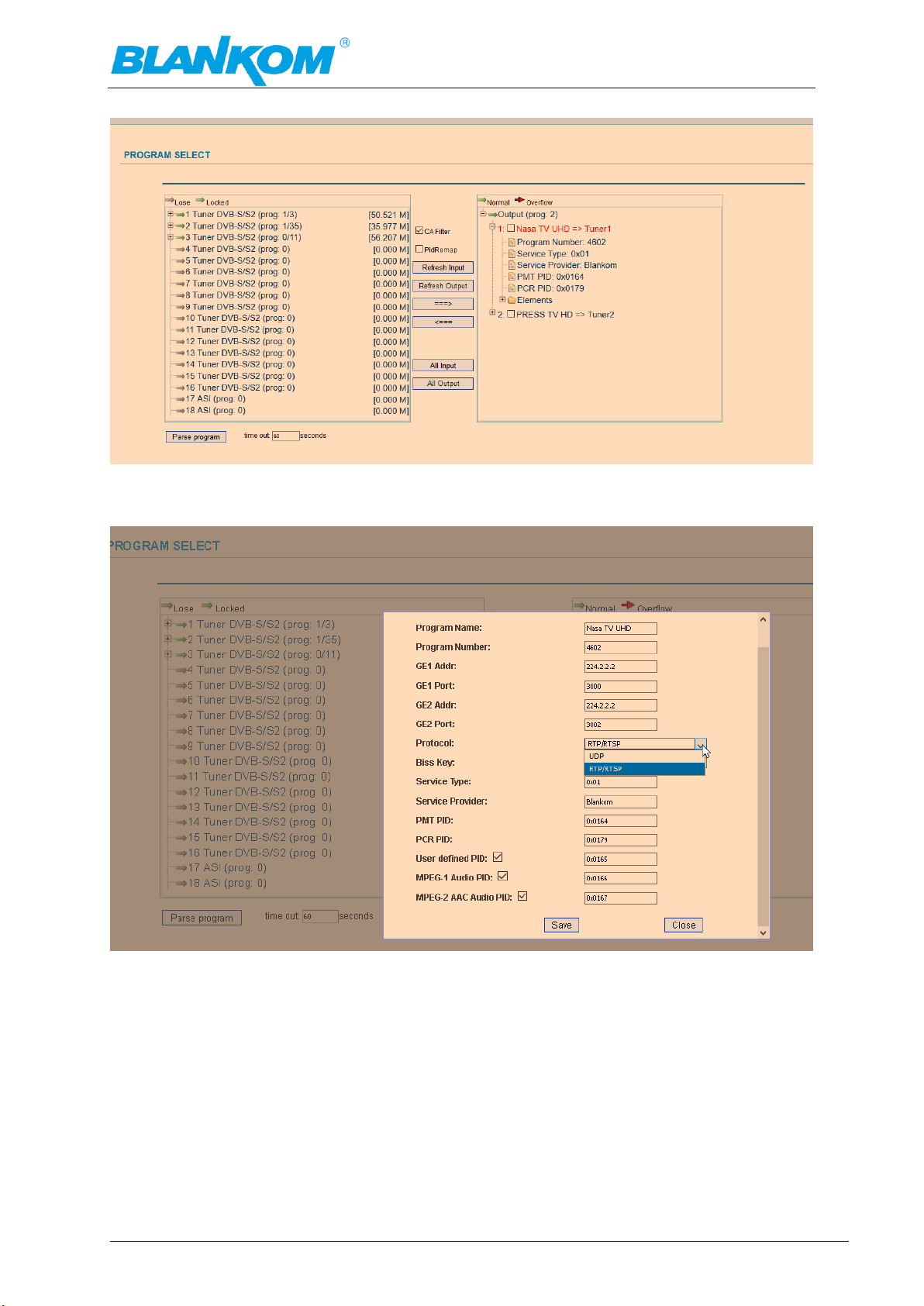

SPTS OUTPUT SETTINGS: (ALSO SEE THE NOTE ABOVE).....................................................24
STREAM OUTPUT SETTINGS: ............................................................................................26
ADDON: BISS DECRYPTION:..............................................................................................27

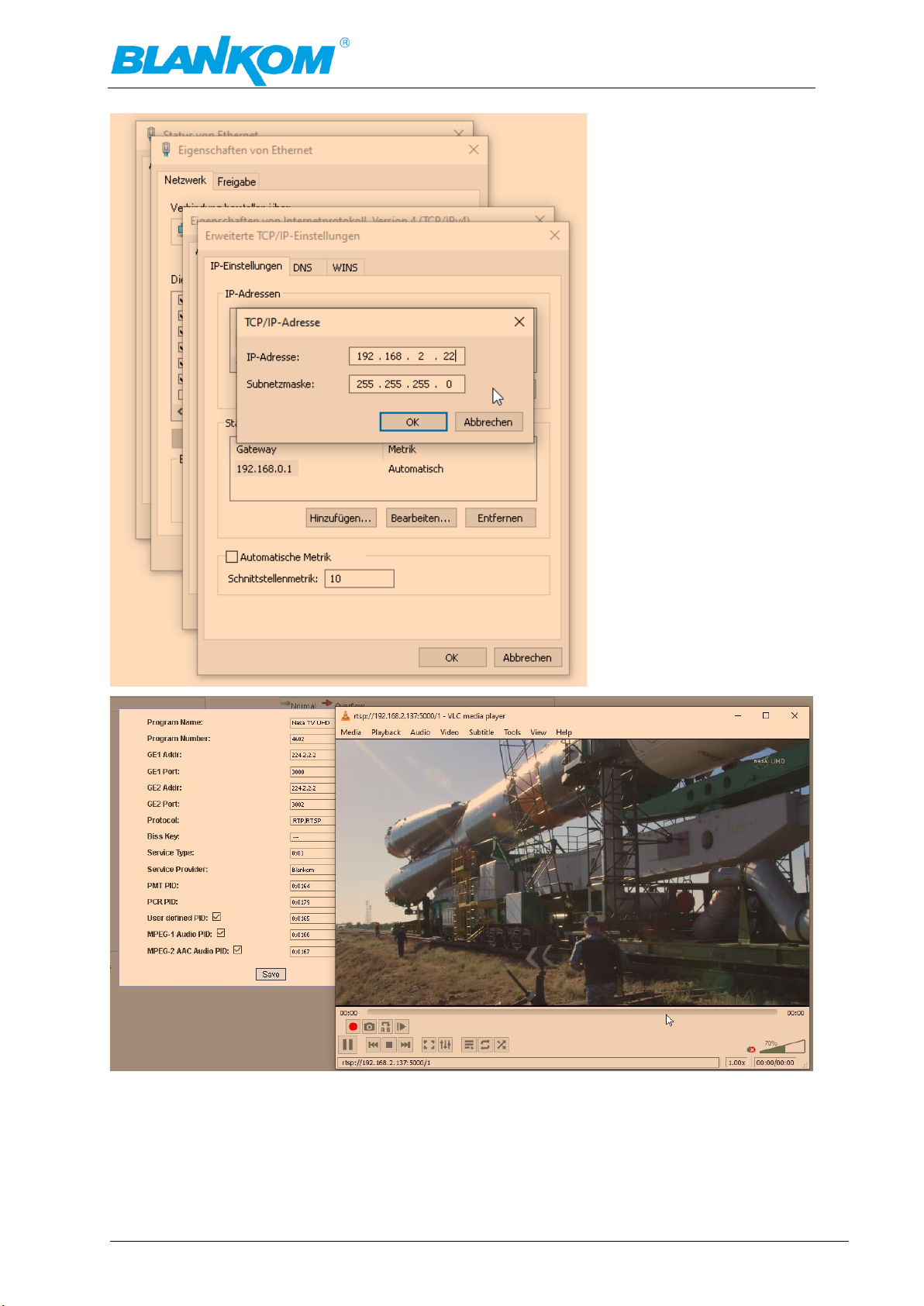

CHECK THE STREAMS: ......................................................................................................28

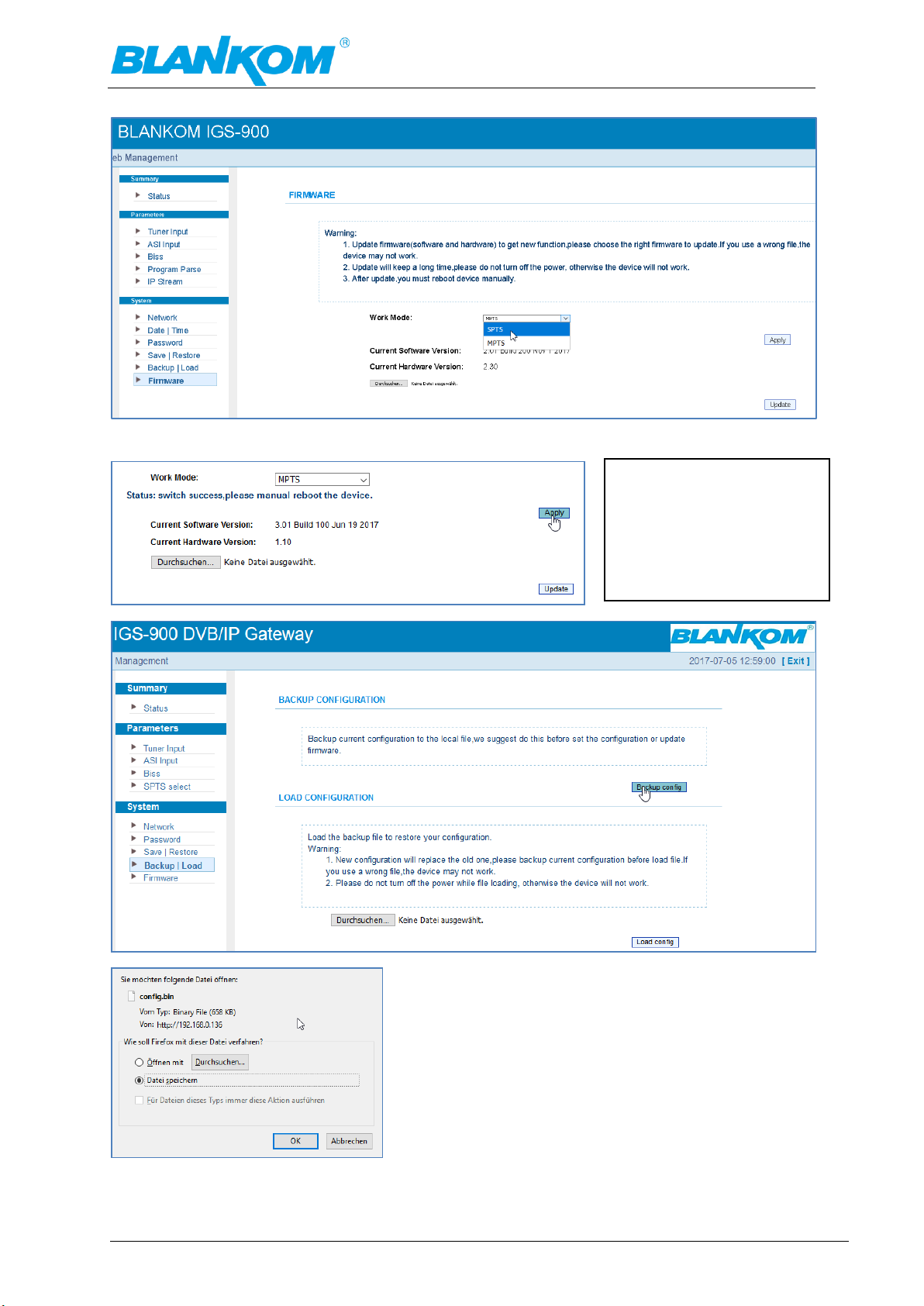

SOFTWARE UPDATES:.......................................................................................................31
ANNEX MPEG ..................................................................................................................36
MPEG PSI/SI Information’s: ............................................................................................................................ 36
RECOMMENDATIONS:......................................................................................................37
INSTALLATION GUIDE FOR F-CONNECTORS: .....................................................................42
APPENDIX A.....................................................................................................................43
INSTALLATION AND SAFETY INSTRUCTIONS / MONTAGE UND SICHERHEITSHINWEISE.......44
Umrechnungstabelle dBµV <-> dBm / Conversions of Power @ 75Ω .............................................. 46
CONTACT: ........................................................................................................................49
Document History: ......................................................................................................................................... 49
CE DECLARATION .............................................................................................................50
DVB-C CHANNEL PLAN .....................................................................................................51

IGS-900 16 DVB Tuner to IP-Out
Author: Ralf Riedel subject to technical changes might happen w/o further notice
August 29, 2022
Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2022-05RR.docx
Page 3
Introduction:
The BLANKOM IGS-900 is a high performance and cost-effective SPTS / MPTS IP streamer.
Equipped with 16 DVB-S/S2x FTA (Free to Air unencrypted) tuner inputs, with BISS de-scrambling
capabilities, up to 512 SPTS Stream channels through Gigabit Ethernet ports (parallel operation as
redundant stream-I/O). Depending on the installed firmware the device can operate in SPTS (IPTV)
Mode or 16x pass through MPTS-Mode (DVB over IP) by selecting it (device need to reboot if changing).
To meet customers’ various requirements, this device is also equipped with 2 ASI input ports which
selected services can be streamed to the Gbe output.
The BLANKOM IGS-900 is also characterized with a high integration level, high performance and very
cost effective. This streamer is very adaptable to new generations of IPTV headend systems i.e. in
hospitality environments serving FreeToAir (FTA) content and BISS encrypted Services.
Features
•16 modern Tuner inputs DVB-S/S2/S2x (DVB-C, DVB-T/T2 optional)
•Supporting DiSEqC commands for up to 8 Satellite positions
•2 ASI inputs
•IP (512 SPTS or 16 MPTS) over UDP, RTP / RTSP output
•BISS Service de-scrambling
•2 Gigabit Ethernet (GE) mirrored output, up to 850 Mbps (SPTS)
•2 independent GE output port, GE1 + GE2 (MPTS), SPTS can copy the Streams to different addresses
•Accurate PCR adjusting (SPTS)
•PID filtering and re-mapping (SPTS)
•PSI/SI rebuilding and editing (MPTS)
•“Null PKT Filter” function (MPTS)
•Webserver for inbuilt NetworkManagementSystem (NMS)
•Updates via WEB-IF
Depending on the region to be delivered, the power cords can be different like EURO or UK versions.

IGS-900 16 DVB Tuner to IP-Out
Author: Ralf Riedel subject to technical changes might happen w/o further notice
August 29, 2022
Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2022-05RR.docx
Page 4
Specifications (DVB-T/T2/C upon request)
Input
Optional 1: 16 DVB-S/S2x tuners input +2 ASI input---SPTS output
Optional 2: 14 DVB-S/S2x tuners input +2 ASI input --- MPTS output
Optional 3: 16 DVB-S/S2x tuners input --- MPTS output
Tuner Section
(DVB-
S/S2/S2x)
Input Frequency
950-2150MHz
Max Symbol rate
QPSK/8PSK /16APSK :0.5...45 MSps
8APSK: 0.5...40MSps
32APSK: 0.5...34MSps
FEC/Code rate
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10,
13/45, 9/20, 11/20
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
8APSK: 5/9-L, 26/45-L
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L,
8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45,
23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L,
32/45, 11/15, 7/9
Constellation
QPSK, 8PSK, 8APSK, 16APSK, 32 APSK
Output
512 SPTS IP mirrored output over UDP and RTP/RTSP protocol
through GE1 and GE2 port, Unicast and Multicast
16 MPTS IP output (for Tuner passthrough) over UDP and RTP/RTSP
protocol through GE1 and GE2 port, Unicast and Multicast
BISS de-
scrambling
Mode 1, Mode E (Up to 850Mbps) (de-scrambling selected service)
Miscellaneous
Dimension(W×L×H)
482mm×410mm×44mm
Approx. weight
3.6kg
Environment
0...45℃(work)；-20...80℃（Storage）
Power requirements
100...240VAC，50/60Hz
Power consumption
20W
1
Power indicator
2
Reset: Reset webmaster IP address, recover it to default IP address
3
USB port for upgrade
4
NMS port: Network management interface
5
Data port（GE1&GE2）: IP out port
6
ASI input port

IGS-900 16 DVB Tuner to IP-Out
Author: Ralf Riedel subject to technical changes might happen w/o further notice
August 29, 2022
Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2022-05RR.docx
Page 5
Safety and other recommendations:
Assure climatic environment rules for electronic machines like this, Grounding rules as well.
Installation should be done by a certified electrician.
Caution:
Before connecting power cord to Tuner to IP Gateway, you should set the power switch to
“OFF”. Do not connect the RF-cable (F-plugs) when the unit is running.
Important Notes!
This manual is for use by qualified personnel only. Handling this device or system requires
special electronic technical knowledge. To reduce the risk of electrical shock or damage to the
equipment, do not perform any servicing other than the installation and operating instructions
contained in this manual unless you are qualified to do so. This device operates in the given voltage
and frequency range without requiring manual adjustment.
Do not open the top case w/o unplugged power source because serious injury or death may be the
result! Inside are components under risk from electrostatic discharge. To avoid equipment damages
do not touch these components or, observe the respective handling rules!
For continued protection against fire, the fuses may only be replaced by identical fuses with the same
electrical specifications which are designed for the corresponding fuse positions.
No part of this publication may be reproduced in any form or by any means or used to make any
derivative work (such as translation, transformation or adaptation) without the written permission
from Blankom / IRENIS GmbH.
IRENIS GmbH reserves the right to revise this publication and make changes in its content from time
to time, whereby it shall not be obligatory for IRENIS GmbH to provide notification of such revision
or change.
IRENIS GmbH provides this manual without warranty of any kind, neither implied nor expressed, this
includes also any warranties regarding the merchantability and fitness for a particular purpose.
IRENIS GmbH may improve this manual or make changes in the products described herein at any
point of time.
This Product is manufactured in PRC (China), HS-Code: 85176200
Anmerkung:
Alle von uns veröffentlichten Betriebsanleitungen richten sich an den Antennen- und IT-Fachmann, der
über grundlegende Kenntnisse der Empfangs-, Netzwerk- und Anlagentechnik verfügt. Die Einhaltung
aller relevanten Vorschriften und Richtlinien für den Aufbau und Betrieb von solchen Anlagen obliegt
dem Installateur und/oder dem Betreiber. Insbesondere sind die in den jeweiligen Ländern geltenden
Vorschriften und Richtlinien für die Inbetriebnahme speziell für den Stromanschluß und alle mit den
Produkten in Zusammenhang stehenden und geltenden Normen und Gesetze einzuhalten.
Remark:
All operating instructions published by us are intended for the antenna and IT specialist who has basic
knowledge of reception, network and system technology. Compliance with all relevant regulations and

IGS-900 16 DVB Tuner to IP-Out
Author: Ralf Riedel subject to technical changes might happen w/o further notice
August 29, 2022
Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2022-05RR.docx
Page 6
guidelines for the installation and operation of such systems is the responsibility of the installer and/or
the operator. In particular, the regulations and guidelines applicable in the respective countries for
commissioning, especially for the power connection, and all standards and laws related to the products
must be complied with.
Annotation :
Tous les modes d'emploi que nous publions sont destinés aux professionnels de l'antenne et de
l'informatique qui ont des connaissances de base en matière de réception, de mise en réseau et de
technologie des équipements. Le respect de toutes les réglementations et directives pertinentes pour
l'installation et l'exploitation de ces systèmes relève de la responsabilité de l'installateur et/ou de
l'exploitant. En particulier, il convient de respecter les réglementations et directives applicables dans les
pays respectifs pour la mise en service, notamment pour le raccordement électrique, ainsi que toutes
les normes et lois relatives aux produits.
Annotazione:
Tutte le istruzioni per l'uso da noi pubblicate sono destinate al professionista dell'antenna e
dell'informatica che ha una conoscenza di base della tecnologia di ricezione, di rete e delle
apparecchiature. Il rispetto di tutti i regolamenti e le linee guida pertinenti per l'installazione e il
funzionamento di tali sistemi è responsabilità dell'installatore e/o dell'operatore. In particolare, devono
essere rispettati i regolamenti e le linee guida applicabili nei rispettivi paesi per la messa in funzione,
soprattutto per il collegamento alla rete elettrica e tutte le norme e le leggi relative ai prodotti.
Anotación:
Todas las instrucciones de uso publicadas por nosotros se dirigen al profesional de la antena y de la
informática que tiene conocimientos básicos de recepción, de redes y de tecnología de equipos. El
cumplimiento de todos los reglamentos y directrices pertinentes para la instalación y el funcionamiento
de dichos sistemas es responsabilidad del instalador y/o del operador. En particular, deben cumplirse
los reglamentos y directrices aplicables en los respectivos países para la puesta en marcha,
especialmente para la conexión de la energía y todas las normas y leyes relacionadas con los productos.
Anotação:
Todas as instruções de operação publicadas por nós são destinadas ao profissional de antena e TI que
possui conhecimentos básicos de recepção, rede e tecnologia de equipamentos. O cumprimento de
todos os regulamentos e diretrizes relevantes para a instalação e operação de tais sistemas é de
responsabilidade do instalador e/ou do operador. Em particular, os regulamentos e diretrizes aplicáveis
nos respectivos países para comissionamento, especialmente para a conexão de energia e todas as
normas e leis relacionadas aos produtos devem ser obedecidas.

IGS-900 16 DVB Tuner to IP-Out
Author: Ralf Riedel subject to technical changes might happen w/o further notice
August 29, 2022
Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2022-05RR.docx
Page 7
Installation Notes
All types of the IRENIS-BLANKOM family are 19“devices with 1 RU height designed for installation in
19” racks. In addition to the front panel screws, an internal module support is required at the rack.
Depending on the Frontend used and the operating adjustments, the RF-input port carries
DC Voltage (13V /18V, max. 400 mA).
By connecting a mains cable, the device can become functional without any auxiliary appliances. The
power supply units are almost (! Please check rear) designed for the wide range of 100-230V AC ,
50/60Hz; a manual adjustment of the voltage is not necessary.
For some models, the second power connector is feeding another independent power supply for
internal redundancy. For a maximum of redundancy, both power supplies should use different
circuits.
All the outputs are decoupled from one another. Thus, the circuit does not have any effect on the
functioning of the device. Connections that are not required need not to be terminated.
Suggestion: CAT 6E Ethernet cable for Gigabit-Ethernet
Note:
IPv4 global scope sessions use multicast addresses in the range 224.2.128.0 - 224.2.255.255 with
SAP Announcements being sent to 224.2.127.254 Port 9875 (note that 224.2.127.255 is used by
the obsolete SAPv0 and MUST NOT be used).
IPv4 administrative scope sessions using administratively scoped IP multicast. The multicast
address to be used for announcements is the highest multicast address in the relevant
administrative scope zone.
For example, if the scope range is 239.16.32.0 - 239.16.33.255, then 239.16.33.255 is used for
SAP Announcements.

IGS-900 16 DVB Tuner to IP-Out
Author: Ralf Riedel subject to technical changes might happen w/o further notice
August 29, 2022
Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2022-05RR.docx
Page 8
Quick-Start Installation:
The user can control and set the configuration of the device with any computer by connecting to the
web server-Interface (WebIF) by the 100BaseT NMS Port. The user should ensure that the computer’s
IP address is different from other device’s IP address; otherwise, it might cause an IP conflict. Be sure
to set it in the same network range.
Default Login-Data is 192.168.0.136 (default factory address) are admin/admin:
Note: We recommend using always the newest version of the browser Firefox.
Which lets you start in the STATUS display:
Menu is different in MPTS (see above)
Please select the operating mode for SPTS (default) or MPTS in the Firmware section:

IGS-900 16 DVB Tuner to IP-Out
Author: Ralf Riedel subject to technical changes might happen w/o further notice
August 29, 2022
Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2022-05RR.docx
Page 9
The file can be uploaded by LOAD CONFIGURATION.
The Safe-Restore menu is self-explaning: It internally SAVEs or RESTORE the settings.
Manually reboot and maybe
better to safe the config
first?
Internally and external:

IGS-900 16 DVB Tuner to IP-Out
Author: Ralf Riedel subject to technical changes might happen w/o further notice
August 29, 2022
Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2022-05RR.docx
Page 10
Load an external previously saved config is almost better:
Try and error ;-( Reason: We have changed the SPTS mode to MPTS operation and that doesn't
accept the previous saved settings from the SPTS mode. So, we go back to SPTS.
Just to show the difference for MPTS – outputs – only 16 IP streams can be assigned. You should
decide whether a stream goes through GbE 1 or 2 so please balance the MPTS streams if more than
800 Mb/s are streamed in total.

IGS-900 16 DVB Tuner to IP-Out
Author: Ralf Riedel subject to technical changes might happen w/o further notice
August 29, 2022
Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2022-05RR.docx
Page 11
Note: Depending on installed Firmware, the Stream output selection may be different:
Instead of IP stream there will be SPTS select. By click on the service name a popup opens:

IGS-900 16 DVB Tuner to IP-Out
Author: Ralf Riedel subject to technical changes might happen w/o further notice
August 29, 2022
Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2022-05RR.docx
Page 12
So, the IP output settings of each stream can be modified here. For RTSP-mode please
note, that the receiver needs to be in the same subnet like the selected GbE Data port like
here:

IGS-900 16 DVB Tuner to IP-Out
Author: Ralf Riedel subject to technical changes might happen w/o further notice
August 29, 2022
Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2022-05RR.docx
Page 13
So, the first stream can be received by rtsp://192.168.2.137:5000/1
But your receiver needs to be part of it:

IGS-900 16 DVB Tuner to IP-Out
Author: Ralf Riedel subject to technical changes might happen w/o further notice
August 29, 2022
Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2022-05RR.docx
Page 14
Rtsp://192.168.2.137:5000/2 is the address of the 2nd stream and so on until max.= 512
streams.
Back to the selection of the mode MPTS or SPTS streams:

IGS-900 16 DVB Tuner to IP-Out
Author: Ralf Riedel subject to technical changes might happen w/o further notice
August 29, 2022
Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2022-05RR.docx
Page 15
REAR -> OFF –ON
Power toggling performs a hard reset.
Success…
Backup config…

IGS-900 16 DVB Tuner to IP-Out
Author: Ralf Riedel subject to technical changes might happen w/o further notice
August 29, 2022
Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2022-05RR.docx
Page 16
Network Setup:
We assume that the user is familiar with IP settings and already knows his own system to connect the
unit to. If you use the Output Streaming: We recommend using 2 separate Switches! At least a
100BaseT for the Management NMS RJ45 port and a second one with Gigabit Ethernet
10/100/1000BaseT with at least Layer 2+ with IGMP V2 features. Otherwise, you might flood your IP-
Streaming network with unnecessary Data, which might overload connected IPTV STB's because they
almost have only 100BaseT capacity (Never ones use 1GbE ports) but too many inputs into a STB can
result in side effects. If you need to select a Switch, we recommend HP Procurve 2530 24G or 48G
which are cost effective, easy to configure, can be trunked and supporting IGMP V2. If the switch needs
routing functions, the bigger brother of this series might be the right choice.
Because to not accidently put DATA and NMS port in the same sub-network, the data – port setting
does not allow this by default. Usually, the DATA GbE Ports needing at least own and free IP
addresses- otherwise the Switch or the receivers (i.e., IPTV STB's) cannot locate the source of the
streams.
Note: For the GBE 1 and GBE 2 ports a security mechanism is installed to avoid setting
them in the same IP-range like you have done for the NMS- port.
On GbE 1 the Gateway can be changed. GbE 2 would follow it automatically:

IGS-900 16 DVB Tuner to IP-Out
Author: Ralf Riedel subject to technical changes might happen w/o further notice
August 29, 2022
Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2022-05RR.docx
Page 17
Changing user-account:
Change it to your needs, but do not forget the password otherwise you would need to reset the unit
with the Front-panel RESET switch (press it min. 10…15 sec) to factory default.
DVB-C / T Tuning is slightly different and you need to enter the center-
frequency of the to be received DVB-C/QAM channel. The tuner will detect
the inside-channel values.
NOTE: a comma in the frequency like 624,25 MHz has to be entered in
AMERICAN STYLE as a ‘.’ Instead the ‘,’

IGS-900 16 DVB Tuner to IP-Out
Author: Ralf Riedel subject to technical changes might happen w/o further notice
August 29, 2022
Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2022-05RR.docx
Page 18
Tuner-Setup:
Using a Multiswitch with more than one SAT-position and > 16 outputs: You can set every
single Tuner Input individually.
Using a SAT-Splitter: Be carefully, active splitter needs at least one 13V…18V DC connection
to it to operate. You should avoid to switch on V/H polarization Voltage 13/18V on every
Input port. The active splitter would pass the 13V or 18V to the Multiswitch and assigning
the fixed polarization to the Multiswitch. So, all selected Transponders should be either in
Vertical (13V) or Horizontal (18V) position.
Passive splitters should be used with DC Passthrough and the Voltage should be passed only
once as well.
We recommend to check www.lyngsat.com or www.satbeams.org for correct settings.
Example:
https://www.lyngsat.com/Astra-1KR-1L-1M-1N.html

IGS-900 16 DVB Tuner to IP-Out
Author: Ralf Riedel subject to technical changes might happen w/o further notice
August 29, 2022
Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2022-05RR.docx
Page 19
We are using a 1-8 active splitter here and so we have to take care, that the first 8 inputs will
be setup to tune the same polarization and set the first Input to it LOW-Band =9750 MHz
LNB-IF frequency (while HIGH-band is almost 10600.000MHz using 22KHz signal):
The next is:
-> Only 1x 18V supplying is enough by using
the active (or passive) Splitter. Be patient, the unit's WEBIF will take some time to update
the Information:
You can now proceed with the other 16 Inputs. (Rem.: C-Band-LNB-Freq=5150MHz… preset
in the Menu)

IGS-900 16 DVB Tuner to IP-Out
Author: Ralf Riedel subject to technical changes might happen w/o further notice
August 29, 2022
Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2022-05RR.docx
Page 20
Following 7 tuner INPUTS at the splitter do
not need DC.
Example to tune to a second Satellite, here with connected Input no. 9 directly to a
Multiswitch w/o using a splitter:
chosing HIGH-Band (the High- and Low-Band are seperated. High band starts at 11700
MHz), 12437 MHz, 10600 SAT-IF, 29900 SBR
SET!
