IronStrike 32FS User manual

INSTALLATION AND OPERATION MANUAL
Save These Instructions
For Future Reference
Free-Standing
Pellet Stove
P/N 900116-00, Rev. A, 05/2015
Pellet Stove
Model Montage™ 32FS
WARNING
• Hot! Do not touch! The glass and surfaces of this appliance will be
hot during operation and will retain heat for a while after shutting off
the appliance. Severe burns may result.
• Carefully supervise children in the same room as appliance.
• IHP pellet-burning appliances are designed for use as a supplemental
heater. They are not intended for continuous use as a primary heat
source.
A French manual is available upon request. Order P/N 900117-00.
Ce manuel d’installation est disponible en francais, simplement en faire la demande. Numéro de la pièce
900117-00.
This appliance must be properly installed and operated in order to prevent the possibil-
ity of a house fire. Please read this entire manual before installation and use of this
pellet fuel-burning room heater. Failure to follow these instructions could result
in property damage, bodily injury or even death. Contact your local building
or fire officials to obtain a permit and information on any installation
requirements and inspection requirements in your area.
P900116-00
Report No. 14-200
CU
S

IMPORTANT SAFETY AND WARNING
INFORMATION
READ THIS MANUAL IN ITS ENTIRETY AND UNDER-
STAND THESE RULES TO FOLLOW FOR SAFETY.
2
WARNING
Do not attempt to alter or modify the construction of
the appliance or its components. Any modification
or alteration may void the warranty, certification
and listings of this unit.
WARNING
Improper installation, adjustment, alteration, ser-
vice or maintenance can cause injury or property
damage. Refer to this manual. For assistance or
additional information consult a qualified installer
or service agency.
1. DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING
ANOTHER APPLIANCE.
2. Do not connect this appliance to air ducts or any air distribu-
tion system.
3. DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST VENTING
SYSTEM OF THIS UNIT.
4. Do not use class B venting intended for gas appliances as a
chimney or connector pipe on a pellet-fired appliance.
5. The minimum clearances must be maintained for all com-
bustible surfaces and materials including; furniture, carpet,
drapes,clothing,wood,papers,etc.Donotstorecombustibles
within this clearance space (see Clearances on Page 6).
6. INSTALLATIONDISCLAIMER-Itisimperativethattheexhaust
venting system be installed correctly and sealed gas-tight
(notallowingexhaustto leak).Followtheventmanufacturer's
instructions for proper installation. Since IHP has no control
over the installation of your stove, IHP grants no warranty,
implied or stated for the installation or maintenance of your
stove, and assumes no responsibility for any consequential
damage(s).
7. Burning any kind of fuel consumes oxygen. If outside air is
not ducted to the appliance, ensure that there is an adequate
source of fresh air available to the room where the appliance
is installed.
8. Theappliancewill notoperateusing naturaldraft,nor without
a power source for the blower and fuel feeding systems.
9. Never use gasoline, gasoline-type lantern fuel, kerosene,
charcoal lighter fluid, or similar liquids to start or “freshen
up” a fire in this heater. Keep all such liquids well away from
the heater while it is in use.
10.The authority having jurisdiction such as municipal building
department, fire department, fire prevention bureau, etc.
should be consulted before installation to determine the
need to obtain a permit.
11.APPROVED FUEL: This appliance is designed specifically
for use only with pelletized wood fuels only. This appliance
is designed and approved for the burning of wood residue
pellets with up to 2% ash content. This appliance is NOT
approved to burn cardboard, nut hulls, cherry pits, corn, etc.
regardless if it is in pellet form. Failure to comply with this
restriction will void all warranties and the safety listing of
the stove. Consult with your IHP dealer for more information
on approved pellet fuels.
12.CONTINUOUS OPERATION: When operated correctly, this
appliance cannot be overfired. Continuous operation at a
maximum burn can, however, shorten the life of the electri-
cal components (blowers, motors, and electronic controls),
and is not recommended. Typical approved operation would
includerunningatthelowtomidrangesettingwithoccasional
running on the maximum setting during the coldest periods
of the winter. DO NOT OVER-FIRE THIS STOVE. Follow all
instructions regarding the proper use of this stove.
13.CAUTION:NEVERPUTFINGERSNEARAUGER. Thisappliance
isequippedwitha hopperlidswitch,whichisdesignedtostop
the auger when the hopper lid is opened. NEVER DISCONNECT
OR BYPASS THIS SWITCH FOR ANY REASON. Pellet fuel is fed to
the UltraGrate™ by a screw auger. This auger is driven by a
high torque motor. The auger is capable of causing serious
harm to fingers. Keep pellets in the hopper at all times and
keep fingers away from auger. The auger can start and stop
automatically at any time while the stove is running.
14. CAUTION:HOTWHILEINOPERATION.Anappliancehotenough
to warm your home can severely burn anyone touching it.
Keepchildren,pets,clothingandfurnitureaway.Contactmay
cause skin burns. Do not let children touch the appliance.
Train them to stay a safe distance from the appliance.
15.FLY ASH BUILD-UP: For all wood pellet fuel-burning heaters,
the combustion gases will contain small particles of fly-ash.
This will vary due to the ash content of the fuel being burned.
Over time, the fly-ash will collect in the exhaust venting
system and restrict the flow of the flue gases. The exhaust
venting system should be inspected regularly and cleaned
as necessary.
16.SOOT FORMATION: Incomplete combustion, such as occurs
during startup, shutdown, or incorrect operation of the room
heater will lead to some soot formation which will collect in
the exhaust venting system. A precautionary inspection on
a regular basis is advisable to determine the necessity of
cleaning. The exhaust venting system should be inspected
regularly and cleaned as necessary.
17.DISPOSAL OF ASHES: Ashes should be placed in a steel con-
tainer with a tight fitting lid and moved outdoors immediately.
The closed container of ashes should be placed on a noncom-
bustible floor or on the ground, well away from all combustible
materials, pending final disposal. If the ashes are disposed
of by burial in soil or otherwise locally dispersed, they should
be retained in the closed container until all cinders have been
thoroughly cooled.
18.The instructions must be strictly adhered to. Do not use
makeshift methods or compromise in the installation.
19.Do not abuse the door glass by striking, slamming or similar
trauma. Do not operate the stove with the glass removed,
cracked or broken.
20.SAVE THESE INSTRUCTIONS.
21.See the safety / listing label on the appliance hopper lid.

3
Please read and carefully follow all of the instructions found in this
manual. Please pay special attention to the safety instructions provided
in this manual.
PRODUCT IS SUBJECT TO CHANGE WITHOUT NOTICE
CONGRATULATIONS!
When you purchased your new pellet stove, you joined the ranks of
thousands of individuals whose answer to their home heating needs
reflects their concern for aesthetics, efficiency and our environment.
We extend our continued support to help you achieve the maximum
benefit and enjoyment available from your new pellet stove.
Thank you for selecting a IHP stove as the answer to your supplemental
home heating needs.
TABLE OF CONTENTS
Important Safety Information ....................Page 2
Packaging List ................................Page 3
Testing / Listing, EPA . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
Using this Manual .............................Page 3
Planning Your Installation .......................Page 3
Smoke Detector Recommended. . . . . . . . . . . . . . . . . . . Page 4
Carbon Monoxide Monitor Recommended ..........Page 4
Selecting a Location............................Page 5
Floor Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5
Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6
Installation Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7
Manufactured Home Installation . . . . . . . . . . . . . . . . . . Page 8
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9
Venting Requirements ..........................Page 11
Care and Operation ............................Page 18
Fuel ........................................Page 22
Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 22
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 27
Component Definitions .........................Page 28
Wiring Diagram ...............................Page 29
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 30
Replacement Parts List & Diagrams ...............Page 32
Optional Accessories ...........................Page 35
Warranty ....................................Page 37
Product Reference Information Page 38
This installation and operation manual will help you obtain a safe, effi-
cient, dependable installation for your appliance and vent system.
PLEASE READ AND UNDERSTAND THESE INSTRUCTIONS
BEFORE BEGINNING YOUR INSTALLATION
Listing: The listing laboratory is PFS Corporation and the listing mark is
PFS. The report number is 14-200 for model Montage 32FS pellet stove.
Testing: In accordance with the specifications and procedures
• Listed and tested to ASTM E1509 & ULC C1482 / ULC S627 for instal-
lations as a freestanding room heater
• The safety/listing label is located on an inside hopper surface of the
pellet stove. Please read this safety label carefully. It contains important
information about installation and operation of this appliance.
• This appliance is tested and listed for residential and commercial
installation according to current national and local building codes as:
• AFree-StandingRoomHeater
• AManufacturedHomeHeater
EPA (Environmental Protection Agency)
Status: EPA Certified (method 28) - This appliance has been tested to
rigorous emissions standards, and has been certified by the Environ-
mental Protection Agency.
TESTING / LISTING
USING THIS MANUAL
Questions To Ask Local Building Official
A correct installation is critical and imperative for reducing fire hazards and
perilous conditions that can arise when wood pellet burning appliances
are improperly installed. The installer must follow all of the manufactur-
ers’ instructions.
PLANNING YOUR INSTALLATION
The assembled pellet stove model Montage™ 32FS is packaged with
an accessory package in the hopper and a grate scraper tool secured
to the pallet:
One - Installation And Operation Manual
One - Power Cord
One - Grate Scraper Tool
One - Wall Thermostat w/ 20 Foot Roll Of Wire
One - 5/32" Allen Wrench
One - Cleaning Brush
Packaging List
WARNING
Check all local building and safety codes before
installation.Theinstallationinstructionsandappro-
priate code requirements must be followed exactly
andwithoutcompromise.Alterationstothestoveare
not allowed. Do not connect the stove to a chimney
system serving another stove, appliance, or any air
distribution duct. Failureto followthese instructions
will void the manufacturers warranty.
The installation of this appliance must conform to local codes and appli-
cable state and federal requirements. Familiarity with these requirements
before installation is essential. Important considerations to discuss with
local building officials include:
1. Applicable codes (i.e. Uniform Mechanical Code, State or Regional
Codes).
Electrical codes:
In USA, NEC, ANSI/NFPA 70 – Latest Edition
In Canada, CSA C22.1 – Latest Edition

4
WARNING
Electrical grounding instructions: This appliance is
equipped with a three-prong (grounding) plug for
your protection against shock hazard and should be
pluggeddirectlyintoaproperlygroundedthree-prong
receptacle.Donotcutorremovethegroundingprong
from this plug. Do not route power cord under or in
front of appliance.
2. Local amendments
3. Is a permit required - cost. You may wish to contact your insurance
company to ask if they require this.
4. If outside combustion air is required
5. Rooms where the installation is not allowed
Power Supply Requirements
These requirements must be met unless otherwise specified by state or
local authorities.
• Power Cord - The power cord must be plugged into a standard, 120
Volt, 60 Hz grounded electrical outlet with proper ground and polarity.
The power cord must be routed to avoid contact with any of the hot
or sharp exterior surface areas of the stove.
• Power Supply - 575 Watts, and will peak up to 782 Watts during the
30 minute cycle when igniter is operating.
• Manufactured Home Installations - When installed into a manufac-
tured home, the appliance must be electrically grounded to the steel
chassis of the manufactured home (see Page 8, Manufactured Home
Requirements).
Smoke Detector Recommended
Since there are always several potential sources of fire in any home, we
recommend installing smoke detectors. If possible, install the smoke
detector in a hallway adjacent to the room (to reduce the possibility of
occasional false activation from the heat produced by these appliances).
If your local code requires a smoke detector be installed within the same
room, you must follow the requirements of your local code. Check with
your local building department for requirements in your area.
Carbon Monoxide Monitor Recommended
Carbon Monoxide Poisoning: Early signs of carbon monoxide poison-
ing are similar to the flu with headaches, dizziness and/or nausea. If you
have these signs, obtain fresh air immediately. Some people are more
affected by carbon monoxide than others, including pregnant women,
people with heart or lung disease or anemia, those under the influence
of alcohol, and those at high altitudes.
It is against federal regulations to operate wood heaters in a man-
ner inconsistent with operating instructions in the manual.
Surge Protectors
A surge protector is recommended to ensure the stove’s electrical com-
ponents are not damaged due to a surge in the electrical supply. Only
high quality protectors listed to UL1449 should be used - low quality
protectors do not provide the protection needed.
Installation / Maintenance Standards
National Fire Protection Association – The primary NFPA standard that
refers to installation and maintenance of pellet stoves and venting is
NFPA 211 – Latest Edition: Chimneys, Fireplaces, Vents, and Solid Fuel
appliances.

5
This appliance requires noncombustible floor protection (the hearth pad
or alternate floor protection material does not require a thermal rating).
A noncombustible floor protector must fully cover the area beneath the
appliance and extend 6” to the front, 6” to the sides, and up to 6” from
the back as illustrated in Figure 1.
If the floor protection is to be stone, tile, brick, etc., it must be mortared
or grouted to form a continuous noncombustible surface. In Canada, if a
chimney connector / venting extends horizontally overthe floor, protection
must also cover the floor under the connector / venting and at least 2”
(51 mm) to either side (recommended but not required in the US). See
Clearances and Hearth Protection shown in Figure 1.
CAUTION
These appliances are very heavy. The use of a heavy
dutyescalara(stairstephandtruck)isrecommended
for lifting the appliance.
The design of your home and where you place your stove will determine
its value as a source of heat. This type of appliance depends primarily on
air circulation (convection) to disperse its heat, and therefore, a central
location is often best. There are other practical considerations, which
must be considered before a final selection of locations is made. Some
of which includes:
• ExistingChimneys
• PelletFuelStorage
• AestheticConsiderations
• RoofDesign(rafterlocationsandroofpitch)
• RoomTrafc
• ProximitytoCombustibles
• ElectricalWiring
SELECTING A LOCATION
FLOOR PROTECTION
VentilationRequirements- Provide adequate airfor combustion. The fresh
air requirements of this appliance must be met within the space where it
will be installed. Ventilation is essential when using a solid-fuel-burning
heater. In well insulated and weather tight homes, it may inhibit the rate
the exhaust flows through the venting system (caused by a shortage of
air in the home). The lack of air is caused by many common household
appliances which exhaust air from the home (such as a furnace, heat
pump, air conditioner, clothes dryer, exhaust fans, fireplaces, and other
fuel burning appliances). Also, the combustion process of this heater
uses oxygen from inside the dwelling. If the available fresh air delivery
in the dwelling is insufficient to support the demands of these appli-
ances, problems can result (i.e. excessive negative pressure will result
in performance problems. To correct this problem it may help to open
a window (preferably on the windward side of the house) or install an
outside combustion air duct to the appliance.
NEGATIVE PRESSURE WARNING
This appliance is not designed to be operated in a negative pressure envi-
ronment. In very airtight homes with large kitchen exhaust fans, furnace
cold air returns, fresh air exchange systems and any other air system in
close proximity to the heating appliance may create a negative pressure
in the same room as the heating appliance. This can create dangerous
condition, drawing combustion by-products into the home. Be sure your
home has adequate makeup air to eliminate negative pressures caused
by the above-mentioned sources. Outside air connected to the appliance
probably will not resolve such a problem as the stove is not the source
of negative pressure. IHP accepts no liability for damages resulting from
negative pressures described here.

6
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
Up to * 6” (153 mm)
6”
(153 mm)
min.
6”
(153 mm)
min.
6” (153 mm)
min.
Figure 1 - Floor Protection Requirements
* NOTES: When installed at clearances less than 6”, the floor
protection is only required to extend to the wall. Refer to
Page 5 for chimney/venting floor protection requirements and
recommendations.
Rear
Front
Top View
Floor Protector
Standard residential, commercial or manufactured homeinstallation. These
appliances require the following minimum clearances to combustibles:
Figure 2
Combustible
Combustible
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS
NE PAS ENLEVER CETTE ÉTIQUETTE DÉGAGEMENT MINIMUM POUR LES
MATÉRIAUX COMBUSTIBLES
Freestanding Stove Installation / Installation Du Poêle Autonome
Manufactured (Mobile) Home, Residential or Commercial Installation /
Installation Résidentielle Ou Dans Une Maison réfabriquée (Mobile)
A - Side wall to unit 4” (102 mm)
B - Back wall to unit 2” (51 mm)
C - Side wall to unit Corner 1” (25 mm)
D - Max. Depth of Alcove u24” (610 mm)
E - Flue to Wall v3 " (76mm)
uMinimum Alcove Measurements - Height 48” (1220 mm) x Width 31”
(788 mm) x Maximum Depth 24” (610 mm)
vSee vent manufacturer to verify clearances
Table 1
Combustible
Rear Wall or Alcove - Clearance to Combustibles
Figure 3
Corner - Clearance to Combustibles
B
A
*E
D
A
E*
C
C
Combustible
Combustible
IMPORTANT
•Minimum clearances specified may not allow
for ease of operation and maintenance (please
take this in to account when planning the instal-
lation). If installed to the minimum clearances,
removal of the appliance may be necessary for
servicing.
•Recommended clearance zone from the front
of the appliance to combustibles is 4 feet mini-
mum.
•Clearances to combustibles for the appliance
can only be reduced by means approved by the
regulatory authority.
CLEARANCES - Montage™ 32FS
*NOTE: Refer to pipe Manufacturer's installation
instructions for minimum pipe clearances.
*NOTE: Refer to pipe Manufacturer's installa-
tion instructions for minimum pipe clearances.

7
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
INSTALLATION TIPS
GOOD INSTALLATION *
Horizontal Installation
(Direct Vent - Outside Wall)
No natural draft. Wind
pressures may affect operation
PLEASE REVIEW THIS ENTIRE
INSTALLATION AND OPERA-
TION MANUAL FOR ADDITIONAL
INSTRUCTIONS.

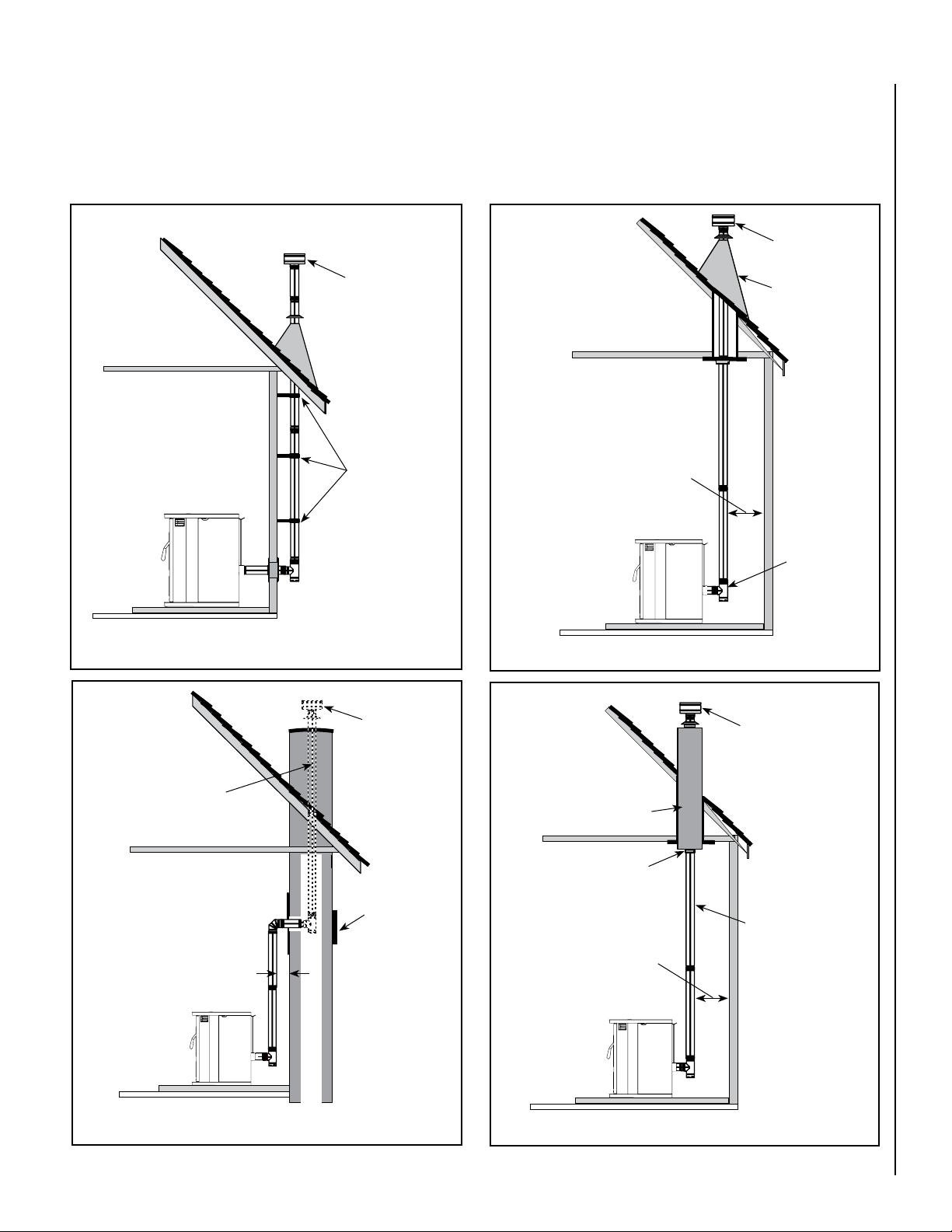

BETTER INSTALLATION
Vertical & Horizontal Installation
(Up and Out)
Some natural draft aids venting. Wind
pressures may still affect operation
BEST INSTALLATION
Vertical Installation
(Straight Up)
Natural draft improves operation and
negative effects from wind
VENTING TYPE
a: PL-Vent Pipe / Pellet Vent (w/stainless interliner)
b: Stainless Steel flex liner may be used inside existing flue
or chimney (woodstove replacement applications)
CAUTION: Do not use Type B-Vent Pipe
REQUIRES 3”
DIAMETER STANDARD
PL-VENT / PELLET PIPE
With listed termination kit. If
installation requires in excess of
11’ of pipe, it is recommended a
4” diameter pipe be used.
MANUFACTURED
HOME
Requires outside air for com-
bustion. Use a galvanized or
stainless steel pipe for duct.
Minimum duct size 1-5/8” dia.
CLEARANCES TO
COMBUSTIBLES
Ensure all clearances are main-
tained in accordance to instruc-
tions contained on product
safety label and in compliance
with pipe/venting requirements.
POWER SUPPLY
Must have proper polarity and
be grounded.
NOTE: Use of an extension
cord may adversely effect the
performance of your unit.
Seal all
Venting Joints:
Use RTV
(high temp silicone)
INSTALLATION TIPS
Select Your Installation Type
* In horizontal vent installations It is recommended that when an appliance is vented directly through a wall, a minimum of 6 feet (1.83 M) of vertical pipe is
installed to create some natural draft. This will reduce the possibility of smoke or odor entering the dwelling during appliance shutdown or loss of power.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
8
In addition to the standard installation instructions, the following instruc-
tions may be required by local, state or federal building codes:
• InstallationshouldbeinaccordancewiththeManufacturedHomeand
Safety Standard (HUD), CFR 3280, Part 24.

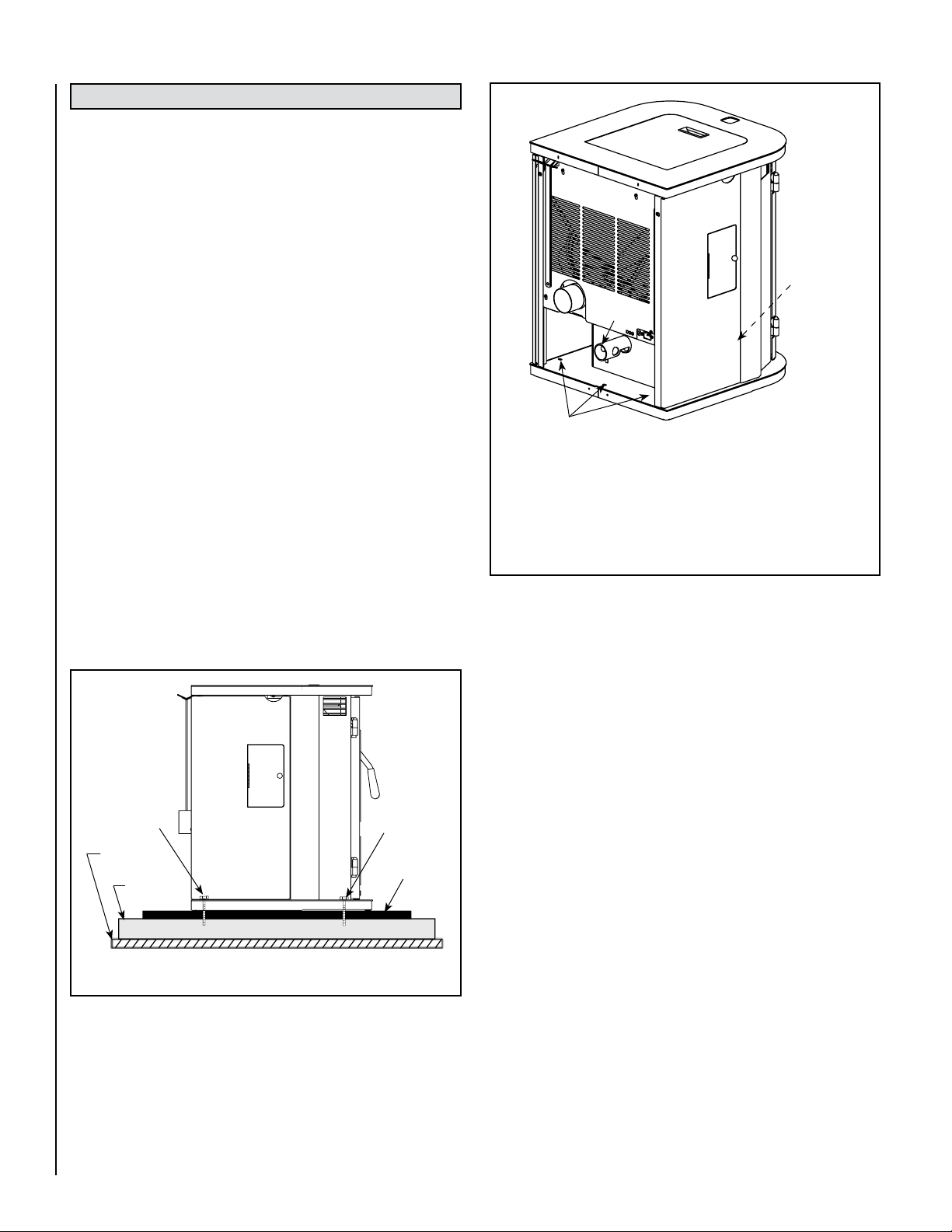

• Thestovemustbepermanentlyboltedtotheoorusingtwoorthree
1/4" or 5/16" diameter x 5" lag screws as shown in Figures 4A, 4B, 5A
and 5B.
• Connecting the Montage™ 32FS stove to outside combustion air is
required in manufactured home installationsand when required by local
building codes. An outside air inlet must be provided for combustion
and be unrestricted while unit is in use. Use a galvanized or stainless
steel pipe for the duct (the outside air inlet on the stove is 1-5/8”
diameter). The air intake on the exterior of the home should always
be located a minimum of 18" below the flue termination (see Figures
4B and 15). The Inlet shall remain free of obstruction while unit is in
operation and constructed in a manner so as to prevent material from
dropping into the inlet or into the area beneath the dwelling. The inlet
shall also have a screen with openings not larger than 1/4" to prevent
rodents from entering.
• Stovemustbepermanentlyelectricallygroundedtothesteelchassis
of the manufactured home using a 8 GA copper wire and a serrated
or star washer (to penetrate paint or protective coating to ensure
grounding). The location selected for ground attachment to the stove
must be dedicated for this purpose. Grounding must comply with
NFPA-70-latest edition standards, CSA C22.1-latest edition in Canada,
as well as any local codes.
• SeePages 11 through 17 for additional information on venting require-
ments.
•WARNING: DO NOT INSTALL THIS STOVE IN A SLEEPING ROOM IN
A MANUFACTURED HOME.
• CAUTION: THE STRUCTURAL INTEGRITY OF THE MANUFACTURED
HOME FLOOR, WALLS, CEILING/ROOF MUST BE MAINTAINED.
Figure 4A - Manufactured Home Installation
Manufactured Home Exhaust Vent Pipe Installation Guidelines
This stove is approved for venting with Type L and Type PL pellet vent
pipe listed to UL 641 and ULC S609. The pipe should extend at least 3
feet above the part of the roof through which it passes. The top of the
pipe should be at least 2 feet above the highest required elevation of any
part of the manufactured home within 10 feet of the pipe (see Page 13,
Manufactured Home Chimney Height Requirements).
If the exhaust vent exits the manufactured home at a location other than
the roof, and exits at a point 7 feet or less above the ground level on which
the manufactured home is position a guard or method of enclosing the
pipe shall be provided at the point of exit for a height of up to 7 feet. The
openings, if any, in this guard shall not allow a 3/4” rod to pass through.
A 1/2” rod could pass through but should not be able to touch the pipe
when inserted through the opening a distance of 4 inches.
Chassis
Floor
Bolt
Floor
Protector
MANUFACTURED HOME INSTALLATION
Bolt
Figure 4B - Manufactured Home Installation
Outside
Air Inlet
Holes for lag screws when securing to manufactured home floor
Options:
1) Install one lag screw in the front center hole and one in the rear
center hole.
OR
2) Install one lag screw in the front center hole and two in the rear
side holes.
Open front
glass door and
remove ash
pan to access
front lag screw
hole.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
9
Removing Appliance From Pallet
1. After removing the packaging from the stove, lift the hopper lid, and
remove all prepackaged items that were shipped in the hopper. Next,
open the stove door and remove all prepackaged items.
2. With the stove door open, remove the ash drawer and set aside. Using
a 7/16” socket or open end wrench, remove the front lag screw (see
Figure 5A).
3. Using a 5/32" allen wrench remove the two screws in the rear pallet
bracket (see Figure 5B). Using a 7/16” socket or open end wrench,
remove the rear lag screw (see Figure 5B).
INSTALLATION
Front Lag Screw
(actual size)
Rear Lag Screw
(actual size)
Pallet
Pallet
SEE DETAIL B
DETAIL B
SEE DETAIL C
DETAIL C
Rear Pallet
Bracket
Rear Lag Screw
Front Lag Screw
Figure 5A - Front Lag Screw
Figure 5B - Rear Lag Screw and Pallet Bracket
Installation Check List
It is strongly recommended that you have an IHP dealer install your stove.
If you install your stove yourself, you should review your installation plan
with an IHP dealer.
Check list:
Check off each item as you proceed with the installation process.
qRead the ENTIRE stove installation section first
qDetermine the appropriate measurements and locations for your
installation.
qFollow the installation directions in this manual.
qBe sure to pre-fit all items before you install, fasten, or set up the
appliance permanently.
qMeasure for exhaust (also outside air tube when applicable) and mark
the location. Place the unit in place to make sure it's correct before
cutting holes in your wall.

10
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
Thermostat Installation:
NOTE: Always Disconnect Power Before Performing The Thermostat
Installation.
A 24 volt wall thermostat and 20feet of 18-gage thermostat wire is included
in the accessory package. It is recommended that the thermostat and
thermostat wire be installed by an IHP dealer.
Installation Steps:
1. Unplug stove power cord from the wall outlet.
2. Locate the thermostat terminal block (see Figures 7 and 8).
3. Loosen the two terminal screws on the terminal block and remove the
jumper.
4. Connect the two wires from your thermostat to the terminals (one
per terminal). Ensure that the yellow wires from the harness remain
connected to the terminal block and tighten the terminal screws. Make
sure the wires are firmly connected to the thermostat.
5. Plug in the stove and you are ready to operate with your thermo-
stat!
Figure 6 - Damper Adjustment
Damper
Loosen Setscrew
to Adjust Damper
Firebox
Standard Setting: Damper
should be flush with
firebox as shown
Prior to lighting your appliance:
qReview the safety precautions section.
qReview the pellet FUEL section.
qReview and follow the Operating Instructions.
qPlug power cord connector into corresponding connector on the back
of appliance (see Figures 7 and 8 showing connector locations).
After you have begun operation of your appliance:
qReview the routine cleaning / maintenance information.
qEnjoy the warmth from your new IHP pellet stove!
Damper Location and Adjustment
Damper Air Control
Located behind the right side panel on model Montage 32FS.
Adjustment Procedure
Using a 1/4" nut driver or socket, loosen the damper setscrew (see
Figure 6). Adjust in 1/4” increments until optimum combustion air flow
is achieved. Retighten the damper setscrew.
For less air push in and for more air pull out.
Thermostat wires and yellow wires from wire har-
ness will connect to these 2 terminals

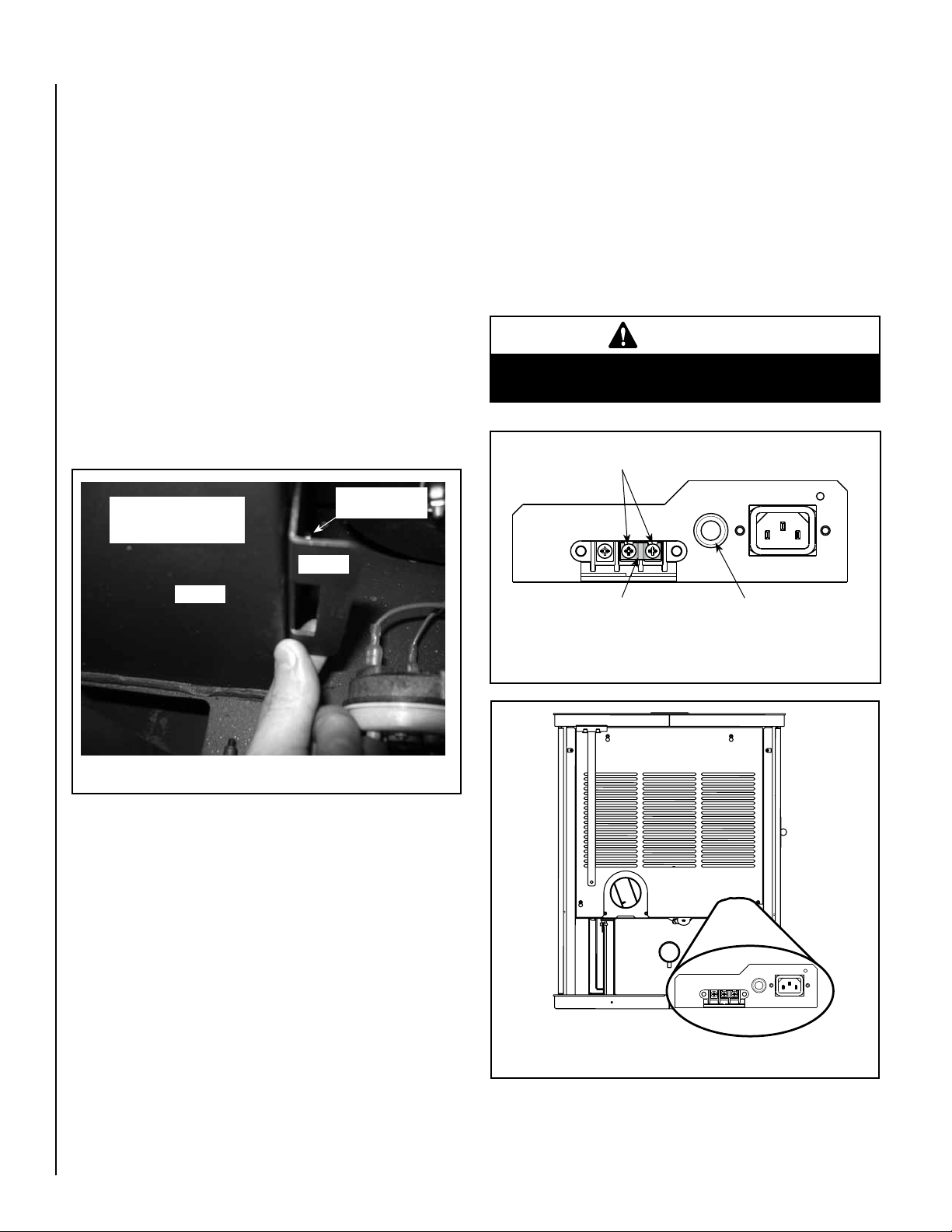

Figure 7 - Terminal Block
Remove jumper if Thermostat IS to be used
Leave jumper on, if thermostat is NOT used
Figure 8 - Terminal Block Location
Jumper Route thermostat wires
through this grommet
IMPORTANT NOTE: Install thethermostatper the manufacturers instruc-
tions, provided with the thermostat. Failure to follow manufacturers
instructions could result in a malfunction. Pay special attention to the
thermostat location requirements. If the location requirements are not
adhered to the appliance, erratic operation or failure may occur.
Do not mount the thermostat where it may be affected by:
• Radiantheatfromthestove,replaces,sunorotherheatsources.
• Draftsordeadspotsbehinddoorsorincorners.
• Hotorcoldairfromducts.
NOTE: See Wiring Diagram on Page 29.
IMPORTANT
If the wall thermostat provided is not used, the
jumper is required for the stove to operate.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
11
VENTING REQUIREMENTS
It is recommended that only an IHP dealer install your pellet stove. The
specified installation requirements must be followed to ensure conformity
with both the safety listing of the appliance and local building codes. All
clearances, installation instructions and precautions specified by the vent
manufacturer must be followed.
Selecting a Location
Review the appliance clearance requirements before installing the
venting system (see Page 6). Position the appliance far enough away
from walls to allow adequate room for servicing. Choose the appliance
location with the least amount of interference with the house framing,
plumbing, wiring, etc.
Preferred Vent Configuration
For the best performance, we recommend a vent run design which runs
vertically and terminates above the roof line. This design will allow natural
draft to improve the flow of flue gases and will aid in combustion and
stove performance.
NOTE: 30 feet maximum vertical vent allowed (6 inches minimum vertical).
Type of Pipe
This stove is approved for venting with Type L and Type PL pellet vent
pipe (sometimes referred to as “L-Vent pellet vent”, listed to UL 641 or
ULC S609). Connect the pellet vent pipe or the “tee” to the flue collar
using a minimum of three screws and seal as specified in “Pipe/Liner
Joint Requirements” on this Page. Do not use class B gas chimney or
single wall chimney as a substitute.
Size of Pipe
These pellet stoves are approved for use with the following vent sizes: 3”
(75 mm) standard, or 4” (100 mm), see Page 14 - for determining correct
size vent). When 4” pipe is used: for horizontal vent installations use a
3” (75 mm) to 4” (100 mm) adaptor - available from vent manufacturer.
For vertical installations use a 3” (75 mm) to 4” (100 mm) “tee” - avail-
able from vent manufacturer.
Offsets
In every installation, a single or double clean-out “tee” is recommended
for every ninety-degree offset (this tee will help collect ash residue and
will allow for routine cleaning without the need to disconnect sections
of pipe).
Pipe Clearances/Requirements
See pipe manufacturers instructions forinstallation of venting components
and clearances. Follow pipe manufacturers installation precautions for
passing pipe through a combustible wall or ceiling (i.e. use an approved
thimble).
NOTES
•Offsets and horizontal runs accumulate fly-ash and soot which reduces
the exhaust flow and performance of the stove.
• TotalOffsetsinventingsystemshouldnotexceed270°totalindirec-
tion change.
• MaximumVerticalVent-30feet(9.14M)
• HorizontalRuns-Themaximumtotalhorizontalrunmustnotexceed
10feet(3.1meters).
• Horizontalrunofpiperequires1/4”(7mm)riseperfoot.
• Pelletventpiperequires3”(75mm)clearancefromoutsideofpipe
unlessotherwisespeciedbyventmanufacturer-alldiameters:3”(75
mm)and4”(100mm).Asupportbracketmustbeinstalledevery4
feet(1.2m)ofpelletventpipeontheexteriorwallofthehouseunless
otherwise specified by vent manufacturer.
• Itisnotrecommendedtoterminateexhaustventontheprevailingwind
side of the house.
• InCanada,wheretheventingmaypassthroughawall,orpartitionof
combustiblematerials,theinstallationshallconformtoCAN/CSA-B365.
When installing the wall thimble and other venting components, follow
the vent manufacturers instructions. Maintain an effective vapor barrier
at the location where the chimney or other component penetrates to
the exterior of the structure.
Pipe/Liner Joint Requirements
Silicone sealant and three screws are required to secure the first vent
connection to the appliance flue collar. Secure the remaining vent sections
using (3) three screws minimum per section, unless otherwise specified
by vent manufacturer's instructions. ALL horizontal joints must be sealed
gas-tight (air tight, sealed connection). Use RTV high temperature silicone
or Interam, if necessary, to provide a complete seal between vent sections.
Connection to Masonry Chimney through a Wall
Be sure to verify the construction of a masonry chimney, as it may have
combustible framing.
Approved liner when relining Masonry or Factory-Built Fireplaces is
2100HT (degree F.) liner listed to UL 1777 or ULC S635.
Connection to an Existing Class A Chimney
A chimney adaptor can be used to make the connection from 3” (75
mm) or 4” (100 mm) pellet vent pipe (listed to UL 641 or ULC S609) to
existing UL chimney system. Verify with the pipe manufacturer that your
pipe brands will interconnect.
Horizontal Vent Installations
On all horizontal vent installations (short, horizontal runs with no vertical
pipe); care should be taken when choosing a location for terminating the
vent. It is not recommended to directly vent the exhaust on the prevail-
ing wind side of the house. It is recommended that when an appliance
is vented directly through a wall, a minimum of 8 feet (2.5 m) of vertical
pipe should be installed to create some natural draft. This will reduce
the possibility of smoke or odor entering the dwelling during appliance
shutdown or loss of power.
Vent Termination
Do not terminate vent in an enclosed or semi-enclosed area such as:
carports, garage, attic, crawl space, under a deck, porch, narrow walkway,
closely fenced area, or any location that can build up a concentration of
fumes such as a stairwell, covered breezeway etc.
Vent surfaces can get hot enough to cause burns if touched. Adults
should supervise children when they are in the area of a hot stove.
Non-combustible shielding or guards may be required.
Termination Cap
The termination of the outside chimney of the pellet stove shall be located
in accordance with the following:
A. Higher than 3 feet (.92 m) above any forced air inlet (air conditioner,
etc.) located within 10 feet (3 m).

12
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

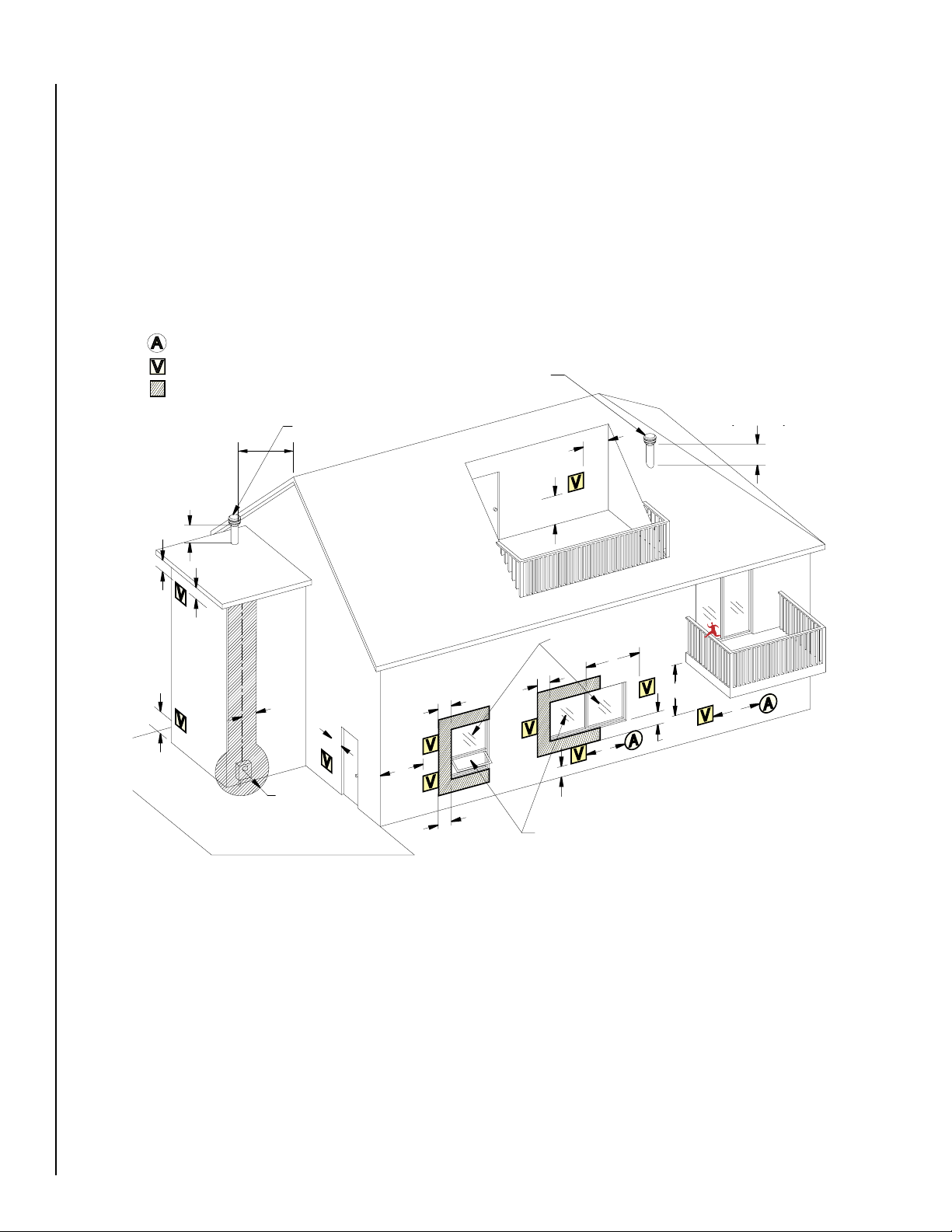

Vent Termination Locations
A = Refer to vent manufacturer's installation instructions for the
required clearance above grade, veranda, porch, deck, or balcony.
B = Clearance to window or door that may be opened (min. 12”/30cm
above - 48”/1.2m below and to the side)
C = Clearance to permanently closed window *(min. 12”/30cm)
D = Vertical clearance to ventilated soffit located above the terminal
within a horizontal distance of *(min. 24”/60cm) from the center-
line of the terminal (min. 22”/55cm) check with local code.
E = Clearance to unventilated soffit *(min. 12”/30cm)
F = Clearance to outside corner *(min. 12”/30cm)
G = Clearance to inside corner *(min. 12”/30cm)
H = Not to be installed above a meter/regulator assembly within *(min.
36”/90cm) horizontally from the centerline of the regulator.
J = Clearance to service regulator vent outlet *(min. 72”/1.8m)
K = Clearance to non-mechanical air supply inlet to building or the
combustion air inlet to any other appliance *(min. 48”/1.2m)
L = Clearance to a mechanical air supply inlet *(min. 120”/3.1m)
M = **Clearance above paved sidewalk or a paved driveway located on
public property *(min. 84”/2.1m)
N = ***Clearance under veranda, porch, deck, or balcony (min.
12”/30cm)
NOTE:
* Local codes or regulations may require different clearances.
** A vent shall not terminate directly above a sidewalk or paved
driveway which is located between two single family dwellings
and serves both dwellings.
*** Only permitted if veranda, porch, deck, or balcony is fully open on
a minimum of two sides beneath the floor.
Vent Terminal
Area Where Terminal Is Not Permitted
(From Eave)
Vertical Terminal
Vertical Terminal
Fixed Closed
Able To Open
A
A
B
B
B
B
C
D
E
F
G
H
J
K
L
M
N
24”
(610mm)
B
Air Supply Inlet
24”
(610mm)
Figure 9
D. The distance from the bottom of termination to grade is 12” (305 mm)
minimum unless otherwise specified by the vent manufacturer. This is
conditional upon plants and nature of grade surface: Be careful to choose
a location for the vent termination which does not expose people or shrubs
to high heat from the exhaust gases. The exhaust gases are not hot enough
to ignite grass, plants and shrubs located in the vicinity of the termination
although they should be a minimum of 3 feet (.92 m) away. The grade
surface under the termination must not be a lawn.
E. Since sparks may escape from the exhaust pipe of any stove, use
caution when positioning the vent pipe. Refer to pipe manufacturer’s
instructions when installing and terminating the exhaust. The vent pipe
should be horizontal and never run the pipe in a downward direction
(recommend a 1/4” [7 mm] rise per foot horizontal).
B. Not less than 4 feet (1.2 m) below, 4 feet (1.2 m) horizontally from or
1 foot (3.1 m) above any gravity air inlet (door, window, etc.) which
flue gases could reenter the dwelling.
C. Not less than 2 feet (.6 m) from combustible materials such as an
adjacent buildings, fences, protruding parts of the structure, roof
overhang, plants and shrubs, etc. and not less than 7 feet (2.1 m)
above grade when located adjacent to the public sidewalks (access).
The final termination of the exhaust system must be configured so that
flue gases do not jeopardize the safety of people passing by, overheat
combustible portions of nearby structures or enter the dwelling.
USA - 1' Min.
CANADA - 3' Min.
USA - 1' Min.
CANADA - 3' Min.
NOTE: Vent requirements are in
accordance with NFPA 211 and CAN/
CSA-B365-M standards

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
13
Figure 11 - Manufactured Home Chimney Height Requirements
Chimney Height Requirements - Site Built Residential Home
The vent termination height required is - USA, 1-foot minimum; Canada
3-feet minimum above the roof penetration point as illustrated below (Ref.
USA - National Standard, NFPA 211 and Canada National Standard CSA
B365-01. Check with your local building official for additional require-
ments for your area.
Figure 10 - Site Built Residential Home Chimney Height Requirements
Termination Cap
Must Be Listed To
UL 641 or ULC S609
USA 1 Foot Minimum *
CANADA 3 Feet Minimum
Less than
10 Feet (3 m)
10 Feet
(3 m)
3 Feet (914 mm)
Minimum
2 Feet (610 mm) Min.
3 Feet
(914 mm)
Min.
m = meter
mm = millimeter
Requires A Listed Termination Cap * Top Of Flue Must Be
3’ Higher Than High-
est Point Of Roof
Penetration
Top Of Flue Must Be 2’
Higher Than Any Part Of
Roof Within 10’ Horizontal
Chimney Height Requirements - Manufactured Homes
The chimney must extend 3’ (.92m) above the level of roof penetration
and a minimum of 2’ (.61m) higher than any roof surface within 10’
(3m) (see below). Check with your local building officials for additional
requirements for your area.
To pass inspection in nearly any jurisdiction, the chimney must meet both
safety and exhaust flow requirements. The (3’ by) 2’ by 10’ rule applies
to both masonry and factory-built chimneys
* Ref. USA - National Standard, NFPA 211-latest edition and Canada
National Standard CSA B365-01-latest edition. Vents installed with a
listed cap shall terminate in accordance with the terms of the cap’s
listings.
Termination When Connected to Masonry Chimney or Existing
Class A Chimney
A flexible corrugated chimney liner has much greater resistance to the
flow of flue gases than does a rigid liner. For this reason we recommend
that a larger, 4” liner be used on vertical runs exceeding 15 feet or that
rigid venting be used . See Figure 12.
If a flexible corrugated chimney liner is used, it must be fully extended
to eliminate any sagging and to improve the exhaust flow.
Figure 12 - Existing Chimney Termination
Listed Pellet Vent
Termination Cap
Chase Cover
1’ Section of PL Vent
(listed to UL 641 or
ULC S609)
3” or 4” liner
(listed to UL 1777
or ULC S635)
Termination When
Connected to Masonry
Chimney or Existing
Class A Chimney
Termination height is
measured above the
highest point where
it passes through the
roof surface.
*Min. 2 ft. clearance
is required to com-
bustibles (i.e. cedar
shake roof, etc.)

14
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
Determining Size Of Pipe To Install
To determine what diameter pipe to use in an installation (3” or 4”), first
find the “equivalent pipe length” using the following guidelines, then plot
this number and the altitude on the chart (Figure 13).
Fill out the installation chart, and calculateyour total equivalent pipe length.
After you have the total equivalent pipe length, use the PipeSelection
Chart (Figure 13) below to determine if your installation requires 3” or
4” exhaust pipe.
Installation Chart
Figure 13 - Pipe Selection Chart
A
E
F
H
G
B
C
D
Figure 14 - See Sample Installation Chart
A - 90 Degree Elbow
B - 1’ Horizontal Pipe
C - 45 Degree Elbow
D - Standoff Braces
E - 8’ Vertical Pipe
F - 2’ Horizontal Pipe
G - 90 Degree Tee
H - Wall Thimble
NOTE: All equivalent pipe styles
shownformodelMontage™32FS.
Type of Pipe # of Elbows or
Feet of pipe Equivalent Feet Total Equivalent Feet
90° Elbows/
Tee (A & G) x 5 Feet (1.5 m)
45° Elbows
(C) x 3 Feet (1 m)
Horizontal
(B & F) x 1 Feet (.3 m)
Vertical (E) x .5 Feet (.15 m)
Table 3
Sample Installation Chart
Type of Pipe # of Elbows or
Feet of pipe Equivalent Feet Total Equivalent Feet
90° Elbows/
Tee (A & G) 2 x 5 Feet (1.5 m) 10 (3 m)
45° Elbows
(C) 1 x 3 Feet (1 m) 3 (1 m)
Horizontal
(B & F) 3 x 1 Feet (.3 m) 3 (1 m)
Vertical (E) 8 x .5 Feet (.15 m) 4 (1.2 m)
Total Equivalent Feet = 20
Table 4 - Sample Chart for Figure 14
4 “ Diameter Only
3 or 4”
Diameter
Altitude x 1000 Feet
Equivalent Pipe Length (Feet)
30
20
10
0
012345678910

uRefer to vent manufacturer's installation
instructions for minimum vent clearances.
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
15
Exhaust
Port
Quick
Disconnect
Straight “PL-vent”
Pipe
Combustion
Air Inlet
Collar
Metal Fresh
Air Pipe
Lytherm
Gasket
Wall
Thimble 45˚
Elbow
Holes through
the Wall for the
Thimble and
Fresh Air Pipe
45oDegree
Elbow Joint
for Fresh
Air Pipe
12” (305 mm)
Min. From
Outer Wall
12”(305 mm)
From
Ground or
Other Surface
Silicone sealant and 3 screws required on the first vent connection.
Secure and seal the remaining vent sections per vent manufacturers instructions.
Standard Horizontal Vent Installation
Installing Montage™ 32FS
This stove is approved for venting with Type L and Type PL pellet vent
pipe listed to UL 641 or ULC S609.
1. Locate the proper position for the listed type “PL” wall thimble. Avoid
cutting wall studs when installing your pipe. Use a saber saw or keyhole
saw to cut the proper diameter hole through the wall to accommodate
the wall thimble. Use extreme caution to avoid cutting into power lines
within the wall of the home. The hole size will depend on the brand
of pellet vent that you are using. Install the wall thimble in the hole.
2. ALL INTERLOCKING PIPE CONNECTIONS MUST BE SEALED GAS-
TIGHT AND SECURED TOGETHER PER VENT MANUFACTURER
INSTRUCTIONS.
Position the stove approximately 12” (305 mm) from the wall on the
floor pad. Push the “PL” pipe through the wall thimble. Squeeze a
bead of high temperature silicone (RTV) sealer around the end of the
machined portion of the 3” (76 mm) pipe connector on the back of
the stove. Firmly push on a section of “PL” pipe until inner pipe liner
pushes into the bead of RTV sealer.
3. Push the stove with pipe attached towards the wall (the pipe will go
through the wall thimble). Do not position the back of the stove closer
than 2” (51 mm) from the wall (see Clearances, Page 6).
4. Install listed type “PL” 45 degree elbow with rodent screen or cap on
outside end of pipe. The Inlet shall remain free of obstruction while
unit is in operation and constructed in a manner so as to prevent
material from dropping into the inlet or into the area beneath the
dwelling. The inlet shall also have a screen with openings not larger
than 1/4" to prevent rodents from entering.
5. If the installation includes a source of outside combustion air; cut a
separate hole through the wall for the fresh air tube. This tube should
be 1-5/8” (42 mm) minimum diameter I.D., steel only. Connect out-
side air pipe to air inlet on stove. This tube must be terminated with
a 45 degree elbow or hood. The air intake on the exterior of the home
should always be located a minimum of 18” below the flue termination
and must remain free of obstruction. The inlet must also have a screen
with openings not larger than 1/4” to prevent rodents from entering.
NOTES:
• Combustionairmayalsobedrawnfromaventedcrawlspaceunder
the home.
• Alljointsforconnectorpipearerequiredtobefastenedtogetherperthe
ventmanufacturersinstructions.Ifventedhorizontally,jointsmustbe
made gas-tight (air tight, sealed connection) in a manner as specified
onthis page(see instruction#2). INSTALL VENT AT CLEARANCES
SPECIFIED BY THE VENT MANUFACTURER.
• Greaterbackclearancewillimprovetheeaseofserviceabilityofthe
stove.
• Theendoftheexhaustpipemustextendaminimumdistancefromthe
outside of the building. Refer to the vent manufacturer's instructions
for this clearance requirement.
Back of
Stove
Metal Fresh Air Pipe
OPTIONAL (EXCEPT FOR MOBILE HOME
INSTALLATIONS)
Figure 15 - Horizontal Vent Installation
Silicone sealant and three screws required on the first vent connection.
Secure and seal the remaining vent sections PER VENT MANUFACTURER INSTRUCTIONS.
u
u

16
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
NOTES:
• Itisnotrecommendedtoterminate
exhaust vent on the prevailing wind
side of the house.
Wall
Maintain minimum clearances specified by
vent manufacturer between wall and pipe.
If you vent to the furthest wall, the vent pipe
mustmaintainthespecifiedclearanceparallel
to the other wall.
Top View Illustration
Wall
1" Min.
1" Min.
6” (152 mm)
Minimum
Hearth Pad / Floor Protection
45 Degree
Elbow
2” (51 mm)
Minimum
Figure 17 - Montage 32FS, Parallel Through the Wall
Wall
Outdoors
Standard Horizontal Installation Configurations
Montage™ 32FS
NOTE: Horizontal run of pipe
requires1/4”(7mm)riseperfoot.
Figure 16 - Montage 32FS, Corner Through the Wall
uRefer to vent manufacturer's
installation instructions for minimum
vent clearance.
Ne pas installer de coudes
successifs immédiatement à
l’arrière du poêle, quelque
soit l’installation.
u
u
u
uRefer to vent manufacturer's
installation instructions for minimum
vent clearance

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
17
Wall Straps
Required Every
4 Feet Minimum
Standard Vertical Installation Configurations
Model: Montage™ 32FS
This free-standing model may be connected to an existing flue or by
installing listed type “PL” vent pipe. If a liner is run all the way to the
top of the existing chimney, the existing flue should be sealed with a
steel plate. Start a vertical run with a Tee at the back of the stove. Other
options are illustrated below.
Preferred Installation – Vertical Vent Through the Roof
This venting configuration allows for the best stove performance. The
vertical pipe promotes natural draft and with the chimney inside the
dwelling, the flue gases stay warm, thus rising at a consistent rate.
NOTE: See Pages 11 and 12forVentTerminationRequirements
Clean-Out
Tee
Flashing
Listed Rain Cap
Extend Pipe to the Top
if Existing Chimney is
Corroded or Damaged
Pipe Increaser
Existing
Chimney Pipe
Optional
Clean-Out
Access Door
Optional Complete
Liner and Listed
Termination Cap
Figure 18 - Exterior Vertical Vent
Figure 19 - Vertical Vent Into a Masonry Flue
Figure 20 - Vertical Vent Through the Roof
Figure 21 - Interior Vertical Vent into an Existing Class A Chimney
Listed Rain Cap
Listed Rain Cap
Listed Rain Cap
Maintain clearances
specified by vent
manufacturer
Maintain clearances
specified by vent
manufacturer
Maintain clearances
specified by vent
manufacturer

18
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

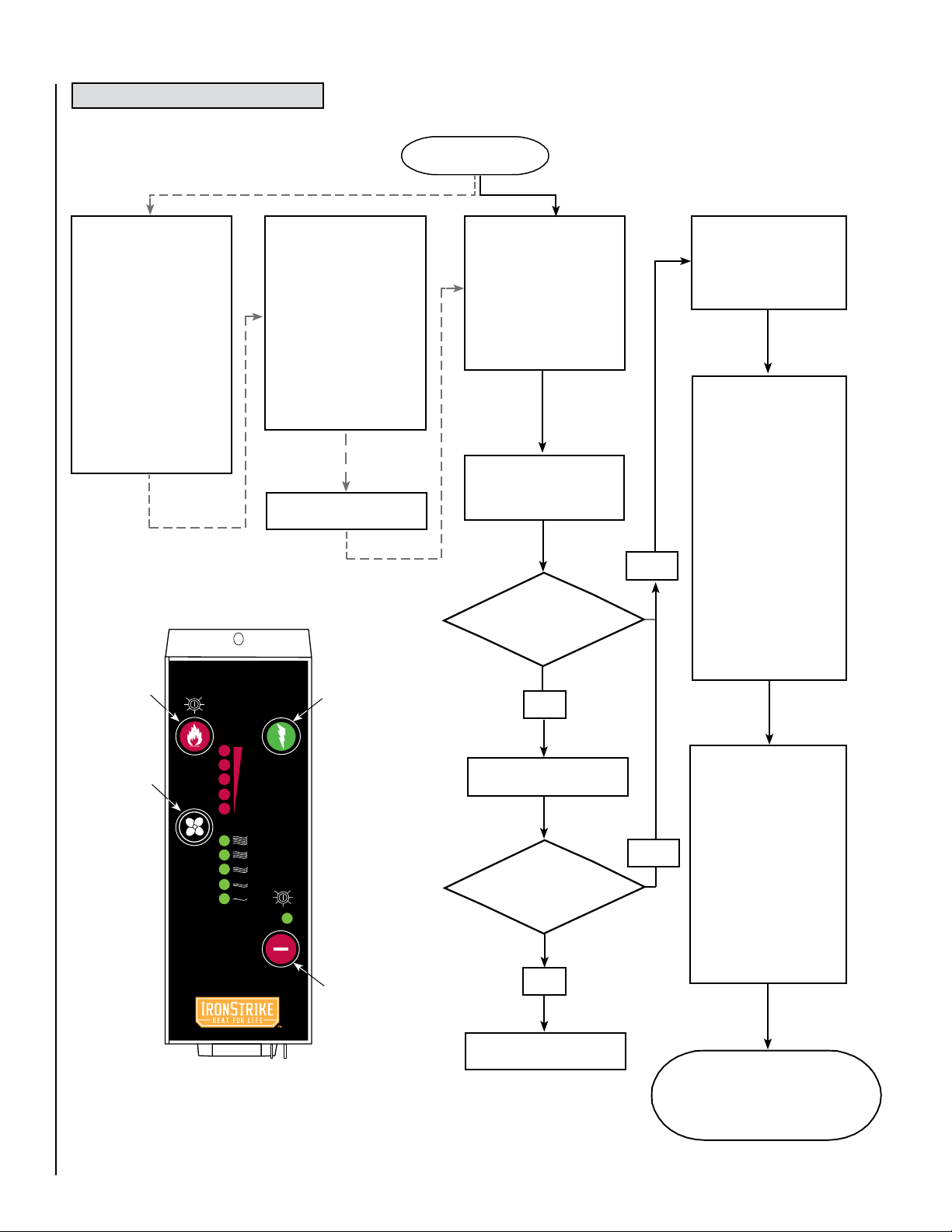

CARE AND OPERATION
Simple Operating Instructions
3. Priming the Auger
(Optional)
a] Fill hopper with pellets
NOTE: use quality grade pellet
fuel
b] Push the "START" button
to turn on the blowers and
auger motor
e] When pellets begin to
drop from feed tube into
UltraGrate, push the "STOP"
button to stop the auger
1. Start
4. Stove is now ready for
start-up
5. To Start Your Stove
a] Check hopper, and fill with
pellets, if necessary.
b] Push the "START" button.
NOTE: Room air blower and
exhaust blower start w/ line
voltage for 10 seconds, then
return to settings when last
operated.
6. Pellets will drop into
UltraGrate and stove will
light in approximately 3
to 7 minutes
Does the Stove Light?
7. Set stove to desired
heat setting (heat output
button). The new setting
willnottakeeffectuntilthe
switch receives adequate
heat to activate.
8. After approx. 5 minutes
adjust damper if neces-
sary to obtain a bright
vibrant flame.
NOTES:
•If the damper is too far
inward the flame will be
lazy/sooty and the fuel will
pile up in the UltraGrate
(see Page 10).
•If the damper is too far
outward the flame might
be extinguished because
of too much combustion
air.
See Page 20 for further
instructions on adjusting
damper using thermostat vs
manual modes.
No
7a.Followthetroubleshooting
section in this manual
Contact your IHP dealer for
further assistance
10. Thank you for purchasing an IHP Pellet
Stove
END
Does the Stove Light?
No
FIRST TIME USE
Heat Output
Button
Convection
(room air)
Blower
Button
9. To Turn Off Pellet Stove
a] Push "STOP" button - stove
enters shut down mode
b] Combustion blower goes to
high androomairblower will
operate at the panel setting
until lowtemperatureswitch
cools. Pellets stop feeding
and the fire goes out in
approximately 15 minutes
after theaugeris shutoff,the
room airblowerand exhaust
blower will automatically
shut off.
2. Preparation
a] Check hopper and remove
any materials from hopper
and auger
b] Check UltraGrate™forproper
fit (ensure UltraGrate is set
securely in the base - see
Figure 29)
c] Check door gasket and door
latch to ensure tight seal
(see Figure 33)
d] Connect power cord to
grounded power supply
outlet
Yes
Yes
START
HEAT
OUTPUT
BLOWER
FEEDING
STOP
(-) (+)
O
(-) (+)
O
COMBUSTION
AIR
PELLET
FEED
Start Button
Stop Button

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
19
Control Board Operation
START BUTTON
The "START" Button turns on the pellet stove.
Iftheexhaust does not reachoperatingtempera-
ture within 30 minutes, the stove will automati-
cally shut down. The pellet stove can berestarted
by pushing the "START" Button again.
RESTART
AUGER ON (green LED) - The auger restarts and
returns to delivering fuel to the UltraGrate™.
STOP BUTTON
NOTE:The"START"Buttonhastobeactivated
togivepowertotheAUGERON/OFFbutton.
The "STOP" button turns the pellet stove OFF.
When the LED is green, the auger is ON.
SHUT DOWN (LED off) - Auger turns OFF and
fuel delivery stops. The blowers will continue to
operate until the stove has cooled sufficiently.
Stove enters shut down mode.
HEAT OUTPUT BUTTON
When not using a wall thermostat, the "HEAT
OUTPUT" button provides the ability to burn
at five separate settings from low (#1) to high
(#5). The "HEAT OUTPUT" button regulates the
fuel feed setting and the combustion air supply
simultaneously.
Each time the "HEAT OUTPUT" button is pressed
the heat output will advance to a higher setting.
When at the highest setting (#5), if the button
is pressed again it will go back to the lowest
setting. Settings can be changed at any time
but will only take affect after the start-up cycle
is complete.
CONVECTION (ROOM AIR) BLOWER
BUTTON
The "BLOWER" button operates the convection
blower. This will change the flow of hot air into
the room. Five settings are available from low
(#1) to high (#5). When the "BLOWER" button
is pressed, the green indicator light will scroll
from low to high. When at the highest setting
(#5), if the button is pressed again it will go
back to the lowest setting.
Whenthe"HEATOUTPUT"buttonisonposition
#5, the lowest blower setting is #3. When the
heatoutputbuttonis onposition#4,thelowest
blower setting #2. This is a safety precaution
toprotectagainstoverheating.Blowersettings
can be changed at any time, but will only take
affect after the start-up cycle is complete.
NOTE: The control board has an internal
memory which recalls the last setting prior to
loss of power.
IMPORTANT NOTE: If the fuel feed trim or combustion air trim needs to be adjusted, contact
your dealer or qualified technician to calibrate internal software. The trim controls should
only be adjusted for the proper flame if all other options did not achieve proper adjustment.
It is recommended that the damper be used to fine-tune your stove to your particular fuel
and installation configuration (see Damper Adjustment on Page 10 and Damper Adjustment
Guidelines on Page 21).
WARNING
Never empty pellets from the Burn-Pot into the hopper. Pellets that
may appear to be cool may retain enough heat to ignite other pellets
resulting in smoke or fire damage.
DO NOT OVERFIRE THIS STOVE. This may cause serious damage to
your stove and void your warranty. It also may create a fire hazard in
your home. IF ANY EXTERNAL PART OF THE UNIT BEGINS TO GLOW,
YOU ARE OVERFIRING. Immediately press the “STOP” button on the
control board.

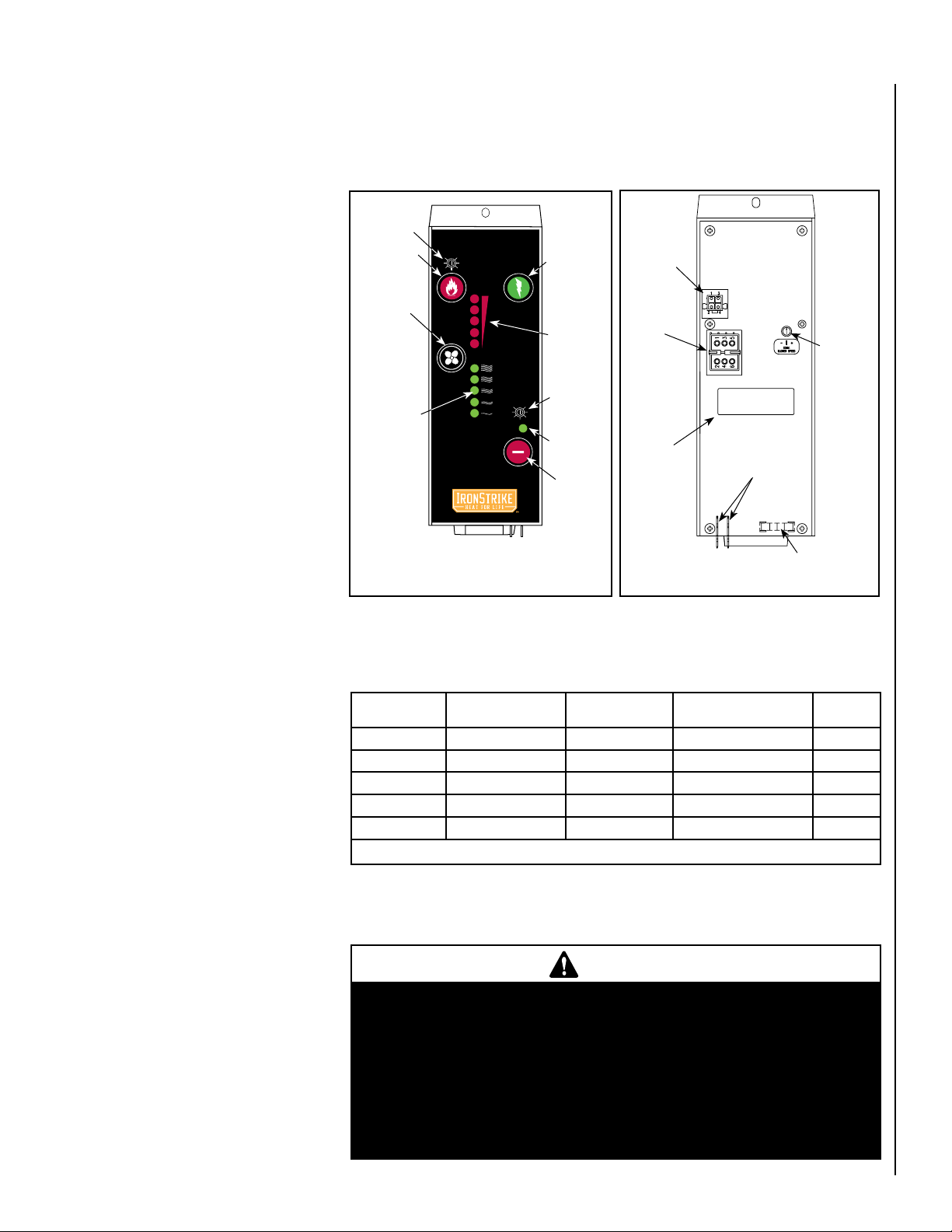

Fuse
To Thermostat
Terminal
Convection
Blower
Speed Trim
Figure 22 - Control Board Figure 23 - Back Side of Control Board
Main
Wire
Harness
Connector
P/N
Label
Location
4 Position
Connector
Fuel Delivery Rate
The "HEAT OUTPUT" button manages the fuel delivery rate by controlling the amount of time the
auger motor will run as follows:
* Feed rates are approximations only. Actual feed rate will vary depending on size, quality and length
of fuel used and variations in line voltage.
wEstimated heat input based on fuel value of 8400 BTU per lb. of fuel.
START
HEAT
OUTPUT
BLOWER
FEEDING
STOP
(-) (+)
O
(-) (+)
O
COMBUSTION
AIR
PELLET
FEED
Convection
(room air)
Blower LEDs
- Green
(5 places)
Combustion
Blower Trim
Start
Button
m5 - High
m4 - Med. High
m3 - Medium
m2 - Med. Low
m1 - Low
Heat Output
Button
Convection
(room air)
Blower
Button
Stop
Button
Heat Output
LEDs - Red
(5 places)
Auger LED
Green = On
Heat Output
Setting Auger Motor OFF/ON Time (seconds) * Lb.’s Per Hour Fuel Delivery
wApproximate BTU Per
Hour Fuel Delivery Burn Time
(hours)
(#5) High = 1.3 / 0.9 3.8 Lb.'s /hr. 32,000 BTU/hr 15
(#4) Med.High = 1.8 / 0.9 3.0 Lb.'s /hr. 25,000 BTU/hr 18
(#3) Med.= 2.2 / 0.9 2.5 Lb.'s /hr. 21,000 BTU/hr 22
(#2) Med.Low = 2.6 / 0.9 2.0 Lb.'s /hr. 17,000 BTU/hr 31
(#1) Low = 3.1 / 0.9 1.5 Lb.’s hr. 13,000 BTU/hr 37
Table 5 - Model Montage™ 32FS NOTE: Maximumhoppercapacityis55lb.’s
Pellet Feed
Trim Pot

20
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
Pre-lighting Instructions
During an initial start-up, or in the case where the hopper has run out of
fuel, it will be necessary to prime the auger feed system.
To prime the auger feed system:
1. Fill the hopper with recommended pellet fuel and plug the stove into
the wall outlet.
2. Press the "START" button on the control board to start the fuel feed.
Next, press the "HEAT OUTPUT" button to position #5 (maximum feed
rate).
3. Look through the combustion chamber door and when you see the first
pellets dropping into the UltraGrate™, the auger is then fully primed.
It will take 10 to 15 minutes to prime the auger.
4. Once the auger is primed, press the "STOP" button to turn off the auger
(LED will go off).
Starting Your Pellet Stove
1. Make sure the auger is primed (see Pre-LightingInstructions on this
page), then simply push the "START" button on the control board to
activate the Fastfire™ igniter.
2. While the pellets will ignite onany heat output setting, itis recommended
that the "HEAT OUTPUT" button be set to position #3. Pellets will start
feeding into the UltraGrate and should begin to ignite in approximately
three to seven minutes. The Fastfire igniter will automatically shut off
after 8 minutes.
3. After the pellets are burning well, press the "HEAT OUTPUT" selector
to the desired setting. Combustion air and the pellet fuel feed rate will
adjust automatically as the "HEAT OUTPUT" button is pressed. The
flame should be bright yellow in color and there should be no evidence
of soot formation at the top of the flame. Press the "BLOWER" speed
button to increase or decrease the blower speed to the desired level
4. If operating your stove with the wall thermostat, adjust the "HEAT
OUTPUT" button to the desired demand mode (#1 through #5 on the
"HEAT OUTPUT" button). Next, adjust the wall mounted thermostat
to the desired room temperature and your stove will automatically
switch between a demand mode and stand-by mode.
NOTES:
Cold Start-Whenthe"START"buttonispressedwhentheappliance
is cold, voltage will bypass its normal circuit through the low limit
thermalswitch(for20minutestoallowadequatetimeforthelowlimit
thermalswitchtoheat[140°Fmin.]whichwillclosethecircuit).The
combustion and convection blowers will start at maximum speed.
Afterapproximately10secondsbothblowerswilldefaulttosettings
they were at after the last shut down was completed (indicated by
LED's#1to#5).TheFastreigniterwilloperateforapproximately8
minutes.Theaugerwillturncontinuouslyforapredetermineddura-
tion at the respective Heat Output Settings, followed by the normal
operating mode.
Re-Fueling While in Operation
1. Open hopper lid and fill hopper with pellets.
2. Make sure the hopper lid is completely closed.
3. Check to make sure the stove remains lit.
4. If the flame goes out, press the "start" button on the control panel to
re-ignite.
CAUTION: Failure to ensure pellets in the UltraGrate remain
burning after re-fueling may result in smoke escaping from
the unit.
General Operating Considerations
Proper Burn Characteristics: Your flame should be bright yellow under
normal operations. If your flame becomes reddish/orange, your stove
probably needs routine maintenance. Excessive amounts of fly-ash build-
up in the UltraGrate, clinkers in the UltraGrate, or leakage of air if the
UltraGrate is not properly seated, will starve the fire for air. (See Routine
Maintenance for information on cleaning the stove). If the problem per-
sists, review the troubleshooting section at the end of this manual.
Manual and Automatic Operation
Your pellet stove can be operated in either the manual or automatic mode.
The manual mode is used when operating without a wall thermostat. The
automatic mode is used when utilizing a wall thermostat. When utilizing the
thermostat capability, the burn time can be extended dramatically depending
on thermostat setting. NOTE: Itisnormalforsomeashtobuilduponthe
inner glass surface at the lower Heat Output settings.
Manual Operation
Pressing the "START" button will initiate the start-up cycle. The auger
LED will be green to indicate the “on” status. The blower speeds and
pellet feeds are fixed during this time to provide appropriate ignition.
The Fastfire igniter system will light the pellets fed to the UltraGrate, after
about 3 minutes. After the start-up cycle, your stove will be in the run
mode. At this point the stove will operate with the heat output ("HEAT
OUTPUT" button) and blower settings ("BLOWER" button) selected. These
settings can be selected either during or after the start-up cycle. Pressing
the "STOP" button during the run mode will initiate the shut down cycle
(feeding LED will go off). The pellets will stop feeding and the blowers
will run at a fixed speed for approximately 10 minutes. At this point your
stove is safely shut down. The stove can be restarted by pressing the
"START" button during the shut down cycle.
Automatic Operation
Your stove is capable of running in an automatic mode with the use of
a wall thermostat.
For the wall thermostat to control the operation of the stove, set it to a
temperature that will put it in the demand mode (calling for heat). The
thermostat will establish either a demand mode or a stand-by mode.
The thermostat should be set for the desired room temperature. If the
room temperature drops below the level on the thermostat the stove
will automatically begin the start-up cycle, as explained in the Manual
Operation section.
Once the start-up cycle is completed the stove will operate at whatever
heat and blower setting you have selected. For best operation under
thermostat control, the medium or high settings are recommended. When
the desired room temperature is reached the stove will automatically go
into the shut down cycle. The pellet feed will stop and the blowers will
continue for a controlled time allowing safe shut down of your stove. All
lights will remain on when the thermostat is open. The "HEAT OUTPUT"
and "BLOWER" settings can be changed at any time, but only take affect
during the run mode. When the temperature in the room drops to the
level set at the thermostat, the stove will again begin the start-up cycle
and resume automatic operation in the demand mode.
NOTE: Ifthe"START"buttonispressedwhilethethermostatisinthe
standby mode the stove will not restart until the thermostat closes (call-
ing for heat).
