Product Manual

KNX RF Multi/TP media coupler or RF repeater

3-0002-005

Documentation valid for:

Product database entry: v1.2

Firmware: v1.15

Documentation issued: 06.11.2023

Legal Information

KNX RF Multi/TP media coupler or RF repeater 3-0002-005

Legal Information

KNX RF Multi/TP media coupler or RF repeater Product Manual

Status: 06.11.2023

ise Individuelle Software und Elektronik GmbH

Osterstraße 15

26122 Oldenburg, Germany

form (print, photocopy or any other method) without the prior written permission of ise Individuelle Soft-

ware und Elektronik GmbH.

Products to which reference is made in this document can be either brands or registered trademarks of

the respective rights holder. ise Individuelle Software und Elektronik GmbH and the author make no

claim to these brands. The brands are named solely for the purpose of providing the necessary descrip-

tion.

Trademark

KNX is a registered trademark of the KNX Association.

Feedback and information about products

If you have any questions regarding our products, please contact us via

email at [email protected]. We would be pleased to receive your ideas, sugges-

tions for improvements and criticism via e-mail at supp[email protected].

Contents

KNX RF Multi/TP media coupler or RF repeater 3-0002-005

Contents

1 About this Documentation ............................................................................................... 3

1.1 Target group......................................................................................................................... 3

1.2 Symbols and typographical conventions ........................................................................... 3

2 About KNX RF Multi/TP media coupler or RF repeater ..................................................... 5

2.1 Proper use ............................................................................................................................ 5

2.2 How it works ........................................................................................................................ 6

2.3 Overview of functions.......................................................................................................... 6

3 Important notes............................................................................................................... 8

3.1 General safety instructions ................................................................................................. 8

3.2 Storage and transport.......................................................................................................... 8

3.3 Cleaning and maintenance ................................................................................................. 8

4 Technical data................................................................................................................. 9

5 Device Design ............................................................................................................... 10

5.1 Front ...................................................................................................................................10

5.2 Data on device sticker (front) ...........................................................................................10

5.3 Data on device sticker (back) ...........................................................................................11

6 Installation .................................................................................................................... 12

6.1 Scope of supply .................................................................................................................12

6.2 Checking the installation conditions ................................................................................13

6.3 Choosing the installation location....................................................................................13

6.4 Connecting the device.......................................................................................................14

7 Commissioning and configuration ................................................................................. 16

7.1 Reading device status using the LED ...............................................................................16

7.2 Configuration .....................................................................................................................17

7.2.1 Creating the device in the ETS ..........................................................................................18

7.2.2 Data interface configuration .............................................................................................20

7.2.3 Selecting the operation mode...........................................................................................21

7.2.4 Programming an individual address.................................................................................22

7.3 Update firmware ................................................................................................................26

8 Parametrisation ............................................................................................................ 27

9 Troubleshooting............................................................................................................ 29

9.1 Resetting to factory settings.............................................................................................29

9.2 Contacting Support............................................................................................................30

10 Disassembly and Disposal ............................................................................................. 31

11 Glossary........................................................................................................................ 33

12 Licence Agreement KNX RF Multi/TP media coupler or RF repeater............................... 36

12.1 Definitions ..........................................................................................................................36

12.2 Object of the agreement....................................................................................................36

12.3 Software usage rights .......................................................................................................36

12.4 Restriction of rights of use................................................................................................ 36

12.4.1 Copying, modification and transmission .........................................................................36

12.4.2 Reverse engineering and conversion technologies.........................................................36

12.4.3 Firmware and hardware ....................................................................................................37

12.4.4 Transfer to a third party.....................................................................................................37

12.4.5 Renting out, leasing out and sub-licensing ......................................................................37

12.4.6 Software creation ..............................................................................................................37

Contents

KNX RF Multi/TP media coupler or RF repeater 3-0002-005

12.4.7 The mechanisms of license management and copy protection ....................................37

12.5 Property and confidentiality..............................................................................................37

12.5.1 Documentation ..................................................................................................................37

12.5.2 Transfer to a third party.....................................................................................................37

12.6 Modifications and subsequent deliveries ........................................................................37

12.7 Warranty .............................................................................................................................37

12.7.1 Software and documentation ...........................................................................................38

12.7.2 Limitation of warranty .......................................................................................................38

12.8 Liability ...............................................................................................................................38

12.9 Applicable law....................................................................................................................38

12.10 Termination........................................................................................................................38

12.11 Subsidiary agreements and changes to the agreement .................................................39

12.12 Exception............................................................................................................................39

13 Open Source Software................................................................................................... 40

About this Documentation

KNX RF Multi/TP media coupler or RF repeater 3-0002-005

1 About this Documentation

This documentation will accompany you through all phases of the product life cycle of KNX RF Multi/TP

media coupler or RF repeater. You will learn for example how to assemble, install, commission and con-

figure the device.

All descriptions in this documentation on configuration in the ETS (Engineering Tool Software) refer to

the ETS Professional version. The ETS version depends on the application used.

Explanations of KNX concepts do not form part of this documentation.

1.1 Target group

This documentation is aimed at qualified electricians and KNX processors.

Only qualified electricians may assemble and install the KNX RF Multi/TP media coupler or

RF repeater. Specialist knowledge of KNX is a prerequisite.

Anyone may configure the KNX RF Multi/TP media coupler or RF repeater. We recommend

that configuration is done by a system integrator. with sound specialist knowledge of KNX

and using the ETS.

1.2 Symbols and typographical conventions

Table 1: Symbols and safety notes

Table 2: Special symbols and typographical conventions

Symbol / label Meaning

Warning of possible material damage

General warning

Warning of electrical voltage

Symbol / label Meaning

[F1] PC button

<<Inscription>> Text on software interface

Troubleshooting tip

Important additional information

About this Documentation

KNX RF Multi/TP media coupler or RF repeater 3-0002-005

Table 3: Graphic symbols

Symbol / label Meaning

Power supply

RF/TP media coupler

Backbone coupler

Line coupler

Segment coupler

RF-USB interface

TP-USB interface

RF repeater

RF button

Dimmer

About KNX RF Multi/TP media coupler or RF repeater

KNX RF Multi/TP media coupler or RF repeater 3-0002-005

2 About KNX RF Multi/TP media coupler or RF repeater

2.1 Proper use

The KNX RF Multi/TP media coupler or RF repeater acts as an interface between a wired KNX TP instal-

lation and a KNX RF environment. The device can also be used as a repeater in an RF domain.

The routing properties of the media coupler enable its used as an area and line coupler, and as a seg-

ment coupler from ETS6.

The KNX RF Multi/TP media coupler or RF repeater is a KNX system device and complies with the KNX

guidelines.

Configuration: compatible ETS version

Simple integration into the KNX system (completely programmable via ETS):

• ETS from v5.7.5 as a KNX RF Ready device

• ETS from v6.1.1 as a KNX RF Ready device or as a KNX RF Multi device

• Product database entry: Download the corresponding product database entry from our website

www.ise.de or from the ETS online catalogue free of charge.

KNX Secure

• The required KNX Secure certificate or the FDSK (Factory Default Setup Key) that it contains can be

found on a sticker on the side of the device and is also enclosed with the device.

• For maximum security, we recommend removing the sticker from the device.

• Keep the certificate in a safe place.

• You cannot restore the certificate yourself.

• Please contact our support team if you lose the certificate despite utmost care.

• Only use KNX Secure for a safe communication. The BCU key has no function.

Important

ise Individuelle Software und Elektronik GmbH assumes no liability for damage caused by

improper use or use for purposes other than or contrary to the intended purpose.

The KNX RF Multi/TP media coupler or RF repeater is KNX Secure.

The device is compatible with KNX Secure. KNX Secure offers protection against

manipulation in building automation and can be configured in the ETS project.

About KNX RF Multi/TP media coupler or RF repeater

KNX RF Multi/TP media coupler or RF repeater 3-0002-005

2.2 How it works

The KNX RF Multi/TP media coupler or RF repeater is connected to the KNX installation via KNX/TP. By

supporting KNX RF Multi and KNX RF Ready, both radio standards can be operated in one KNX installa-

tion. Due to the configured filter properties, only necessary telegrams pass through the media coupler

in the direction of the RF domain and the TP installation.

Figure 1: System at home

2.3 Overview of functions

Ready to Slow Proxy (from ETS6)

The Ready to Slow Proxy enables the use of KNX RF Ready and KNX RF Multi devices in one installation.

KNX Security Proxy (from ETS6)

The Security Proxy enables the connection of devices with and without KNX Secure in one installation.

This means, for example, that an existing TP installation without KNX Secure can be extended with an

RF line with KNX Secure.

Repeater (retransmitter)

The RF repeater repeats radio telegrams to extend the range of the RF installation. The enables RF devi-

ces to be positioned as required, even under difficult transmitting and receiving conditions.

In repeater mode, power is supplied via the TP line or a suitable external DC power supply unit.

About KNX RF Multi/TP media coupler or RF repeater

KNX RF Multi/TP media coupler or RF repeater 3-0002-005

Use as an area coupler/line coupler/segment coupler

Depending on its location in the topology, the media coupler can be used as an area, line or segment

coupler to filter telegrams.

• Use as an area coupler is possible up to ETS5.

• The integration of segments is possible from ETS6.

Forwarding/blocking/filtering telegrams

The forwarding, blocking or filtering of physically addressed telegrams, group telegrams and broadcast

telegrams can be configured in the parameter settings of the product database entry for KNX RF Ready.

In a KNX RF Multi domain, the filter settings are automatically set by the location of the media coupler

in the topology of the ETS project.

RF programming lock

The RF programming lock (programming via TP only) enables secure operation, for instance in

hotels and other publicly accessible areas. However, we recommend using KNX Secure to prevent un-

authorised programming via RF.

Support of long frames

Telegrams with an APDU length of up to 238 bytes can be forwarded.

Functional enhancements through firmware updates

You can obtain functional enhancements for the KNX RF Multi/TP media coupler or RF repeater with a

new version of the firmware. The firmware can be installed via TP or RF. Simply download the latest firm-

ware and the relevant product manual from our website www.ise.de.

Important notes

KNX RF Multi/TP media coupler or RF repeater 3-0002-005

3 Important notes

3.1 General safety instructions

3.2 Storage and transport

Store the device in its original packaging. The original packaging provides optimum protection during

transport. Store the device in a temperature range of -5 °C to +45 °C.

3.3 Cleaning and maintenance

The KNX RF Multi/TP media coupler or RF repeater is maintenance-free.

If necessary, clean the device with a dry cloth.

Warning

Danger from incorrect use

Incorrect use can result in damage to the device, fire or other dangers.

• Only qualified electricians may install and mount electrical devices.

• The frequency band is not exclusively available to KNX RF Multi and is not suitable

for safety-related applications (e.g. emergency calls).

• Follow the instructions in this product manual.

• This product manual is part of the product and must remain with the customer.

Important

Device damage due to improper opening

• Never open the housing.

• If you suspect that the device is damaged, contact our Support.

• We provide a warranty in accordance with statutory requirements.

• Send the device back to us postage free with a detailed error description only if our support

team asks you to.

Technical data

KNX RF Multi/TP media coupler or RF repeater 3-0002-005

4 Technical data

Power supply and connections

Rated voltage: Supply from KNX bus or 24 V SELV

Rated voltage (repeater mode): DC 24V

KNX current consumption: 8 mA

Connections: KNX: Bus connection terminal (black/red)

Ambient conditions/approvals

Installation environment temperature: -5 °C to +45 °C

Relative humidity 10 … 100 % (no condensation)

Protection type: IP 20 (according to DIN EN 60529)

Protection class: III (compliant with IEC 61140)

Receiver category 2 (according to DIN EN 300220)

Device dimensions

Installation length: 43 mm

Installation width: 29 mm

Installation height: 16 mm

Antenna length: 80 mm

KNX SPECIALIST

Communication: KNX TP; KNX RF

Installation method: S-Mode

Medium: TP1-256; KNX RF Multi; KNX RF Ready

Radio frequency (KNX RF Ready): 868.3 MHz

Radio frequencies (KNX RF Multi): 868.3 MHz

868.950 MHz

869.525 MHz

869.850 MHz

Transmission power: max. 25 mW

Transmission range in free field: approx. 100 m

Supported telegram length: Up to 238 bytes

Power supply unit (not included in scope of supply)

Secondary rated voltage DC 24 V

Secondary rated current max. 0.3 A

Device Design

KNX RF Multi/TP media coupler or RF repeater 3-0002-005

5 Device Design

5.1 Front

Figure 2: Front

5.2 Data on device sticker (front)

Figure 3: Device sticker front

No. Description

1 KNX/TP bus connection

2 Programming button

3 Status LED

4 Antenna

No. Description

1 Product name

2 KNX certification

3 Index status

4 Order number

Device Design

KNX RF Multi/TP media coupler or RF repeater 3-0002-005

5.3 Data on device sticker (back)

Figure 4: Device sticker back

No. Description

1 KNX medium „RF Multi“

2 KNX medium „RF Ready“

3 KNX medium „TP“

4 Installation method, here "S mode"

5 KNX Secure

6 Individual address: Enter the assigned

individual address in the field with a per-

manent marker.

7 Batch number

8 WEEE symbol

Installation

KNX RF Multi/TP media coupler or RF repeater 3-0002-005

6 Installation

6.1 Scope of supply

Figure 5: Scope of supply

No. Objects supplied Explanation

1 Device KNX RF Multi/TP media coupler or RF repeater

2 Antenna To receive/send RF frequencies.

3 Bus connection terminal To connect the KNX/TP bus lines.

4 Installation instructions This product manual also provides you with the informa-

tion from the installation instructions but with additional

details, application examples and configuration instructi-

ons.

5 Sticker set Additional set of stickers with data for KNX Secure.

The same stickers are attached to the side of the device.

The installation instructions are part of the product.

Give these instructions to your customer.

Installation

KNX RF Multi/TP media coupler or RF repeater 3-0002-005

6.2 Checking the installation conditions

Before starting the installation process, check that the requirements for the planned installation envi-

ronment have been met.

6.3 Choosing the installation location

The media coupler can be used as a line, area or segment coupler.

In addition, up to two more KNX RF Multi/TP media coupler or RF repeater can be used as repeaters per

radio type (2x RF Ready/Fast and 2x Slow) in order to increase the range of the RF installation.

Depending on the type of use, there are different installation locations:

• Area couplers are connected to the TP area line (backbone).

• Line couplers are connected to the TP main line of an area.

• Segment couplers are connected to the main segment line.

• Repeaters are connected to the TP line for the corresponding media coupler.

Alternatively, a separate DC power supply can be used, see Power supply unit (not included in scope

of supply), p. 9.

Important

Device functional fault due to incorrect ambient temperature in the installation environment

• Pay attention to the temperature of the installation environment: min. -5°C to max. 45°C

• Mount the in a non-metallic flush-mounted or surface-mounted device socket.

• No conductors or sheathed cables from other circuits may be routed through the device

socket.

• Use an IP55 socket in outdoor areas.

• Choose as central a position as possible in the RF installation in order to enable low-loss

communication with the RF devices.

• Maintain a sufficient distance from potential sources of interference, such as metallic surfa-

ces, microwave ovens, Hi-Fi and TV systems, ballasts and transformers.

If you use a separate DC power supply, install the repeater within radio range of the

media coupler.

Installation

KNX RF Multi/TP media coupler or RF repeater 3-0002-005

6.4 Connecting the device

Only qualified electricians may assemble and install the KNX RF Multi/TP media coupler or RF repeater.

Specialist knowledge of the installation regulations is a prerequisite.

Warning

Danger from incorrect use

Incorrect use can result in damage to the device, fire or other dangers.

• Only qualified electricians may install and mount electrical devices.

• Follow the instructions in this product manual.

• This product manual is part of the product and must remain with the customer.

Warning

Danger of electric shock

An electric shock can result from touching live parts in the installation environment.

Electric shock can cause death.

Pay attention to the installation regulations:

• Install bus line leads without sheathing (SELV) reliably disconnected from all non-safety low-

voltage cables (SELV/PELV).

• Maintain the specified clearance.

• For more information, see also the VDE regulations governing SELV (DIN VDE 0100-410 /

"Safe separation", KNX installation regulation).

Important

Danger due to impermissible heating

Do not connect using the unchoked 30 V output of a KNX power supply!

This could cause the KNX RF Multi/TP media coupler or RF repeater to heat up to impermissi-

ble levels.

Installation

KNX RF Multi/TP media coupler or RF repeater 3-0002-005

Work steps

1. Connect the KNX/TP bus line (referred to below as the bus line) to the KNX connection of the

device by means of the supplied bus connection terminal. Polarity: left/red: “+”, right/black “-”.

a. Attach the bus connection terminal.

b. Route the bus line with the sheathing intact until it is close to the bus connection terminal.

c. Firmly press the bus line into the bus connection terminal as far as possible.

2. Insert the device into the socket.

3. Stretch the antenna out as far as possible, or wind in a circle behind the device.

Commissioning and configuration

KNX RF Multi/TP media coupler or RF repeater 3-0002-005

7 Commissioning and configuration

After installing the device and connecting the bus line, the device can be commissioned.

7.1 Reading device status using the LED

The KNX RF Multi/TP media coupler or RF repeater has a two-tone status LED on the front of the device.

Table 4: Device status based on priority

Priority Colour Description

1 (red) Programming mode is active.

Activated by pressing the programming button

or in the ETS.

2 . . . . .

(off).(red).(off).(red).(off).(red)

Rapid flashing

The filter table has no function. Telegrams are

forwarded unfiltered.

(Only in media coupler mode)

3 ...

(red)…(yellow)

Brief change

Display test after

• Device restart

• Voltage recovery

• ETS programming process

4 … … …

(off)...(yellow)...(off)...

Brief flashing

Telegram forwarding between TP and RF

(Only in media coupler mode)

Commissioning and configuration

KNX RF Multi/TP media coupler or RF repeater 3-0002-005

7.2 Configuration

The device is configured in the ETS (Engineering Tool Software) regardless of operation mode. The ETS

is available with various ranges of functions from the KNX Association (www.knx.org).

All descriptions in this documentation on configuration in the ETS refer to the ETS Professional version.

Work steps

1. Select the product database entry depending on the ETS version used. Please note that KNX RF

Multi devices can only be used with the ETS6 product database entry.

2. Create the repeater as a device in the ETS.

► see Creating the device in the ETS, p. 18.

3. Select and configure a data interface,

► see Data interface configuration, p. 20.

4. Select the operation mode,

► see Selecting the operation mode, p. 21.

5. In the ETS, assign the device and its individual address according to the KNX topology,

► see Programming an individual address, p. 22.

6. Set the general parameters,

► see Parametrisation, p. 27.

7. The KNX RF Multi/TP media coupler or RF repeater is now ready for commissioning using

<< Program ETS>>.

Help on the ETS is available in the integrated ETS Online Help.

Press the [F1] button in the ETS.

Commissioning and configuration

KNX RF Multi/TP media coupler or RF repeater 3-0002-005

7.2.1 Creating the device in the ETS

Depending on whether the product database entry already exists in the ETS catalogue or whether the

device is already being used in your existing project, different work steps are required in order to use the

current version.

Table 5: Work steps – creating the device in the ETS

Importing a new product database entry

Requirement: You have downloaded the product database entry (product file) from our website at

www.ise.de

1. Start the ETS and select the <<Catalogue>> tab in your ETS project.

2. Select the <<Import>> button in the toolbar.

3. In the <<Open product file>> window, open the product file and press on the <<Open>> button to

confirm your selection.

4. Follow the further instructions in the ETS. If necessary, call up the Online Help with the [F1] button.

Work steps

Device already exists in the ETS catalogue?

Yes No

Update product database.

During an update, the old product database

entry is replaced by the new one.

Importing product database entry.

There are numerous possibilities for importing

a new product database entry. Below we will

assume that you have downloaded the product

database entry yourself.

► see Importing a new product database

entry, p. 18.

Device in existing project should be updated?

Yes No

You must update the device properly so that

the existing links to group addresses are main-

tained.

► see Updating a product in the existing pro-

ject, p. 19.

Add the device to your topology in the usual

way.

Table of contents

Popular Repeater manuals by other brands

CommScope

CommScope MRx18 user manual

CYP

CYP RE-101-4K22 Operation manual

Sapling

Sapling SMA 1000 Series installation manual

GMI

GMI D1063S instruction manual

NAPCO

NAPCO ISV-REPT01 iSeeVideo installation guide

Bentel

Bentel VRP-433 installation instructions

Devolo

Devolo MT 2767 Installation

AiRocks Pro

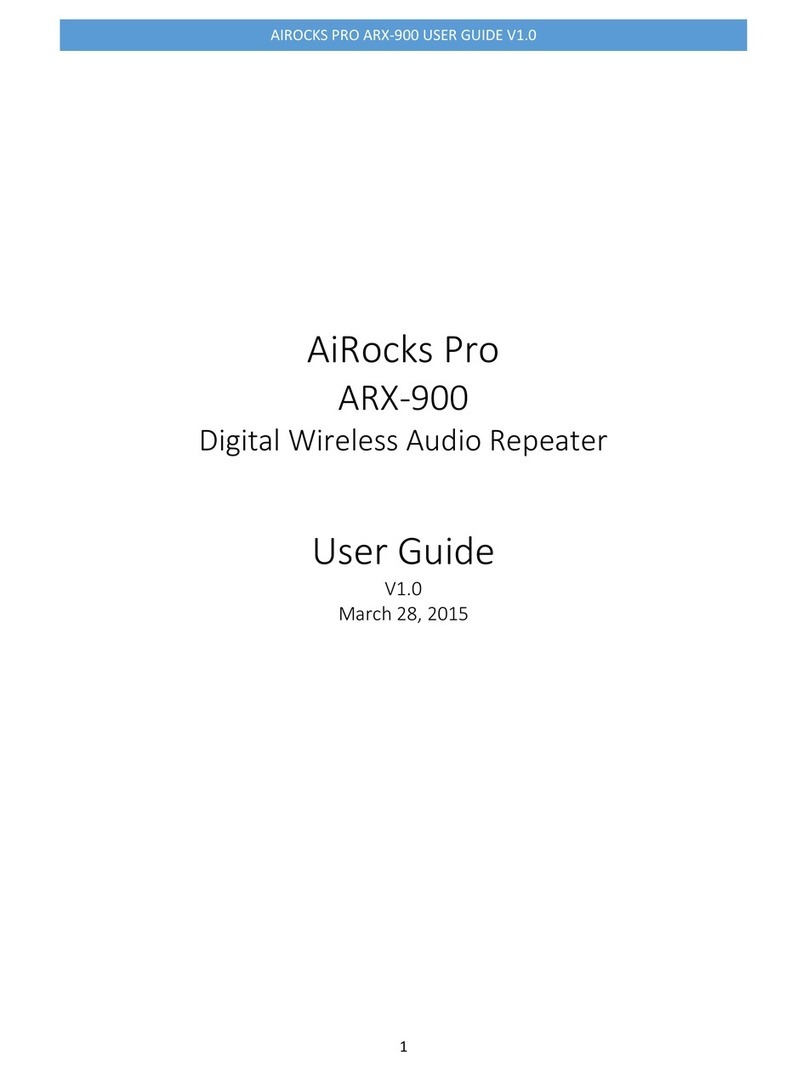

AiRocks Pro ARX-900 user guide

Newnex

Newnex FireNEX-5000C quick start guide

Bellman

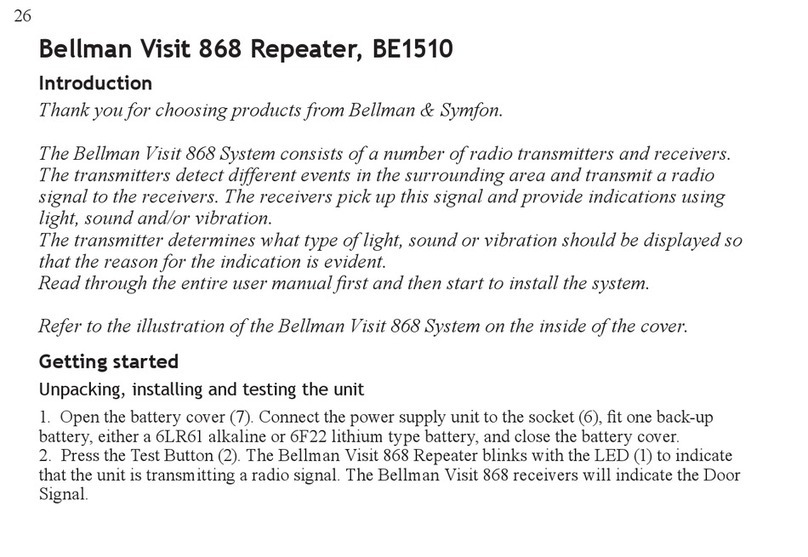

Bellman Visit 868 manual

Nikrans

Nikrans NS-2000-Smart installation guide

CEL-MAR

CEL-MAR ADA-7200 user manual

CYP

CYP CP-263D Operation manuals

REV Ritter

REV Ritter Telecomfort Plus instruction manual

golmar

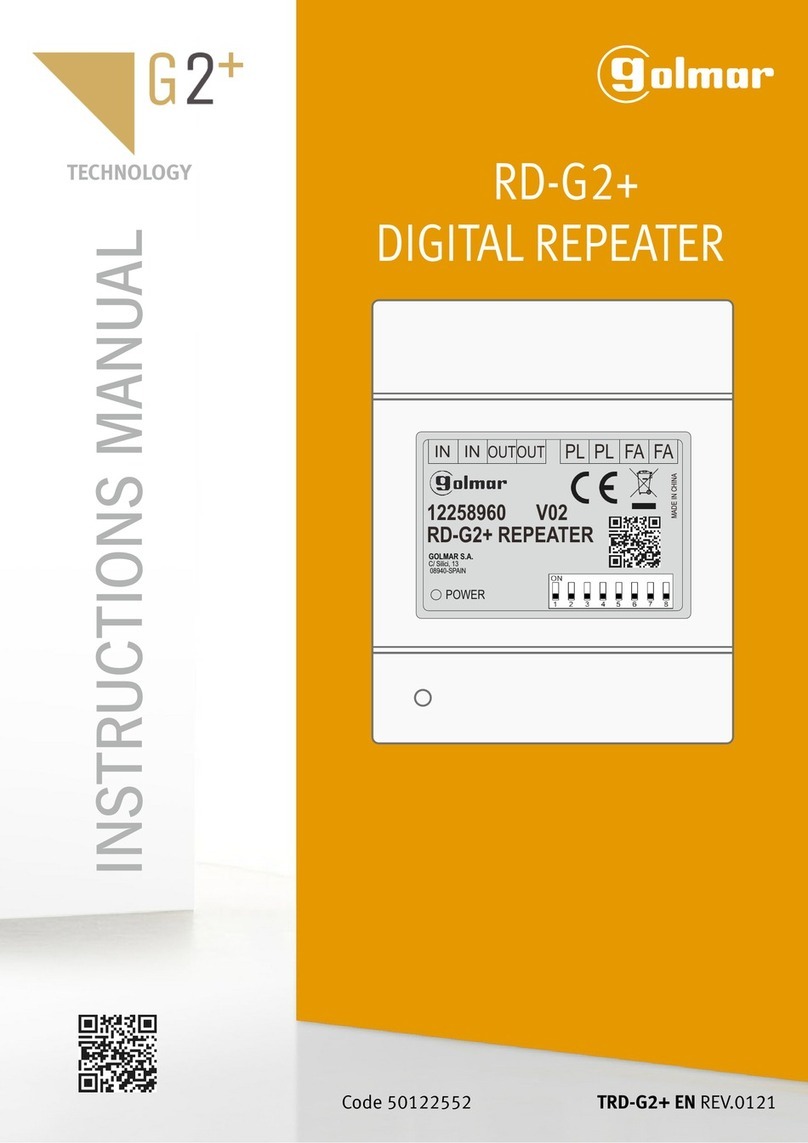

golmar RD-G2+ instruction manual

Yaesu

Yaesu DR-1 Operation manual

Hytera

Hytera RD962i owner's manual

Ihse

Ihse Draco 485-BC Quick setup

ISE 3-0002-005 User manual

Popular Repeater manuals by other brands
