Ismartgate Cam LITE Manual

INSTRUCTIONS SETUP
Notes on safe use of door operators
There is a risk of serious or fatal injury if the ismartgate device is not used correctly.
Ø Keep children away from the ismartgate and the user interface.
Ø Do not drive through the door until it has fully opened.
Ø Observe all warnings and safety information in the installation and operating manual for the operator.
Notes on safe operation of the ismartgate device.
The ismartgate device may only be used on the operator in
combination with a photocell.

CONTENTS
Legal information
Intended use

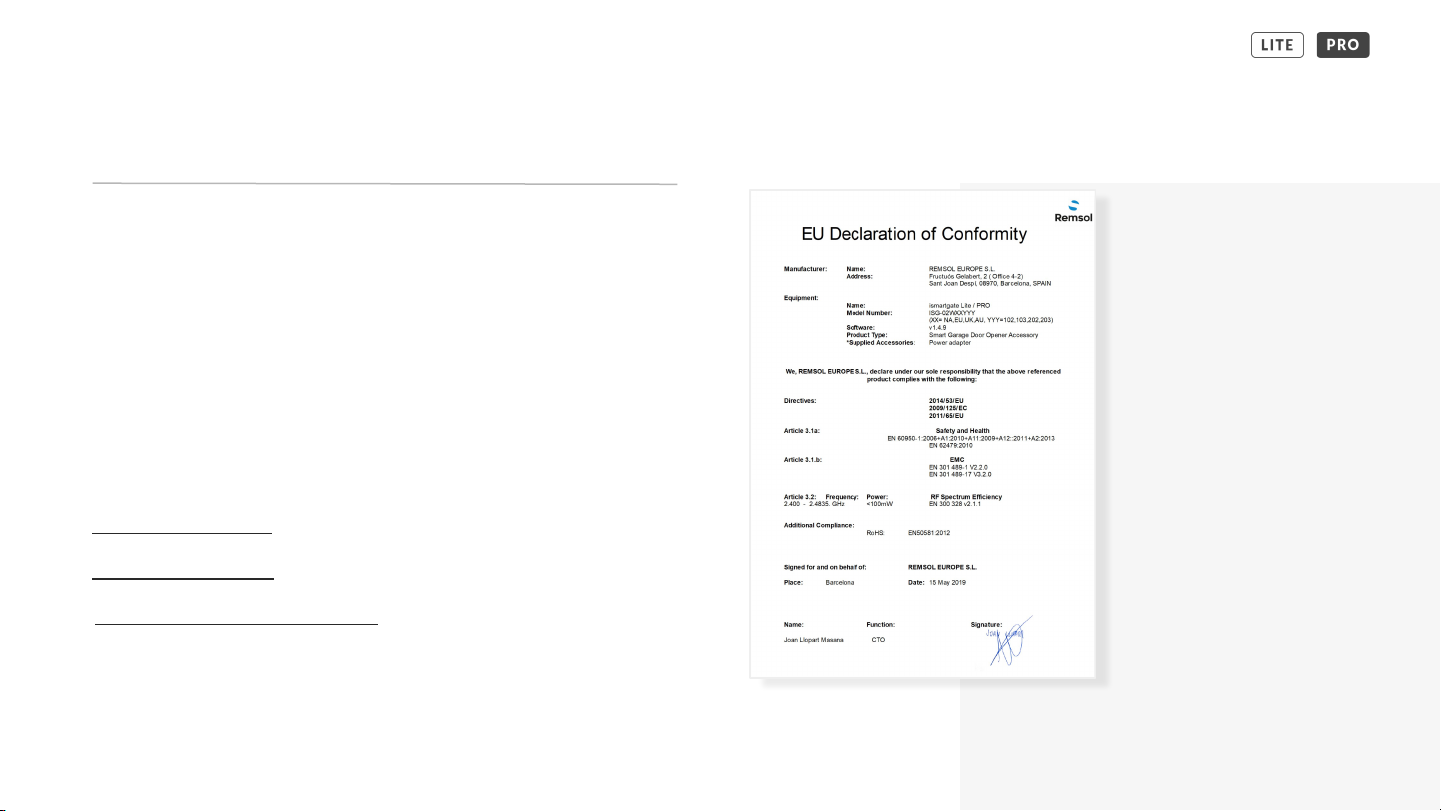

EU Declaration of Conformity
Technical Information
Functional description.
Technical Data
Interfaces and LEDs for the PRO
Interfaces and LEDs for the LITE
What’s in the Box
Considerations for installation
Download the App
Page 3
Page 3
Page 3
Page 4
Page 4
Page 4
Page 5
Page 6
Page 7
Page 11
Page 13
Ismartgate Reset
Initial operation IOS
Initial operation Android
Garage installation
Garage Motor installation
Garage Button installation
Gate installation
Wireless Gate kit sensor (GWS)
Wireless Garage kit sensor (TWS)
Wired sensor (WDS)
Page 14
Page 17
Page 36
Page 54
Page 56
Page 57
Page 59
Page 60
Page 64
Page 67
INSTRUCTIONS SETUP
2

The ismartgate may be used in combination with any compatible garage door or gate
operator.
With an established network connection, the door can be opened and closed, the current
door status and the door status by calendar day queried, settings can be made and
administrators and users managed via the user interface (Apple, Android or computer
browser).
In addition, with the corresponding accessories, a video live stream of the door system can
be transmitted to the user interface.
Any use above and beyond this is deemed to be improper use and is therefore not
permissible. Improper use will render all claims under warranty null and void.
Useful Links:
Website:
https://www.ismartgate.com/
Manual:
https://setup.ismartgate.com/
Compatibility Checker:
https://ismartgate.com/compatibility-checker/
LEGAL INFORMATION
INTENDED USE
FCC / IC Statement (USA /
Canada)
Item No.: ISG-TWS &
ISG-GWS / 2401.0
This device complies with FCC rules
part 15. The operation of this device is
subject to the following conditions:
1) This device may cause harmful
interference, and
2) This device must accept any
interference received, including
interference that may cause
undesired operation!
INSTRUCTIONS SETUP
3

The ismartgate serves as an interface between end devices such as a PC (browser), Tablet or
Smartphone (Android and iOS) and any compatible garage door or gate operator. Up to three (3)
operators can connect to one (1) ismartgate Pro and one (1) door operator to one (1) ismartgate
LITE. The ismartgate devices are then connected to a network using Wi-Fi or LAN.
This enables communication with the operator via a graphical user interface. Among other
things, the door status can be queried and access rights assigned to users*. A web cam can be
integrated via a plug-in and the door status transmitted per live stream to the user interface.
*10 users free of charge, while a paid plug-in allows you to add 100 or an unlimited number of users.
TECHNICAL INFORMATION
FUNCTIONAL DESCRIPTION
The connection can be established in two ways:
Client Mode (Standard):
The ismartgate is integrated into the home network via Wi-Fi. The end device must have a data
connection with adequate bandwidth. This allows you to access and operate the user interface via
the app or a browser from any location where the data connection is available.
Access Point Mode (Stand-alone):
The ismartgate functions as a Wi-Fi access point if no home network is available. A router is not
required. The device can not switch automatically to the access point mode from Client Mode.
Access to user interface is only possible within the Wi-Fi radius. Remote Control is not possible.
INSTRUCTIONS SETUP
4

ismartgate PRO
INTERFACES & LEDS
INSTRUCTIONS SETUP
5
4 pole connector (for wired sensors)
Speaker
Double LED light
Homekit QR Code (DO NOT
REMOVE)
FRONT VIEW BACK VIEW LEFT SIDE RIGHT SIDE
Network RGB
Light
Power Light
Status Light
Wall Hanger
DC Power Connector (5V2A)
Reset Button
2 pole connector (for pre-assembled cable
connectors)
USB Port (Type A)

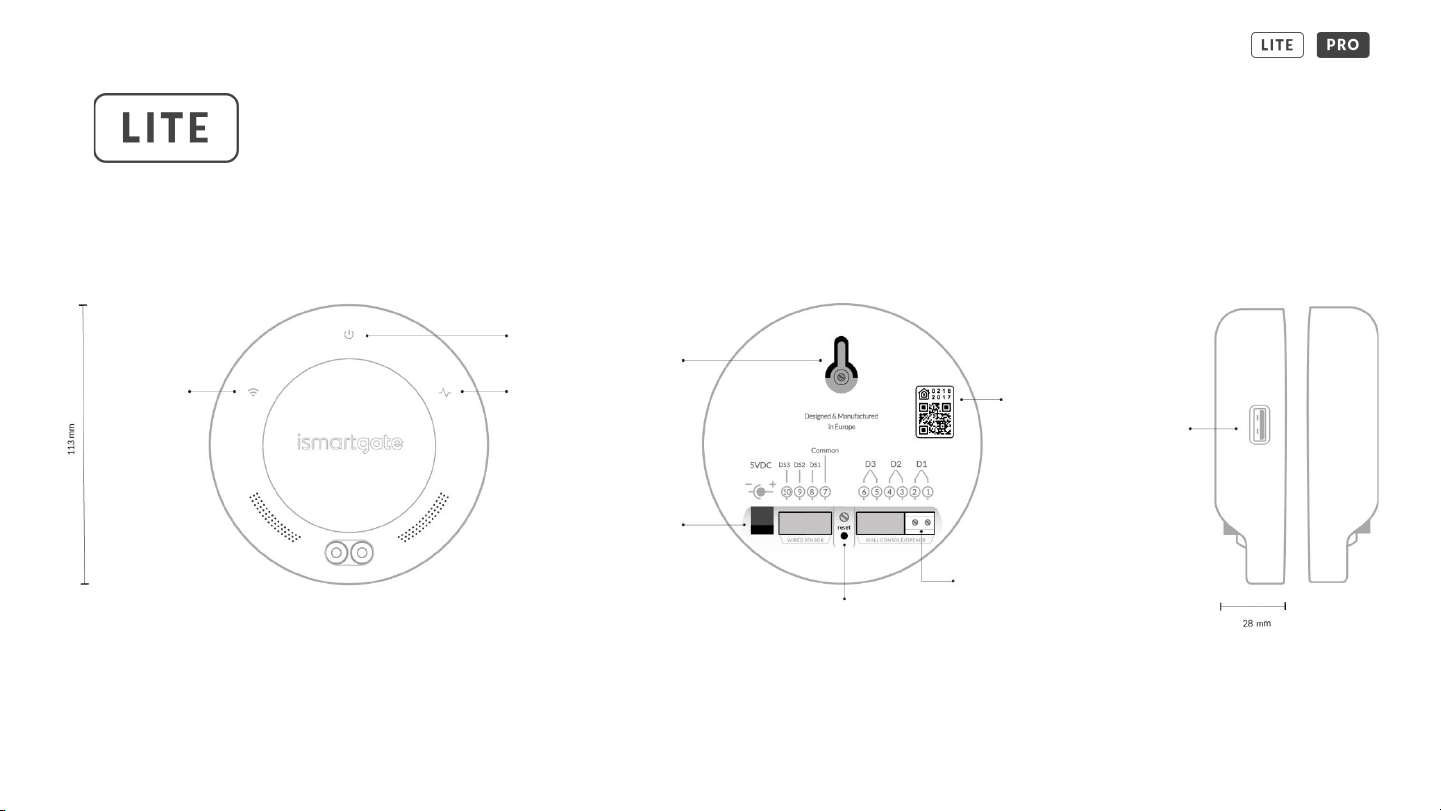

ismartgate LITE
INTERFACES & LEDS
INSTRUCTIONS SETUP
6
Homekit QR Code (DO NOT
REMOVE)
FRONT VIEW BACK VIEW LEFT SIDE RIGHT SIDE
Network RGB
Light
Power Light
Status Light
Wall Hanger
DC Power Connector (5V2A)
Reset Button
2 pole connector (for pre-assembled cable
connectors)
USB Port (Type A)

WHAT’S IN THE BOX
ISMARTGATE PRO GARAGE KIT
INSTRUCTIONS SETUP
ismartgate PRO
Garage Kit
7
ismartgate PRO Wireless Sensor
(ISG-TWS) 3x Connection Cables LR1/Type-N 1.5V
Batteries
Power Supply Quick Start Guide

WHAT’S IN THE BOX

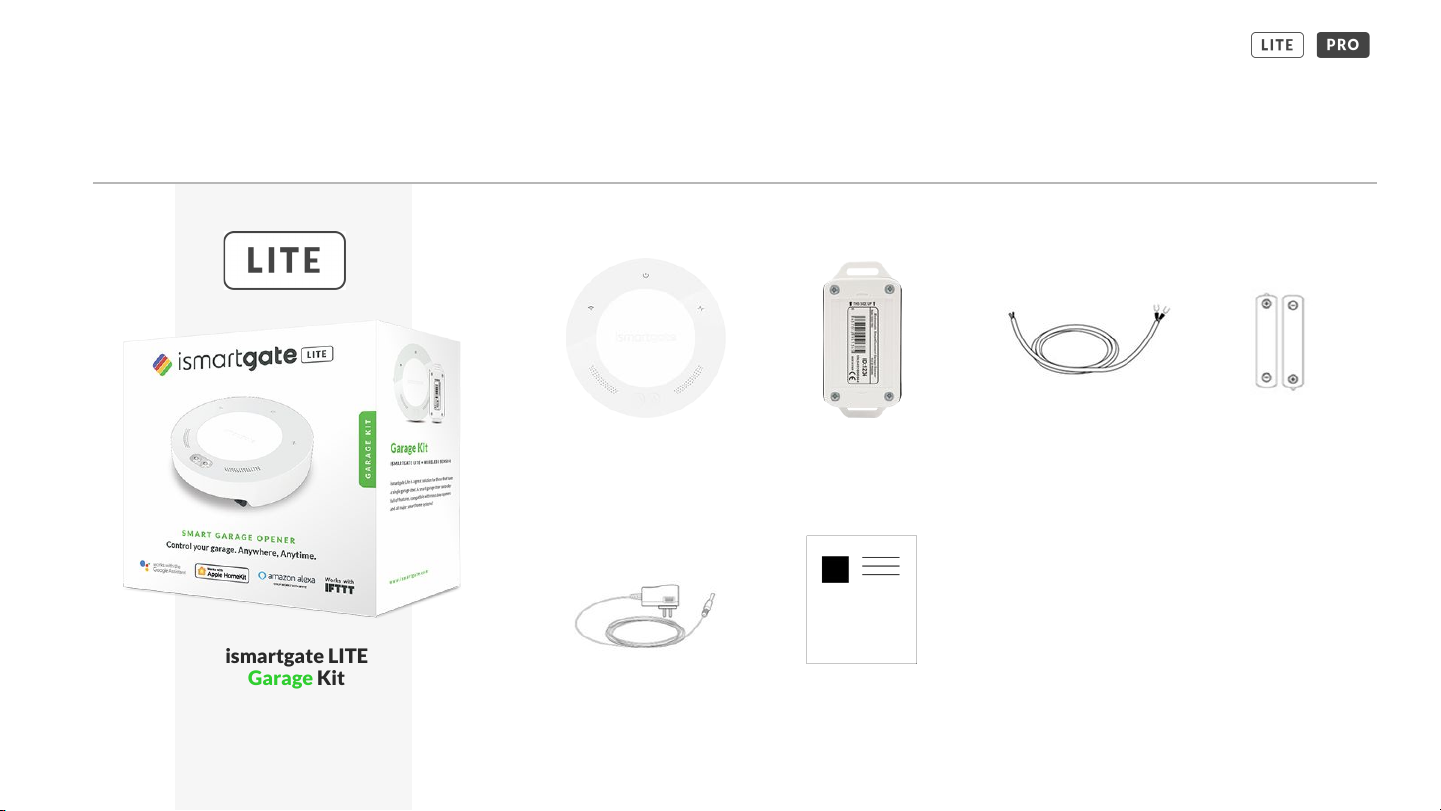

ISMARTGATE LITE GARAGE KIT
INSTRUCTIONS SETUP
ismartgate LITE
Garage Kit
8
ismartgate LITE Wireless Sensor
(ISG-TWS) 1x Connection Cables LR1/Type-N 1.5V
Batteries
Power Supply Quick Start Guide

WHAT’S IN THE BOX

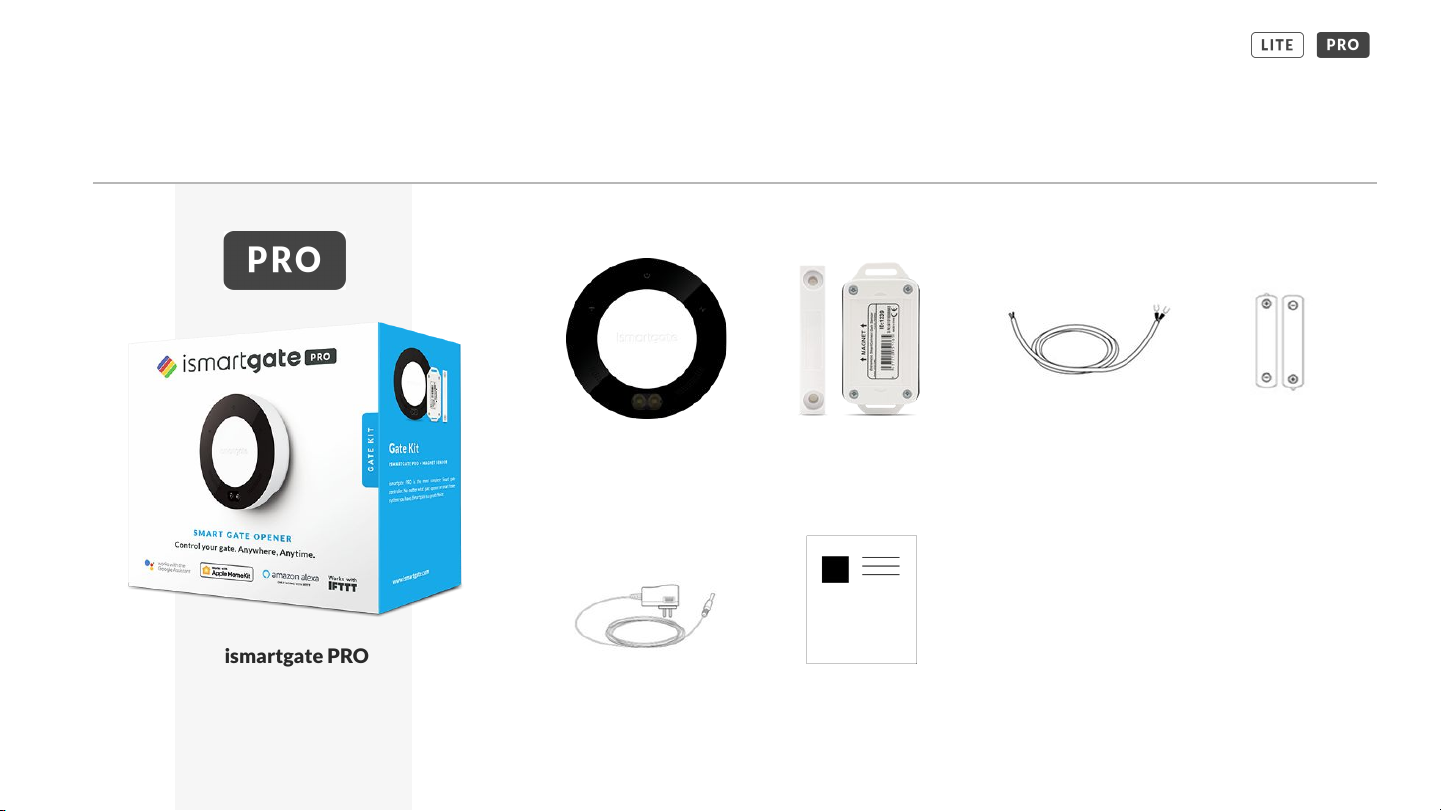

ISMARTGATE PRO GATE KIT
INSTRUCTIONS SETUP
ismartgate PRO
Gate Kit
9
ismartgate PRO Wireless Sensor
(ISG-GWS) 3x Connection Cables LR1/Type-N 1.5V
Batteries
Power Supply Quick Start Guide

WHAT’S IN THE BOX

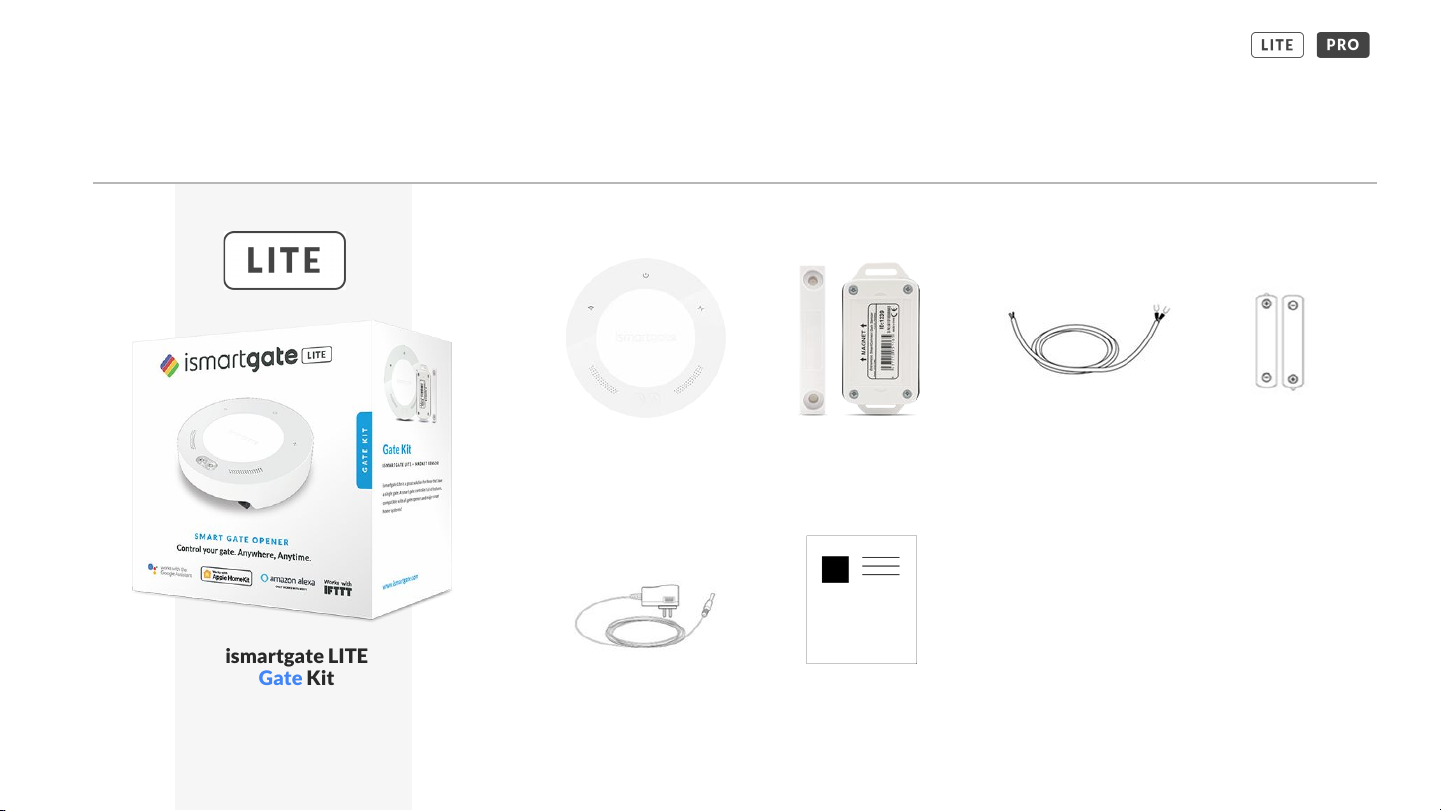

ISMARTGATE LITE GATE KIT
INSTRUCTIONS SETUP
ismartgate LITE
Gate Kit
10
ismartgate LITE Wireless Sensor
(ISG-GWS) 1x Connection Cables LR1/Type-N 1.5V
Batteries
Power Supply Quick Start Guide

CONSIDERATIONS FOR INSTALLATION
SETUP ENVIRONMENT
INSTRUCTIONS SETUP
1. PC (Laptop) :
Use your laptop to follow this manual
instructions.
2. Smartphone :
To program ismartgate from the app.
3. Router: To make sure there is a strong
Wi-Fi (2.4GHz Network) during
programming.
5. Desk: Flat surface to program the
ismartgate device.
4. Power Outlet: To power on your
ismartgate device.
We recommend programming the
ismartgate in a room close to home
main Wi-Fi router, in a clean
surface like a desk. It is also
recommended to have both a
Smartphone and PC. Finally make
sure you have a power outlet close
by, where to power on the
ismartgate device.
11

CONSIDERATIONS FOR INSTALLATION
ISMARTGATE PLACEMENT
INSTRUCTIONS SETUP
Make sure ismartgate is
placed in the area with
50% or more Wi-Fi signal
strength.
Wi-Fi must be 2,4Ghs-802.11 b/g/n
(NOT 5Ghz - 802.11 ac)
Device can be placed next to
Garage Door opener or Wall
Mounted Push Button
12
Wall Button + ismartgate
Door motor + ismartgate

PROGRAMMING ISMARTGATE
Download APP (ismartgate Access)
INSTRUCTIONS SETUP
Download the “ismartgate
Access” APP for your
iPhone/iPad or for your
Android phone.
13

RESETTING ISMARTGATE
INSTRUCTIONS SETUP
With the help of a paperclip,
press the RESET button for
about 10 seconds.
1
THE DEVICE MUST BE POWERED ON
14

RESETTING ISMARTGATE
INSTRUCTIONS SETUP
To check RESET has been
successful, turn the ismartgate
device to the front and check
that “Connection & Status”
lights are off.
2
THE DEVICE MUST BE POWERED ON
15
DEVICE
STATUS
OFF
CONNECTION
STATUS
OFF

RESETTING ISMARTGATE
THE DEVICE MUST BE POWERED ON
INSTRUCTIONS SETUP

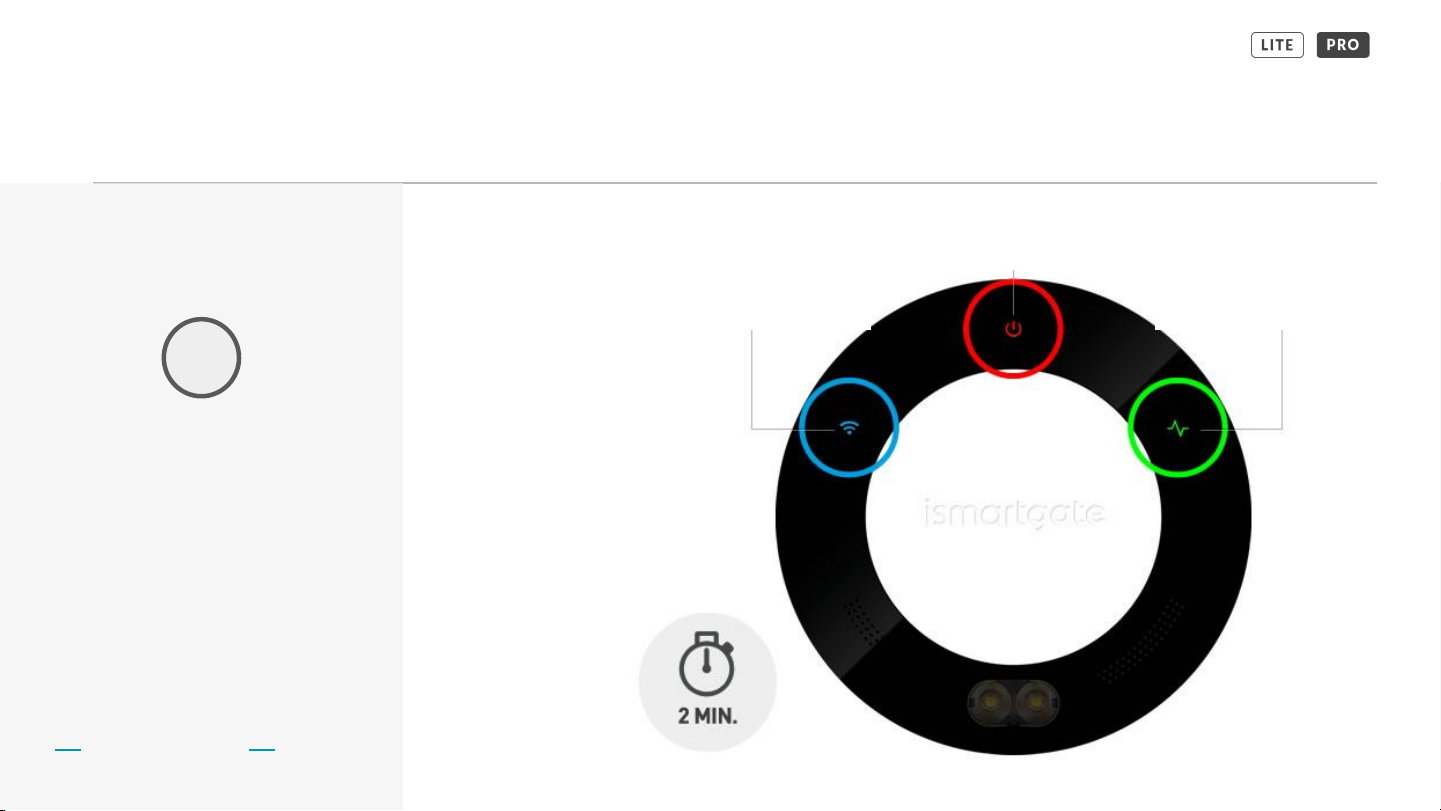

Wait 2 minutes until you see
blinking:
●Status green light
●Power red light
●Wi-Fi blue light
Then re-program the ismartgate.
If RESET is successful, re-program
the ismartgate device, go to page
36 for Android, and 17 for iOS
3
16
CONNECTION STATUS
BLUE
POWER STATUS
RED
DEVICE STATUS
GREEN

PROGRAMMING ISMARTGATE (iOS)
INSTRUCTIONS SETUP
On your phone, look for the logo of the
ismartgate app and click on it to open the
app
Wait for the introductory screen to go
away.
Press “No, Thanks”
ISMARTGATE ACCESS APP SETUP
17

PROGRAMMING ISMARTGATE (iOS)
INSTRUCTIONS SETUP
Press “Start Configuration” Power up the ismartgate. Afterwards,
press “Model Pro/Lite”
Wait 2 minutes until a sound comes on
(only in the PRO version). And Select
“Next”
ISMARTGATE ACCESS APP SETUP
18

PROGRAMMING ISMARTGATE (iOS)
INSTRUCTIONS SETUP
Connection light blinks blue Connection light blinks green Connection light blinks red
You only have 15 minutes to start the
configuration, if the light starts blinking red,
please unplug the device and plug it in
again.
Please go to page 20
Please go to page 14Please go to page 26
PLEASE LOOK CAREFULLY AT THE NETWORK LIGHT OF THE ISMARTGATE
19

PROGRAMMING ISMARTGATE (iOS)
INSTRUCTIONS SETUP
Press “No” 1. You should now leave the ismartgate app
2. Go to the “Home” app and follow the steps
from this animation above.
20
HOME APP SETUP
