Issyzone 58MM User manual

Instruction Mannual 58MM Portable MINI Thermal Printer
1 2
Notes on safety
This section presents important information intended to ensure safety
and effective use of the printer. Please read carefully.
Be sure to use the specified battery and power source provided by our
company. Connection to an improper power source may cau se fire ,
explosion or damage to the printer.
Don’t put the battery into the fire or water, don’t disassemble or modify
the battery, don’t be short circuit, otherwise may result in injury or fire
even explosion.
If the printer would not be used for a long time, be sure to take off the
battery, otherwise the battery may leak the corrosive liquid o ut, if
improper o p e ration causes battery leak, and the liquid is spattered on
the skin or clothes, please wash it with water immediately, if spattered in
the eyes, please rinse t h e m with water thoroughly and see a doctor.
Please don’t open the paper room cover when it is printing or just when
printing is over, do not touch the print head with hand or body, overheat
may cause scald.
Notes on using
1、 Do not store the printer in hot and humid conditions.
2.、The lithium battery have a character that if it is not used for several months,
i t possibly can’t be charged ever.
3、 The printer’s power adapter is to be connected to a stable power 110~220
Volts, please do not use other devices on the same power socket, to avoid
voltage fluctuations.
4、Avoid water or conductive material (for example: metal). If water is present
on the surface please turn off the power immediately.
5、 Please ensure that a thermal paper roll is always inserted in the printer to
avoid damaging the printing roller and the printer head.
6、 Please ensure that your printer is serviced and repaired by a qualified
technician. No responsibility is taken for misuse and/or non-qualified
servicing.
7、The power adapter that comes with this printer is specifically designed to be
only used with the printer, please do not use an alternative power adapter.or
use 9V-2A The standard power adapter.
8、In order to ensure print quality and longevity of your printer, please ensure
that only good quality thermal paper rolls are used.
9、Please keep this manual in a safe place, where it can be accessed easily
and used for your reference.
1.Features & Application area
一．Features
It can print 58mm width thermal paper
Paper dimensions 50mm
High-speed,Clear printing
Super power lithium electricity, standby time can reach 5-6 days
Auto sleep, auto awake, save electricity
Small size、light weight、reliable performance、simple to connect、
easy to use
二．Application area
Compared to the traditional thermal receipt printer, Mini printer h as
smaller body, more reliable capability, more steady printing and portable
advantages. The Mini printer can work on a lot of locations , such as the
TAXI bill printing, administrative fees receipt printing, post receipt printing,
restaurant ordering information printing, online payment information
printing, etc. With the rapid popularity of smart-mobile, Mini printer will be
more widely used in the near future
2.Specification
PrintingMethod: Direct Thermal
Speed:90mm/sec
Reliability TPH Life: 100km
Resolution: 203DPI (8dot/mm)

34
Instruction Mannual 58MM Portable MINI Thermal Printer
Printing Width: 48mm (384dot)
Paper Width: 58±01mm
Roll Diameter: φ≤50mm
Paper Type: Thermal Paper
Power: rechargeable lithium battery/NI-MH battery
Battery: 7.4VDC, 1500mAh
Charging mode: DC 9V/1.5A
Print parameters: support to download the Logo trademark, support bar-code
print.
Support bar-code types: UPC-A / UPC-E / JAN 13 (EAN13) / JAN8 (EAN8) /
CODE39 / ITF / CODABAR / CODE93 / CODE128 ; Two-dimensional code:
QR CODE
Character size: 384 dots/line
FontA:12*24dots,1.5(W)*3.0(H)mm
FontB: 9*17dots, 1.1(W)*2.1(H)mm
Simplified/Traditional:24*24dots,3.0(W)*3.0(H)mm
Printing Chinese character: Chinese: simplified Chinese 24x24 point. support
18030 font library, support Taiwan and HK traditional(complex font) ANK: ANK
characters
Language: support for multiple languages
(Support Traditional, Korean, Japanese, etc. must be instructed before
purchased )Extended character table:
OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe/Greek
/Hebrew/EastEurope/Iran/WPC1252/OEM866/OEM852/OEM858/IranII/
Latvian/Arabic/PT1511251/OEM747/WPC1257/Vietnam/OEM864/Hebrew/
WPC1255/Thai
3.Appearance
Model: IMP001
Size:11.4*90*5 2mm
Weight:16 4g(Bithout Battery)
Emulation: ESC/POS/STAR command
Interface: standard RS232/USB, Bluetooth 2.0&4.0(option)/SPP agreement
or infrared/IRCOMM agreement (optional)/Android up to 4.0 operation system.
Driver: Win2003/Win2000/Win7/WinXP/VISTA/Win8/ LINUX
Working Temperature: -10～50℃ ; Humidity: 10～90%
Win10/

5 6
Instruction Mannual 58MM Portable MINI Thermal Printer
4.Communication Interface
1. RS232(COM)：standard RS232 Communications Protocol
2. IMP001A Bluetooth 2.0：standard Bluetooth 2.0 Android Devices
IMP001B Bluetooth 4.0：standard Bluetooth 4.0 IOS Devices
IMP001C Multimode Bluetooth：support 7 Android Devices and 1 iOS
Device
3. USB：standard USB Communications Protocol
4. Two-mode Bluetooth: General Bluetooth2.0 / 4.0 Communication Protocol
RS-232 is developed according to the EIA standard asynchronous
transmission, the specifications are as following:
Data transmission: serial interface
Synchronization: asynchronous
Signal Level: RS-232 level, logic 1:-5.4v, logic 0 : +5.4v
Hardware Flow Control: None
Baud rate: 2400pbs to 115200pbs is optional
Data word length: 8 bits
Stop bit: 1bit
Parity: None
4-1. RS-232 Serial (COM) Interface
Users can get the current baud rate from the printer self-testing page.
Serial cable: We have made the cable specially using mini port like Mini
USB port which connects the printer .The following picture shows the
signal definition of the RS-232 Serial interface:
The connection between the printer and host follows the following
rules:
Printer
TXD
RXD
GND
Host
RXD
TXD
GND
Printer
RXD
GND
Host
TXD
GND
However, the printer usually works only on r eceiving data, it doesn’t
have to respond anything back to the host , then TXD signal can be ignored ,
and then the connection can be sampled as following:
Bluetooth is a proprietary open wireless technology s tandard for e xchanging
data over short distances (using short-wavelength radio transmissions in the
ISM band from 2400–2480 MHz) from fixed and mobile devices,c reating personal
area networks (PANs) with high levels of security.
4-2. Bluetooth Connection
4-2-1. Bluetooth specification
Using blueCore4-Ext chipset, fully compatible with Bluetooth 2.0;
High-sensitivity receive signal, small size, lower consumption
Supporting 1200bps ~ 1382400bps variety of baud rate;
Supporting SPP agreement, the maximum transfer speed is up to 3Mbit / s;
4-2-2. Use “AT” command to modify Bluetooth Module’s parameters
Notice: The following changes can’t be done by user, these should be
done in factory by Manufacturer. So if user wants to change these parameters,
please inform our sales person before ordering our printers.
Modify name---Send character string “AT+NAMEXXXX, feedback “Okname”;
For example, if you want change name to “Bluetooth Printer”, please
send string “AT+NAME Bluetooth Printer”.
Modify PIN code--- Send character string “AT+PINXXXX, feedback “Oksetpin”;
For example, if you want change PIN code to “8888”, please send string” AT
+PIN8888”.

7 8
Instruction Mannual 58MM Portable MINI Thermal Printer
(Note: Default PIN code is “1234”, you only can reset PIN code with four
figures.)
Clear Bluetooth address--- Send character string “AT+CLR00”, feedback
“Okclear”;
Modify baud rate--- Send character string “AT+BAUDX, feedback “Ok+
current baud rate”; X represents the baud rate code, as following:
1-----1200 7------ 57600
2----- 2400 8------ 115200
3----- 4800 9------ 230400
4----- 9600 A------ 460800
5----- 19200 B------ 921600
6------38400 C------1382400
For example, if you want to change baud rate to 115200bps, please send
string “AT+BAUD8”.
4-2-3. Build connection.
1. Turn on the printer;
2. Search for the Bluetooth device with host device;
3. If there are other Bluetooth devices, please select “LY58”(for example)
printer;
4. Enter default pairing code “1234”
5. Pairing succeed.
4-3. USB Interface
The printer is connected by standard Mini USB cable(included in accessories)
for communication. The USB type belongs to slave device type.
5.The installation of the paper roll
The printer use 58MM thermal paper, and adopt to easy paper loading. So
the paper is very convenient install.
Paper diameter Max 50mm.
Thermal paper installation method is as follows:
（1） Open the printer top cover
（2） Thermal Paper as follow Graph to put into paper storehouse
（3）Put out a little of the paper outside printer,then close the top cover.
（4）Use paper sawtooth tear off redundant paper
Button Operating Instructions
POWER（Blue Light） FEED（Red Light ） Printer Status
ON（Always） ON（Always） Printer have paper
OFF OFF Printer Close
ON（Always） OFF Printer open and have paper
ON(Always） Flash Printer Open , without paper
Under the normal working status, the paper feeding
begins when press 【FEED】 button, and stop when
loosen【FEED】 button.
The printer paper feed
Power off the printer, then hold down the【FEED】
button and press the power button at the same
time. Wait 2 seconds ,then loosen the【FEED】
button,the current setting will be printed out.
The printer Self test
Power off the printer, then hold down the【FEED】
button and press the power button at the same
time. Wait until the power indicator &【ERROR】
led are both on, and then 【ERROR】led goes off,
then loosen the【FEED】button, the language
setting status will be printed out.
Transformation in both
English and Chinese

91 0
Instruction Mannual 58MM Portable MINI Thermal Printer
Power off the printer, then hold down the【FEED】
button and press the power button at the same
time. Wait until the power indicator &【ERROR】
led are both on, and then 【ERROR】led goes out,
after, 【ERROR】led goes on again ,then loosen
the【FEED】button, the density setting status
will be printed out. (It has three levels setting for
printing density, it is a circle Low level Middle
level High level Low level…, Please switch
the density status by repeating operation presented
above.)
Set printing density
Power off the printer, hold down the【MODE】
button and press the power button at the same
time. Wait until the power indicator &【ERROR】
led are both on, and then 【ERROR】led goes
Hexadecimal printing
6.Operating Manual for Android iOS
This manual applies to all of our android OS compatible printers ( both
58mm & 80mm width printer)
Currently, the common communication ports we used for android OS are
( USB、Ethernet、Bluetooth and WiFi )
If you want to use Android Device connected with our printer, first of all
make sure that printers can be supported Android Operate System, proceed
as follows ( Bluetooth as example):
Step 1:
- Insert the CD driver disc into the CD-ROM, connect your cell phone with your
computer;
Step 2:
- Find the File Named “ SDK” from the CD driver, Then follow the path :
“ BLUETOOTHDEMO ----bin----PrintDemo.APK “ , install it in your Android
phone. (Default pairing password for Bluetooth connection is “ 1234” )
Step 3:
- Connect your cell phone with our printer once installation done .
Step 4:
- Find this icon and open it. (Ethernet interface need to enter the IP,
you can g et it from the self-test page, WIFI need to enter your IP of own
setting), click on the "Connect Printer" after the connection successfully, click
on the "Print Test Page", the printer will work.
If you use the "Ethernet interface", "USB", "WIFI" communication, set "
BluetoothDEMO" from "Step 2" into the corresponding "NETDEMO",
"USBDEMO"and "WIFIDEMO".
Customer can get all the original code from below path if you need to
develop your own APK ( Path is: )
src com zj printdemo
7.Operating Manual for iOS APP
1.Download the Test Tools “POS-Printer” from App Store,as below:
(Image 1)

1 1 1 2
Instruction Mannual 58MM Portable MINI Thermal Printer
2. Turn on the Apple mobile Bluetooth , then click “POS-Printer”:
(Image 2)
3. In“POS-Printer” APP, search and select the “BlueTooth Printer”
(Image 3)
4.Connect successful, put content into Edit Box to test printing.
Test: Text(font size can be modify), 1D/2D Barcode, Image etc.
(Image 4)
8.The Bluetooth configuration
Step1: Make sure your device ( like PC, Note Book ) has Bluetooth function,
then once the Bluetooth for your device is activated, you will see the Bluetooth
sign showed in the right bottom side of your device(like PC) screen.

1 3 1 4
Instruction Mannual 58MM Portable MINI Thermal Printer
Step2:Power on the Bluetooth printer.
Step3:To add the Bluetooth printer, please left-click the click “Add
a Bluetooth Device” ,then you will enter wizard screen , please choose “My
device is set up according and ready to be found”click “Next”(showed as below).
Step4:if you can see screen as below,then the device is searching the bluetooth
printer,please wait.
Step5:Once the Bluetooth printer is found. You can see it listed on the screen,
click “Next”
Step6:Choose “Let me choose my own passkey”, then enter “1234” ( this is
factory default passkey, if you want to change it, you have to inform us to
set the new passkey for you in our factory before shipping), t hen click “Next”.
Step7:if you can see the screen as below, that means the Bluetooth printer is
already connected. Please notice the assigned COM ports ,then Click”Finish”.

1 5 1 6
Instruction Mannual 58MM Portable MINI Thermal Printer
(Note: The Bluetooth device will automatically assign a COM port.)
Step8: Now if you want to test if the printer is OK to print, you could use a com
tool , and send printed data to Outgoing COM port( just as above image shown:
COM5).
(Com tool setting is 9600,N,8,1.)
9.How to use the port of USB
1.Insert the CD-ROM,click on the file (POS Printer Driver Setup) to star
installation ,select the language appears as you need to install the driver,
as shown below:
2.Then select the language click “OK”,as shown below ,click”Continue”to next step.
3.please read the following License Agreement ,accept and continue the
installation , as shown below:
4.Click :Next”after the operation in the below figure(Customer can also modify
the path of the driver can choose the default installation path)

1 7 1 8
Instruction Mannual 58MM Portable MINI Thermal Printer
5.Then click”Next”after the operation as shown below ,choose “install”, if you
computer has antivirus software ,appears to block the installation of the
windows allow this operation.
6.Wait for the installation interface appear as follows after the completion ,
choose your computer’s operating system ,then select the printer model
(POS58 series printer),if you use a USB interface to communicate , click
“USB Port Check”automatically recognize the computer USB port ,click
Next to continue ,as shown below:
7.Click Begin Setup ,as shown below appears ,select “install”or “ install this
driver software anyway”

1 9 2 0
Instruction Mannual 58MM Portable MINI Thermal Printer
8.Completing the driver installation ,as shown below:
If the printer prints a normal page, then it shows that the work was successful.
Note: If the printer prompts "Print Error", please return to the "port" option from
the "USB001" started trying to choose
10. Serial (COM) port configuration
1. Open the Printer Properties screen, and then select the "Port" item, as shown
below:

2 1 2 2
Instruction Mannual 58MM Portable MINI Thermal Printer

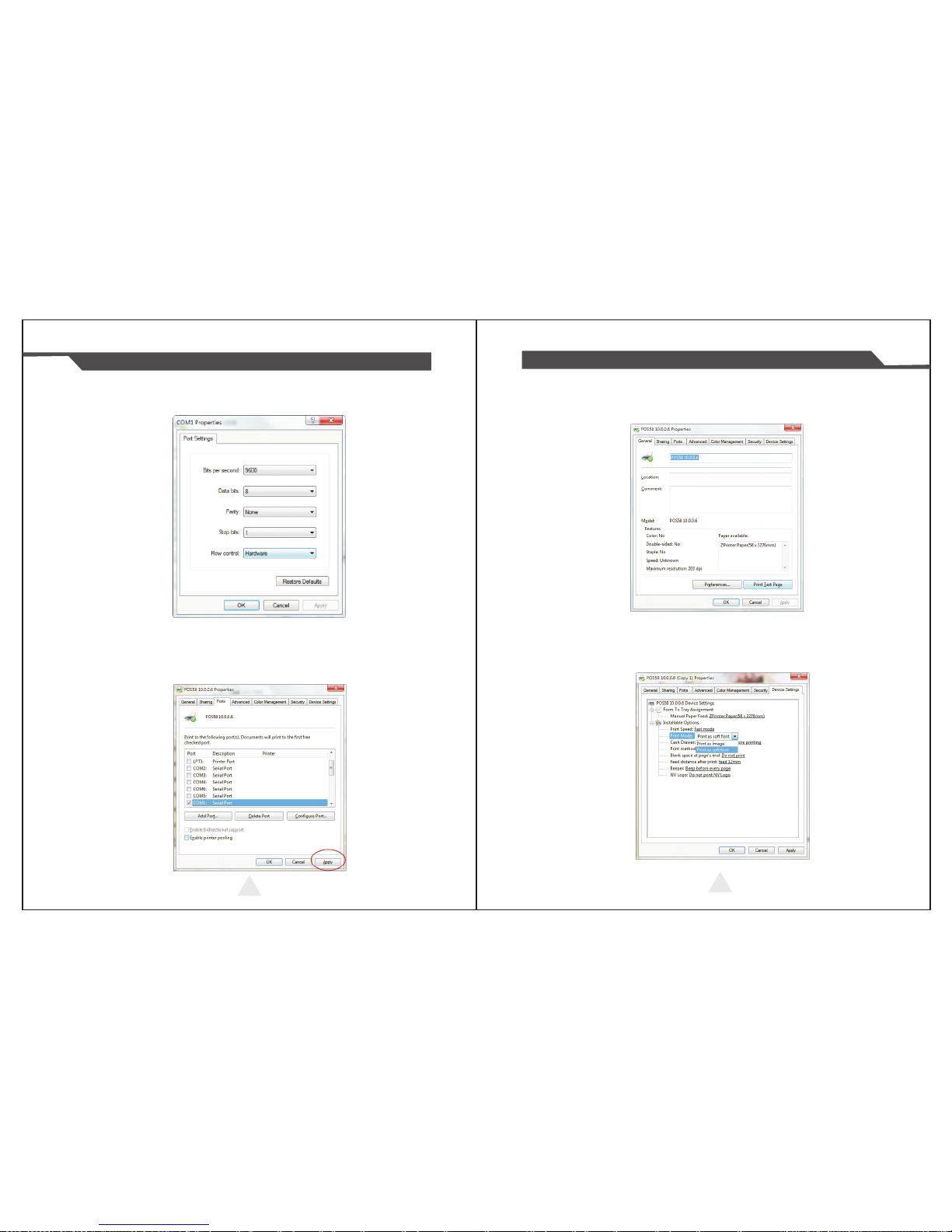

2.Select the list of ports "COM1" → " Configure Port", the printer factory
default settings as shown below:
You can see the setting parameters of serial port from self-test page, Click
"Apply", then click "OK" (Note: This setting must consistent with the setting
parameters of serial port from the printer self-test page, otherwise it will be
garbled case) appears as shown below:
Click "Apply" again.
3.Return to the "General" tab, click "Print Test Page" as shown below:
If the printer prints a normal page, then it shows that the work was successful.
If you feel the print speed is slow, please click on the "Device Settings" →
" Print Mode" → Choose "soft font" button as shown below:

2 3 2 4
Instruction Mannual 58MM Portable MINI Thermal Printer
11.Cleaning of printer head
Cleaning of printer
The printer does not print clearly and the thermal paper is Ok.
The printer Print pages lengthways is not clear
It’s getting too noisy while feeding paper or printing.
When the printer has the following conditions, you should clean
the printer head:
1
2
3
Printer head cleaning steps are as follows:
1. Power off the printer and open the paper room cover. Remove the
thermal paper roll.
2. If the printer just finished printing , please wait for the print head to
cool down.
3. With a soft cotton cloth dipped in ethanol (please make sure there is
no dripping), wipe the thermal printer head gently and remove any
dust or stains.
4. Wait for the complete evaporation of any ethanol, then place the
thermal paper roll back in the printer and close the paper room cover,
then print a test page.
Notes：
When the printer maintenance must ensure that the power is shut down
Hands or other metal tools away from the surface of the printer head,
do not u se tweezers to scratch the surface of the printer head and
other sensitive p a rts.
Do not use gasoline, acetone and other organic solvents for printer
head cleaning.
12.General Troubleshooting
2: Self printing test is ok,but printer does not work after driver installation.
A: Recheck the installation according to above installation wizard and see
if we selected the right port or ask service center for advice if needed.
3: Malfunction of paper feeding?
A: Use soft brush to clean the paper sensor and try again or send it to the
service center for repair.
4．Malfunction of the indicator light
A: Check the cable connecting way / adapter / power cord / switch on or off?
Or contact the service center for repair.
5．Messy code printing except Arabic numeral printing.
A: language switching incorrectly,please turn on the SW-4 switch on the DIP
switches.
6．Red indicator keep flashing during the printing.
A: Usually it is due to the high temperature of the print head. If printing stopped,
please contact the service center for repair.
7. Printing speed is very slow for serial printer
A: follow this path and change the set accordingly : Driver -- Properties -- Device
Settings -- Print Mode -- Print as soft font.
1: Why serial port printer printing messy code?
A: Ensure the baud rate setting in the PC is same as the printer baud rate.
( we can see printer baud rate from self test page)
8. Water or other liquid spills into the printer
A: Cut off the power,we can dry the main board or printer head with a hair dryer,
careful of the temperature ( average 50 degree is ok )
9. The printer can't open
A：The battery maybe without electricity，please use power adapter to
charge. Then you try to open the printer, if the printer has same problem, please
send to service center for repair.
10. Do not search to Bluetooth
A：Please check the main equipment "Bluetooth" whether opened, the
communication whether normal, then plug the printer "Bluetooth Module"
again. the printer re-connect, if there are problems, please send the specified
location repair.
