Itm Holemaker PRO 35 AUTO User manual

PRO 35 AUTO
OPERATOR’S MANUAL
www.itmtools.com.au
Ver: 2.0
Part No.
HMPRO35AUTO
PRO 35 AUTO
MAGNETIC BASE DRILLING MACHINE
OPERATOR’S MANUAL

PRO 35 AUTO
OPERATOR’S MANUAL
2www.itmtools.com.au
LIMITED WARRANTY
Industrial Tool & Machinery Sales (hereinafter referred to as ITMS) will, within twelve (12) months from the original date of
purchase, repair or replace any goods found to be defective in materials or workmanship.
This warranty is void if the item has been damaged by accident, neglect, improper service or other causes not arising
out of defects in materials or workmanship. This warranty does not apply to machines and/or components which have
been altered, changed, or modified in any way, or subjected to overloading or use beyond recommended capacities and
specifications. Worn componentry due to normal wear and tear is not a warranty claim. Goods returned defective shall be
returned prepaid freight to ITMS or agreed repair agent, which shall be the buyer’s sole and exclusive remedy for defective
goods. ITMS accepts no additional liability pursuant to this guarantee for the costs of travelling or transportation of the
product or parts to and from ITMS or the service agent or dealer, such costs are not included in this warranty.
Our goods come with guarantees which cannot be excluded under the Australian Consumer Law. You are entitled to
replacement or refund for a major failure and to compensation for other reasonably foreseeable loss or damage. You are
also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure.
THE MANUFACTURER RESERVES THE RIGHT TO MAKE IMPROVEMENTS AND
MODIFICATIONS TO DESIGN WITHOUT PRIOR NOTICE.
CONTENTS
PRODUCTS IMPORTED AND DISTRIBUTED NATIONALLY BY:
INDUSTRIAL TOOL & MACHINERY SALES
11 EASTERN SERVICE ROAD, STAPYLTON, QLD, 4207
T: 07 3287 1114 E: [email protected]
F: 07 3287 1115 W: www.itmtools.com.au
TRADEMASTER
Magnetic Base Drilling Machines
Tools and Machinery
AIR
1. GENERAL INFORMATION .................................................................................... 3
1.1. Application ........................................................................................................... 3
1.2. Technical data ..................................................................................................... 3
1.3. Equipment included ............................................................................................. 4
1.4. Dimensions .......................................................................................................... 5
1.5. Design ................................................................................................................. 6
2. SAFETY PRECAUTIONS ....................................................................................... 7
3. STARTUP AND OPERATION ................................................................................ 9
3.1. Installing the tools ................................................................................................ 9
3.2. Installing the cooling system bottle ......................................................................10
3.3. Monitoring system of the clamping force .............................................................10
3.4. Preparing .............................................................................................................11
3.5. Drilling ..................................................................................................................12
3.6. Replacing the motor brushes ...............................................................................15

PRO 35 AUTO
OPERATOR’S MANUAL
3www.itmtools.com.au
PRO 36 AUTO
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
3
1. GENERAL INFORMATION
1.1. Application
The PRO 35 AUTO is a drilling machine designed to drill holes with diameters of up
to 35 mm by using annular cutters. The machine can also drill holes with diameters of
up to 16 mm by using twist drill bits. It also allows countersinking holes with diame-
ters of up to 40 mm (1-9/16″) by using countersinks.
The drilling machine can work in automatic or manual mode.
The electromagnetic base clamps the machine to ferromagnetic surfaces. This
makes sure that the operator is safe and the machine works correctly. A safety strap
protects the machine from falling in case of a clamping loss.
1.2. Technical data
Voltage
1~ 220–240 V, 50–60 Hz
1~ 110–120 V, 50–60 Hz
Power
1020 W
Tool holder
19 mm (3/4″) Weldon
Maximum drilling diameter with an annular cutter
35 mm
Maximum drilling diameter with a twist drill bit
16 mm (1/2″) Weldon
Maximum countersinking diameter
40 mm (1-9/16″)
Maximum drilling depth with an annular cutter
52 mm
Clamping force
(surface with the thickness of 25 mm and roughness Ra= 1.25)
9,000 N
Electromagnetic base dimensions
80 mm × 160 mm × 38 mm
3.1″ × 6.3″ × 1.5″
Stroke
70 mm (2.8″)
Rotational speed with load
350 rpm
Rotational speed with no load
580 rpm
Minimum workpiece thickness
6 mm (0.23″)
Protection class
I
Noise level
More than 70 dB
Required ambient temperature
0–40°C (32–104°F)
Weight
13.5 kg (30 lbs)

PRO 35 AUTO
OPERATOR’S MANUAL
4www.itmtools.com.au
PRO 36 AUTO
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
4
1.3. Equipment included
1
Drilling machine
1 unit
2
Metal box
1 unit
3
Safety strap
1 unit
4
4mm hex wrench
1 unit
–
Operator’s Manual
1 unit
4
3
1
2

PRO 35 AUTO
OPERATOR’S MANUAL
5www.itmtools.com.au
PRO 36 AUTO
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
5
1.4. Dimensions
317 mm (12.5″)
307 mm (12.1″)
221 mm (8.7″)

PRO 35 AUTO
OPERATOR’S MANUAL
6www.itmtools.com.au
PRO 36 AUTO
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
6
1.5. Design
Spindle with arbor
Handle
Carrying handle
Electromagnetic base
Chip guard
Bottle valve lever
Hole for a safety strap
Cooling system bottle
Motor START
Motor STOP
Electromagnetic base (MAGNET)
switch
Signal LED

PRO 35 AUTO
OPERATOR’S MANUAL
7www.itmtools.com.au
PRO 36 AUTO
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
7
2. SAFETY PRECAUTIONS
1. Before use, read this Operator’s Manual and complete a training in occupational
safety and health.
2. Use only in applications specified in this Operator’s Manual.
3. Make sure that the machine has all parts and they are genuine and not damaged.
4. Make sure that the specifications of the power source are the same as those spec-
ified on the rating plate.
5. Connect the machine to a correctly grounded power source. Protect the power
source with a 16 A fuse for 230 V or a 32 A fuse for 115 V. If you are going to work
on building sites, supply the machine through an isolation transformer with class II
protection only.
6. Set the MAGNET switch to ‘O’ before you move the machine. Use carrying handle
to move the machine.
7. Do not carry the machine by the power cord and do not pull the cord. This can
cause damage and electric shock.
8. Keep untrained bystanders away from the machine.
9. Before each use, ensure the correct condition of the machine, power source, pow-
er cord, plug, control panel, and tools.
10. Before each use, make sure that no part is cracked or loose. Make sure to main-
tain correct conditions that can have an effect on the operation of the machine.
11. Keep the machine dry. Do not expose the machine to rain, snow, or frost.
12. Do not stay below the machine that is put at heights.
13. Keep the work area well lit, clean, and free of obstacles.
14. Use the set screws to tighten the tool. Remove wrenches from the work area be-
fore you connect the machine to the power source.
15. Do not use tools that are dull or damaged.
16. Unplug the power cord before you install and remove tools. Use protective gloves
to install and remove tools.
17. Use annular cutters without the pilot pin only when you drill incomplete through
holes.
18. Do not make holes/countersinks whose diameter or depth differ from those speci-
fied in the technical data.
19. Do not use near flammable materials or in explosive environments.

PRO 35 AUTO
OPERATOR’S MANUAL
8www.itmtools.com.au
PRO 36 AUTO
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
8
20. Do not use on surfaces that are rough, not flat, not rigid, or have rust, paint,
chips, or dirt.
21. Use the safety strap to attach the machine to a stable structure. Put the strap
through the hole in the machine body. In the horizontal position, attach the strap
to the carrying handle. Do not put the strap into the buckle from the front.
22. Use eye and ear protection and protective clothing. Do not use loose clothing.
23. We do not recommend work on workpieces thinner than 6 mm (0.23″). The
clamping force depends on the workpiece thickness and is much lower for thin
plates.
24. Each time before you put the machine on the workpiece, rub the workpiece with
coarse-grained sandpaper. Make sure that the bottom of the base is in full con-
tact with the workpiece.
25. Do not touch chips or moving parts. Do not let anything catch in moving parts.
26. After each use, clean the machine and the tool. Do not remove chips with bare
hands.
27. Unplug the power cord before you do maintenance or install/remove parts.
28. Repair only in a service center appointed by the seller.
29. If the machine falls, is wet, or has any damage, stop the work and immediately
send the machine to the service center for check and repair.
30. Do not leave the machine when it operates.
31. If you are not going to use the machine, remove the tool from the holder. Then,
remove the machine from the work area and keep it in a safe and dry place.
32. If you are not going to use the machine for an extended period, put anti-corrosion
material on the steel parts.

PRO 35 AUTO
OPERATOR’S MANUAL
9www.itmtools.com.au
PRO 36 AUTO
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
9
3. STARTUP AND OPERATION
3.1. Installing the tools
Unplug the power cord. Set the handles to position (1), and turn them to the right (2)
to lift the motor. Use gloves to put the correct pilot pin into the annular cutter (3). Use
a dry cloth to clean the cutter. Put the annular cutter (twist drill bit or countersink) into
the spindle with arbor (4) to align the flat surfaces (5) with the set screws (6). Use the
4mm hex wrench to tighten the screws.
To remove the tool, loosen the screws (5) with the 4 mm hex wrench.
2
3
4
6
5
1

PRO 35 AUTO
OPERATOR’S MANUAL
10 www.itmtools.com.au
PRO 36 AUTO
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
10

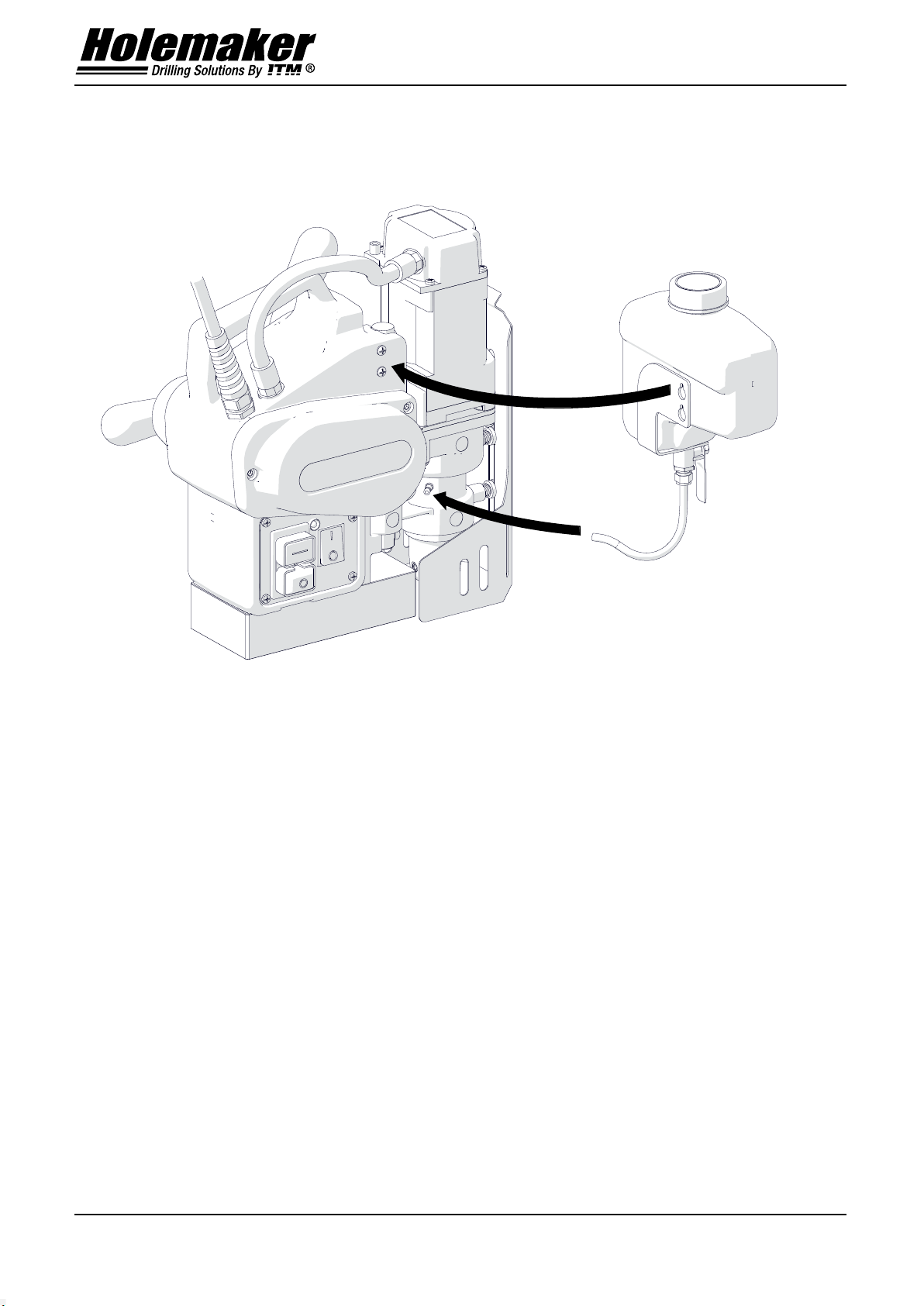

3.2. Installing the cooling system bottle
Put the cooling system bottle on the screws (1). Attach the hose to the fitting (2).
3.3. Monitoring system of the clamping force
The drilling machine has a system that monitors the clamping force of the electro-
magnetic base. The force will be lower if there is rust, paint, chips, or dirt. The force
will be lower also if the surface is thin, rough, not flat, not rigid, the voltage is lower
than required, or the bottom of the base is worn.

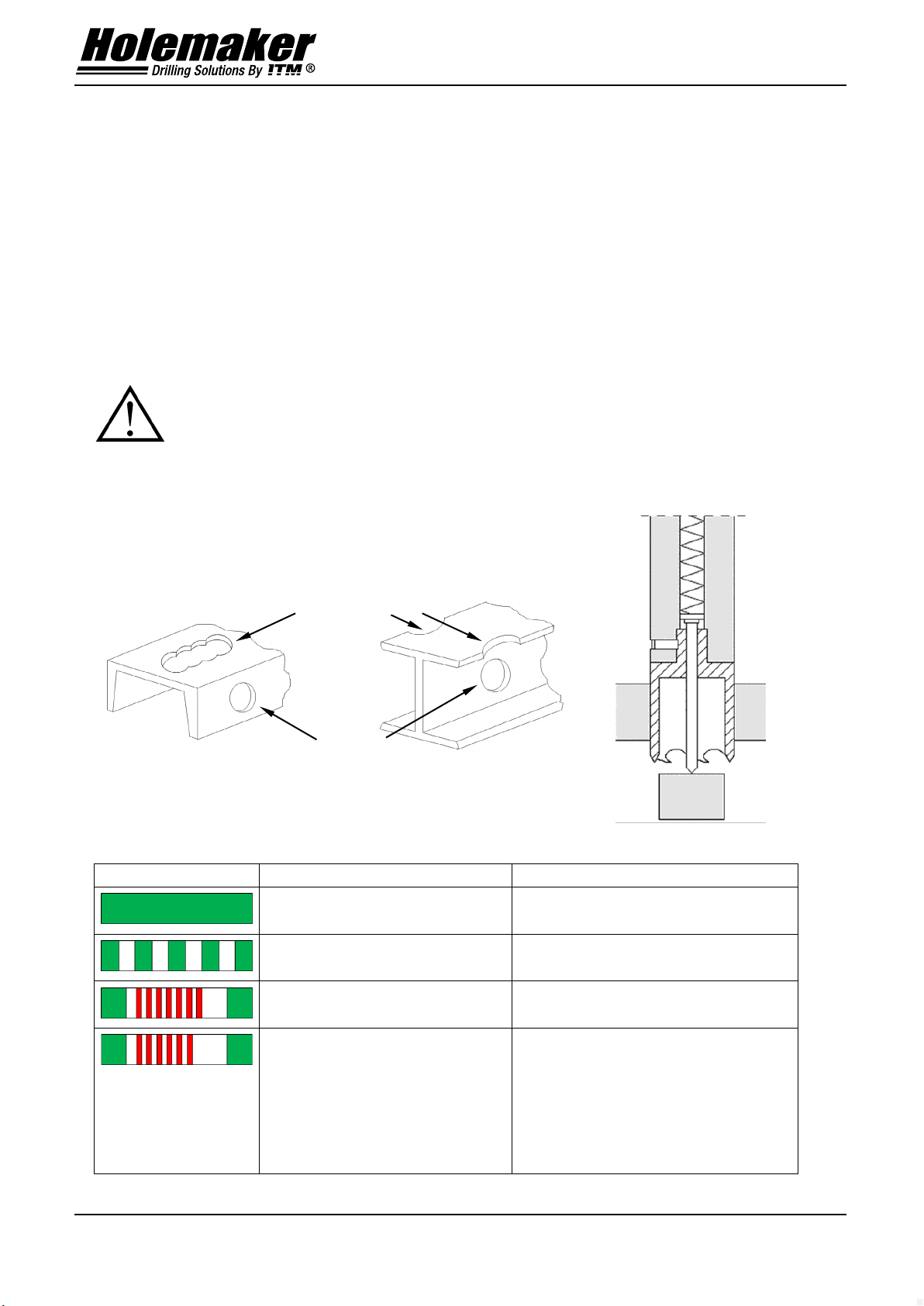

Low clamping force will be indicated by the LED diode flashing green. The clamp-
ing force on a 5 mm thick surface is only about 25% of the force that you can get on
a flat plate that is 25 mm (1″) thick.
1
2

PRO 35 AUTO
OPERATOR’S MANUAL
11www.itmtools.com.au
PRO 36 AUTO
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
11
3.4. Preparing
Before use, clean steel parts, including the spindle, from anti-corrosion material used
to preserve the machine for storage and transport.
Select the tool that matches the required hole diameter. Use a dry cloth to clean
the spindle and the tool. Then, install the tool as described before.
Put the machine on a flat ferromagnetic surface with the thickness of at least
6 mm (0.23″). Make sure that there is no rust, paint, chips, or dirt. They decrease the
clamping force. The force will be lower also if the surface is thin, rough, not flat, not
rigid, the voltage is lower than required, or the bottom of the base is worn.
Connect the machine to the power source. Set the MAGNET switch to ‘I’ to turn
on the clamping. Some types of steel (non-ferromagnetic) do not conduct magnetic
flux so the machine cannot clamp onto them.
Use the safety strap to prevent fall and injury if the machine loses the clamping.
Attach the machine to a stable structure by putting the strap through the hole in the
machine body. In the horizontal position, attach the strap to the carrying handle.
Make sure that the strap is tight and not twisted. If the machine comes loose from the
workpiece and hangs on the strap, replace the strap. Do not put the strap into the
buckle from the front.
Inverted drilling
Vertical drilling
Horizontal drilling
INCORRECT
CORRECT
✓

PRO 35 AUTO
OPERATOR’S MANUAL
12 www.itmtools.com.au
PRO 36 AUTO
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
12
When you use an annular cutter, install the cooling system and fill it with coolant.
Do not use only water as the coolant. But you can mix water and drilling oil. Then,
make sure that the cooling system works correctly. To do this, lightly loosen the bot-
tle cap and use the lever to open the valve. Then, turn the handles to the left to apply
a light pressure on the pilot pin. The coolant should fill the system and start flowing
from the cutter.
The cooling system works by gravity. Thus, in the inverted or horizontal position,
use coolants under pressure or in the form of spray or paste.
3.5. Drilling
Set the handles as shown in the left figure to set the manual feed mode. Turn the
handles to the left to put the tool tip above the workpiece.
Drill with the twist drill bit or countersink holes only in the manual mode. Drill in
the manual mode also on thin workpieces and when the LED shows that the clamp-
ing force is low.
To work in the manual mode set the handles as shown in the left figure. Press
the green START button to start the motor. Next, turn the handles to the left to put
the tool into the workpiece. In the manual mode, keep the constant feed, do not re-
lease the handles, and do not switch to the automatic mode. If you do not obey these
instructions, the motor may stop.
Manual mode
Automatic mode

PRO 35 AUTO
OPERATOR’S MANUAL
13www.itmtools.com.au
PRO 36 AUTO
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
13
To drill in the automatic mode, press the green START button to start the motor.
Then, set the handles as shown in the right figure. Then, the drilling machine starts
putting the tool into the workpiece. In the automatic mode, do not press the levers. If
you press the levers, the machine will work incorrectly.
The machine recognizes the end of drilling and stops the feed and the motor af-
ter the hole is made. But, if the tool is new, sharp, its diameter is small, or the work-
piece is soft, the feed and motor may not stop immediately after the hole is made.
Then, they will stop in the lowest position of the motor.
When the annular cutter goes through the workpiece, the slug core is
pushed out with a large force.
When you use an annular cutter, drill only through holes. Drill incomplete through
holes only in the manual mode and without the pilot pin.
The table that follows shows the meaning of the LED colors.
Flash code
Meaning
Description
Strong surface.
Ready to work.
Weak surface. Low clamping
force.
Work only in the manual mode.
Defective control system.
Contact the service center for repair.
Emergency stop.
Feed motor overload.
Retract the tool from the workpiece,
and press the green START button
to start the drilling again.
If the problem continues, contact the
service center for repair.
Incomplete through holes
Complete through holes

PRO 35 AUTO
OPERATOR’S MANUAL
14 www.itmtools.com.au
PRO 36 AUTO
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
14
Flash code
Meaning
Description
Emergency stop.
Spindle motor overload.
Retract the tool from the workpiece,
and press the green START button
to start the drilling again.
Use coolant. Make sure that the tool
is sharp. If you work in the manual
mode, keep the constant feed.
Emergency stop.
Machine tilt or vibrations.
Retract the tool from the workpiece,
and press the green START button
to start the drilling again.
Make sure that the surface is stable,
there is no oil, the clamping force is
sufficient, and the tool is sharp.
Emergency stop.
The base is not in contact with
the surface.
Retract the tool from the workpiece,
and press the green START button
to start the drilling again.
Make sure that the surface is stable,
there is no oil, the clamping force is
sufficient, and the tool is sharp.
The green color is indicative only. It does not make sure that the ma-
chine will always be in contact with the surface. Thus, in each posi-
tion protect the machine with the safety strap.
After the hole is made, set the handles to the position related to the manual
mode. Then, retract the tool from the workpiece. Before you move the machine, set
the MAGNET switch to ‘O’ to turn off the base.
After the work is finished, turn off the motor and the base, and then unplug the
power cord. Clean the machine and the tool, and then remove the machine from the
work area.
Tighten the bottle cap, close the valve, and then press the pilot pin to remove the
coolant that remains in the cooling system. Before you put the machine into the box,
remove the bottle, and use gloves to remove the tool from the holder.

PRO 35 AUTO
OPERATOR’S MANUAL
15www.itmtools.com.au
PRO 36 AUTO
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
15
3.6. Replacing the motor brushes
Every 100 work hours, check the condition of the brushes. To do this, unplug the
power cord and remove the cover (1). Next, remove the pressing plate (2), and then
remove the brush holder (3) and the brush (4). If the brush is shorter than 5 mm
(0.2″), replace the two brushes with new ones.
Install in reverse sequence. Then, let the motor operate with no load for
20 minutes.
1
2
3
4

PRO 35 AUTO
OPERATOR’S MANUAL
16 www.itmtools.com.au
Parts list PRO 36 auto v.0.08
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited. 2
87
111
102
26
96
27
110
105
81
79
1
72
76
62
77
68
65
25
28
47
3
8
15
16
17
18
48
50
49
46
2
114
71
70
99
4
44
45
69
43
42
11
41
10
6
67
52
12
5
115
61
53
112
40
9
66
59
60
13
64
7
39
19
58
104
106
57
36
63
107
51
14
38
37
113
74
29
56
73
55
103
35
75
34
54
109
24
33
32
108
78
23
30
31
22
21
20
101
80
100
86
85
84
83
98
97
95
82
94
93
92
91

PRO 35 AUTO
OPERATOR’S MANUAL
17www.itmtools.com.au
Parts list PRO 36 auto v.0.08
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited. 3
ITEM PART NUMBER DESCRIPTION Q-TY
1
ZSP-0672-02-00-00-0
LEVERS ASSY
1
2
WKR-000091
HEX SOCKET BUTTON HEAD SCREW M4x8
3
3
PKR-0672-02-02-00-0
COVER
1
4
WLK-0502-05-05-00-1
SWITCHING SHAFT
1
5
KLK-000015
SPRING PIN 4x26
3
6
WASP-B10/1050
HEX SOCKET SET SCREW WITH CONE POINT M8x12
3
7
SPPRO35A/HANDLE
SPOKE HANDLE INCLUDING KNOB (ASSY)
3
8
KUL-000003
BEARING BALL 5
2
9
SPR-0203-03-09-00-0
LATCH SPRING
2
10
WKR-000058
HEX SOCKET SET SCREW WITH FLAT POINT M6x8
2
11
NKR-000035
LOW HEX NUT M6
2
12
KRP-0672-02-01-00-0
LEVERS HOLDER
1
13
WLK-0502-05-04-00-0
DRIVEN SHAFT
1
14
SPPRO350121
SEAL
1
15
TLJ-0502-05-06-00-0
CLUTCH SLEEVE
1
16
PDK-0502-05-07-00-0
WASHER 4.3x12x2
1
17
PDK-000042
SPRING WASHER 4.1
1
18
SRB-000062
HEX SOCKET HEAD CAP SCREW M4x12
1
19
SPPRO35A010
COOLANT BOTTLE ASSY
1
20
SRB-000078
HEX SOCKET HEAD CAP SCREW M5x12
3
21
PDK-000044
SPRING WASHER 5.1
3
22
SPPRO35A007
GEARCASE COVER ASSEMBLY
1
23
SPPRO35A36
IDLE GEAR
1
24
WKR-000093
HEX SOCKET BUTTON HEAD SCREW M4x12
4
25
KOL-0502-04-02-00-0
GEAR z=16
1
26
KLK-000005
SPRING DOWEL PIN 3x14
1
27
WKR-000095
HEX SOCKET BUTTON HEAD SCREW M4x16
3
28
PLY-0502-04-01-00-0
MOTOREDUCER PLATE
1
29
SLN-000056
MOTOREDUCER i=246
1
30
SPAD40-04-01-04
EXTERNAL RETAINING RING 30z
1
31
KUL-000003
BEARING BALL
8
32
KOL-0502-01-02-00-0
GEAR z=60
1
33
LOZ-000080
BALL BEARING 45x58x7
1
34
TLJ-0502-99-01-00-0
SELF-LUBRICATING SLEEVE 28x32x12
1
35 WKR-000415
CROSS RECESSED PAN HEAD SELF-TAPPING
SCREW 3.5x13
4
36
PDK-000161
EXTERNAL TOOTH LOCK WASHER 3.7
4
37
WLC-000007
SWITCH START-STOP - 230V
1
37
WLC-000005
SWITCH START-STOP - 115V
1
38
SPHM300405
MAGNET SWITCH
1
39
WZK-0502-03-02-00-1
DIODE WIRE SET
1
40
MSK-0672-99-01-00-0
PANEL PLATE
1
41
TLJ-000042
SLEEVE M3x20
3
42
TLJ-000023
SLEEVE M3x10
1
43
MDL-0672-80-01-00-0
ELECTRONIC CONTROLLER – 230V
1
44
WBR-000004
VIBROISOLATOR
4
45
PLY-0277-00-02-00-1
INSULATION PLATE
1
46
WKR-000156
COUNTERSUNK HEAD SCREW M3x10
4
47
PDS-0502-12-00-00-0
ELECTROMAGNETIC BASE
1
48
WZK-0242-04-00-00-0
REED RELAY WIRE SET ASSY
1
49
SRB-000117
HEX SOCKET HEAD CAP SCREW M6x25
3

PRO 35 AUTO
OPERATOR’S MANUAL
18 www.itmtools.com.au
Parts list PRO 36 auto v.0.08
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited. 4
ITEM PART NUMBER DESCRIPTION Q-TY
50
PDK-000046
SPRING WASHER 6.1
3
51
RDK-0440-02-00-00-5
GEARBOX ASSEMBLY
1
52
SRB-000111
HEX SOCKET HEAD CAP SCREW M6x18
1
53
SPPRO350212
GEAR RACK
1
54
SPPRO350207
GUIDE
2
55
LOZ-000072
BALL BEARING 9x26x8
1
56
SPPRO35023
PINION ASSY
1
57
LOZ-000053
BALL BEARING 8x22x7
1
58*
SPPRO35025
GEAR z=52
1
59*
PDK-000264
DISTANCE RING
1
60*
LOZ-000047
BALL BEARING 25x47x12
1
61*
SPHM30020105
SEAL 25x37x7
2
62
KLK-000044
DOWEL PIN 5n6x10
1
63
KRP-0440-02-01-00-3
GEARBOX ASSY
1
64
SPAD40-05-03
HOSE FITTING
1
65*
WRZ-0272-02-02-00-1
SPINDLE ASSY
1
66
LOZ-000048
BALL BEARING 25x47x12
1
67
KRP-0272-02-02-01-0
SPINDLE BODY
1
68
WKR-000543
HEX SOCKET SET SCREW WITH FLAT POINT M8x10
2
69
SPHM3020203
SPRING
1
70
SPPRO35020202
PLUNGER
1
71
KZK-0279-02-01-06-2
RUBBER DISC
1
72
SPHM30020205
INTERNAL RETAINING RING 19w
1
73
SPPRO3510
PUSH SPRING
2
74
SPPRO3509
BOTTOM SLEEVE
2
75
SPPRO3511
NYLON WASHER 8.1x14x3
4
76
SPPRO3504
CHIP GUARD ASSY - BLUE
1
77 SPPRO3512
HEX SOCKET ROUND HEAD SCREW WITH FLANGE
M5x20
2
78
SRB-000122
HEX SOCKET HEAD CAP SCREW M6x35
2
79
SLN-0502-13-00-00-1
MOTOR ASSY – 230V
80
PWD-0502-13-01-00-0
MOTOR CORD
1
81
SPHM300304
PAN HEAD SELF-TAPPING SCREW 3.9x19
4
82
SPPRO350312
MOTOR COVER
1
83 WKR-000326
CROSSRECESSED COUNTERSUNK HEAD SHEET
METAL SCREW 2,9x13
2
84
SPPRO350315
BRUSH HOLDER PRESSURE PLATE
2
85
SPPRO350314
MOTOR BRUSH 6x9x17 (SET OF 2)
2
86
SPPRO350313
BRUSH HOLDER
2
87
OBD-0440-99-03-00-1
MOTOR COVER WITH STATOR ASSY – 230V
1
91
SPPRO350318
BEARING INSERT 19x7,5
1
92
SPPRO35039
ROTOR – 230V
1
93
SPPRO36AD13
GEARBOX COVER RING
1
94
SPPRO1065
SEAL
1
95
PKR-0440-03-03-00-1
GEARBOX COVER
1
96
WKR-000236
SELF-TAPPING SCREW 5x16
1
97
WKR-000301
SCREW FOR PLASTIC TW 5x14
2
98
PDK-000042
SPRING WASHER 4,1
2
99
SRB-000062
HEX SOCKET BOLT M4x12
2
100
SPHM3020
SELF-TAPPING SCREW 5x30
3
101
WKR-000237
SELF-TAPPING SCREW 5x50
1
102
SPPRO35A006
MAIN BODY ASSY
1
103
PWD-0502-18-00-00-0
POWER CORD 230V WITH STRAIN RELIEF ASSY
1

PRO 35 AUTO
OPERATOR’S MANUAL
19www.itmtools.com.au
Parts list PRO 36 auto v.0.08
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited. 5
ITEM PART NUMBER DESCRIPTION Q-TY
104
NKR-000013
HEX NUT M4
2
105
PDK-000016
ROUND WASHER 4.3
1
106
PDK-000166
EXTERNAL TOOTH LOCK WASHER 4.3
1
107 WKR-000113
CROSS RECESSED OVAL COUNTERSUNK HEAD
SCREW M4x16
1
108 WKR-000183
CROSS RECESSED OVAL COUNTERSUNK HEAD
SCREW M4x10
2
109
SPPRO35A009
MOTOREDUCER ASSY
1
110
MSK-0672-03-00-00-0
CONTROL PANEL ASSY 230V
1
111
SPPRO65-12
HEX SOCKET HEAD CAP SCREW M6x30
2
112
KLK-000048
DOWEL PIN 5n6x18
1
113
SPPRO350704
CABLE GLAND WITH STRAIN RELIEF PG11
1
114
PDK-0279-02-01-06-1
STEEL WASHER
1
115
TLJ-000034
SLIDE BUSHING 28x32x12
1
116**
WZK-0502-03-03-00-0
MOTOR-LWIRE SET
1
–
SMR-000001
GREASE
0,055kg
* - before you order read the service manual
** - not shown in the drawing

PRO 35 AUTO
OPERATOR’S MANUAL
20 www.itmtools.com.au
Cutter Type Features Diameter Available Cut Depth Available Applications
Silver Series Metric
• M2AL High speed steel
• Universal shank
• Multi-cut geometry
• Step hardened
• 12 to 65mm Metric • 25mm & 50mm • General purpose
Silver Series Imperial
• M2SL High speed steel
• Multi-cut geometry
• Step hardened
• 7/16" to 2-1/4" Imperial • 1"& 2" • General purpose
Gold Series Metric • M2AL High speed steel
• Titanium nitride coated
• Universal shank
• Multi-cut geometry
• Step hardened
• 12 to 60mm Metric • 25mm, 50mm & 75mm • General purpose
Pro-Cut
• ASP Powder steel
• Multi-cut geometry
• Incredible performance
• 12 to 22mm Metric • 25mm & 50mm
• Rail line
• Hard materials
• Stainless steel
• Wear plate
Maxi-Cut
• Tungsten carbide tipped
• Increased resistance
to breakage
• Multi-cut geometry
• 12 to 200mm Metric
• 5/8" to 2-1/2" Imperial
• 35mm, 50mm, 75mm,
100mm, 150mm &
200mm
• Large diameters
• Stainless steel
• Hard materials
• Wear plate
Maxi-Rail
• Tungsten carbide tipped
• Increased resistance
to breakage
• Multi-cut geometry
• 18 to 35mm Metric • 25mm
• Rail line
• Hard materials
• Wear plate
Countersink Type Size Angle
Cross Hole Countersinks
• 2 - 5mm to 20 - 25mm • 90°
Three Flute Countersinks
• 3 - 6.4mm to 3 - 40mm • 90°
Twist Drill Type Features Diameter Available Cut Depth Available
Weldon Shank Twist Drills
Single Piece Type
• 3/4" Weldon Shank • 6mm to 18mm Metric
• 1/4" to 1/2" imperial • 30mm
Weldon Shank Twist Drills
2-Piece Type
• 2-Piece kit including
flatted shank drill and
3/4” Weldon shank twist
drill adaptors
• 8mm to 12mm
