ITOH DENKI PM380LS User manual

POWERMOLLER
PM380/427LS
Motor Driven Roller
Thank you for purchasing PM380/427LS (hereinafter referred
to as “this product”).
＊Applicable driver is not included.
Readthismanualbeforeuse
BrushlessMotorforLightloadconveying.
〈UserManual〉
Before using this product, carefully read this user manual and fully
understand the content.
Keep this document readily accessible for future reference.
No.572
Convey
For more details about applicable driver(CBL-402F), please download the user
manual from our web page.
Home > Download/Support > User Manual
https://itohdenki.co.jp/english/support/manual.html
ITOHDENKI
ITOH DENKI
ITOH DENKI
ITOH DENKI
y
ing.
＊The photo is unit with V-pulley option.

PM380/427LSUserManual
2
1.Introduction
This product is designed as a general industrial device. Do not use for other
applications. We do not take any responsibility for any damage that may result from
the disregarding of these warnings.
Also, in the event that an accident results from the use of this product, we do not
compensate for any damage, including abnormalities of equipment, connection
devices, and/or software, any damage resulting from malfunctions, and/or any other
secondary damage.
There are some examples of parts that need to be prepared by customers, as
explained within this manual. However, this does not provide any guarantee against
the existence of any rights, such as our industrial property rights, or those of other
companies, in advance.
Notes on industrial
property rights
We respond to technical inquiries based on the contents described within this manual,
and on this product within the range of general items for this product unit with
standard specifications, and for the options prepared by us.
There are some descriptions in this manual, about parts, equipment, and wiring
arranged by customers, as well as the controls and operation under such
circumstances. However, these are not included in the guaranteed operating range
and/or support.
Check and/or test by your own risk or your responsibility.
Notes on technical
support
In this manual, the Brushless Motor for Handling Light Loads “PM380/427LS” is
described as MDR.
“PM380LS” and “PM427LS” are described separately, when needed.
About description
of the product
Disclaimer
Features
Disclaimer
・Dia. 38mm roller makes small package transfer.
・6Pin D shaped Motor connector.
・Tube length range: 200mm to 800mm.

2. Procedures from installation to operation
PM380/427LSUserManual
3
Error

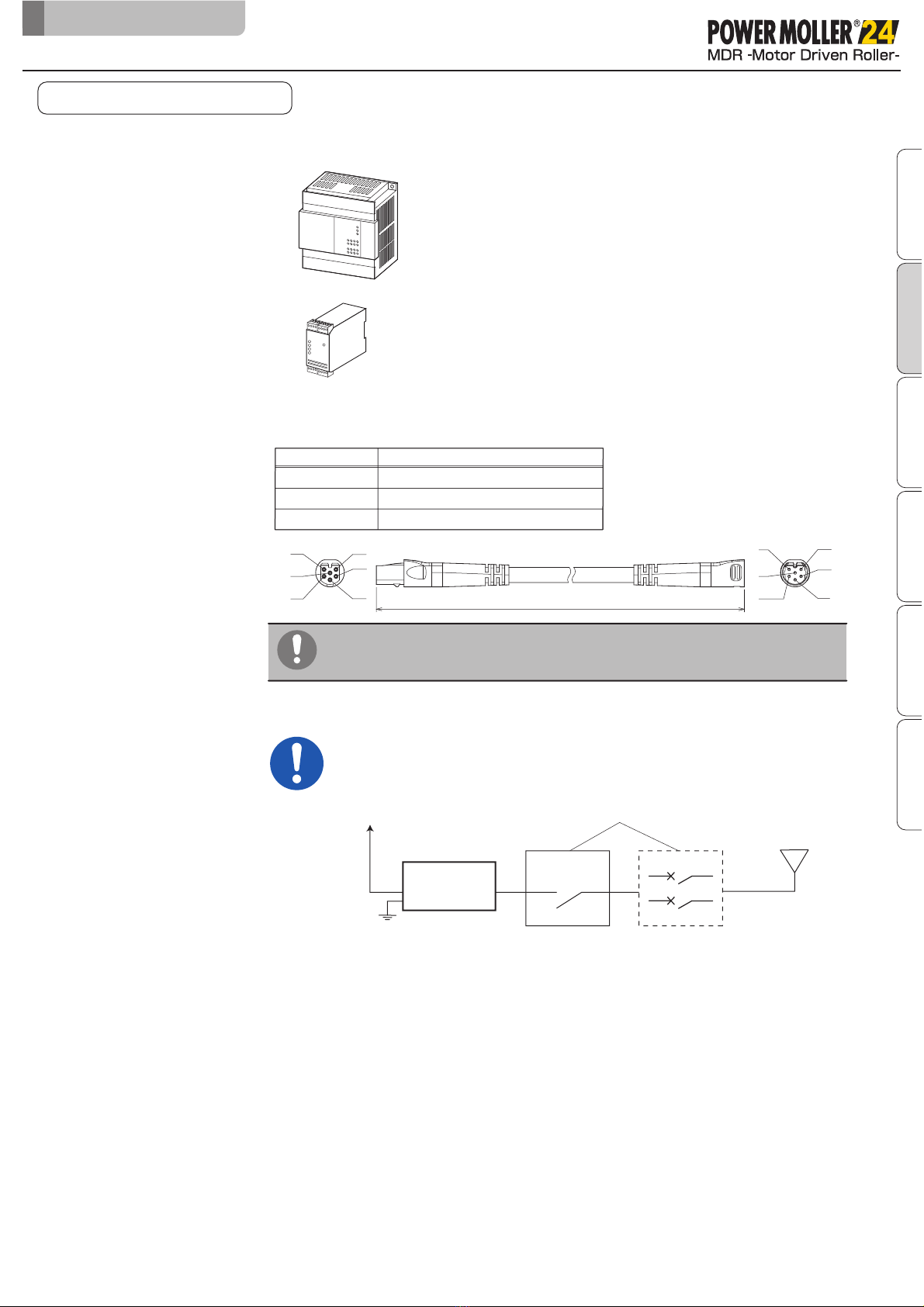

Prepare the 24 VDC power supply, such as
DC power supply units.
Prepare control devices, such as dedicated
driver cards and PLC.
Open the package, and check the model,
specifications, and voltage, etc.
Advance preparation
Start using only after you have understood the product’ s functions,
and safety precautions.
Read this manual
Check Product
Remove root cause of the error.
(Maintenance and inspection)
Confirm switch setting.
Control
Starts operation.
Trial run
Restart operation.
Operation
Install the MDR.
Mount the driver card.
Installation
Connect the MDR to driver card.
Connect power and signal cables to driver card.
Wiring
No
Yes
Procedures from
installation to operation
P.11 〜
P.14 〜
P.17 〜
Refer to the
CBL-402F
User Manual
Refer to the
CBL-402F
User Manual
Proceduresfrominstallationtooperation

PM380/427LSUserManual
4
INDEX 1.
2.
3.
4.
5.
6.
7.
8.
Introduction
Procedures from installation to operation
Safety precautions
3-1. General precautions
3-2. Precautions on installation
3-3. Precautions on wiring
3-4. Precautions on maintenance and inspection
Advance preparation
Check Product
Installation
6-1. Preparation for install MDR
6-2. Install the MDR
Maintenance/Inspection
Specifications
Product specifications
…… 2
…… 3
…… 5
…… 7
…… 9
…… 9
……10
……11
……14
……17
……18
……19
……21
……23
……24
Safety precautions
Advance preparation
Check ProductInstallation
Maintenance/Inspection
Specifications
INDEX

PM380/427LSUserManual
5
Refer to 5. Check Product (P.15) for parts name.
3.Safetyprecautions
Safety precautions
Advance preparation
Check ProductInstallation
Maintenance/Inspection
Specifications
3.Safetyprecautions

PM380/427LSUserManual
6
To prevent hazards to users and/or others, and/or damage to property in advance, we
explain important precautions to be followed securely as below.
■We categorize the degree of hazard and/or damage that may result if a user
disregards the description, and operates the product improperly, using and
explaining the following symbols.
■
We categorize the type of those precautions using the following symbols throughout
the manual.
WARNING This indicates a high possibility that severe injury or
even death may result.
CAUTION This indicates a high possibility that injury, or only
property damage may result.
This symbol indicates operations that are prohibited.
This symbol indicates to tells that shall follow the instruction.
Danger level
Symbol explanation
3. Safety precautions
Safety precautions
Advance preparation
Check ProductInstallation
Maintenance/Inspection
Specifications
Danger level

PM380/427LSUserManual
7
Failure to follow this could result in serious accidents. We assume no
responsibility for remodeled products.
WARNING
CAUTION
Do not use the product near places subject to explosive,
flammable gas, and/or corrosive atmosphere, and/or
combustible materials.
Failure to follow this could result in explosion, fire, electric shock and/or injury.
When using the product in places where serious accidents
and/or damage may possibly occur, install backup and/or
fail-safe functions systematically.
Failure to follow this could result in the inability to control this product due to
driver card malfunction, which could lead to serious accidents.
Do not forcibly bend and/or pull cables.
Also, do not put heavy materials on cables, or do not get them
stuck between cables.
Failure to follow this could result in fire and/or electric shock due to cable damage.
Make sure to attach ground wires to the conveyor body and DC
power supply unit.
Failure to follow this could result in electric shock if any malfunction or leakage occurs.
Never remodel the product.
While the MDR is running, do not touch the product when
operation has just ceased.
Failure to follow this could result in hands/clothes getting caught, and/or burns.
3-1.
General precautions
Do not apply strong impact and/or excessive force to the product,
such as hitting it with objects, or dropping it. Also, do not use the
equipment if strong impact has been applied, and/or if the
appearance has become deformed.
Failure to follow this could result in malfunction due to applied impact.
Stop operation when abnormal sound is heard during operation.
Failure to follow this could result in unexpected accidents.
Do not apply heavy loads to this product, such as stepping on it.
Failure to follow this could result in people falling and/or malfunction.
Observe the safety regulations for installation locations, and/or
products in use.
Do not use in a way exceeding the range of the product specifications.
Failure to follow this could result in malfunction, fire, and/or injury.
Turn off the power supply to the product before moving, installing,
maintenance and/or inspection (excluding those during operation).
Working while the power is on could result in accidents due to unexpected operation.
3. Safety precautions
Safety precautions
Advance preparation
Check ProductInstallation
Maintenance/Inspection
Specifications
Generalprecautions

PM380/427LSUserManual
8
CAUTION
Do not turn on/off relays and/or contactors near power cables,
signal cables, and/or driver cards.
Failure to follow this could result in malfunction due to noise generation.
LED or Pull-up/Pull-down circuits implemented in the output circuit
of control devices could result in unexpected operation.
Carefully check the output circuit.
Securely wire each cable to connection parts.
Improper wiring could result in electric shock and/or malfunction.
Do not unplug power and/or signal cables during operation except
in an emergency.
Also, do not run/stop this product using the power supply.
(Use the signal.)
Failure to follow this could result in malfunction.
Do not forcibly rotate the MDR in its stopped state with external
force.
Failure to follow this could result in damage to driver cards, and/or their lifetime to
be significantly shortened.
Make start-up inspection, and check that devices are free from
any abnormalities, and that safety equipment functions correctly
before using the product.
When disposing of the product, make consigning contracts with
licensed industrial waste disposers, and consign the disposal to
them.
Do not turn off the power during transfer (during MDR rotation)
except in an emergency.
Failure to follow this could result in malfunction.
3-1.
General precautions
3. Safety precautions
Safety precautions
Advance preparation
Check ProductInstallation
Maintenance/Inspection
Specifications
Generalprecautions

PM380/427LSUserManual
9
WARNING
CAUTION
CAUTION
3. Safety precautions
Safety precautions
Advance preparation
Check ProductInstallation
Maintenance/Inspection
Specifications
Precautions on installation
When handling, wear protective equipment, such as gloves.
Since this product consists in large part of metal, careless handling could result in
hands getting injured.
Make sure to use the recommended tightening torque to tighten
fixing screws of the mounting bracket.
Failure to follow this could result in bolts and/or screws loosening, and/or
malfunction. ⇒P.20
3-2.
Precautions on
installation
If necessary warning/caution labels become hidden after
installation, affix again on places where they can be seen.
Do not pull, damage, cut, and/or process cables.
Doing so could result in electric shock, fire, and/or malfunction.
3-3.
Precautions on wiring
Wire when the power is shut off.
Failure to follow this could result in electric shock and/or accidents due to
unexpected operation.
Fix the product securely using the mounting bracket designated by us.
Failure to follow this could result in injury and/or damage to the product. ⇒P.20
Make sure to check the direction of rotation before connecting the
product to other devices.
Failure to follow this could result in injury and/or damage to devices.
Do not wire in places subject to water, and/or with wet hands.
Failure to follow this could result in electric leakage, short circuit, and/or fire.
Secure a space between the MDR and frame so that the right and
left space becomes 2 mm to 5 mm when combining both sides.

PM380/427LSUserManual
10
Precautions on maintenance and inspection
WARNING
CAUTION
3. Safety precautions
Safety precautions
Advance preparation
Check ProductInstallation
Maintenance/Inspection
Specifications
At the time of repair and replacement work, turn off the
power to all connecting devices.
To prevent wraparound for the power circuits and/or signals, shut off the power,
wait a sufficient amount of time, and discharge electricity inside the DC power
supply equipment.
At the time of maintenance and inspection, post warning
labels so as to prevent unauthorized persons from
turning on the power.
When repairing/replacing, wear protective equipment, such as
gloves.
Failure to follow this could result in hands getting injured by metal parts.
Do not disassemble sections and/or parts other than those
specified.
Failure to follow this could result in malfunction and/or unexpected accidents.
Make sure to prepare repair/replacement parts designated by us.
Using parts other than those designated by us could result in malfunction.
Failure to follow this could result in unexpected accidents.
If any abnormalities are found, do not use this product
until the causes have been eliminated completely .
Maintenance shall be done by specialists (or people
who have sufficiently acquired skills) under instructions
by management supervisors.
Using this product with unattended abnormalities could result in not only damage
to the devices, but also unexpected accidents.
3-4.
Precautions on
maintenance and
inspection

11
4.Advancepreparation
4.Advancepreparation
PM380/427LSUserManual
Safety precautions
Advance preparation
Check ProductInstallation
Maintenance/Inspection
Specifications

12 PM380/427LSUserManual
4. Advance preparation
Wiring image
Theotherdevicesneedtobeprepared
Power supply equipment to supply 24V DC to this product
①24V DC power
CBL-402F
②Driver card
●Switching power supply (24V DC)
●24V DC battery
3 A 72 W or more per MDR
■A switching power supply is recommended as the DC power supply (24 VDC±10%) for
drivers.
■Use a stabilized power supply that has an adequate capacity of 24V DC and 3A or
higher and does not fluctuate due to load variation.
■If the power supply capacity is smaller than the rated power of the dedicated driver card
multiplied by the number of MDRs to be used, the supply voltage may drop and cause
failure or damage of the MDR and driver card. Be sure to use a power supply with a
capacity larger than the rated power of the dedicated driver card multiplied by the
number of MDRs to be used.
＊ When starting multiple MDRs simultaneously, use a power supply with a capacity of
3 A multiplied by the number of MDRs to be used.
■For the power supply unit, use an isolation type switching power supply compliant with
the safety standard (IEC60950-1 or UL60950-1). Do not use a non-isolation type power
supply for safety reasons, since it may not conform to the radiation noise regulations.
■A transformer type power supply cannot be used.
■Secure a voltage of 24V DC±10% at the power supply terminal of a driver card.
■The power supply should not activate protection with peak current 20A, 1 ms or below.
■The safety circuit includes the emergency stop equipment and magnet
contactor.
CBL-402F
24VDC
powersupplyunit
Safetycircuit
Breaker
■As for the sensor input, and input/output signals of driver cards, adopt
the number of inputs/outputs based on operation.
MDR
Controller,
suchasPLC
Before introducing this product, prepare the following devices separately.
The other devices
need to be prepared
AC power
Safety precautions
Advance preparation
Check ProductInstallation
Maintenance/Inspection
Specifications
CB
L-
40
2F
2
F
MD
R
C
su
c

13 PM380/427LSUserManual
4. Advance preparation
Emergency stop equipment
⑤MDR extension cables
（Option）
Model
ACE-CBL-K0600
ACE-CBL-K1200
L= 600mm
L=1200mm
ACE-CBL-K2700 L=2700mm
Necessary when the installing location of the MDR is far from that of the driver card.
■CBL-402F：6-pin D shaped connector extension cable
■Cables can be extended up to 3000mm, including the MDR cable length.
■Do not extend cables by connecting multiple extension cables.
Devices to control this product, such as PLC
③Control devices
6-pin D shaped connector extension cable
This product does not include the emergency stop equipment.
Customers must make sure to install it.
⑥Emergency stop
equipment
Regarding equipment where this product is incorporated, check that a breaker with
appropriate capacity for the 24 VDC power supply unit has been installed. If abnormal
operation should occur, protection through the breaker could be effective.
Note that when using an earth leakage breaker, select one that is “inverter corre-
sponding”. Some inverter non-corresponding earth leakage breakers could result in
malfunction, since they may recognize high-frequency components of the switching
power supply as leakage.
Make sure that circuit breaker and safety circuit can be operated before moving
forward trial run.
① Input to the DC power supply unit (AC power) is securely turned ON/OFF when
turning ON/OFF the breaker.
② Input to the DC power supply unit is securely turned OFF/ON when turning 
ON/OFF the safety circuit.
⑥-1Checking the
breaker
⑥-2Operation check
To this product Emergency stop equipment
Breaker
24V DC
power supply
unit
AC power
Safety circuit
Safety precautions
Advance preparation
Check ProductInstallation
Maintenance/Inspection
Specifications
④Safety relay
1
5
2
6
4
3
1
6
3
5
4
2L

14 PM380/427LSUserManual
5.CheckProduct
5. Check Product
Safety precautions
Advance preparation
Check ProductInstallation
Maintenance/Inspection
Specifications

15 PM380/427LSUserManual
：Neoprene (Black)
BOS
■No indication when
the other specification
is not required.
■Peeled rubber may be adhered to tray during transfer.
■For models with the rubber lagging specifications, the peripheral velocity will increase
since the diameter becomes larger due to the lagging.
PM380LS−60−500−D−024− □
WA−JD−VP−UR420A
5. Check Product
Checking the model Unpack the product, and check that the product model is what you ordered.
Model description sample
①Type of MDR
②Nominal speed
③Tube length
MDR
・60m/min
・24V DC
・JD…D shaped shaft
・200mm to 800mm
＊Spring loaded shaft on 219mm or shorter tube of Waterproof option is not available.
・PM380LS …Tube diameter φ38mm
・PM427LS …Tube diameter φ42.7mm
④Voltage
Other specifications
⑥Shaft shape
⑧Rubber lagging
・VP…With V pulley
・VG…With V-ribbed pulley
⑦Holder
・DR
…Drip-proof
・WA…Water-proof
⑤Functions
Nominal speed
Term
The speed on the MDR roller surface (m/min), and the nominal speed with a nice round
value for convenience. As such, values differ slightly from the actual speed.
Checking the model
Mounting bracket
Lable for Model number
Cable
50 50
＊About description of the rubber lagging specifications
(rubber lagging is described as below.)
UR 420 A
Indicates the finished outer
diameter of MDR
Note)
…
420 ÷10＝42（㎜）
Indicates the rubber lagging shape.
＊OS is added when the length is other than 50mm.
：Rubber lagging on the whole surface
‐
‐
＊
（ ） ：Rubber lagging with a width of 50mm
on both sides
：Other rubber lagging shapes
Indicates the rubber material.
：
Natural rubber (Black)
：Urethane (Gray)
：Nitrile (Black)
：Other lagging
NR A
420
UR
C OS
CR
NB
OL
Note) Indicates the finished
outer diameter multiplied
by 10.
（㎜）
＊
(Refer to P.16)
Safety precautions
Advance preparation
Check ProductInstallation
Maintenance/Inspection
Specifications

16 PM380/427LSUserManual
5. Check Product
Checking appearance ① Check any abnormalities, such as traces of scratches, dents, dirt, and/or corrosion (rust) on
MDR.
②Confirm parts that are supposed to be included such as screws.
＊If any abnormalities are found, contact the supplier immediately.
Depending upon shaft shape on MDR, mounting bracket is different.
Checking accessories Confirm received mounting bracket was correct from following.
Mounting bracket
Hexagon shaped shaft
Hexagon shaped shaft
(for water-proof)
D shaped shaft
D shaped shaft
(for water-prrof)
Checking accessories
No.C-081（Standard）
No.C-081-D（SUS304）
No.C-001
No.C-001-D（SUS304）
No.C-071（Option）
2-Φ5.3
9.1
16.1
M5
36
46
30
35
44
9
32-Φ5.3
16.1
9.1
44
35 9
30
3
M5
36
46
2-Φ5.3
M5
9.1
16.1
30
3030
36
46
935
44
3
2-Φ5.3
M5
3
9.1
16.1
35 9
44
36
46
2-Φ5.3
M5
9.1
16.1
35 9
44
36 3
46
Safety precautions
Advance preparation
Check ProductInstallation
Maintenance/Inspection
Specifications
Frame fixing hole
Frame fixing hole
Frame fixing hole
Frame fixing hole
Frame fixing hole
Phillips Cross Recess Pan Head Screws With
Spring Washer M5 x 15 / M5 Toothed washer nut
(2 sets)
Phillips Cross Recess Pan Head Screws With
Spring Washer M5 x 15 / M5 Toothed washer nut
(2 sets)
Phillips Cross Recess Pan Head Screws With
Spring Washer M5 x 15 / Stainless nut M5
(2 sets)
Phillips Cross Recess Pan Head Screws With
Spring Washer M5 x 15 / Stainless nut M5
(2 sets)
Phillips Cross Recess Pan Head Screws With
Spring Washer M5 x 15 / M5 Toothed washer nut
(2 sets)

17 PM380/427LSUserManual
6.Installation
6. Installation
Safety precautions
Advance preparation
Check ProductInstallation
Maintenance/Inspection
Specifications

18 PM380/427LSUserManual
■
■ Secure a space of 9 mm or more.
For and , do not include the frame bend radius in the stated
values.
Standard
V-ribbed pulley specifications
V pulley specifications
6. Installation
MDR dimensions
6-1.
Preparation for install
MDR
Preparation for install MDR
Figure of MDR mounting
holes Holesforinstallationonframe.
Make mounting holes of MDR installation.
1＊For Installation hole processing positions, refer to the figure below.
1
1 2
■ Secure a space of 6 mm or more.
30
Note1
Frame
2-φ5.5
36
Note2
528 17
15
525 17
15
Tube length
Tube length
11.1
5
17
Tube length
11.1
15
5
1.2
Φ38/Φ42.7
Φ12
Φ38/Φ42.7 Φ38/Φ42.7
11.1
1.2
Φ12
11.1
11.1
11.1
1.2
Φ12
Φ12Φ12Φ12
150
Motor cable length
150
Motor cable length
150
Motor cable length
Hexagon shaped
shaft on attaching
side
Hexagon shaped
shaft on attaching
side
Hexagon shaped
shaft on attaching
side
Hexagon shaped
shaft on Motor
side
Hexagon shaped
shaft on Motor
side
Hexagon shaped
shaft on Motor
side
Safety precautions
Advance preparation
Check ProductInstallation
Maintenance/Inspection
Specifications
MDR installation hole φ12.3
2

19 PM380/427LSUserManual
■Use proper mounting brackets produced by ITOH DENKI to tighten shaft of
MDR.
If the shaft rattles or spins free inside the frame, it could result in cable
damage and/or damage to the MDR.
6. Installation
Install the MDR.
6-2.
Install the MDR
InstalltheMDR
Put the shaft on the cable side into
the conveyor frame.
1
2Push the spring loaded shaft using the
tip of a slotted screwdriver, etc., and
pass it through the frame hole.
Necessary tools
8mmwrench
■Be careful not to get the
cable caught in the frame.
■Do not push the shaft beyond
the thrust shaft collar.
■Check that the spring loaded
shaft has sufficiently come
out of the external side of the
frame, as shown in the figure
below.
8
Slotted screwdriver
Cable
Phillips head screwdriver
Safety precautions
Advance preparation
Check ProductInstallation
Maintenance/Inspection
Specifications
Spring loaded
shaft

20 PM380/427LSUserManual
6. Installation
Install the MDR
3
Pass the cable and shaft through hole
of mounting bracket and mount the
mounting bracket to the frame.
■
■
Recommended
tightening torque
3.5N･ｍ
Do not forcibly bend and/or
pull cables and/or
connectors.
■Loosen (remove) attached
nut ( in fig) in advance
to make the mounting
bracket easier to mount.
Dimension betweem frame
Cable
Phillips head screwdriver
Phillips Cross Recess Pan
Head Screws With
Spring Washer M5 x 15
Mounting bracket
○
A
○
A
4
Use the hexagon nut with the flange (
in fig) of the mounting bracket to tighten
the MDR.
■
■
Recommended
tightening torque
3N･ｍ
Confirm the shaft is must be
passed through three plates
before tighten nut.
■Secure a space between the
frame inside and MDR
should be 2 mm to 5mm
total and both of side should
have the space.
Mounting bracket
○
A
○
A
Safety precautions
Advance preparation
Check ProductInstallation
Maintenance/Inspection
Specifications
M5 Toothed washer nut or
Stainless nut M5
Wrench
Hole of mounting
bracket
Motor side shaft
