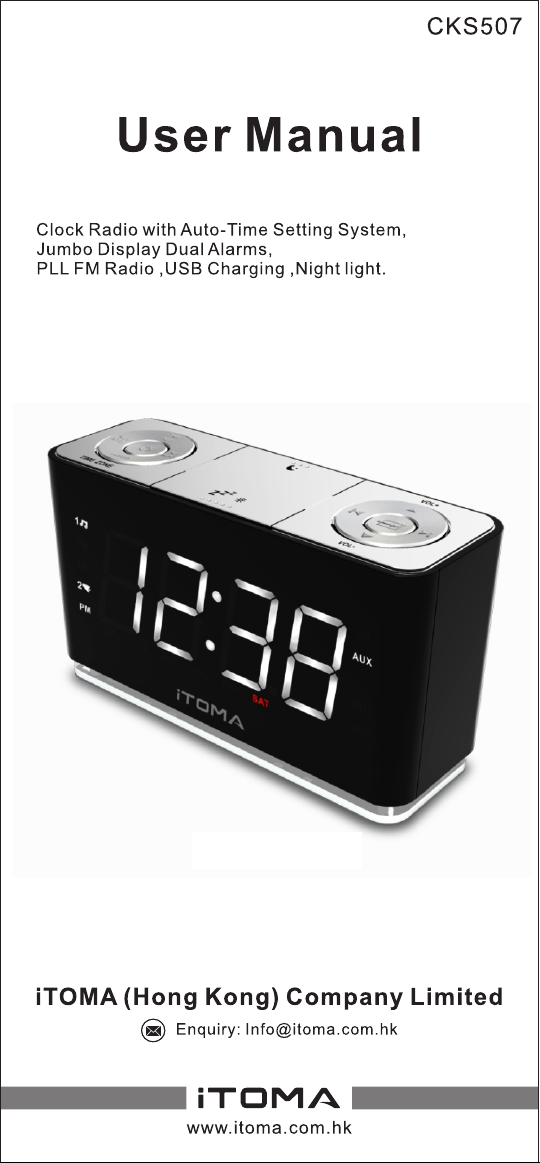

iToma CKS507 User manual

TO PREVENT FIRE OR SHOCK HAZARD , DO NOT USE THIS PLUG WITH AN EXTENSION
CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED
AND THERE ISNO BLADE EXPOSURE .TO PREVENT FIRE OR SHOCK HAZARD , DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
Warning
Unpacking And Set Up
Preparation For Use
Remove the radio from the carton and remove all packing material from the radio.Save
the packing material,if possible,in case the radio ever needs to be serviced or
transported.The original carton and packing material is the only safe way to pack your
radio to protect it from damage in transit.
Remove any descriptive labels or stickers on the front or top of the cabinet.
Do not remove any labels or stickers from the back or bottom of the cabinet.
Note the serial number on the bottom of your radio and write this number in the space
provided on the Warranty page of this manual.
Place your radio on a level surface such as a table,desk or shelf,convenient to an AC
outlet,out of direct sunlight,and away from sources of excess heat,dirt,dust,moisture,
humidity, or vibration.
Unwind the Line cord connecting the AC adapter and extend it to its full length.The FM
antenna is built in to this cord.It must be fully extended to provide the best FM reception.
11.) Use only with the cart, stand, tripod,bracket,or table specified by the manufacturer,or
sold with the apparatus . When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
12.) The AC adaptormust not be exposed to dripping or splashing and noobjects filled with
liquids, such as vases, shall be placed on apparatus.
13. ) The AC plug is used as a disconnect device and it must remain readily accessible
readily accessible during intended use. In order to disconnect the apparatus from the
AC power completely, the AC plug must be removed from the AC outlet completely.
10.) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way,such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus,the apparatus has been
exposed to rain or moisture,does not operate normally, or has been dropped.
1.) Read these instructions . Keep these instructions . Follow all instructions. Heed
all warnings.
2.) Do not use this apparatus near water.
3.) Clean only with dry cloth.
4.) Do not block any ventilation openings.Install in accordance with themanufacturer's
instructions.
5.) Do not install near any heat sources such as radiators, heaters, stoves, or other
apparatus(including amplifiers) that produce heat.
6.) Do not defeat the safety purpose of the polarized or grounding-type plug.A
polarized plug has twoblades with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide blade or the third prong
is provided for your safety.If the provided plug does notfit into your outlet, ask
an electrician for replace the obsolete outlet.
7.) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles and the point where they exit from the apparatus.
8.) Only use attachments / accessories specified by the manufacturer.
9.) Unplug this apparatus during lightning storms or when unused for long
periods of time.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type.
14.) The battery must not be exposed to excessive heat such as sunshine, fire, etc.
Important Safety Instructions

Location of Controls and Indicators
Protect Your Furniture
This model is equipped with non-skid rubber 'feet' to prevent the product from moving
when you operate the controls.These'feet'are made from non-migrating rubber material
specially formulated to avoid leaving any marks or stains on your furniture.However
certain types of oil based furniture polishes, wood preservatives,or cleaning furniture.
To prevent any damage to your furniture we strongly recommend that you purchase small
self-adhesive felt pads, available at
hardware stores and home improvement centers everywhere, and apply these
pads to the bottom of the rubber'feet'before you place the product on fine wooden
furniture.
Power Source
This radio is designed to operate on normal 120V 60Hz AC power only. Do not attempt to
operate the radio on any other power source. You could cause damage to the radio that
is not covered by your warranty. This radio should be connected to an AC outlet that is
always'live'. Do not connect it to an outlet that is controlled by a wall switch. When the
power to the radio is interrupted, the built in lithium battery takes over to maintain the
time and alarm settings. To maximize the life of the lithium battery keep the radio
connected to a 'live' AC outlet at all times.
• Operate controls and switches as
described in the manual.
• Before turning on the power,make
certain that the AC adapter is
properly installed.
• When moving the set, be sure to
first disconnect the AC adapter.
• AC Power Adapter 110V-240AC
50/60Hz,DC 5V x1
18
15
17
16
8
12
9
19
16
14
13
11
17
10
12
TIME ZONE
Z
Z
Z
VOL
-
VOL+
TIME
SET
MEM.
AL2AL1
STO.
SLEEP
TOP PANEL
FRONT PANEL
• Avoid installing this unit in places exposed
to direct sunlight or close to heat radiating
appliances such as:electric heaters, on top
of other stereo equipment that radiates theat,
places lacking ventilation, dusty areas, places
subject to constant vibration and/or humid or
moist areas.
• CKS507 clock radio x 1 • User Manual x 1
Important Notes
What Inside
1
2
34
5
6
7

Preparation for Use
OFF : Current time will appears on the display
When the clock is connected to the AC outlet for the first time the display will default
Stand by mode.
ON : Radio or Auxiliary mode
radio frequency mode “AUX” means into Auxiliary Mode
Power Source
AC adapter’Plug
AC outlet
BACK PANEL
21 22 2420
23
FM
ANT. AUX IN
USB CHAR.
DC 5V IN
Please refer to AUX IN function in later page
POWER Button
ALARM 1 Radio /Buzzer Indicator
ALARM 2 Radio /Buzzer Indicator
PM Indicator
DAY of WEEK Indicator
AUX Indicator
LOW BATTERY Indicator
MHz Indicator
ALARM1/STORE Button
TIME SET Button
SLEEP/TIME ZONE Button
1.
11.
10.
9.
8.
7.
6.
5.
4.
3.
2.
12.
ALARM2/MEMORY Button
13. SNOOZE/DIMMER Button
21.
22.
20.
19.
18.
17.
16.
15.
14.
FM ANTENNA
SOURCE Button
DC JACK Input
USB CHARGING Port
NIGHT LIGHT Button
SET/TURN UP Button
VOLUME- Button
SET/TURN DOWN Button
VOLUME+ Button
BACKUP BATTERY
Compartment
(located on back of unit)
23.
AUX IN Jack
24.
When the unit on,press the button to switch to radio or AUX mode
MHZ light on display means radio frequency mode
AUX light on display means Auxiliary mode

If you want to change the Time Zone, please refer to "SETTING THE TIME ZONE”
Date and Year Display:
Year, Month/Date,Time
Check the current time:
Press st1
YEAR
MONTH/DATE
Press nd2
TIME
Press rd3
VOL+
VOL-
TIME ZONE
Z
Z
Z
TIME
SET
Setting the Time
Setting the Time Zone
With power off,press and hold TIME ZONE button,hour will blink on the display.
VOL+
VOL-
TIME ZONE
OR
Press and hold
1
2
2
Z
Z
Z
SLEEP
Press or button set the time zone;
Press add one hour or minus one hour,according to your location.
Resetting time
Date TimeYear
With power off, press TIME SET button repeatedly setting the time.
press and hold TIME SET button ,time blink on the display:
press or button set the hour,
press or button set the minutes,
press TIME SET button repeatedly,month blink on the display:
press or button set the month,
press or button set the date,
press TIME SET button repeatedly,Year blink on the display:
press or button set the correct year;
1
2
3
4
5
6
7
8
1
2
VOL+
VOL-
TIME ZONE
Z
Z
Z
1TIME
SET
Press and hold

To set the time to military(24Hour)
or standard(12Hour)time
Standard (12Hour) Military (24Hour)
With the power off,press and hold the button for five seconds and the time will change
to the next mode and "H12" or “H24” will blink on the display,release the button confirm
the mode.
Noted: If the 12/24 setting is set to 12/24,hours time is setting is set to 12,make sure to
select the correct AM/PM setting(there is a PM indicator will light on the left side
of display).
Setting the Alarm
With power off,press Al1 or Al2 button for 5 seconds,time will blink on the display;
Press button set the hour;
Press button set the minutes;
Press button set the week mode;
Press or button set the alarm volume level
Noted:
Select alarm source,press Al1 or Al2 button repeadly select alarm buzzer or
radio mode.
If you do not want the alarm to turn the radio on the following day,press the appro-
priate alarm button,until the alarm sound indication on the display turns off.
SNOOZE Repeat Alarm
VOL+
VOL-
TIME ZONE
Z
Z
Z
Z
Z
Z
Press
When alarm sounds ,press SNOOZE button,the alarm that will repeat nine minutes later.
The SNOOZE operation maybe repeated several times.If desired but after one hour the
alarm will not come on again.
Press and hold
VOL+
VOL-
TIME ZONE
Z
Z
Z
1
2
3
4
5
Single Day (Monday, Tuesday, Wednesday, ....Sunday),
Weekdays (Monday to Friday),
Weekends (Saturday and Sunday) ,
Everydays (Monday to Sunday).
Everydays
nine minutes
VOL+
VOL-
TIME ZONE
Z
Z
Z
Press and hold AL1
STO.
AL2
MEM.
or

Listen to the Radio
Turning to the FM radio
With the power on press the button to switch to radio mode,MHz indicator light
on the right side of display.
Press or button tune to the desirde station as descried.
Set the volume by pressing or button.
Tune to your desired station by pressing or button to increase or decrease the
receiving frequenoy by one step,or press and hold or for several seconds to
tune to a station with strong reception automatically.
Storing station to the memory
Tune to a radio stations
Press and hold Al1 STO. for 2seconds,the store number begins to blink.
Press or button to select (P01-P10)a number.
Press Al1 STO. button again or release to confirm.
Recalling station from the memory
Sleep to radio timer
Press SLEEP button repeatedly to select the sleep timer period.
Sleep time (10-90-OFF)
1
2
3
4
Press and hold
VOL+
VOL-
TIME ZONE
Z
Z
Z
VOL+
VOL-
TIME ZONE
Z
Z
Z
AL1
STO.
Press UP or DOWN
VOL+
VOL-
TIME ZONE
Z
Z
Z
1
2
3
4
After the radio is “ON”,press Al2 MEM.PXX(P01-P10) shows on the display and the
station according to the memory location is turned.
Press or button can change the memory location(P01-P10)
1
2
VOL+
VOL-
TIME ZONE
Z
Z
Z
MEM.
AL2
Press
1
2
VOL+
VOL-
TIME ZONE
Z
Z
Z
VOL+
VOL-
TIME ZONE
Z
Z
Z
SLEEP
Press
Dimmer Control(press1/press2/press3)
VOL+
VOL-
TIME ZONE
Auto-tuning
Z
Z
Z
VOL+
VOL-
TIME ZONE
Auto-tuning
Z
Z
Z
Z
Z
Z
3-Level Auto Dimmer Control
Press
Low
High
Press button repeatedly to adjust display brightness.
Z
Z
Z

Changing the Lithium Battery
When the low battery indicator”Flashes”and red colour, you should change the
battery that is used for back up clock and alarm setting time.It will be “OFF”,when you
have changed the battery in correct instructions,start to play the audiosource.
Unit has a USB port for mobile charging of DC 5V ,1A that you can connect your mobile
phone or USB device for charging.
USB for Charging
VOL+
VOL-
TIME ZONE
Z
Z
Z
AUX IN (Auxiliary Input)
Noted:
The unit is equipped with a battery back-up system in the event of a power failure.
If this occurs the clock and alarm memory continue running and when the AC
power resume, the clock will switch back to AC power 1 years battery life again.
Press button to turn the radio”ON”.
Press button to switch to AUX mode,AUX indicator ligh on the right side of display .
Used AUX line connect your audio or mobile device.
1
2
3
VOL+
VOL-
TIME ZONE
Z
Z
Z
Night Light
Press
Press button turn ON/OFF night light

Care Of Cabinets
If the cabinet becomes dusty,wipe it with a soft cloth.If the cabinet becomes smudged or
dirty, clean it with a soft, slightly dampened cloth . Never allow water or any liquid to get
inside the cabinet.Never use any abrasive cleaners or cleaning pads as these will
damage the finish of your radio.
Lithium Battery Precautions
• Dispose of the old battery properly.Do not leave it lying around where a young child or
pet could play with or swallow it. If the battery is swallowed, contact a physician
immediately.
• The battery may explode if mistreated. Do not attempt to recharge it or disassemble it.
Do not dispose of the old battery in a fire.
The apparatus must not be exposed to dripping or splashing and objects filled with
liquids,such as vases, must not be placed on the apparatus.
Care and Maintenance
Resetting The Clock After A Total Memory Loss
If you do not change the built in lithium battery within a reasonable
period of time afteryou see the warning indicator, the lithium
battery may become exhausted and will no longer be able to sup-
ply back up power to the clock radio internal computer.If the unit is
disconnected from the AC outlet after the battery is exhausted, or
if a power interruption occurs, the clock radio memory will be lost
and the clock will need to be reset when the power is restored.
VOL+
VOL-
TIME ZONE
Z
Z
Z
1TIME
SET
Press and hold
Resetting time
Date TimeYear
With power off, press TIME SET button repeatedly setting the time.
press and hold TIME SET button ,time blink on the display:
press or button set the hour,
press or button set the minutes,
press TIME SET button repeatedly,month blink on the display:
press or button set the month,
press or button set the date,
press TIME SET button repeatedly,Year blink on the display:
press or button set the correct year;
1
2
3
4
5
6
7
8

iTOMA (Hong Kong) Company Limited (iTOMA) warrants to be original consumer of this
iTOMA product that it will furnish a replacement for, or, at its sole option, repair any part
which proves (upon inspection by iTOMA)to be defective under normal use within 1 year
of the original purchase date.This warranty does not apply to appearance items,including,
but not limited to, antennas, knobs, cabinets, or cases, and in the case of batteries, for
damage caused by leaking batteries. It also does not apply to the product, or to any part
the reof, that has been damaged through misuse or negligence.Furthermore,this warranty
will become invalid if,in the judgment of iTOMA the product or any part thereof has been
installed incorrectly, repaired or altered by other than iTOMA Service Department.This
warranty gives you specific legal rights and you may also have other rights which vary
from state to state. Some states do not allow the exclusion or limitation of incidental or
consequential damages or limitations on how long an implied warranty lasts,so the above
exclusions and limitation may not apply to you.
Power adapter............................................................. DC5V IN
USB output.................................................................. 5V
FM Frequency...................................................
Back up battery (time back up)...................................
Output power...............................................................
Speaker Impedance............................................................
Unit size..........................................
1.5A
87.5 - 108MHz
1xCR2032
300mW
Ω
8
158W X 90H X 55D (mm)
Specifications
1-Year Limited Warranty
Daylight Saving Time is NOT observed in Hawaii, American Samoa, Guam,
Puerto Rico, the Virgin Islands and in, most of Arizona, with exception of the
Navajo Indian Reservation in Arizona. Beginning in 2007, this Clock Radio
will automatically advance by one hour at the beginning of Daylight Saving
Time on the second Sunday in March. And it will automatically return to
Standard Time on the first Sunday in November. If you live in an area that
does not observe Daylight Saving Time it will be necessary for you to
manually set the clock back one hour at the beginning of the Daylight Saving
Time, and forward one hour at the end of Daylight Saving Time. A simple way
to do this is to change the TIME ZONE setting. Set the clock to the next higher
numbered time zone at the beginning of Daylight Saving Time, and set the
clock back to your correct time zone at the end of Daylight Saving Time.
IMPORTANT NOTICE
[e-mail]
Please contact iTOMA (Hong Kong) Company Limited,
For Service, Warranty, or Product Information,
PLEASE SAVE THIS CARD TOGETHER WITH ORIGINAL DATED FOR YOUR
RECORDS AND FOR CUSTOMER SERVICE.
