ITOOLCO CANNON 6K USER’S GUIDE
2007C6KUG
Page | 2
BEFORE OPERATION OF THIS TOOL, READ AND
UNDERSTAND ALL OF THE INSTRUCTIONS AND
SAFETY INFORMATION IN THIS MANUAL
Contents
SAFETY FIRST ................................................................................................................................................ 3
SAFETY ALERT SYMBOLS ............................................................................................................................... 3
IMPORTANT SAFETY INFORMATION ............................................................................................................ 4
DESCRIPTION AND IDENTIFICATION ............................................................................................................. 6
SET UP AND OPERATION ............................................................................................................................ 10
Assembly ................................................................................................................................................ 10
Attaching Conduit Adapters ................................................................................................................... 11
Underground Wire Pull .......................................................................................................................... 12
Overhead Wire Pull ................................................................................................................................ 13
Receiver Hitch Wire Pulls ....................................................................................................................... 14
Maintenance .......................................................................................................................................... 15
LIMITED WARRANTY: ITOOLCO CANNON 6K ............................................................................................. 16

ITOOLCO CANNON 6K USER’S GUIDE
2007C6KUG
Page | 3
SAFETY FIRST
Safety is essential in the use and maintenance of this tool. This instruction manual and any
markings on the tool provide information for avoiding hazards an unsafe practices related to
the use of this tool. Observe all of the safety information provided.
SAFETY ALERT SYMBOLS
This symbol is used to call your attention to hazards or unsafe practices that could result in
injury or property damage. The three signal words, defined below, indicate the severity of the
hazard. The message after the signal word provides the information for preventing or avoiding
the hazard.
DANGER
Immediate hazards that, if not avoided, WILL result in severe
injury or death.
WARNING
Hazards that, if not avoided, COULD result in severe injury or
death.
CAUTION
Hazards or unsafe practices that, if not avoided, MAY result in
injury or property damage.

ITOOLCO CANNON 6K USER’S GUIDE
2007C6KUG
Page | 4
IMPORTANT SAFETY INFORMATION
WARNING
Read and understand all instructions and safety information in
this manual before operating or servicing this tool.
Also read the instruction manual supplied with your drill.
FAILURE TO OBSERVE THESE WARNINGS CAN RESULT IN SEVERE
INJURY OR DEATH
WARNING – PERSONAL SAFETY HAZARDS
Only qualified persons should use iTOOLco Cannon 6K.
Wear eye protection and hard hat when using this tool.
Do not use this tool while tired or under the influence of drugs,
alcohol, or medication.
Keep body parts and loose clothing away from moving parts.
Always follow operating procedures.
FAILURE TO OBSERVE THESE WARNINGS CAN RESULT IN SEVERE
INJURY OR DEATH.
WARNING – ELECTRICAL SHOCK HAZARDS
Do not expose power tools to rain or wet conditions. Water
entering a power tool can increase the risk of electric shock.
Plug into a (GFCI) ground fault interrupted circuit outlet only.
Use a 20 Amp 120 Volt extension cord no more than 100 feet in
length. Maintain proper care of power cords. Do not use the
cord to carry the tool or pull the plug from an outlet. Replace
damaged cords immediately. Damaged cords can increase the
risk of electrical shock. Do not use this tool near live circuits.
Shut off and lock out power when working near existing
circuits. FAILURE TO OBSERVE THESE WARNINGS CAN RESULT
IN SEVERE INJURY OR DEATH.

ITOOLCO CANNON 6K USER’S GUIDE
2007C6KUG
Page | 5
WARNING – ENTANGLEMENT HAZARD
Do not operate this tool while wearing loose-fitting clothing.
Retain long hair.
Keep hands away from pullers capstan. Rope at capstan can
pinch or crush a hand or body part.
FAILURE TO OBSERVE THESE WARNINGS CAN RESULT IN SEVERE
INJURY OR DEATH.
WARNING – TIPPING HAZARD
Use the same size adapter with conduit. Lock adapter under
conduit nut. Disassemble when not in use. FAILURE TO
OBSERVE THESE WARNINGS CAN RESULT IN SEVERE INJURY OR
DEATH.
WARNING – TOOL USE HAZARDS
Use this tool for manufacturer’s intended purpose only. Use
other than that which is described in this manual can result in
injury or property damage.
Do not use nylon or polypropylene rope. Extreme force can be
stored when rope stretches. Inspect all aspects of the wire pull
to ensure safety.
Inspect all aspects of the wire pull to ensure safety.
Only qualified personnel should use pulling equipment.
Do not use the cable puller as a hoist or winch. The cable puller
cannot lower a load. The load may fall and cause serious injury
or death.
FAILURE TO OBSERVE THESE WARNINGS CAN RESULT IN SEVERE
INJURY OR DEATH.

ITOOLCO CANNON 6K USER’S GUIDE
2007C6KUG
Page | 6

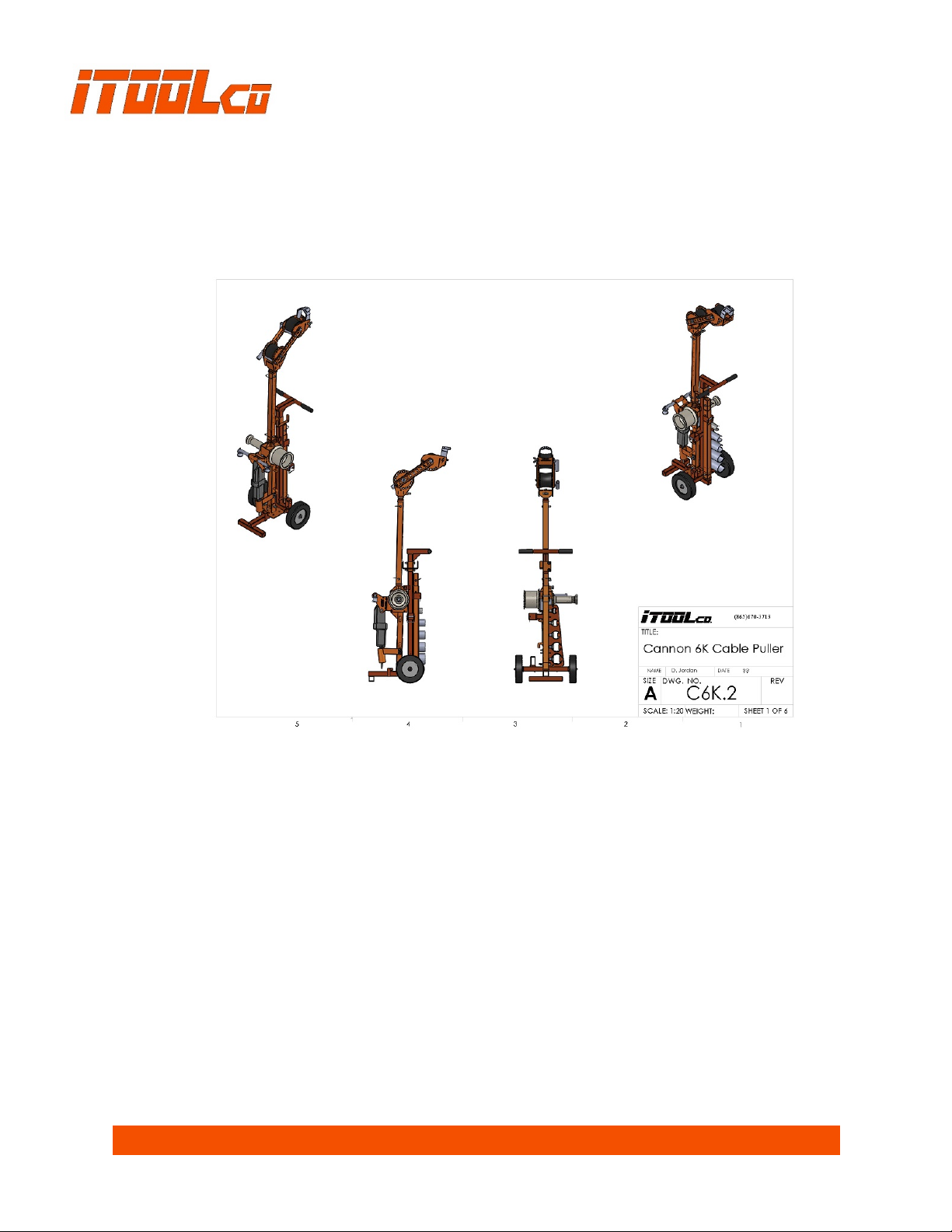

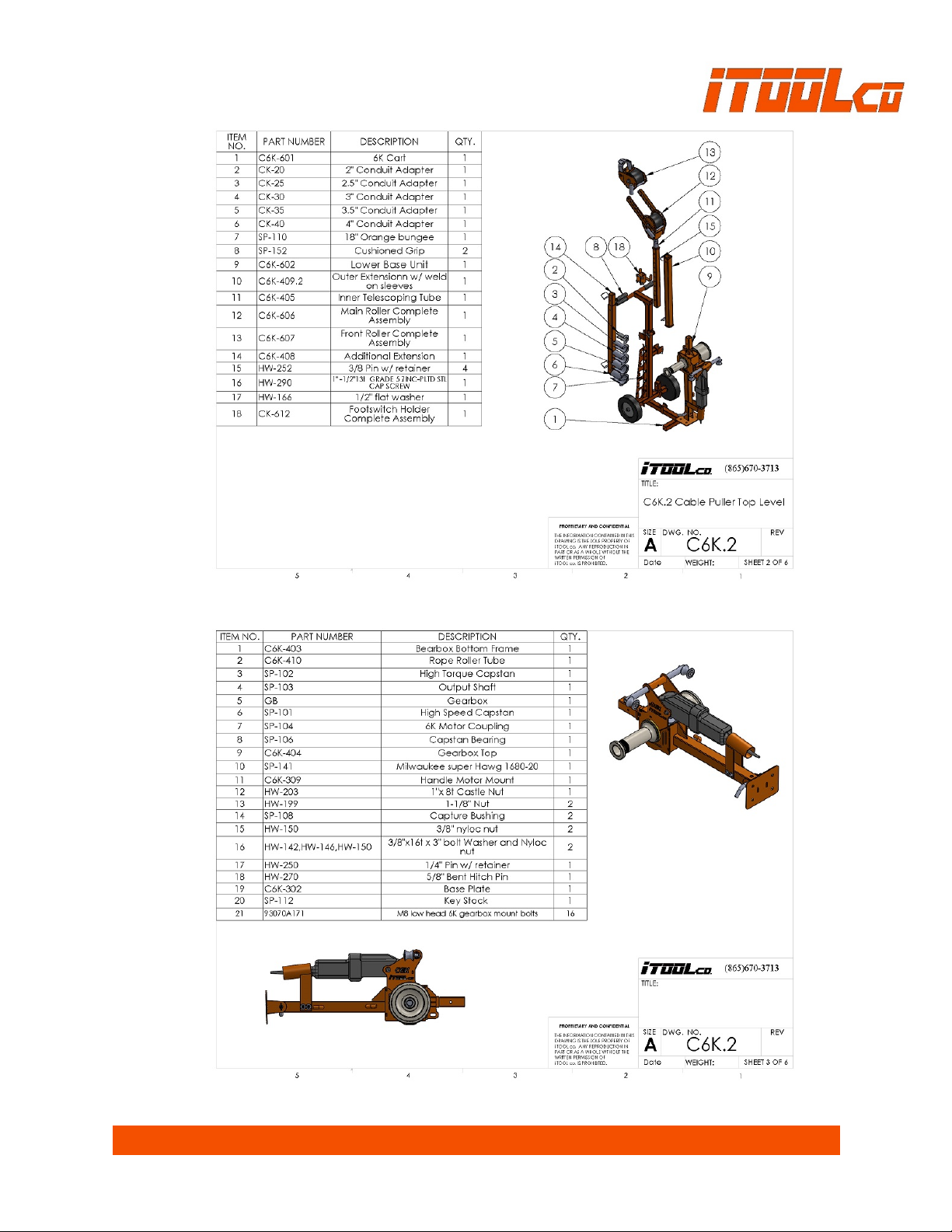

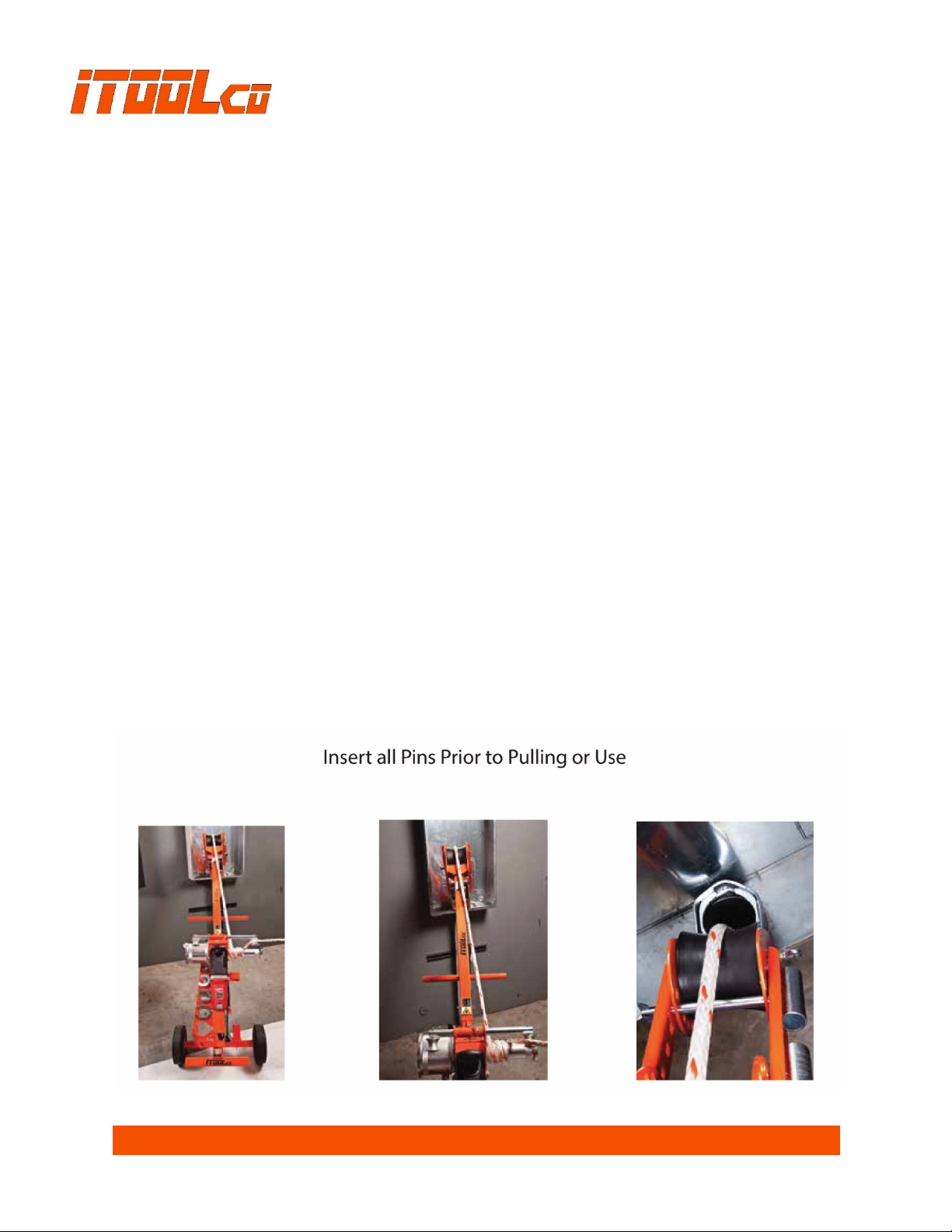

DESCRIPTION AND IDENTIFICATION
The IToolco Cannon 6K is a 6,000 lb. cable puller intended to pull small to medium wire through
conduit. It sets up in only minutes, and is a dual capstan, four-speed puller. The Cannon 6K can pull at
speeds from 8 to 70 feet per minute. It does not need to be anchored to the ground, and is easy for
one person to set up, transport, and operate.

ITOOLCO CANNON 6K USER’S GUIDE
2007C6KUG
Page | 7

ITOOLCO CANNON 6K USER’S GUIDE
2007C6KUG
Page | 8

ITOOLCO CANNON 6K USER’S GUIDE
2007C6KUG
Page | 9

ITOOLCO CANNON 6K USER’S GUIDE
2007C6KUG
Page | 10
SET UP AND OPERATION
Assembly
1. Always wear gloves, eye protection, and appropriate safety gear when working with wire pullers.
2. Remove iTOOLco Cannon 6K Puller from shipping crate.
3. iTOOLco Cannon 6K is designed to be used with a drill motor, Milwaukee #1680-20.
4. Plug in the foot switch to the 120 Volt power supply and the C6K puller.
5. Make sure the motor is set to forward. Test the C6K by stepping on the foot switch. For pulling the
capstans should rotate so that the rope starts over the top. (not under the bottom) and wraps are
added accordingly.
6. To start, set the speed switch (located on the motor) to low.
7. Use the low speed capstan to start the pull. Use 1 to 3 wraps of rope around the capstan. Use the
rope roller guide and always stand to the side of the puller.
8. Step on the foot switch and begin to take up the slack in the rope.
9. Once the wire head has entered the conduit you may determine at which speed to pull the wire.
10. If a higher speed is desired, switch speeds on the motor by releasing the foot switch. Once the puller
has stopped, rotate the speed switch to high, and /or move the rope to the high speed capstan.
11. Complete the wire pull.

ITOOLCO CANNON 6K USER’S GUIDE
2007C6KUG
Page | 11

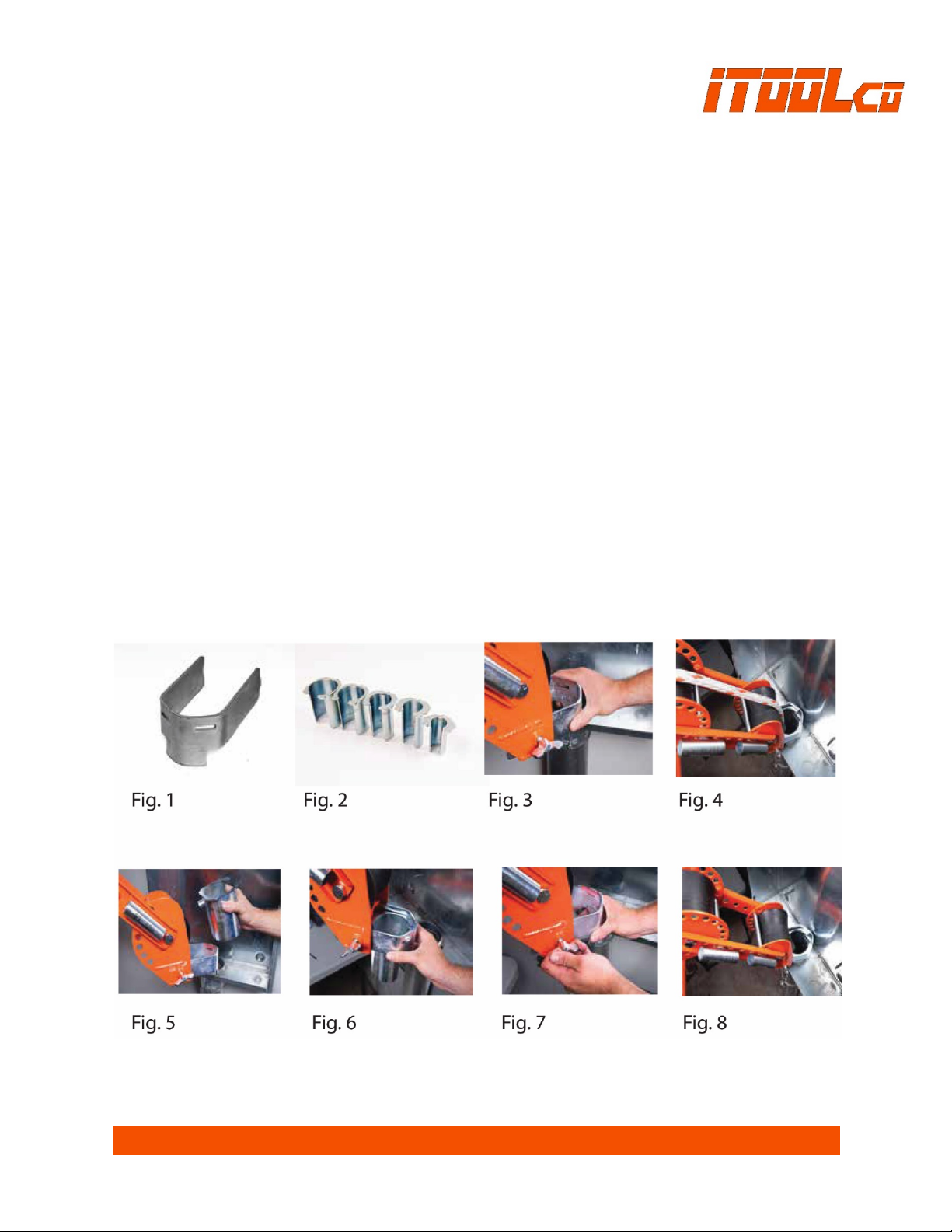

Attaching Conduit Adapters
Option 1 - Using the universal adapter
1. Loosen the 1/2” bolt on either side of the front knuckle.
2. Slide the universal adapter in or out to accommodate the appropriate size of conduit, as
shown in Figure 3.
3. Make sure that the adapter engages the conduit as shown in Figure 4.
Note: The universal adapter is to be used for pulling loads under 3,000 lbs. For loads over 3,000 lbs.,
the conduit adapters provided with your puller should always be utilized.
Option 2 - Using the appropriate 2” - 4” adapter (Fig. 2).
1. Place the desired conduit adapter size into the top of the universal adapter. See Figures 5 and 6.
2. Slide the adapters toward the puller until the male pin on the adapter engages the female
opening and stops. Tighten the 1/2” bolt on the side of the front knuckle. See Figure 7.
3. Remove the adjustment hitch pin. Slide the puller into position and place the conduit adapter
into the conduit. See Figure 8.
4. Replace all hitch pins.

ITOOLCO CANNON 6K USER’S GUIDE
2007C6KUG
Page | 12
Underground Wire Pull
1. Pivot front extension assembly as needed and reinsert pin.
2. Lift up front end and place conduit adapter into conduit. Always make sure conduit adapter sits
flush around the conduit you are pulling through.
3. Replace pin in front assembly to lock all parts tight. (This must be pinned for the puller to
operate safely and properly.)
4. Make sure side set screw is tight on the universal adapter.
5. Stand to the side of the puller, using the rope guide, not in line with the rope being pulled, to
avoid injury if the rope breaks.
Note: iTOOLco Pull Slick or only low stretch rope designed for wire pulling, 1/2” to 7/8” sizes.
6. Use proper pulling lubricant to make pulling jobs smoother (on feed side).
7. Determine which capstan you will use. For lighter loads at high speed, use the large diameter
capstan. For heavy loads, use the small diameter capstan.
Note: To achieve optimum pulling speed, listen to the sound of the motor. If the motor is
straining, switch speeds or swap to the small diameter capstan.
8. Loosely wrap rope around the appropriate capstan, using the rope guide, so that you can stand
safely to the side of the puller. Start the capstan turning by stepping on the included footswitch.
Pull on the rope to produce some tension. The rope will begin to advance.
Note: if the rope begins to ball or backlash, reduce the number of wraps around the capstan.
9. Pull and release tension on rope to maintain optimum pulling tension. This will keep the rope
from balling up or backlashing. The rope will slip on the capstan during normal operation.
10. Keep the rope moving so that the capstan does not contact one spot on the rope for a short
period of time, or the rope may heat up and break. Do not exceed about 45 N (10 lbs.) of
tension on the rope. Note: If the pull becomes difficult, add another wrap or two of rope to the
capstan. If excessive force becomes necessary, stop the pull and inspect the set up.

ITOOLCO CANNON 6K USER’S GUIDE
2007C6KUG
Page | 13

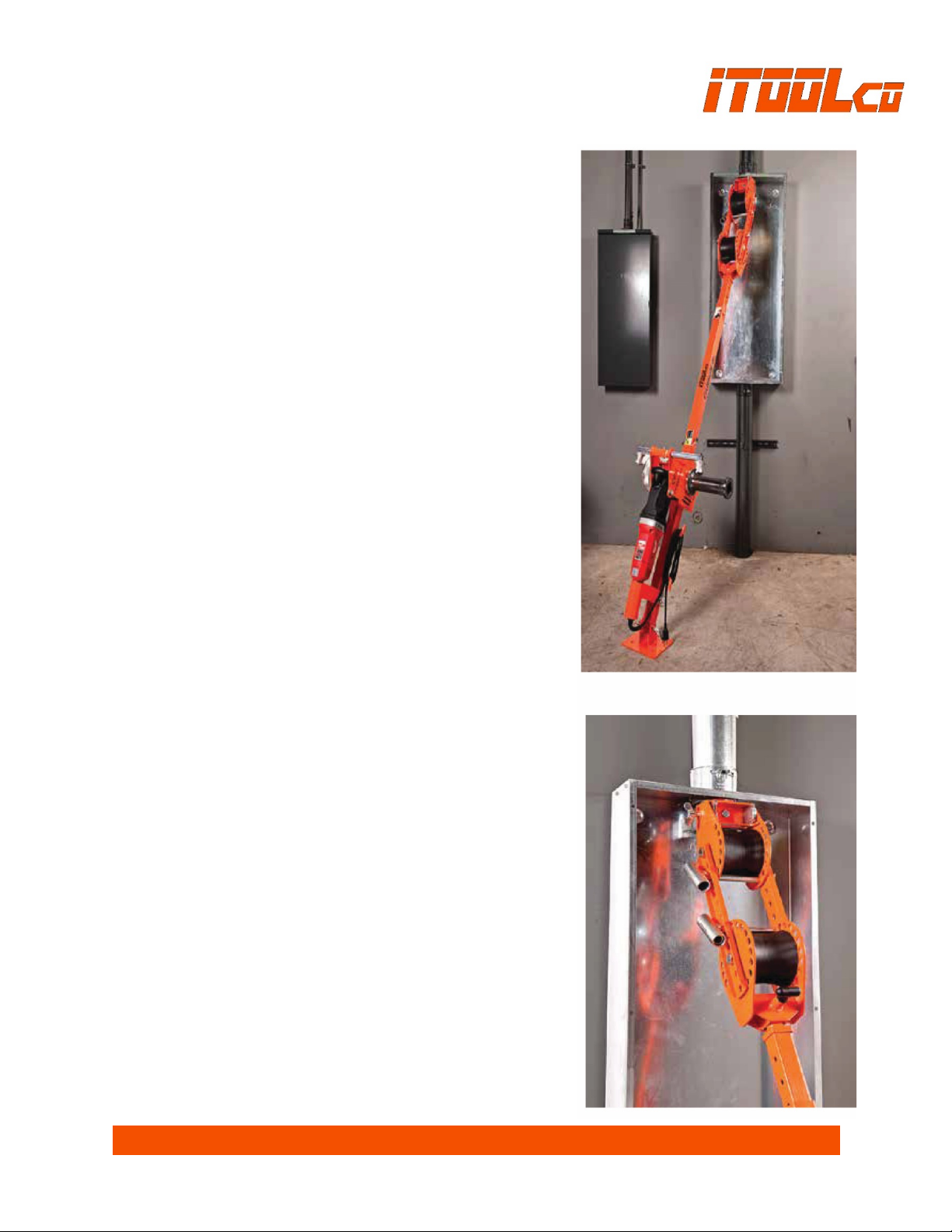

Overhead Wire Pull
1. Convert the Cannon 10K to an overhead
configuration by removing the cinch pin at the main
knuckle. Pull the snap pin, and rotate the front end
right or left to the desired position.
2. To achieve optimum balance, slide base to adjust
the front knuckle weight.
3. Adjust front knuckle and main knuckle for proper
alignment of the adapter into and onto the conduit.
4. Use the universal adapter if the pull is under 5,000
lbs. If the pull is over 5,000 lbs. attach the correct
size adapter and thread the rope through the
adapter.
5. Install and tighten all pins.
6. Do not stand in-line with the rope being pulled,
(stand to the side of the puller) to avoid injury if the
rope breaks.
Note: Use only low stretch rope designed for wire
pulling, 5/8” to 11/4” sizes.
7. Use proper lubricant or no-lube wire to make
pulling jobs smoother.
8. Determine which capstan to use. For lighter loads
at high speed, use the large diameter capstan. For
heavy loads, use the small diameter capstan.
Note: To achieve optimum pulling speed, listen to
the sound of the motor. If the motor is straining,
switch to the small diameter capstan.
9. Loosely wrap rope around the appropriate capstan.
Step on the included foot switch to start the
capstan turning. Pull on the rope to produce some
tension. The rope will begin to advance. Note: If
balling or backlashing occurs, reduce the number of
wraps around the capstan
10. Maintain tension on the rope. The rope will slip on
the capstan during normal operation. Keep the
rope moving so that it does not contact one area of
the capstan for more than a few seconds, or it may
heat up and break.
Note: Do not exceed about 45 N (10 lbs.) of tension
on the rope. If the pull becomes difficult, add
another wrap or two of rope to the capstan. If
excessive force becomes necessary, stop the pull
and inspect the set up.

ITOOLCO CANNON 6K USER’S GUIDE
2007C6KUG
Page | 14

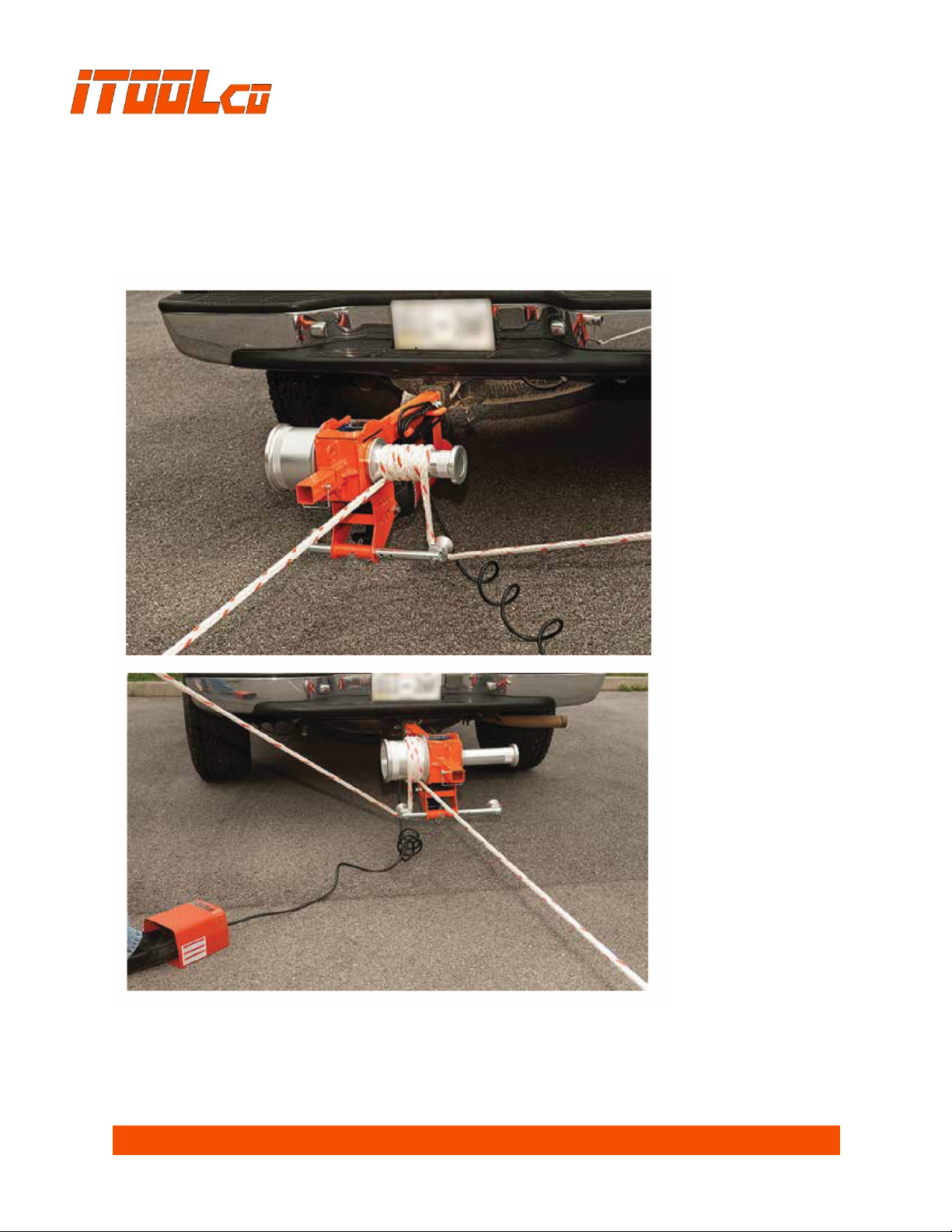

Receiver Hitch Wire Pulls
1. Remove front assembly from gear box section.
2. Remove base plate pin and remove base plate.
3. Slide base tube into trailer receiver hitch with the capstans horizontal (motor toward the ground).
4. Secure puller to receiver hitch with base plate pin.
5. Wrap the rope as a bottom feed. Show below (Under Bottom Rope Start in Receiver Hitch Only).

ITOOLCO CANNON 6K USER’S GUIDE
2007C6KUG
Page | 15
Maintenance
Gear box is filled with high-temperature synthetic gear lubricant. Maintenance is required every 200
hours of actual pulling time. Gearbox takes 15.22 oz. 450 cc's of Shell synthetic Omala S4We or equal. In
order to drain and refill the gear box oil, start by unbolting the motor and lifting it up off of the gearbox
shaft. Next loosen the nut holding the large capstan in place and remove it, then slide the small capstan
and shaft out of the gearbox (be careful not to lose the aluminum spacer and brass bearing on the
shaft).
Now that the capstans have been removed, take out the gearbox housing bolts on both sides of the
gearbox, and remove the gearbox from the housing. The oil drain is located on the bottom of the
gearbox, drain and refill with the appropriate amount of oil. Always make sure that puller is clean and in
good working order before use. Replace any worn rollers or rusty pins before use. Always make sure
that Cannon 6K is clean and in good working order before use. Replace any worn rollers or rusty pins
before use.

ITOOLCO CANNON 6K USER’S GUIDE
2007C6KUG
Page | 16
LIMITED WARRANTY: ITOOLCO CANNON 6K
iTOOLco warrants all new Cannon 6K covered by his agreement, when properly used, to be free from
defects in material and workmanship under normal use and service for which it is intended for a period
of one year from date of delivery by the dealer. Date of delivery shall be the date product is placed in
possession of the user. NORMAL WEAR FROM USE IS NOT PART OF THIS WARRANTY. This limited
warranty is extended to the original user only and is not transferrable to, nor enforceable by any other
person.
iTOOLco will replace free of charge any part(s) of the product found to be defective when such part(s) is
returned to iTOOLco at the address shown below, freight prepaid. If the part(s) if found to be defective,
iTOOLco will refund freight charges paid by you in retuning the defective part(s) and prepay
replacement part(s) freight charges. iTOOLco will not be responsible for more than replacement of any
defective part(s) and standard freight charges (parcel post or UPS ground rate) of any part(s) found to be
defective.
THIS IS THE EXCLUSIVE REMEDY. ITOOLCO SHALL NOT BE RESPONSIBLE OR LIABLE FOR ANY INCIDENTAL
OR CONSEUQNTIAL DAMAGES RESULTING FROM ANY DEFECTS COVERED BY THIS WARRANTY OR ANY
IMPLIED WARRANTY APPLICABLE TO THE PRODUCT INCLUDING, BUT NOT LIMITED TO, PROPERTY
DAMAGE, LOSS OF USE OF PRODUCT, LOSS OF TIME, LOSS OF PROFITS, INCONVENIENCE, COMMERCIAL
LOSS, LABOR COSTS, SERVICE TRIPS, AND MILEAGE.
Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may
not apply to you.
Dealer/Distributor Warranty Claim Procedure
1. All warranty claims must be pre-approved by iTOOLco Warranty Department PRIOR to starting
any warranty work. Warranty work performed without prior approval will not be considered.
2. All claims must be handled through dealer/distributor.
3. Written approval must be received from iTOOLco before return of merchandise. A Return
Authorization is to be returned with the merchandise which is sent back.
4. All parts must be returned to iTOOLco at the address shown below, freight prepaid.
5. The serial number of the product and the date of delivery must accompany the part(s) being
returned.
6. If the part(s) is found to have failed because of a defect in material or workmanship,
replacement will be made on a no-charge basis, and the part(s) returned, freight prepaid.
Standard freight charges (parcel post or UPS ground rate) incurred in returning the part(s) will
be refunded.
7. For reasons of expediency, replacement and/or repair part(s) may be shipped as soon as
possible and billed to the dealer/distributor. When part(s) is returned, if it is covered under
warrant, credit will be issued for the part(s) and freight charges.
8. All parts found to be defective shall be retained by and shall become the property of iTOOLco.
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
Corporate Address: iTOOLco
1325 Carden Farm Dr
Clinton, TN 37716

ITOOLCO CANNON 6K USER’S GUIDE
2007C6KUG
Page | 17
1325 CARDEN FARM DR | CLINTON, TN 37716 | 865.483.2040 | ITOOLCO.COM
© 2020 PROPERTY OF ITOOLCO
