ITOX ETX620-B User manual

1
1
Introduction
ETX620-B
Carrier Board
User’s Manual
935-ETX620-000G
A01800724

2
Introduction
1
Copyright
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior writ-
ten permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any ex-
press or implied warranties of merchantability or fitness for any par-
ticular purpose.The user will assume the entire risk of the use or the
results of the use of this document. Further, the manufacturer re-
serves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or en-
tity of such revisions or changes.
© 2007. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for iden-
tification purpose only and are the properties of the respective own-
ers.

3
1
Introduction
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation.This equipment generates, uses and can radiate radio fre-
quency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communi-
cations. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following meas-
ures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
2. Shielded interface cables must be used in order to comply with
the emission limits.

4
Introduction
1
Table of Contents
Warranty.................................................................................................
Static Electricity Precaution................................................................
Safety Measures.....................................................................................
About the Package...............................................................................
Chapter 1 - Introduction....................................................................
Chapter 2 - Hardware Installation....................................................
System Board Layout............................................................................................................
Jumper Settings............................................................................................................................
Rear Panel I/O Ports.............................................................................................................
I/O Connectors..........................................................................................................................
5
6
6
7
8
9
9
10
16
24

5
1
Introduction
Warranty
1. Warranty does not cover damages or failures that arised from
misuse of the product, inability to use the product, unauthorized
replacement or alteration of components and product specifica-
tions.
2. The warranty is void if the product has been subjected to physi-
cal abuse, improper installation, modification, accidents or unau-
thorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may
not, under any circumstances, attempt to perform service, adjust-
ments or repairs on the product, whether in or out of warranty.
It must be returned to the purchase point, factory or authorized
service agency for all such work.
4. We will not be liable for any indirect, special, incidental or
consequencial damages to the product that has been modified
or altered.

6
Introduction
1
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board,
components or devices even before installing them in your system
unit. Static electrical discharge can damage computer components
without causing any signs of physical damage. You must take extra
care in handling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the board in its anti-static
bag until you are ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of
the components, contacts or connections.
5. Avoid touching the pins or contacts on all modules and connec-
tors. Hold modules or connectors by their ends.
Important:
Electrostatic discharge (ESD) can damage your processor,
disk drive and other components. Perform the upgrade in-
struction procedures described at an ESD workstation
only. If such a station is not available, you can provide
some ESD protection by wearing an antistatic wrist strap
and attaching it to a metal part of the system chassis. If a
wrist strap is unavailable, establish and maintain contact
with the system chassis throughout any procedures requir-
ing ESD protection.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.....
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.
Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by
the manufacturer.
• Dispose of used batteries according to local ordinance.

7
1
Introduction
About the Package
The package contains the following items. If any of these items are
missing or damaged, please contact your dealer or sales representa-
tive for assistance.
;The system board
;A user’s manual
;One IDE cable
;One bracket mounted with a COM port
;One I/O shield
;One QR (Quick Reference)
The board and accessories in the package may not come similar to
the information listed above. This may differ in accordance to the
sales region or models in which it was sold. For more information
about the standard package in your region, please contact your
dealer or sales representative.

8
Introduction
1
Audio
IDE
Display
LFP (Local Flat
Panel) LVDS
Temperature
Humidity
Rear Panel I/O
Ports
I/O Connectors
Expansion Slots
ETX
Connectors
PCB
• 2 channel line-out audio output
• Supports up to Ultra ATA 100
• Supported IDE devices:
a. Two IDE connectors support up to 4 IDE devices; or
b. 3 IDE devices (IDE 2 = Slave only) + 1 CF card (Master
only)
Note: We do not recommend using IDE devices and CF card at
the same time.
• Dedicated LFP (Local Flat Panel) interface
• Analog display
• Integrated PWM interface for LCD backlight inverter control
• Operating: 0oC to 60oC
• Non-operating: -40oC to 60oC
• Operating: 10% to 90%
• 1 mini-DIN-6 PS/2 mouse port
• 1 mini-DIN-6 PS/2 keyboard port
• 1 parallel port
• 1 DB-9 serial port
• 1 DB-15 VGA port
• 1 RJ45 LAN port
• 4 USB 2.0/1.1 ports
• Mic-in, line-in and line-out jacks
• 1 connector for an external serial port
• 1 LCD brightness control connector (optional)
• 1 LVDS LCD panel connector
• 1 LCD/inverter power connector
• 1 IrDA connector
• 2 40-pin IDE connectors
• 1 floppy connector
• 1 20-pin ATX power connector
• 1 Wake-On-Ring connector (optional)
• 1 Wake-On-LAN connector
• 1 front panel connector
• 1 CompactFlash socket (Master only)
• 4 PCI slots
• 3 ISA slots
• Four ETX connectors
• 4 layers, ATX form factor
• 30.48cm (12") x 20cm (7.8")
Chapter 1 - Introduction
Specifications

2
9
Hardware Installation
Chapter 2 - Hardware Installation
System Board Layout
1
Front
WOL
1
PCI 1
PCI 2
PCI 3
PCI 4
1
2
39
40
LVDS LCD Panel
ATX pow e r
11
2010
1
1
1
1
1
COM 2
IrDA
1
Mouse
KB
1
WOR
1
2
56
1
Parallel
LAN
USB 1
USB 0
USB 3
USB 2
Mic-in
Line-in
Line-out
COM 1
Parallel
VGA
1
2
5
6
1
1
2
99
100
199
2 100
1
2
99
100 2100
1
99
ETX-X3
VGA, LCD (LVDS),
COM 1&2, LPT, IrDA,
KB, Mouse (CN3)
ETX-X4
IDE 1&2, LAN
Others (CN1)
ETX-X1
PCI, USB,
Audio (CN2)
ETX-X2
ISA (CN7)
LCD brightness
(J14)
LCD/Inverter
power
IDE 2
IDE 1
FDD
CompactFlash socket
Battery
ISA 1
ISA 2
ISA 3
panel
2
11
12
KB lock
(JP5)
1
2
5
6
1
1
LPT/FDD select
(JP2)
Panel power
select (JP12)
COM2
RS232/422/
select (JP9)485
COM2
RS232 AUX
select (JP10)
1
CPU fan
1
2nd fan
1
System
fan
Diagnostic LED
Standby
Power LED

2
10
Hardware Installation
Parallel
Parallel
Panel Power Select
X
JP12
JP12 is used to select the power supplied to the LCD panel.
Important:
Before powering-on the system, make sure JP12’s setting
matches the LCD panel’s specification. Selecting the incorrect
voltage will seriously damage the LCD panel.
1-2 On:
12V
3-4 On:
5V
5-6 On:
3V (default)
Jumper Settings
1
3
2
6
4
5
1
3
2
6
4
5
1
3
2
6
4
5

2
11
Hardware Installation
Parallel
LCD Brightness Control (Voltage Level Adjust) - optional
X
J14
Use J14 to connect to the LCD Brightness Control button of the
LCD Display Panel. It is used to adjust the brightness of the LCD
Display Panel. Increasing or decreasing the voltage to control the
LCD panel’s brightness varies among Inverters.You must refer to the
Inverter’s specification to make the appropriate adjustment to the
brightness of the LCD panel.
1-2 On:
Increases the voltage level
2-3 On:
Decreases the voltage level
13

2
12
Hardware Installation
Parallel

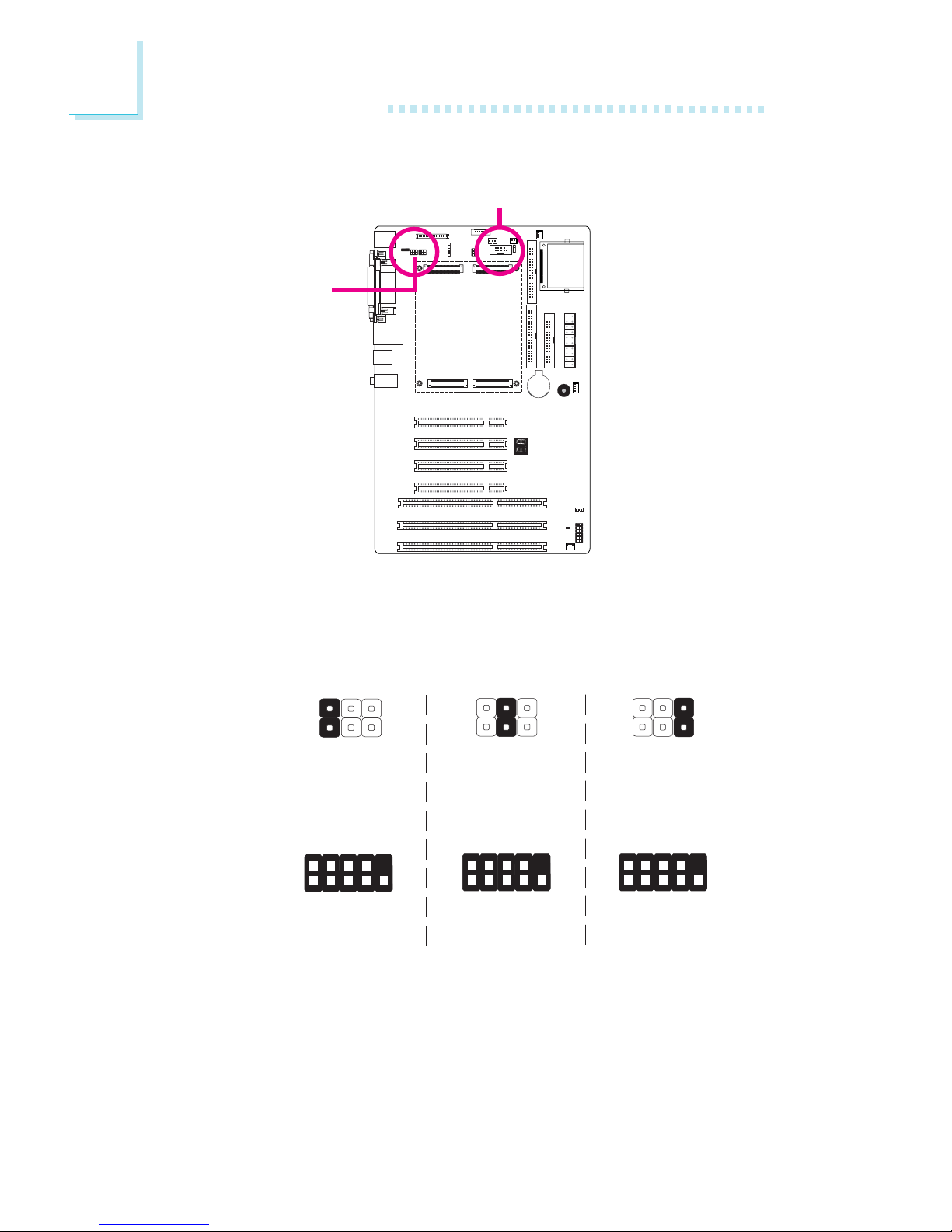

COM 2 RS232/RS422/RS485 Select
JP9 is used to configure the COM 2 serial port to RS232, RS422
(Half Duplex) or RS485.
The pin function of COM 2 will vary according to JP9’s setting.
1-2 On:
RS232
(default)
6
5
1
2
19
2
DCD-
TD
RD
DTR-
GND
RTS-
DSR-
CTS-
RI-
JP9
COM 2
JP9
COM 2
5-6 On:
RS485
6
5
1
2
3-4 On:
RS422
Full Duplex
6
5
1
2
19
2
RXD+
TXD+
RXD-
N. C.
N. C.
N. C.
TXD1 N. C. N. C.
19
2
DATA+
N. C.
DATA-
N. C.
N. C.
N. C.
N. C. N. C. N. C.

2
13
Hardware Installation
Parallel

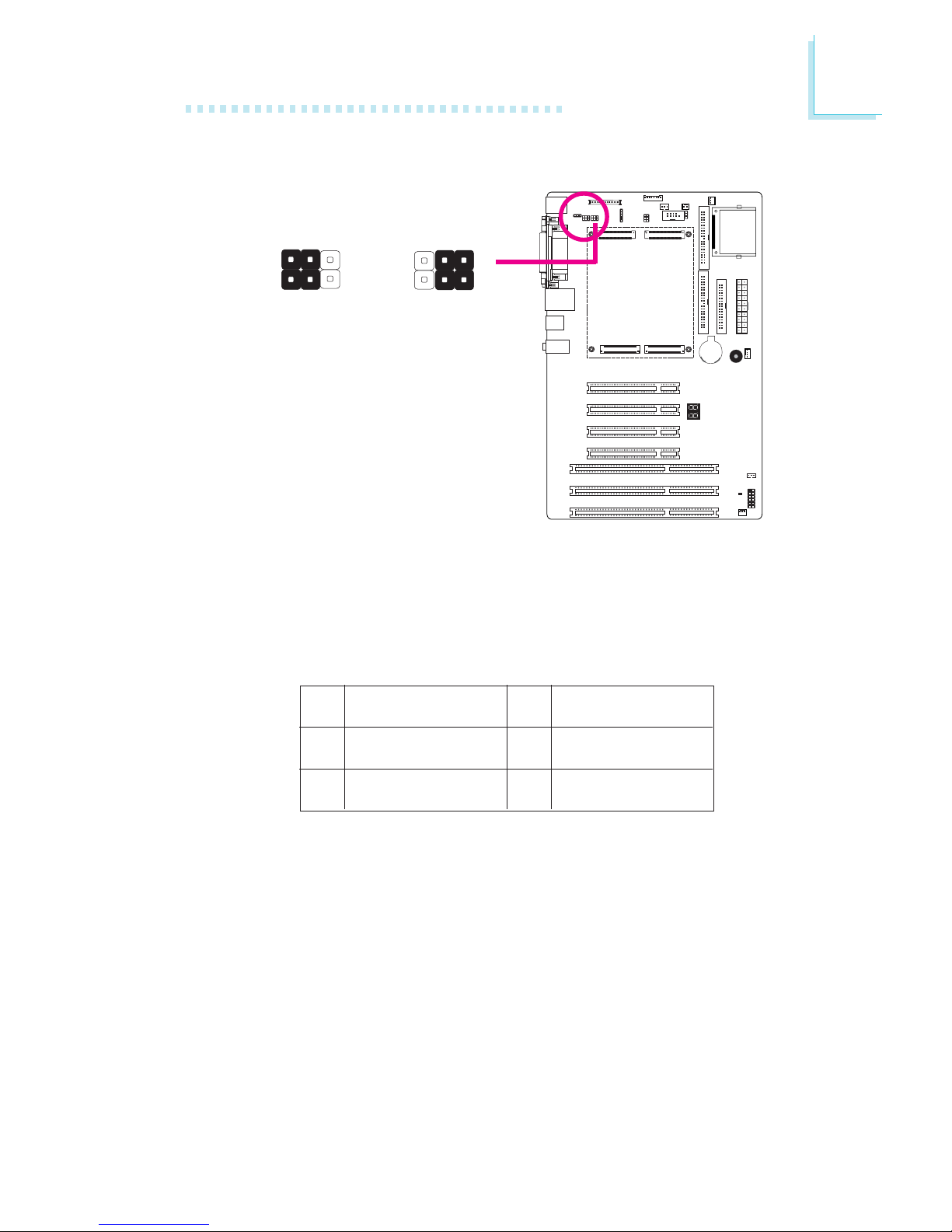

By default, JP10 sets COM 2 to RS-232. If the serial device con-
nected to this port requires 5V/12V power from the system board,
set JP10 pins 3-5 and 4-6 to On.
The table below list the pin assignment of JP10.
COM 2 RS232/AUX Select
1
3
5
MRI2-
X_MRI2-
+12V
2
4
6
MDCD2-
X_MDCD2-
Vcc
3-5 (12V),
4-6 (5V) On:
RS232 with power
1-3, 2-4 On:
RS232 standard
(default)
31
4
5
26
31
4
5
26
X
JP10

2
14
Hardware Installation
Parallel
LPT/FDD Select
X
JP2
1-2 On:
LPT (default)
2-3 On:
FDD
JP2 is used to select between using LPT and FDD.
1
3
2
1
3
2

2
15
Hardware Installation
Parallel
Parallel
KB Lock Select
JP5
X
13 213
2
1-2 On:
KB enabled
(default)
2-3 On:
KB locked
JP5 is used to enable or disable the keyboard lock function.

16
2Hardware Installation
The rear panel I/O ports consist of the following:
• PS/2 mouse port
• PS/2 keyboard port
• Parallel port
• COM port
• VGA port
• LAN port
• 4 USB ports
• Mic-in jack
• Line-in jack
• Line-out jack
Rear Panel I/O Ports
PS/2
Mouse LAN
Parallel
USB 3
USB 0-1
COM VGA USB 2PS/2
K/B
Line-out
Line-in
Mic-in

17
2
Hardware Installation
Parallel
PS/2 Mouse and PS/2 Keyboard Ports
The onboard PS/2 mouse (Green) and PS/2 keyboard (Purple)
ports are used to connect a PS/2 mouse and a PS/2 keyboard
respectively.
W
PS/2 Mouse
PS/2 Keyboard

18
2Hardware Installation
Parallel
Parallel
W

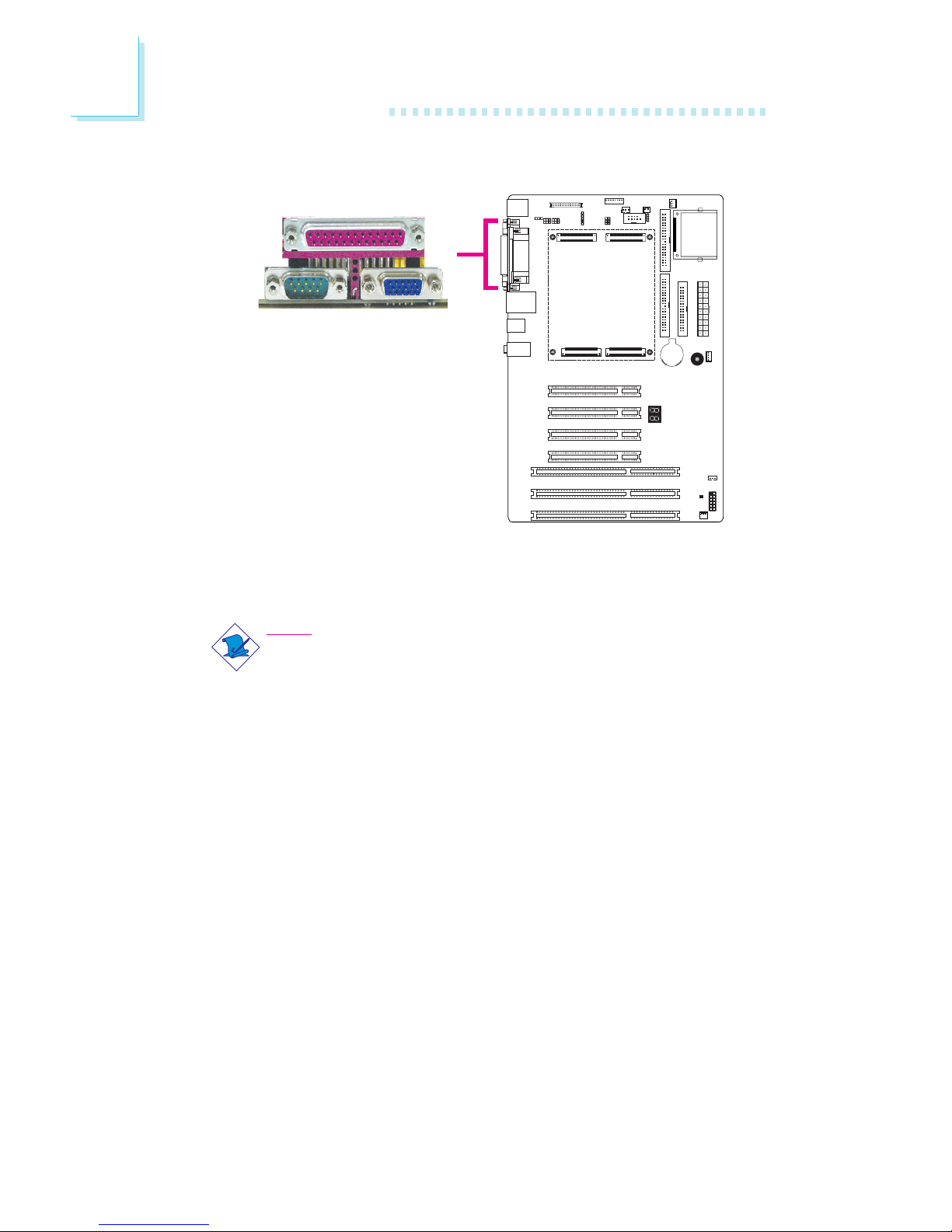

Parallel Port
The onboard standard parallel port (Burgundy) is for interfacing your
PC to a parallel printer.
Note:
FDD and LPT share the same channel therefore you can only
use one device at a time. Even when you are using one device
only, please do not connect a device to the other connector.
Use JP2 to select between using FDD and LPT. FDD is inter-
nally fixed in Slave mode.

19
2
Hardware Installation
Parallel
Serial Ports
The system board is equipped with an onboard serial port (COM
1). It is also equipped with a 9-pin connector (COM 2) for connect-
ing an external serial port.The serial ports are RS-232/RS-485 asyn-
chronous communication ports.
To connect COM 2, please refer to the following description. The
serial port may be mounted on a card-edge bracket. Install the card-
edge bracket to an available slot at the rear of the system chassis
then insert the cable connector to COM 2. Make sure the colored
stripe on the ribbon cable is aligned with pin 1 of COM 2.
W
COM 1
19
2
DCD
TD
RD
DTR
GND
RTS
DSR
CTS
RI
COM 2
W

20
2Hardware Installation
Parallel
VGA Port
The VGA port is used for connecting a VGA monitor. Connect the
monitor’s 15-pin D-shell cable connector to the VGA port (Blue).
After you plug the monitor’s cable connector into the VGA port,
gently tighten the cable screws to hold the connector in place.
VGA
W
