ITOX G4E600-D User manual

G4E600-D
Rev. A+
System Board
User’s Manual
935-G4E601-000G
A70510545

Copyright
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose. The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 2005. All Rights Reserved.
Trademarks
Windows®98 SE, Windows®ME, Windows®2000, Windows NT®
4.0 and Windows®XP are registered trademarks of Microsoft
Corporation. Intel®and Pentium®4 are registered trademarks of
Intel Corporation. Award is a registered trademark of Award
Software, Inc. Other trademarks and registered trademarks of
products appearing in this manual are the properties of their
respective holders.
Caution
To avoid damage to the system:
• Use the correct AC input voltage range.....
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.

Battery:
 Danger of explosion if battery incorrectly replaced.
 Replace only with the same or equivalent type recommend by
the manufacturer.
 Dispose of used batteries according to the battery
manufacturers instructions.
Joystick or MIDI port:
 Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and the receiver.
 Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
 Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
. Shielded interface cables must be used in order to comply with
the emission limits.

Introduction
1
4
Table of Contents
Chapter 1 - Introduction
1.1 Features and Specifications..................................................................................
1. Package Checklist.........................................................................................................
Chapter 2 - Hardware Installation
.1 System Board Layout ..........................................................................................
. System Memory...........................................................................................................
.3 Jumper Settings for Clearing CMOS Data........................................
.4 Jumper Settings for Wake-On-Keyboard/Mouse..................................
.5 Jumper Settings for Wake-On-USB Keyboard................................
.6 Jumper Settings for Selecting the CPUs Front Side Bus......
.7 Jumper Settings for USB 6................................................................................
.8 Factory Use Jumper.................................................................................................
.9 Por ts and Connectors...........................................................................................
Chapter 3 - Award BIOS Setup Utility
3.1 The Basic Input/Output System.....................................................................
3.1.1 Standard CMOS Features.............................................................
3.1. Advanced BIOS Features..............................................................
3.1.3 Advanced Chipset Features ......................................................
3.1.4 Integrated Peripherals.........................................................................
3.1.5 Power Management Setup............................................................
3.1.6 PnP/PCI Configurations....................................................................
3.1.7 PC Health Status...................................................................................
3.1.8 CPU Frequency Control..................................................................
3.1.9 Load Fail-Safe Defaults.....................................................................
3.1.10 Load Optimized Defaults..............................................................
3.1.11 Set Supervisor Password...............................................................
3.1.1 Set User Password..............................................................................
3.1.13 Save & Exit Setup.................................................................................
3.1.14 Exit Without Saving..............................................................................
3. Updating the BIOS....................................................................................................
6
13
53
53
57
6
65
7
76
78
80
8
8
83
83
84
84
85
14
15
17
19
1
3
4
5
6

1
Introduction
5
90
90
Chapter 4 - Supported Softwares
4.1 Hardware Doctor..........................................................................................................
4.2 Intel 845 INF Update Utility for Windows®98SE/2000/
ME/XP.......................................................................................................................................
4.3 Audio Drivers and Software Applications.............................................
4.4 Onboard LAN Drivers for Windows.......................................................
4.5 Microsoft DirectX 8.1 Driver.............................................................................
4.6 USB 2.0 Driver................................................................................................................
4.7 Drivers and Utilities Installation Notes.....................................................
Appendix A - System Error Messages
A.1 POST Beep.......................................................................................................................
A.2 Error Messages..............................................................................................................
Appendix B - Troubleshooting
B.1 Troubleshooting Checklist....................................................................................
87
87
88
88
88
89
89
92

Introduction
1
6
1.1 Features and Specifications
1.1.1 Features
Chipset
• Intel®845E chipset
- Intel®82845E Memory Controller Hub (MCH)
- Intel®82801DB I/O Controller Hub (ICH4)
Processor
The system board is equipped with Socket 478 for installing a
Pentium®4 processor.
• Intel®Pentium®4 processor (478-pin)
- 533MHz system data bus
- 400MHz system data bus
• Intel®Celeron®processor (478-pin)
- 400MHz system data bus
System Memory
• Two 184-pin DDR SDRAM DIMM sockets
• 2.5V unbuffered PC1600 (DDR200) / PC2100 (DDR266)
DDR SDRAM DIMM
• Supports maximum of 2GB system memory using 64Mbit,
128Mbit, 256Mbit or 512Mbit technology
- Double-sided x16 DDR SDRAM DIMM is not supported
• Supports ECC function
Chapter 1 - Introduction
Density Width
Single/Double
184-pin DDR
64 Mbit
X8
SS/DS
64/128MB
X16
SS/DS
32MB/NA
Density 128 Mbit
X8
SS/DS
128/256MB
X16
SS/DS
64MB/NA
256 Mbit
X8
SS/DS
256/512MB
X16
SS/DS
128MB/NA
512 Mbit
X8
SS/DS
512/1024MB
X16
SS/DS
256MB/NA

1
Introduction
7
Expansion Slots
The system board is equipped with 1 AGP slot, 5 PCI slots (1
shared with CNR slot) and 1 CNR slot.
The AGP slot only supports 1.5V AGP 4x (1066MB/sec. bandwidth)
add-in cards. AGP is an interface designed to support high
performance 3D graphics cards for 3D graphics applications. It
handles large amounts of graphics data with the following features:
 Pipelined memory read and write operations that hide memory
access latency.
 Demultiplexing of address and data on the bus for nearly 100
percent efficiency.
CNR (Communication and Networking Riser) is an interface that
supports multi-channel audio, V.90 analog modem or 10/100
Ethernet based networking riser board.
On oard Audio Features
 18-bit stereo full-duplex codec with independent variable sam-
pling rate
 High quality differential CD input
 True stereo line level outputs
On oard LAN Features
 Uses Intel 8 56 EX 10/100Mbps PLC
 Integrated IEEE 80 .3 10BASE-T and 100BASE-TX compatible
PHY
 Supports IEEE 80 .3u auto-negotiation
 Automatic detection of "unplugged mode"
 1:1 transmit transformer ratio support
 10 BASE-T auto-polarity correction
Compati ility
 Microsoft PC 98 compliant
 PCI . , CNR 1.0 A type and AC 97 compliant
 Intel AGP version .0

Introduction
1
8
Rear Panel I/O Ports (PC 99 color-coded connectors)
 Four USB .0/1.1 ports
 One RJ45 LAN port
 Two NS16C550A-compatible DB-9 serial ports
 One SPP/ECP/EPP DB- 5 parallel port
 One mini-DIN-6 PS/ mouse port
 One mini-DIN-6 PS/ keyboard port
 Three audio jacks: line-out, line-in and mic-in
I/O Connectors
 One connector for additional external USB .0/1.1 ports
 One connector for an external game/MIDI port
 One connector for IrDA interface
 Two IDE connectors
 One floppy drive interface supports up to two .88MB floppy
drives
 Two ATX power supply connectors
 One Wake-On-LAN connector
 One Wake-On-Ring connector
 CPU, chassis and second fan connectors
 One opened chassis alarm connector
 Three internal audio connectors (AUX-in, CD-in and TAD)
PCI Bus Master IDE Controller
 Two PCI IDE interfaces support up to four IDE devices
 Supports ATA/33, ATA/66 and ATA/100 hard drives
 PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)
 Bus mastering reduces CPU utilization during disk transfer
 Supports ATAPI CD-ROM, LS-1 0 and ZIP
IrDA Interface
The system board is equipped with an IrDA connector for wireless
connectivity between your computer and peripheral devices. It
supports peripheral devices that meet the IrDA or ASKIR standard.

1
Introduction
9
USB Ports
The system board supports 6 USB .0/1.1 ports. Four onboard
USB .0/1.1 ports are located at the ATX double deck ports of the
board. The J18/J connector on the system board allows you to
connect more optional USB .0/1.1 ports. These optional USB
ports, which are mounted on a card-edge bracket, will be provided
as an option. USB allows data exchange between your computer
and a wide range of simultaneously accessible external Plug and Play
peripherals.
BIOS
 Award BIOS, Windows® 98SE/ 000/ME/XP Plug and Play com-
patible
 Supports SCSI sequential boot-up
 Flash EPROM for easy BIOS upgrades
 Supports DMI .0 function
Desktop Management Interface (DMI)
The system board comes with a DMI .0 built into the BIOS. The
DMI utility in the BIOS automatically records various information
about your system configuration and stores these information in the
DMI pool, which is a part of the system board's Plug and Play
BIOS. DMI, along with the appropriately networked software, is
designed to make inventory, maintenance and troubleshooting of
computer systems easier. Refer to chapter 4 for instructions on using
the DMI utility.
1.1.2 System Health Monitor Functions
The system board is capable of monitoring the following system
health conditions.
 Monitors CPU/system temperature and overheat alarm
 Monitors 5VSB/VBAT/1.5V/3.3V/5V/±1 V/CPU voltages and
failure alarm
 Monitors the fan speed of the CPU fan, chassis fan and second
fan; and failure alarm
 Automatic chassis fan and second fan on/off control

Introduction
1
10
 Read back capability that displays temperature, voltage and fan
speed
 Opened chassis alarm
Refer to the PC Health Status section in chapter 3 and the
Hardware Doctor section in chapter 4 for more information.
1.1.3 Intelligence
Automatic Chassis and Second Fans Off
The chassis and second fans will automatically turn off once the
system enters the Suspend mode.
Dual Function Power Button
Depending on the setting in the Soft-Off By PWR-BTTN field of
the Power Management Setup, this switch will allow the system to
enter the Soft-Off or Suspend mode.
Wake-On-Ring
This feature allows the system that is in the Suspend mode or Soft
Power Off mode to wake-up/power-on to respond to calls coming
through an internal or external modem. Refer to Wake-On-Ring
Connector in chapter and Resume On Ring in the Power
Management Setup section in chapter 3 for more information.
Important:
If you are using a modem add-in card, the 5VSB power source
of your power supply must support ≥ 720mA
Wake-On-LAN
The Wake-On-LAN function allows the network to remotely wake
up a Soft Power Down (Soft-Off) PC. Your LAN card must support
the remote wakeup function. Refer to Wake-On-LAN Connector in
chapter and Resume On LAN in the Power Management Setup
section in chapter 3 for more information.
Important:
The 5VSB power source of your power supply must support
≥ 720mA

1
Introduction
11
Wake-On-Key oard/Wake-On-Mouse
This function allows you to use the keyboard or PS/ mouse to
power-on the system. Refer to Jumper Settings for Wake-On-
Keyboard/Wake-On-Mouse in chapter and Keyboard/Mouse
Power On in the Integrated Peripherals section in chapter 3 for
more information.
Important:
 The power button will not function once a keyboard
password has been set in the KB Power On Password
field of the Integrated Peripherals submenu You must type
the correct password to power-on the system If you forgot
the password, power-off the system and remove the
battery Wait for a few seconds and install it back before
powering-on the system
 The 5VSB power source of your power supply must
support ≥ 720mA
Wake-On-USB Key oard
The Wake-On-USB Keyboard function allows you to use a USB
keyboard to wake up a system that is in the S3 (STR - Suspend To
RAM) state. Refer to Jumper Settings for Wake-On-USB Keyboard
in chapter and USB KB Wake-Up From S3 in the Power
Management Setup section in chapter 3 for more information.
Important:
 If you are using the Wake-On-USB Keyboard function for 2
USB ports, the 5VSB power source of your power supply
must support ≥ 1 5A
 If you are using the Wake-On-USB Keyboard function for 4
to 6 USB ports, the 5VSB power source of your power
supply must support ≥ 2A
RTC Timer to Power-on the System
The RTC installed on the system board allows your system to
automatically power-on on the set date and time. Refer to Resume
By Alarm in the Power Management Setup section in chapter 3 for
more information.

Introduction
1
12
ACPI STR
The system board is designed to meet the ACPI (Advanced
Configuration and Power Interface) specification. ACPI has energy
saving features that enables PCs to implement Power Management
and Plug-and-Play with operating systems that support OS Direct
Power Management. Currently, only Windows® 98SE/ 000/ME/XP
supports the ACPI function. ACPI when enabled in the Power
Management Setup will allow you to use the Suspend to RAM
function.
With the Suspend to RAM function enabled, you can power-off the
system at once by pressing the power button or selecting Standby
when you shut down Windows® 98SE/ 000/ME/XP without having
to go through the sometimes tiresome process of closing files,
applications and operating system. This is because the system is
capable of storing all programs and data files during the entire
operating session into RAM (Random Access Memory) when it
powers-off. The operating session will resume exactly where you left
off the next time you power-on the system.
Important:
The 5VSB power source of your power supply must support
≥ 1A
AC Power Failure Recovery
When power returns after an AC power failure, you may choose to
either power-on the system manually, let the system power-on
automatically or return to the state where you left off before power
failure occurs. Refer to PWR Lost Resume State in the Integrated
Peripherals section in chapter 3 for more information.
Virus Protection
Most viruses today destroy data stored in hard drives. The system
board is designed to protect the boot sector and partition table of
your hard disk drive.

1
Introduction
13
1.2 Package Checklist
The system board package contains the following items:
;The system board
;A user’s manual
;One IDE cable
;One FDD cable
;One I/O shield
;One “Main Board Utility” CD
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

2
14
Hardware Installation
2.1 System Board Layout
Chapter 2 - Hardware Installation
KB
Mouse
J2
J5
COM 1 (CN1)
Parallel (CN2)
COM 2 (CN3)
Wake-On-
KB/Mouse (JP1)
Socket 478
CPU fan
(J1)
ATX Main Power
Second fan
(J4)
J9
J14
J8
FDD
SecondaryIDE
Primary IDE
Battery
15
11
51
Clear CMOS
(JP3)
Firmware
Hub
Winbond
W83627
PCI Standby Power LED
PWR-LED
HD-LED
AC’97
2
19
10
Front audio (J13)
CPU FSB
select (JP2)
+12V power
(ATXP2)
4
3
2
1
Intel
RG82845
Intel
82801BD
USB 6 select
(J20 & J21)
CD-in (J7)
DIMM Standby
Power LED
AGP Slot
PCI 1 Slot
PCI 2 Slot
PCI 3 Slot
PCI 4 Slot
PCI 5 Slot
CNR Slot
AUX-in
(J10) TAD (J11)
Wake-On-Ring (J12)
DDR SDRAM
DIMM 1
ATXP1
DDR SDRAM
DIMM 2
USB 5/6
(J18/J22)
J24
ATX-SW
G-LED
Factory use
only (J3)
G-SW
RESET SPEAKER
CN4
LAN
Line-
out
Line-
in
Mic-
in
J6
Intel
82562
16
15
2
1
Game/MIDI (J15)
IrDA
(J16)
Chassis
open (J19)
Wake-On-
LAN (J17)
Chassis
fan (J23)
Square denotes pin 1
USB 1
USB 2
Wake-On-USB KB for
USB 1/2/3/4 (JP5)
USB 3
USB 4
J20 J21
Wake-On-USB KB for
USB 5/6 (JP4)

2
Hardware Installation
15
2.2 System Memory
Warning:
Electrostatic discharge (ESD) can damage your system board,
processor, disk drives, add-in boards, and other components. Perform
the upgrade instruction procedures described at an ESD orkstation
only. If such a station is not available, you can provide some ESD
protection by earing an antistatic rist strap and attaching it to a
metal part of the system chassis. If a rist strap is unavailable,
establish and maintain contact ith the system chassis throughout
any procedures requiring ESD protection.
The system board is equipped with two 184-pin DDR SDRAM
DIMM (Dual In-line Memory Module sockets that suppor t 2.5V
DDR SDRAM DIMM. Double Data Rate SDRAM (DDR SDRAM is
a type of SDRAM that doubles the data rate through reading and
writing at both the rising and falling edge of each clock. This
effectively doubles the speed of operation therefore doubling the
speed of data transfer.
The system board also supports the ECC (Error Checking and
Correction function. To use this function, you must install DIMM that
supports parity. Refer to chapter 1 (System Memory section for
detailed specification of the memory supported by the system
board. Memory Frequency For in the Advanced Chipset Features
submenu of the BIOS must be set accordingly.
DDR SDRAM
DIMM 1
DDR SDRAM
DIMM 2

2
16
Hardware Installation
2.2.1 Installing the DIM Module
A DIM module simply snaps into a DIMM socket on the system
board. Pin 1 of the DIM module must correspond with Pin 1 of the
socket.
1. Pull the tabs which are at the ends of the socket to the side.
2. Position the DIMM above the socket with the notch in the
module aligned with the key on the socket.
3. Seat the module vertically into the socket. Make sure it is
completely seated. The tabs will hold the DIMM in place.
Pin 1
Notch
Key
Tab Tab

2
Hardware Installation
17
2.3 Jumper Settings for Clearing CMOS Data
Clear CMOS Data - Jumper JP3
If you encounter the following,
a) CMOS data becomes corrupted.
b) You forgot the supervisor or user pass ord.
c) You are unable to boot-up the computer system because the
processors ratio/clock as incorrectly set in the BIOS.
you can reconfigure the system with the default values stored in the
ROM BIOS.
To load the default values stored in the ROM BIOS, please follow
the steps below.
1. Power-off the system.
2. Set JP3 pins 2 and 3 to On. Wait for a few seconds and set JP3
back to its default setting, pins 1 and 2 On.
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default
Clear CMOS
(JP3)
123
123 12 3

2
18
Hardware Installation
3. Now power-on the system.
If your reason for clearing the CMOS data is due to incorrect
setting of the processors ratio/clock in the BIOS, please proceed
to step 4.
4. After powering-on the system, press <Del> to enter the main
menu of the BIOS.
5. Select the CPU Frequency Control submenu and press <Enter>.
6. Set the CPU Clock Ratio or Clock By Slight Adjust field to its
default setting or an appropriate frequency ratio or bus clock.
Refer to the CPU Frequency Control section in chapter 3 for
more information.
7. Press <Esc> to return to the main menu of the BIOS setup
utility. Select Save & Exit Setup and press <Enter>.
8. Type <Y> and press <Enter>.

2
Hardware Installation
19
2.4 Jumper Settings for Wa e-On-Keyboard/
Wa e-On-Mouse

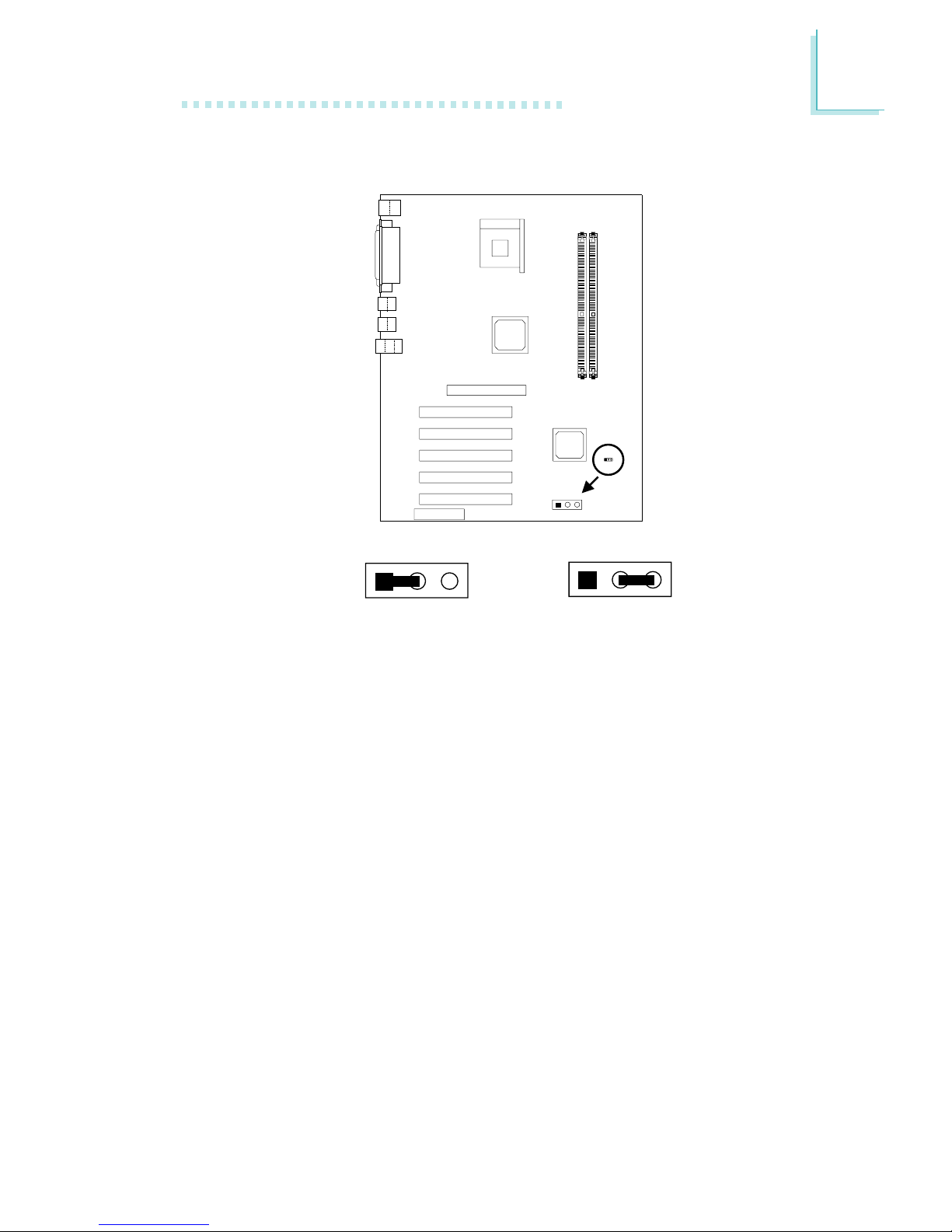

Wake-On-Keyboard/Wake-On-Mouse - Jumper JP
The Wake-On-Keyboard/Wake-On-Mouse function allows you to use
the keyboard or PS/2 mouse to power-on the system. By default,
JP1 is disabled. To use this function, set JP1 to 2-3 On. Keyboard/
Mouse Power On in the Integrated Peripherals submenu of the
BIOS must be set accordingly. Refer to chapter 3 for details.
Warning:
1. If JP1 as enabled ith a pass ord set in the KB Po er
On Pass ord field, and no you ish to disable the
keyboard pass ord function, make sure to set the
Keyboard/Mouse Po er On field to Disabled prior to
setting JP1 to disabled. You ill not be able to boot up the
system if you fail to do so.
2-3 On: Enable
1-2 On: Disable
(default
123 12 3
123
Wake-On-
KB/Mouse (JP1)

2
20
Hardware Installation
2. The po er button ill not function once a keyboard
pass ord has been set in the KB Po er On Pass ord
field of the Integrated Peripherals submenu. You must type
the correct pass ord to po er-on the system.
3. The 5VSB po er source of your po er supply must
support ≥ 720mA.
