ITOX GCB60-BX User manual

GCB60-BX
Rev. C+
System Board
User’s Manual
935-CB6103-000
I37421246

Copyright
Thispublicationcontainsinformationthatisprotectedbycopyright.No
part of it may be reproduced in any form or by any means or used to
makeanytransformation/adaptationwithoutthepriorwrittenpermission
fromthecopyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
thecontentsor use of this manualandspecifically disclaims any express
orimpliedwarrantiesofmerchantabilityorfitnessforanyparticularpurpose.
Theuserwill assume theentireriskoftheuse or theresultsoftheuseof
thisdocument.Further,the manufacturer reservestherightto revise this
publicationandmakechangestoitscontentsatanytime,withoutobligation
tonotify anyperson or entity of suchrevisions or changes.
All Rights Reserved.© 2002
Trademarks
Microsoft®MS-DOS®,WindowsTM,Windows®95,Windows®98 and
WindowsNT®areregisteredtrademarksofMicrosoftCorporation.Intel®
andCeleronTM areregisteredtrademarksofIntelCorporation.Awardis
a registered trademark ofAward Software,Inc.Other trademarks and
registered trademarks of products appearing in this manual are the
propertiesof their respectiveholders.
Caution:
Danger of explosion if battery incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
Dispose of used batteries according to the battery manufacturer’s
instructions.

FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
2. Shielded interface cables must be used in order to comply with
the emission limits.

Table of Contents
Chapter 1 - Introduction
1.1 Features and Specifications...................................................................
1.2 Package Checklist........................................................................................
Chapter 2 - Hardware Installation
2.1 System Board Layout...............................................................................
2.2 System Memory..........................................................................................
2.3 DIP Switch Settings for Processors ...............................................
2.4 Jumper Settings for the CPU’s Front Side Bus.......................
2.5 Jumper Settings for Clearing CMOS Data................................
2.6 Jumper Settings for Wake-On-Keyboard/Mouse.......................
2.7 Connecting the Ribbon Cables and Wires of the Ports
and Connectors ..........................................................................................
Chapter 3 - Award BIOS Setup Utility
3.1 The Basic Input/Output System .......................................................
3.1.1 Standard CMOS Setup..........................................................
3.1.2 BIOS Features Setup................................................................
3.1.3 Chipset Features Setup..........................................................
3.1.4 Power Management Setup...................................................
3.1.5 PNP/PCI Configuration..........................................................
3.1.6 Load Fail-Safe Settings .............................................................
3.1.7 Load Optimal Settings ............................................................
3.1.8 Integrated Peripherals..............................................................
3.1.9 Supervisor Password ...............................................................
3.1.10 User Password.............................................................................
3.1.11 IDE HDD Auto Detection ..................................................
3.1.12 Save & Exit Setup ......................................................................
3.1.13 Exit Without Saving ...................................................................
Chapter 4 - Supported Softwares
4.1 Desktop Management Interface........................................................
4.2 Hardware Doctor Utility.......................................................................
4.3 Patch Utility for Windows 95............................................................
6
10
29
29
32
35
39
44
45
46
46
50
51
51
52
52
11
12
14
15
16
17
18
53
56
58

59
59
61
Appendix A - System Error Messages
A.1POST Beep......................................................................................................
A.2Error Messages...............................................................................................
Appendix B - Troubleshooting
B.1Troubleshooting Checklist........................................................................

6
1.1 Features and Specifications
1.1.1 Features
Chipset
• Intel440BX AGPset
Processor
The system board is equipped with Socket 370.The system board is
also equipped with a switching voltage regulator that supports
1.30V to 2.05V core voltage for various processors.
• Pentium®III FCPGA 100MHz FSB (up to 1GHz)
• CeleronTM 100MHz FSB (up to 1GHz)
• CeleronTM 66MHz FSB PPGA (300A-533MHz) or FCPGA
(566MHz-600MHz) processor
• VIA Cyrix®-III 100MHz FSB (PR433/PR466) processor
System Memory
• 16MB to 384MB memory using unbuffered DIMMs
• 32MB to 768MB memory using registered DIMMs
• Three 168-pin DIMM sockets
• Uses x64 or x72 PC SDRAM, 3.3V
- PC-66 SDRAM DIMM for 66MHz FSB processors
- PC-100 SDRAM DIMM for 100MHz FSB processors
• ECC supported (uses x72 PC SDRAM DIMM)
Chapter 1 - Introduction

1
Introduction
7
Expansion Slots
The system board is equipped with 1 dedicated AGP slot, 3
dedicated PCI slots, 2 dedicated 16-bit ISA slot and 1 shared PCI/
ISA slot. All PCI and ISA slots are bus masters.
Desktop Management Interface (DMI)
The system board comes with a DMI 2.0 built into the BIOS.The
DMI utility in the BIOS automatically records various information
about your system configuration and stores these information in the
DMI pool, which is a part of the system board's Plug and Play
BIOS. DMI, along with the appropriately networked software, is
designed to make inventory, maintenance and troubleshooting of
computer systems easier. Refer to Chapter 4 for instructions on
using the DMI utility.
ATX double deck ports
• 2 USB ports
• 2 DB-9 serial ports
• 1 DB-25 parallel port
• 1 mini-DIN-6 PS/2 keyboard port
• 1 mini-DIN-6 PS/2 mouse port
Connectors
• 1 connector for IrDA interface
• 2 IDE connectors
• 1 floppy connector
• 1 20-pin ATX power supply connector
• 1 Wake-On-LAN connector
• 1 SB-LINK connector
• 3 fan connectors for CPU, chassis and AGP fans
DIMMs
2MBx64/x72
4MBx64/x72
8MBx64/x72
16MBx64/x72
32MBx64/x72
Memory Size
16MB
32MB
64MB
128MB
256MB*
*Supported only when using
registered DIMMs.

Introduction
1
8
PCI Bus Master IDE Controller
• Two PCI IDE interfaces support up to four IDE devices
• Supports ATA/33 or ATA/66 hard drives
• PIO Mode 3 and Mode 4 Enhanced IDE (data transfer rate up
to 16.6MB/sec.)
• Bus mastering reduces CPU utilization during disk transfer
• ATAPI CD-ROM, LS-120 and ZIP supported
IrDA Interface
The system board is equipped with an IrDA connector for wireless
connectivity between your computer and peripheral devices. It
supports peripheral devices that meet the IrDA or ASK IR standard.
USB Ports
The system board is equipped with two USB ports. USB allows
data exchange between your computer and a wide range of
simultaneously accessible external Plug and Play peripherals.
BIOS
• Award BIOS,Windows95/98 Plug and Play compatible
• Supports SCSI sequential boot-up
• Flash EPROM for easy BIOS upgrades
• Includes NCR 810 SCSI BIOS
• 2MB flash memory
1.1.2 System Health Monitor Functions
The system board is capable of monitoring the following “system
health” conditions.
• Monitors processor/system temperature and processor overheat
alarm
• Monitors 1.5V/3.3V/±5V/±12V/VCORE voltages and failure
alarm
• Monitors processor/chassis fan speed and failure alarm
• Automatic processor/chassis fan control
• Read back capability that displays accurate temperature, voltage
and fan speed

1
Introduction
9
1.1.3 Intelligence
Automatic CPU/Chassis Fan Off
The CPU and chassis fans will automatically turn off once the system
enters the Suspend mode.
Dual Function Power Button
Depending on the setting in the BIOS setup, this switch will allow
the system to enter the Soft-Off or Suspend mode.
External Modem Ring-on
The Modem Ring-on feature allows the system that is in the
Suspend mode or Soft Power Off mode to wake-up/power-on to
respond to incoming calls.
Note:
This feature supports external modem only.
RTCTimer to Power-on the System
The RTC installed on the system board allows your system to
automatically power-on on the set date and time.
Wake-On-LAN Ready
The Wake-On-LAN function allows the network to remotely wake
up a Soft Power Down (Soft-Off) PC.Your LAN card must support
the remote wakeup function.
Important:
The 5VSB power source of your power supply must support
≥ 720mA.
Wake-On-Keyboard/Wake-On-Mouse
This function allows you to use the keyboard or mouse to power-on
the system. Refer to “Jumper Settings for Wake-On-Keyboard/Wake-
On-Mouse” in Chapter 2 and “Keyboard/Mouse Power On” in the
Integrated Peripherals setup of the Award BIOS in Chapter 3 for
more information.

Introduction
1
10
Important:
• The power button will not function once a keyboard
password has been set in the “KB Power On Password”
field of the Integrated Peripherals setup.You must type the
correct password to power-on the system.
• The 5VSB power source of your power supply must
support ≥ 720mA.
ACPI
The system board is designed to meet the ACPI (Advanced
Configuration and Power Interface) specification. ACPI has energy
saving features that enables PCs to implement Power Management
and Plug-and-Play with operating systems that support OS Direct
Power Management.
Virus Protection
Most viruses today destroy data stored in hard drives. The system
board is designed to protect the boot sector and partition table of
your hard disk drive.
1.2 Package Checklist
The system board package contains the following items:
!The system board
!A user’s manual
!One 40-pin IDE hard disk cable
!One 34-pin floppy disk drive cable
!One CD
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

11

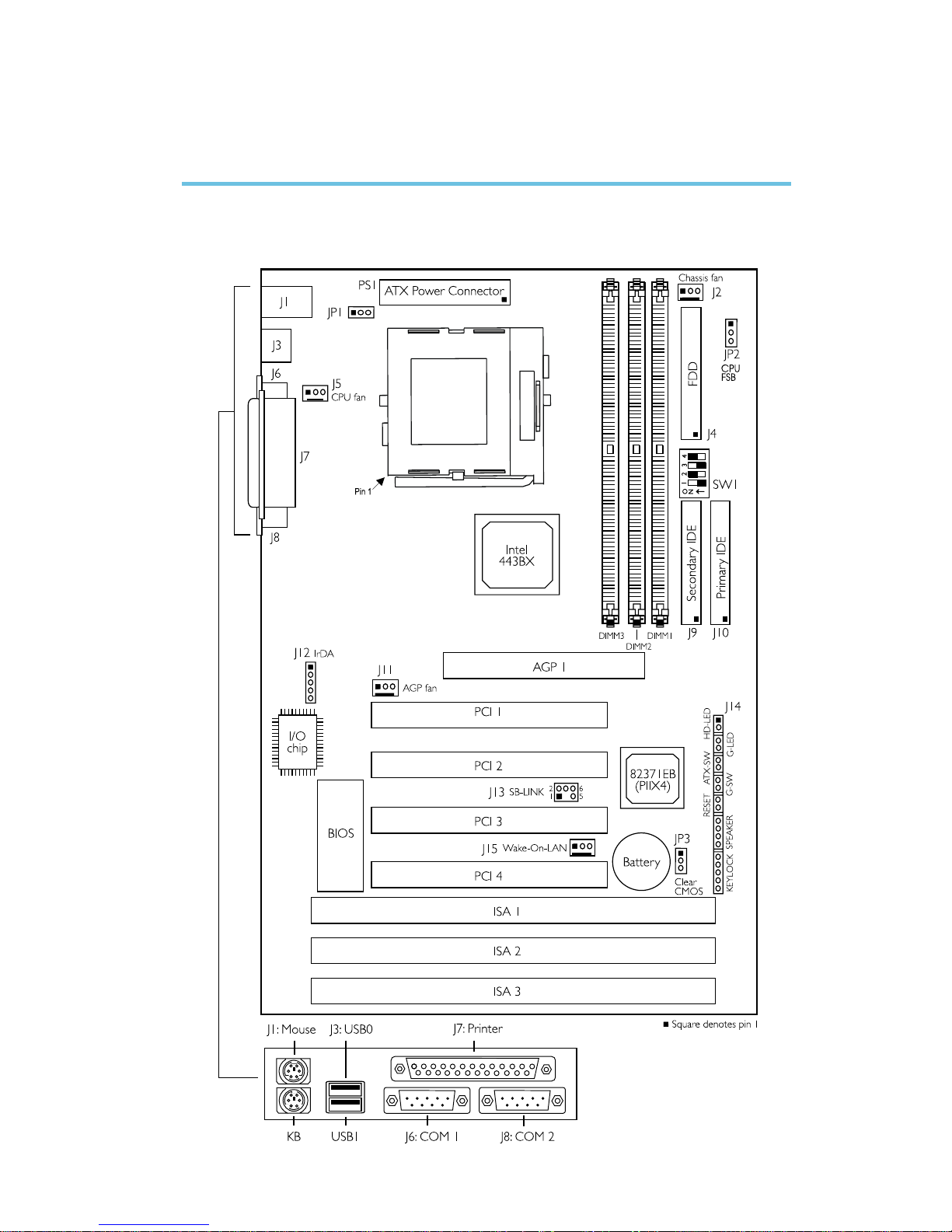

2.1 System Board Layout
Chapter 2 - Hardware Installation

2
12
Hardware Installation
2.2 System Memory
The system board is equipped with three 168-pin DIMM (Dual In-
line Memory Module) sockets that support x64/x72 unbuffered or
registered PC SDRAM DIMM, 3.3V.
PC SDRAM (Synchronous Dynamic Random Access Memory) uses a
fast memory interface technology that includes using the clock on the
chip to synchronize with the CPU clock so that the timing of the
memory chips and the timing of the CPU are synchronized. This
saves time during transmission of data, subsequently increasing
system performance.
Warning:
Electrostatic discharge (ESD) can damage your system board,
processor, disk drives, add-in boards, and other components. Perform
the upgrade instruction procedures described at an ESD
workstation only. If such a station is not available, you can provide
some ESD protection by wearing an antistatic wrist strap and
attaching it to a metal part of the system chassis. If a wrist strap
is unavailable, establish and maintain contact with the system
chassis throughout any procedures requiring ESD protection.

2
Hardware Installation
13
Pin 1
Notch
Key Tab
Tab
2.2.1 Installing the DIM Module
A DIM module simply snaps into a DIMM socket on the system
board. Pin 1 of the DIM module must correspond with Pin 1 of the
socket.
1. Pull the “tabs” which are at the ends of the socket to the side.
2. Position the DIMM above the socket with the “notches” in the
module aligned with the “keys” on the socket.
3. Seat the module vertically into the socket. Make sure it is
completely seated.The tabs will hold the DIMM in place.

2
14
Hardware Installation
2.3 DIP Switch Settings (For Factory Use Only)
You can not overclock an Intel Celeron™processor (PPGA) because
its frequency ratio is fixed by the manufacturer.The table below is for
factory use only.
In the example on the left:
Switch 1: Off
Switch 2: On
Switch 3: Off
Switch 4: On
5.5x
6x
6.5x
7x
7.5x
8x
8.5x
9
9.5x
10x
1
Off
On
Off
On
Off
On
On
Off
Off
Off
SW1
2
Off
On
On
Off
Off
On
Off
Off
On
On
3
Off
On
On
On
On
On
On
On
On
Off
4
On
Off
Off
Off
Off
Off
On
On
On
Off
Ratio
Note:
Intel CeleronTM processors support VID (Voltage Identification). The
switching voltage regulator on the system board will automatically set
the voltage regulator according to the voltage of the processor.

2
Hardware Installation
15

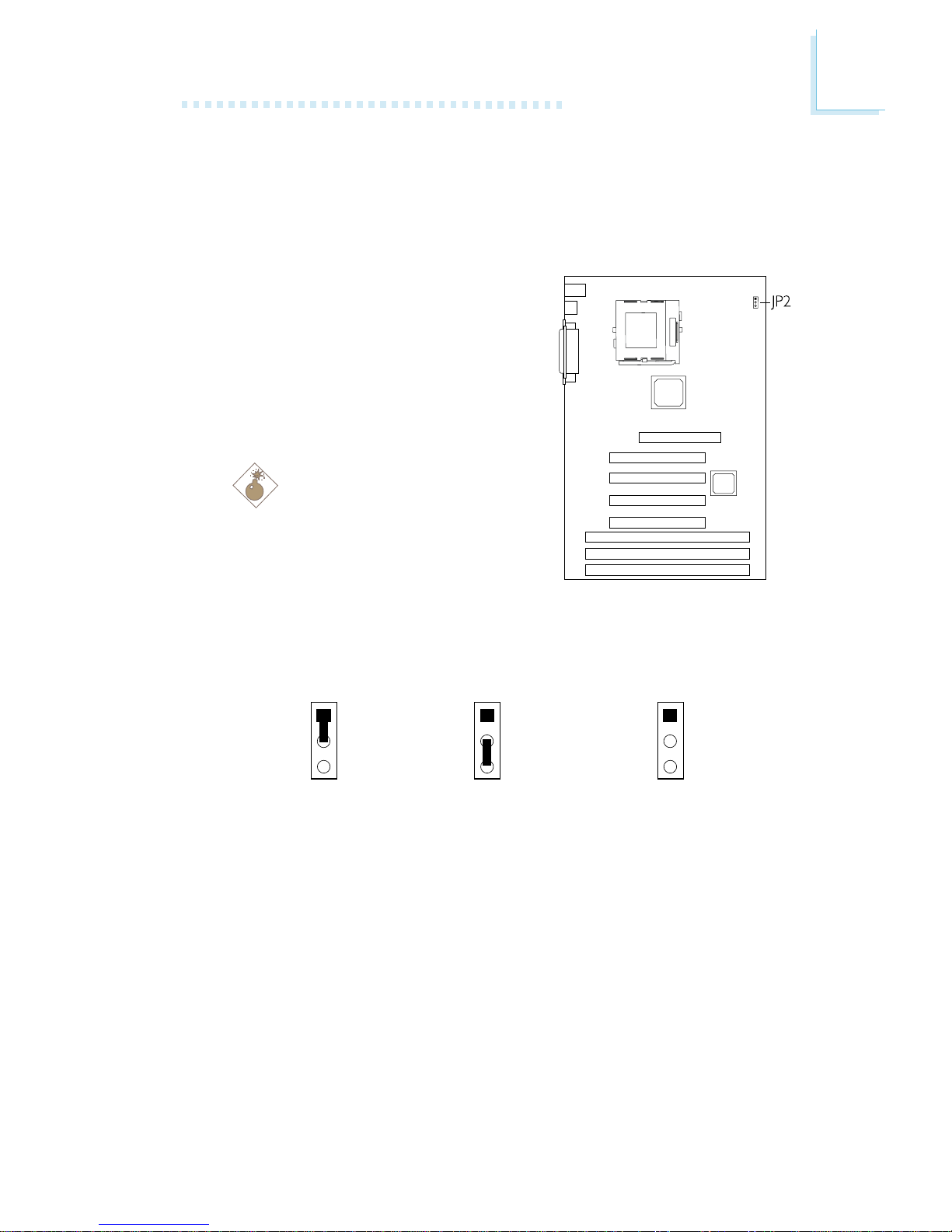

2.4 Jumper Settings for the CPU’s Front Side Bus
Jumper JP2
CPU’s Front Side Bus Select
The default setting of jumper JP2 is
Auto - the system will automatically
run according to the FSB of the
processor. The “100MHz” setting
(1-2-3 Off) is reserved for future
100MHz FSB processors. Refer to
the figure on the next page.
Warning:
If your system is installed with
a 66MHz FSB processor, do
not move the jumper cap
from its default setting which
is pins 1 and 2 On; otherwise
your system will not boot.
Jumper JP2’s settings are shown below.
1
2
3
1
2
3
1
2
3
2-3 On: 66MHz
1-2 On: Auto
(default) 1-2-3 Off: 100MHz

2
16
Hardware Installation
2.5 Jumper Settings for Clearing CMOS Data
Jumper JP3
Clear CMOS Data
If, for some reason, the CMOS data
becomes corrupted or you forgot
the supervisor/user/keyboard
password, the system can be
reconfigured with the default values
stored in the ROM BIOS. To load
the default values, power off your
system and unplug the power
cord. Set JP3 pins 2 and 3 to On.
Wait for a few seconds and set JP3
back to its default setting, pins 1
and 2 On. You may now plug the
power cord and power-on your
system.
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default)
1
2
3
1
2
3

2
Hardware Installation
17
2.6 Jumper Settings for Wake-On-Keyboard/
Wake-On-Mouse
Jumper JP1
Wake-On-Keyboard/Wake-On-Mouse
The system board supports the Wake-
On-Keyboard/Wake-On-Mouse function.
This function allows you to use the
keyboard or mouse to power-on the
system. By default, JP1 is disabled.To use
this function, set JP1 to 2-3 On.
“Keyboard/Mouse Power On” in the
Integrated Peripherals setup of the
Award BIOS must be set accordingly.
Refer to chapter 3 for details.
Warning:
1. If JP1 was previously enabled
with a password set in the
“KB Power On Password” field, and now you wish to disable
the Wake-On-Keyboard (password) function, make sure to
set the “Keyboard/Mouse Power On” field to Disabled prior
to setting JP1 to disabled. You will not be able to boot up
the system if you fail to do so.
2. The power button will not function once a keyboard
password has been set in the “KB Power On Password”
field of the Integrated Peripherals setup.You must type the
correct password to power-on the system.
3. The 5VSB power source of your power supply must
support ≥ 720mA (minimum).
2-3 On: Enable
1-2 On: Disable
(default)
123 123

2
18
Hardware Installation
2.7.2 PS/2 Mouse and Keyboard Ports
The PS/2 mouse port uses IRQ12. If
a mouse is not connected to this port,
the system will reserve IRQ12 for
other expansion cards.
Warning:
Make sure to turn off your
computer prior to connecting or
disconnecting a mouse or
keyboard. Failure to do so may
damage the system board.
2.7 Connecting the Ribbon Cables and Wires of
the Ports and Connectors
2.7.1 Serial Ports
The built-in serial ports are RS-232C
asynchronous communication ports
with 16C550A-compatible UARTs that
can be used with modems, serial
printers, remote display terminals, and
other serial devices. You can set the
serial ports’ I/O address in the
Integrated Peripherals setup of the
Award BIOS.

2
Hardware Installation
19
2.7.3 Parallel Ports
The system board has a standard
printer port for interfacing your PC
to a parallel printer. It supports SPP,
ECP and EPP modes. You can set the
port’s mode in the Integrated Periph-
erals setup of the Award BIOS.
2.7.4 Floppy Disk Controller
The system board is equipped with a shrouded floppy disk header
that supports two standard floppy disk drives. To prevent
improper floppy cable installation, the shrouded floppy disk header
has a keying mechanism.The 34-pin connector on the floppy cable
can be placed into the header only if pin 1 of the connector is
aligned with pin 1 of the header. You may enable or disable this
function in the Integrated Peripherals setup of the Award BIOS.
Setting
SPP
(Standard Parallel Port)
ECP
(ExtendedCapabilitiesPort)
EPP
(Enhanced Parallel Port)
Function
Allows normal speed operation
but in one direction only.
Allows parallel port to operate in
bidirectional mode and at a speed
faster than the SPP’s data transfer
rate.
Allows bidirectional parallel port
operation at maximum speed.

2
20
Hardware Installation
2.7.5 IDE Hard Disk Interface
The system board is equipped with
two shrouded PCI IDE headers that
will interface four Enhanced IDE
(Integrated Drive Electronics) hard
disk drives. To prevent improper
IDE cable installation, each shrouded
PCI IDE header has a keying
mechanism. The 40-pin connector
on the IDE cable can be placed into
the header only if pin 1 of the
connector is aligned with pin 1 of
the header.
Connecting the Floppy Disk Cable
1. Install the 34-pin header
connector into the shrouded
floppy disk header (J4) on the
system board. The colored edge
of the ribbon should be aligned
with pin 1 of J4.
2. Install the other 34-pin header
connector(s) into the disk
drive(s). Align the colored edge
of the daisy chained ribbon cable
with pin 1 of the drive edge
connector(s). The end-most
connector should be attached to
the drive you want to designate
as Drive A.
