Ivation IVAWOZ2 User manual

Multipurpose Ozone
Sterilizer for Air & Water
SKU: IVAWOZ2
User Guide

2
INTRODUCTION
Thank you for purchasing the Ivation Multipurpose Ozone
Sterilizer for Air & Water. This User Guide is intended to
provide you with guidelines to ensure that operation of this
product is safe and does not pose risk to the user. Any use
that does not conform to the guidelines described in this
User Guide may void the limited warranty.
Please read all directions carefully before using the product
and retain this guide for reference. This product is intended
for household use only. It is not intended for commercial
use.
This product is covered by a limited one-year warranty.
Coverage is subject to limits and exclusions. See warranty
for details.
INTRODUCTION
SAFETY PRECAUTIONS
PRODUCT OVERVIEW
HOW IT WORKS
USAGE
TROUBLESHOOTING
SPECIFICATIONS
WARRANTY
GET IN TOUCH!
3
5
7
8
10
11
12
13
TABLE OF CONTENTS

3
WARNING! Please read all safety precautions and
instructions carefully before using this product. Failure
to properly follow the guidelines established here could
result in serious injury or damage to product.
WARNING! Operate this unit in unoccupied spaces
only. Inhalation of ozone can cause lung damage and
other harmful conditions in people and animals.
• This product is not a medical device. Do not stop or
alter any medical therapy programs or medications
without the advice of your physician.
• When inhaled, ozone can damage the lungs. Even
relatively low amounts of ozone can cause chest pain,
coughing, shortness of breath, and throat irritation.
• Ozone may also worsen chronic respiratory diseases
such as asthma and compromise the body’s ability to
fight respiratory infections.
• Operate this unit in unoccupied spaces only. Do not
leave pets in the vicinity while the unit is in operation.
• We strongly recommend that you only operate the unit
for the recommended times provided.
• Do not attempt to disassemble this unit. There are no
user-serviceable parts inside the unit.
• To avoid electric shock, plug the unit into a grounded
electrical outlet.
• Make sure the unit is placed on a flat, even surface in a
well-ventilated area.
• Do not expose the unit to direct sunlight, high
humidity, or extreme temperatures.
• Do not place the unit close to heat sources or open
flames.
• Do not use the unit outdoors.
• Unplug the unit before cleaning.
SAFETY PRECAUTIONS
SAFETY PRECAUTIONS

4
• Do not clean the unit with solvents, boiling water, or
cleaning agents.
• Do not place items on top of the unit.
• Use this appliance only for its intended purpose.
• Do not let children operate this appliance. Keep this
appliance out of reach of children.
• Do not throw, drop, or alter this device.
• This unit is not made for continuous operation.
• Always disconnect this unit from the wall outlet/power
supply during cleaning and maintenance.
• If you’re using the product to sterilize water, make sure
that the unit is positioned at a higher level than the
water’s surface to avoid the water spilling onto the unit
or flowing back onto it.
• Do not block the air outlet or reduce the air flow.
• Do not put your face close to the unit when it is running,
whether purifying air or water, as exposing your eyes or
respiratory systems to ozone can cause discomfort or
aggravate respiratory issues.
SAFETY PRECAUTIONS
SAFETY PRECAUTIONS

5
PACKAGE CONTENTS
Ozone sterilizer
Silicone supply tube
Power cord
1. LED control panel
2. Negative ion outlet
3. Ozone outlet
4. Power cord port
Diuser stones (x2)
User guide
PRODUCT OVERVIEW
PRODUCT OVERVIEW
PRODUCT OVERVIEW
1
2
4
2
3

6
UNDERSTANDING THE CONTROL PANEL
1. Time Up (+): Increases timer
2. Timer Display: Shows timer
3. Time Down (-): Decreases timer
4. Fruit/Veg (vegetable): Can be set between 1 – 15
minutes/Default time: 10 minutes
5. Meat (also for fish): Can be set between 1 – 20 minutes/
Default time: 15 minutes.
6. Water: Can be set between 1 – 30 minutes/Default time:
20 minutes
7. Utensil: Can be set between 1 – 40 minutes/Default time:
25 minutes
8. Anion (negative ions): Can be set between 30 minutes –
8 hours/Default time: 2 hours
9. On/O Button: Turns on and o the unit
10. O/Anion (ozone/negative ions): Can be set between 10
minutes – 2 hours/Default time: 30 minutes
PRODUCT OVERVIEW
PRODUCT OVERVIEW
1
2
4
8
3
7
5
6
10
9

7

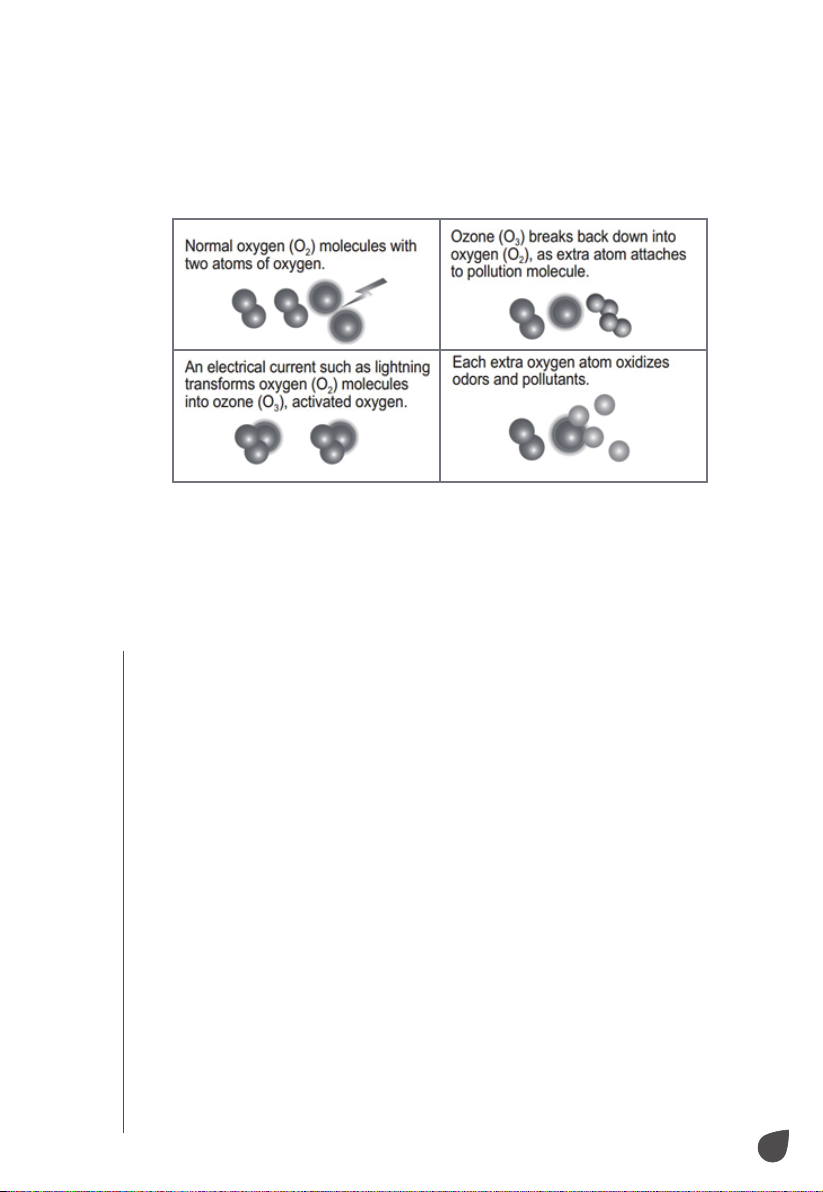

HOW IT WORKS
HOW IT WORKS
Nature creates ozone (O) as a natural air cleaner in a
number of ways, usually involving an ordinary oxygen
(O) molecule and some form of electrical charge (like
lightning or static electricity in the air). The electrical
current transforms an ordinary O molecule into an O
molecule. If you’ve taken a walk after a thunderstorm
and experienced the fresh, clean smell in the air, you’ve
experienced the after-eects of ozone at work in the
environment.
The Ivation Multipurpose Ozone Sterilizer for Air & Water
creates O via a special process that utilizes an electrical
current and the oxygen in the room. The ozone then
sanitizes the air in your room by breaking down odors,
microorganisms, and other pollutants at their source.
During the air sterilization process, no one can be present
in the room, because ozone is not safe for humans or
animals to inhale. The ozone air purifier includes a timer
for your safety and convenience. Once the timer runs
out, the device will deactivate automatically. After about
an hour, the ozone reverts back to normal oxygen, and
the room will be safe for you to re-enter. Breathe deep,
knowing the air in your room is fresh and clean.

8
1. Connect the power cord to the device and plug
the other end into an electrical outlet.
2. Insert one end of the supply tube into the ozone
outlet of the device and attach a diuser stone to
the other end of the tube.
3. Turn on the device by pressing the On/O button
on the control panel.
NOTE: The On/O button will light up red when
device is on.
4. Select one of the six modes on the control panel
that suits your current need.
NOTE: Operating time will vary and need to
change depending on the size of your room,
amount of water being used, or food being
treated.
5. Press the Time Up (+) or Time Down (-) button
to set custom time. The unit will start to operate
five (5) seconds after selecting a mode or setting
a time.
NOTES: The unit will automatically turn o when
timer runs out. The timer will run through one
time then it must be set again for the unit to
operate once more.
Brushes found in the negative ion outlets can
get dusty quickly. Make sure to wipe the brushes
often with a soft, dry cloth to keep device
operating eciently.
USING THE OZONE
GENERATOR & STERILIZER
USAGE
USAGE

9
RECOMMENDED USES AND TIME SETTINGS
USAGE
Usage Recommended
Run Time
Ozone Benefits
Chemical detox for
fruits and vegetables
(To do this: place
your produce into a
container full of water,
place the tube of the
ozone machine into
the container, and
purify the contents.)
10 – 20 minutes Ozone helps to kill viruses
and decompose any traces of
chemical fertilizer remaining
on the produce. This can help
to prevent some illnesses
and extend the life of your
produce.
Facial cleansing and
protection (To do this:
purify a container
full of water. Use the
purified ozone water
to wash your face.)
20 – 30 minutes Ozone water can help
remove bacteria from pores,
increase respiration, and help
remove makeup without
harsh chemicals.
Washing hands and
feet (To do this: purify
container of water for
the recommended
time. Use the purified
ozone water to wash
your hands and/or
feet.)
20 – 30 minutes Purified ozone water used to
wash hands and feet can help
kill harmful bacteria, assist
with preventing infections,
and help to deodorize.
Purifying washcloth
(To do this: place
the washcloth in
a container full of
water and purify the
container and its con-
tents for the recom-
mended time.)
5 – 10 minutes Ozone water can be nearly as
eective as bleach in killing
bacteria and deodorizing
wash cloths. Try it with socks
and other clothing, too.
Brushing teeth (To do
this: purify a con-
tainer of water for
the recommended
time. Use the purified
ozone water to rinse,
etc. while brushing
your teeth.)
10 – 15 minutes Ozone water rinses help to
kill bacteria in the mouth,
reduce halitosis and other
mouth odors, as well as help
with tooth pain reduction and
mouth sore reduction.
Cleaning baby
products and toys
(To do this: put the
products to clean into
a container or sink
full of water. Purify
the container and its
contents for the rec-
ommended time.)
10 – 15 minutes Purifying your baby products
in ozone water can help to kill
bacteria and sterilize prod-
ucts like bottles, teethers,
dishware, and toys.

10
TROUBLESHOOTING
TROUBLESHOOTING
Problem Probable
Cause
Possible Solution
No air comes out
from the diuser
stone’s outlet.
A hole or crease
in the air tube
results in a tube
blockage or air
leak.
Smooth out any
creases in the tube or
try a dierent silicon
tube.
The diuser
stone could be
blocked in some
other way.
Try changing the
diuser stone out for a
dierent one.
Air flows from the
tube, but there is
no ozone being
produced.
This is usually
caused by
a larger-
scale device
malfunction or
failure.
Contact Ivation or an
authorized service
center.
Power indicator is
o.
Device is
plugged in
incorrectly.
Switch the cord to
a dierent outlet or
try unplugging and
plugging back in the
cord.
Device makes
strange noises
during operation.
Not enough
water in the
receptacle.
Add more water,
usually between
8" - 16" is a sucient
amount.
Surface
resonance
caused by
machine
vibration.
Try moving the ozone
purifier to a dierent
surface that’s more
stable where it will
resonate less.

11
SPECIFICATIONS
Product type: Ozone generator
Product length: 6.10"
Product width: 1.96"
Product height: 9.76"
Net weight: 1.8 lbs.
Packaging length: 8.7"
Packaging width: 4.1"
Packaging height: 11.7"
Gross weight: 2.2 lbs.
Rated power: 6.5 W
Rated voltage/frequency: 120 V/60 Hz
Ozone output: 500 mg/h
Flow rate: 2.5 L/min
Remote control included: No
Automatic shuto function: Yes
Filter cleaning needed: No
Applicable uses: Purify water, food, utensils, air,
clothes, and baby products
Power source required: Yes (plug-in power)
Location: Indoor use only
Installation required: No
Adult assembly required: Ye s
Additional tools required: No
Country of origin: China
Warranty included: Yes
Warranty length: 1 year
SPECIFICATIONS

12
WARRANTY INFORMATION
WARRANTY INFORMATION
WARRANTY INFORMATION
This Ivation Multipurpose Ozone Sterilizer for Air & Water (“Product”), including any
accessories included in the original packaging, as supplied and distributed new by
an authorized retailer is warranted by C&A Marketing, Inc. (the “Company”) to the
original consumer purchaser only, against certain defects in material and workmanship
(“Warranty”) as follows:
To receive Warranty service, the original consumer purchaser must contact the
Company or its authorized service provider for problem determination and service
procedures. Proof of purchase in the form of a bill of sale or receipted invoice,
evidencing that the Product is within the applicable Warranty period(s), MUST be
presented to the Company or its authorized service provider in order to obtain the
requested service.
Service options, parts availability, and response times may vary and may change
at any time. In accordance with applicable law, the Company may require that you
furnish additional documents and/or comply with registration requirements before
receiving warranty service. Please contact our customer service for details on
obtaining warranty service:
Email: [e-mail]
Phone: [phone]
Shipping expenses to the Company’s Return Facility are not covered by this warranty,
and must be paid by the consumer. The consumer likewise bears all risk of loss or
further damage to the Product until delivery to said facility.
EXCLUSIONS AND LIMITATIONS The Company warrants the Product against defects
in materials and workmanship under normal use for a period of ONE (1) YEAR from
the date of retail purchase by the original end-user purchaser (“Warranty Period”). If
a hardware defect arises and a valid claim is received within the Warranty Period, the
Company, at its sole option and to the extent permitted by law, will either (1) repair
the Product defect at no charge, using new or refurbished replacement parts, (2)
exchange the Product with a Product that is new or which has been manufactured
from new or serviceable used parts and is at least functionally equivalent to the
original device, or (3) refund the purchase price of the Product.
A replacement Product or part thereof shall enjoy the warranty of the original Product
for the remainder of the Warranty Period, or ninety (90) days from the date of
replacement or repair, whichever provides you longer protection. When a Product or
part is exchanged, any replacement item becomes your property, while the replaced
item becomes the Company’s property. Refunds can only be given if the original
Product is returned.
This Warranty does not apply to:
(a) Any non-Ivation Multipurpose Ozone Sterilizer for Air & Water product, hardware
or software, even if packaged or sold with the Product;
(b) Damage caused by use with non-Ivation Multipurpose Ozone Sterilizer for Air &
Water products;
(c) Damage caused by accident, abuse, misuse, flood, fire, earthquake, or other
external causes;
(d) Damage caused by operating the Product outside the permitted or intended uses
described by the Company;
(e) Damage caused by third party services;
(f) A Product or part that has been modified to alter functionality or capability without
the written permission of the Company;
(g) Consumable parts, such as batteries, fuses, and bulbs;
(h) Cosmetic damage; or
(i) If any Ivation Multipurpose Ozone Sterilizer for Air & Water serial number has been
removed or defaced.
This Warranty is valid only in the country where the consumer purchased the Product,
and only applies to Products purchased and serviced in that country.
The Company does not warrant that the operation of the Product will be uninterrupted
or error-free. The Company is not responsible for damage arising from your failure to
follow instructions relating to its use.

13
GET IN TOUCH!
GET IN TOUCH!
NOTWITHSTANDING ANYTHING TO THE CONTRARY AND TO THE MAXIMUM
EXTENT PERMITTED BY APPLICABLE LAW, THE COMPANY PROVIDES THE PRODUCT
“AS-IS” AND “AS-AVAILABLE” FOR YOUR CONVENIENCE AND THE COMPANY AND
ITS LICENSORS AND SUPPLIERS EXPRESSLY DISCLAIM ALL WARRANTIES AND
CONDITIONS, WHETHER EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING THE
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE,
TITLE, QUIET ENJOYMENT, ACCURACY, AND NON-INFRINGEMENT OF THIRD-
PARTY RIGHTS. THE COMPANY DOES NOT GUARANTEE ANY SPECIFIC RESULTS
FROM THE USE OF THE PRODUCT, OR THAT THE COMPANY WILL CONTINUE TO
OFFER OR MAKE AVAILABLE THE PRODUCT FOR ANY PARTICULAR LENGTH
OF TIME. THE COMPANY FURTHER DISCLAIMS ALL WARRANTIES AFTER THE
EXPRESS WARRANTY PERIOD STATED ABOVE.
YOU USE THE PRODUCT AT YOUR OWN DISCRETION AND RISK. YOU WILL BE
SOLELY RESPONSIBLE FOR (AND THE COMPANY DISCLAIMS) ANY AND ALL LOSS,
LIABILITY, OR DAMAGES RESULTING FROM YOUR USE OF THE PRODUCT.
NO ADVICE OR INFORMATION, WHETHER ORAL OR WRITTEN, OBTAINED BY YOU
FROM THE COMPANY OR THROUGH ITS AUTHORIZED SERVICE PROVIDERS SHALL
CREATE ANY WARRANTY.
IN NO EVENT WILL THE COMPANY’S TOTAL CUMULATIVE LIABILITY ARISING
FROM OR RELATED TO THE PRODUCT, WHETHER IN CONTRACT OR TORT OR
OTHERWISE EXCEED THE FEES ACTUALLY PAID BY YOU TO THE COMPANY OR
ANY OF ITS AUTHORIZED RESELLERS FOR THE PRODUCT AT ISSUE IN THE LAST
YEAR FROM YOUR PURCHASE. THIS LIMITATION IS CUMULATIVE AND WILL NOT
BE INCREASED BY THE EXISTENCE OF MORE THAN ONE INCIDENT OR CLAIM.
THE COMPANY DISCLAIMS ALL LIABILITY OF ANY KIND OF ITS LICENSORS
AND SUPPLIERS. IN NO EVENT WILL THE COMPANY OR ITS LICENSORS,
MANUFACTURERS, AND SUPPLIERS BE LIABLE FOR ANY INCIDENTAL, DIRECT,
INDIRECT, SPECIAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES (SUCH AS, BUT
NOT LIMITED TO, DAMAGES FOR LOSS OF PROFITS, BUSINESS, SAVINGS, DATA, OR
RECORDS) CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THE PRODUCT.
Nothing in these terms shall attempt to exclude liability that cannot be excluded under
applicable law. Some countries, states, or provinces do not allow the exclusion or
limitation of incidental or consequential damages or allow limitations on warranties, so
certain limitations or exclusions may not apply to you. This warranty gives you specific
legal rights, and you may have other rights that vary from state to state or province to
province. Contact your authorized retailer to determine if another warranty applies.
[e-mail]
1-866-849-3049
IVATION is a trademark of C&A IP Holdings LLC in the US, Canada, and the EU.
All other products, brand names, company names, and logos are trademarks of their respective
owners, used merely to identify their respective products, and are not meant to connote any
sponsorship, endorsement, or approval.
Distributed by C&A Marketing, Inc., 114 Tived Lane East, Edison, NJ 08837. Made in China.
© 2021. C&A IP Holdings LLC. All Rights Reserved.
GET IN TOUCH!
