Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so
according to local regulations.

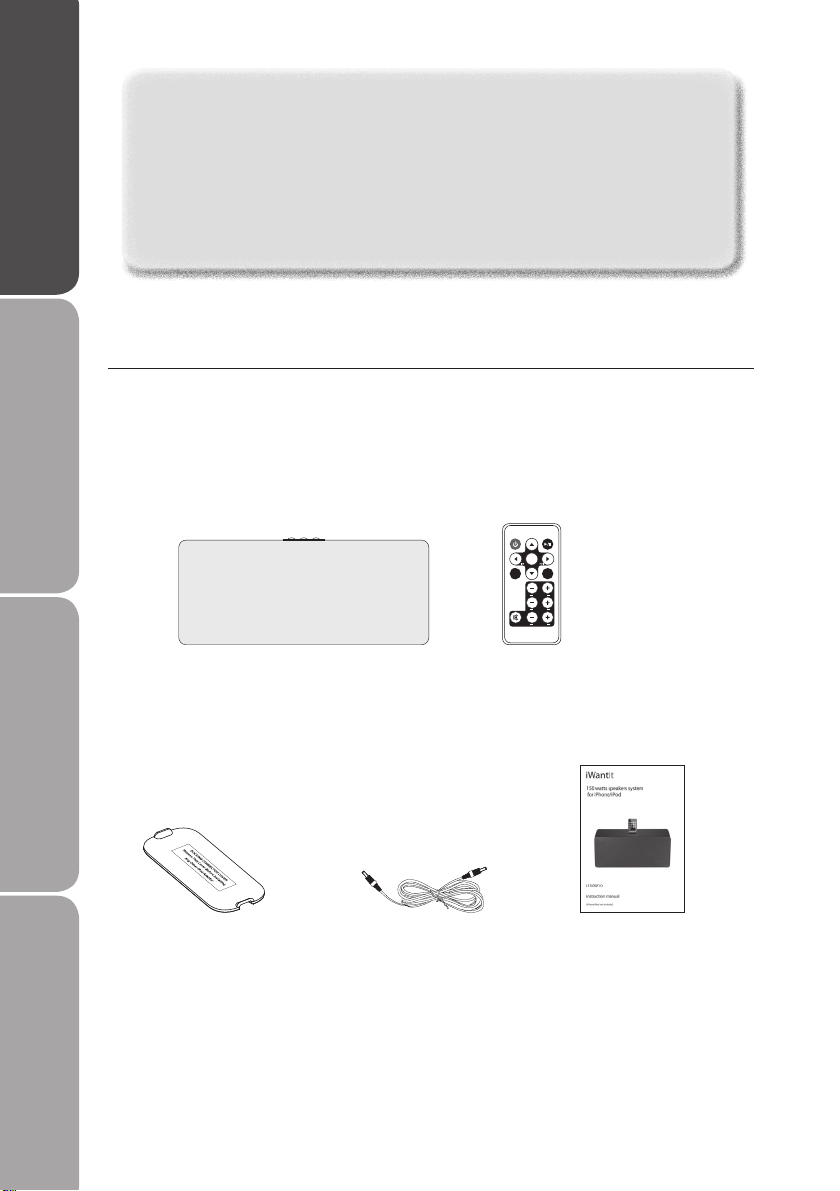

The following items are included:
ENTER
TREBLE
MENU
iPhone/AUX
STANDBY PLAY/PAUSE
BASS
VOLUMEMUTE
Congratulations on the purchase of your new iWantit 150 Watts
Speakers System for iPhone/iPod.
We recommend that you spend some time reading this instruction manual in
order that you fully understand all the operational features it oers. You will
also nd some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this instruction
manual for future reference.
i150W10_IB_final100920_running change.indd 4 24/09/2010 10:22 AM
GB-5
Safety Warnings Product Overview
Operation
Hints and Tips
and Specification
Product Overview
1. iPhone/iPod Dock
2. VOLUME – / + Button
Adjusts the volume
3. iPhone/AUX Button
• Press to start or pause the
playback.
• Press and hold for 2 seconds and
then release to switch between
iPod mode and AUX IN mode.
• Press and hold for over 3 seconds
to switch the unit to standby
mode.
• Press to switch the unit on in
standby mode.
iPhone/AUX
MAIN POWER
OFF
ON
AC INPUTAUX INVIDEOOUT
1 32
6 7 8 9
Rear View
4 5
Front View
4. Speaker
5. IR Sensor
Sensor behind the speaker cover
6. VIDEO OUT Socket
7. AUX IN Socket
8. AC INPUT Socket
Connects the mains cable to the
mains socket
9. POWER ON/OFF Button
Top View
i150W10_IB_final100920_running change.indd 5 24/09/2010 10:22 AM
GB-6
Safety WarningsProduct Overview Operation Hints and Tips
and Specification
Remote Control
1. STANDBY Button
To switch the unit between on and
standby mode.
2. PLAY/PAUSE Button
To start playback or pause.
3. LEFT/RIGHT (SKIP ) Button
To move back to the beginning of the
current chapter/tracks/titles or move
forward to next chapters/tracks/titles
on the iPhone/iPod.
UP/DOWN Button
To select the options on the iPhone/
iPod menu screen.
ENTER Button
To conrm the selection on the iPhone/
iPod menu screen.
ENTER
TREBLE
MENU
iPhone/AUX
STANDBY PLAY/PAUSE
BASS
VOLUMEMUTE
1
3
4
8
2
5
6
7
9
4. MENU Button
To display the iPhone/iPod menu on
the iPod menu screen.
5. iPhone/AUX Button
To switch between the iPhone/iPod
mode and the AUX IN mode.
6. TREBLE – / + Button
To adjust the treble level.
7. BASS – / + Button
To adjust the bass level.
8. MUTE Button
To mute and restore your iPod sound.
9. VOLUME – / + Button
To adjust the volume.
i150W10_IB_final100920_running change.indd 6 24/09/2010 10:22 AM
GB-7
Safety Warnings Product Overview
Operation
Hints and Tips
and Specification
Battery Installation for the Remote Control
Remove the Insulating Strip from the Remote Control
Remove the insulating mylar strip from the battery if the
battery is being used for the rst time. It is located at the
bottom back side of the remote control.
Handling the Battery
• Improper or incorrect use of batteries may cause corrosion or battery leakage, which
could cause re, personal injury or damage to property.
• Install the battery correctly by following the polarity (+ and –) indications in the battery
compartment.
• When the battery is exhausted, the remote control will not function.
• Only use the battery type indicated in this manual.
• Do not dispose of the used battery as domestic waste. Dispose of it in accordance with
the local regulations.
• Small button cell batteries such as the one used in the remote control are easily
swallowed by young children and this is dangerous. Keep loose button cells away from
young children and make sure that the battery holder tray is secure in the remote
control. Seek medical advice if you believe a cell has been swallowed.
Handling the Remote Control
• Take care of your ngernails when you press and hold the battery release tab.
• Do not drop or cause impact to the remote control.
• Do not spill water or any liquid on the remote control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct sunlight or near sources of excessive heat.
• Remove the battery from the remote control when not in use for a long period of time,
as it could cause corrosion or battery leakage and may result in physical injury and/or
property damage including re.
1. Press and hold the battery release
tab and pull out the battery holder
completely.
2. Remove the old battery, and place
a new battery (“CR2025” 3V) in the
holder.
i150W10_IB_final100920_running change.indd 7 24/09/2010 10:22 AM
GB-8
Safety WarningsProduct Overview Operation Hints and Tips
and Specification
Remote Control Operation Range
Point the remote control at the unit no more than
5 metres from the remote control sensor and
within 60° of the front of the unit. The operating
distance may vary depending on the brightness of
the room.
Power Source
Mains Power
• This unit was designed to operate with
an AC ~230V 50Hz power supply.
• Connecting the unit to any other power
source may cause damage to the unit.
Unwind the mains cable to its full
length. Connect the mains plug to a
mains socket. Make sure the mains plug is fully inserted into the mains socket. The unit is
now connected and ready to use.
• To switch the unit o completely, switch the POWER ON/OFF button to the OFF position
or withdraw the mains plug from the mains socket.
MAINPOWER
OFF
ON
ACINPUTAUXINVIDEOOUT
ENTER
TREBLE
MENU
iPhone/AUX
STANDBY PLAY/PAUSE
BASS
VOLUMEMUTE
Within about 5m
30° 30°
i150W10_IB_final100920_running change.indd 8 24/09/2010 10:22 AM
GB-9
Safety Warnings Product Overview
Operation
Hints and Tips
and Specification
General Operation
Switching On / O and Selecting the Function
• Switch the POWER ON/OFF switch at the rear of the unit to the ON position and then
press the STANDBY button on the remote control or press the iPhone/AUX button
on the unit to turn on the unit.
• Press the STANDBY button on the remote control again or press and hold the
iPhone/AUX button on the unit for over 3 seconds to switch the unit to standby
mode.
Selecting Modes
Press and hold the iPhone/AUX button on the unit for 2 seconds and then release or
press the iPhone/AUX button on the remote control to select between iPhone/iPod mode
and AUX IN mode.
Adjusting the Volume
• Press the VOLUME – / + button to adjust the volume.
• If you wish to switch the sound o, press the MUTE button, the button’s light on the
top panel of the unit will begin to ash. Press the MUTE button again or the VOLUME
– / + button to resume normal listening.
Adjusting the Sound Eect
• Press the BASS – / + button on the remote control to adjust the bass level.
• Press the TREBLE – / + button on the remote control to adjust the treble level.
i150W10_IB_final100920_running change.indd 9 24/09/2010 10:22 AM
GB-10
Safety WarningsProduct Overview Operation Hints and Tips
and Specification
• The unit cannot show any music information of your iPhone/iPod. Please view the music information
from your iPhone/iPod display.
• For iPhone/iPod Touch, the menu function can be accessed by the remote control only after the iPhone/
iPod Touch unit is unlocked and in Music mode (for iPod Touch) and iPod mode (for iPhone).
You can only view photos using the controls on your iPhone/iPod.
iPhone/iPod Operation
Inserting the iPhone/iPod and Selecting the iPhone/iPod
Mode
This unit can support iPhone, iPhone 3G/3GS and various models of iPod players with
30-pin dock connectors, such as iPod touch 1st/2nd Generation, iPod Classic, iPod nano
1st/2nd/3rd/4th/5th Generation, iPod 5th Generation (video), iPod 4th Generation (with and
without colour display) and iPod mini.
1. To select the iPhone/iPod mode, press and hold the iPhone/AUX button on the
unit for 2 seconds and then release or press the iPhone/AUX button on the remote
control to select the iPhone/iPod mode.
2. Insert the Universal iPod dock adapter (not included) into the iPod dock until it sits
rmly in place.
3. Insert your iPhone/iPod into the iPhone/iPod dock.
4. If the iPhone/iPod is connected, the unit will start playback (It will take around 10
seconds to allow the unit to identify the iPhone/iPod). The iPhone/iPod battery will be
start to charge automatically until it is fully charged.
5. Select your desired music, or videos, etc., and play the connected iPhone/iPod as usual.
You can use either the iPhone/iPod or the remote control.
• Press the iPhone/AUX button on the unit or the iPhone/AUX button on the
remote control to start / pause playback.
• Press the LEFT/RIGHT (SKIP ) buttons on the remote control to select
the previous or next song.
• Press the VOLUME – / + button on the unit or the remote control to adjust the
volume.
• Press the BASS – / + button or the TREBLE – / + button on the remote control to
adjust the sound eect bass and treble sound levels.
• Press the MENU button on the remote control to go to the previous iPhone/iPod
menu.
• Press the UP/DOWN buttons on the remote control to select the iPhone/
iPod menu and then press the ENTER button on the remote control to enter the
selected menu.
Control iPhone/iPod menu by Remote Control only
Press the Menu button on the remote control. The iPhone/iPod will go to the previous
menu. Press the UP/DOWN buttons on the remote control to select iPhone/iPod menu;
then press the ENTER button to enter the selected menu.
i150W10_IB_final100920_running change.indd 10 24/09/2010 10:22 AM
GB-11
Safety Warnings Product Overview
Operation
Hints and Tips
and Specification
Video Out Function
When any iPhone or iPod model with video playback function is plugged into the unit,
videos can be viewed on another display screen by connecting the VIDEO OUT socket of
the unit to the desired video display (video connection cable is not included ).
For iPod users
Simply choose the video le you would like to play and the iPod will (depending on your
iPod setting) display “Display on TV? Yes/No.”Choose “YES”if you want to play the le on the
desired video display.
For iPod touch/iPhone users
Simply choose the video le you would like to play and the iPod touch/iPhone will
automatically play the le on the desired video display.
• Please make sure the TV Out function is set to ON in the iPod Video Setting menu, otherwise,
the video signal will not be able to show on the display. For details, please check the iPhone/
iPod Instruction Manual.
• If your iPod video function is not working properly update your iPod software.
The i150W10 was designed for high audio power output.
We recommend that you turn o your iPhone/iPod “Shake to Shue”
setting to avoid the unit accidentally activating it when operating at
high volume levels.
• The unit cannot show any music information of your iPhone/iPod. Please view the
music information from your iPhone/iPod display.
• To avoid damaging your iPhone/iPod or the unit please take care when inserting and
removing your iPhone/iPod from the dock.
• The unit does not support charging 1st, 2nd, 3rd Generation iPods.
Charging Your iPhone/iPod
1. Your iPhone/iPod has an internal non-removable battery. The battery
may need to be charged if it has not been used for a while.
2. You can automatically charge the iPhone/iPod through the unit when
it is in STANDBY / AUX IN / iPhone/iPod mode.
Charge
i150W10_IB_final100920_running change.indd 11 24/09/2010 10:22 AM
GB-12
Safety WarningsProduct Overview Operation Hints and Tips
and Specification
Hints and Tips
If a problem does occur, it may often be due to something very minor. The following table
contains various tips.
Problem Cause / Solution
Power
System does not
turn on or does
not respond to the
remote control.
• Make sure mains plug is connected to the mains socket properly
and that it has power.
iPhone/iPod
The unit doesn’t
play iPhone/iPod
les or doesn’t
function as
expected.
• Make sure the function is set to iPhone/iPod mode.
• Make sure the iPhone/iPod is connected properly.
• Make sure the proper cradle for your iPhone/iPod is tted to the
unit.
• AUX IN mode may be activated; press and hold the IPhone/
AUX button on the unit for 2 seconds or the iPhone/AUX
button on the remote control again.
• Make sure the iPhone/iPod is switched on.
• Vibrations may have caused the iPhone/iPod to come loose from
the docking station.
Remote Control
The unit doesn’t
respond to the
remote control
• Insert new batteries.
• Aim remote control directly towards the remote sensor.
Resetting the Unit
If the system does not respond, the unit may have experienced an electrostatic discharge
or a power surge that triggered the internal computer to automatically shut down. If
this occurs, disconnect the unit from the mains socket and reconnect it again after a few
seconds.
AUX IN Operation
1. Before connecting to the mains socket, use the AUX IN cable (included) to connect
your audio device through the AUX IN socket at the rear of the unit.
2. Connect the mains cable to the mains socket. The unit will enter Standby mode.
3. Press the STANDBY button on the remote control to switch the unit on.
4. To select the AUX IN mode, press and hold the iPhone/AUX button on the unit for
2 seconds and then release or press the iPhone/AUX button on the remote control to
select AUX IN mode.
5. Press the VOLUME – / +, BASS – / +, or the TREBLE – / + button to adjust the sound
level.
6. In AUX IN mode, you may operate your audio device directly for playback features.
i150W10_IB_final100920_running change.indd 12 24/09/2010 10:22 AM
GB-13
Safety Warnings Product Overview
Operation
Hints and Tips
and Specification
Maintenance
Care of the Appliance
Disconnect the appliance from the power source when cleaning.
If the unit becomes dusty, wipe it with a soft and dry duster. Use a soft cloth to clean this
appliance. Do not use any wax, polish sprays, or abrasive cleaners on the unit.
Specications
Model i150W10
AC Power AC 230V ~50Hz
Unit Output Power 2 x 20W (L/R Speakers)
110W (Subwoofer)
Power Consumption 180 W
Dimensions Approx. 500(L) x 215(W) x 215(H) mm
Operation temperature +5°C +35°C
Features and specications are subject to change without notice.
Never allow any water or other liquids to get inside the unit while cleaning.
Dispose of used batteries in an environmental-responsible manner.
i150W10_IB_final100920_running change.indd 13 24/09/2010 10:22 AM
GB-14
Safety WarningsProduct Overview Operation Hints and Tips
and Specification
Safety Warnings
• Read all the instructions carefully before
using the unit and keep them for future
reference.
• Retain the manual. If you pass the unit
onto a third party make sure to include this
manual.
• Check that the voltage marked on the
rating label matches your mains voltage.
Damage
• Please inspect the unit for damage after
unpacking.
• Do not continue to operate the unit if you
are in any doubt about it working normally,
or if it is damaged in any way - switch o,
withdraw the mains plug and consult your
dealer.
Location of Unit
• The unit must be placed on a at stable
surface and should not be subjected to
vibrations.
• Do not place the unit on sloped or unstable
surfaces as the unit may fall o or tip over.
• The mains socket must be located near the
unit and should be easily accessible.
• This unit is designed for indoor use only.
Temperature
• Avoid extreme degrees of temperature,
either hot or cold. Place the unit well away
from heat sources such as radiators or gas/
electric res.
• Avoid exposure to direct sunlight and other
sources of heat.
Naked Flames
• Never place any type of candle or naked
ame on the top of or near the unit.
Moisture
• To reduce the risk of re, electric shock or
product damage, do not expose this unit
to rain, moisture, dripping or splashing. No
objects lled with liquids, such as vases,
should be placed on the unit.
• If you spill any liquid into the unit, it can
cause serious damage. Switch it o at the
mains immediately. Withdraw the mains
plug and consult your dealer.
Ventilation
• To prevent the risk of electric shock or
re hazard due to overheating, ensure
that curtains and other materials do not
obstruct the ventilation vents.
• Do not install or place this unit in a
bookcase, built-in cabinet or in another
conned space. Ensure the unit is well
ventilated.
Safety
• Always disconnect the unit from the mains
supply before connecting/disconnecting
other devices or moving the unit.
• Unplug the unit from the mains socket
during a lightning storm.
• In the interests of safety and to avoid
unnecessary energy consumption,
never leave the unit switched on while
unattended for long periods of time, e.g.
overnight, while on holiday or while out of
the house. Switch it o and disconnect the
mains plug from the mains socket.
Mains Cable
• Make sure the unit is not resting on top of
the mains cable, as the weight of the unit
may damage the mains cable and create a
safety hazard.
• If the mains cable is damaged it must be
replaced by the manufacturer, its service
agent, or similarly qualied persons in
order to avoid a hazard.
Interference
• Do not place the unit on or near appliances
which may cause electromagnetic
interference. If you do, it may adversely
aect the operating performance of the
unit, and cause a distorted picture or
sound.
Batteries
• Batteries used in the unit are easily
swallowed by young children and this is
dangerous.
• Keep loose batteries away from young
children and make sure that the battery
holder tray is secure in the unit. Seek
medical advice if you believe a cell has
been swallowed.
• Please dispose of batteries correctly by
following the guidance in this manual.
i150W10_IB_final100920_running change.indd 14 24/09/2010 10:22 AM
GB-15
Safety Warnings Product Overview
Operation
Hints and Tips
and Specification
Supervision
• Children should be supervised to ensure
that they do not play with the unit and the
remote control.
• Never let anyone especially children push
anything into the holes, slots or any other
openings in the case - this could result in a
fatal electric shock.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning ash with arrowhead
symbol, within an equilateral
triangle, is intended to alert the
user to the presence of uninsulated
“dangerous voltage”within the
unit’s enclosure that may be of
sucient magnitude to constitute a
risk of electric shock.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and
maintenance (servicing)
instructions in the manual
accompanying the unit.
Service
• To reduce the risk of electric shock, do not
remove screws. The unit does not contain
any user-serviceable parts. Please leave all
maintenance work to qualied personnel.
• Do not open any xed covers as this may
expose dangerous voltages.
Maintenance
• Ensure to unplug the unit from the mains
socket before cleaning.
• Do not use any type of abrasive pad or
abrasive cleaning solutions as these may
damage the unit’s surface.
• Do not use liquids to clean the unit.
i150W10_IB_final100920_running change.indd 15 24/09/2010 10:22 AM
Notes for battery disposal
The batteries used with this product contain chemicals that are harmful to the
environment. To preserve our environment, dispose of used batteries according to your
local laws or regulations. Do not dispose of batteries with normal household waste.
For more information, please contact the local authority or your retailer where you
purchased the product.
DSGRetailLtd•MaylandsAvenue•HemelHempstead
Herts•HP27TG•England
This symbol on the product or in the instructions means that your
electrical and electronic equipment should be disposed at the end of its
life separately from your household waste. There are separate collection
systems for recycling in the EU.
For more information, please contact the local authority or your retailer
where you purchased the product.
NOTE: If you require a replacement for any of the items listed below, please quote their
corresponding part numbers:
Replacement Part Part Number
Remote Control 083-983i37-0071
Dust Cover 423-081101-1031
AUX IN Cable 601-091520-3021
(P.N. 309-991i37-0101)
Visit Partmaster.co.uk today for the easiest way to buy
electrical spares and accessories. With over 1 million spares
and accessories available we can deliver direct to your door
the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only)
Calls charged at National Rate.
All trademarks are the property of their respective owners and all rights are acknowledged.
iPhone and iPod are trademarks of Apple Inc.,
registered in the U.S. and other countries.
“Made for iPod” and “Made for iPhone”mean that an electronic accessory has been
designed to connect specically to iPod or iPhone respectively, and has been certied by
the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its compliance with safety and
regulatory standards.
i150W10_IB_final100920_running change.indd 16 24/09/2010 10:22 AM
Table of contents
