Iwatani Fore Winds FW-CS01 User manual
ANSI Z21.72-CSA 11.2-2019 Camp Stove
Listed by CSA
Be sure to read this entire instruction manual before using this product.
Always keep the instruction manual with the product.
FORE WINDS Compact Camp Stove
Instruction Manual
Model: FW-CS01
This appliance is for use as an outdoor only camp cooking appliance.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you. Never use this appliance in an
enclosed space such as a camper, tent, car or home.
Improper installation, adjustment, alteration, service or maintenance can cause
injury or death. Read the installation, operating and maintenance instructions
thoroughly before installing, operating or servicing this equipment.
WARNING
FIRE OR EXPLOSION HAZARD
If you smell gas:
1. Do not attempt to light appliance.
2.Makesureapplianceisintheoposition.
3.Extinguishanynearbyame(s).
4.Shutocylinderfuelsupplyvalveifso
equipped, or if equipped with a disposable
fuel cylinder, disconnect cylinder.
5. Leave the area immediately.
6. Allow gas to dissipate 5 minutes.
7. If gas smell has dissipated from the area,
of the appliance, and fuel supply, follow
gas connection procedures.
8. If you smell gas again, follow steps 1-6 and
have appliance serviced.
Failuretofollowtheseinstructionscouldresultinreorexplosion,whichcouldcause
property damage, personal injury, or death.
FOR YOUR SAFETY
Donotstoreorusegasolineorotherliquidswithammablevapoursinthevicinityof
this or any other appliance.
WARNING : This product and all products that burn gas can expose you to Carbon Monoxide which is
known to the State of California to cause birth defect or other reproductive harm. Always use in well ventilated
areas. For more information go to www.P65Warnings.ca.gov.
WARNING : This appliance must NEVER be used without the drip pan and grate provided with
this appliance installed in their proper position. Attempting to cook without these parts in place may cause
overheatingofthefuelcanister,resultinginareorexplosion.
CS01
21,01
2
Danger This symbol indicates matters that may lead to death, serious injury or
reifignoredorincorrectlyhandled.
Warning
This symbol indicates matters that may lead to imminent risk of death or
serious injury if ignored or incorrectly handled.
Caution
This symbol is displayed along with instructions that, if ignored, and if the
deviceisinappropriatelyused,mayleadtotheusersueringaninjuryor
material damage.
Table of contents
Names and uses of parts ································································· 3
●Specications·············································································· 3
●Ignition,adjustingtheheatingpower,andextinguishingtheame ·········· 5
Usage precautions········································································ 6
● Handling the Canister ································································· 8
Maintenance and inspection after use················································· 9
Warranty and Repair ······································································· 9
Troubleshooting ··········································································· 10
-
-
Be sure to read this Instruction Manual before use.
<Before use>
In order to ensure safe and correct usage of this product as well as to prevent injury or physical damage
to you and others, there are many symbols in the instruction manual to explain the product. The symbols
and their meanings are explained below. Please ensure you have carefully read and understand the
content before reading the main text.
<These symbols have the following meanings>
General danger,
warning or caution
Do EXACTLY
as instructed Prohibited Do not touch Do not
disassemble
3

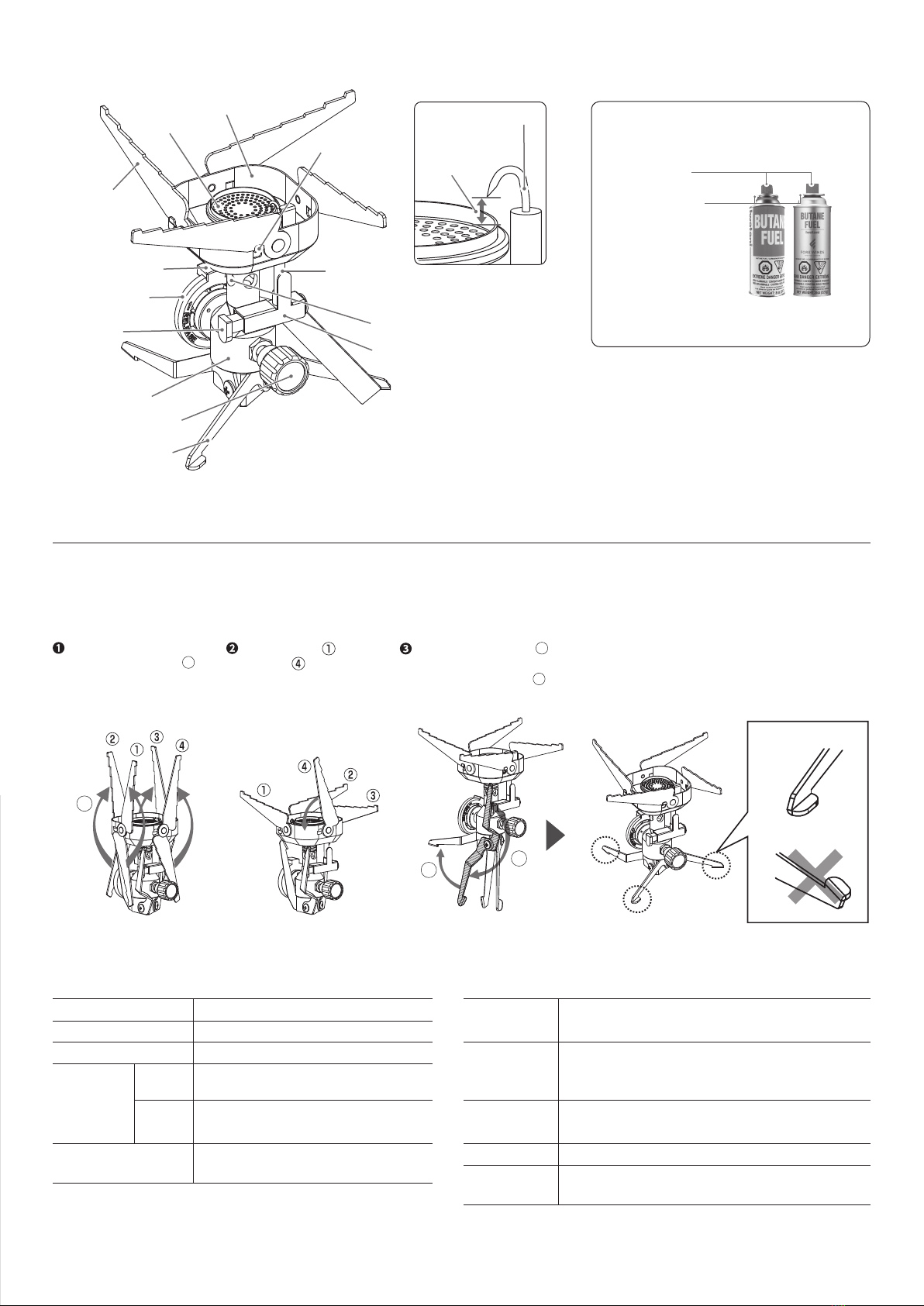

Windshield
Burner head
Pan support
stopper
Electrode
(Ceramic)
Vent
Electrode guard
Electrode
Spark gap
(Correct gap:
3 to 4 mm)
Pan support
Guide (Protrusion)
Canister holder
Ignition
Knob
Leg
Main body
Names and uses of parts
Be sure to read this Instruction Manual before use.
Speci cations
Product name FORE WINDS Compact Camp Stove Output(gas
consumption)
9,200BTU/hr(2.7kW)
(atanairtemperatureof68-77ºF/20-25°C)
Model number FW-CS01
Ignition type Piezoelectric Continuous
combustion
Approx. 108 minutes
(Actualvaluewhencompletelyusinganewcanisterat
maximumpower.Airtemperatureof68-77ºF/20-25°C.)
Maximum
external
dimensions
in use 6.1"/155mm(W)×6.1"/155mm(D)×
5.0"/127mm(H)
folded 3.2"/82mm(W)×6.6"/68mm(D)×
4.3"/109mm(H) Canister Dedicated canister labeled as “Iwatani Butane Fuel” or
“FORE WINDS Butane Fuel”
Unit weight Approx. 0.6 lbs/274 g
(canisternotincluded)
Also includes EVA storage case, Instruction manual
Pot available
to use
Diameter of bottom of pot should be less than
6.3”/18 cm.
Canister
Use the following dedicated canister with
this product.
Item labeled as “Iwatani Butane Fuel” or
“FORE WINDS Butane Fuel”
Canister cap
Canister notch
(forpreventing
canisterfromtting
inawrongdirection)
[Assembly method]
Hold 4 pan supports
up position toward A
direction.
In order from
through , lower the
pan supports and set
them in the pan support
stoppers.
Hold 3 legs down to B
direction.
Hold up each leg to C
direction until stopped.
●Makesurethat3legsarepointingin
the correct direction.
Each foot base needs to face ground.
A
B
C
Wrong direction
Correct direction
A
B
C
Wrong direction
Correct direction
A
B
C
Wrong direction
Correct direction
A
B
C
Wrong direction
Correct direction
Preparations Remove the stove from the EVA storage case and assemble it.
●Whenusingtheproduct,placetheEVAstoragecaseinalocationinwhichwillnotbeaectedbyheat.
After use, wait until the stove has cooled before storing the stove in the EVA storage case.
4
Installing canister Install a canister following the procedure below.
Be aware that if a canister is installed incorrectly, unexpected dangers may result.
Make sure that there is no source of ignition nearby.
Turn the knob towards the minus (-) symbol direction
all the way and make sure that it is closed.
Remove the canister cap of the canister.
Make sure that the guide (protrusion) is in the
correct guide position.
Caution
Install the canister
correctly
If the canister is installed
tilted, liquid gas may enter the
main unit, which may cause
the ame to become larger
during ignition. Install the
canister horizontally.
Do not twist with
excessive force when
attaching or removing a
canister
Excessive force will damage
the canister holder.
Whenitisdiculttoinstallthecanister
(becauseforceisrequired),applyathin
coat of vegetable oil to the tip of the
canister(Part intheillustrationbelow).
Application location for
vegetable oil
Canister
holder
Guide
(Protrusion)
O ring (seal)
■Correct guide position
(When installing/removing the canister)
●If the guide (protrusion) is in the wrong position,
the canister cannot be installed.
Canister notch
Guide (Protrusion)
Canister holder
A
B
Knob
Align the guide (protrusion) of canister holder with
the canister notch of canister. Turn the canister in
the direction Baround 45 degree, while pushing
the canister to the direction A.
Make sure that the canister is installed correctly.
(The guide (protrusion) is upper position)
●Afterinstallingthecanister,ifyoudiscoverahissing
sound from the attachment point indicating gas
leakage or smell gas, remove the canister. Remove
any dust attached to the joint if present, and re-install
the canister.
With canister attached
Notice
The following canisters can be used with this product:
Iwatani Butane Fuel and FORE WINDS Butane Fuel.
Becauseofthedierenceoftheouterdiameterofthecanister,aslightamount
ofrattlingoccursontablesandotheratsurfaces,butthisdoesnotindicatea
malfunction.
Always use a fuel canister labeled as “Iwatani Butane Fuel” or “FORE WINDS Butane Fuel”
5
Ignition, adjusting the heating power, and extinguishing the ame
Ignition Adjusting the heating power Extinguishing
Turntheknobtowardstheplus(+)symbol
direction around one-third of the way and
immediately push the ignition.
Turningtheknobtowardstheplus(+)position
increases the heating power, while turning
towardstheminus(-)positiondecreasesit.
Turntheknobtowardstheminus(-)
symbol direction all the way.
Close
Open
Knob
Push
Ignition
LowHigh
Close
Open
Knob
Push
Ignition
LowHigh
Close
Open
Knob
Push
Ignition LowHigh
●Ifitisnotlit,immediatelyreturntheknobto
theminus(-)symboldirectiontotheendand
then try again.
Itmaybediculttolightthestoveuponrst
use or when the temperature of the canister
is low/high. Turn the knob towards the minus
(-)symboldirectionslightlyandrepeatthe
ignition process several times carefully.
●Whenusinglowheat,alwayscheckthe
ameasitisdiculttosee.
●Beawarethatiftheameislowered
too much, it is more likely to be
extinguished by wind.
Caution
Do not ignite the stove when
spray gas is being emitted
near the stove
Spray gas may cause the ame
to grow larger.
Shut o the knob, and then wait a
while before reigniting the stove.
Remove stains on and
around the burner head
and electrode
Stains will cause ignition problems.
Advice
●Ifthestoveisusedforalongtime,vaporizationheatmaycoolthecanister
and lower the heating power. Use a canister that was stored in a warm
locationof104ºF/40°Corlessanduseanewcanisterwheneverpossible.
●Athighelevations,theatmosphericpressurewillmakeignitionmoredicult.
To prepare for such conditions, we recommend bringing matches or a lighter
(notanelectronicignitiontype).
After use (steps after extinguishing the ame)
Make sure the ame is out completely
●Justaftertheameisextinguished,boththe
main unit and the canister will be hot. Wait
until they cool down.
Remove the canister
●Alwaysremovethecanister.
Otherwise, appliance failures or gas leaks may occur.
●Iftheunitisexposedtorainorsnowyoumayhavetroublelightingtheburneruntiltheburnerportsareclearofwater
and the spark electrode is totally dry. To protect against burner ignition problems due to water accumulation, the
storage box also serves as a rain guard when the stove is left outdoors and exposed to the elements.
Neverleavethestoveoutsidewithoutrststoringitinthestorageboxprovided.Removebutanecanisterbefore
storage.
Removing the canister after use After use, always remove the canister, put on the canister cap,
and then store the canister.
Turn the canister to Cdirection until the end, and slide it horizontally to
Ddirection.
Put the canister cap on the removed canister.
D
C
6
Usage precautions
Usage location and circumstances
Warning
Never use this product in the following locations
(Otherwise, res, explosions, fatal accidents, and burns will occur)
● Do not use this product in cramped places or poorly
ventilated places
● Do not use this product in a location in which the canister
will become overheated
This product is for outdoor use only.
Never use this product inside a tent or a vehicle.
During use, a large amount of oxygen is
consumed, which may cause death by
suocationduetoalackofoxygenand
carbon monoxide poisoning. Also, nearby
combustiblesmayigniteandstartare.
Do not use or leave this product in a
location in which the canister will become
overheated by sunlight, such as on sandy
beach or asphalt in the summer.
● Do not use this product in a vehicle or in unstable locations ● Do not use this product near re or heat
If the main unit is tilted or moved
duringuse,theamemaybecome
largerandcauseinjuryorre.
There is also danger of the main unit
tipping over. Use the product in stable
atlocationssoitdoesnotshake,tip,
or move.
Keep the product 6 ft/2 m or
moreawayfromre.
● Do not use the product near
canisters, hairspray, and other
combustibles, or cloth, paper, or
other items that are easily burned
Kerosene
Spray
Kerosene
Benzine
● Do not use this product in strong wind
The windshield is not intended to block wind completely
.
If this product is used in strong wind, the main unit may tip over
ortheameoftheburnermaybedrawnintothemainunit,which
may cause an accident or damage to the main unit.
Caution
Danger
If you notice a gas leak, extinguish the ame immediately Knob
Canister
Slide
Turn
(Ignition may cause an explosion)
●Ifgasleaks,agasodor(likearottenonion)willbeemitted.Butanegasisheavierthanairand
collectsatthebottom.Performthefollowingstepsimmediately.Donotuserewhilegasisleaking.
Extinguish the ame immediately.
(Turn the knob towards the minus (-) symbol direction all the way)
Remove the canister. (Turn the canister in the direction of arrow all the way and slide it away)
Do not use the product in a location in
which there is danger of falling objects
(You may be burned by re or falling cookware)
To prevent
accidents, install
the product with
the necessary space
40"/100 cm or
more
6"/15.25 cm
6"/15.25 cm
6"/15.25 cm
6"/15.25 cm
During use, keep the
product 6"/15.25 cm or
more from combustibles.
Keep a space of
40"/100 cm or more
above this product.
Do not use the product in a location that applies
radiant heat or physical e ects on the canister
or stove, such as by sand or pebbles or grass or
plant stubble under the main unit
(Heat radiation will worsen, the main
unit will burn out, and the canister
will overheat, which may cause an
explosion)
Do not use the product on a rug, tablecloth, or
other heat-sensitive material
(This may cause deformation or discoloration)
Do not use the product in the location in which air
or smoke is sucked up from the base of the main
unit (such as a table with a smokeless roaster)
(This may cause abnormal combustion)
7
During and after use
Warning
Do not use this product for purposes other
than cooking
(Overheating, abnormal combustion, and other
problems may cause burnout or re)
Do not leave the product unattended
while it is in operation
Stay near this product when it is on. Heating of an
empty cooking vessel, tipping over of the main unit will
cause unexpected accidents.
Do not tilt or move the product while it is
in operation
(Butane gas in liquid form will ow into the main unit,
which will cause abnormal combustion and result in a
larger ame. Never move the product during use)
Do not use this product for
drying clothes or as a heater
(Otherwise, falling clothes and other
problems may cause a re)
Do not allow children to use
this product
Do not allow children to use this product and keep this
product out of the reach of children.
Do not use the product while inside EVA
storage case
In addition, do not stow the stove while
at high temperature immediately after
extinguishment
(The case may deform due to the heat, or cause re or
burn injuries)
Never use this product in the following ways
(The main unit or canister will overheat, which may cause
an explosion)
● Do not heat empty
cookware
● Do not use two or more units of
this product side-by-side
● Do not use or store this product on
another source of heat
(electric cooking stove, induction
cooker, etc.)
● Do not use this product to burn
charcoal or for other similar uses
● Do not use large cookware (such as
an iron plate) that erroneously covers
the canister
When you use a small cooking vessel,
make sure that it is placed on the stove
stably. Unstable cooking vessels may tip
over.
● Do not use utensils made of stone, sand, or ceramic
that cook by thermal storage
Do not use cookware with strong radiant heat
Before use
Warning
Always make sure there are no gas leaks or
other problems with ignition or extinguishing
operations before use
Never use a product that you believe has failed or been damaged.
Install the canister securely
(Otherwise, gas may leak and cause a re)
Caution
Do not use the product on a carpet or
other heat-sensitive materials
Do not install items that obstruct air
o w
When you use this product on a
heat sensitive table, check the heat
resistance temperature and handling
cautions of the table and determine
whether usage is advisable
(During use, the bottom of the main unit becomes
very hot, and the table may be cracked, deformed,
damaged, or burned)
8

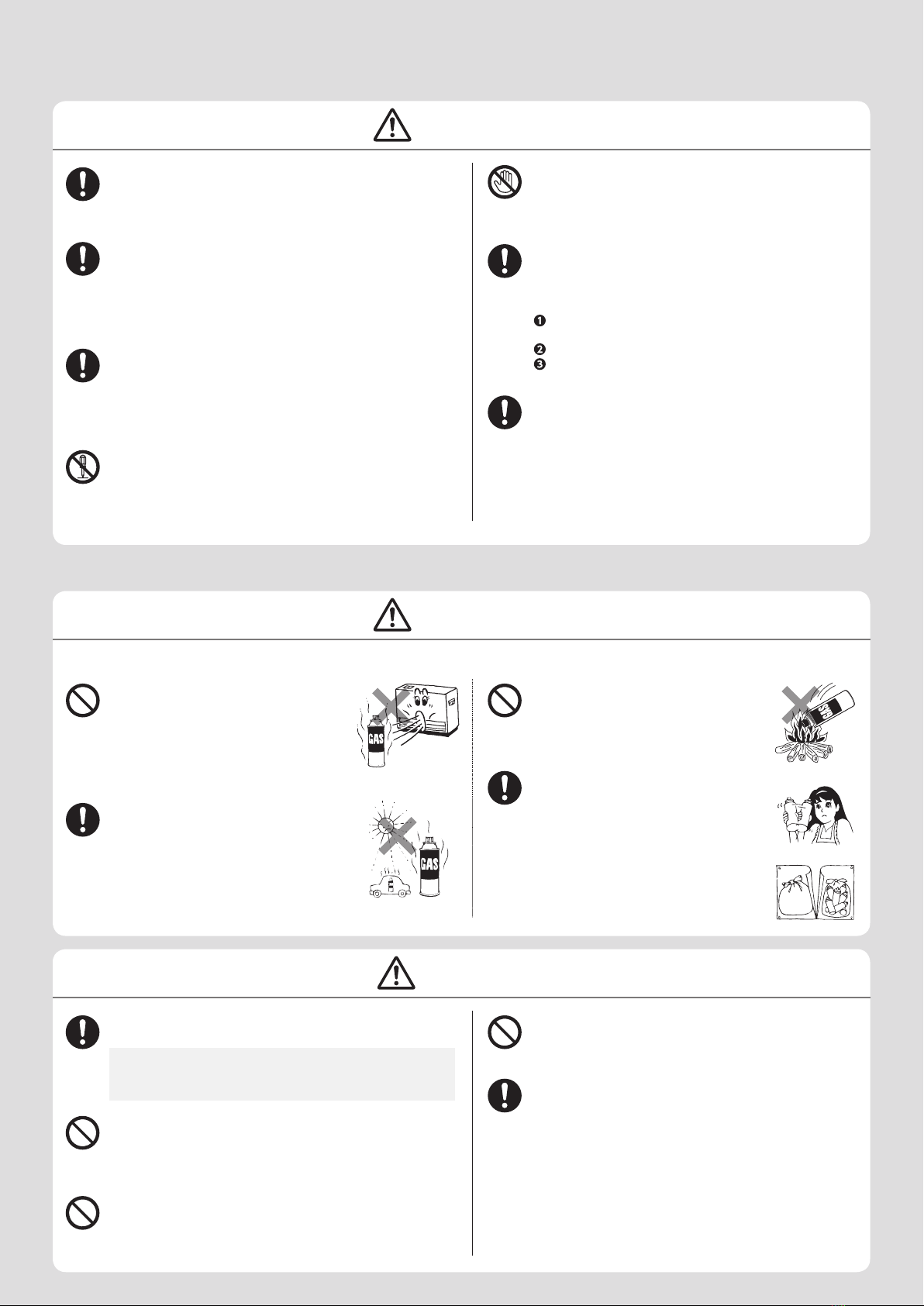

Caution
Do not use deformed canisters
(Doing so may lead to a gas leak)
Inspect stored canisters from time to time,
always check that rusting canisters are free
from gas leaks, and use them as soon as
possible
*Even if a canister does not exhibit rusting, do not use
a canister that has been stored for an extended period
(more than 6 or 7 years as a rough guide).
Please use dedicated canister
Please use dedicated canister marked with “Iwatani Butane
Fuel” or “FORE WINDS Butane Fuel”. If other canisters are
used, it may cause gas leak or abnormality of operation.
Inhalation risk
Do not intentionally suck gas from the canister, as this
may lead to su ocation or death due to lack of oxygen.
Do not subject the canister to strong impacts
The canister may become damaged or ignite due to a gas
leak if it su ers an impact from a falling object.
Do not put the canister near a
heat source
Do not put the canister in a place near
a heat source. The pressure inside
the canister may cause the canister to
explode.
When storing the canister,
avoid ames and direct sunlight
Keep the canister with canister cap
tted in a place under 104˚F/40˚C
where it is airy and with little humidity.
Keep away from ame and direct
sunlight.
Handling the Canister Instructions and warnings expressed on the canister should be read thoroughly.
Before using, remove the canister cap. Before storing the canister, replace the canister cap
.
Warning
Be sure to follow the instructions below to avoid the risk of re or explosion.
Do not throw the canister
into a re
Do not throw the canister into a re.
It will cause an explosion.
Proper disposal of canister
● Empty canister should be disposed
of according to the rules and
regulations of your city/town. Make
sure can is completely empty before
disposing of it.
● Shake the canister, if there is liquid
still inside, please use it up before
disposing.
Keep your head and hands away from the
burner head
(Fire may cause an burns)
When the stove does not ignite on the rst
attempt, be careful of ignition
Before igniting the second time, make sure there is no smell of
gas.Theescapedgasmaycauseare.Waitatleast1minute
before retries.
After use, remove the canister
After use, always remove the canister from the main unit
topreventre.Ifthisproductisstoredwiththecanisterstill
installed and something turns the knob, there is the potential
of a gas leak or ignition, which is extremely dangerous.
Never modify or disassemble this product
(Disassembly could cause unexpected circumstances,
such as death from carbon monoxide poisoning or a gas
leak, failure, or re)
Warning
During and for some time after use, do not
touch other than the knob
(You may be burned if you touch other parts)
Carry out the following procedure during
abnormalities or emergencies
Examplesofabnormalities)Strangenoisesorsmells,red
ame,etc.
Turn the knob towards the minus (-) symbol direction
all the way to extinguish the ame.
Remove the canister from the main unit. (page 5)
Follow “Troubleshooting” (page 10).
While stove is in use, periodically check to
see the ame is visible
9
● To protect your hands and ngers, always wear gloves.
● Do not wash this product as a whole.
If water enters the gas line, gas will no longer come out, which
may cause rust.
● Always remove the canister before inspections and maintenance.
● Wait until the main unit has cooled down before inspecting
and maintaining the product.
● Never disassemble the gas line section.
● If there is a spillover during use, please clean burner.
Maintenance and inspection after use
Inspection Maintenance method Precaution
Spillovers of food
or liquid
Wipeothespilloverwithadrycloth.Ifthestainis
obstinate,pleaseusemilddetergent.Andwipeo
totally with dry cloth.
Moisture and spillovers may cause malfunction, rust or failure.
Please clean inside and outside frequently. Do not move
electrodeoramerod.
If burner ports are
blocked
Clean with a brush and/or small needle.
(Donotmoveelectrodeoramerod.)
Itmaycauseincompleteignitionorirregularames.Please
clean burner frequently.
Food particles on
electrode
(burnerwon’tignite)
Please remove particles from electrode with dry cloth.
(Donotmovetheelectrode.)
If there is a stain on electrode, it may cause hindered ignition.
Duringmaintenance,iftheknobrotatestowardstheplus(+)
symbol direction, it may cause electric shock.
Food residue on
stove
Pleasewipeowithdrycloth.Ifthestainisset,use
mild detergent with water and then dry.
Do not use thinner, gasoline, polishing powder, nylon brush or
metal brush. This may cause damage to the machine.
When the product is not used for a long time Cautions regarding time-related deterioration of
this product
●Conrmtherearenofoodparticlescausingblockageandtheunitisdry.
●Separatethecanisterfromtheunit.Donotstorewhenthesetwo
products are connected.
●Whenthisproductcoolsdown,putintoEVAstoragecaseandstorein
a dry place. Never leave the unit outdoors without it being in the EVA
storage case.
●Pleaseperformregularinspectionandmaintenancetopreventproduct
from rusting.
●Donotuseanylubricantsonthisproduct.
Rubber parts are used in the gas connection opening of this product.
Regardless of frequency of use, rubber parts deteriorate over time.
Please consider replacing this product 10 years after manufacture.
●Themanufacturedateislistedontheratingplate.
Warranty and Repair
LIMITED WARRANTY INFORMATION REPAIR (Out of Warranty)
To view our limited warranty information, visit our website at www.iwatani.
com/product-warranty, call us at 1-713-965-9970 or mail a written request
including your name and return mailing address to:
Iwatani Corporation of America
ATTN: Product Warranty Request
2200 Post Oak Blvd., Suite 1150 Houston, TX 77056.
Refertothesection“Troubleshooting”(page10)andcheckthe
product again. If your product is malfunctioning, contact us through
www.iwatani.com/contact or at 1-713-965-9970 with following
information:
●Yourname,addressanddaytimephonenumber
●Productnameandmodelnumber(ontheratingplate)
●Descriptionoftheproblem(inasmuchdetailaspossible)
Cautions during inspection and maintenance Inspect and maintain the product after use.
10

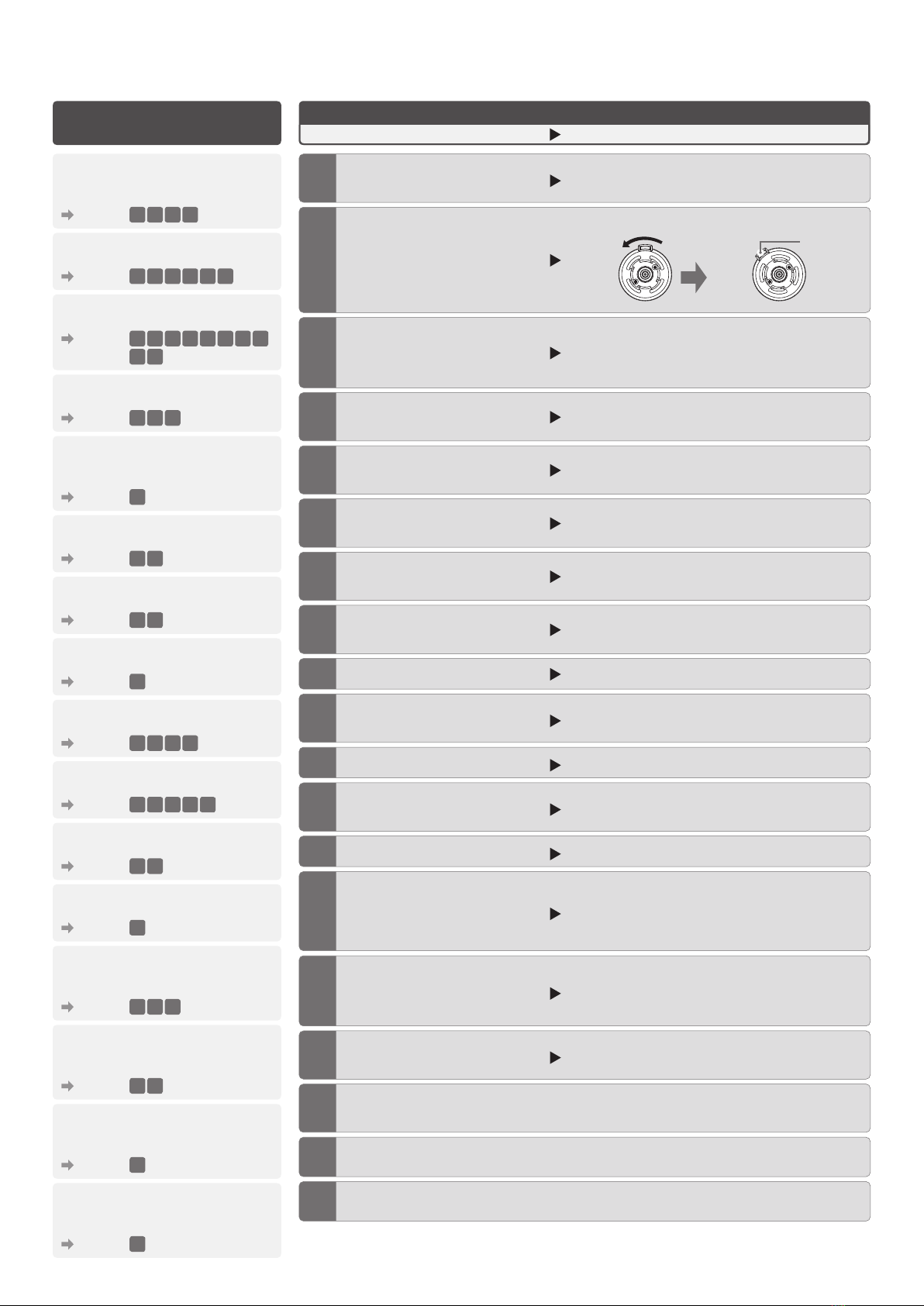

Canister cannot be
installed
Remedy 124
11
Dicult to ignite
Remedy 456789
Cannot ignite
Remedy 56789
10
11
12
14
15
Burner would not stay lit
Remedy 57
10
Flames around the
electrode is red
Remedy
17
Burns with a yellow ame
Remedy 7
10
Flame is unstable
Remedy 7
10
Flame is irregular
Remedy 7
Heating power is low
Remedy 57
10
13
There is a gas odor
Remedy 3489
11
Flame goes out during use
Remedy 5
10
Flame does not go out
Remedy 9
Gas leaks even when the
knob is closed all the way
Remedy 49
11
The ame becomes
larger suddenly
Remedy
12
16
A popping sound occurs
during extinguishing
Remedy
18
Flames burn away
from the burner
Remedy
19
Troubleshooting In the event of an unexpected malfunction, troubleshoot by
using the following information.
Issue Remedy
Cause Solution
1Is there any deformation or
warping on the main unit? Request an inspection and repair.
2
The guide (protrusion) of
the canister holder is out of
position.
Return it to the correct position. (page 4)
Guide
(Protrusion)
Wrong
position
Correct
position
3Is the knob open?
Turn the knob towards the minus (-)
symbol direction all the way and make
sure that it is closed.
4Is a canister made by another
company being used? Use a dedicated Iwatani canister.
5Has the gas run out?
Is there little gas remaining? Replace with a new canister.
6Have stains or moisture stuck
to the electrode section? Wipe away the stains or moisture.
7Is the burner ame opening
clogged?
Use a metal brush or other similar item to
remove the clog.
8Is the ignition operation
being performed correctly?
Perform the ignition operation correctly.
(page 5)
9The knob may have failed. Request an inspection and repair.
10 The gas duct (nozzle) may
be clogged. Request an inspection and repair.
11
Is the canister installed correctly?
Install the canister correctly. (page 4)
12 The ignition device may
have failed. Request an inspection and repair.
13 Is the knob opened fully? Open the knob fully.
14 Is the spark jumping from
the electrode to the burner?
When the spark is not jumping from the
electrode to the burner, refer to the "Spark
gap" illustration (page 3), and then adjust
the direction in which the spark jumps.
15 Is the spark jumping?
If the spark is not jumping, stains or water drops
have stuck to the white section of the electrode
(ceramic). Wipe away the stains or moisture.
16 Was the main unit or
canister moved during use?
Do not move the main unit or canister
during use.
17 The ame around the electrode is red during the rst use after purchase.
After several uses, the red ame disappears. Continue to use the product as is.
18
A sound during extinguishing is not a problem. Continue to use the product as is.
19 This is not a problem. Turn down the knob slightly for 2 to 3 minutes.
Table of contents
Other Iwatani Camping Equipment manuals
