FORE WINDS Luxe Camp Stove
Instruction Manual
Model: FW-LS01
This appliance is for use as an outdoor only camp cooking appliance.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you. Never use this appliance in an
enclosed space such as a camper, tent, car or home.
Improper installation, adjustment, alteration, service or maintenance can cause
injury or death. Read the installation, operating and maintenance instructions
thoroughly before installing, operating or servicing this equipment.
WARNING
FIRE OR EXPLOSION HAZARD
If you smell gas:
1. Do not attempt to light appliance.
2.Makesureapplianceisintheoposition.
3.Extinguishanynearbyame(s).
4.Shutocylinderfuelsupplyvalveifso
equipped, or if equipped with a disposable
fuel cylinder, disconnect cylinder.
5. Leave the area immediately.
6. Allow gas to dissipate 5 minutes.
7. If gas smell has dissipated from the area,
of the appliance, and fuel supply, follow
gas connection procedures.
8. If you smell gas again, follow steps 1-6 and
have appliance serviced.
Failuretofollowtheseinstructionscouldresultinreorexplosion,whichcouldcause
property damage, personal injury, or death.
FOR YOUR SAFETY
Donotstoreorusegasolineorotherliquidswithammablevapoursinthevicinityof
this or any other appliance.
WARNING : This product and all products that burn gas can expose you to Carbon Monoxide which is
known to the State of California to cause birth defect or other reproductive harm. Always use in well ventilated
areas. For more information go to www.P65Warnings.ca.gov.
WARNING : This appliance must NEVER be used without the drip pan and grate provided with
this appliance installed in their proper position. Attempting to cook without these parts in place may cause
overheatingofthefuelcanister,resultinginareorexplosion.
LS01
21,01
2
Danger This symbol indicates matters that may lead to death, serious injury or
reifignoredorincorrectlyhandled.
Warning
This symbol indicates matters that may lead to imminent risk of death or
serious injury if ignored or incorrectly handled.
Caution
This symbol is displayed along with instructions that, if ignored, and if the
deviceisinappropriatelyused,mayleadtotheusersueringaninjuryor
material damage.
Table of contents
Names and uses of parts ································································· 3
●Specications·············································································· 3
●Ignition,adjustingtheheatingpower,andextinguishingtheame ·········· 5
Usage precautions········································································ 6
● Handling the Canister ································································· 8
Maintenance and inspection after use················································· 9
Warranty and Repair ······································································· 9
Troubleshooting ··········································································· 10
-
-
Be sure to read this Instruction Manual before use.
<Before use>
In order to ensure safe and correct usage of this product as well as to prevent injury or physical damage
to you and others, there are many symbols in the instruction manual to explain the product. The symbols
and their meanings are explained below. Please ensure you have carefully read and understand the
content before reading the main text.
<These symbols have the following meanings>
General danger,
warning or caution
Do EXACTLY
as instructed Prohibited Do not touch Do not
disassemble
3
Features of this product
Heat panel to accelerate the vaporization of gas
As the vaporization of gas progresses during combustion, the temperature
drops, the heating power weakens, and it becomes impossible to use all the
gas in the canister.
Topreventthis,amoderateamountofheatfromtheameoftheburnerduring
combustion is transferred to the canister to accelerate the vaporization of gas,
which maintains the heating power so that all the gas can be used up.
This makes the canister slightly warm, but this is not a problem.
Detachable canister with magnet
The canister is installed using the magnet instead of a lever.
Thismakesitdiculttoinstallanincorrectorfaultycanister.
Pressure sensor safety device
Ifthepressure(temperature)insidethecanisterbecomes
abnormallyhigh(about104ºF/40ºCorhigher),thecanister
isdetachedautomatically,andtheameisextinguished.
Handle
Stays
Snap locks
Protrusion of container-
receiving guide
Top cover
Magnet
(Holds canister)
Canister
cover
ON/OFF knob
Pressure controller
Burner head
Electrode
(Spark causes ignition)
Windshield ring
Pan support
Drip pan
Heat panel
Knurled screws
Main body
Names and uses of parts
Be sure to read this Instruction Manual before use.
Specications
Product name FORE WINDS Luxe Camp Stove Output(gas
consumption)
12,000BTU/hr(3.5kW)
(atanairtemperatureof68-77ºF/20-25°C)
Model number FW-LS01
Ignition type Piezoelectric
Continuous
combustion
Approx. 64 minutes
(Actualvaluewhencompletelyusinga
new canister at maximum power.
Airtemperatureof68-77ºF/20-25°C.)
Safety features
Pressure sensor safety device
(Detachablecanistermodel)
Canister installation safety device Canister
Dedicated canister labeled as “Iwatani
Butane Fuel” or “FORE WINDS Butane Fuel”
Maximum
external
dimensions
(
Top cover
)
closed
removed
opened
14.9"/380mm(W)×12.9"/329mm(D)×4.3"/110mm(H)
14.9"/380mm(W)×12.9"/329mm(D)×4.2"/108mm(H)
14.9"/380mm(W)×12.9"/329mm(D)×
12.8"/324
mm(H) Pot available
to use
Diameter of bottom of pot should be less than
9.5”/24cm.(Theoutsideofpotshouldnot
touchthecanistercover)Diameterofbottom
ofsmallpotshouldbemorethan6”/16cm.
Unit weight Approx.6.17lbs/2.8kg(canisternotincluded)
● When the pressure sensor safety device has been activated,returntheON/OFFknobtothe“OFF”position,andthenremovethecanisterfrom
themainunit.Next,carefullyread“Usageprecautions”(frompage6through8)andremovethecauseoftheproblem.Next,eitherreinstallthe
canister after it is been cooled by water or install a new canister before using the product again.
Canister cap
Canister
notch
Canister
Use the following
dedicated canister
with this product.
Item labeled as
“Iwatani Butane Fuel” or
“FORE WINDS Butane Fuel”
Preparations (About the carrying case)
Remove the stove from the carrying case.
●Placethecarryingcaseinalocationinwhichisnotaectedbyheat.(Waituntilthestovehascooledbeforestoringit.)
Never use the stove while it is inside the carrying case, because the carrying case will deform or melt.
4
Preparation and advance checks
If the top cover is secured, it becomes a simple windbreak. However, this limits the size of usable cookware.
You can also remove the top cover before use.
[Removal method] Attach the top cover by reversing this procedure.
Release the snap locks
(2 locations), and then open
the top cover.
Tilt the top cover to about
45°.
Next, lift the top cover
about 0.4"/1 cm,
set it horizontally.
Pull up the top cover in the
direction of the arrow.
Snap locks Top cover
Snap locks Top cover
Snap locks Top cover
Snap locks Top cover
[Securing method]
Stay
Stay-attachment hole
Stay
Stay-attachment
hole
Release the snap locks (2 locations),
and then open the top cover.
Pull out the stays that are attached
to the front and rear of the top cover.
While lightly pushing the top cover
backward, insert the stays into the
stay-attachment holes.
The stays are hot after use, so allow it
to cool before storing.
●Potsroughly9.5"/24cmindiametercanbeused.Cookwarethat
becomes unstable or contacts the top cover cannot be used, even
when it is within this size.
●Movethestovesothatthetopcoverblocksthewind.Ifthestoveis
alignedincorrectly,thewindmayincreasetheame,andthestove
maybedamagedbyre.
Wind
Warning
Do not load unreasonably
large pots or plates
Installing canister Install a canister following the procedure below.
Be aware that if a canister is installed incorrectly, unexpected dangers may result.
Before attaching a canister, either remove the top cover or secure the top cover with
the stays. When foreign objects have adhered to the
magnet
If iron scraps or powder have stuck to the
magnet, a gas leak may occur or it may not be
possible to install the canister. If foreign objects
have stuck to the magnet, use adhesive tape to
remove them.
Iron powder and scraps
Adhesive tape
Whenitisdiculttoinstallthe
canister(becauseforceisrequired),
apply a thin coat of vegetable oil to
thetipofthecanister(Part in the
illustrationbelow).
Application location for
vegetable oil
Open the canister cover.
Turn the ON/OFF knob in the “OFF” direction until
it stops.
●IftheON/OFFknobisnotinthe“OFF”position,the
canister installation safety device is activated, and
the canister cannot be installed.
Make sure no foreign objects have adhered to the
magnet.
Remove the canister cap of the canister.
ON
OFF
Place the canister on the heat panel and align the
canister notch with the protrusion of container-
receiving guide.
As shown in the illustration to the right, place
your hand near the top of the canister, slide
the canister horizontally, and push it until it ts
completely with the magnet.
Protrusion of
container-
receiving
guide
Canister notch
When using “Iwatani Butane Fuel”
When the canister has been installed
correctly,thereisagapofabout2.2"/5.5cm
at the back end of the canister.
The canister installation section is
designed to move with some “play”.
This gap does not indicate a problem,
so please use this product with peace
of mind.
Install the canister securely so that there is no gap
between the magnet and canister.
After the canister has been installed, close the canister cover.
Always use a fuel canister labeled as “Iwatani Butane Fuel” or “FORE WINDS Butane Fuel”
5
Ignition, adjusting the heating power, and extinguishing the ame
Ignition Adjusting the heating power Extinguishing
ON
OFF
ON
OFF
High
Low
TurntheON/OFFknob
in the “ON” direction
until it clicks. Make sure
theamewaslit.
ON
OFF
ON
OFF
High
Low
TurningtheON/OFF
knob in the “ON”
direction increases the
heating power, while
turning in the “OFF”
direction decreases it.
ON
OFF
ON
OFF
High
Low
TurntheON/OFF
knob in the “OFF”
direction until it
stops.
●Ifthereisnoame,returntheON/OFFknob
to the “OFF” position, and then try again.
Itmaybediculttolighttheproductupon
rstuseorwhenthetemperatureofthe
canister is low. With caution, repeat the
ignition operation several times.
●Whenusinglowheat,alwayschecktheameasitisdiculttosee.
●Beawarethatiftheameisloweredtoomuch,itismorelikelytobeextinguishedbywind.
After use (steps after extinguishing the ame)
Make sure the ame is out completely
●Justaftertheameisextinguished,boththe
main unit and the canister will be hot.
Wait until they cool down.
Remove the canister
●Alwaysremovethecanister.
Otherwise, appliance failures or gas
leaks may occur.
Ignite a ame after the canister has been
removed
●Asmallamountofgasremainsinthepiping
of the main unit. To prevent danger, perform
ignitiononetimetoburnotheremaininggas.
Removing the canister after use After use, always remove the canister, put on the canister cap,
and then store the canister.
Open the canister cover.
While holding the canister, apply a small
amount of force in the direction opposite the
installation direction to remove it from the
magnet.
Put the canister cap on
the removed canister.
Close the canister cover.
Handling after use Make sure that the canister is not inside the canister cover, and then attach the top cover.
Attach the top cover by reversing the
procedure of "Removal method" (page 4).
Close the top cover. Lock the snap locks.
●
If the snap locks are not locked, the top cover
may open, which may cause stove damage,
burns, or other unexpected accidents.
Storage After the equipment has cooled su ciently, store it in a low-humidity location.
●Whenthestoveisbeingmoved,itcanbestooduptemporarily.
●Werecommendstoringthestovewiththefeetonthebottom.
If the stove will be stored standing up, it will be unstable, so place it
in a space in which it will not fall over, such as between two items.
Furthermore,donotplaceitemsonthetopsection(handleside).
Otherwise, the stove may be damaged.
●Beforelong-termstorage,referto"Whentheproductisnotusedfor
alongtime"(page9).
Handle
Feet
Store the stove with the feet
facing down
Handle
•Do not place
items on the top
section(handle
side).
•Store the stove
so it does not
fall over.
(Whenstoringthestovestandingup)
●Iftheunitisexposedtorainorsnowyoumayhavetroublelightingtheburneruntiltheburnerportsareclearofwater
and the spark electrode is totally dry. To protect against burner ignition problems due to water accumulation, the
storage box also serves as a rain guard when the stove is left outdoors and exposed to the elements.
Neverleavethestoveoutsidewithoutrststoringitinthestorageboxprovided.Removebutanecanisterbeforestorage.
Warning
When the top cover is closed, do not
attach a canister, and ignite the stove
(Otherwise, a gas leak or
unexpected accidents may
occur)
6
Usage precautions
Usage location and circumstances
Warning
Never use this product in the following locations
(Otherwise, res, explosions, fatal accidents, and burns will occur)
● Do not use this product in cramped places or poorly
ventilated places
● Do not use this product in a location in which the canister
will become overheated
Never use this product inside a tent or a vehicle.
During use, a large amount of oxygen is
consumed, which may cause death by
suocationduetoalackofoxygenand
carbon monoxide poisoning. Also, nearby
combustiblesmayigniteandstartare.
Do not use this product in a location in
which the canister will become overheated
by sunlight, such as on sandy beach or
asphalt in the summer.
● Do not use this product in a vehicle or in unstable locations ● Do not use this product near re or heat
If the main unit is tilted or moved
duringuse,theamemaybecome
largerandcauseinjuryorre.
There is also danger of the main unit
tipping over. Use the product in stable
atlocationssoitdoesnotshake,tip,
or move.
Keeptheproduct6ft/2mormoreawayfromre.
● Do not use the product near
canisters, hairspray, and other
combustibles, or cloth, paper, or
other items that are easily burned
Spray
Kerosene
● Do not use this product in strong wind
Ifthisproductisusedinstrongwind,theameoftheburnermay
be drawn into the main unit, which may cause an accident or
damage to the main unit.
Caution
Do not use the product in a location that applies
radiant heat or physical eff ects on the canister
or stove, such as by sand or pebbles or grass
or plant stubble under the main unit
Do not use the product in a location in
which there is danger of falling objects
(You may be burned by re or falling cookware)
(Heat radiation will worsen, the main
unit will burn out, and the canister
will overheat, which may cause an
explosion)
To prevent accidents, install the product
with the necessary space
During use, keep the
product6"/15.25cm
or more from furniture,
walls(inawooden
building),andother
combustibles.
Allow40"/100cmor
more above this product
from ceilings, shelves,
electric appliances, and
other combustibles.
40"/100 cm or
more
6"/15.25 cm
6"/15.25 cm
6"/15.25
cm
6"/15.25 cm
Do not use the product on a rug, tablecloth, or
other heat-sensitive material
(This may cause deformation or discoloration)
Do not use the product in the location in which air
or smoke is sucked up from the base of the main
unit (such as a table with a smokeless roaster)
(This may cause abnormal combustion)
Danger
If you notice a gas leak, extinguish the ame immediately
OFF
ON
(Ignition may cause an explosion)
●Ifgasleaks,agasodor(likearottenonion)willbeemitted.Butanegasisheavierthanairand
collectsatthebottom.Performthefollowingstepsimmediately.Donotuserewhilegasisleaking.
Extinguish the ame immediately. (Set the ON/OFF knob to the “OFF” position)
Remove the canister.
7

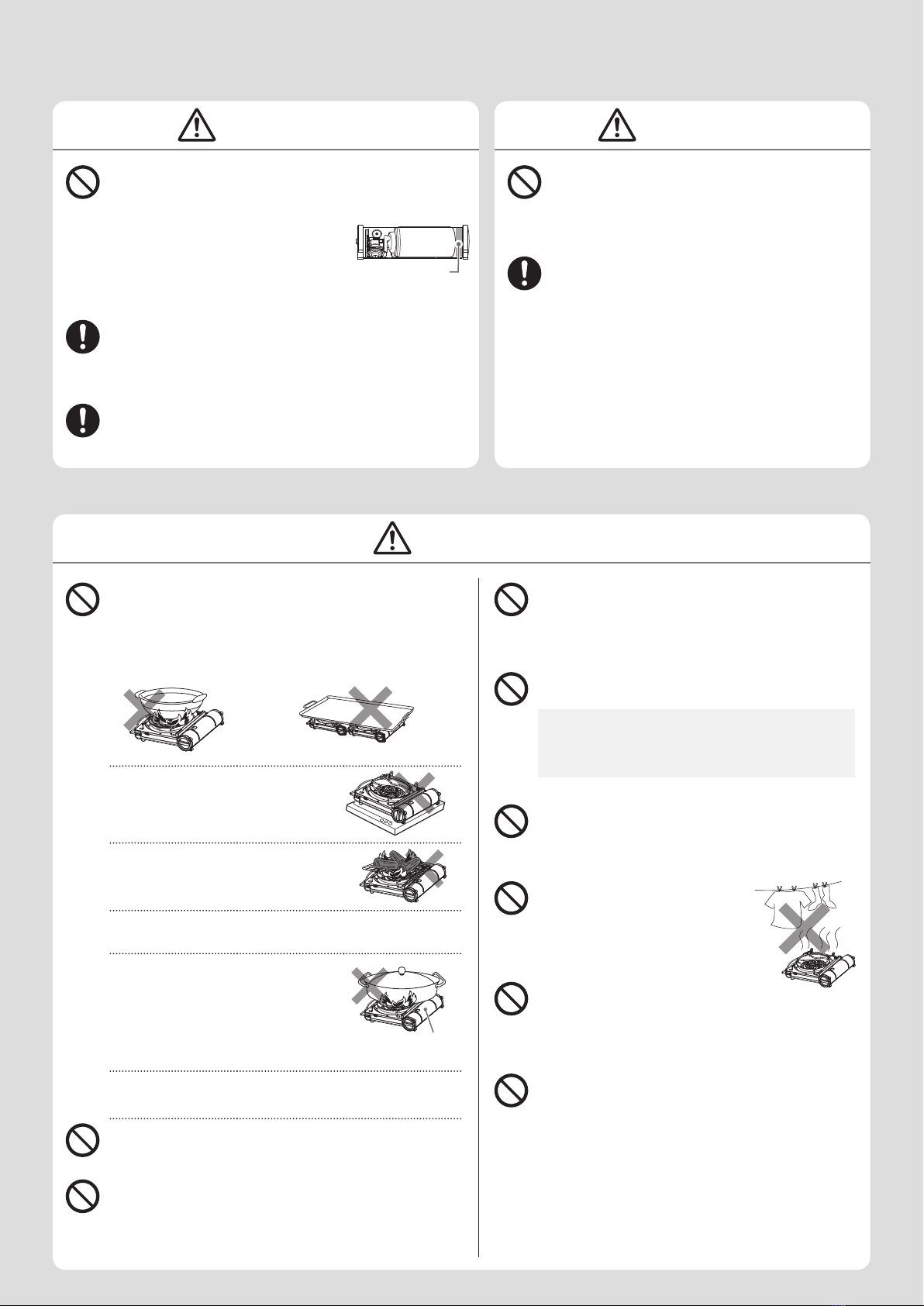

During and after use
Warning
Do not use this product for purposes other
than cooking
(Overheating, abnormal combustion, and other
problems may cause burnout or re)
Do not leave the product unattended
while it is in operation
Stay near this product when it is on. Always make sure
theamehasbeenextinguishedbeforeleavingthe
room or going to bed. In case of a phone call or visit,
switchotheproduct.
Do not tilt or move the product while it is
in operation
(If the product is tilted, it will cause burns or res)
Do not use this product for
drying clothes or as a heater
(Otherwise, falling clothes and other
problems may cause a re)
Do not allow children to use
this product
Do not allow children to use this product and keep this
product out of the reach of children.
Do not use the product while inside its
carrying case
In addition, do not stow the stove while
at high temperature immediately after
extinguishment
(The case may deform due to the heat, or cause re or
burn injuries)
Never use this product in the following ways
(The interior of the main unit or canister will overheat,
which may cause an explosion)
● Do not heat empty
cookware
● Do not use two or more units of
this product side-by-side
● Do not use or store this product on
another source of heat
(electric cooking stove, induction
cooker, etc.)
● Do not use this product to burn
charcoal or for other similar uses
● Do not use the product with the drip pan removed
(Doing so may cause the canister to overheat and explode)
● Do not use large cookware (such
as an iron plate) that erroneously
covers the canister cover
When you use a small cooking vessel,
make sure that it is placed on the stove
stably. Unstable cooking vessels may
tip over.
Canister cover
● Do not use utensils made of stone, sand, or ceramic that
cook by thermal storage
Do not use cookware with strong radiant heat
Do not load very heavy pots or pans or apply
heavy loads
Whenusingthestove,donotapplyaload(totalweightof
cookwareandfood)tothepansupportthatwillexceed11lbs/5kg.
(Otherwise,deformationsmaycauseunexpectedaccidents)
Before use
Warning
Do not insert objects (such as pebbles or
bundles of cardboard) between the bottom of
the canister and the main unit
(The pressure sensor safety device
will no longer activate, which may
cause the canister to explode)
Never put anything
between the space
Always make sure there are no gas leaks or
other problems with ignition or extinguishing
operations before use
Never use a product that you believe has failed or been damaged.
Install the canister securely
(Otherwise, gas may leak and cause a re)
Caution
Do not use the product on a carpet or
other heat-sensitive materials
Do not install items that obstruct air
o w
When you use this product on a
heat sensitive table, check the heat
resistance temperature and handling
cautions of the table and determine
whether usage is advisable
(During use, the bottom of the main unit becomes
very hot, and the table may be cracked, deformed,
damaged, or burned)
8
Caution
Do not use deformed canisters
(Doing so may lead to a gas leak)
Inspect stored canisters from time to time,
always check that rusting canisters are free
from gas leaks, and use them as soon as
possible
*Even if a canister does not exhibit rusting, do not use
a canister that has been stored for an extended period
(more than 6 or 7 years as a rough guide).
Please use dedicated canister
Please use dedicated canister marked with “Iwatani Butane
Fuel” or “FORE WINDS Butane Fuel”. If other canisters are
used, it may cause gas leak or abnormality of operation.
Inhalation risk
Do not intentionally suck gas from the canister, as this
may lead to suff ocation or death due to lack of oxygen.
Do not subject the canister to strong impacts
The canister may become damaged or ignite due to a gas
leak if it suff ers an impact from a falling object.
Do not put the canister near a
heat source
Do not put the canister in a place near
a heat source. The pressure inside
the canister may cause the canister to
explode.
When storing the canister,
avoid ames and direct sunlight
Keep the canister with canister cap
tted in a place under 104˚F/40˚C
where it is airy and with little humidity.
Keep away from ame and direct
sunlight.
Handling the Canister Instructions and warnings expressed on the canister should be read thoroughly.
Before using, remove the canister cap. Before storing the canister, replace the canister cap
.
Warning
Be sure to follow the instructions below to avoid the risk of re or explosion.
Do not throw the canister
into a re
Do not throw the canister into a re.
It will cause an explosion.
Proper disposal of canister
● Empty canister should be disposed
of according to the rules and
regulations of your city/town. Make
sure can is completely empty before
disposing of it.
● Shake the canister, if there is liquid
still inside, please use it up before
disposing.
Keep your head and hands away from the
burner head
(Fire may cause an burns)
Ventilate during use
Pay careful attention to ventilation.
When the stove does not ignite on the rst
attempt, be careful of ignition
Before igniting the second time, make sure there is no smell of
gas.Theescapedgasmaycauseare.Waitatleast1minute
before retries.
After use, remove the canister
After use, always remove the canister from the main unit
topreventre.Ifthisproductisstoredwiththecanisterstill
installedandsomethingturnstheON/OFFknob,thereis
the potential of a gas leak or ignition, which is extremely
dangerous.
Warning
Never modify or disassemble this product
(Disassembly could cause unexpected circumstances,
such as death from carbon monoxide poisoning or a
gas leak, failure, or re)
During and for some time after use, do not
touch other than the ON/OFF knob
(You may be burned if you touch other parts)
Carry out the following procedure during
abnormalities or emergencies
Examplesofabnormalities)Strangenoisesorsmells,red
ame,etc.
Set the ON/OFF knob to the “OFF” position to
extinguish the ame.
Remove the canister from the main unit. (page 5)
Follow “Troubleshooting” (page 10).
While stove is in use, periodically check to
see the ame is visible
9
● To protect your hands and ngers, always wear gloves.
● Do not wash this product as a whole.
If water enters the gas line, gas will no longer come out, which
may cause rust.
● Always remove the canister before inspections and maintenance.
● Wait until the main unit has cooled down before inspecting
and maintaining the product.
● Never disassemble the gas line section.
● If there is a spillover during use, please clean burner.
Maintenance and inspection after use
Inspection Maintenance method Precaution
Spillovers of food
or liquid
Wipeothespilloverwithadrycloth.Ifthestainis
obstinate,pleaseusemilddetergent.Andwipeo
totally with dry cloth.
Moisture and spillovers may cause malfunction, rust or failure.
Please clean inside and outside frequently. Do not move
electrodeoramerod.
If burner ports are
blocked
Cleanwithabrushand/orsmallneedle.
(Donotmoveelectrodeoramerod.)
Itmaycauseincompleteignitionorirregularames.Please
clean burner frequently.
Food particles on
electrode
(burnerwon’tignite)
Please remove particles from electrode with dry cloth.
(Donotmovetheelectrode.)
If there is a stain on electrode, it may cause hindered ignition.
Duringmaintenance,iftheON/OFFknobrotatesto“ON”
position, it may cause electric shock.
Food residue on
stove
Pleasewipeowithdrycloth.Ifthestainisset,use
mild detergent with water and then dry.
Do not use thinner, gasoline, polishing powder, nylon brush or
metal brush. This may cause damage to the machine.
When the product is not used for a long time Cautions regarding time-related deterioration of
this product
●Conrmtherearenofoodparticlescausingblockageandtheunitisdry.
●Separatethecanisterfromtheunit.Donotstorewhenthesetwo
products are connected.
●Whenthisproductcoolsdown,putintocarryingcaseandstoreinadry
place. Never leave the unit outdoors without it being in the carrying case.
●Pleaseperformregularinspectionandmaintenancetopreventproduct
from rusting.
●Donotuseanylubricantsonthisproduct.
Rubber parts are used in the gas connection opening of this product.
Regardless of frequency of use, rubber parts deteriorate over time.
Please consider replacing this product 10 years after manufacture.
●Themanufacturedateislistedontheratingplate.
Warranty and Repair
LIMITED WARRANTY INFORMATION REPAIR (Out of Warranty)
To view our limited warranty information, visit our website at www.iwatani.
com/product-warranty,callusat1-713-965-9970ormailawrittenrequest
including your name and return mailing address to:
Iwatani Corporation of America
ATTN: Product Warranty Request
2200 Post Oak Blvd., Suite 1150 Houston, TX 77056.
Refertothesection“Troubleshooting”(page10)andcheckthe
product again. If your product is malfunctioning, contact us through
www.iwatani.com/contactorat1-713-965-9970withfollowing
information:
●Yourname,addressanddaytimephonenumber
●Productnameandmodelnumber(ontheratingplate)
●Descriptionoftheproblem(inasmuchdetailaspossible)
Cautions during inspection and maintenance Inspect and maintain the product after use.
Maintenance of the drip pan Wait until the stove has cooled.
Using the rear side of the pan support
as an axis, lift the front side.
While supporting the pan support,
wipe away stains on the drip
pan, windshield ring, and other
sections.

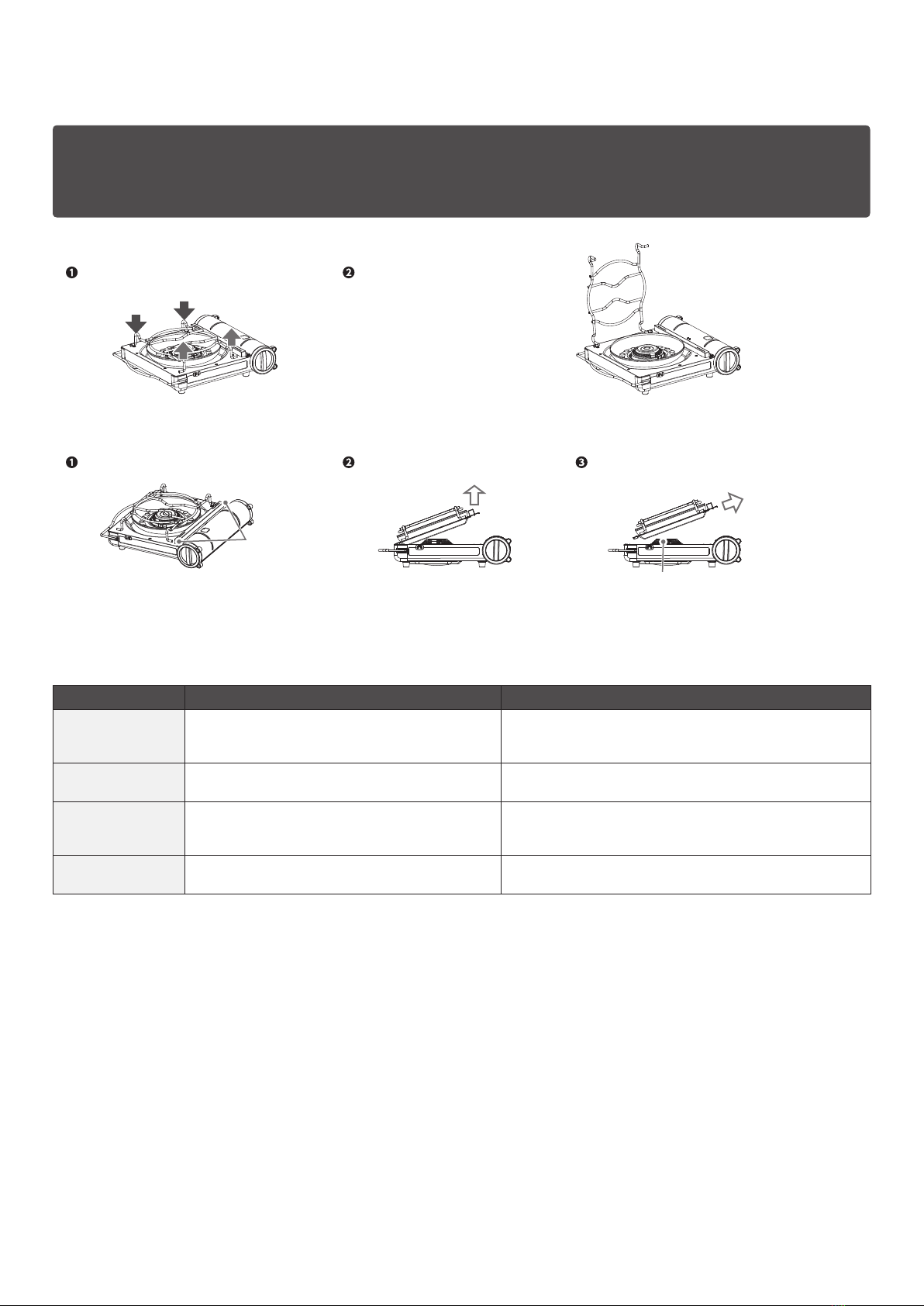

[Removal method]
The drip pan can be removed while cleaning the inside of the stove.
Youcanalsoremovethewindshieldringbyreleasingtheclipontherearsideofthedrippan.
Remove the knurled screws (2). Lift the right side of the drip pan
slightly.
After the burner comes out from the hole of
the drip pan, pull the drip pan up to the right.
Burner
Knurled
screws
Pull up to the right
Burner
Knurled
screws
Pull up to the right
Burner
Knurled
screws
Pull up to the right
[Attachment method]
Reverse the removal procedure.
●Afteraligningthescrewholesofthemainunitandthedrippan,tightentheknurledscrews.
Maintenance of other parts
10
Canister cannot be
installed
Remedy 1234
11
12
Dicult to ignite
Remedy 456789
Cannot ignite
Remedy 56789
10
11
12
13
15
16
Burner would not stay lit
Remedy 57
10
Flames around the
electrode is red
Remedy
17
Burns with a yellow
ame
Remedy 7
10
Flame is unstable
Remedy 7
10
Flame is irregular
Remedy 7
Heating power is low
Remedy 57
10
14
There is a gas odor
Remedy 489
12
Flame goes out during
use
Remedy 5
10
11
Flame does not go out
Remedy 9
Gas leaks even when the
ON/OFF knob is “OFF”
Remedy 49
12
A popping sound occurs
during extinguishing
Remedy
18
Flames burn away
from the burner
Remedy
19
Troubleshooting In the event of an unexpected malfunction, troubleshoot by
using the following information.
Issue Remedy
Cause Solution
1Is there any deformation or
warping on the main unit? Request an inspection and repair.
2Have iron scraps or powder
adhered to the magnet?
Remove the iron scraps or powder using
adhesive tape.
3
Is the ON/OFF knob set to “ON”?
Set the ON/OFF knob to “OFF”.
4Is a canister made by another
company being used? Use a dedicated Iwatani canister.
5Has the gas run out?
Is there little gas remaining? Replace with a new canister.
6Have stains or moisture stuck
to the electrode section? Wipe away the stains or moisture.
7Is the burner ame opening
clogged?
Use a metal brush or other similar item to
remove the clog.
8Is the ignition operation
being performed correctly?
Perform the ignition operation correctly.
(page 5)
9The ON/OFF knob may have
failed. Request an inspection and repair.
10 The gas duct (nozzle) may
be clogged. Request an inspection and repair.
11 Has the pressure sensor
safety device been activated?
Reset the device following “● When the
pressure sensor safety device has been
activated” (page 3).
12 Is the canister installed
correctly? Install the canister correctly. (page 4)
13 The ignition device may
have failed. Request an inspection and repair.
14 Is the ON/OFF knob opened
fully? Open the ON/OFF knob fully.
15 Is the spark jumping from
the electrode to the burner?
When the spark is not jumping from the
electrode to the burner, adjust so that the
distance between the electrode tip and burner is
about 3 mm, and the ame opening is centered.
16 Is the spark jumping?
If the spark is not jumping, stains or water
drops have stuck to the white section of
the electrode (ceramic). Wipe away the
stains or moisture.
17 The ame around the electrode is red during the rst use after purchase.
After several uses, the red ame disappears. Continue to use the product as is.
18
A sound during extinguishing is not a problem. Continue to use the product as is.
19 This is not a problem. Turn down the ON/OFF knob slightly for 2 to 3 minutes.
Table of contents
Other Iwatani Camping Equipment manuals
