Iwatani IWA-1800 User manual

Induction Range
User’s Manual
Model No.
□ IWA-1800 120V, 60Hz, 1,800Watt
□ IWA-1500 120V, 60Hz, 1,440Watt

USE AND CARE INSTRUCTIONS - IMPORTANT SAFEGUARDS
● READ ALL INSTRUCTIONS BEFORE OPERATION ●
1. USEAN INDIVIDUAL120VOLT, 15AMP ELECTRICAL SOCKET.
2. DO NOT BLOCK THE AIR-OUTLET LOCATEDATTHE BACK OF THE INDUCTION
RANGE. BLOCKING MAY OVERHEATTHE UNIT.
3. USE PANS 5 INCHES OR LARGER IN DIAMETER. WE RECOMMEND PANS BE LESS
THAN 10 1/2 INCHES IN DIAMETER. PLEASE REFER TO THE NEXT PAGE FORA
LIST OF SUITABLEAND UNSUITABLE PANS.
4. DO NOTTOUCHTHE HOT SURFACE OF THE VITRO-CERAMIC GLASS PLATE.
NOTE: THE INDUCTION RANGE ITSELF DOES NOT PRODUCEANY HEAT DURING
COOKING. HOWEVER, THE HEAT FROM THE PAN WILLLEAVE THE SURFACE OF
THE VITRO-CERAMIC GLASS PLATE HOT !
5. DO NOT COOK EMPTYPOTS OR PANS. HEATINGAN EMPTY PAN WILL
AUTOMATICALLYACTIVATE THE OVERHEATING PROTECTION DEVICEAND THE
UNIT WILL SHUT OFF.
6. PLACE THE INDUCTION RANGE ONAHORIZONTAL SURFACE ANDAT LEAST 4
INCHESAWAY FROMTHE WALLAND OTHER OBJECTS FOR PROPER VENTILATION.
7. DO NOT PLACEANY OBJECTS ORTOOLS IN THEAIR-INTAKE (ON THE BOTTOM) OR
AIR-OUTLET (ON THE BACK). DOING SO MAY CAUSE ELECTRICALSHOCK.
8. TO PROTECTAGAINST ELECTRICALSHOCK, DO NOT IMMERSE THE UNIT,THE
CORD, OR THE PLUG IN OR NEAR WATER OR OTHER LIQUIDS.
9. CLOSE SUPERVISION IS NECESSARY WHENTHE INDUCTION RANGE IS USED BY
OR NEAR CHILDREN.
10. DO NOT OPERATE THE INDUCTION RANGE IF ITHAS BEEN DAMAGED INANY
MANNER OR IF THE UNITMALFUNCTIONS. RETURN THIS UNITTOTHE NEAREST
AUTHORIZED SERVICE FACILITY FOR EXAMINATION OR REPAIR.
11. THE USE OFANYACCESSORIES NOT RECOMMEND BYTHE MANUFACTURER MAY
CAUSE INJURIES.
12. KEEPTHE POWER CORDAWAY FROM HEAT.
13. DO NOT PLACETHE INDUCTION RANGE IN, ON , OR NEAR OPEN FLAMES,
ELECTRIC BURNERS, HEATED OVENS OR OTHER HIGH TEMPERATURE
SURROUNDINGS.
14. DO NOT HEATANY SEALED CANS ONTHE INDUCTION RANGE. AHEATED CAN
MAY EXPLODE.
15. DO NOT MOVETHE INDUCTION RANGE WHILE COOKING OR WHEN THE PAN IS
HOT.
16. AFTER THE INDUCTION RANGE HAS COOLED DOWN, UNPLUGTHE CORDAND
CLEANAS FOLLOWS,
VITRO-CERAMIC GLASS: WIPE WITH DAMP CLOTH OR USEAMILD, NON-ABRASIVE
CLEANING SOLUTION.
BODY: WIPE THE CONTROLPANELWITH SOFT CLOTH OR USEAMILD CLEANER.
17. DO NOT USE INDUCTION RANGE FOR OTHERTHAN INTENDED USE.
18. UNPLUG WHEN NOT IN USE.
19. WHEN STORING, DO NOTPLACEANY OBJECTS ON TOPOF THE INDUCTION
RANGE.
SAVE THIS INSTRUCTION !!! 1

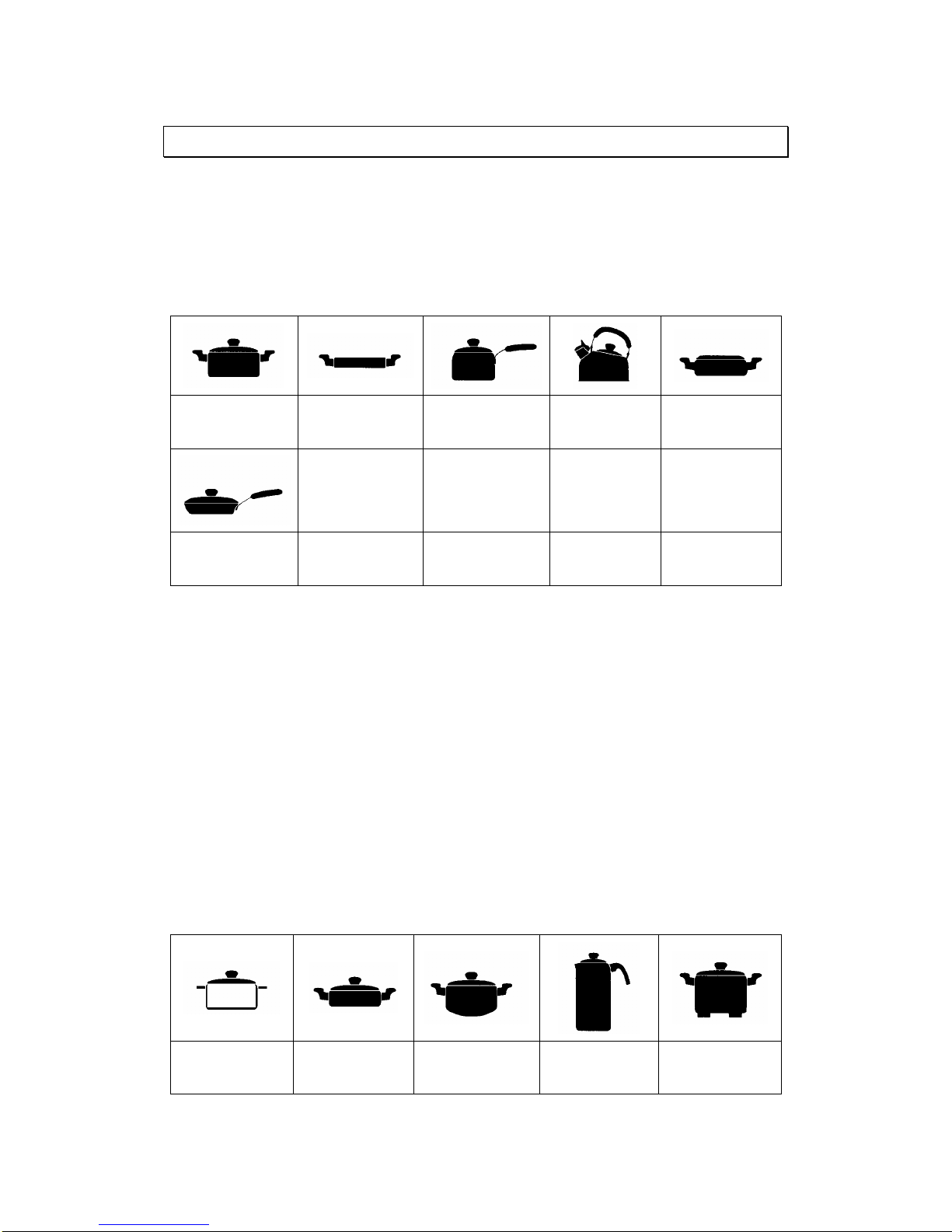

SUITABLE AND UNSUITABLE POTS AND PANS
SUITABLE POTS
1. IRON
2. CAST IRON
3. STAINLESS STEEL
4. ENAMELWARE
Stainless Steel
Pan Iron Pan (Iron Griddle) Enamel Pan Stainless Steel kettle Iron pan
Stainless steel fry
pan
ALLPOTSAND PANS MUST HAVEAMAGNETIC BOTTOM.
ALL POTSAND PANS MUST HAVEA FLAT BOTTOM.
ALLPOTSAND PANS SHOULD HAVEADIAMETER BETWEEN 5AND 10 1/2 INCHES.
UNSUITABLE POTS
1. POT WITH DIAMETER BELOW 2 INCHES.
2. STAINLESS STEEL PANS WITHALUMINUM BOTTOM
3. POTTERY
4. GLASS PANS
5. ALUMINUM PANS
6. BRONZE PANS
7. COPPER POTS
8. PANS WITH FEET
2
Ceramic Pan Aluminum Pan Bottom
not flat Dia smaller than 12 cm (4 IN.) Pan with legs

FEATURES
3

CONTROL PANEL
MODEL NO. IWA-1800
MODELNO. IWA-1500
4
HEAT/TEMP BUTTON
ON/OFF POWER
BUTTON
PAN HEATING LIGHT /
SUITABLE PAN
INDICATOR
HOLDING
TEMPERATURE
MODE INDICATOR
LIGHT
COOKING POWER
MODE INDICATOR
LIGHT
HEAT/HOLDING
TEMPERATURE
LEVELINDICATOR
LIGHTS HEAT/HOLDING
TEMPERATURE
ADJUSTMENT
SWITCHES

CONTROL KEYS DESCRIPTION
POWER
PRESS THE ‘ON/OFF’ BUTTON TO TURN THE UNIT ON.
PRESS THE ‘ON/OFF’ BUTTONAGAIN TO TURN THE UNIT OFF.
HEAT-TEMP FUNCTION
PRESS HEAT-TEMP BUTTONTO SELECTEITHER:
☆“HEAT” POWER LEVEL CONTROL:
USE FOR MAXIMUM HEATING POWER FOR STIR FRY, OMELETS, ETC.
PRESS THE UPARROW BUTTON TO SET HIGHER POWER,
PRESS THE DOWNARROW BUTTON TO SET LOWER POWER.
COOKING POWER LEVEL
LOW ●●●●●MED ●●●●●HIGH
●●●●●●●●●
☆“TEMP” HOLDING TEMPERATURE CONTROL:
USE FOR DELICATE SAUCES OR TO MAINTAINACONSTANTTEMPERATURE
AFTER COOKING-FUNCTION.
PRESS THE UPARROW BUTTONTO SETHIGHER TEMPERATURE.
PRESS THE DOWN ARROW BUTTON TO SET LOWER TEMPERATURE.
●●●●●●●●●
110 135 170 200 250 330 410℉
HOLDING TEMPERATURE
5

SAFETY DEVICE
OVERTIME DETECTOR
IF THE PAN IS LEFT ON THE INDUCTION RANGE FOR MORETHAN 2 HOURS, IF THE
USER DOES NOT OPERATEANY FUNCTIONS FOR MORE THAN 2 HOURS,THE RANGE
WILLAUTOMATICALLY SHUT OFF.
AUTOMATIC SAFETY SHUT-OFF
IF THE INDUCTION RANGE IS LEFTFOR MORE THAN 60 SECONDS WITHOUTAPAN OR
WITHAN INCOMPATIBLE PAN, THE UNIT WILLAUTOMATICALLY SHUT OFF.
MATERIAL COMPATIBILITY DETECTOR,
IF THE PAN’S MATERIALOR IT’S DIMENSIONSARE NOT SUITABLE FOR THIS
INDUCTION RANGE, THE PAN INDICATOR WILLNOTLIGHT.
SMALL OBJECT DETECTOR
THE INDUCTION RANGE WILLNOT RECOGNIZEANY OBJECTS OR UTENSILS SMALLER
THAN 2 INCHES IN DIAMETER. FOR BEST RESULTS, USE PANS THANARE BETWEEN
5AND 10 INCHES IN DIAMETER.
OVERHEATING PROTECTION DEVICE
IF THE PAN’S TEMPERATURE BECOMES TOO HIGH, THERE WILL BEASHORT
WARNING SOUND. YOU MUST EITHER LOWER THETEMPERATURE OR SELECTA
LOWER HOLDING TEMPERATURE WITHIN 60 SECONDS. IF THETEMPERATURE
REMAINS TOO HIGH, THE UNIT WILL SHUT OFFAUTOMATICALLY.
It’s recommended that user’s of pace makers do not operate this equipment. Or,
during operation of the cooking, remain at least 2 feet from the cooker.
6

SPECIFICATION
MODEL NO. IWA-1800 IWA-1500
VOLTAGE 120V / 60Hz
VITRO-CERAMIC GLASS APPROX. 10 3/4 INCHES X 10 3/4 INCHES
ELECTRICAL POWER CONSUMPTION MAX. 1800W MAX. 1500W
ELECTRICAL POWER RANGE APPROX. 300W-1800W APPROX. 300W-1440W
ETLus approval for
Commercial Cooking
Appliances
ETLc approval for
Commercial Cooking
Appliances
FCC part 18 FCC part 18
APPROVALS
NSF NSF
◆Over Time Protector
◆Automatic Safety Shut-Off
◆Material Compatibility Detector
◆Small Object Detector
SAFETY DEVICE
◆Overheating Protection Device
(W) 33.6cm x (D) 42.4cm x (H) 100cm
DIMENSION (13.23 in. x 16.69 in. x 3.93” in.)
6.15 Kgs.WEIGHT 13.55 Lbs.
7

FEDERAL COMMUNICATION (FCC) STATEMENT
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 18 of the FCC rules.
These limits are designed to provide reasonable protection against
radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for
help.
Warning:
Use only shielded cables to connect I/O devices to this equipment.
You are cautioned that changes or modifications not expressly
approved by the party responsible for compliance could void your
authority to operate this equipment.
This device complies with Part 18 FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received including
interference that may cause undesired operation.
8

M
